Customization: Available
Warranty: 2 Years
Application: Home Appliance, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry
Send Inquiry

Product Description

📋 Basic Information
Model NO.
PM-3015 3000W
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Laser Type
Max
Laser Maximum Power
3000W
Max. Cutting Thickness
35mm
Continuous Working Time
24 Hours
Environment Temperature
0-35°c
Origin
China
HS Code
8461500090
⚙️ Product Description

CNC fiber laser cutting machine

A laser cutting machine is a technology that uses a high-power density laser beam to cut materials. The laser beam is directed by a computer-controlled system onto the material, causing it to melt, burn, vaporize, or be blown away by a jet of gas, leaving a high-quality edge finish.

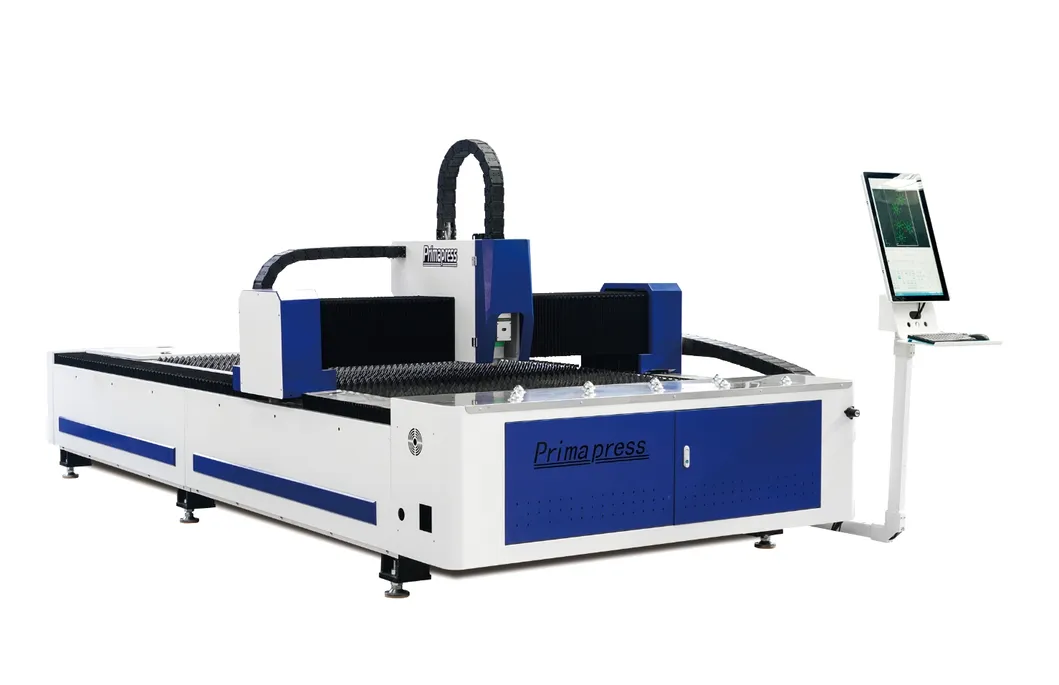

Fiber Laser Cutting Machine

Key Features:

  • Precision & Speed: Capable of cutting complex shapes with high accuracy and efficiency.
  • Versatility: Suitable for metals (e.g., steel, aluminum), plastics, wood, ceramics, and more.
  • Non-contact Process: Eliminates mechanical stress, reducing material deformation.
  • Automation: Integrated with CNC systems for programmable and repeatable cuts.

Types & Applications:

  • Fiber Laser Cutting Machine: Dominates industrial applications, especially for metal sheets.
  • CO2 Laser Cutting Machine: Used for non-metallic materials and thicker metals.
  • YAG Laser Cutting Machine: Solid-state laser ideal for precision metal parts.
  • Automotive, aerospace, electronics, and construction components.
🎥 Video Reference
https://youtu.be/3odubzf8xm8
https://youtu.be/yS-WzkPGMsA
https://youtu.be/lHYpNBhGC3Y
https://youtu.be/pcP0axVrA-Y
📊 Technical Parameters
Parameter Item Specification Details
ModelPM 3000W Fiber Laser cutting machine
Laser TypeMAX
Laser Wavelength1070nm
Laser Maximum Power3000W
Max. Cutting ThicknessCarbon steel 20mm, Stainless steel 10mm, Brass 8mm
Total Power Consumption< 30KW
Working Size3000X1500mm
Max. Cutting Speed0-80m/min (Depending on material)
X, Y, Z Axis PrecisionOrientation: ≤±0.05mm/m | Repeat: ≤±0.03mm/m
Driving SystemJapanese FUJI servo motors system
TransmissionY-axis gear rack double driver, X-axis ball screw
Power Requirements220V/380V / 50Hz or 60Hz
🖼️ Gallery Showcase

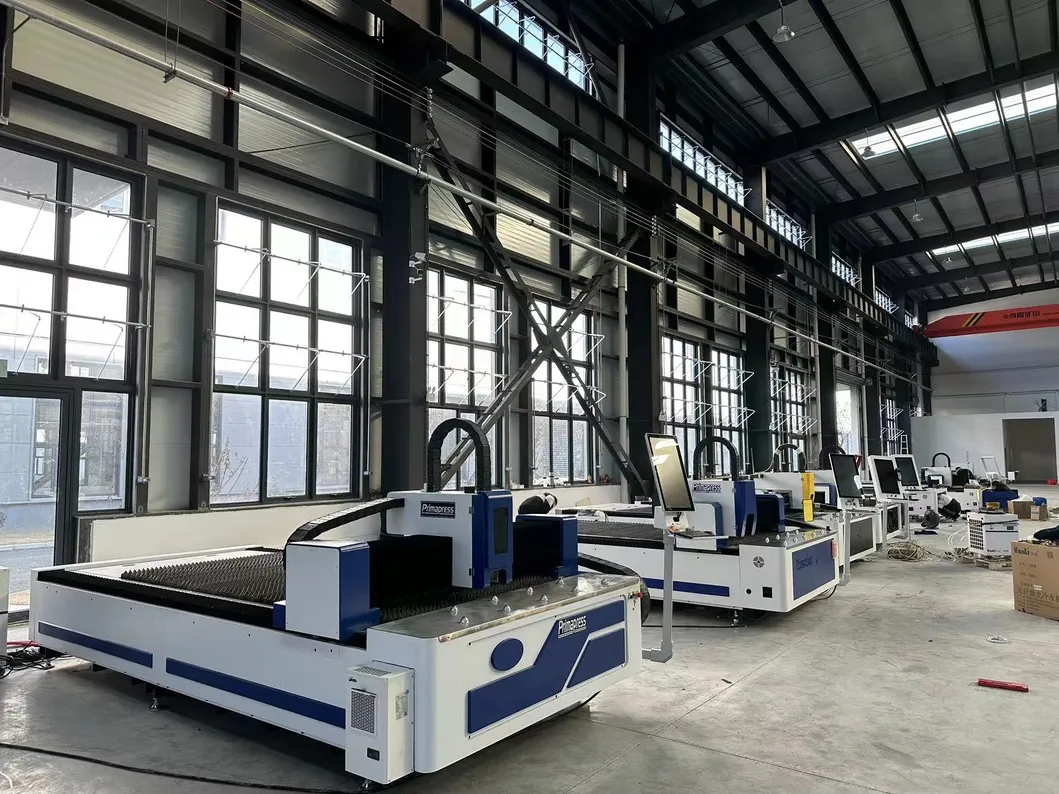

Machine Detail 1

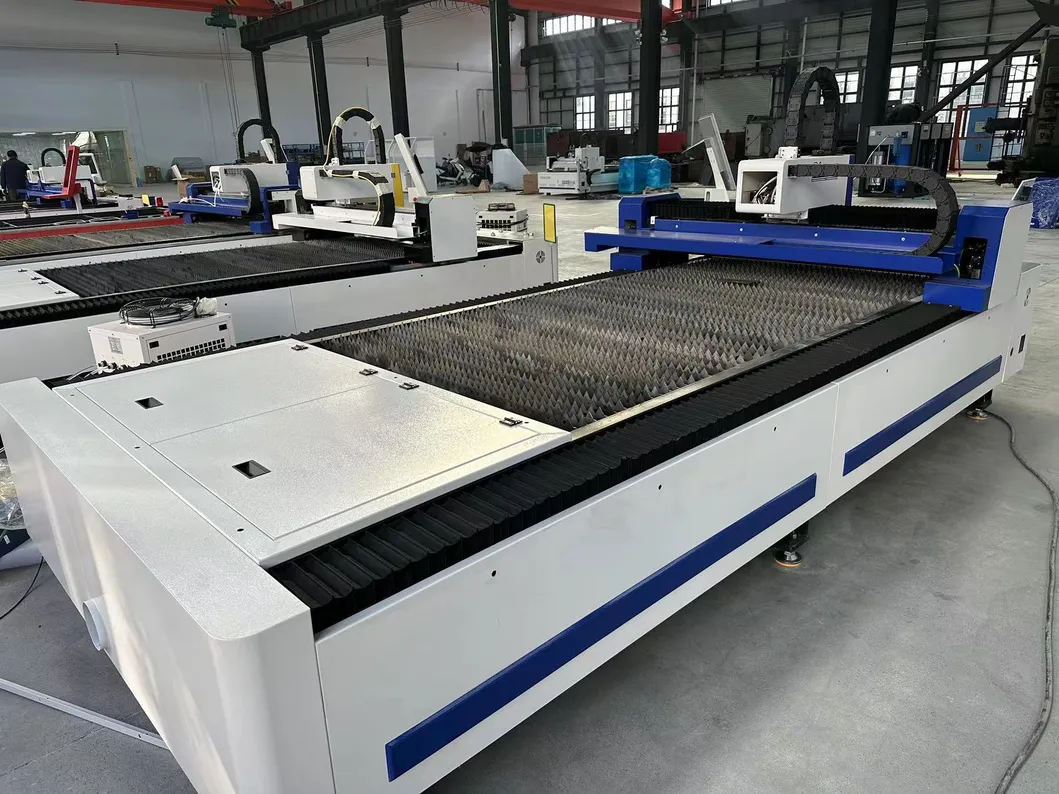

Machine Detail 2
Machine Detail 3

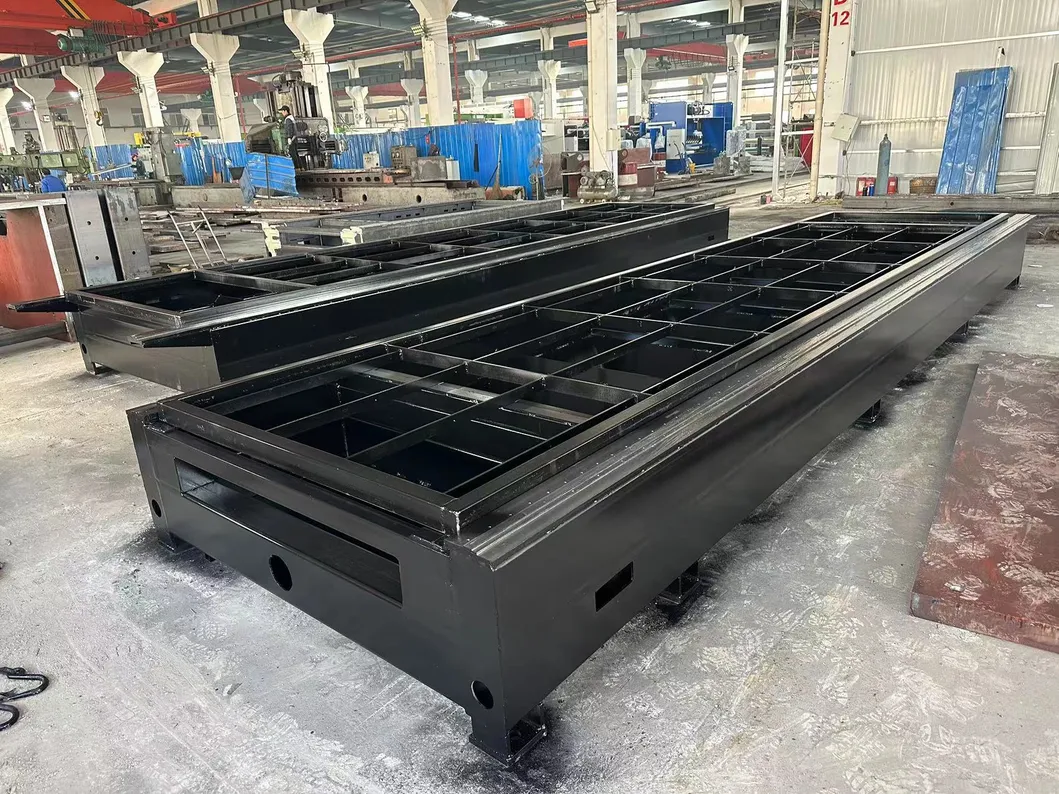

Machine Detail 4

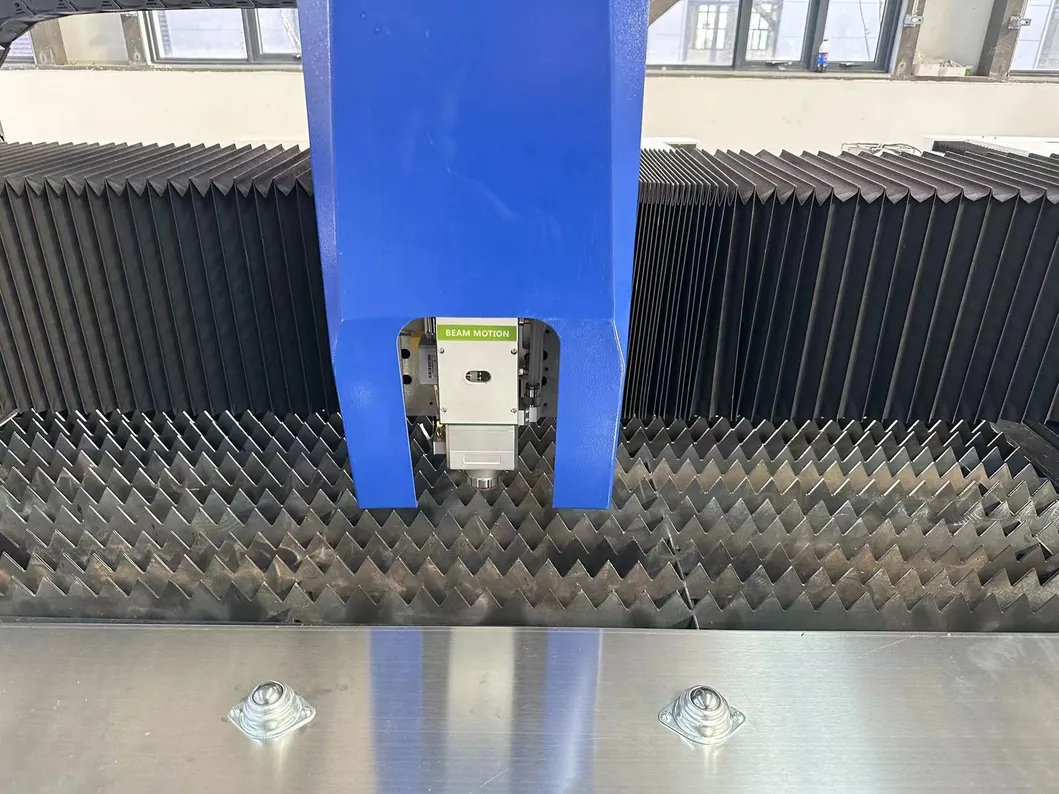

Machine Detail 5
❓ Frequently Asked Questions
How to get an accurate quotation from us?
Please provide us with detailed information of material, max thickness and max width.
Can you provide OEM service?
Yes, we can. Your design is accepted and your own logo can be used on the machine.
How much is the shipping cost from China to your country?
We can send the machine to your port or door address by sea. Please tell us your nearest port or address and zip code.
What are the payment terms?
Usually our payment is 30%+70% T/T, though payment by L/C is also acceptable.
How to operate this machine?
Training videos from our factory are provided, or we can send you instructional videos directly.
Do you provide teaching and training?
Yes, we offer professional training services at the supplier's factory.
