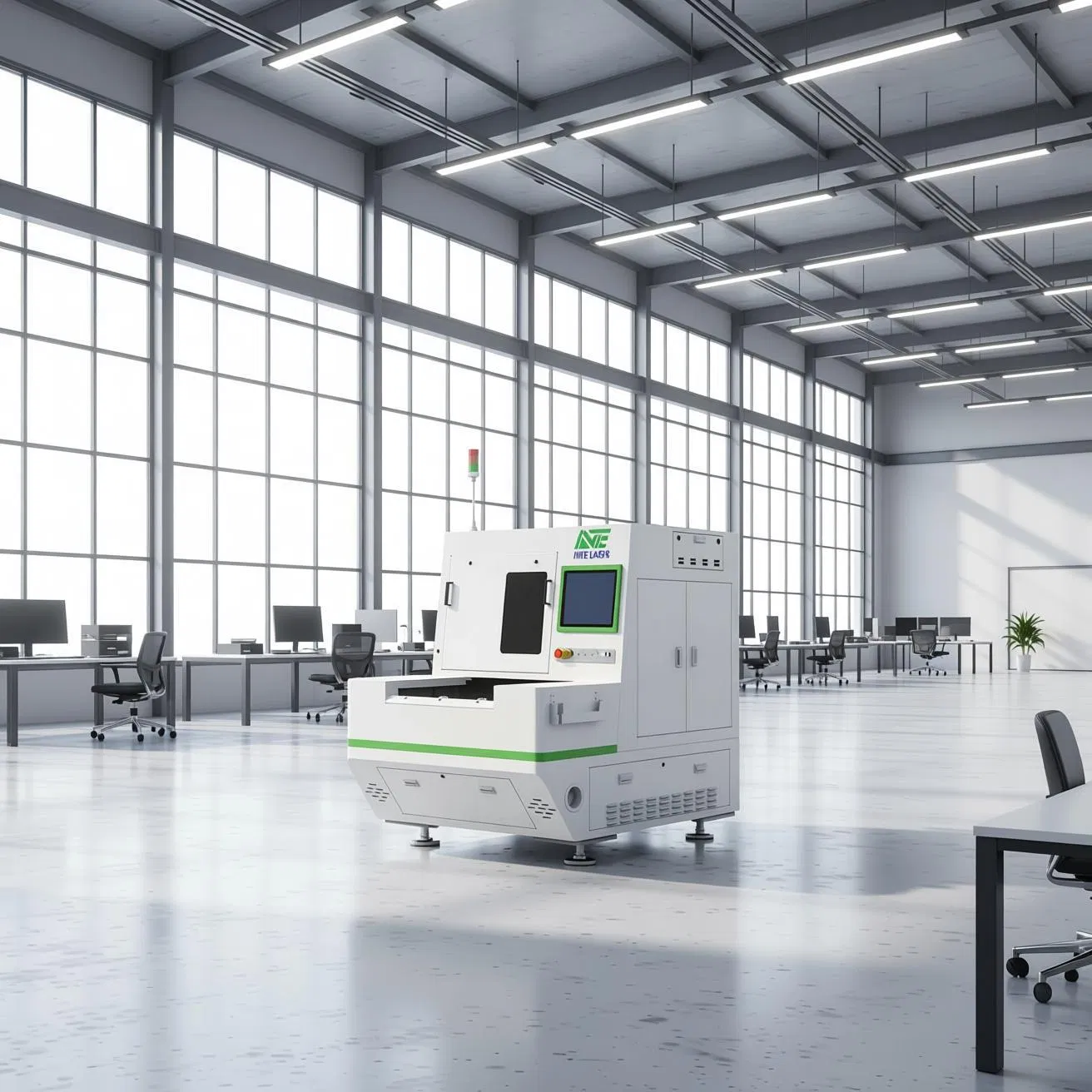

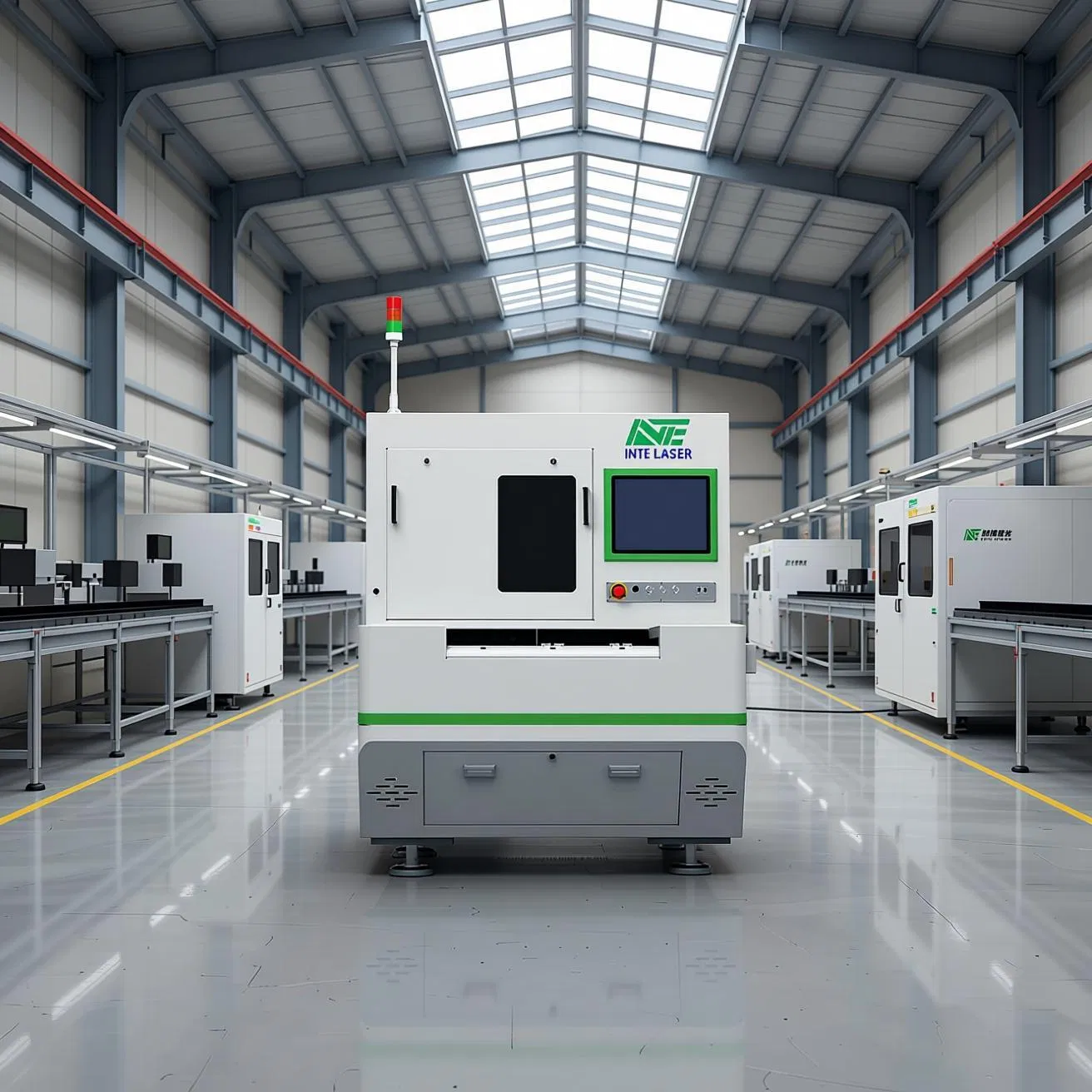

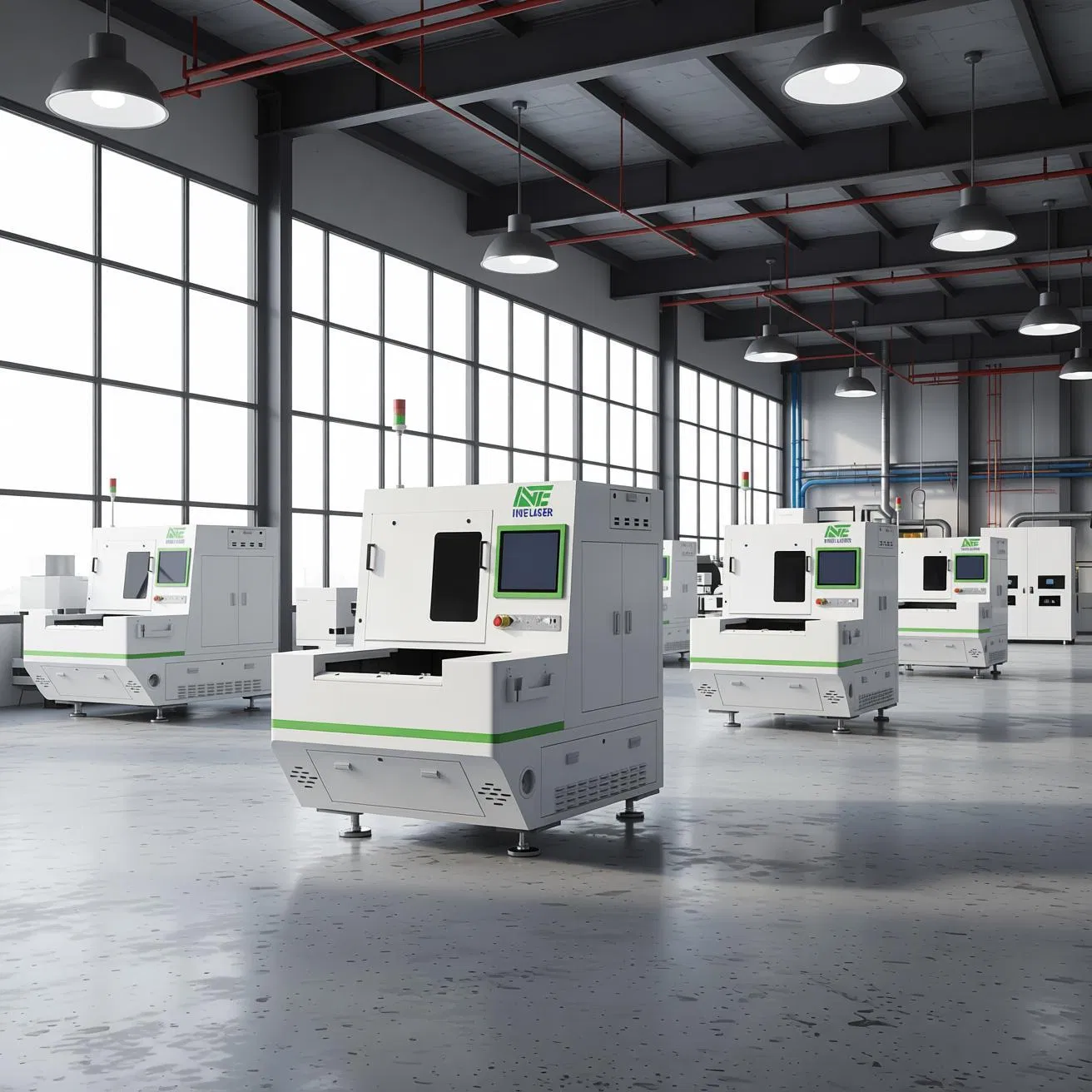

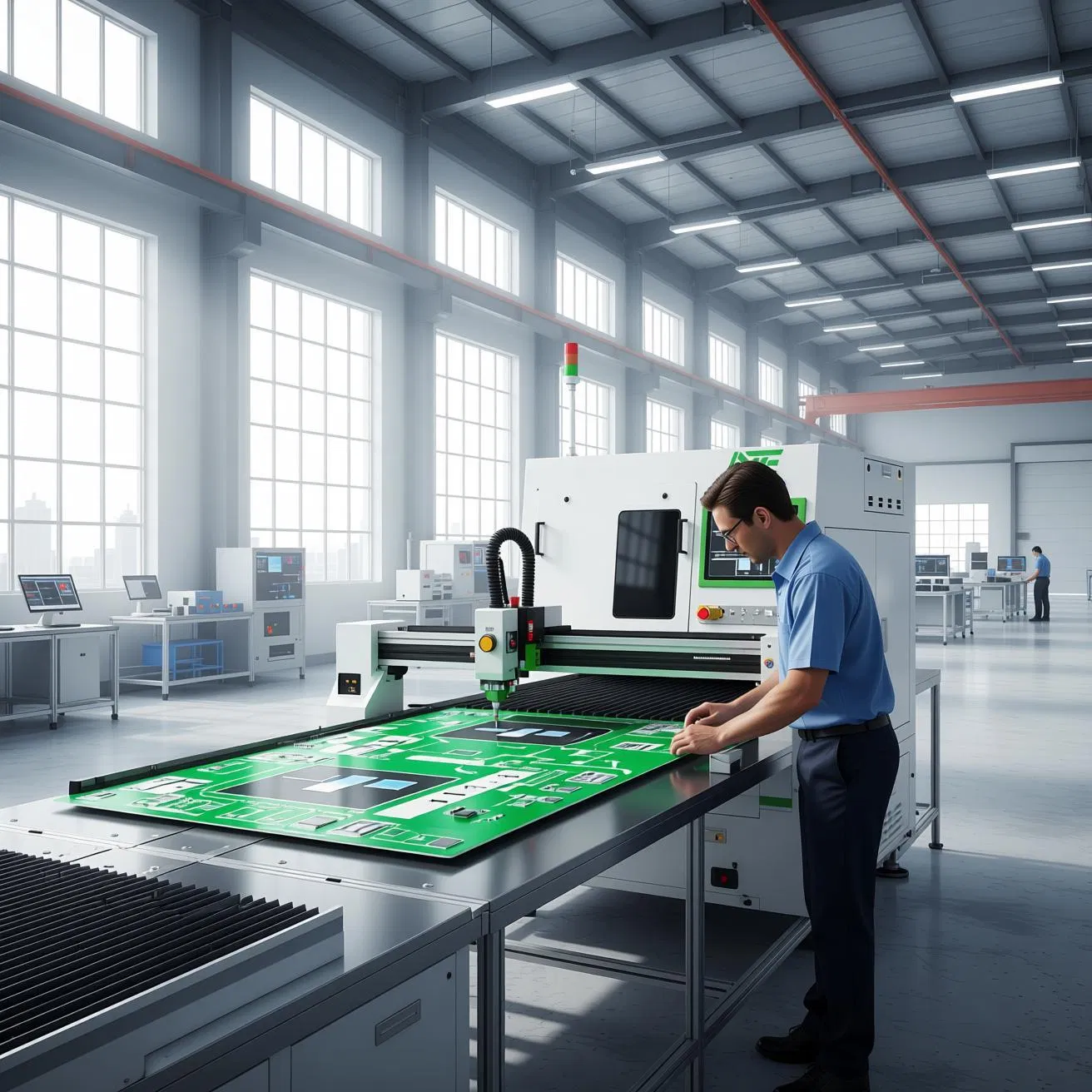

FPC Window Cutting Equipment with Picosecond/Nanosecond UV Laser - High Precision (±0.02mm), 100% Yield Rate, 0.15mm Minimum Pad Size for FPC Manufacturing
Basic Specifications
| Model NO. | YT-003 |
|---|
| Application | Environmental Equipment, Petroleum Machinery, Aerospace, Automotive, Advertising, Optical Industry |
|---|
| Cooling System | Water Cooling |
|---|
| Technical Class | Pulse Laser |
|---|
| Laser Type | Picosecond UV / Nanosecond UV |
|---|
| Processing Accuracy | ±0.02mm |
|---|
| Min Pad Size | 0.15mm |
|---|
| Power Consumption | 3.5 KW |
|---|
| Processing Area | 500mm × 680mm (Customizable) |
|---|
Product Advantages
✓
Ultra-High Efficiency & 100% Yield Rate: Optimized processing speed boosts productivity, reducing material waste and production costs.
✓
Eliminate Traditional Process Defects: Solves issues like excess adhesive overflow in conventional FPC manufacturing.
✓
Exceptional Accuracy: ±0.02mm machine processing accuracy prevents pad misalignment.
✓
Micro-Scale Capability: Supports advanced electronics with fine-pitch components (0.15mm min pad size).
Technical Breakthroughs
▶Dual Laser Technology (Picosecond & Nanosecond)
▶Rigid machine structure for stability
▶Integrated touchscreen control system
Value Creation
▶Significant cost savings via reduced rework
▶Enhanced electrical connection reliability
▶Scalable for prototypes and mass production
Application Areas
- FPC Manufacturing: Smartphones, tablets, and IoT devices.
- Consumer Electronics: Cameras, batteries, and display modules.
- Automotive Electronics: Infotainment systems and sensors.
- Medical Devices: Wearable health monitors and implantable devices.

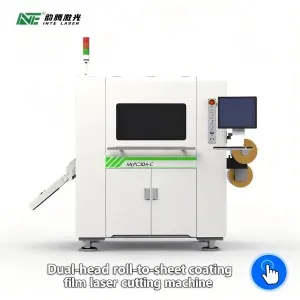

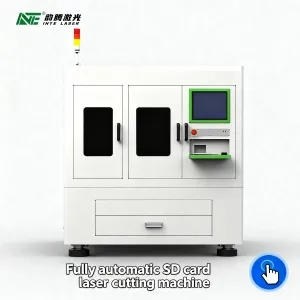

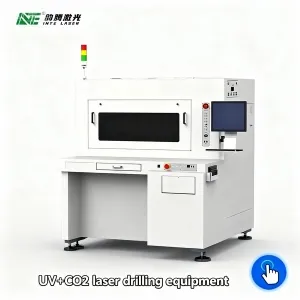

Related Equipment Models
Research & Development Excellence
Specializing in the independent research and development of laser generators, optical devices, and automation system integration. Providing innovative solutions for laser micromachining including processing technology, laser sources, and technical support.
Frequently Asked Questions
What laser type does this FPC window cutting machine use?
The machine is equipped with Picosecond UV and Nanosecond UV laser technology.
What is the processing accuracy and minimum pad size?
The machine achieves a high processing accuracy of ±0.02mm and can handle a minimum pad size of 0.15mm.
Is the processing area customizable for different FPC sizes?
Yes, the standard processing area is 500mm×680mm, but it can be customized to meet specific production requirements.
How does the UV laser improve the yield rate compared to traditional processes?
The UV laser provides precise energy control that eliminates adhesive residue (overflow) and prevents pad misalignment, potentially achieving a 100% yield rate.
What industries benefit most from this equipment?
It is ideal for Electronics Manufacturing, FPC/PCB production, Automotive Electronics, and Medical Device manufacturing.
What kind of after-sales support is available?
We provide 24/7 technical assistance and a 1-year warranty to ensure continuous production stability.
