Application
FPC Fr4 PCB Depaneling
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Classification
Fiber Laser
Engraving Method
Vector Engraving
Features
Auto-Positioning Cutting PCB
Workbench
High Precision Linear Motor and Marble Platform
Cutting Path Optimization
Reduces Idle Time, Improves Overall Processing Efficiency
Minimum Cutting Gap
Saves PCB Panel Space, Increases Unit Output
Grounding Protection
Avoids Static Damage to Sensitive PCB Components

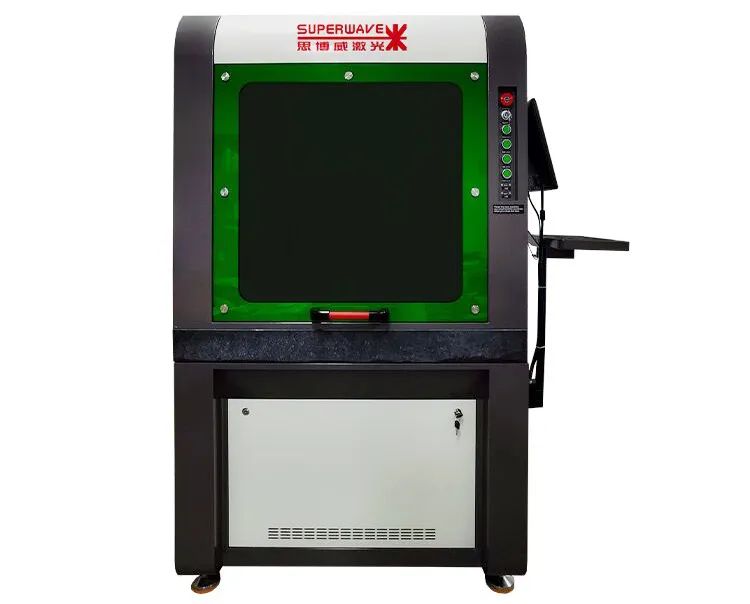

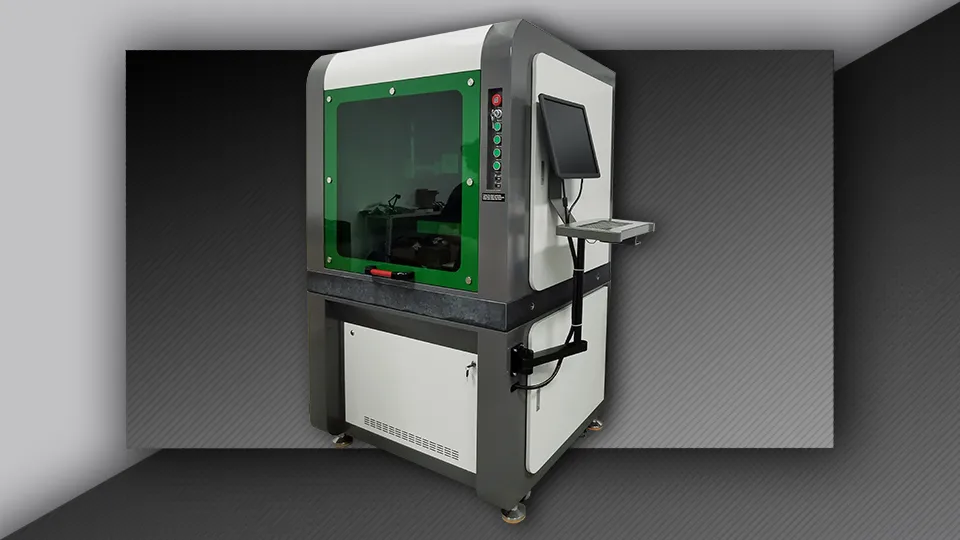

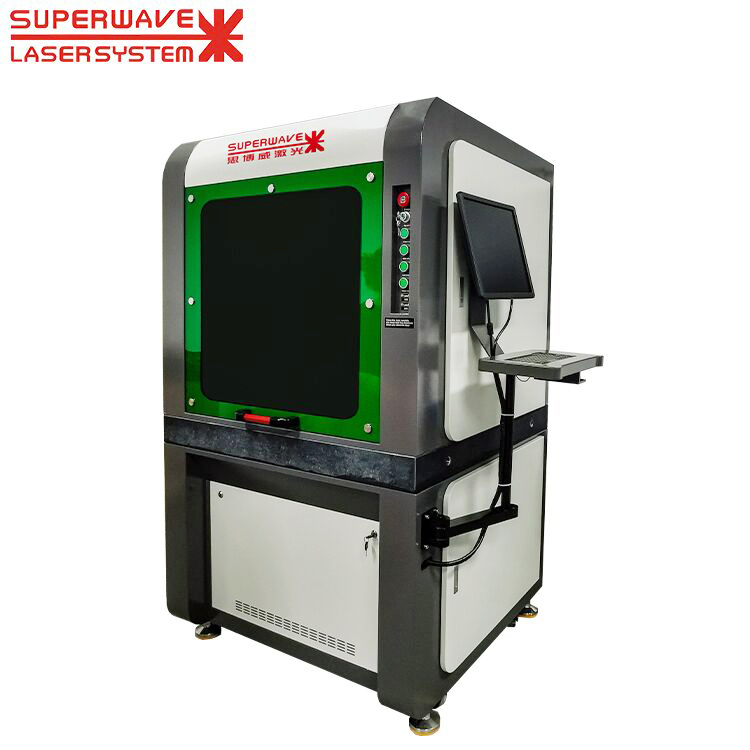

PCB laser depaneling machine is an advanced tool used to separate individual circuit boards from larger panels with high precision and minimal mechanical stress. The machine utilizes laser technology, which provides several advantages over traditional mechanical cutting methods like routing, punching, or V-scoring.
1. High quality cutting edge
The narrow beam diameter of the laser enables precise and high quality processing of the PCB & FPC material.
2. Stress-free processing
Due to the non-contact process, Laser separates the printed circuit boards from the panel without any mechanical stress to the material.
3. Keep clean processing
Fume extraction device exhausts the cutting fumes and keep the boards clean, avoiding dust generated in mechanical processes.
4. Materials diversity
Laser Depaneling can process a wide variety of different substrate materials with ease by varying the process parameters.
Frequently Asked Questions
What materials can this laser machine cut?
The machine is designed for high-precision cutting of FPC, Fr4, PCB, and various metal substrate materials.
Does laser cutting damage sensitive electronic components?
No, the non-contact laser process ensures stress-free separation, avoiding mechanical damage or vibration that could harm sensitive components.
How does the machine maintain precision during continuous work?
The machine features an auto-calibration function that regularly adjusts the laser focus and utilizes a high-precision linear motor with a marble platform for stability.
What file formats are compatible with the software?
The system supports standard industrial formats including .Gerber, .dxf, .plt, and image files like .jpg.
Is the processing environment clean?
Yes, unlike mechanical milling that creates dust, the laser evaporates material, and the integrated fume extraction device exhausts fumes immediately to keep boards clean.
Is there protection against static electricity?
Yes, the machine is equipped with grounding protection to specifically avoid static damage to sensitive PCB components during the cutting process.
