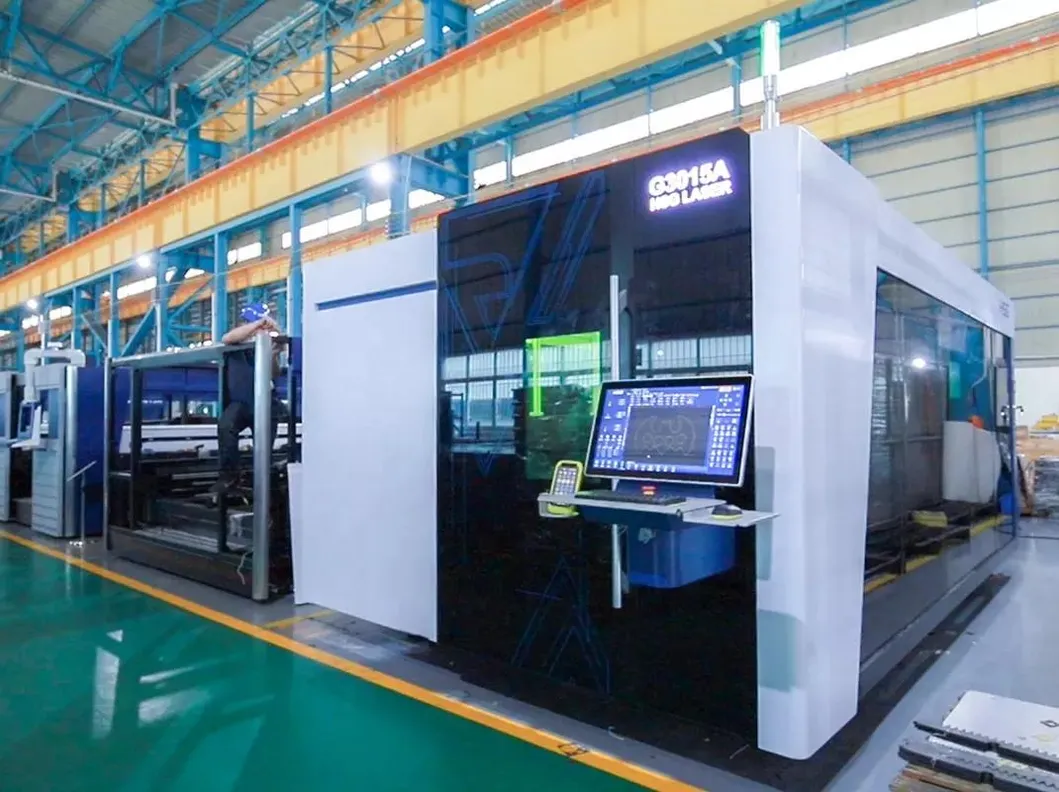

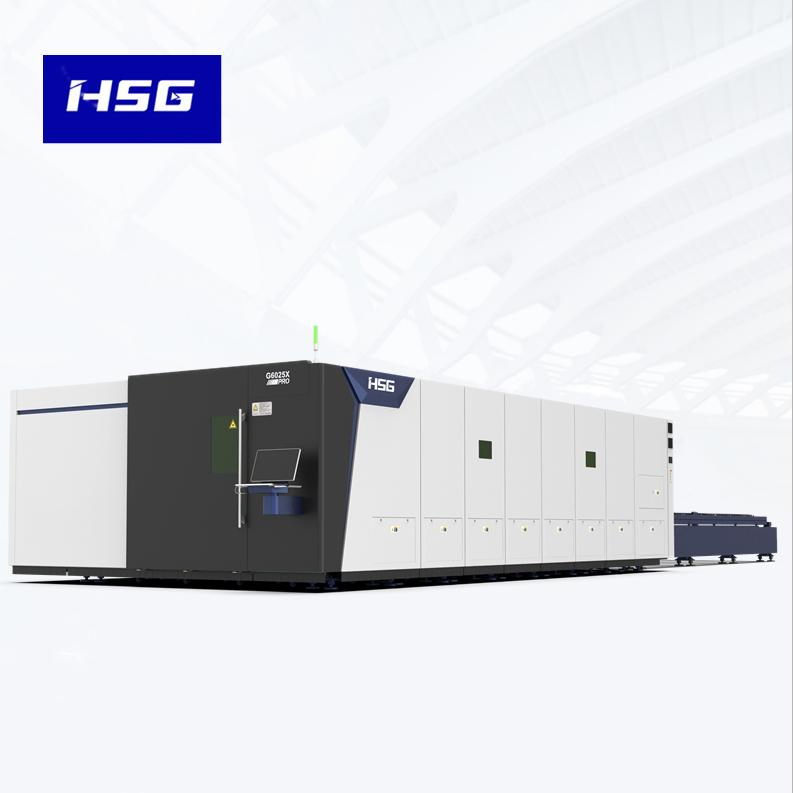

Carbon Steel Large Bed Fiber Laser Cutting Machine
Cutting Table Size Options:
3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm
Key Technical Features:

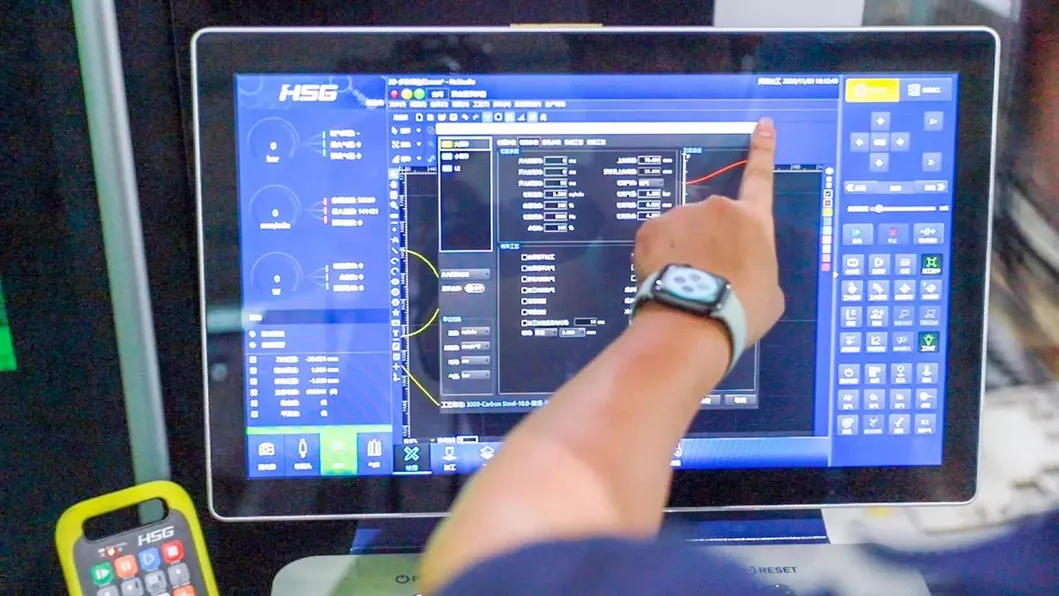

1. Alpha T Bus CNC System
2. Professional Nesting Software
3. Double Exchange Platforms
4. Extruded Aluminum Beam

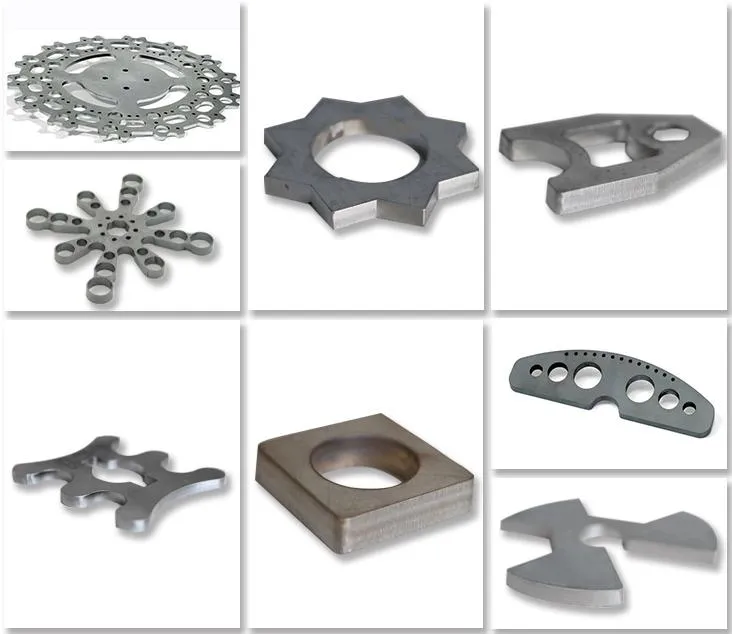

Applications: Primarily suited for sheet metal processing in agricultural machinery, automobiles, aircraft, ships, electrical equipment, lighting advertising, elevator manufacturing, and kitchen appliances.

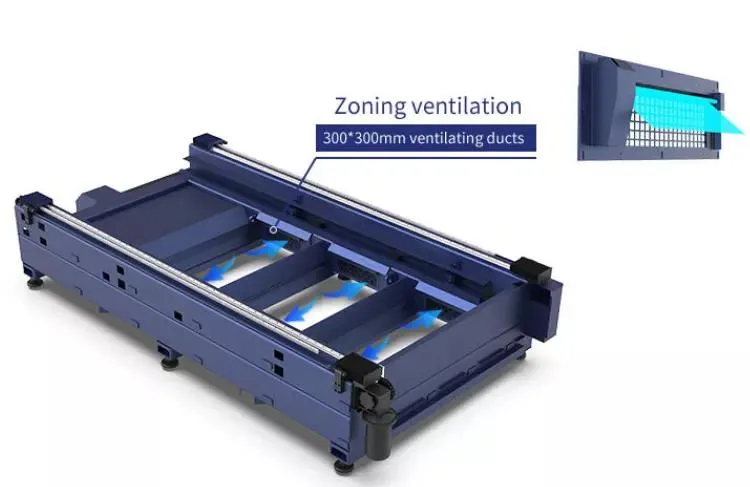

The machine bed has 500Mpa tensile strength and receives annealing and vibration aging to remove stress. Its rear floorstand has reinforced loading points, making thick sheet cutting possible.

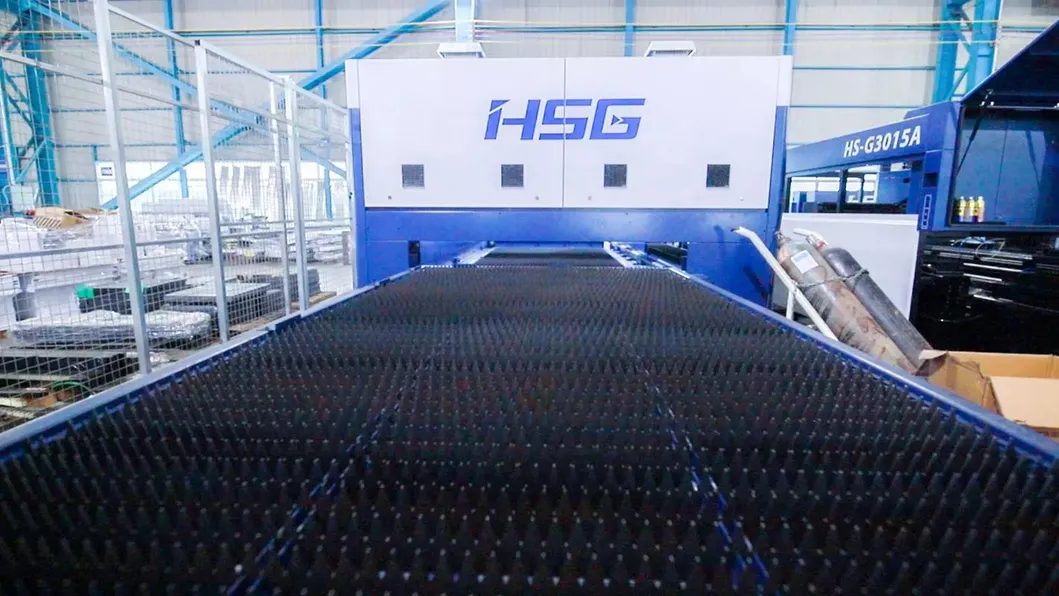

Driven by 16A wide chains and positioned by taper pins. The exchange process is monitored via PLC touch screen. The motor is front-placed to protect the casing and facilitate loading/unloading.
| Model | G3015A IV | G4020A IV | G6020A IV |
|---|---|---|---|
| Power | 1500-6000W | 1500-6000W | 3000-8000W |
| Working Area (L*W) | 3000*1500mm | 4000*2000mm | 6000*2000mm |
| Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Max. No-load Speed | 140m/min | 140m/min | 120m/min |
| Max. Acceleration | 1.5G | 1.5G | 1.5G |
Our professional team provides pre-sale consulting, sample inspection, installation debugging, and personnel training.
