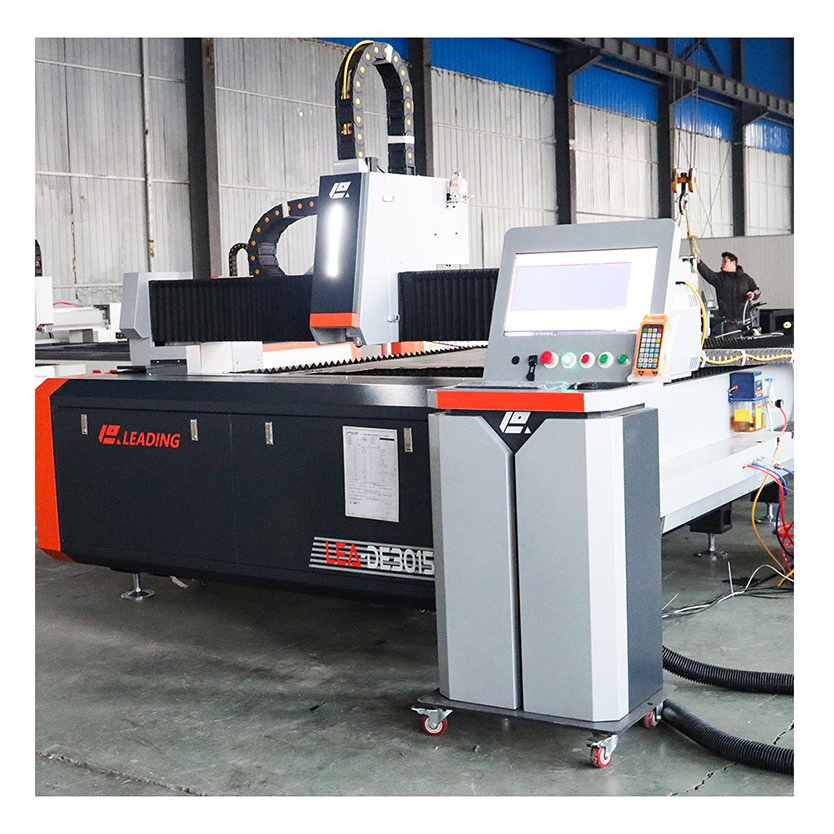

High Power Exchange Platform Servo Motor Laser Cutting Machines Laser

1 / 5

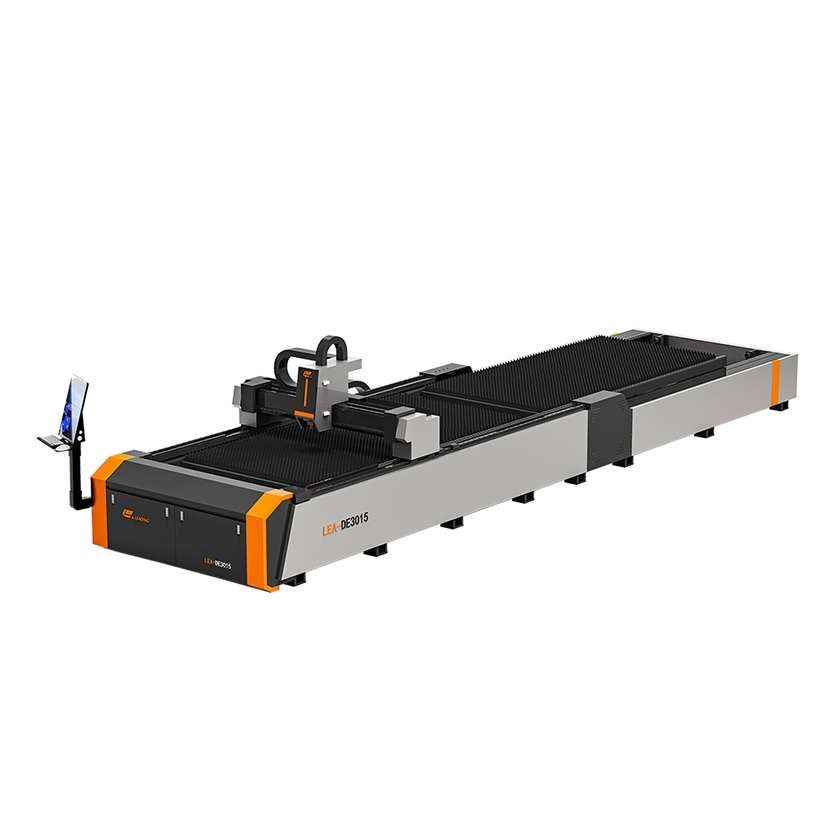

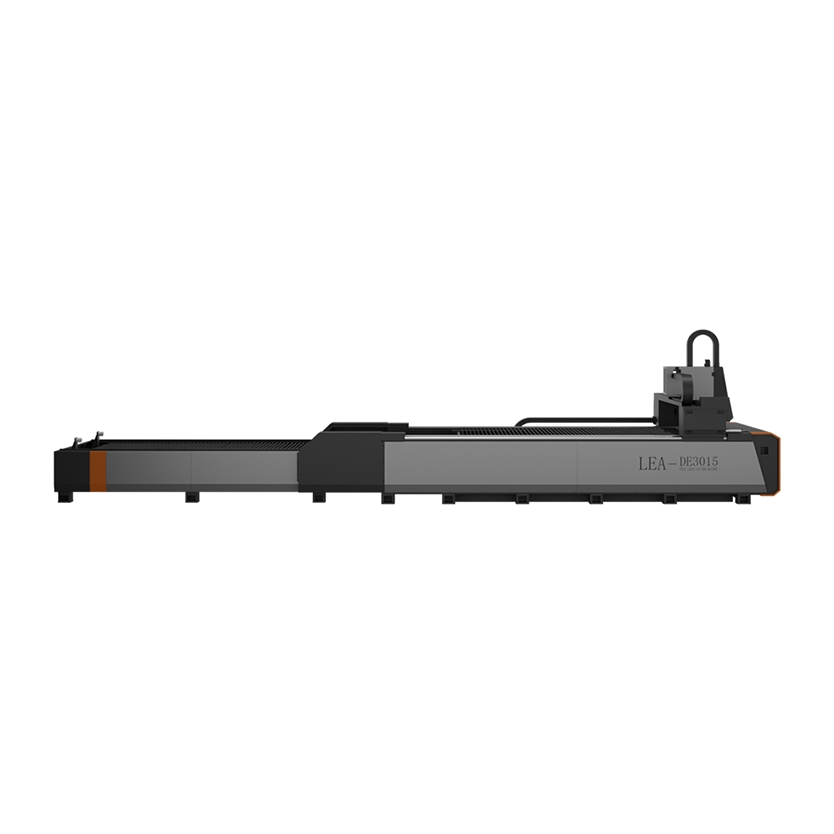

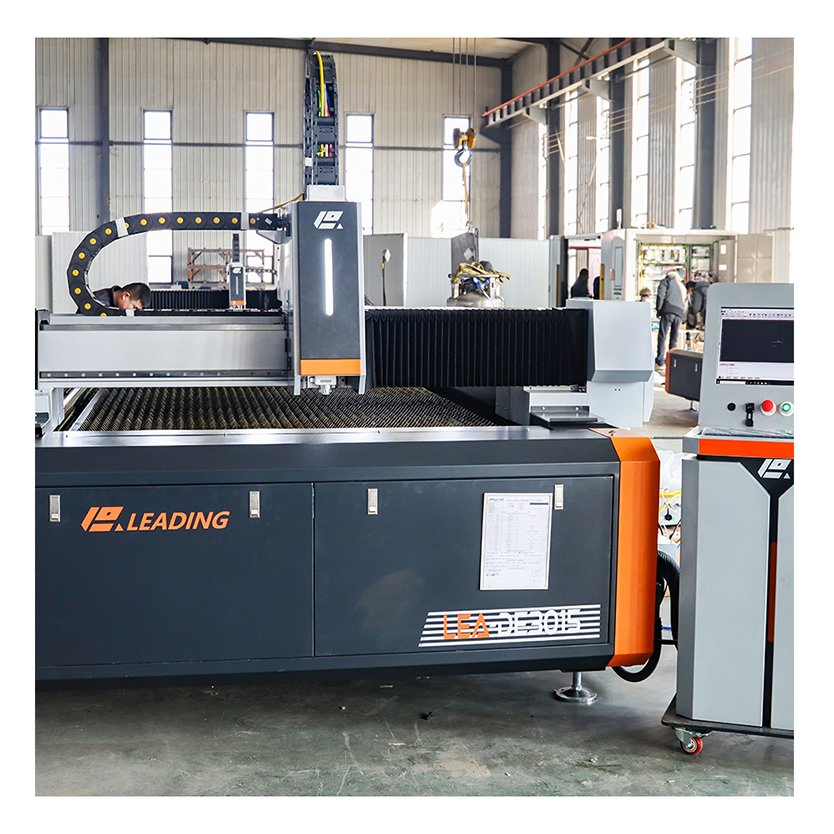

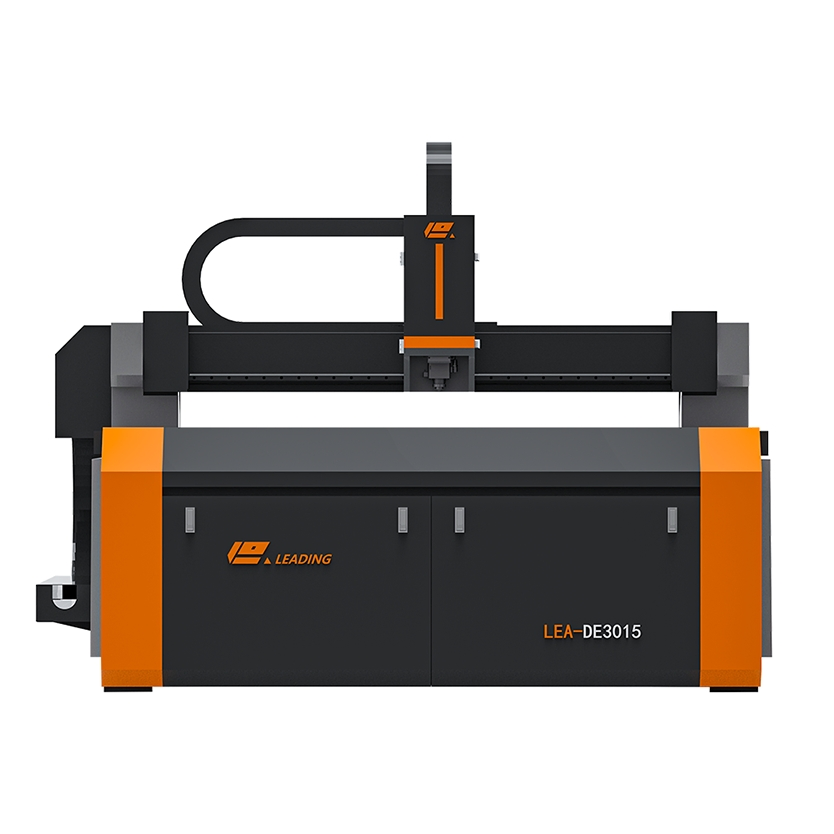

High Power Exchange Platform Servo Motor Laser Cutting Machines Laser

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	3 Years

Send Inquiry

Product Description

Basic Information

Application

Home Appliance, Environmental Equipment, Petroleum Machinery, Agriculture, Textile, Food, Aerospace, Automotive, Advertising

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Gantry Type

Laser Type

Fiber Laser

CNC or Not

Yes

Cutting Thickness

30mm

Laser Source

Raycus

Control System

Cypcut

Cutting Speed

140m/Min

Production Capacity

5000 Pieces/Year

Technical Specifications

Model	LEA-DE3015
Machine bed	Square tube welding
Gantry structure	Aluminum
Working area	3000*1500mm
Machine overall dimensions	1000022601860mm
Overall weight	5500kg

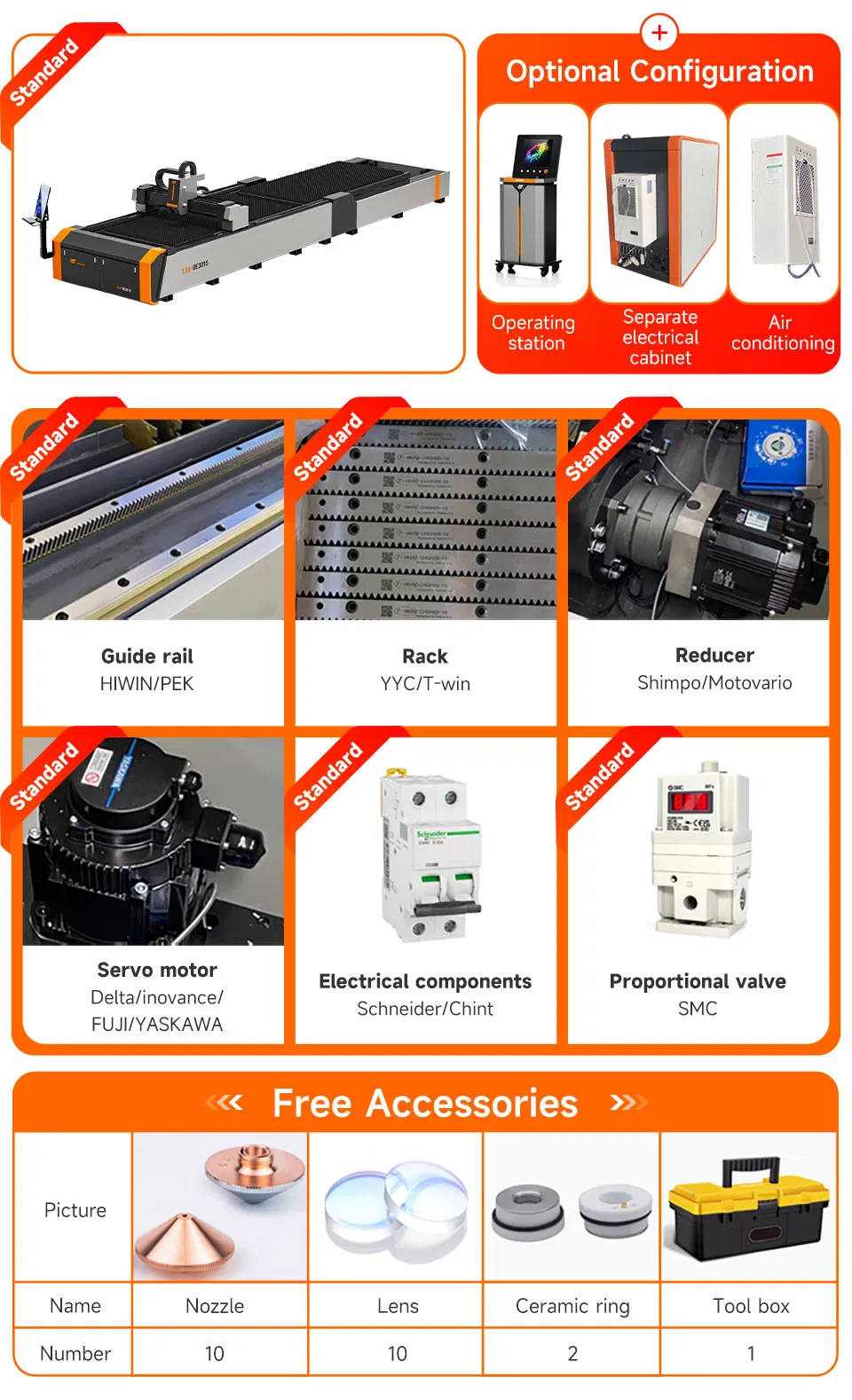

Guiderail	THK/PEK/HIWIN
Laser head	Raytools/Precitec
Laser source	IPG/Raycus/MAX
Servo motor and drive	YASKAWA/FUJI
Control system	Sypcut/WEIHONG
Max linkage speed	100m/min
Max acceleration	1.5G
Positioning accuracy	0.03mm
Laser power	1KW-6KW
Power supply	380V 50Hz/60Hz/60A
Cutting material	Iron/CS/SS/Aluminum/Copper and all kinds metal

Key Features

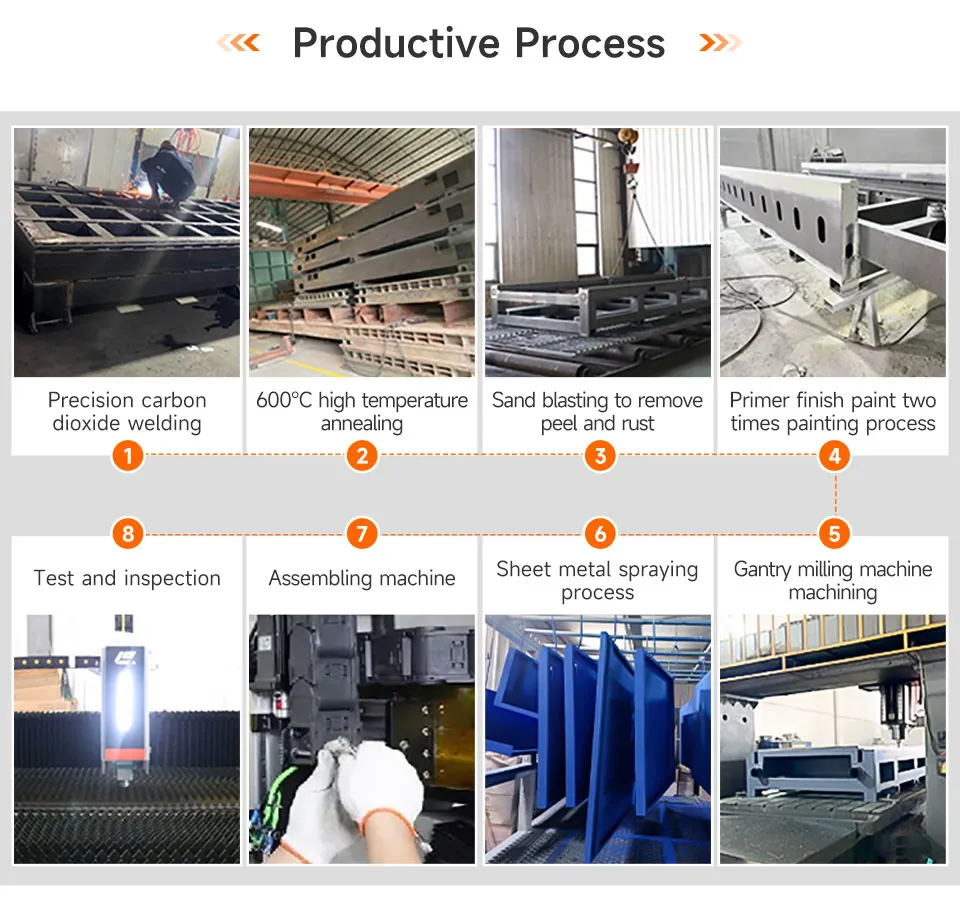

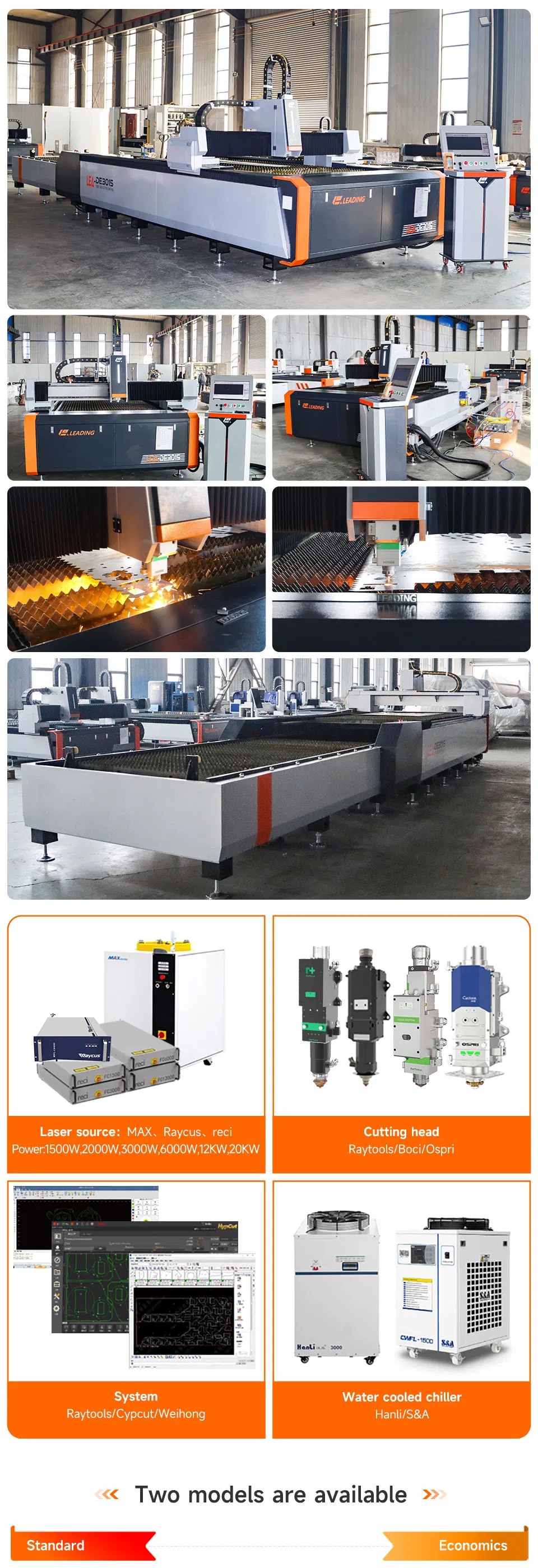

Standard Bed Features (Type A)

1. 8mm plate tenon riveting welding process.
2. Annealing process for long-term stability.
3. Three-layer spraying for maximum durability.
4. Dual-side partition dust and smoke exhaust.

Standard Bed Features (Type B)

1. Welding with 6mm reinforced pipe.
2. Annealing treatment to prevent deformation.
3. Three-layer spray process with primer on both sides.
4. Optional middle partition dust removal.

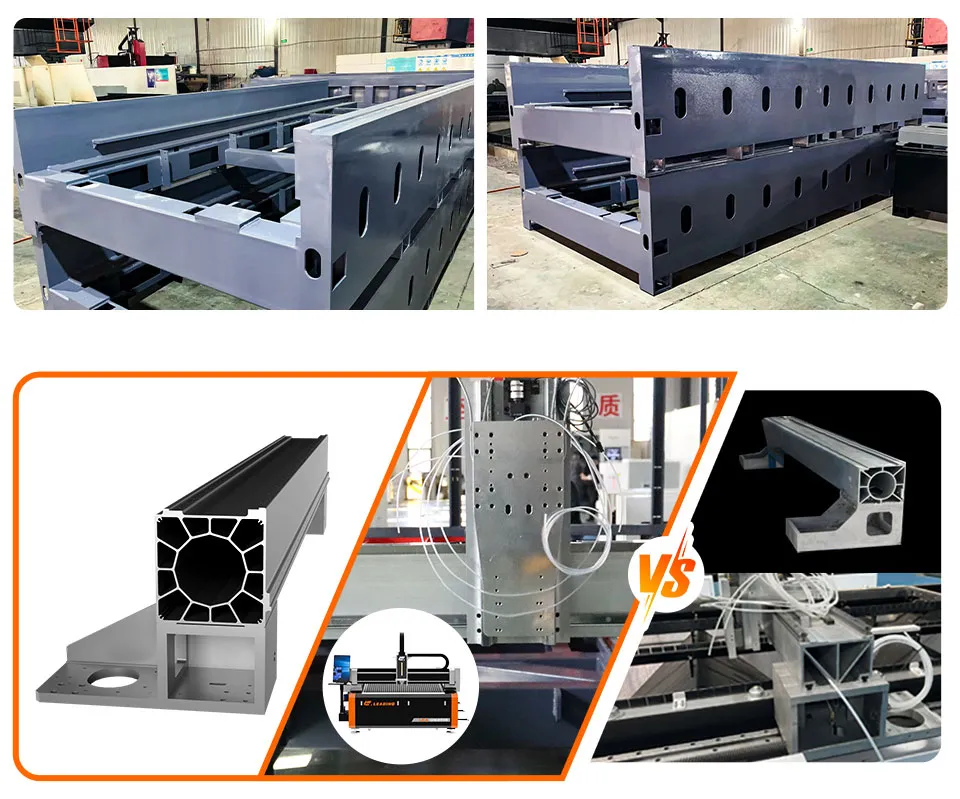

Beam Features

1. Round structure cast aluminum beam, uniform force, stable accuracy.
2. Silver powder coating process, corrosion resistance, beautiful finish.
3. Z-axis slide 130cm (Economic Z-axis also 130cm).
4. Protective spring mechanism.

Product Gallery

Technical Overview

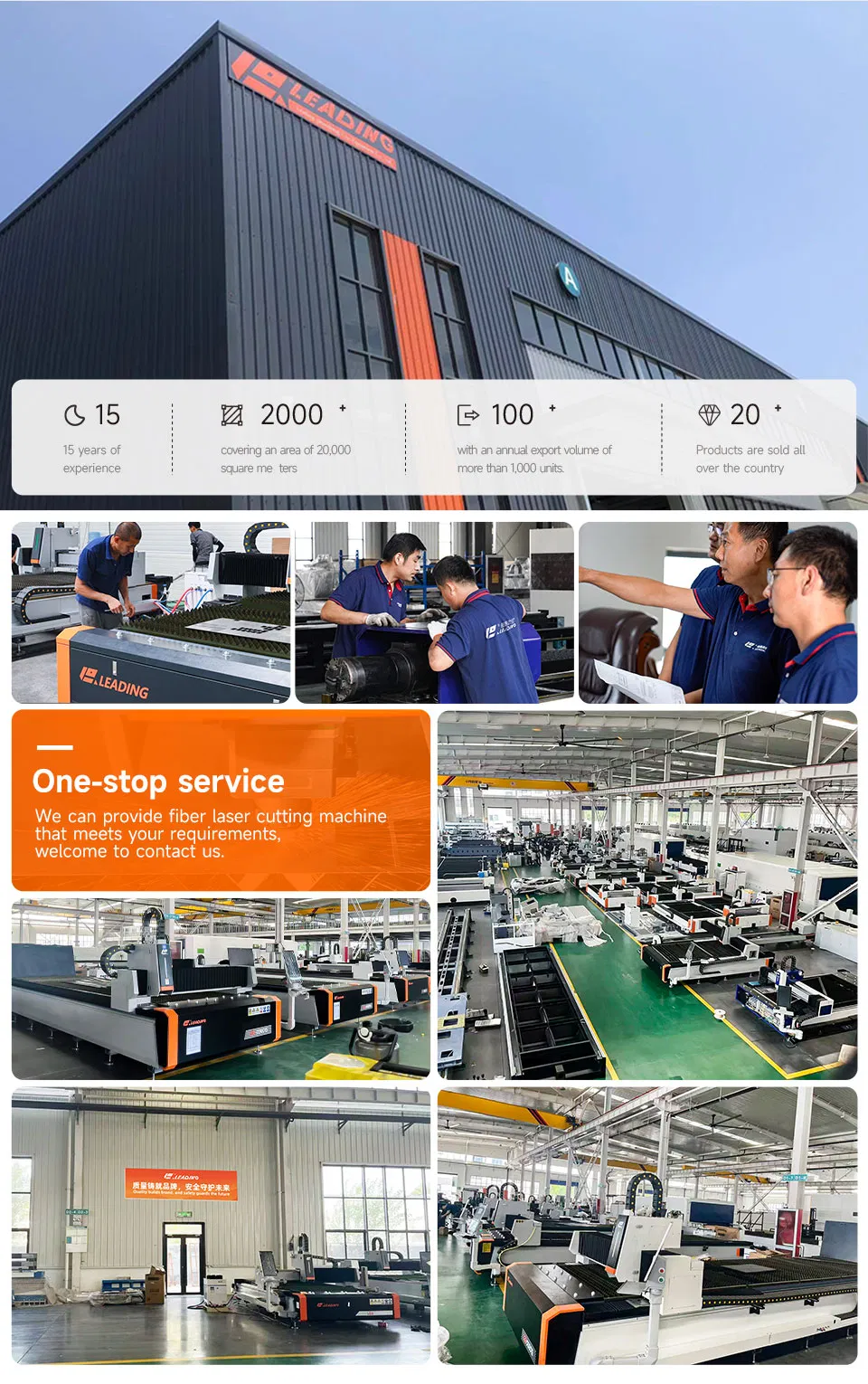

The equipment is an intelligent manufacturing solution committed to high-performance R&D and production. With over 15 years of experience in the mechanical field, the team utilizes large-scale gantry milling machines and modern production equipment. The product range covers specialized fiber laser cutting for light plates and general-purpose fiber laser cutting.

Frequently Asked Questions

What is the warranty period for this machine?

The machine comes with a 2-year warranty, and the laser generator is also covered for 2 years (excluding wearing parts), starting from the completion date.

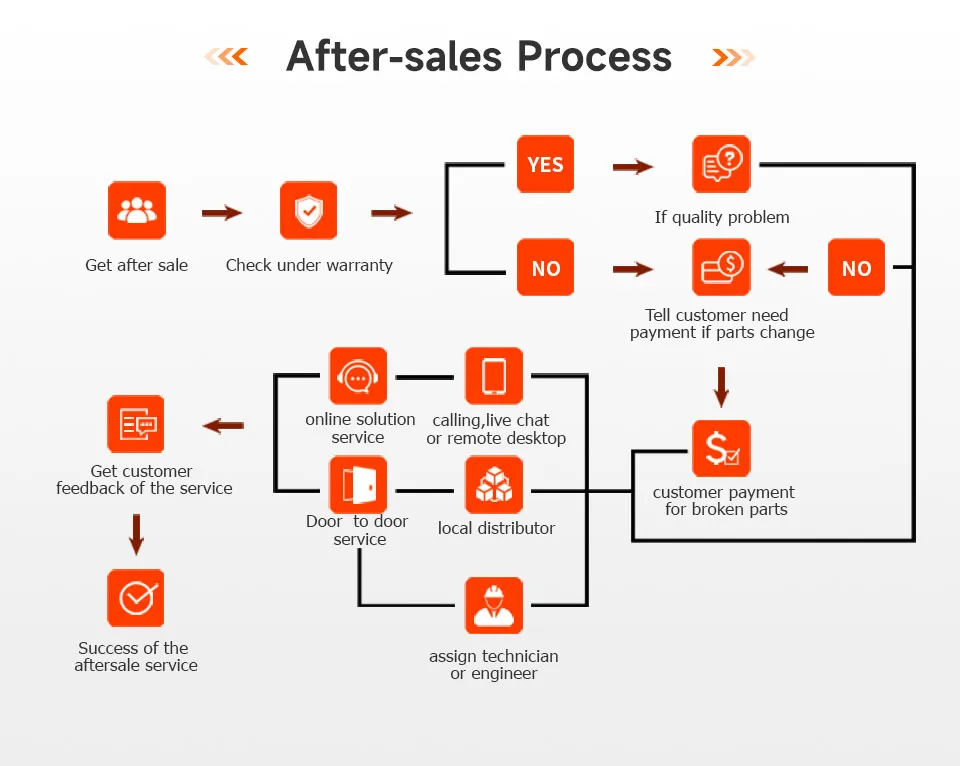

Do you provide technical support after the purchase?

Yes, we provide lifetime maintenance free of charge and a specialized after-sales group available 24 hours online to provide technical support via Email and messaging apps.

Is there any training provided for new users?

We offer a free training course at our plant. For remote customers, we provide detailed manuals and videos, and our after-sales team can guide you via video calls.

Can the machine be used immediately upon delivery?

Yes, the machine is tested and adjusted before delivery, allowing you to use it directly after receiving it.

How difficult is the installation process?

The machine is shipped in a full container with minimal disassembly. You only need to connect the laser source, water chiller, and controller. We provide step-by-step guidance for this.

Do you offer on-site installation and maintenance?

We have professional engineers available for machine installation, commissioning, and maintenance at the customer's location if required.
