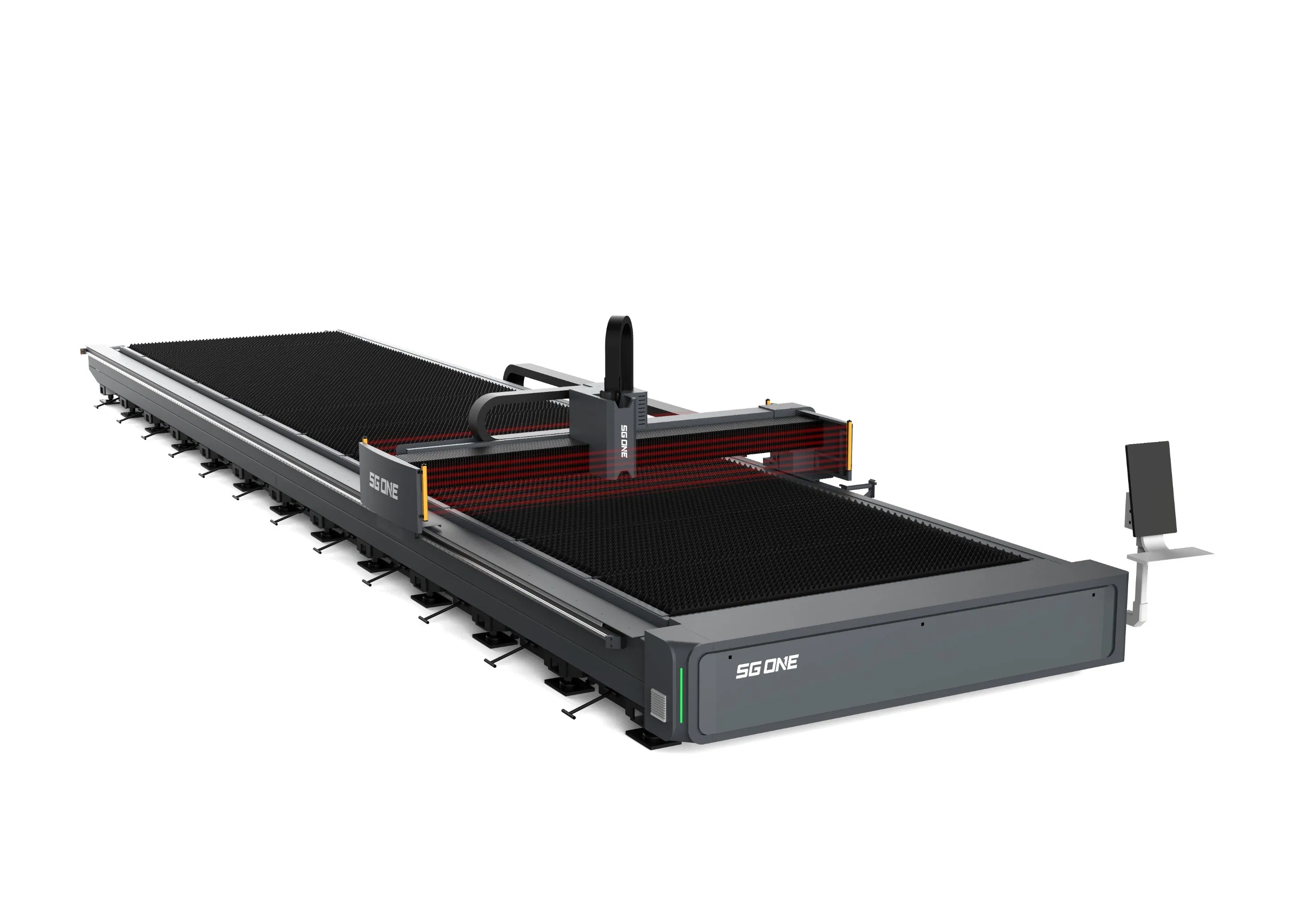

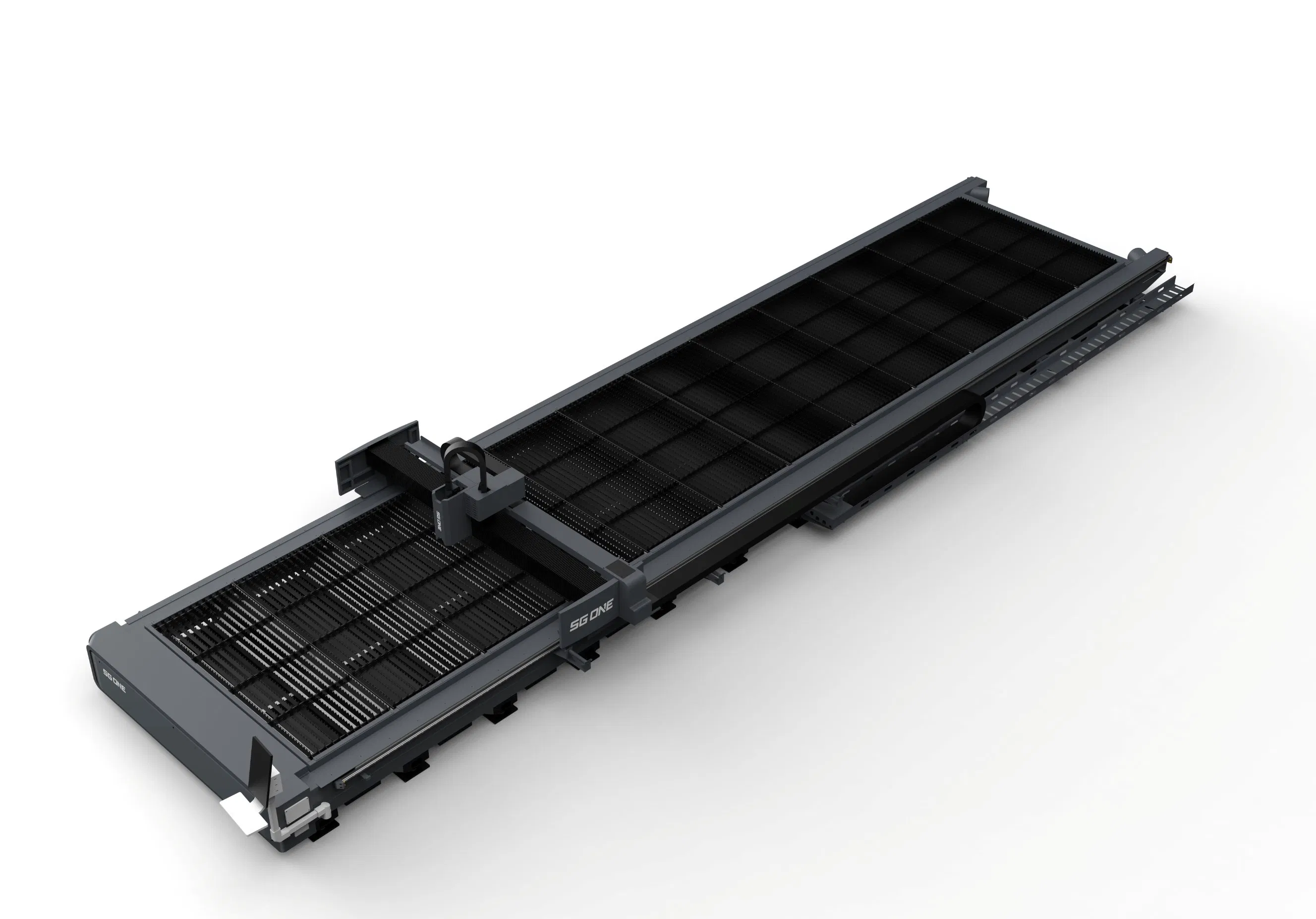

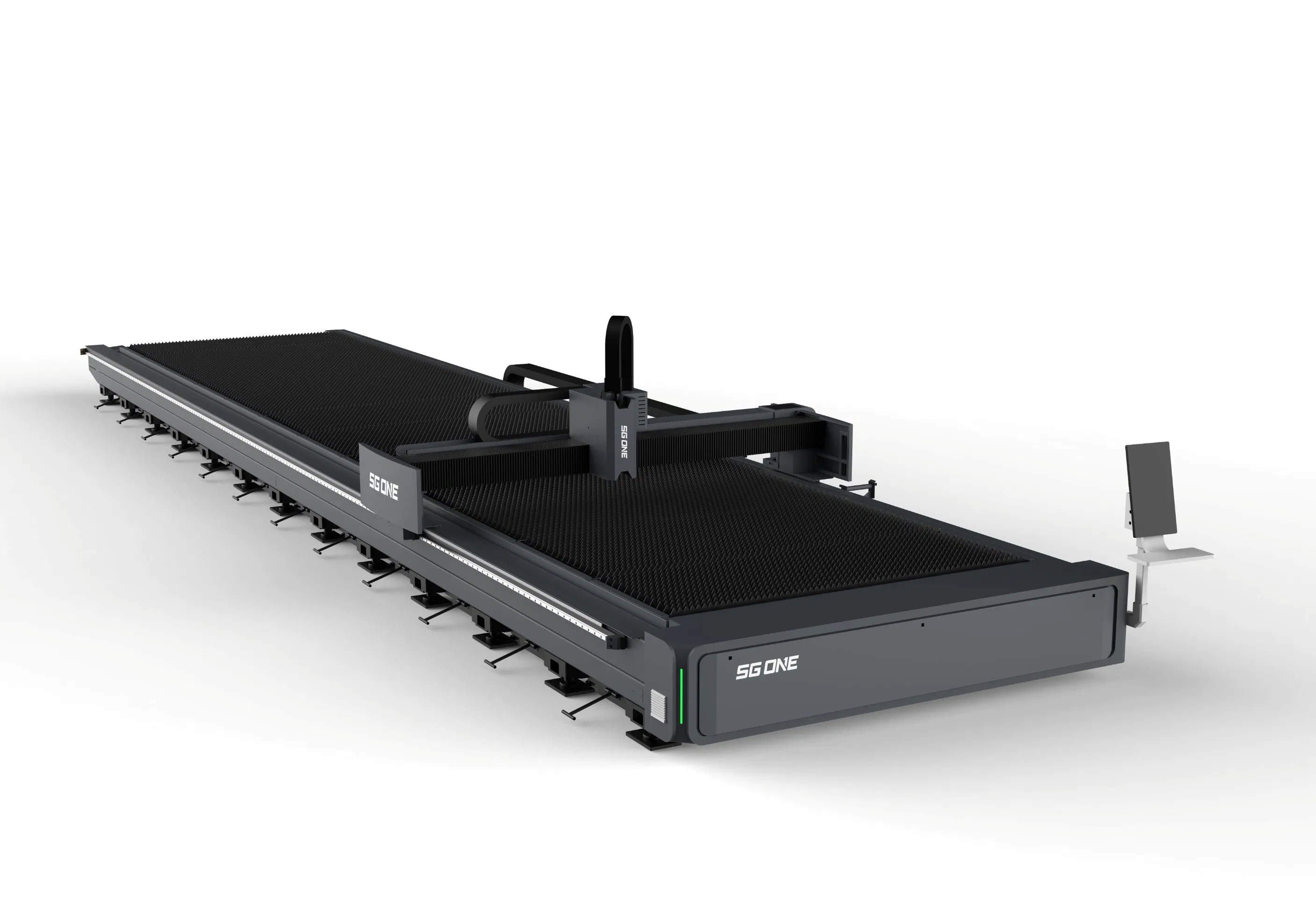

8025 Sheet Metal Industrial Laser Cutting Equipment 3000W 6000W 12kw CNC

1 / 5

8025 Sheet Metal Industrial Laser Cutting Equipment 3000W 6000W 12kw CNC

Customization:	Available
After-sales Service:	Onsite and Offsite Services Available
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

GA8025

Material

Metal

Cooling System

Water Cooling

Laser Source

Raycus CE Fiber Laser

Working Area

8000*2500mm

Control System

CNC Bochu

Cutting Head

Bochu

Driving System

Innovance/Bochu

Machine Bed

Tube Welding Bed

Product Overview

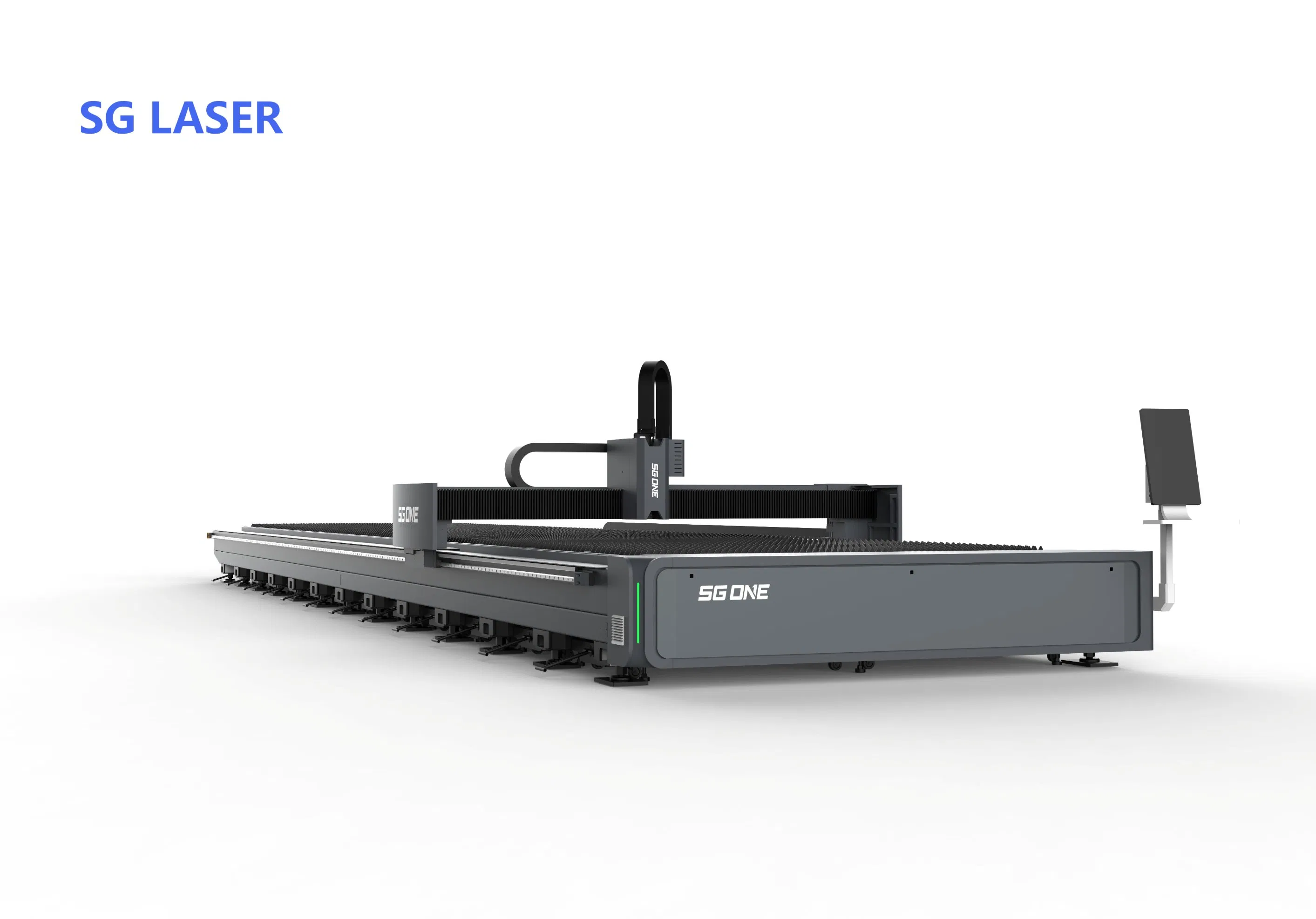

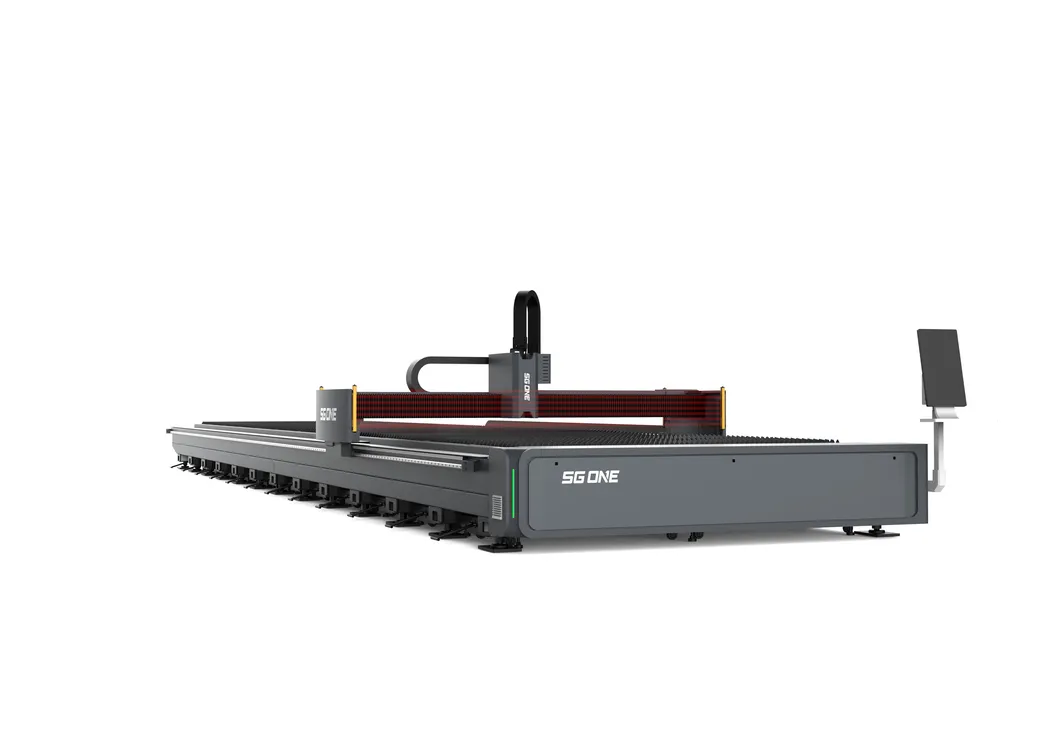

Fiber Laser Cutting Machine Sheet Metal Single Platform

Advanced metal laser cutting technology for Carbon Steel, Stainless Steel, and more. Available in power ranges from 1500W to 20KW.

Low maintenance and operation cost

High-performance processing capabilities

High speed and conversion efficiency

Smooth and precise cutting edges

Flexible and easy software operation

Core Components

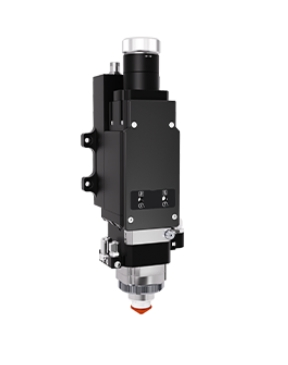

Cutting Head: Bochu

High Precision & High Safety
Anti-collision design
Photoelectric Edge Seek
Real-time stray light monitoring

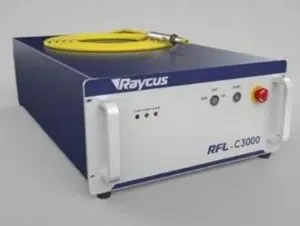

Laser Source: Raycus CE

Direct control of all fiber laser functions
Synchronized control of laser source
Edge machining optimization
Stable high-speed cutting

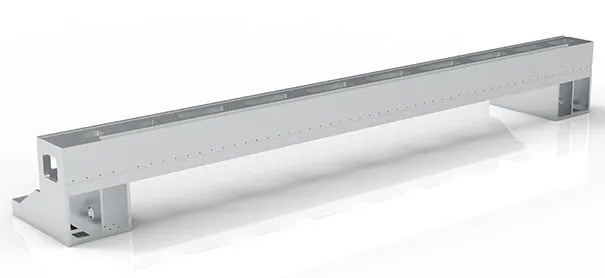

High-Strength Steel Beam

Constructed from reinforced steel plates welded onto rectangular bars and stress-relieved through annealing. Enables fast and accurate motion along X and Y axes.

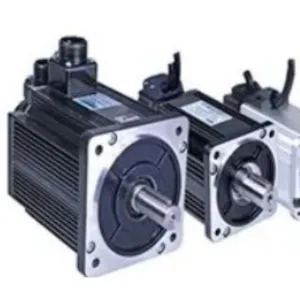

Servo Motor: Innovance/Bochu

Dual servo motor system
Acceleration up to 1.8G
Nano-scale motion precision
Long service life

Product Parameters

Technical Parameters	GA-3015	GA-4020	GA-6025	GA-8025	GA-12025
Working Area (mm)	3050×1530	4000×2000	6000×2500	8000×2500	12000×2500
Max Linkage Speed	100m/min	100m/min	120m/min	120m/min	120m/min
Max Acceleration	0.8G	0.8G	1.0G	1.0G	1.0G
Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.05mm/m	±0.05mm/m

Cutting Thickness	3kW	6kW	12kW	20kW	30kW
Carbon Steel	20mm	25mm	40mm	60mm	80mm
Stainless Steel	10mm	16mm	40mm	70mm	100mm
Aluminum	6mm	12mm	30mm	30mm	60mm

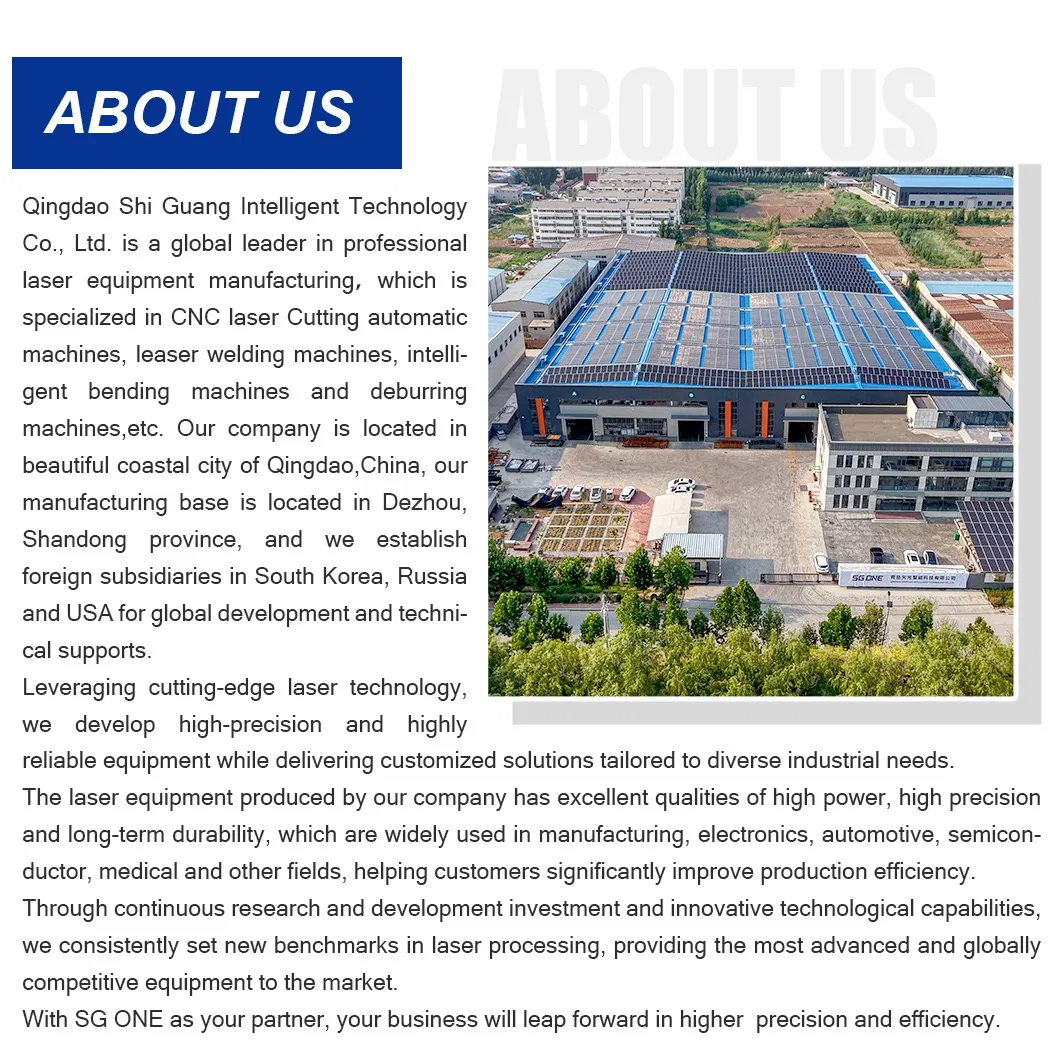

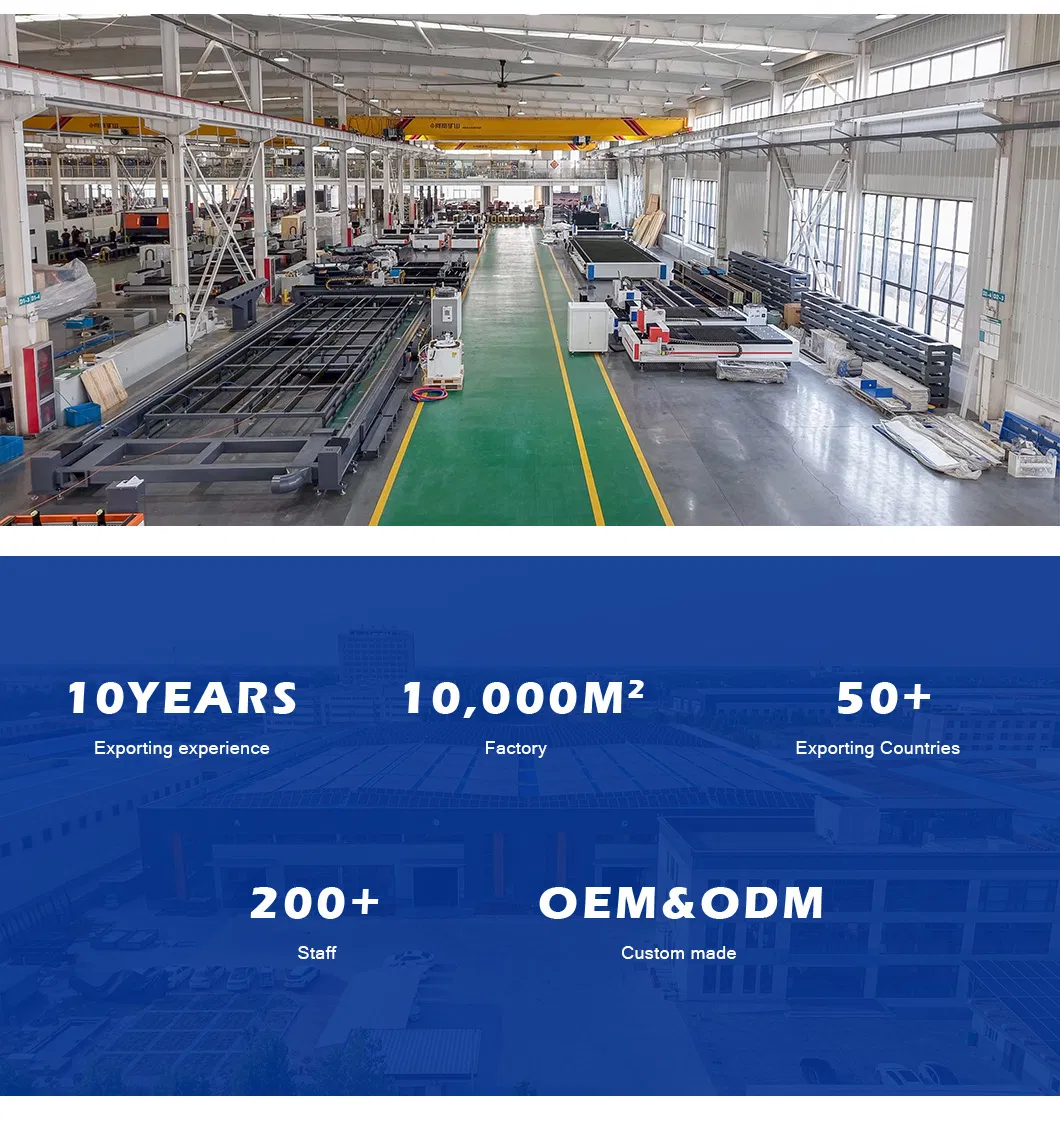

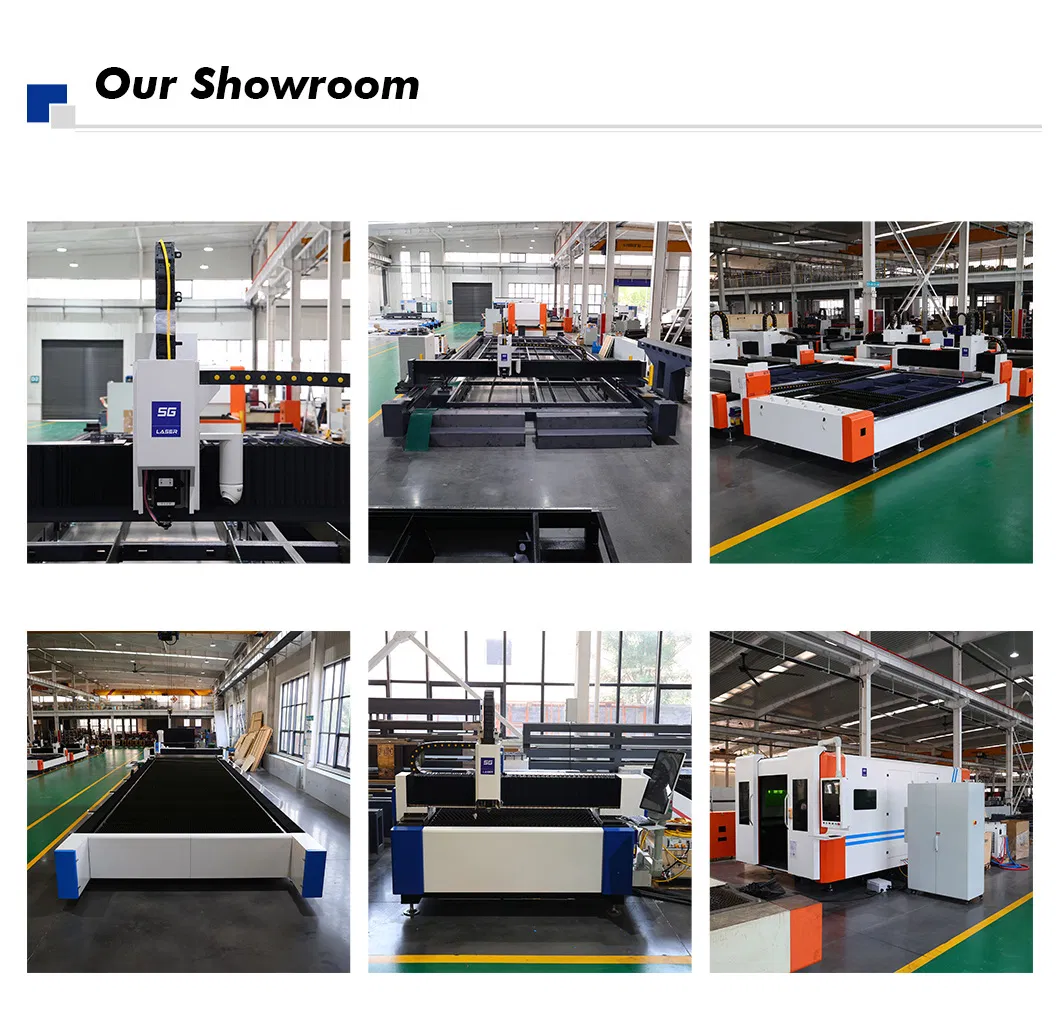

Company & Certifications

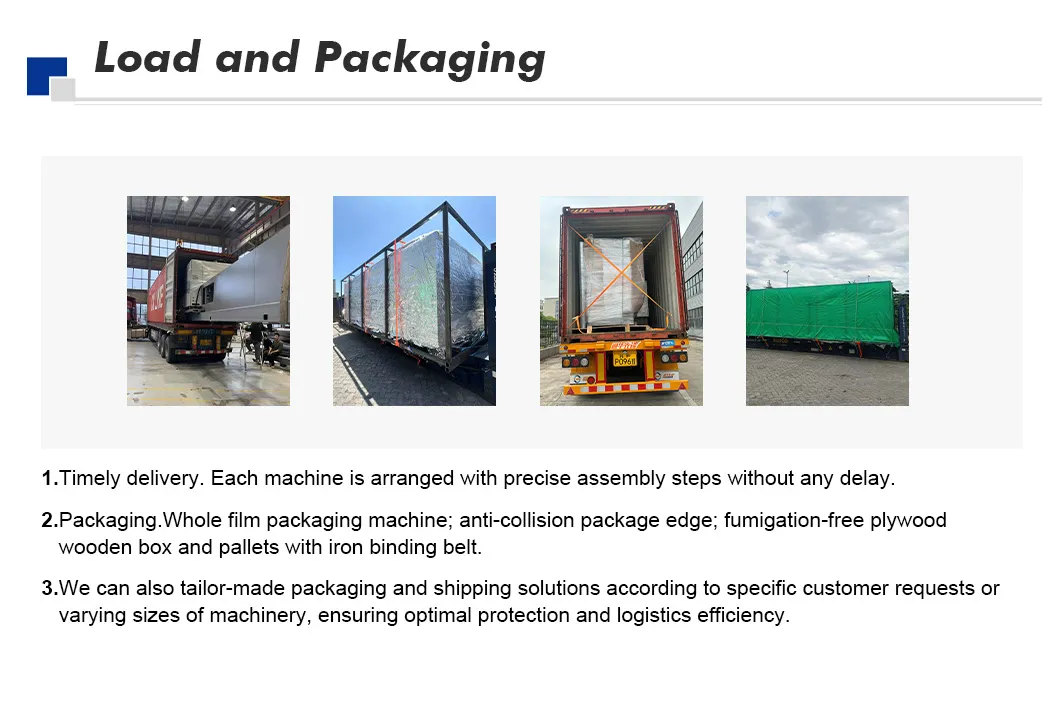

Packaging & Shipping

Frequently Asked Questions

Why should you choose our laser equipment?

We have over 8 years of laser equipment manufacturing experience, providing high precision, fast cutting speeds, and excellent after-sales efficiency.

What is the Minimum Order Quantity (MOQ)?

The MOQ is only one set.

How do I choose the right laser power?

It depends on the thickness of your materials. We offer options from 1kW to 30kW to match your specific production needs.

How can I operate the machine if I am not familiar with it?

We provide comprehensive English manuals and instructional videos. Our professional technical engineers are also available for training.

What is the warranty period?

The warranty time is 1 year, supported by a professional after-sales technical team.

What are the available shipment terms?

We can arrange shipment by sea or air. Trade terms include FOB, CIF, EXW, and more.
