Sheet Metal Industrial Laser Equipment 3000W 6000W 12kw CNC

Customization:	Available
After-sales Service:	Onsite and Offsite Services Available
Warranty:	1year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

GA3015

Application

Home Appliance, Environmental Equipment, Petroleum Machinery, etc.

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Fiber Laser

Working Area

3000*1500mm

Electronic Parts

France Schneider

Control System

CNC Bochu

Laser Source

Raycus CE

HS Code

8456110090

⚙️ Product Description

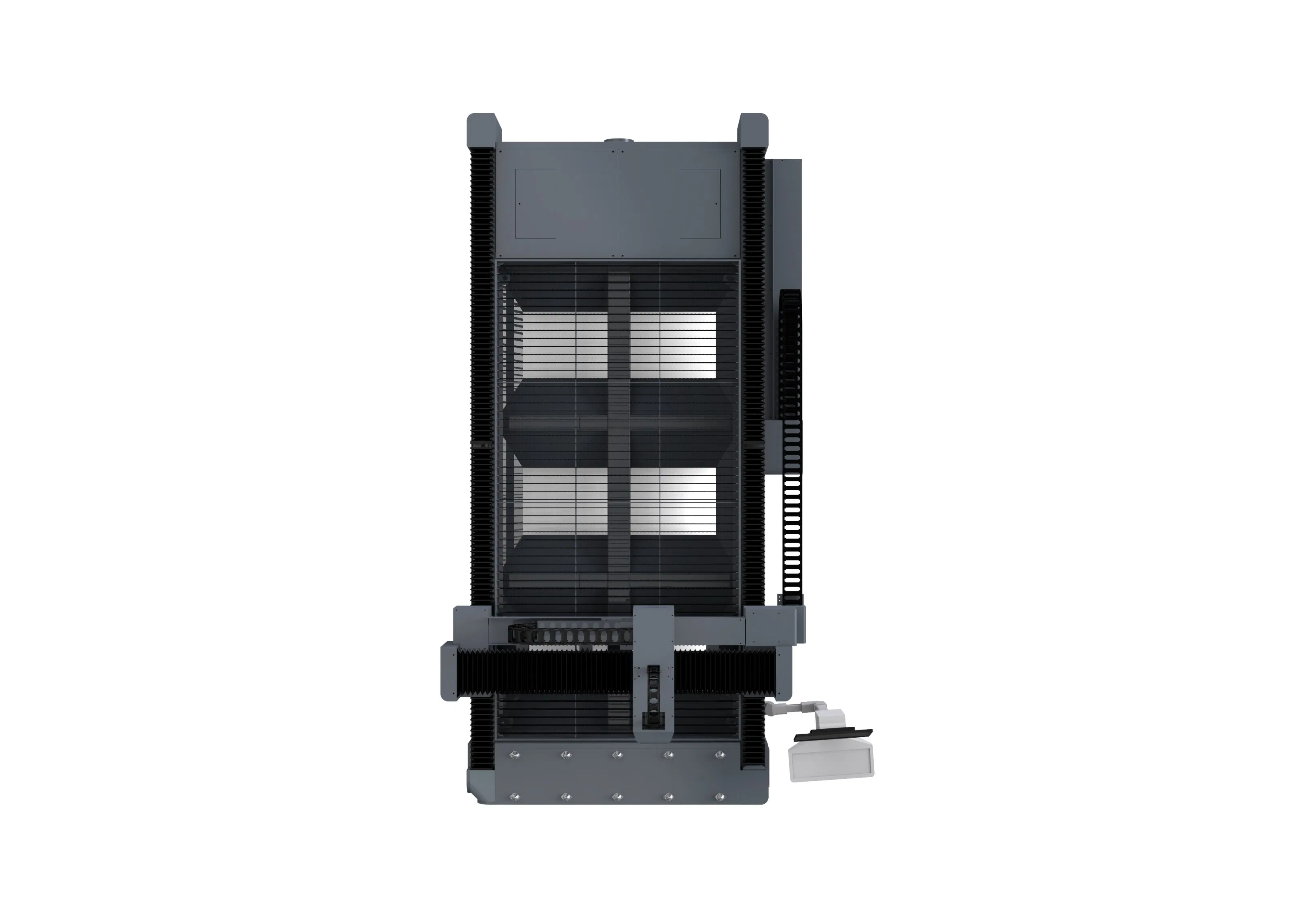

Model: GA3015

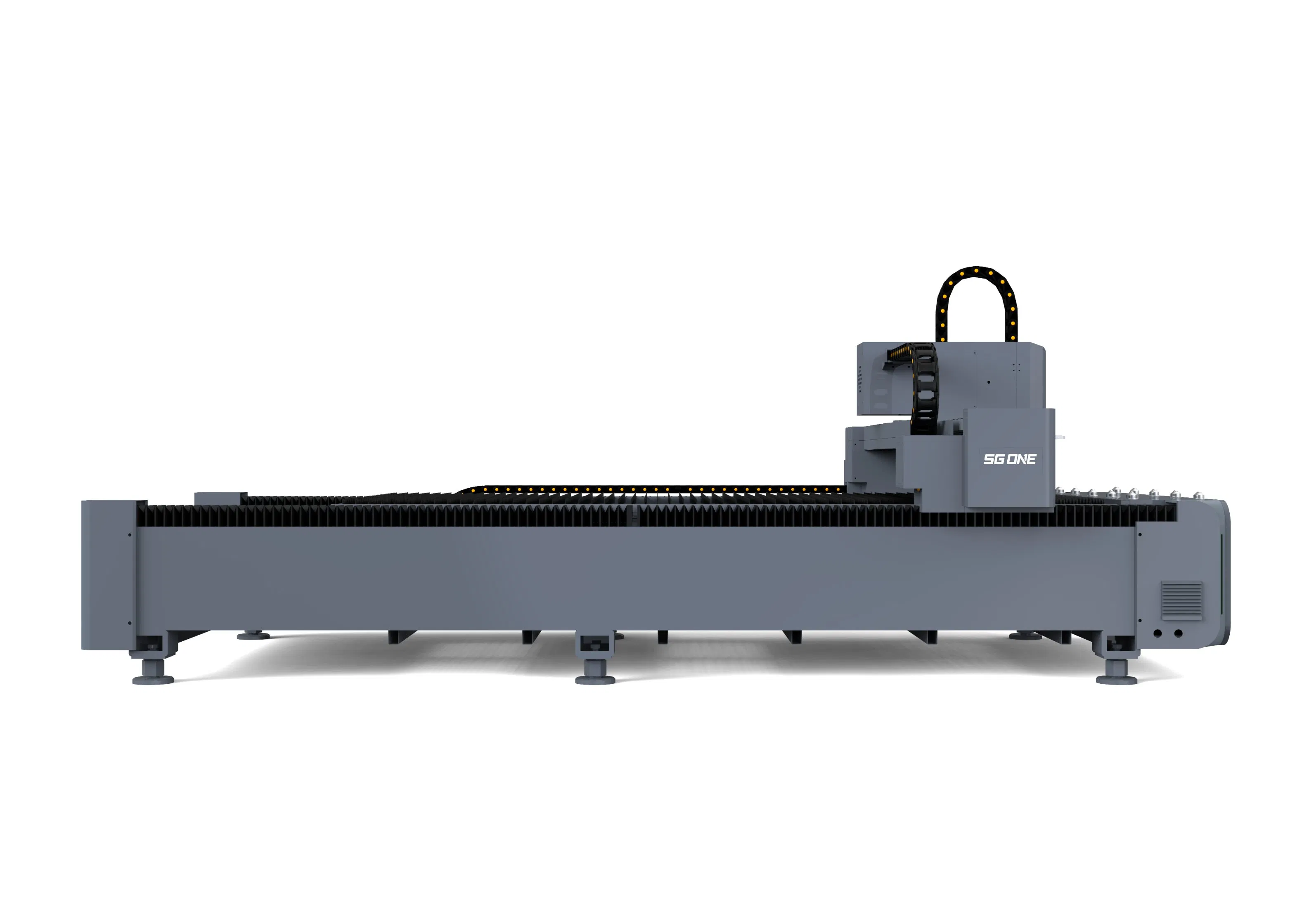

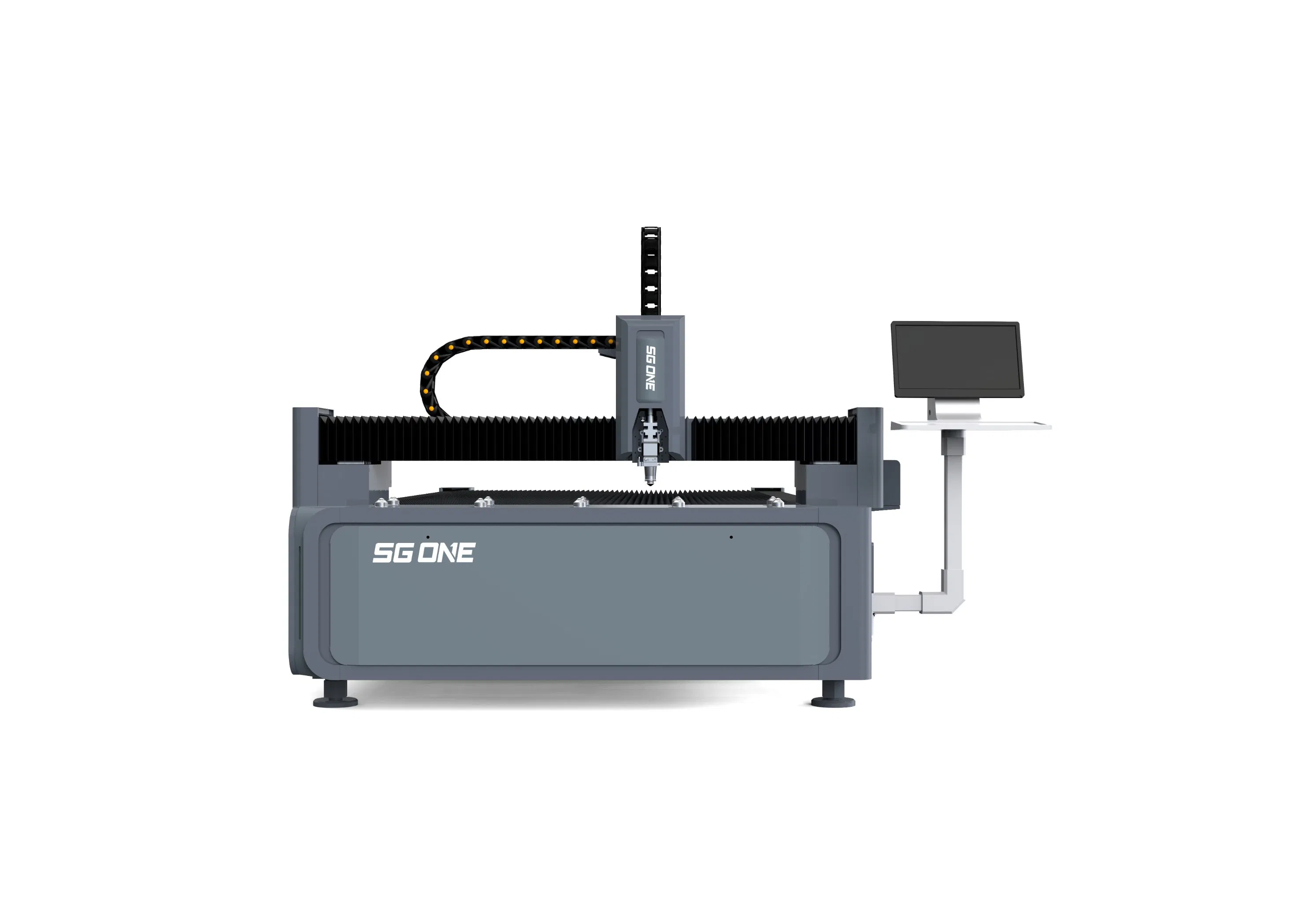

Fiber Laser Cutting Machine Sheet Metal Single Platform CNC Metal Laser Cutting Machine for Carbon Steel and Stainless Steel (1500W - 12KW)

Product Features & Advantages:

✔ Equipped with a built-in intelligent anti-collision system, enabling batch cutting of plates with stable quality and high efficiency.
✔ High-quality mechanical design components result in enhanced cutting precision and broader application scenarios.
✔ Advanced CNC system supports automatic edge detection, layout, focusing, and cutting to improve processing speed.
✔ The strong frame is completely welded with high-temperature annealing and stress relief treatment to ensure no deforming.
✔ Utilizes high-precision servo motors for stable high-speed performance and acceleration.
✔ Intelligent alarm system and pressure protection device ensure timely gas supply and troubleshooting efficiency.

🔍 Machine Component Details

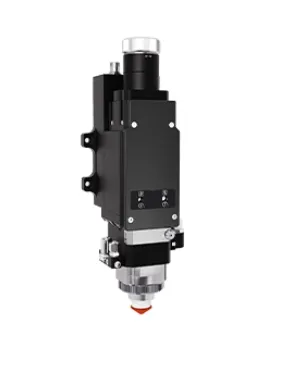

Cutting Head: Bochu

1. High Precision & High Safety
2. Anti-collision cutting head design
3. Photoelectric Edge Seek
4. High speed cutting
5. Protective lenses with real-time monitoring

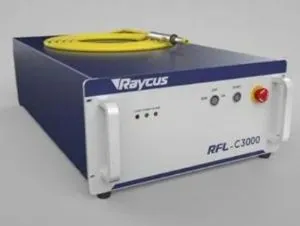

Laser Source: Raycus CE

1. Direct control of all fiber laser functions
2. Synchronized control of the laser source
3. Edge machining function
4. High speed fiber laser cutting

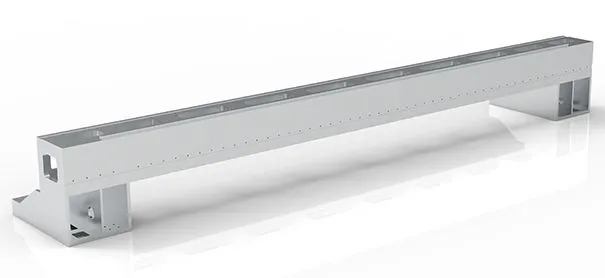

High-Strength Steel Beam

Constructed from reinforced steel plates welded onto rectangular bars and stress-relieved through annealing. It enables fast and accurate motion along X and Y axes, ensuring clean and precise cuts.

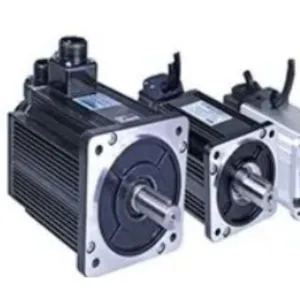

Servo Motor: Innovance/Bochu

1. Dual servo motor system, idle speed 200 m/min, acceleration 1.8G.
2. Nano-scale motion precision.
3. Powerful motion control functions.
4. Long service life.

📊 Product Parameters

Technical Parameters	GA-3015	GA-4020	GA-6025	GA-12025
Working Area(mm)	3050×1530	4000×2000	6000×2500	12000×2500
Max. Linkage Speed	100m/min	100m/min	120m/min	120m/min
Max. Acceleration	0.8G	0.8G	1.0G	1.0G
Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.05mm/m
Repositioning Accuracy	±0.02mm/m	±0.02mm/m	±0.02mm/m	±0.04mm/m

Maximum Cutting Thickness	3kW	6kW	12kW	20kW	30kW
Carbon Steel	20mm	25mm	40mm	60mm	80mm
Stainless Steel	10mm	16mm	40mm	70mm	100mm
Aluminum	6mm	12mm	30mm	30mm	60mm
Brass	4mm	8mm	10mm	12mm	20mm

*Parameters are for reference only, actual product shall prevail.

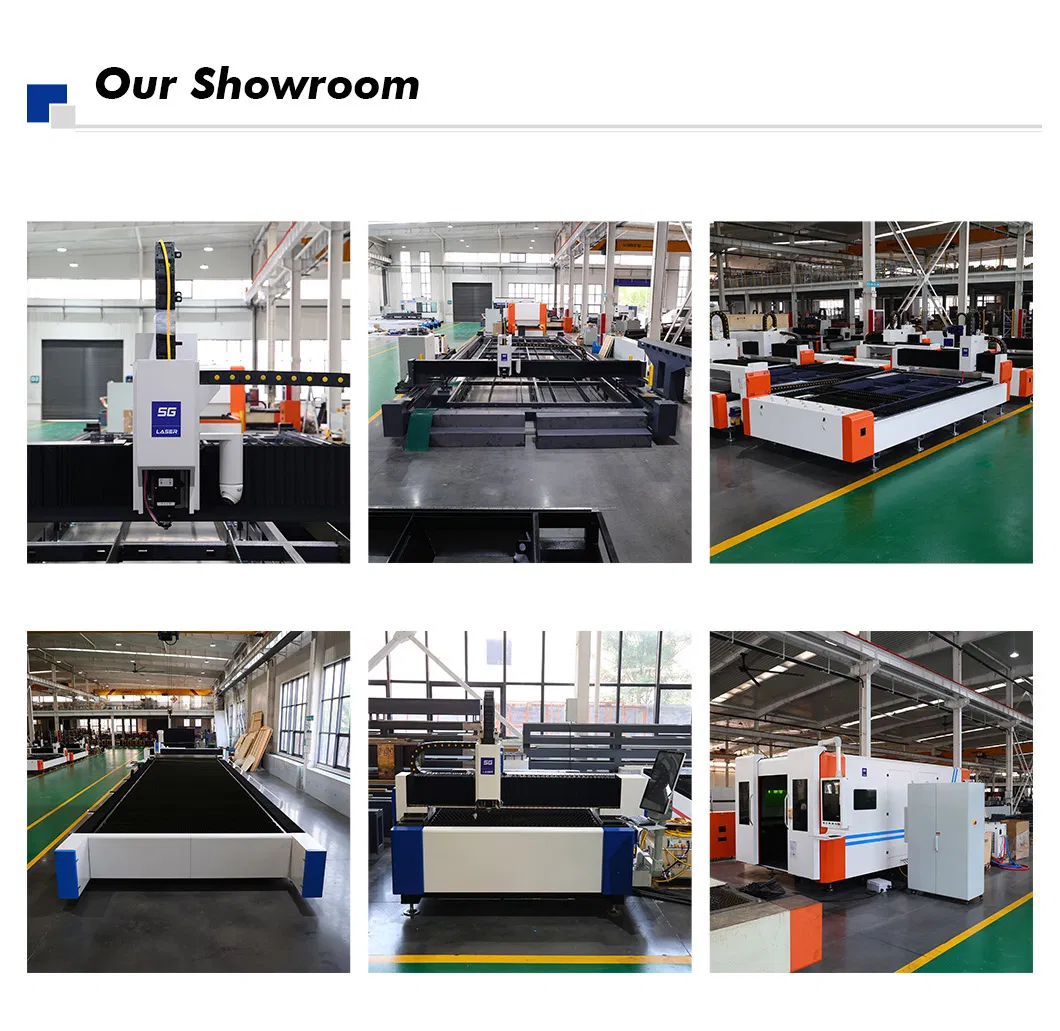

🏢 Factory & Certifications

📦 Packaging & After Sales

❓ Frequently Asked Questions

Q1: Why should you choose our laser equipment?

A: We have over 8 years of laser manufacturing experience. You get the best quality, after-sales service, price, and warranty. Our machines achieve high precision and fast cutting speeds.

Q2: Can we visit the factory before placing an order?

A: Absolutely! All new and old friends are welcomed to visit our production facilities.

Q3: What is the Minimum Order Quantity (MOQ)?

A: The MOQ is just one set.

Q4: I am not familiar with the machine, what should I do?

A: Simply tell us your materials (cutting, welding, or marking), working size, and thickness. We will recommend the most suitable machine and provide English manuals and instructional videos.

Q5: Can the machine be customized?

A: Yes, we have a professional technical and design team with extensive OEM experience to customize the machine according to your specific requirements.

Q6: How long is the warranty and what about shipment?

A: The warranty is 1 year with a professional after-sales team. For shipment, we arrange delivery by sea or air under terms like FOB, CIF, or EXW.
