CNC Plasma Cutting Equipment for Iron Steel Aluminum Sheets

1 / 5

CNC Plasma Cutting Equipment for Iron Steel Aluminum Sheets

Customization:	Available
Customized:	Customized
Layout:	Coaxial

Send Inquiry

Product Description

Technical Specifications

Model NO.

PE-CUT-A2

Cutting Material

Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel

Automatic Grade

Automatic

Power Source

Electric

Cutting Mode

Plasma Cutting

Cutting Thickness

1-20mm

Cutting Speed

0-6000mm/Min

Plasma Current

60A

Connecting Way

USB

Rail Guide

Precision Work Round

Spare Parts

Electrode, Electricity Nozzle and Water Jacket

Transport Package

Exported standard wooden case

Specification

ISO/CE certificate

Origin

China

HS Code

8456100090

Production Capacity

5000 Units/ Year

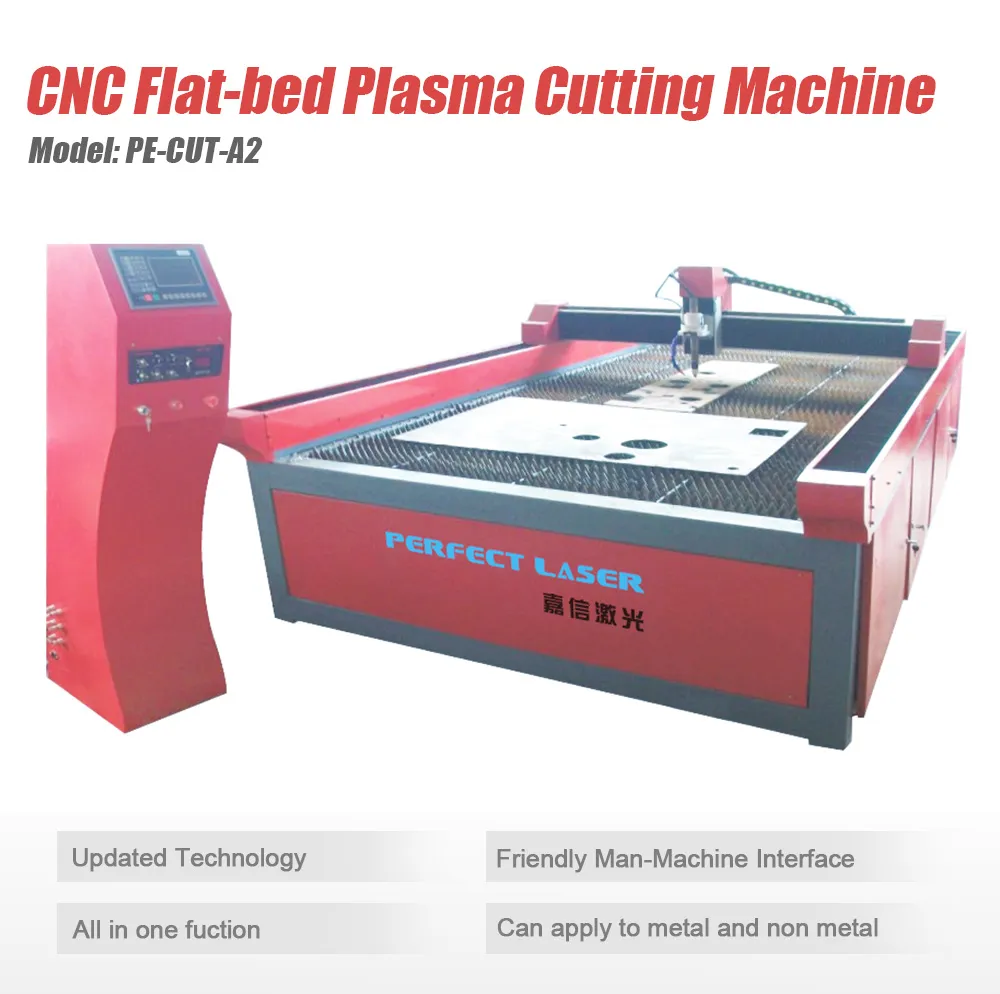

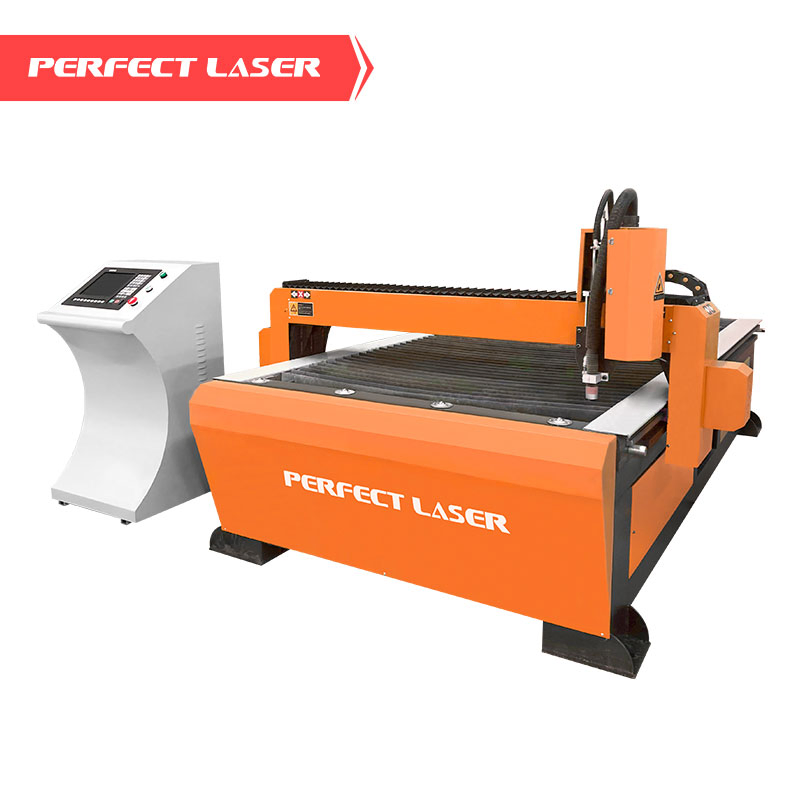

Water Cooling CNC Plasma Cutting Equipment

High Efficiency Metal Sheet Cutting Solution

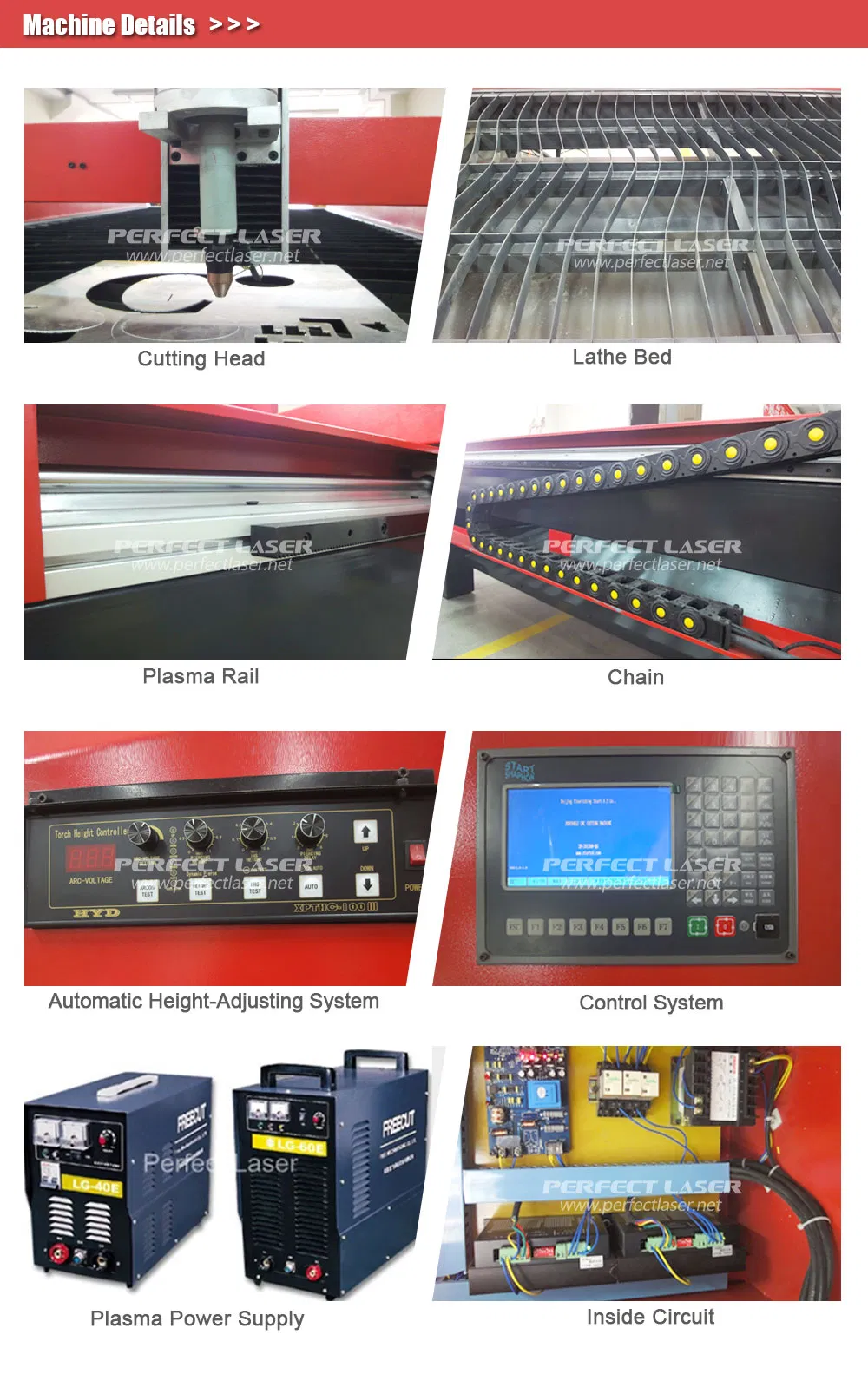

This New type steel plasma cutter adopts a heavy flat bed body and auto height adjusting function to promote stability and improve work efficiency. The system consists of three main parts: a Heavy Machine Body, Advanced Control Cabinet, and Plasma Power Supply. It is highly effective for cutting 1-20mm aluminum, steel, and other metals.

Detailed Technical Data

Parameter	Description
Model	PE-CUT-A2 Heavy Loading Structure
Machine Type	Heavy Industrial Type, including Control Cabinet, Thicken machine body
Control Method	Integrated PC with LCD screen control
Usage	Suitable for both light and heavy industry
Cutting Thickness	1-20mm
Working Materials	Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates
Cutting Speed	0-6000mm/min
Plasma Current	60A
Cooling Method	Water pump and tank for circulating water cooling
Transmit Way	Precision ball screw
Power Supply	Standard: 60A Chinese top brand; Optional: USA Hypertherm or USA Thermal Dynamics

Core Product Features

💡 Robust Bench-Gantry Structure Welding after vibration aging treatment eliminates stress, ensuring no deformation during long-term industrial use.
💡 Precision Mechanical Drive Utilizes rolling bearings and precision machining with gears that mesh perfectly with the rack for high accuracy.
💡 Planetary Gear System Minimizes input and output errors (only 16 arc minutes) with automatic clearance compensation for precise CNC directive implementation.
💡 Advanced Clamping System Features an automatic clamping oriented structure to ensure smooth operation without wheel clamp tightening issues.

Industrial Applications

Applicable Industries: Widely used in heavy industries, pipe manufacturing, sheet plate processing, and shipbuilding.

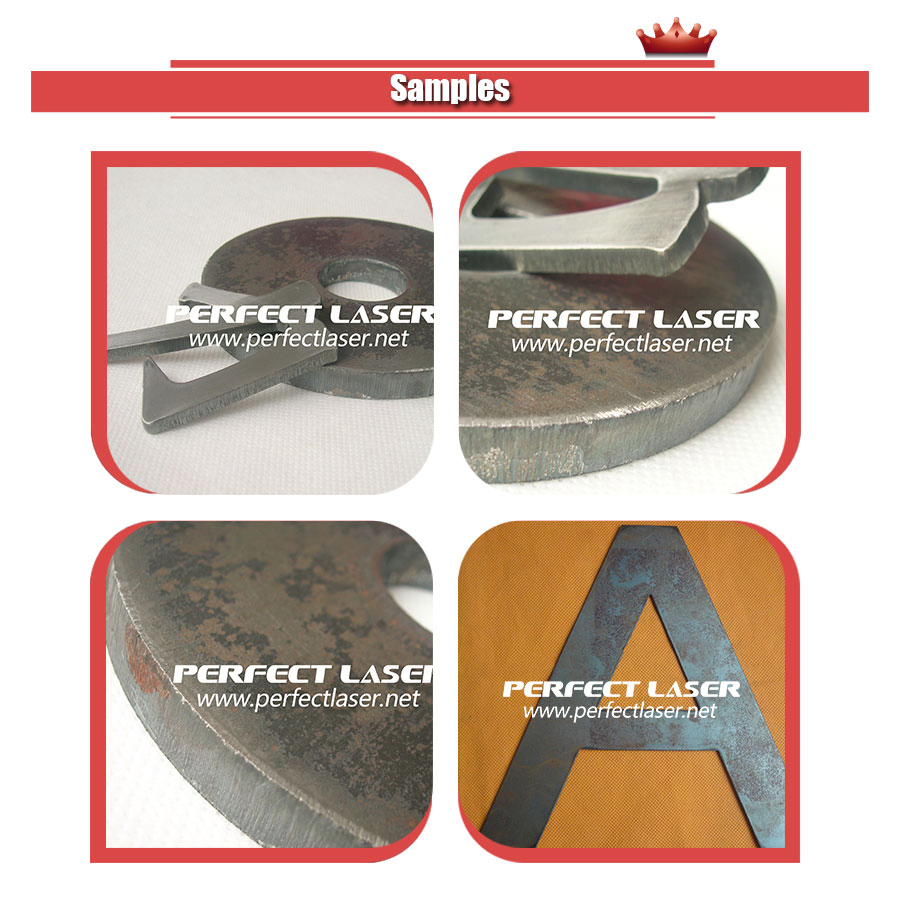

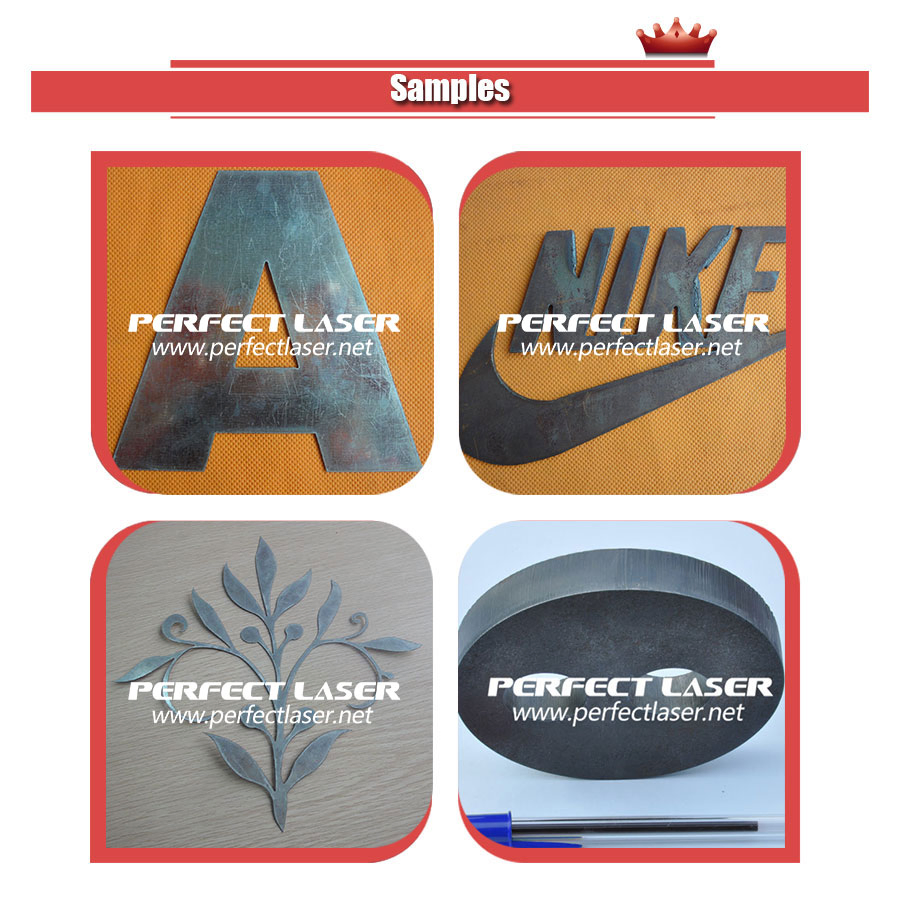

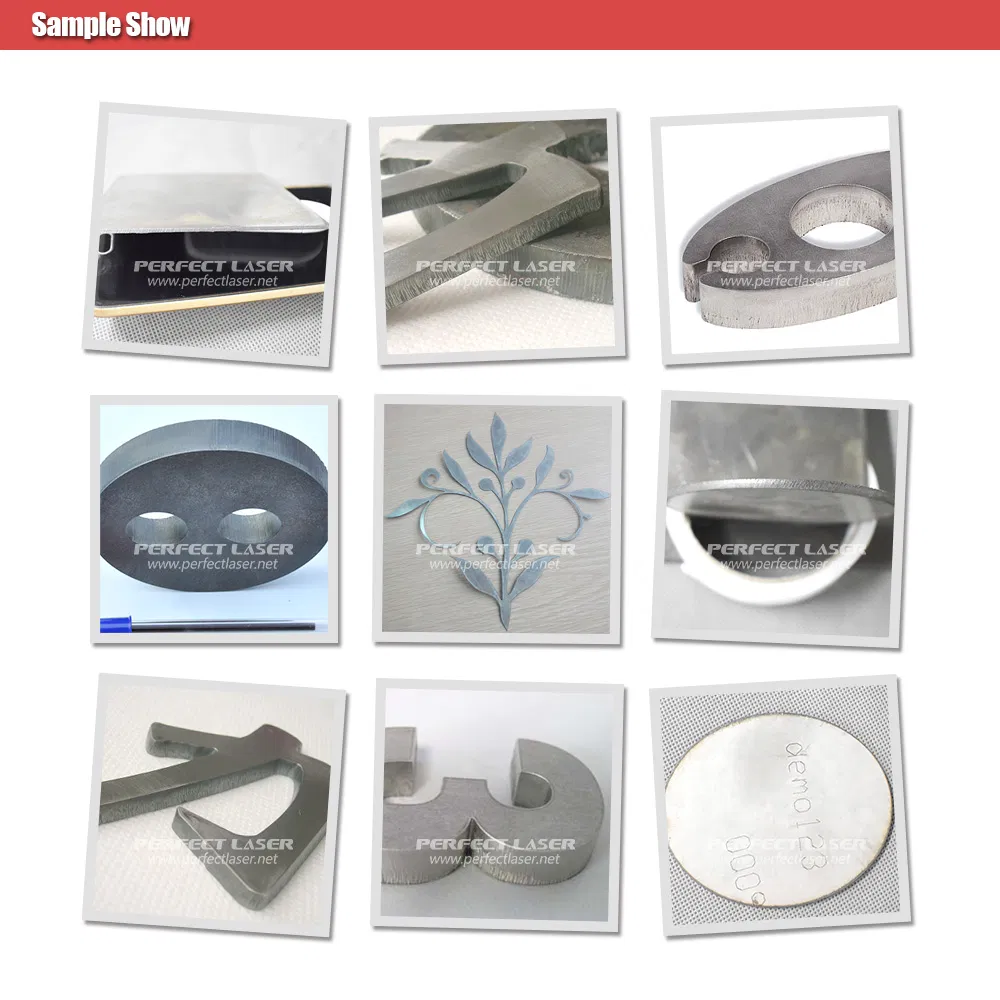

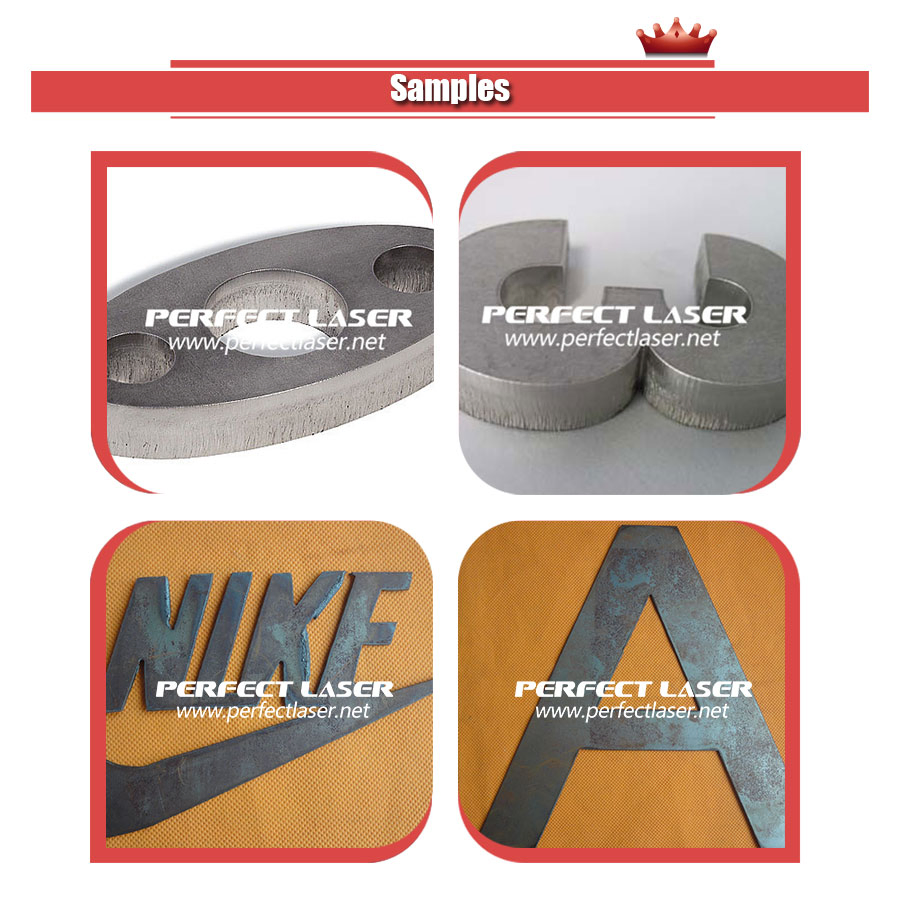

Application Materials: Available for cutting steel, iron, copper, galvanized sheets, and other electrically conductive materials.

Professional Service Support

✅ Quality Assurance: All machines undergo full checks by the QC department before shipment with a 12-month guarantee.

✅ Comprehensive Manuals: Includes English instruction books, operation manuals, and training videos.

✅ Technical Support: Extensive online support via email, video, and telephone.

✅ On-site Training: Engineers are available for door-to-door instruction and training services.

Frequently Asked Questions

What materials can this CNC plasma cutter process?

The PE-CUT-A2 can cut a variety of conductive metals, including carbon steel, stainless steel, iron, copper, aluminum, and galvanized sheets.

What is the maximum cutting thickness for metal sheets?

The machine is designed to handle cutting thicknesses ranging from 1mm to 20mm, depending on the material type and power supply used.

How does the cooling system work?

The system utilizes a water cooling method, equipped with a dedicated water pump and tank to provide continuous circulating cooling during operation.

What control system does the machine use?

It features an advanced integrated PC control system with an LCD screen, allowing for easy operation and precise control over the cutting process.

Are spare parts included with the purchase?

Yes, essential spare parts such as the electrode, electricity nozzle, and water jacket are included to ensure your machine stays operational.

Is technical training available for new users?

We provide comprehensive English manuals and training videos. Additionally, our engineers can offer door-to-door instruction and training services if required.
