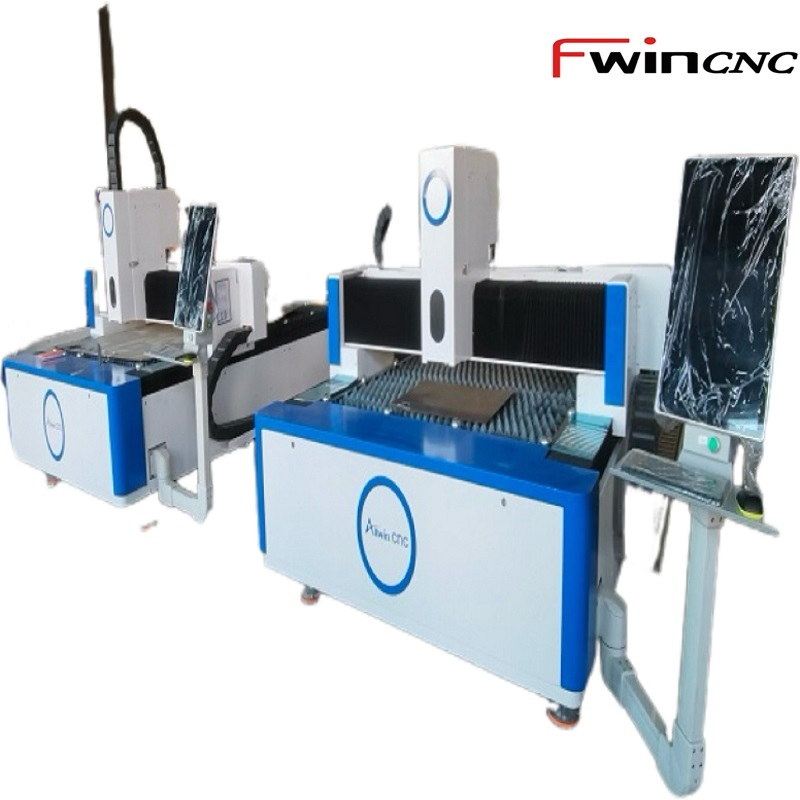

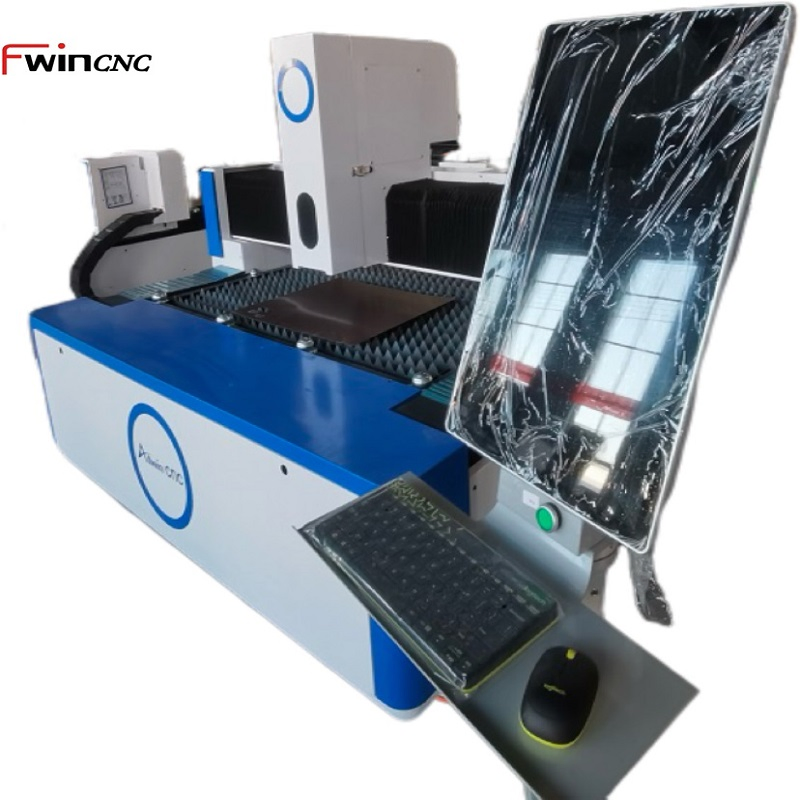

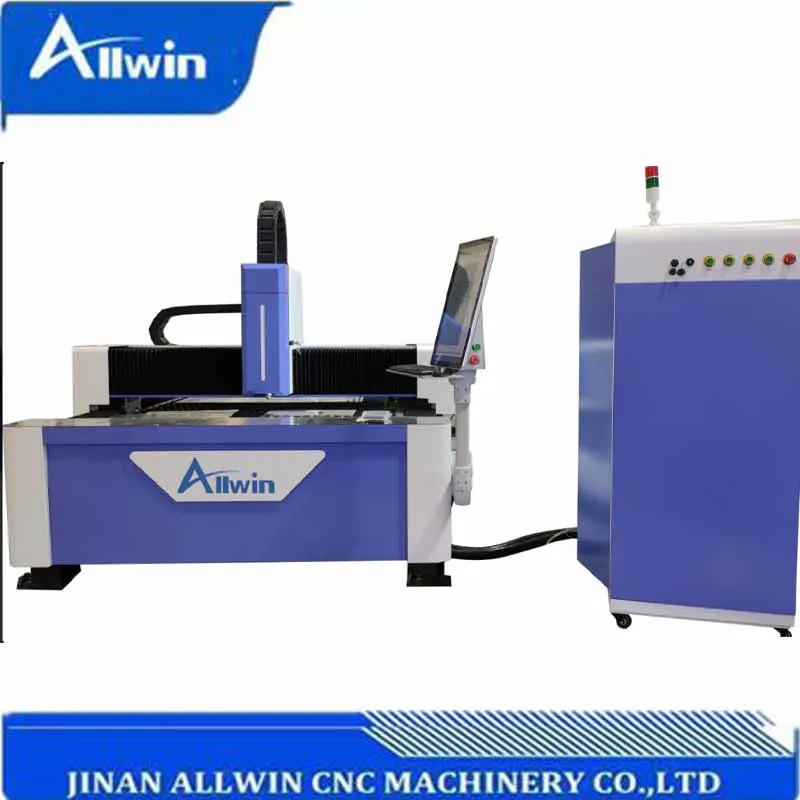

Fwincnc Prodigyx High Precision Industrial Laser Cutting System

1 / 5

Fwincnc Prodigyx High Precision Industrial Laser Cutting System

Customization:	Available
After-sales Service:	Online and Factory Training
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.:3015

Cooling System:Water Cooling

Technical Class:Pulse Laser

Applicable Material:Metal

Laser Technology:Laser Flame Cutting

Laser Source:1500W/2000W/3000W Raycus

Motor and Driver:Japan Yaskawa Servo Motor

Software:Cyput Software

Product Performance & Comparison

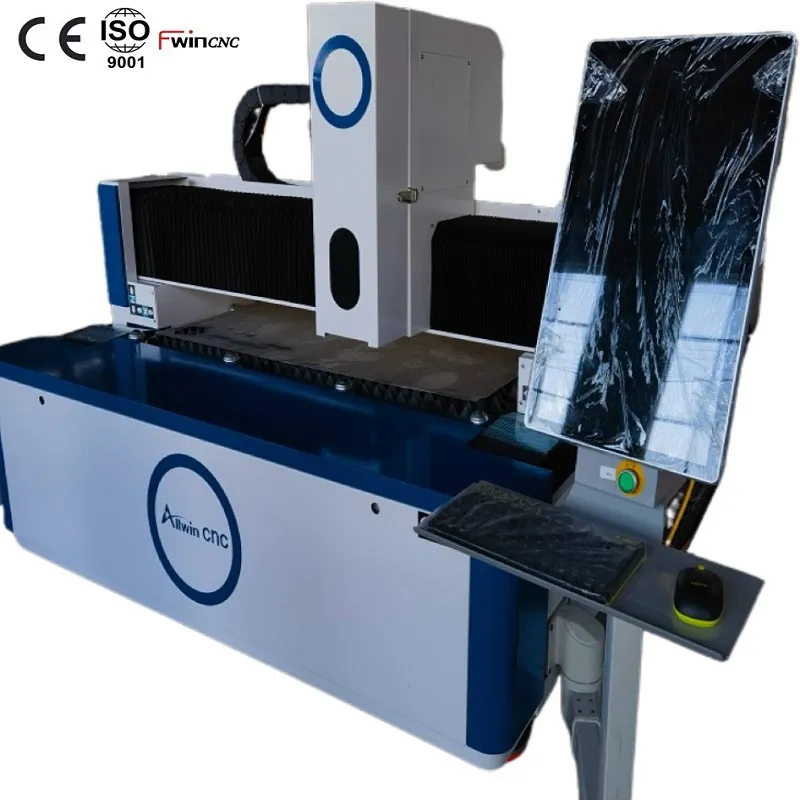

High-Precision Industrial Laser Cutting System vs. Traditional Methods

I. Comparison with Plasma Cutting

Precision and Heat-affected Zone: Offers significantly higher precision with a minuscule heat-affected zone, maintaining material integrity for heat-sensitive plates.
Cutting Slit: Narrow slits (0.08 - 0.15mm) result in less material waste compared to the wider slits produced by plasma.
Cost-Efficiency: High long-term efficiency by reducing post-processing needs.

II. Comparison with Traditional Stamping

Mold-free Operation: Directly processes from drawings, eliminating expensive mold costs and long lead times.
Flexibility: Easily handles small-batch customized parts and frequent design changes.

III. Core Advantages

Ultra-Smooth Surface: Burr-free results from thin foils to thick industrial plates.
High-Speed Performance: Advanced technology achieves rapid cutting speeds, boosting manufacturing turnaround.
Versatile Compatibility: Works with stainless steel, aluminum, titanium, wood, acrylic, and plastics.

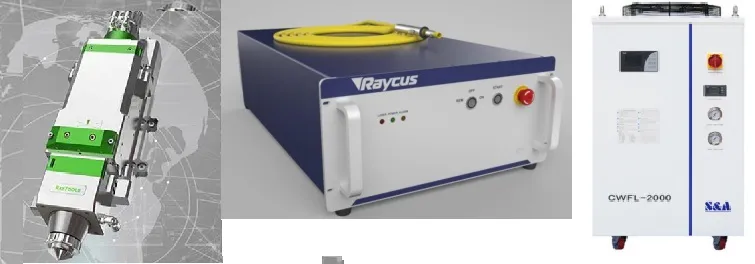

Technical Specification Chart

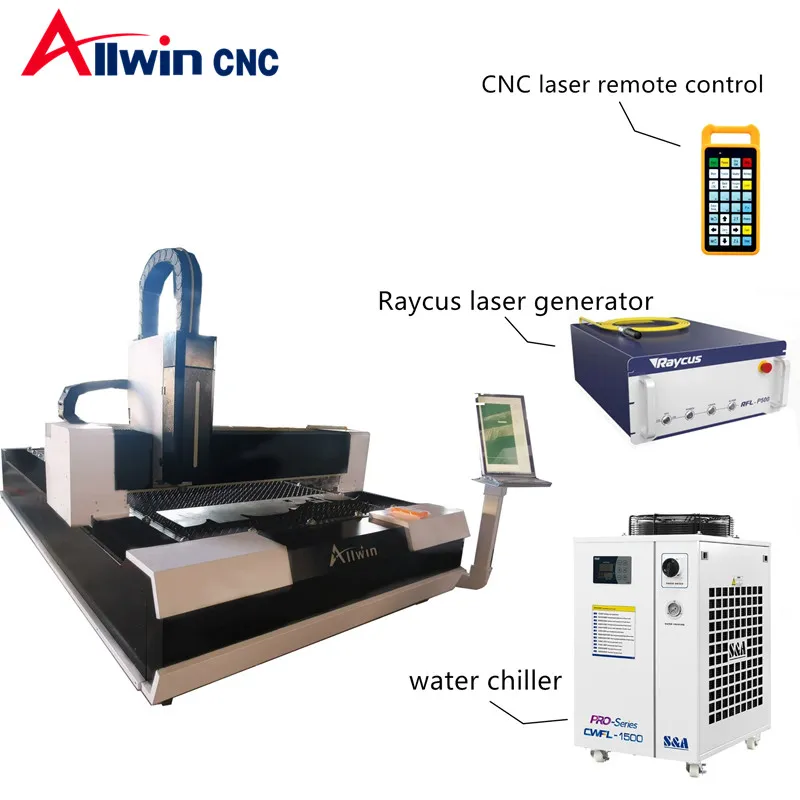

Motor & Driver

Machine Model Technical Parameters
Max Working Area	1500mm x 3000mm
Laser Source	3000W / 2000W / 1500W Raycus
Laser Head	Swiss Raytools with auto focus
CNC Software	Professional FSCUT2000 with Cypcut
Japanese Yaskawa Servo Motors 850W
Water Chiller	S&A brand with Dual temperature control
Guide Rails	HIWIN Linear Rails
Rack and Pinion	Taiwan T-WIN

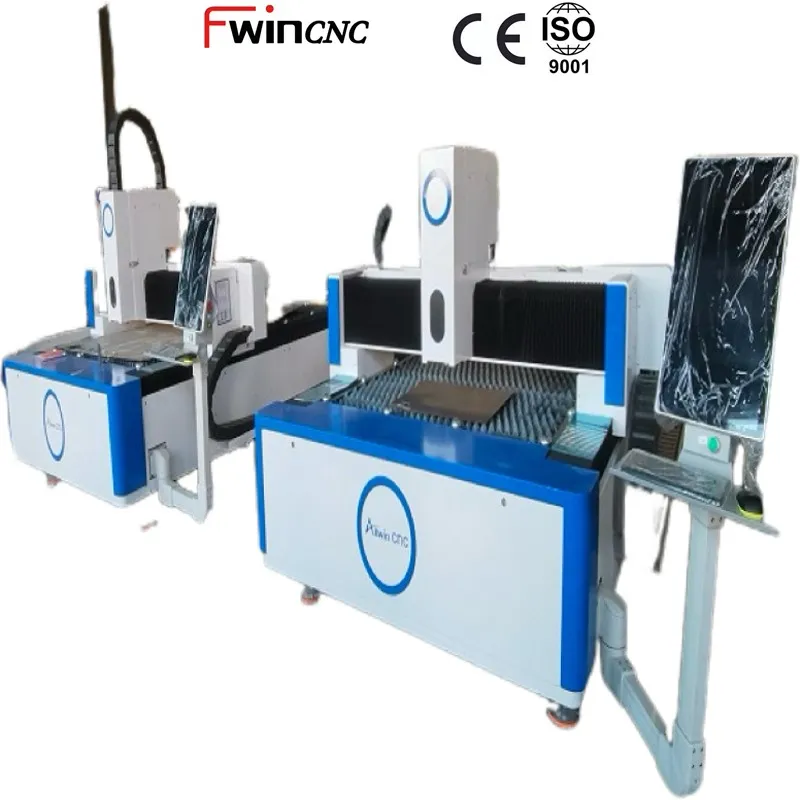

Industry Applications

Suitable for Environmental Equipment, Petroleum Machinery, Agriculture, Automotive, Advertising, and general Metal Processing.

Service & Packaging

Quality Guarantee

Two years quality guarantee for main parts (excluding consumables).
Lifelong maintenance and technical support from our engineering team.
Free training courses and replacement parts provided at factory prices.

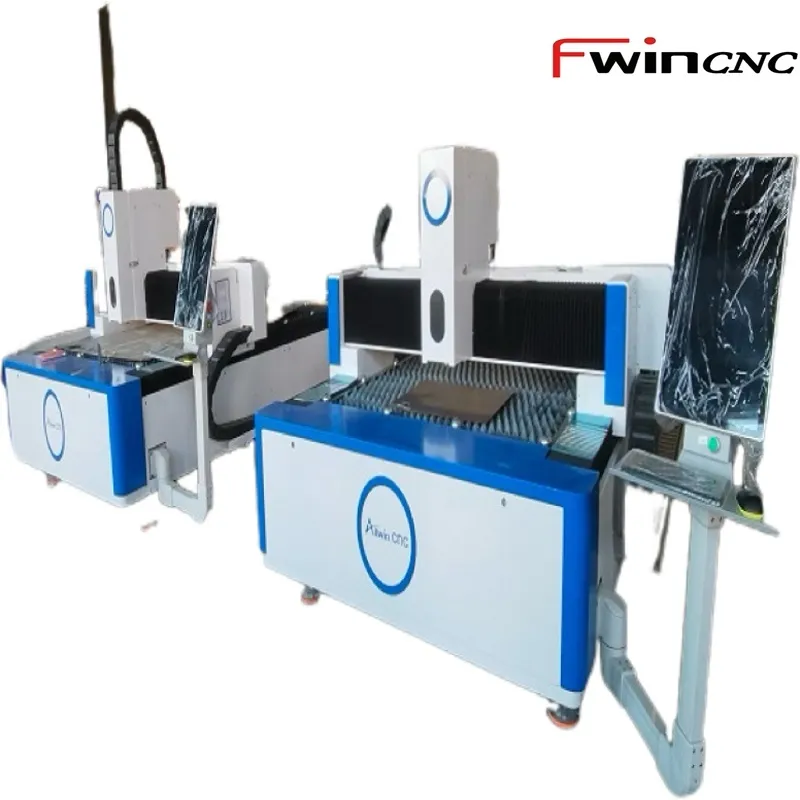

Packaging Details

Anti-collision edge: Soft pearl wool coverage for all parts.
Fumigation wooden box: Standards-compliant boxes for international transit.
Whole film packaging: Protection against water, rust, and dust.

Frequently Asked Questions

What materials can this fiber laser machine cut?

It is highly effective for various metals including stainless steel, carbon steel, aluminum, and titanium. It can also handle non-metals like acrylic, wood, and plastics using optimized settings.

What is the lifespan of the laser source?

The Raycus laser source used in our systems has a service lifespan of over 100,000 hours and requires minimal maintenance.

How does the machine handle uneven metal sheets?

The laser head is equipped with an automatic height sensor that adjusts the focus in real-time to compensate for uneven surfaces.

Is special software required for operation?

The system uses professional Cypcut software which is intuitive and supports rapid CNC programming for efficient workflow.

How is the machine protected during international shipping?

We use a multi-layer protection strategy: anti-collision pearl wool, moisture-proof film, and a final solid fumigated wooden box with an iron socket for easy forklift handling.

What kind of technical support is provided?

We offer lifelong technical support, including 12-hour online service and assistance from English-speaking engineers.
