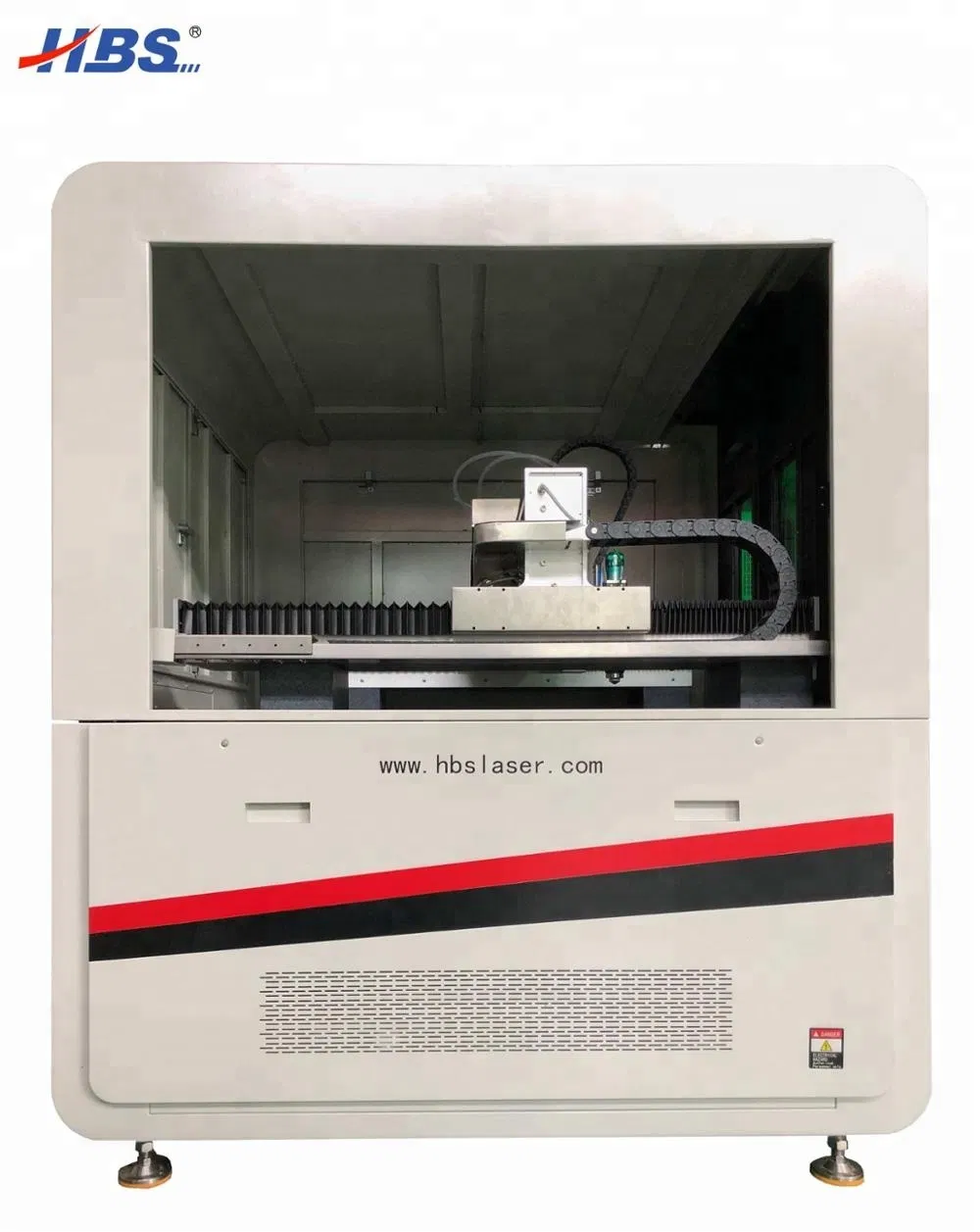

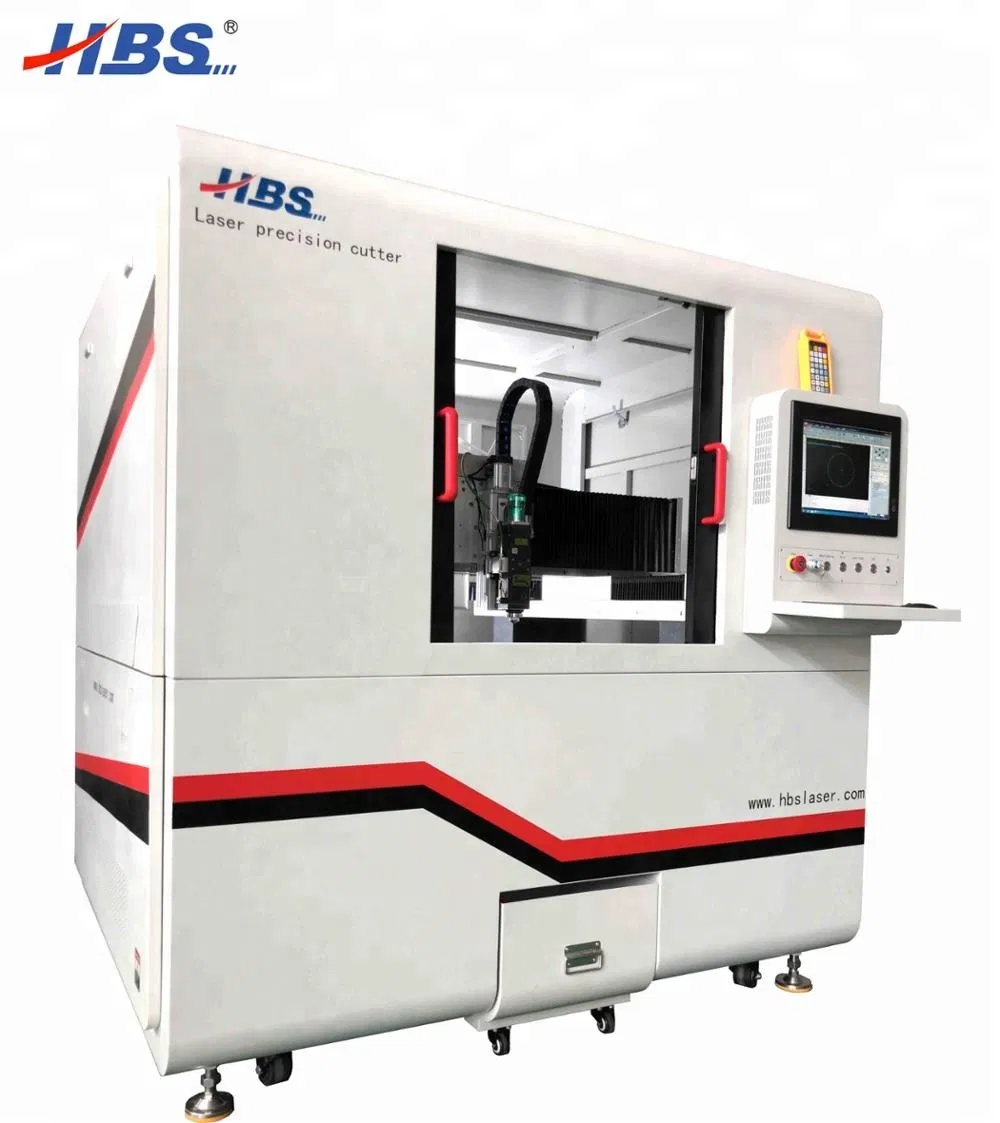

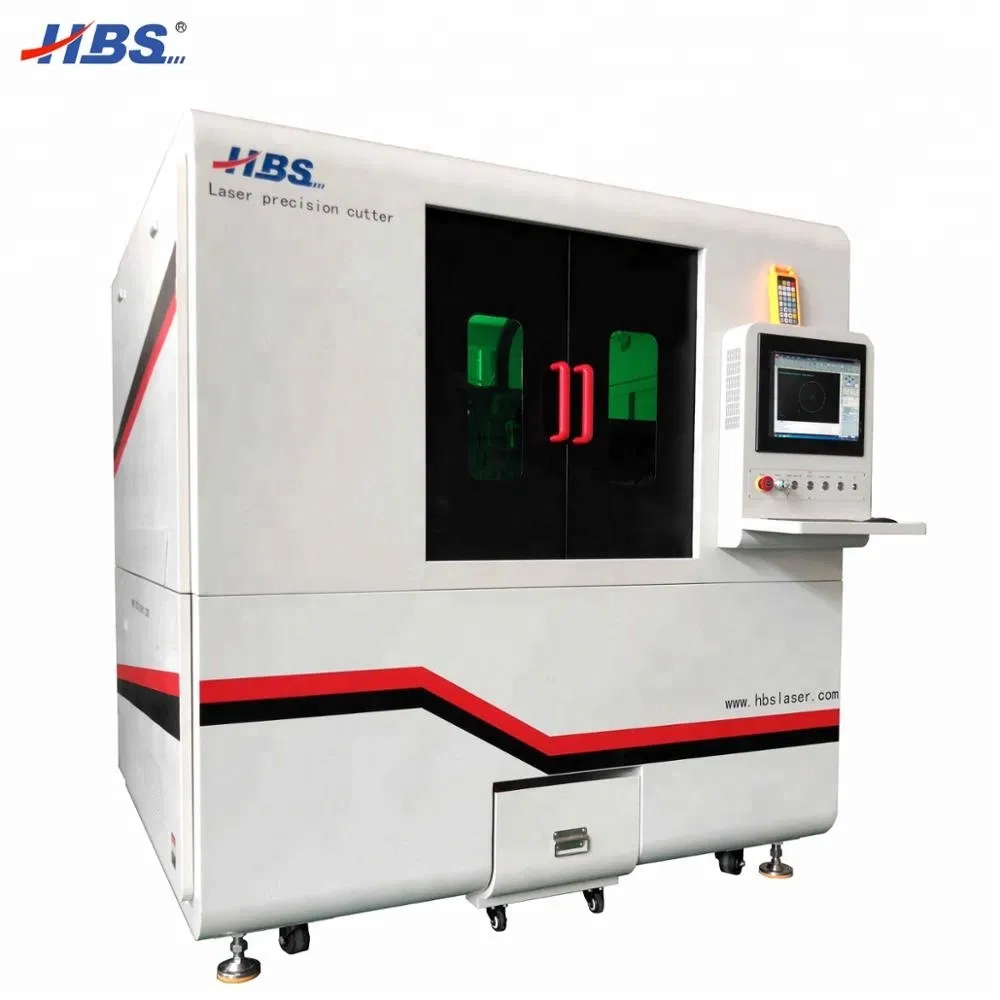

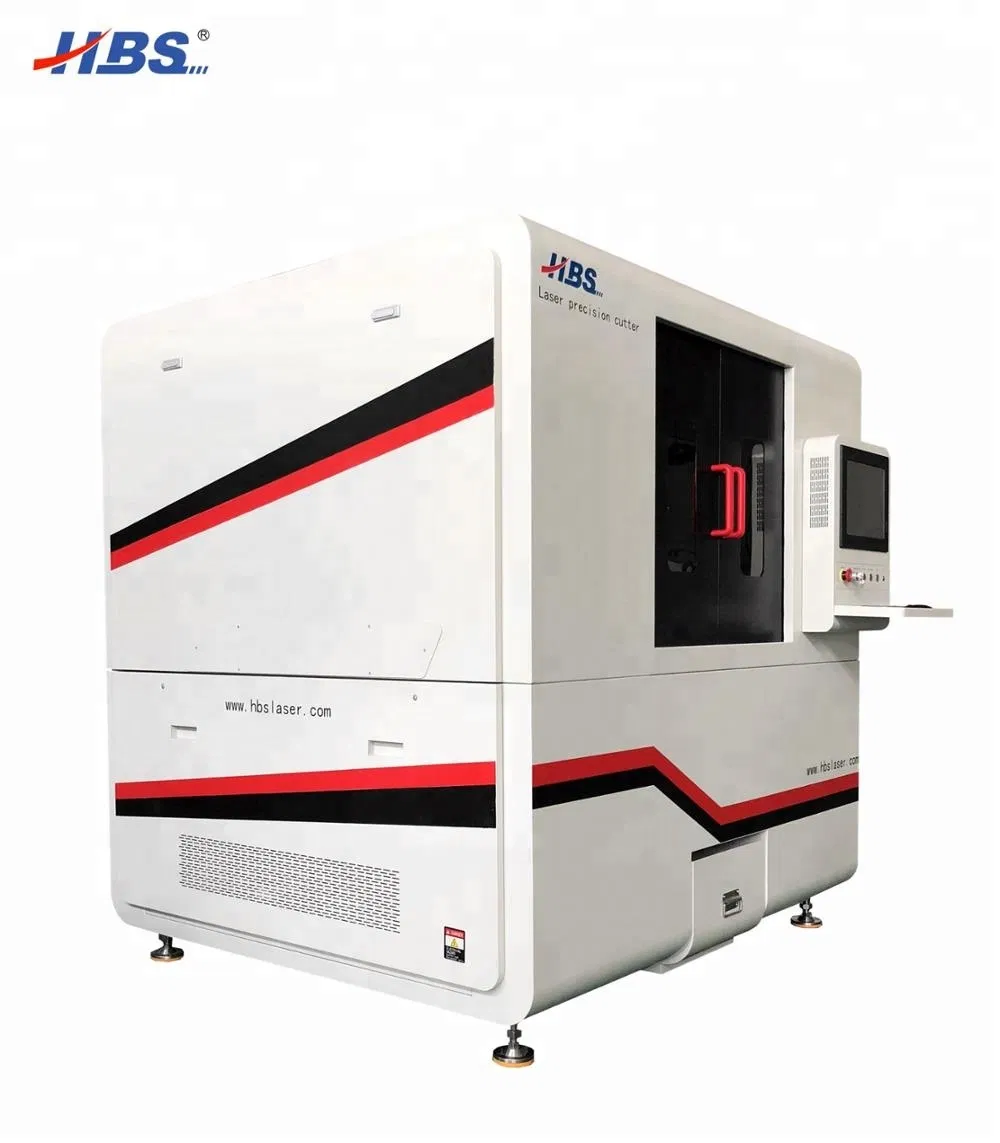

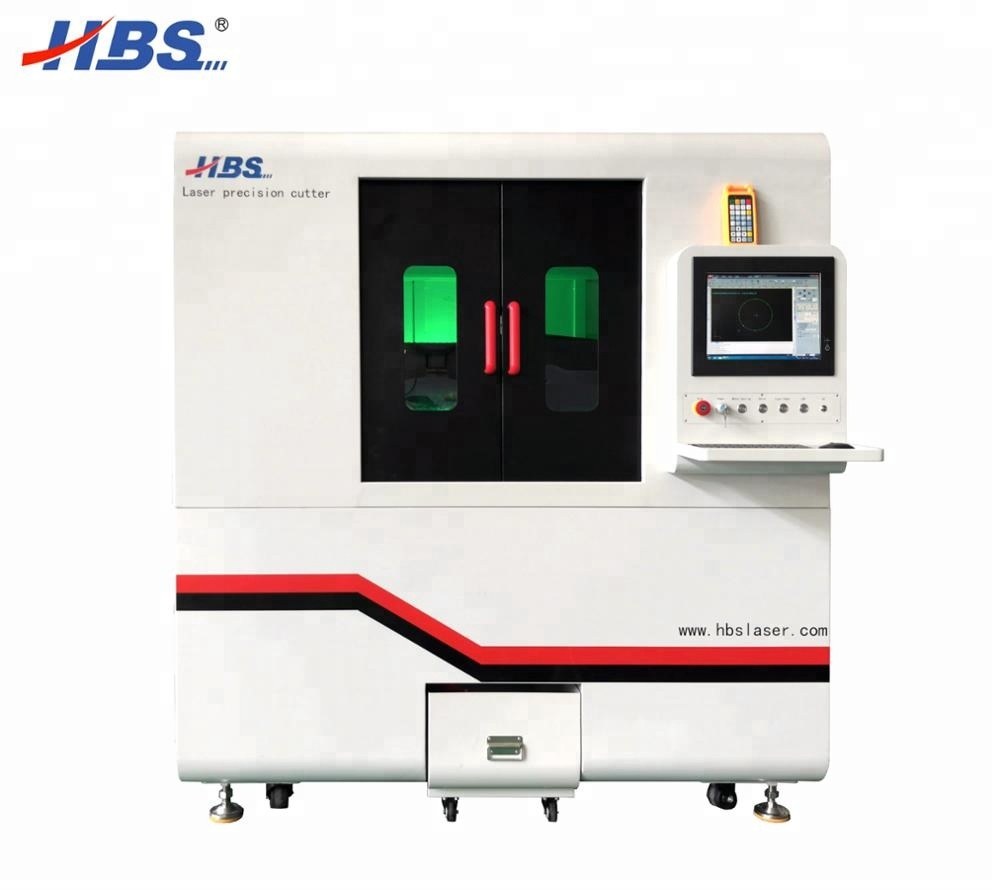

High Quality High Precision Laser Cutting System

1 / 5

High Quality High Precision Laser Cutting System

Customization:	Available
Application:	Petroleum Machinery Manufacturing, Textile Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System:	Air Cooling

Send Inquiry

Product Description

Basic Information

Model NO.HBS-LCT-500

Technical ClassFiber Laser

MaterialMetal

StructureGantry Type

Laser TypeFluid Laser

TechnologyLaser Control Fault Cutting

KeywordsHigh Precision Laser Cutting

PackageCarton

High Quality High Precision Laser Cutting System

18 Months Guarantee & Lifetime Support
Professional After-sales Service

Product Features

✓High efficiency in electrical / optical conversion with water cooling.
✓Raycus laser source ensures high beam quality and reliability.
✓Cutting speed is 3-12x faster than YAG and 2-3x faster than CO2 lasers.
✓Stable performance: Core parts reach up to 100,000 hours working time.
✓Smooth cutting surface with minimal deformation and leveled appearance.
✓Cost-effective: Consumes only 20%-30% electricity compared to conventional machines.

Technical Specifications

Laser Type	Raycus Fiber laser generator
Working Area	370600mm / 600600mm
Laser Power	500W / 800W / 1000W
Cutting Thickness	≤6mm (stainless steel)
Cutting Speed	≤25m/min
CNC Control	Yes
Location Accuracy	±0.03mm/m
Repeat Accuracy	±0.02mm/m
Equipment Power	20KW
Cooling Mode	Water cooling
Wavelength	1064nm
Power Supply	3-phase 380V/50Hz/20KVA
Machine Weight	≤8000kg
Dimensions	430025001600mm

Product Application

Suitable Materials: Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel, Spring Steel, Iron, Galvanized Sheet, Aluminum Plate, Copper.

Industries: Manufacture of Billboards, Advertising Signs, Metal Letters, Kitchen Ware, Sheet Metal Processing, Auto Parts, Elevator Panels, Hardware, and Electronic Parts.

Packing Details

◈Dimension (mm): 855X1000X1170 (Main head & table units)
◈Net Weight (kg): 72 (Unit total)
◈Gross Weight (kg): 110

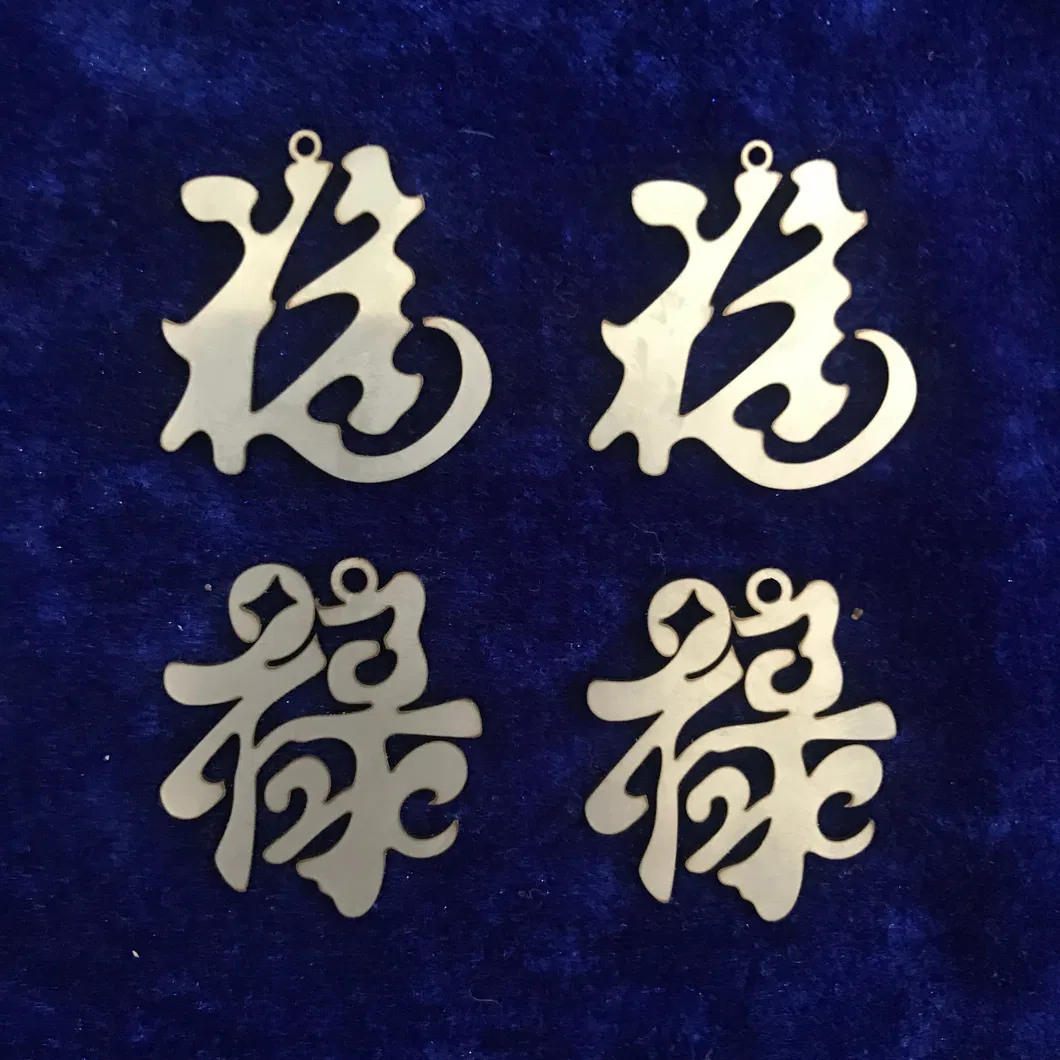

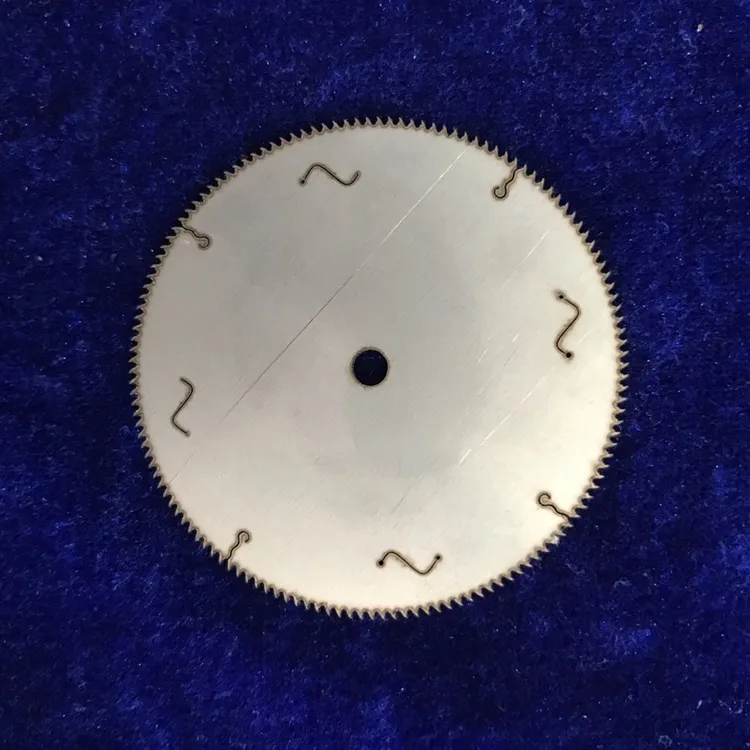

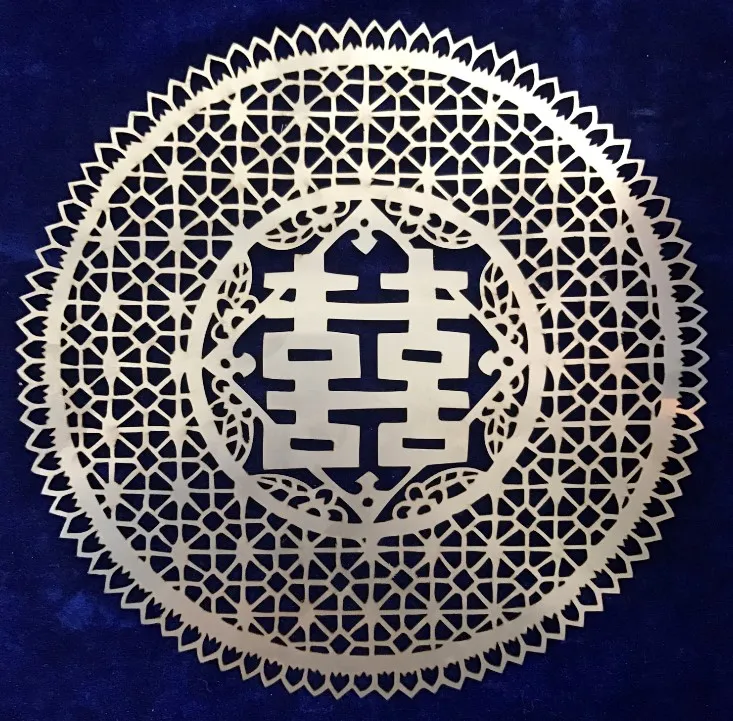

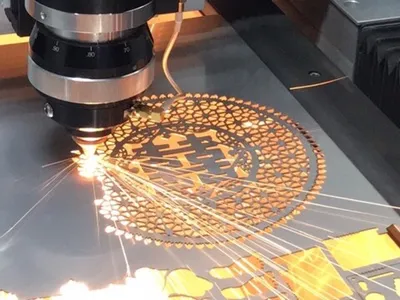

Cutting Samples

Frequently Asked Questions

Q1: What materials can this fiber laser cutting machine process? A1: It is ideal for various metals including stainless steel, mild steel, carbon steel, alloy steel, aluminum, and copper.

Q2: What is the maximum cutting speed of the system? A2: The machine offers a maximum cutting speed of ≤25m/min, which is significantly faster than traditional CO2 or YAG lasers.

Q3: How long is the warranty period for this equipment? A3: The system comes with an 18-month guarantee and lifetime service support.

Q4: What is the expected lifespan of the Raycus laser source? A4: The high-quality fiber laser source is designed for long-term use, reaching up to 100,000 working hours.

Q5: Is the machine energy efficient? A5: Yes, it consumes only 20%-30% of the electricity used by conventional CO2 laser cutting machines, making it very cost-effective.

Q6: Does the system include a cooling mechanism? A6: Yes, it utilizes a high-efficiency water cooling system to ensure stable operation during heavy tasks.
