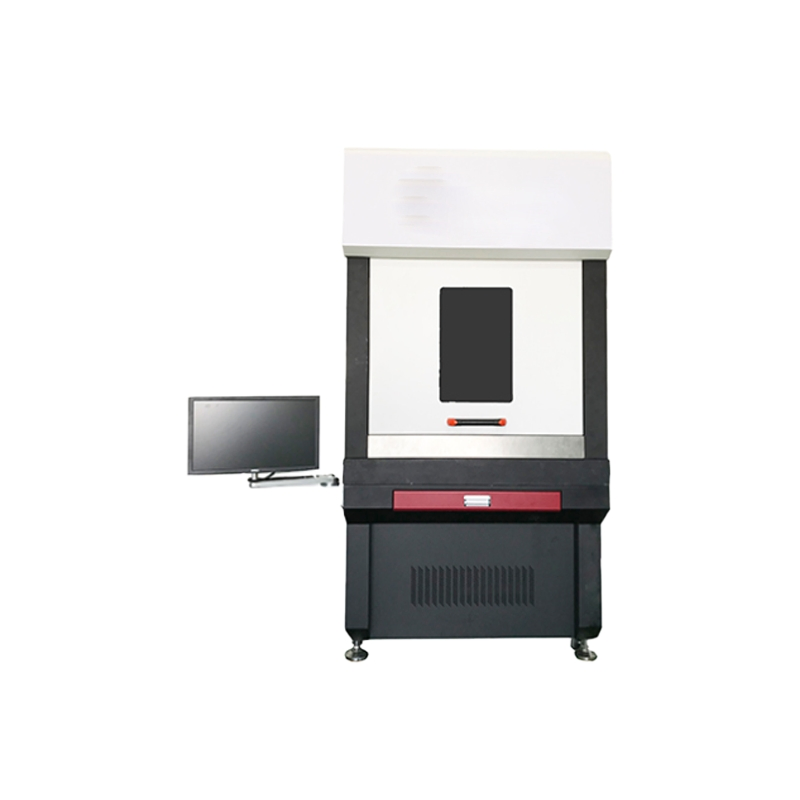

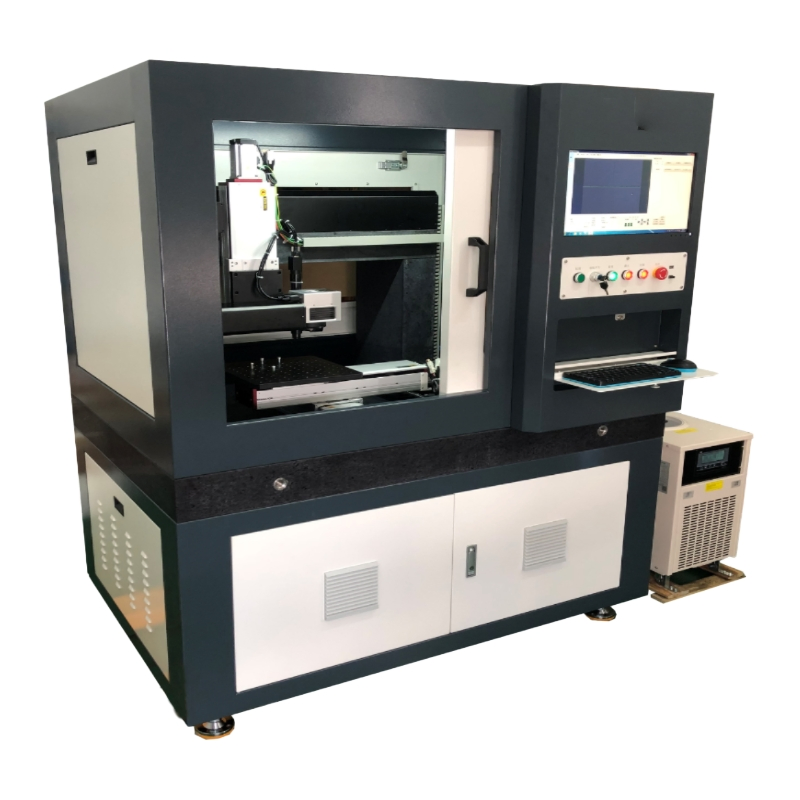

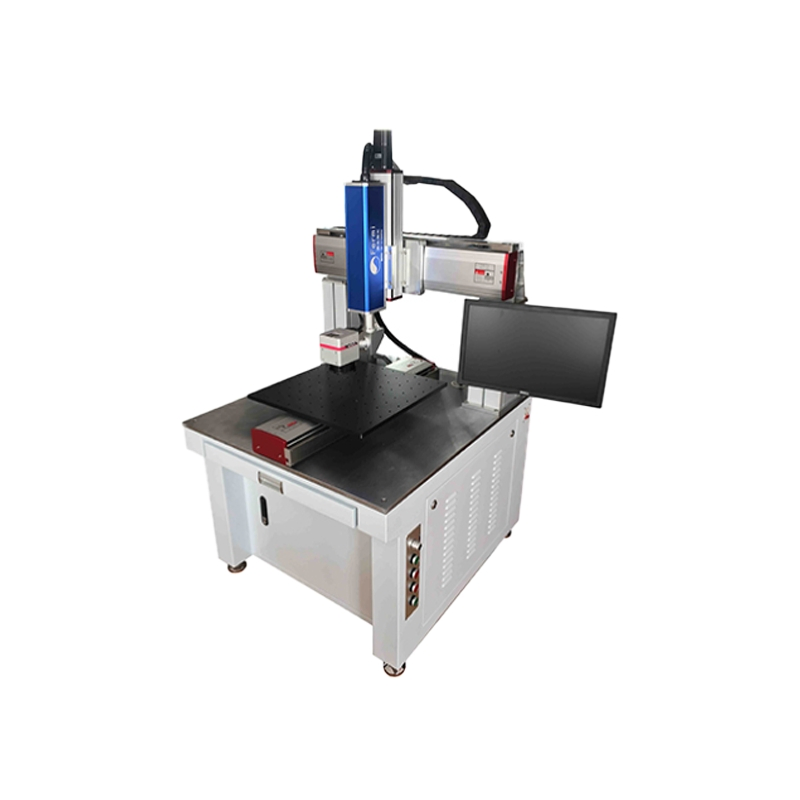

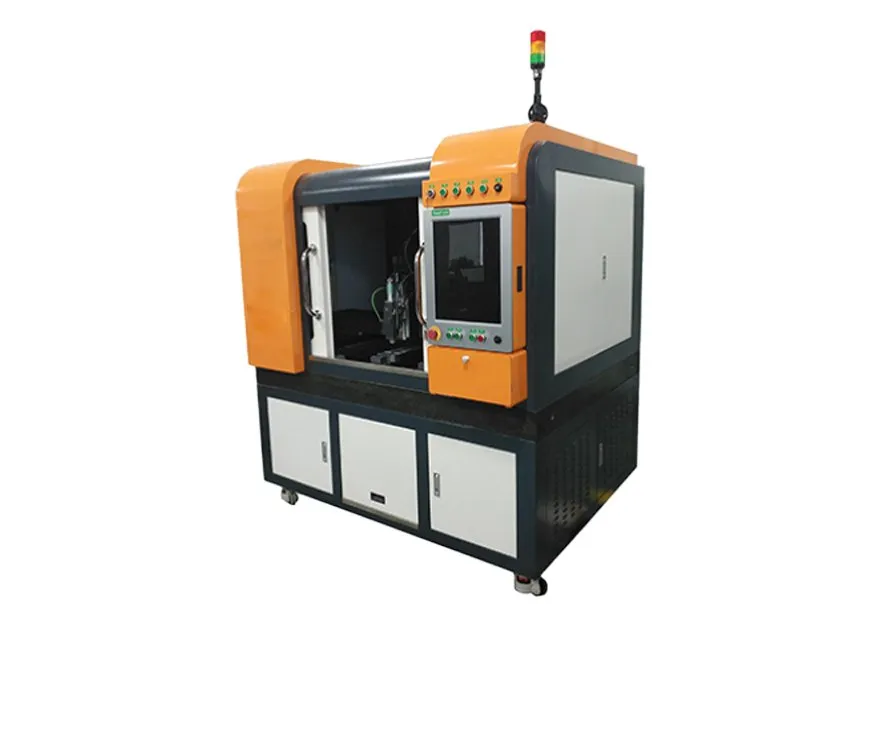

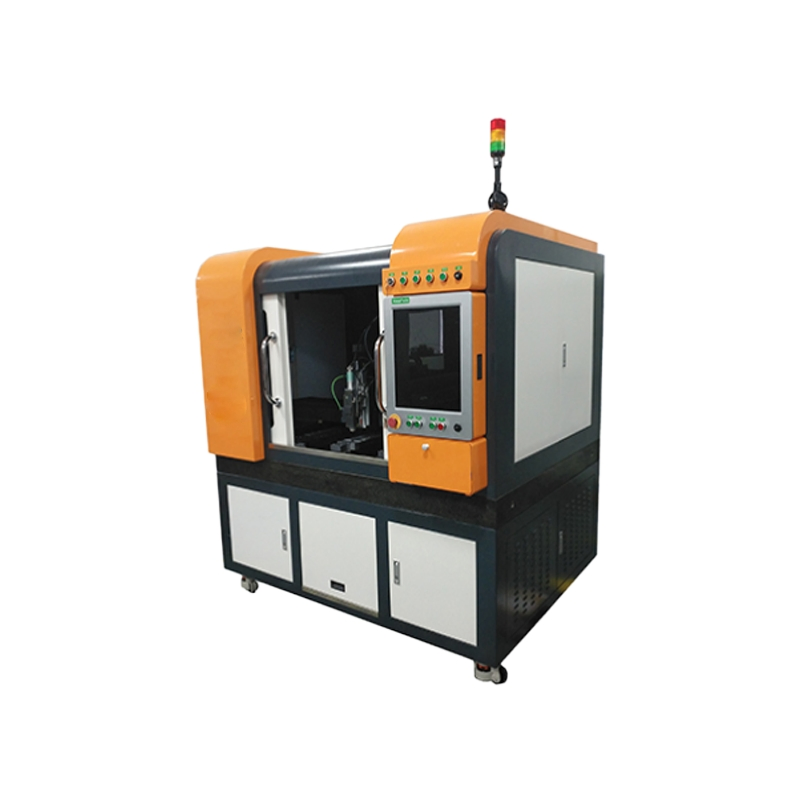

Advanced Technology High-Power Fiber Laser Cutting System

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

Basic Information

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

CNC

Number of Shaft

3

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Transport Package

Polywood Box

Origin

China

Capacity

1000/ Year

Advanced Fiber Laser Cutting System

High-Power Precision Technology

Single-mode fiber laser with excellent reflection isolation and diffraction-limited beam quality for precision cutting.
High-precision follow-up cutting head with automatic focusing and fast response speed.
Precision optical path control structure for superior beam quality and spot control.
Micron-level linear dual-drive platform with acceleration exceeding 1G for extreme stability.
High-precision 4-axis control system with optimized machining path and nesting capabilities.
Off-axis vision positioning system supporting secondary positioning of parts.
High-flatness marble platform with a fully enclosed structure for long-term stability.
Excellent cable management and dust removal design for low maintenance requirements.
Minimum kerf depth of 0.05mm and machining accuracy of ±0.01mm for smooth, slag-free cuts.

Technical Specification

Category	Parameter	FM-LPCD150/300 Details
Laser Source	Wavelength	1070±10nm
	Power Output	150W / 300W
	Modulation Frequency	1~100kHz
	Beam Quality (M2)	<1.3
	Power Stability (8h)	<3%
XY Workbench	Travel Range	600*600mm
	Repeatability	≤±0.002mm
	Positioning Accuracy	≤±0.01mm
	Acceleration	≤1G
	Max Speed	≤800mm/s
Z-Axis	Travel Range	150mm
	Repeatability	≤±3μm
	Positioning Accuracy	≤±5μm
Processing	Thickness Cap	≤5mm
Accuracy	Dimensional Accuracy	≤±0.01mm (plate <1mm)
Utility	Power Consumption	≤5kW

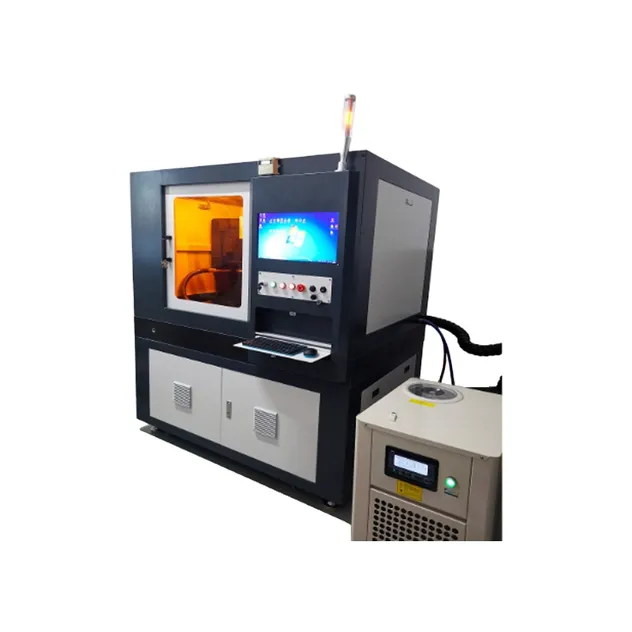

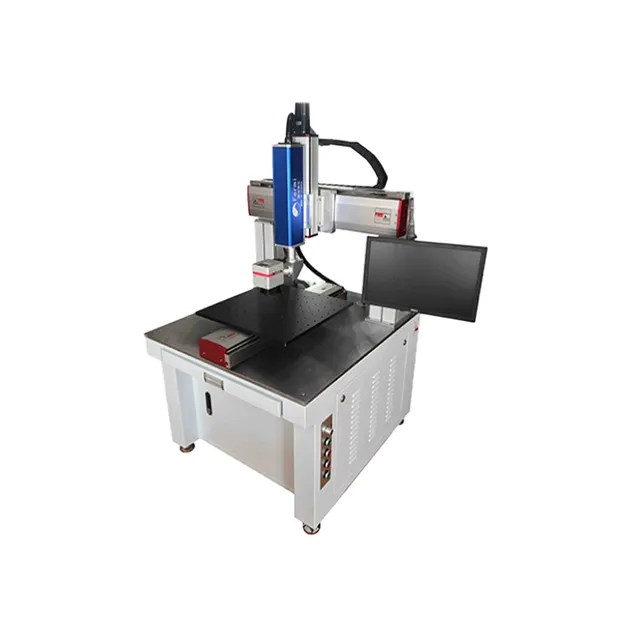

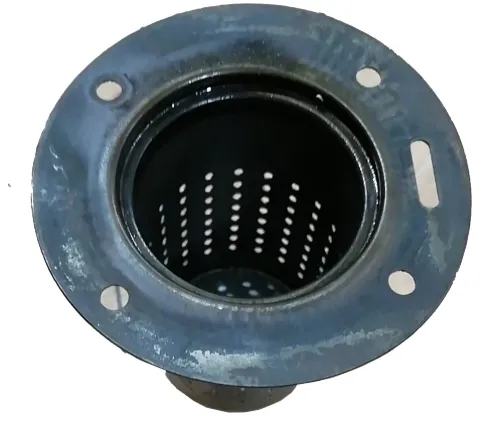

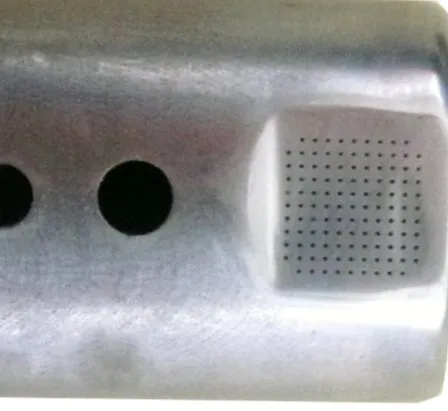

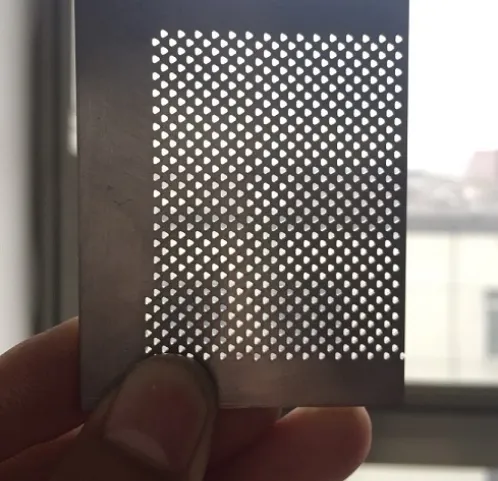

Equipment Application & Product Lines

Service & Support

Standard Warranty: 12 months after shipping.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and dedicated service groups.
Training: Free on-site or remote operation and maintenance training.

Factory Overview

The factory is a technology-driven enterprise specializing in the R&D, production, and sales of industrial and scientific research laser application systems. We provide precision solutions for micro-hole, micro-groove, micro-welding, scribing, cutting, and feature forming (1 to 500 μm).

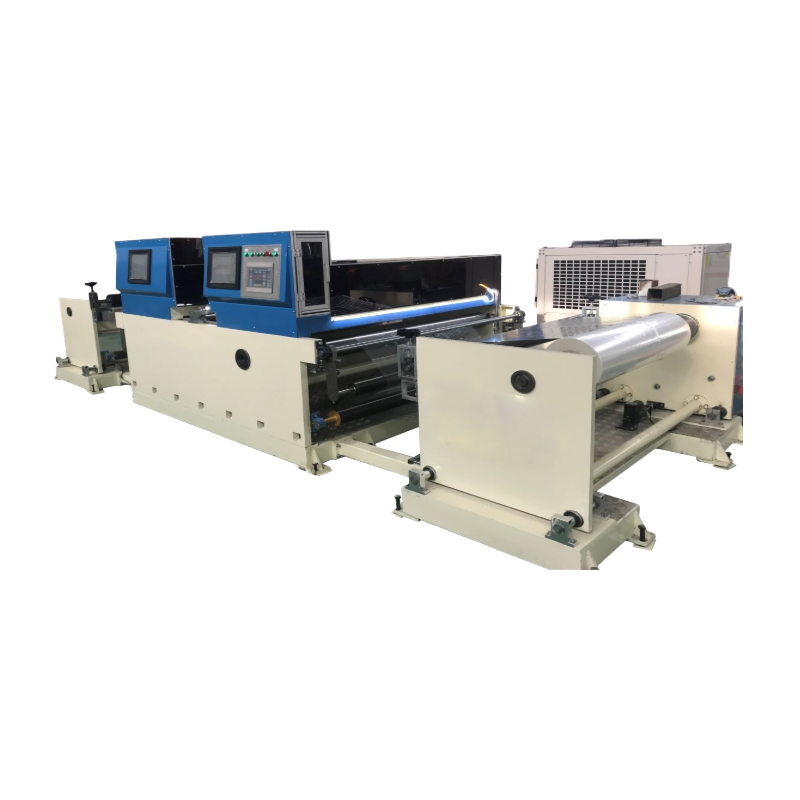

Developed systems include Femtosecond Laser Precision Processing, Picosecond Laser Ultra-Fine Processing, and Roll-to-Roll Thin Film systems, serving biomedicine, semiconductors, and new energy industries.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a factory specializing in the production of drilling and laser machines. We also cooperate with specialized suppliers to provide comprehensive technical solutions for our clients.

What is the typical delivery lead time?

For stock items, delivery is immediate. Standard models typically require 1-3 months for production, while complex, special projects may require a longer lead time.

What payment methods do you support for international orders?

We process international business professionally and primarily accept T/T and L/C for machine orders. Different terms can be discussed for tools and smaller components.

How long does it take to receive a technical quotation?

We typically respond to inquiries within 1 hour. For standard machines, a formal quotation is provided within 3 days after checking technical requirements; special projects may take up to 1 week.

What materials can be processed with your laser systems?

Our precision systems are designed for various metals and alloys, as well as ceramics, supporting high-accuracy cutting and drilling with minimal kerf.

Do you provide technical training for equipment operation?

Yes, we offer both on-site and remote training for operation and maintenance. These training sessions are provided free of charge to ensure optimal equipment performance.
