Stylo Laser
1 / 5

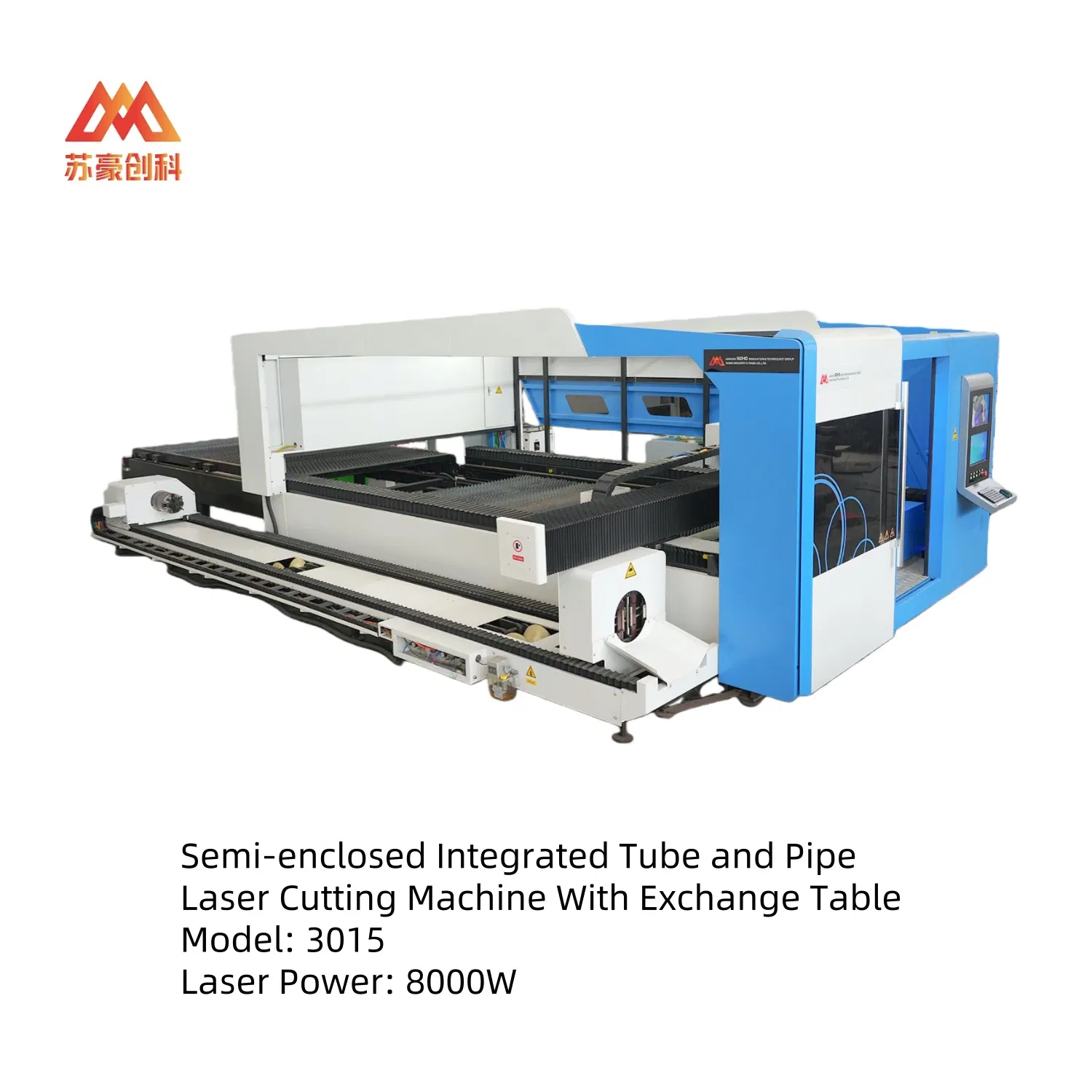

| Model NO. | 3015 |
|---|---|
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery, Agriculture Machinery, Aerospace, Automotive, Advertising |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal |
| Structure Type | Gantry Type |
| Laser Classification | Free Electron Laser |
| Laser Technology | Laser Control Fault Cutting |
| Package Size | 470.00cm * 235.00cm * 200.00cm |
|---|---|
| Package Gross Weight | 4000.000kg |
| Transport Package | Container |

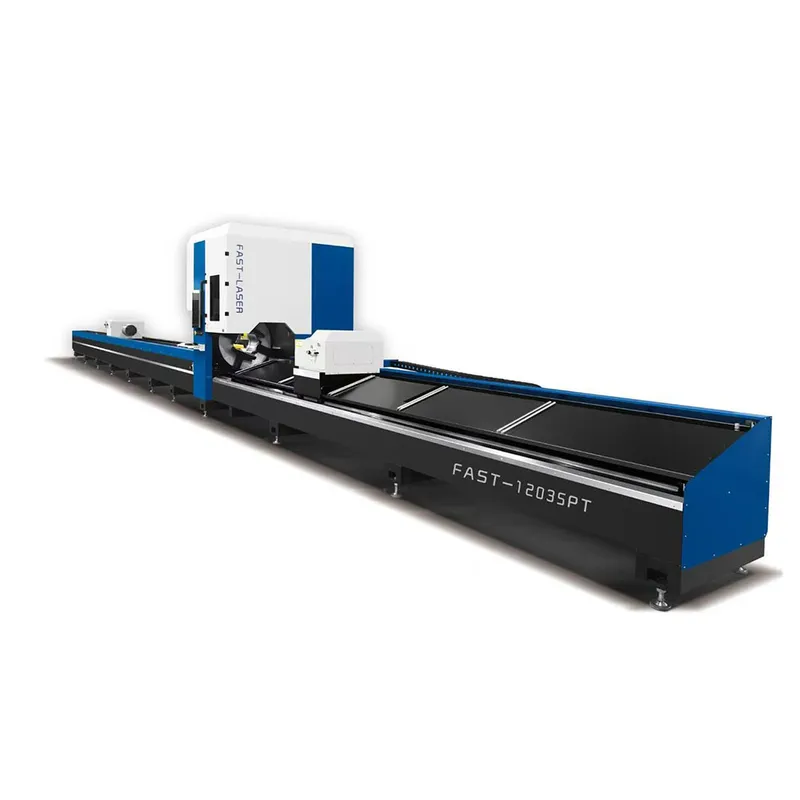

The tube cutting machine features a robust and streamlined structure. It is equipped with a long, sturdy bed that provides stable support for the entire equipment. There is a prominent cutting unit, often with a protective enclosure, which houses the laser or cutting mechanism. The machine also has a feeding system for tubes, including rollers or clamps to accurately position and move the tubes during the cutting process.

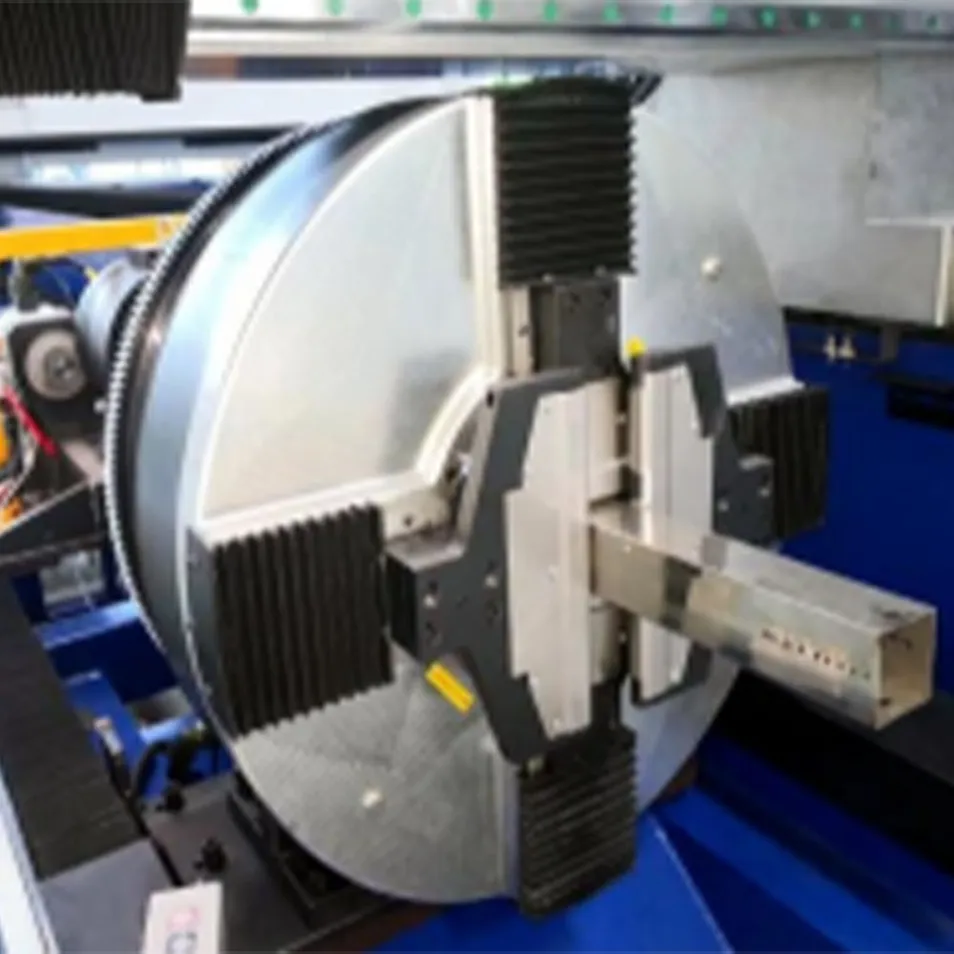

Function of Tube Cutting Machine
Designed to precisely cut various types of tubes, such as round, square, and rectangular tubes, made from materials like metal, plastic, and composite. It can perform operations like straight cutting, bevel cutting, and complex contour cutting using advanced technologies to achieve high-precision cuts with minimal material waste.
Key Advantages
Exceptional cutting precision ensures accurate dimensions and smooth edges, reducing secondary processing. Features high cutting speed, automated operation to minimize human error, and a user-friendly interface for easy setup and control.

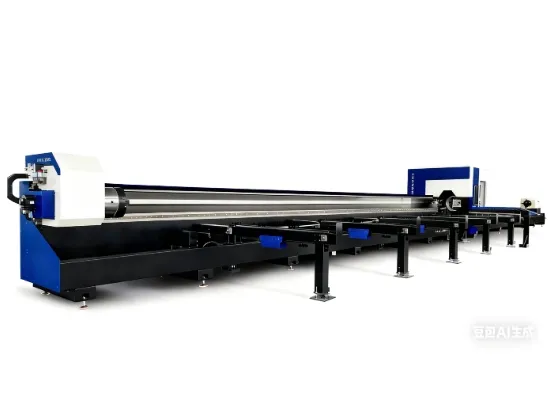

| Product Name | Tube Fiber Laser Cutting Machine |
|---|---|
| Technical Specs | The machine consists of 7 shafts, realizing one-time forming and processing of 6-meter pipes. Equipped with feeding and pulling shafts to reduce waste. |
| Model Number | 230 / 360 |
| Specifications | Φ20-Φ230mm, Φ20-Φ160mm, Φ20-Φ360mm, Φ20-Φ254mm |

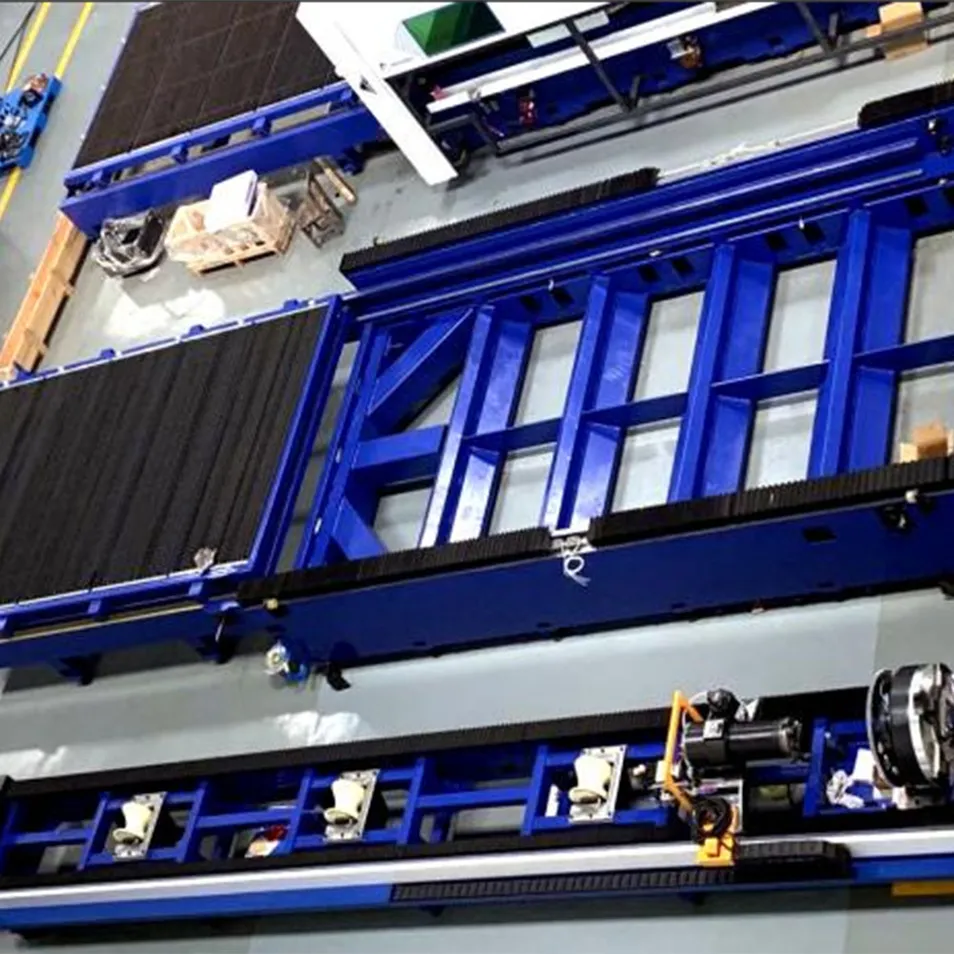

The machine bed is welded from steel plates and subjected to high-temperature quenching, resulting in excellent vibration damping. Its precision remains unchanged for 10 years, ensuring high stability. Optimized dampers and dust removal ducts provide zoned dust removal, enhancing energy efficiency.
| Model Number | 3015, 4020, 6020, 6025, 8025 |
|---|---|
| Dimensions | 3000mm*1500mm to 8000mm*2500mm |
| Main Applications | Sheet Metal Fabrication, Producing metal enclosures, electrical cabinets, and control boxes. |
