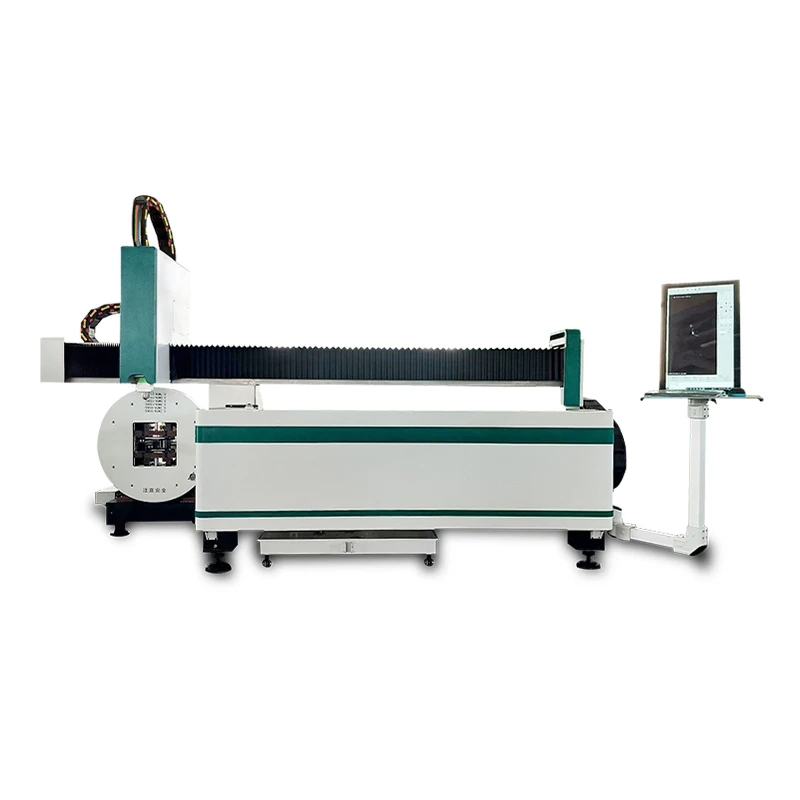

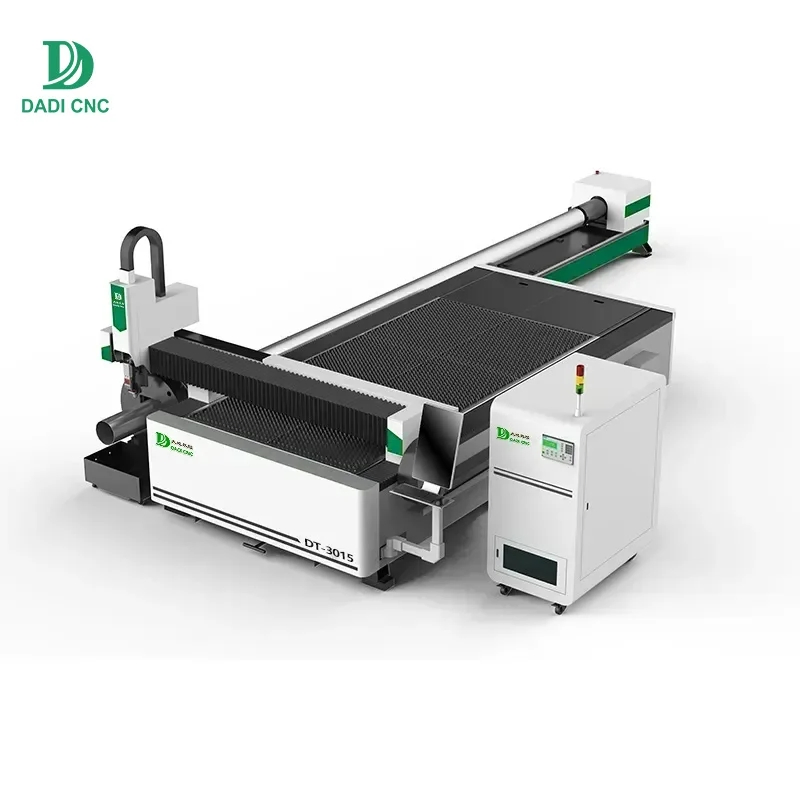

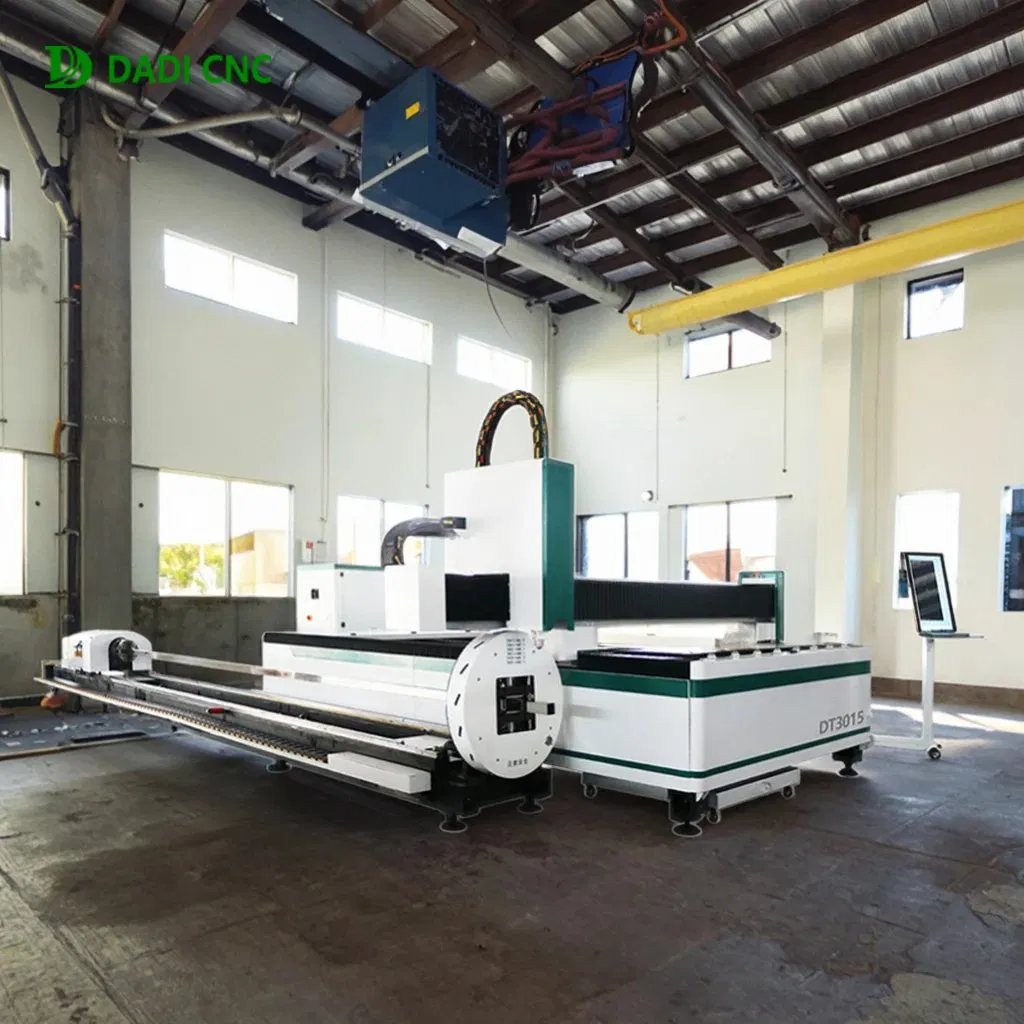

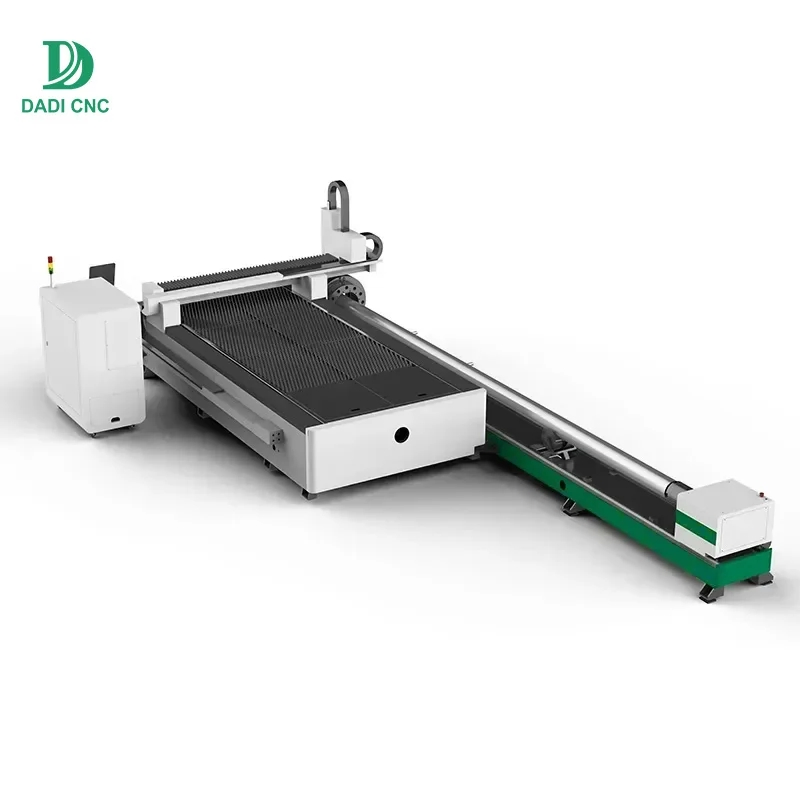

High-Precision CNC Fiber Laser Cutting System for Metal

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	5-Year Warranty

📊 Basic Information

Model NO.	DA-3015T
Application	Home Appliance, Environmental Equipment, Petroleum Machinery, Agriculture, Aerospace, Automotive, Advertising
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Applicable Material	Metal
Structure Type	Gantry Type
Laser Brand	IPG / MAX / RAYCUS
Servo Motor	FUJI / Yaskawa, Japan
Max. Speed	150m/min
Positioning Accuracy	0.02mm

🔍 Product Overview

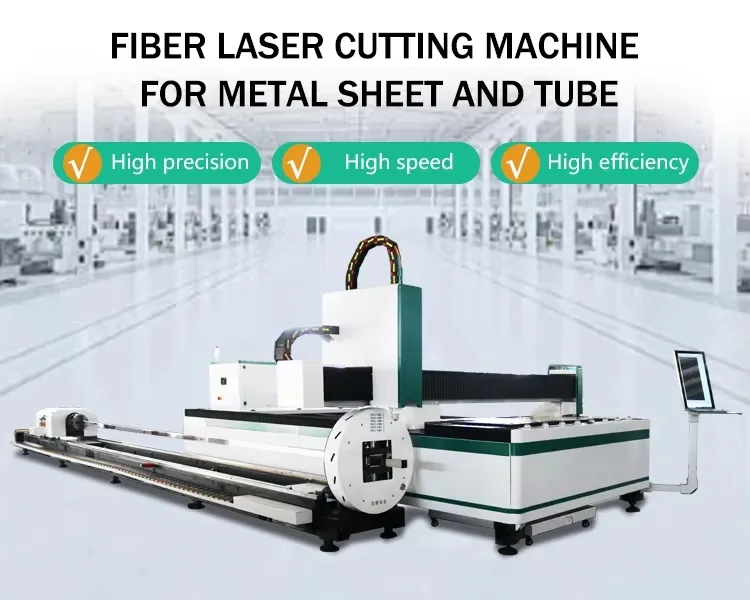

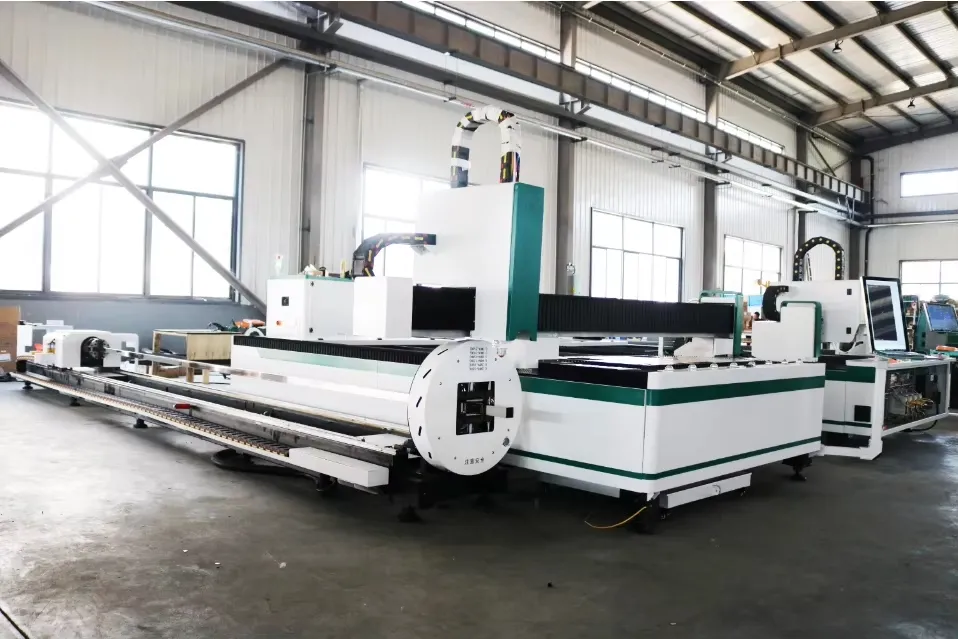

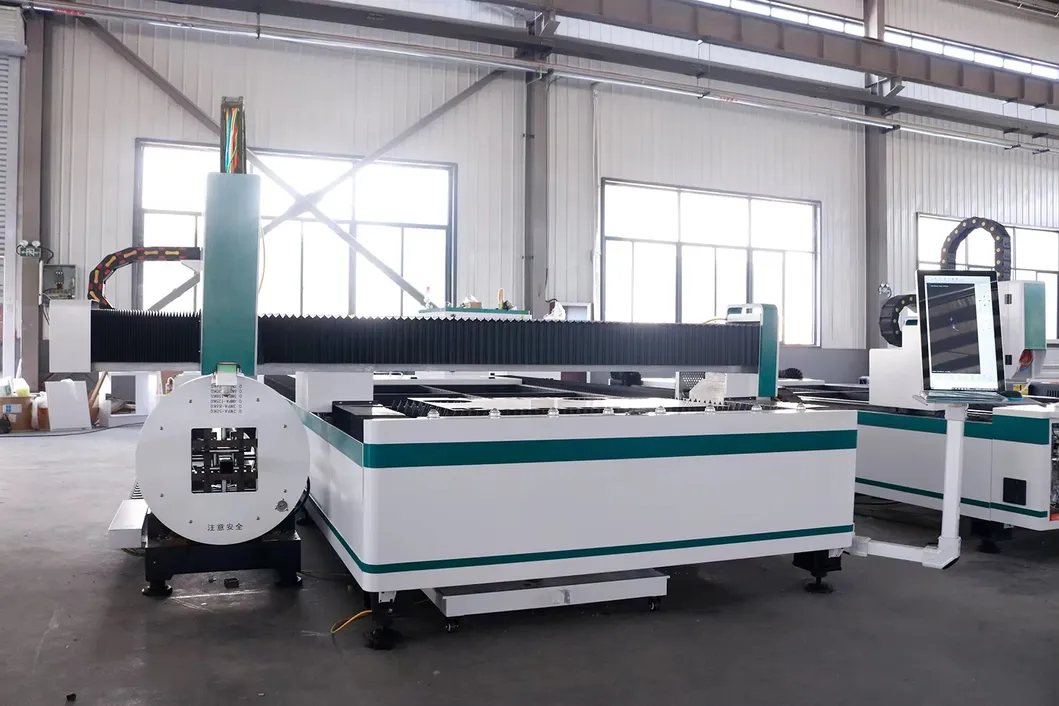

The fiber laser cutting machine for sheet and tube (1.5KW - 20KW) features a heavy-duty bed for stable operation and a high-speed beam for efficient performance. Its ergonomic industrial design combined with a high-quality electrical control system ensures precision in every cut. This versatile machine is capable of processing both metal plates and tubes, offering high cost-performance and wide-ranging industrial applications.

Suitable for: Metal processing, advertising signs, decoration, handicrafts, electronics, agricultural machinery, furniture, and door/window processing. It efficiently cuts carbon steel, stainless steel, aluminum, brass, and galvanized steel.

⚙️ Technical Parameters

Laser Power	1000W - 20000W
Working Area	30001500mm / 40002000mm / 6000*2500mm
Tube Cutting Length	3m / 6m
Tube Diameter	Round: 20-230mm, Square: 20-150mm
Weight	4000kg
Max. Acceleration	1.5G
Auxiliary Gas	Compressed air, Oxygen, Nitrogen

🛠️ Key Components & Features

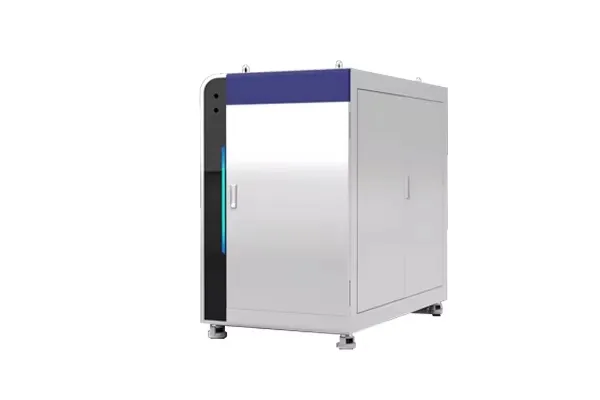

Independent Control Box

Dust-proof standalone cabinet protecting electrical components for extended service life.

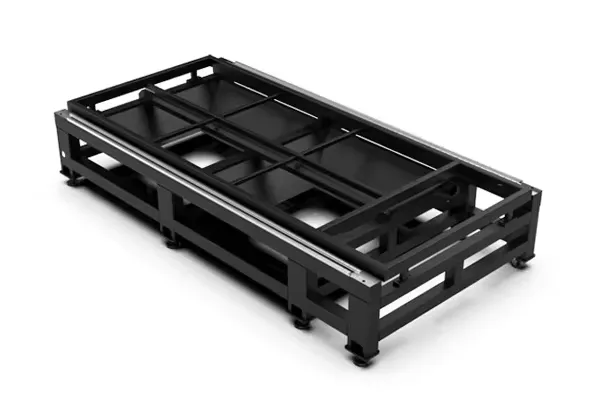

Heavy-Duty Machine Frame

Plate-welded structure with aging treatment to ensure long-term stability and high load capacity.

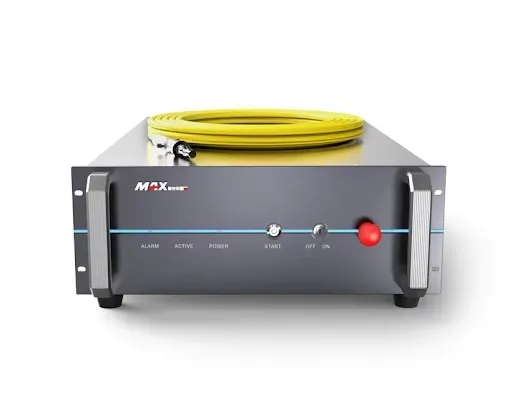

Professional Laser Source

High light conversion efficiency and superior beam quality for precise metal cutting.

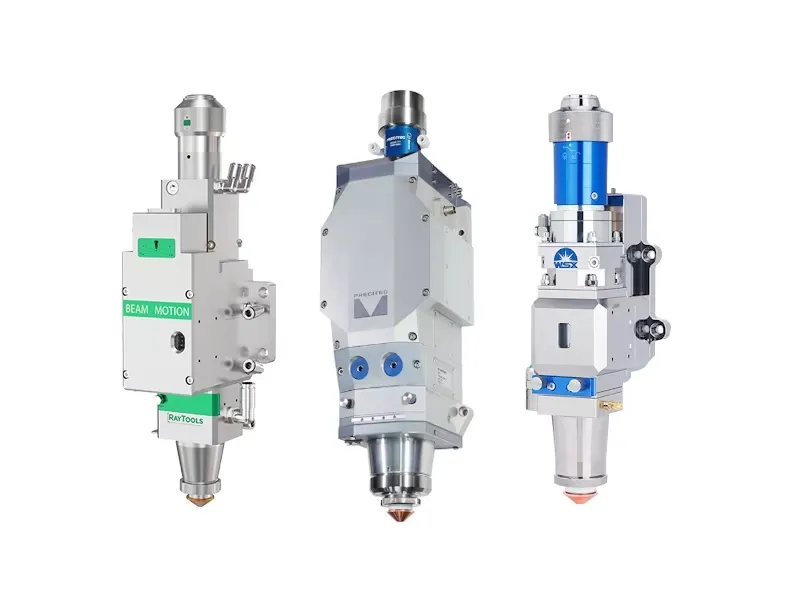

Auto-Focus Laser Head

Continuously focused for rapid perforation and stable cutting of various thicknesses.

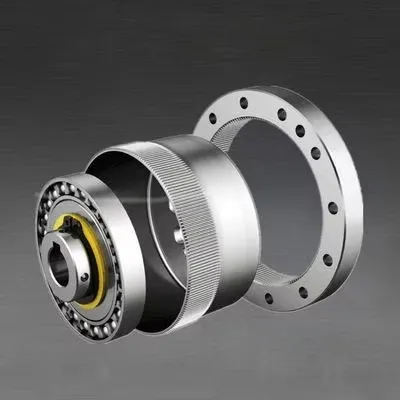

High-Precision Reducer

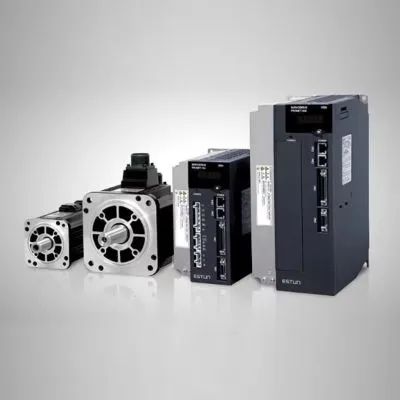

Servo Driving System

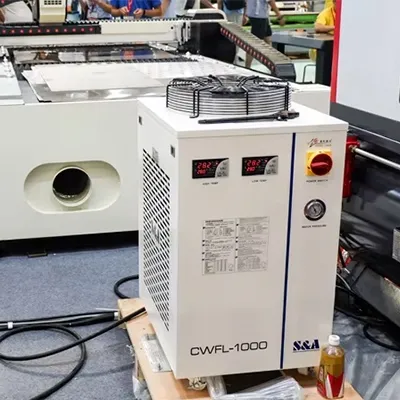

Industrial Water Chiller

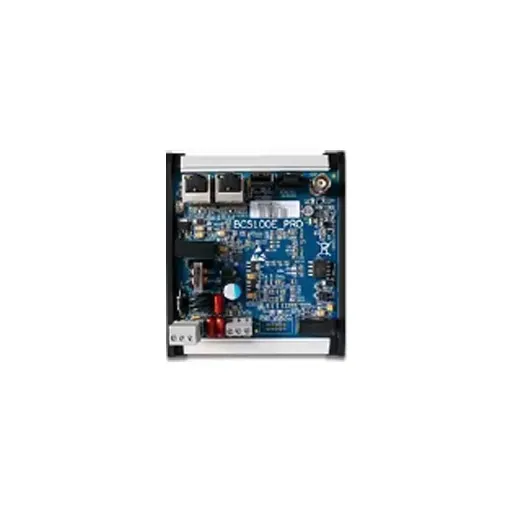

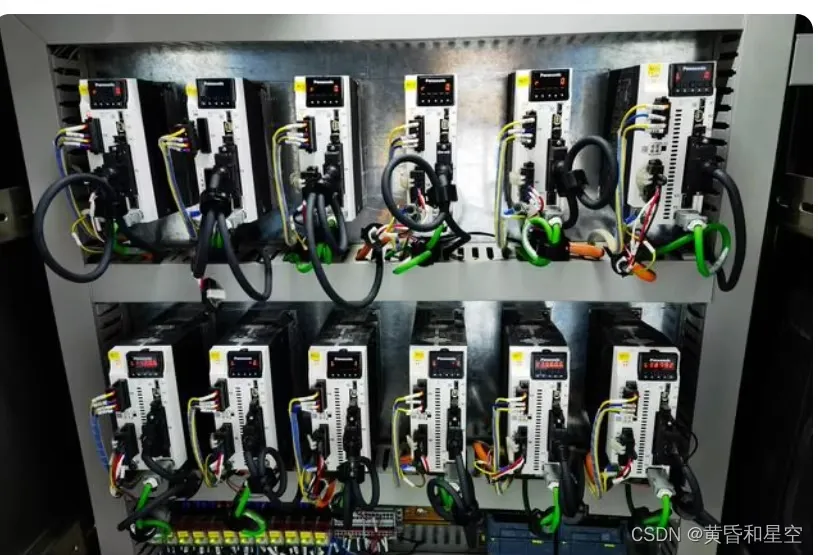

Servo Driver

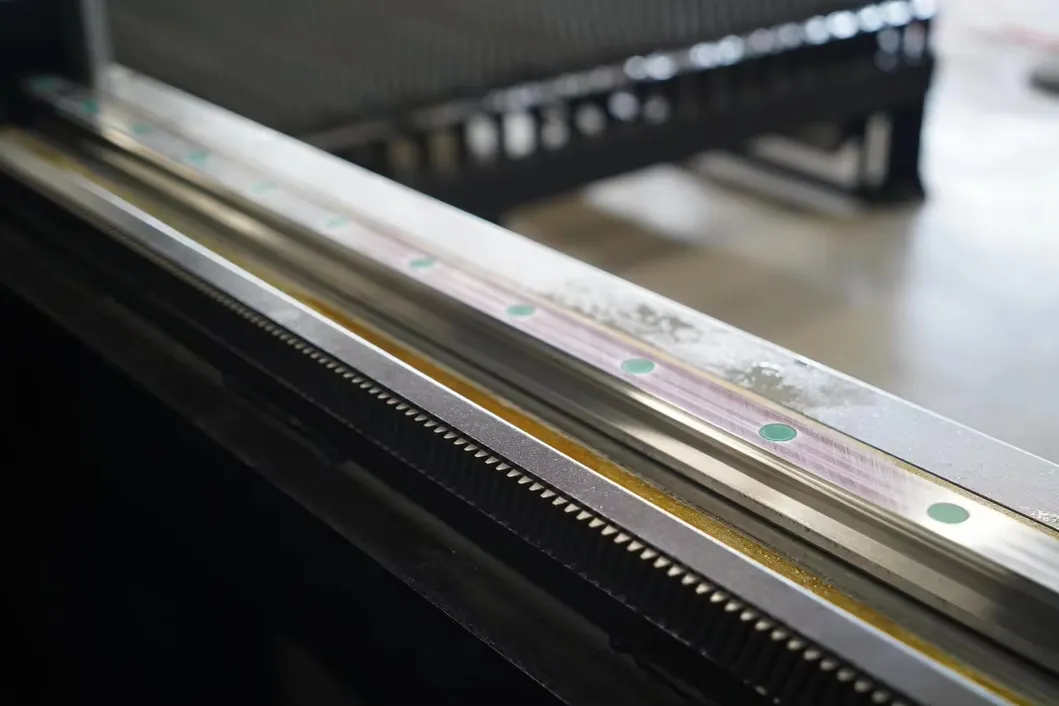

HIWIN Linear Rails

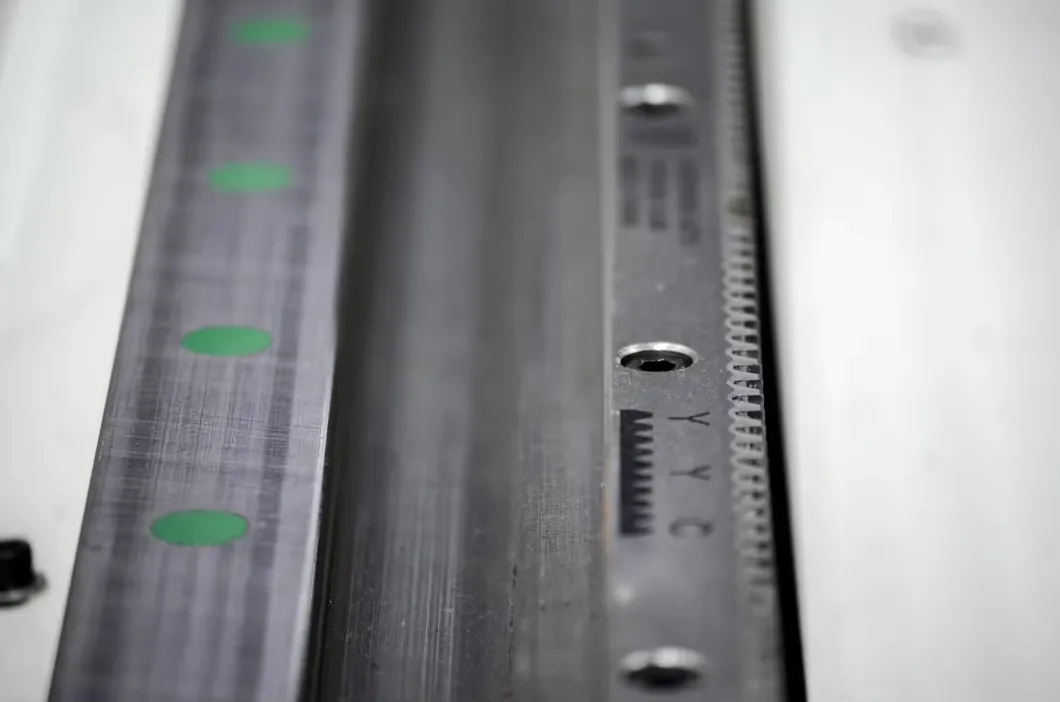

High-Precision Gear Rack

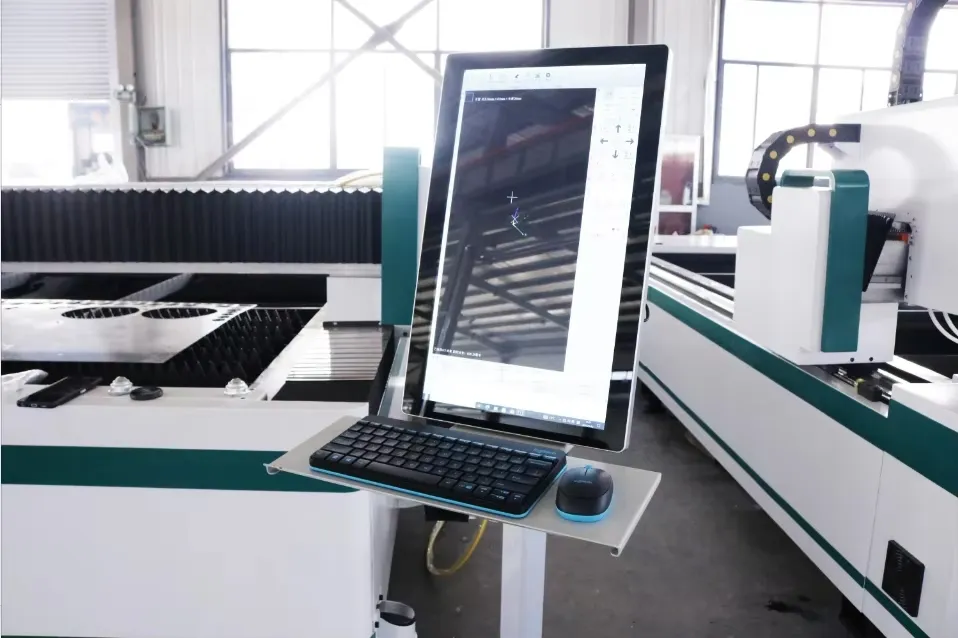

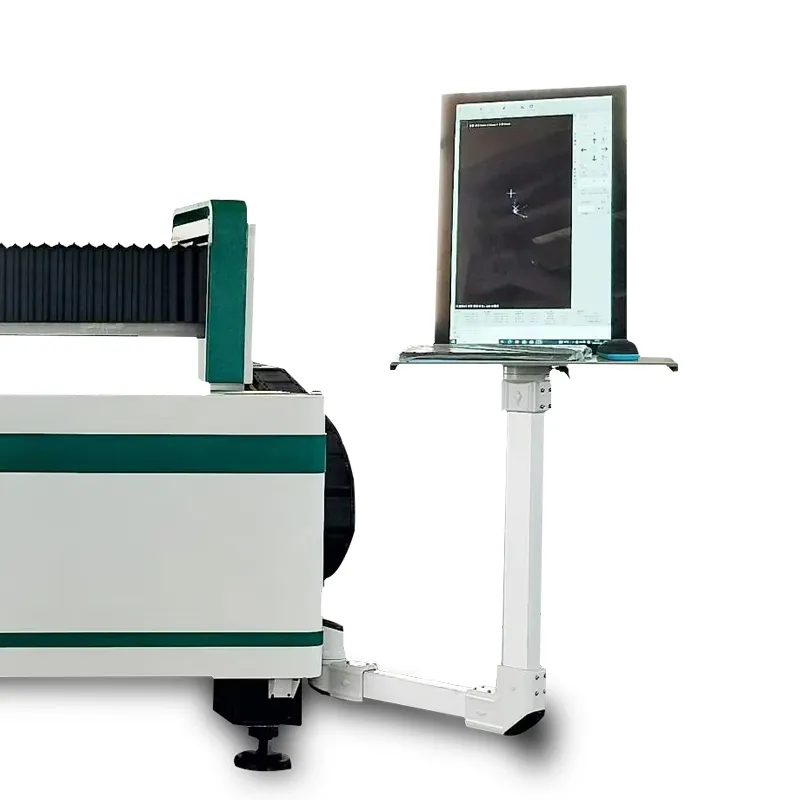

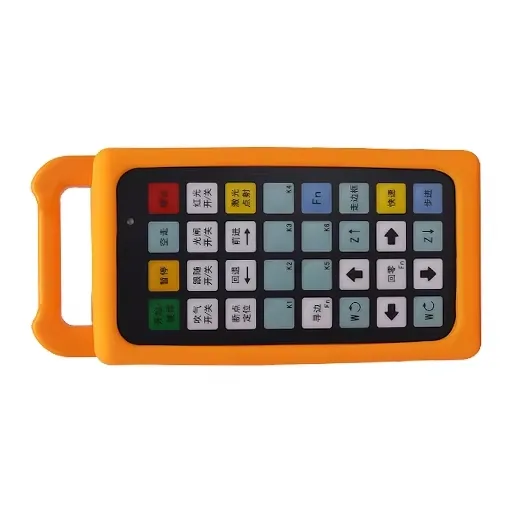

💻 Intelligent Control System

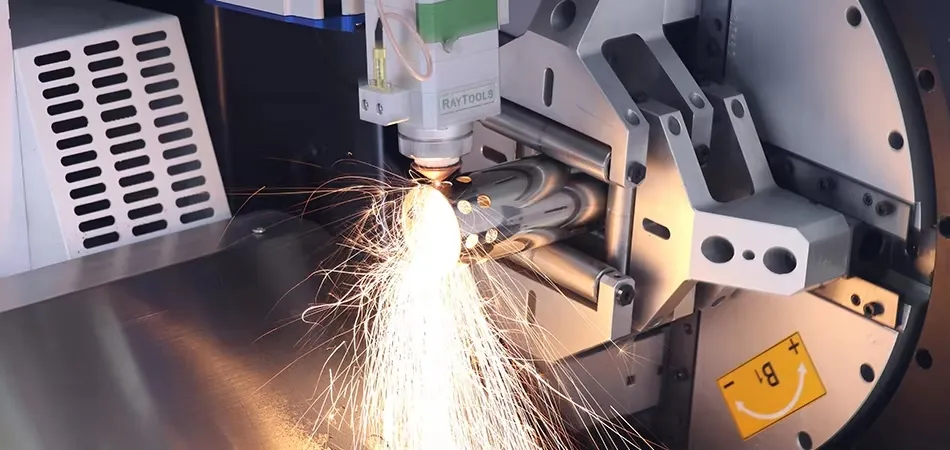

Pneumatic Chuck: Features a fully enclosed structure with tight dustproof function and high clamping accuracy for stable tube processing.

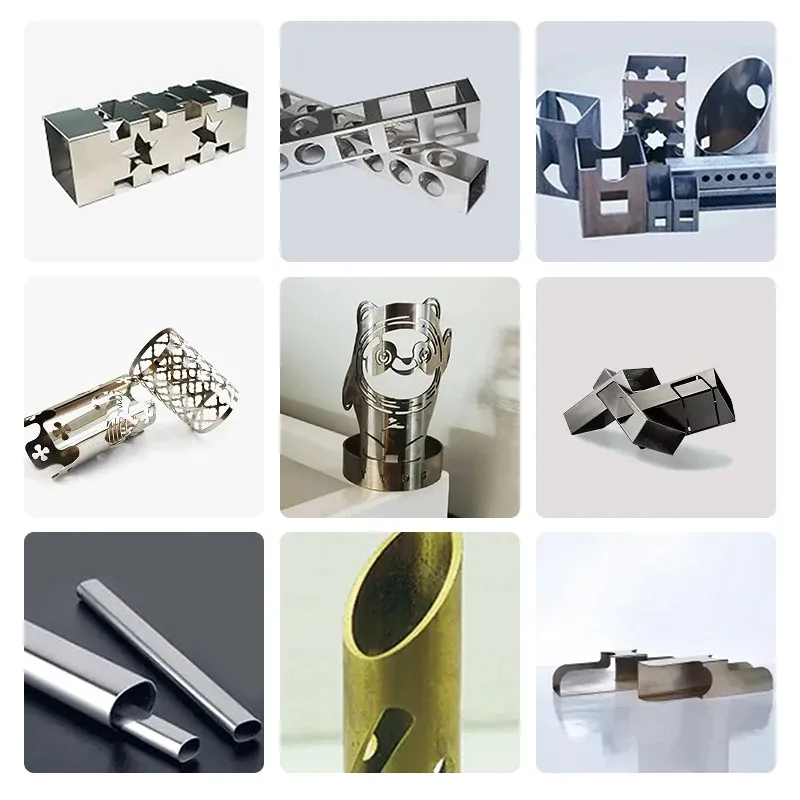

✨ Sample Display

🏆 Certifications

🏢 Manufacturer Profile

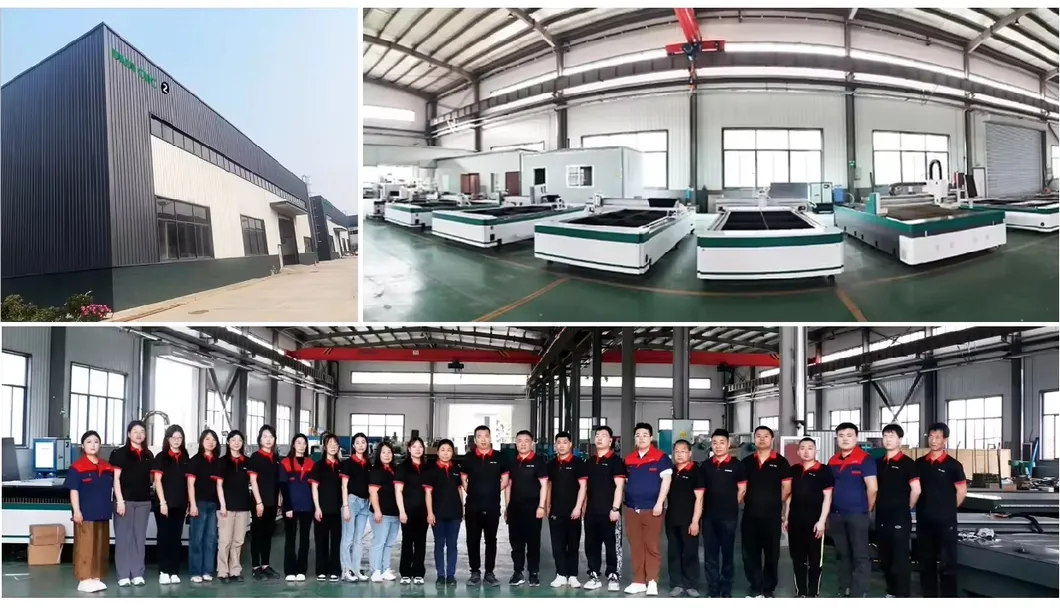

Established in 2017, the company integrates R&D, production, and sales of intelligent metal forming equipment. With two manufacturing bases covering over 10,000 square meters, we maintain an annual production capacity of 2000+ units. Our solutions include fiber laser cutting, engraving, welding, and cleaning machines exported to over 100 countries. We hold multiple certifications including CE, ISO9001, BV, SGS, and TUV to ensure product reliability.

❓ Frequently Asked Questions

Q: How do I get an accurate quotation? A: Please provide details regarding your specific needs, such as metal type, thickness, and required sheet/tube dimensions.

Q: What is the HS Code for the laser machine? A: The standard HS Code for laser machines is 84561100.

Q: What are the typical payment and shipping terms? A: We usually accept a 30% down payment by T/T, with the balance paid before delivery. Minimum order quantity is 1 set.

Q: What is the warranty policy? A: The warranty period typically ranges from 12 to 36 months following delivery, covering parts and spares related to quality issues.

Q: Do you offer operation training? A: Yes, we provide free training at our factory and can also offer on-site training at the client's location if requested.

Q: How is the machine packaged for shipping? A: Machines are typically shipped in fumigation-free plywood cases to ensure safety during sea or air transport.
