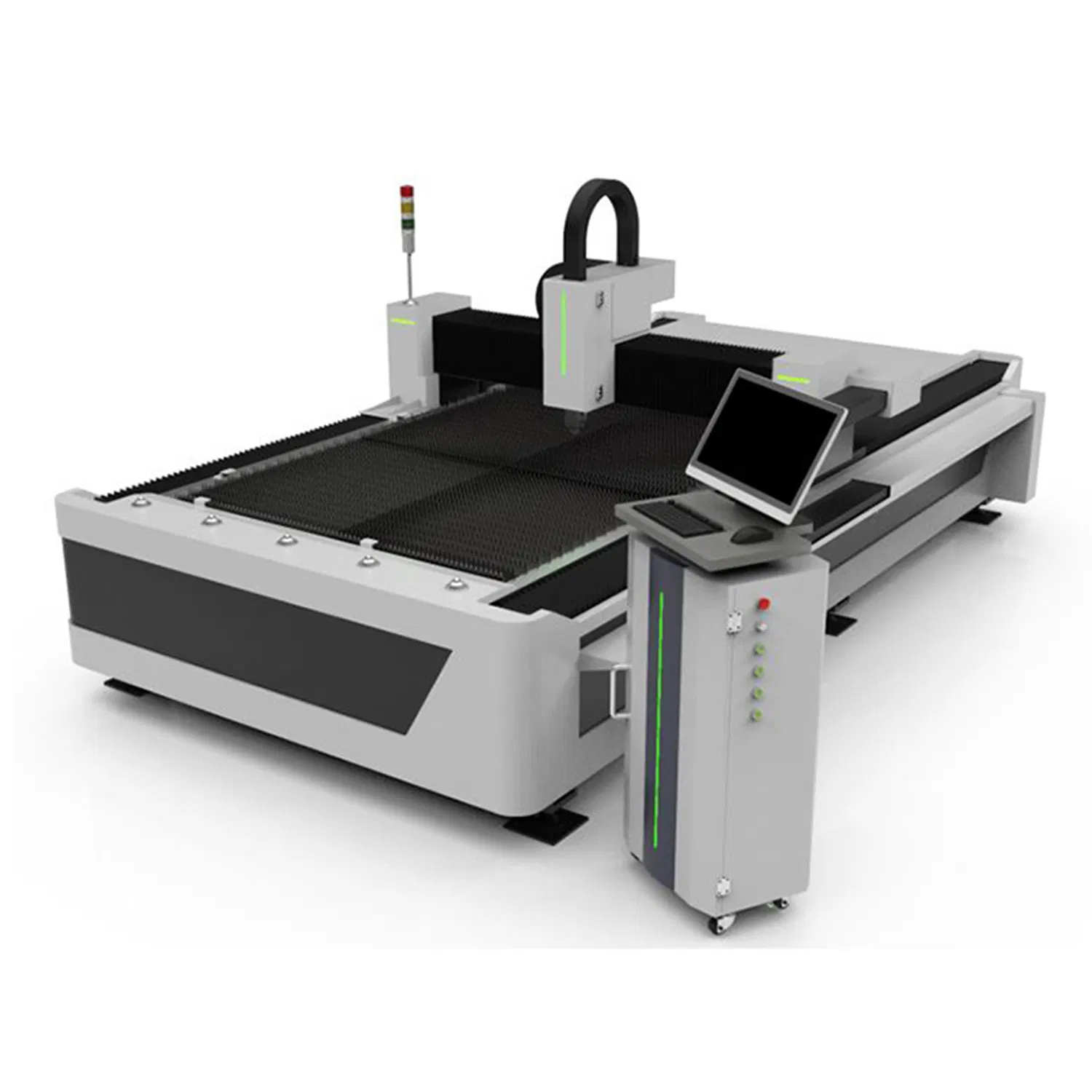

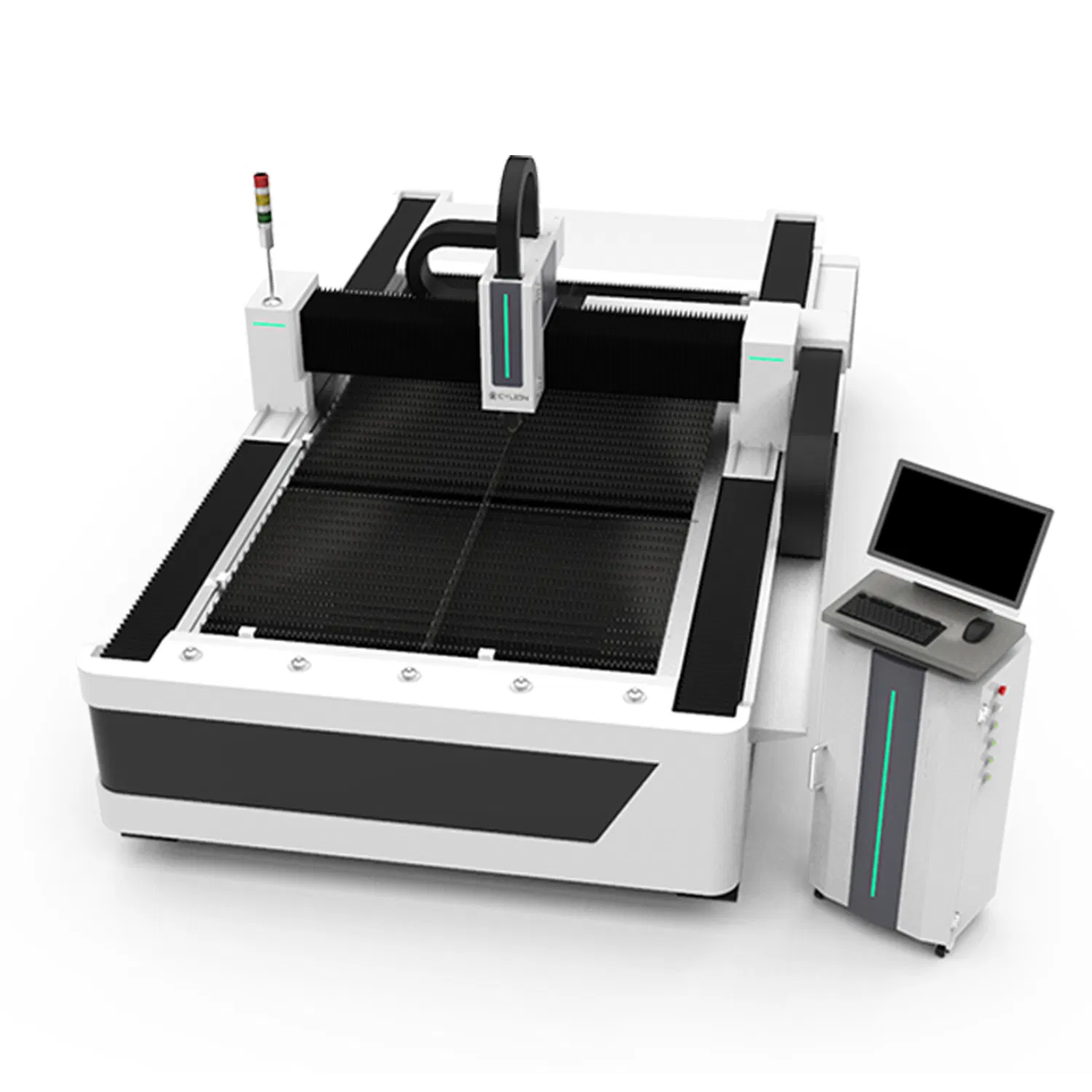

High Precision Fiber Laser Cutting Machine 1500W-30000W Automatic Cutting System

1 / 5

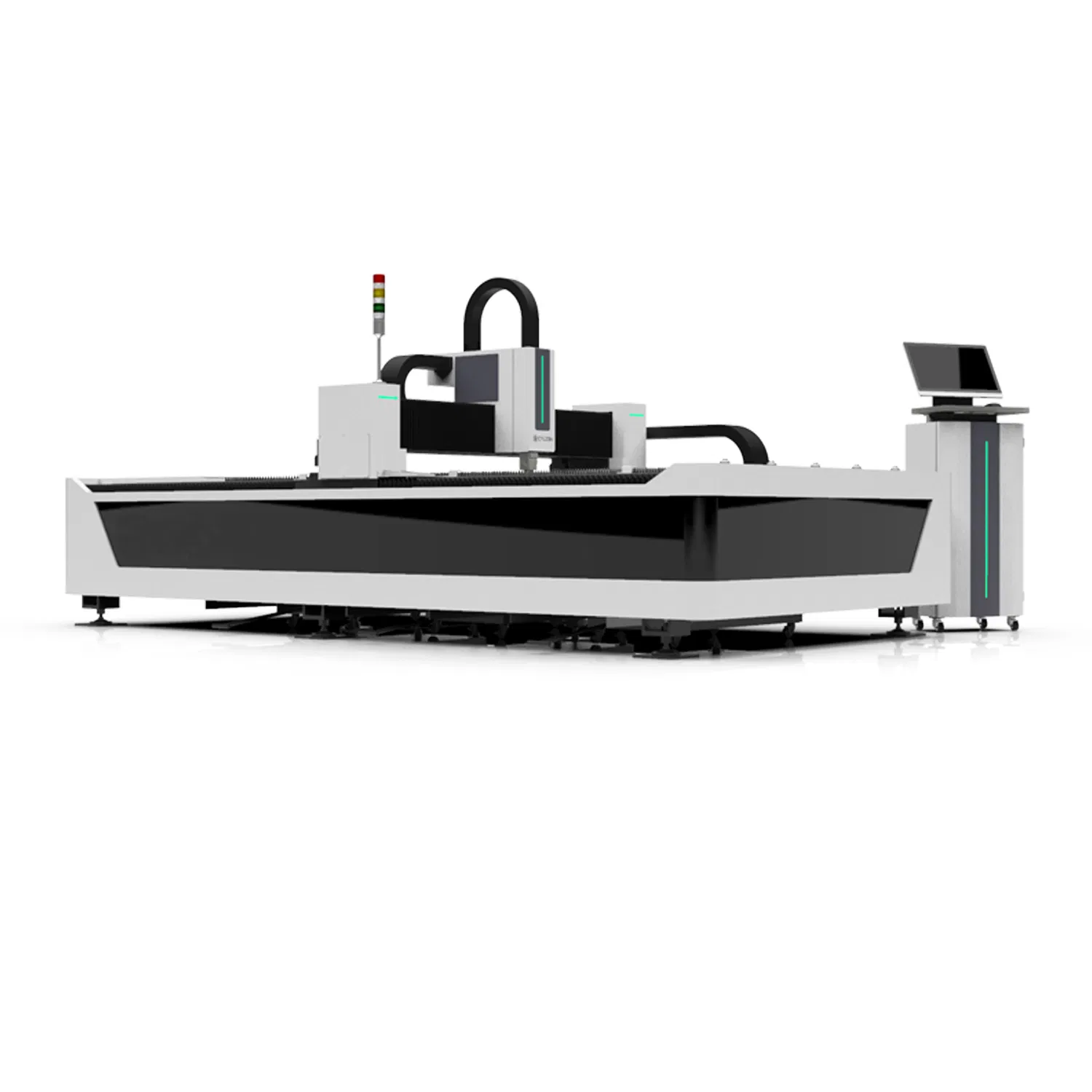

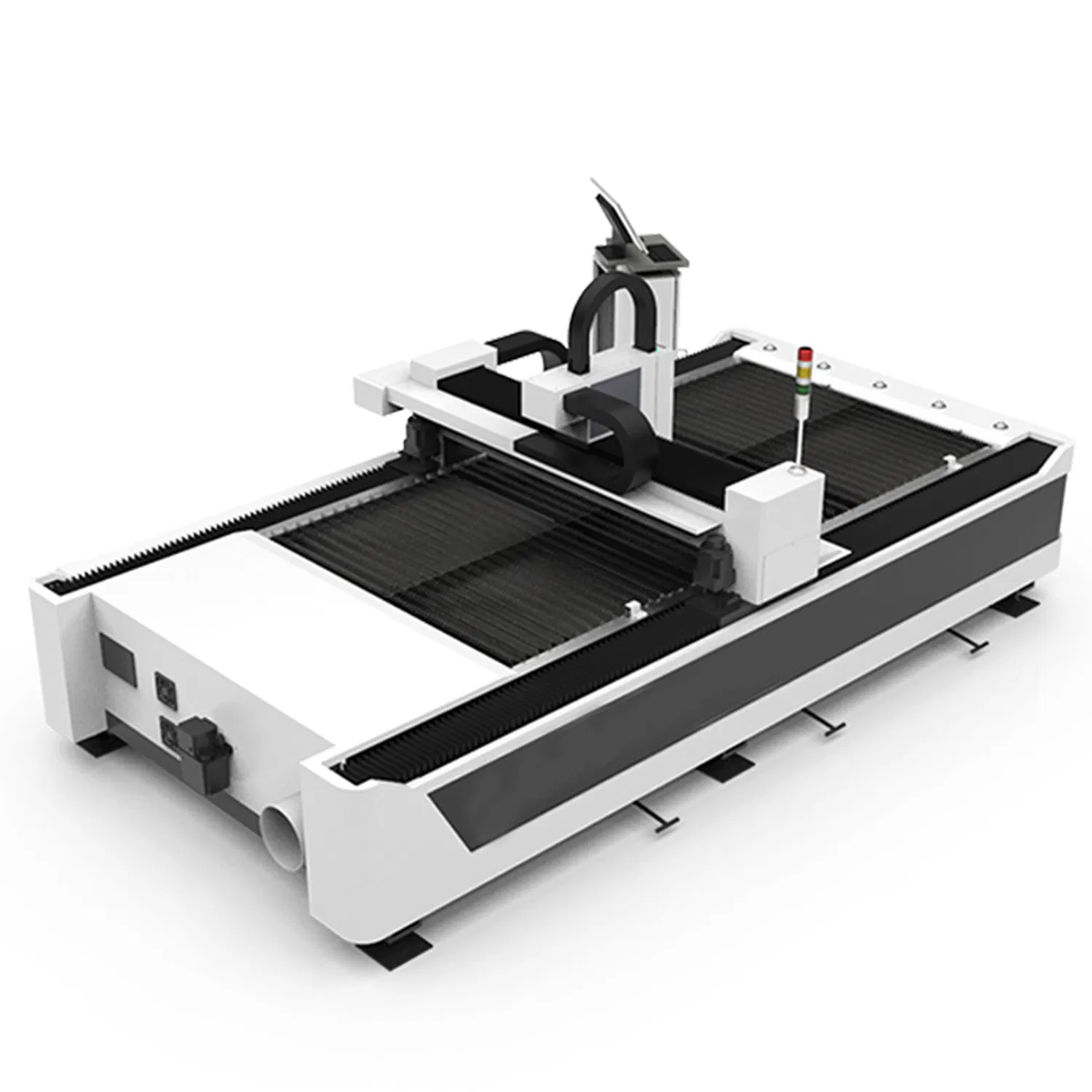

High Precision Fiber Laser Cutting Machine 1500W-30000W Automatic Cutting System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YH6020

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Fiber Laser

Controller

Baichu

Laser Power

Ipg/Raycus/Max

Laser Head

Raytools Auto Focus

Servo Motor

German Lead-Motion

Reducer

Japan Shimpo

Certification

CE ISO

Weight

3800kg

Production Capacity

50 sets/Month

🚀 Product Description

Technical Excellence: High Precision Fiber Laser Cutting Machine equipped with Japan Yaskawa Servo Motor Driver and SHIMPO Reducer.

Gantry double drive structure for smooth and reliable movement.
Independent machine tool bed design with special processing for high stability and precision.
Precision gear rack drive with high response servo motors.
International first-class quality fiber laser for maintenance-free operation.
High precision laser cutting head with imported optical lenses.
Double closed-loop control capacitive torch height controller.
User-friendly CNC system requiring minimal operator training.
Automatic refueling system and proportional gas pressure valve control.

📸 Detailed Photos & Components

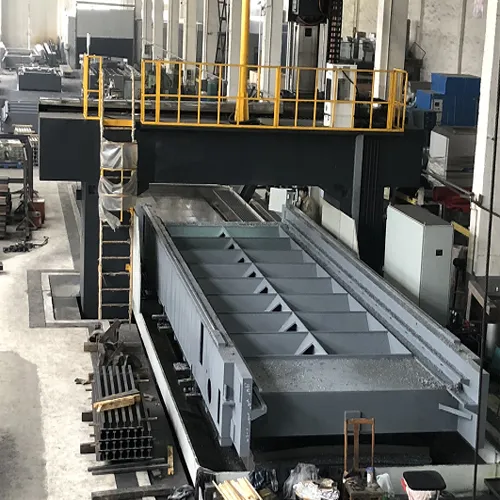

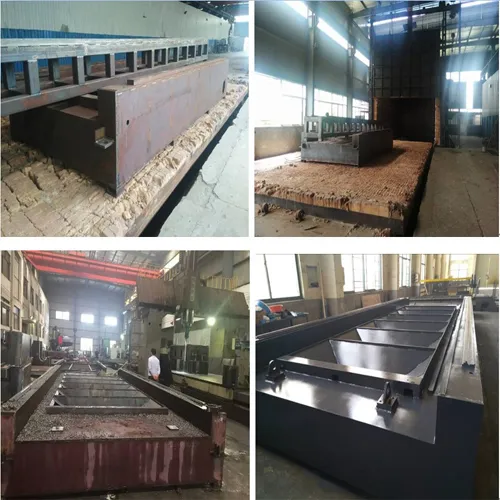

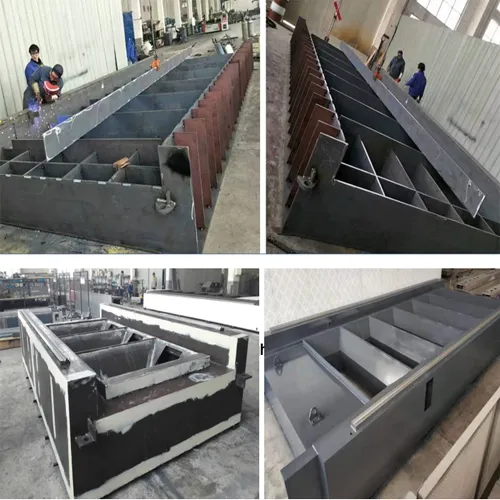

Machine Body: Plate welding with stiffener inside (not square pipe weld frame) to ensure no deformation in ten years.

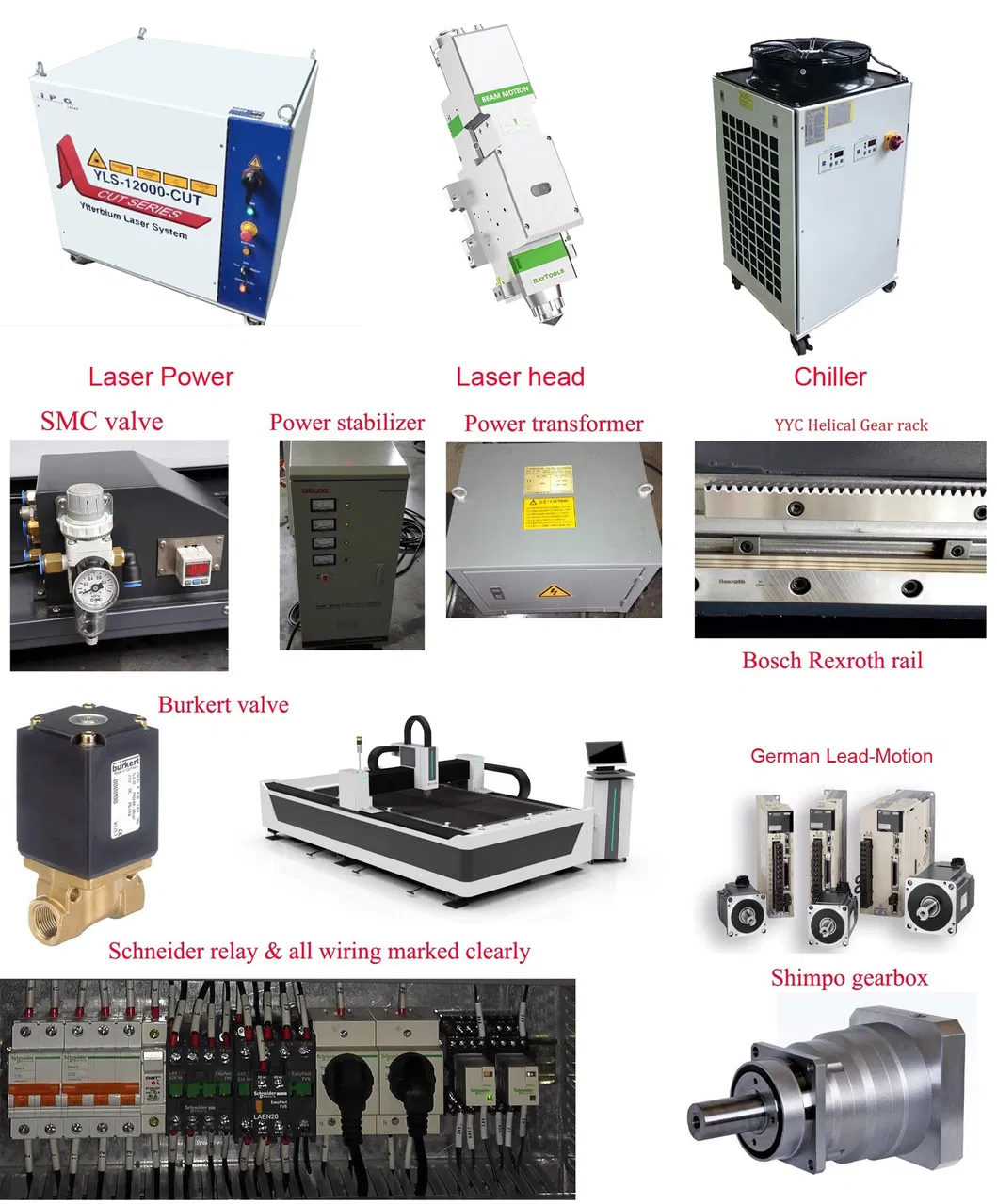

Key Components:

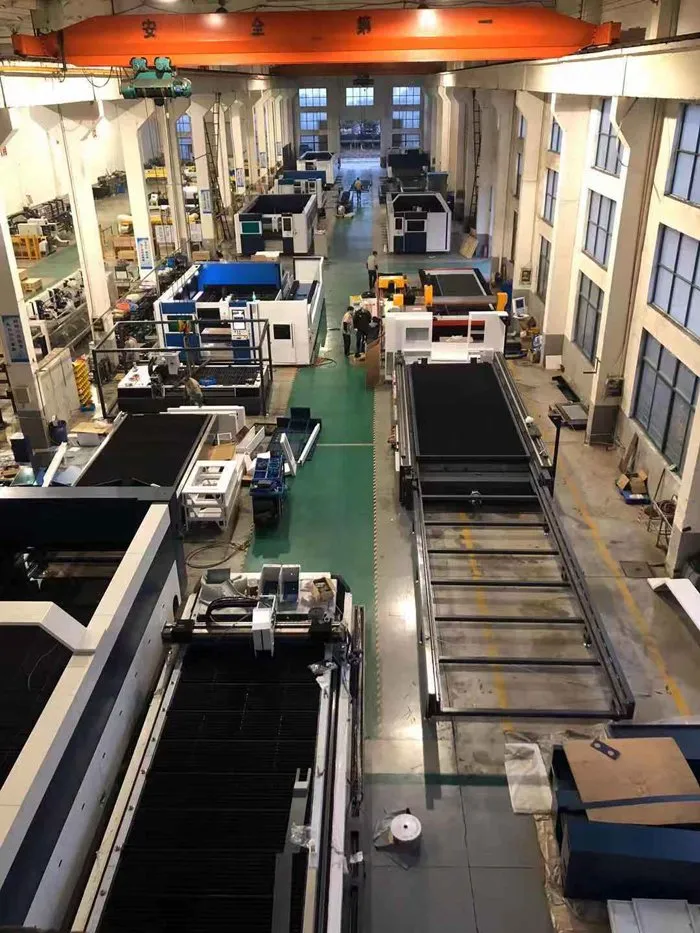

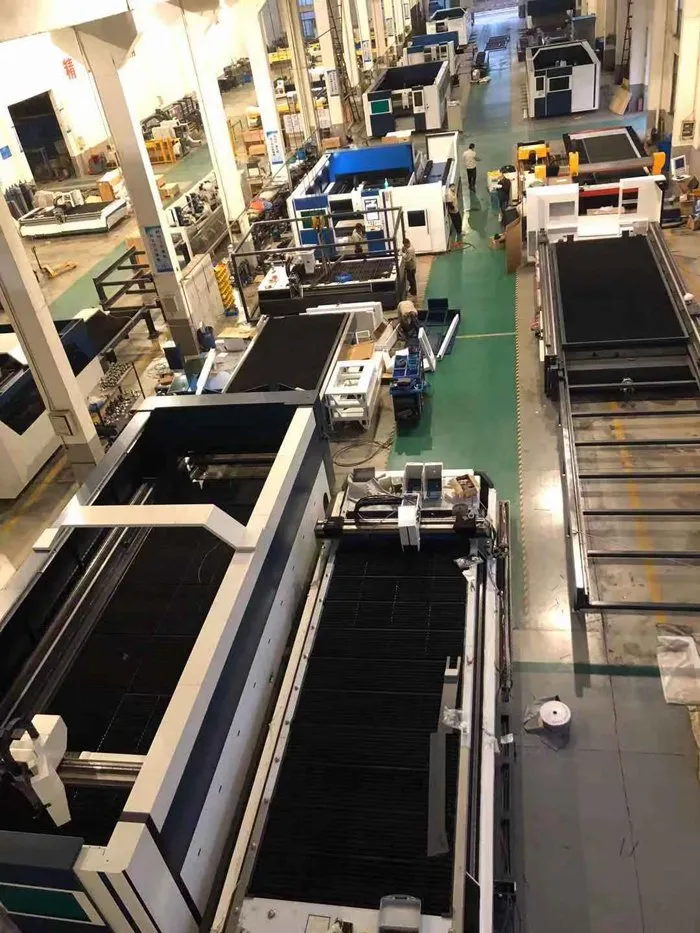

Factory Overview:

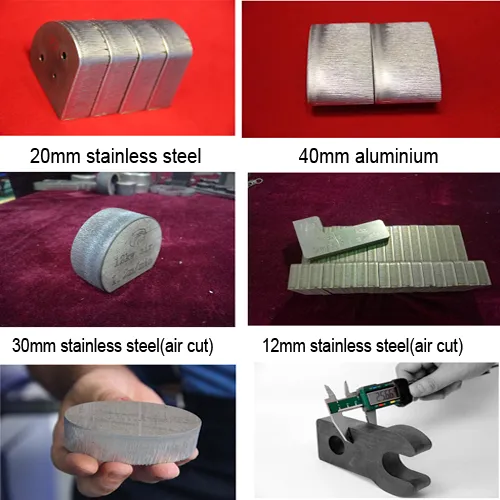

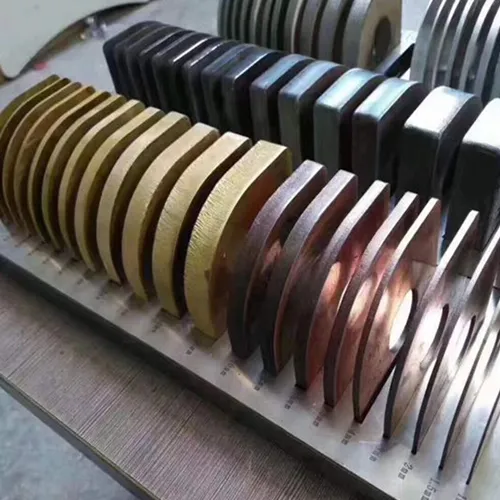

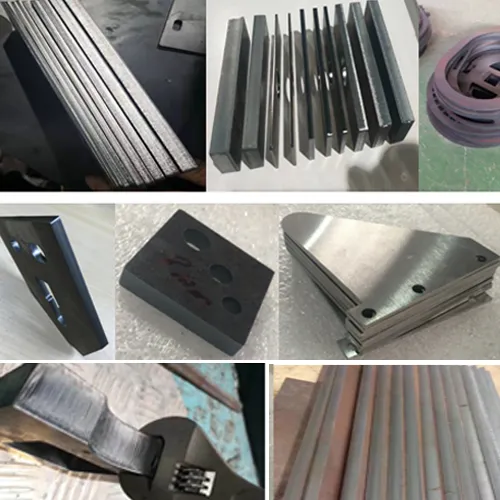

Cutting Samples:

📊 Product Parameters

Description	Technical Parameters
Max Cutting Size (mm)	3000×1500 / 4000×2000 / 6000×2500 etc.
X/Y/Z Effective Travel	2050mm / 6050mm / 100mm
Carbon Steel Cutting	Up to 20mm (According to power)
Stainless Steel Cutting	Up to 10mm (According to power)
Positional Accuracy	±0.03 mm/m
Repeated Positioning	±0.02 mm
Rapid Positioning Speed	80 m/min
Accelerated Speed	1.0 G
Work Table Bearing	4000 kg
Machine Weight	4.5 T

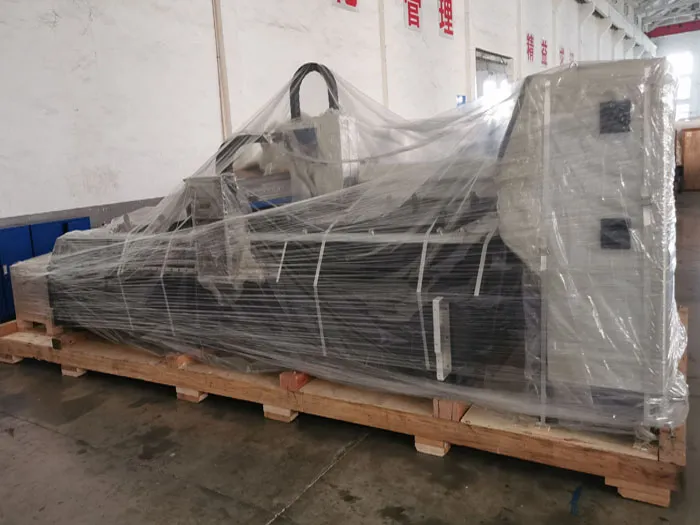

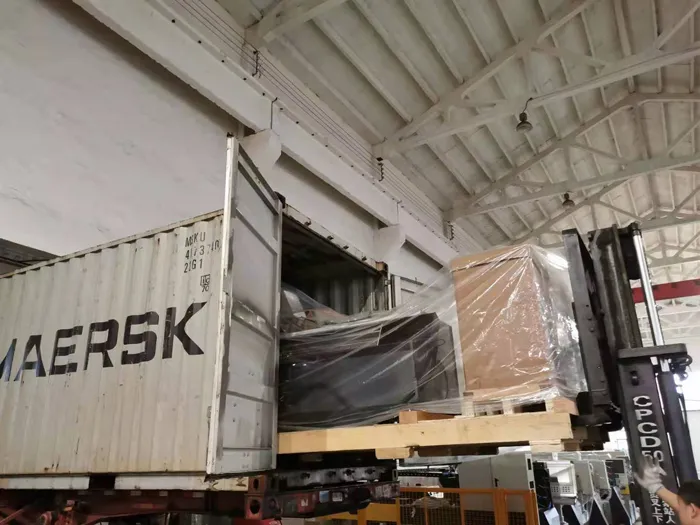

📦 Packaging & Shipping

💡 Frequently Asked Questions

Why is the machine price higher than some standard offers?

Our machines feature a robust European-style complete plate-welded structure, making them the heaviest and most stable in the market. This ensures long-term precision that cheaper alternatives cannot match.

Can you produce the machine faster for urgent orders?

High-level stability depends on strict quality control. We do not skip testing phases for fast production, as thorough inspection is required to guarantee a long working life for the machine.

What type of machine bed structure do you use?

We use professional plate welding with internal stiffeners rather than simple square pipe welding. This prevents frame distortion over time and ensures accuracy for over 10 years.

How should I choose the right laser power?

We suggest choosing power based on your primary cutting thickness. It is not necessary to invest in excessive power for materials that represent less than 10% of your workload.

How is the warranty service handled?

We provide genuine after-sales support including parts and engineering expertise. Unlike "word game" warranties, we factor the real costs of international service to ensure we can fulfill our responsibilities.

What materials can this fiber laser machine cut?

This machine is specifically designed for high-precision metal cutting, including carbon steel, stainless steel, and aluminum.
