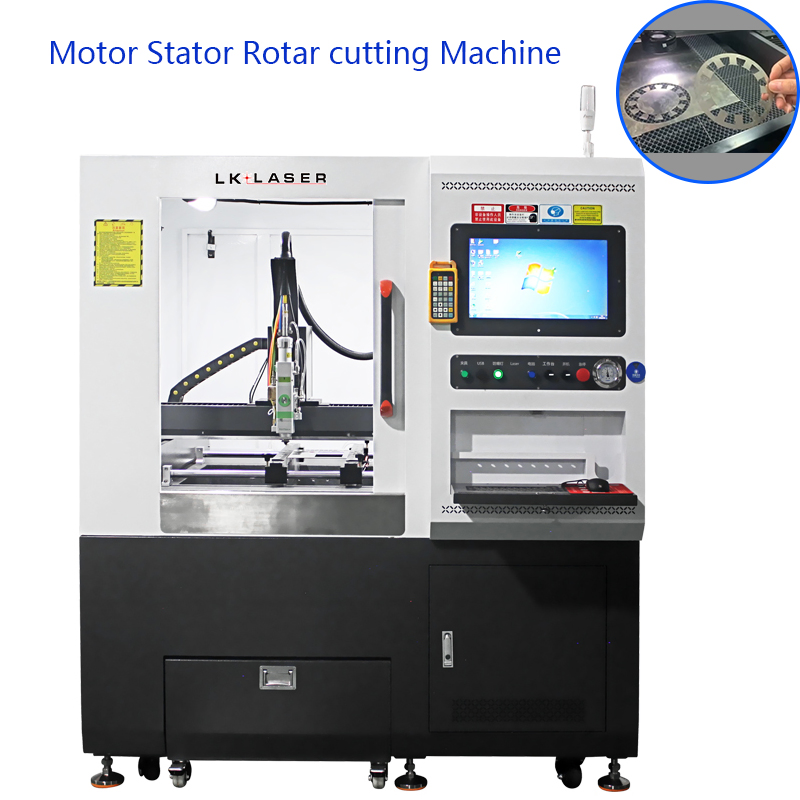

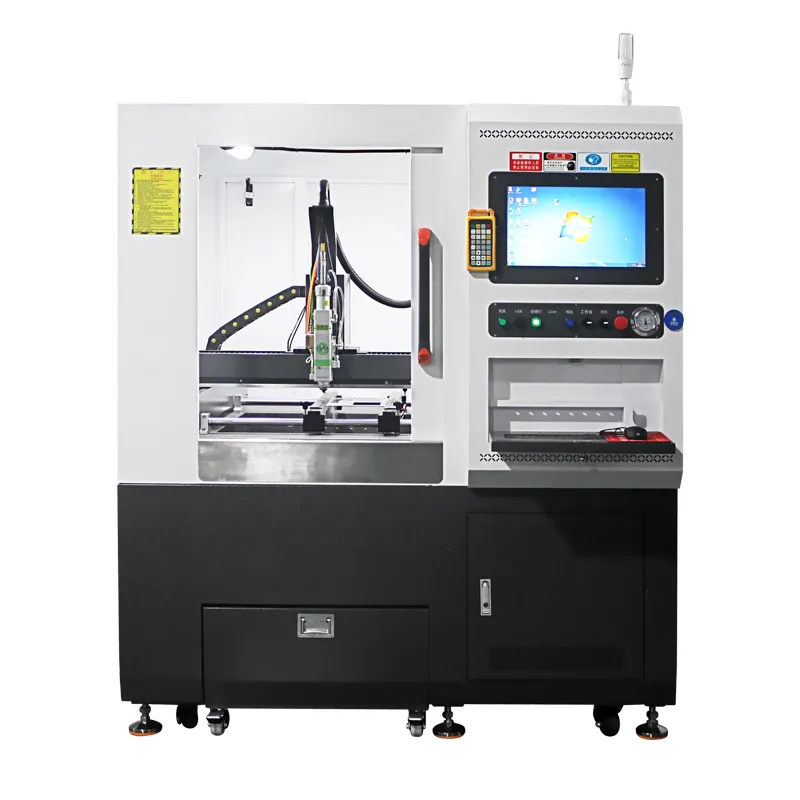

High Precision Mini Thin Metal Hardware Valve Sheet Laser Cutting Equipment

📋

Basic Information

Model NO.

LK-CWF

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Solid Laser

Laser Technology

Laser Flame Cutting

Wavelength

1064nm

Cutting Speed

25m/Min

Software

Cypcut

Laser Power

1000W/1500W/2000W

Precision of X Y

+-0.02mm

Repeat Precision

+-0.02mm

Cutting Area

600*400mm, 600*600mm, 1000*1000mm

Laser Source

Raycus/ Max/ Ipg

Guiderail

Hiwin

⚙️

Product Description

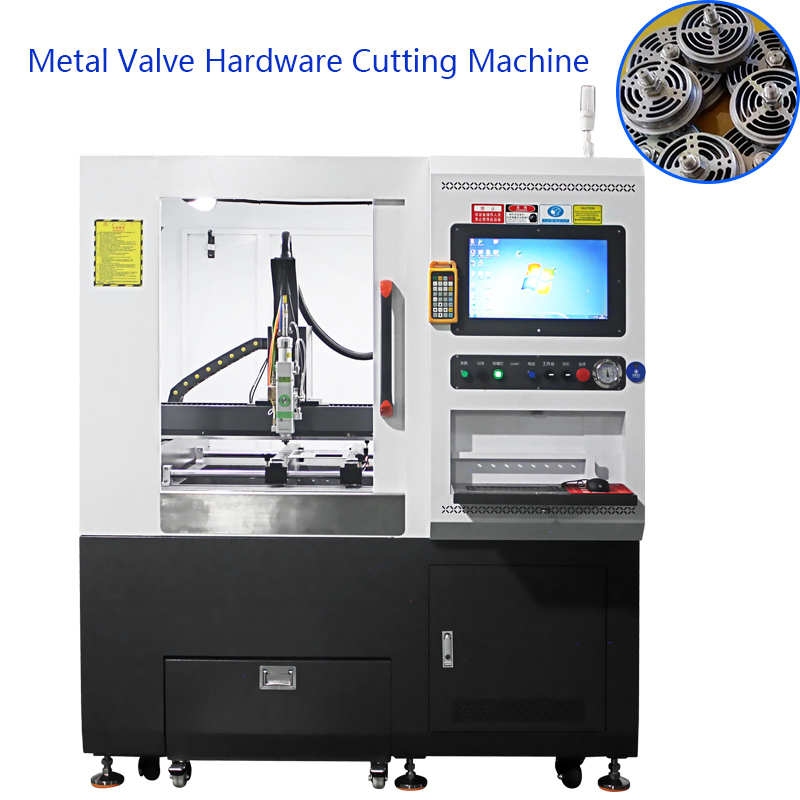

High Precision Mini Thin Metal Hardware Valve Sheet Laser Cutting Equipment

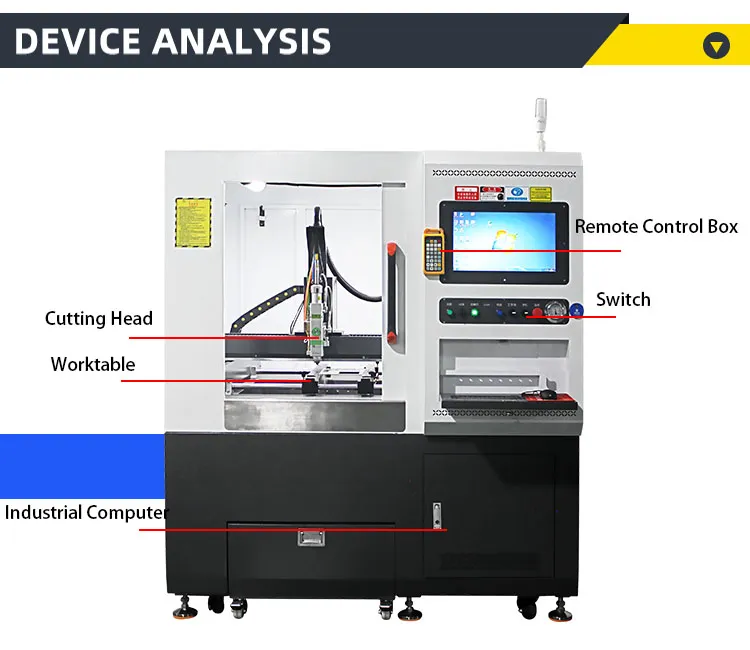

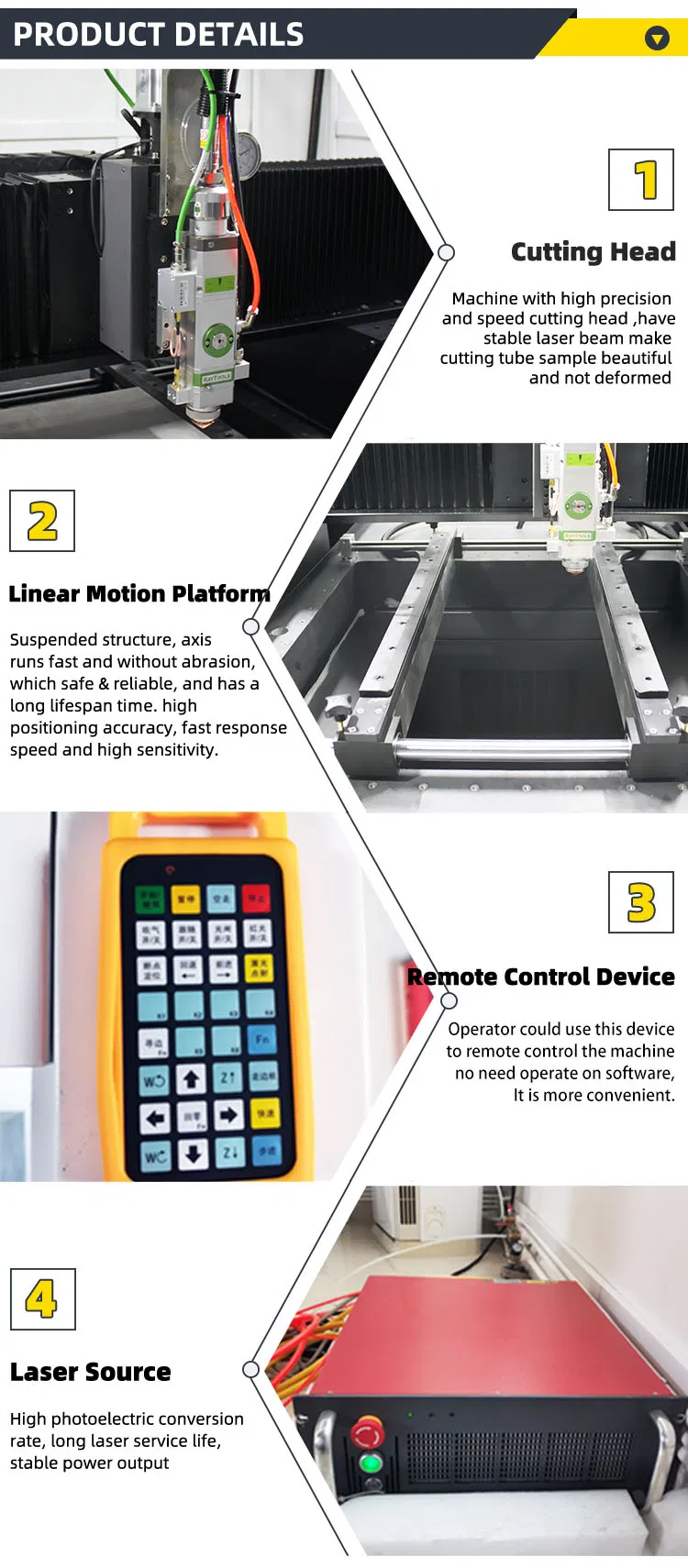

The high accuracy ss brass copper aluminum carbon iron metal sheet small laser cutter adopts ultra-high precision linear motor module, compact structure and low power loss. Without mechanical contact, friction force is smaller. Smooth movement, high position accuracy and re-positioning accuracy, higher speed and acceleration. Fast reaction speed, high sensitivity, excellent follow-up performance, safe and reliable, long service life, low motion noise.

🎯

Application

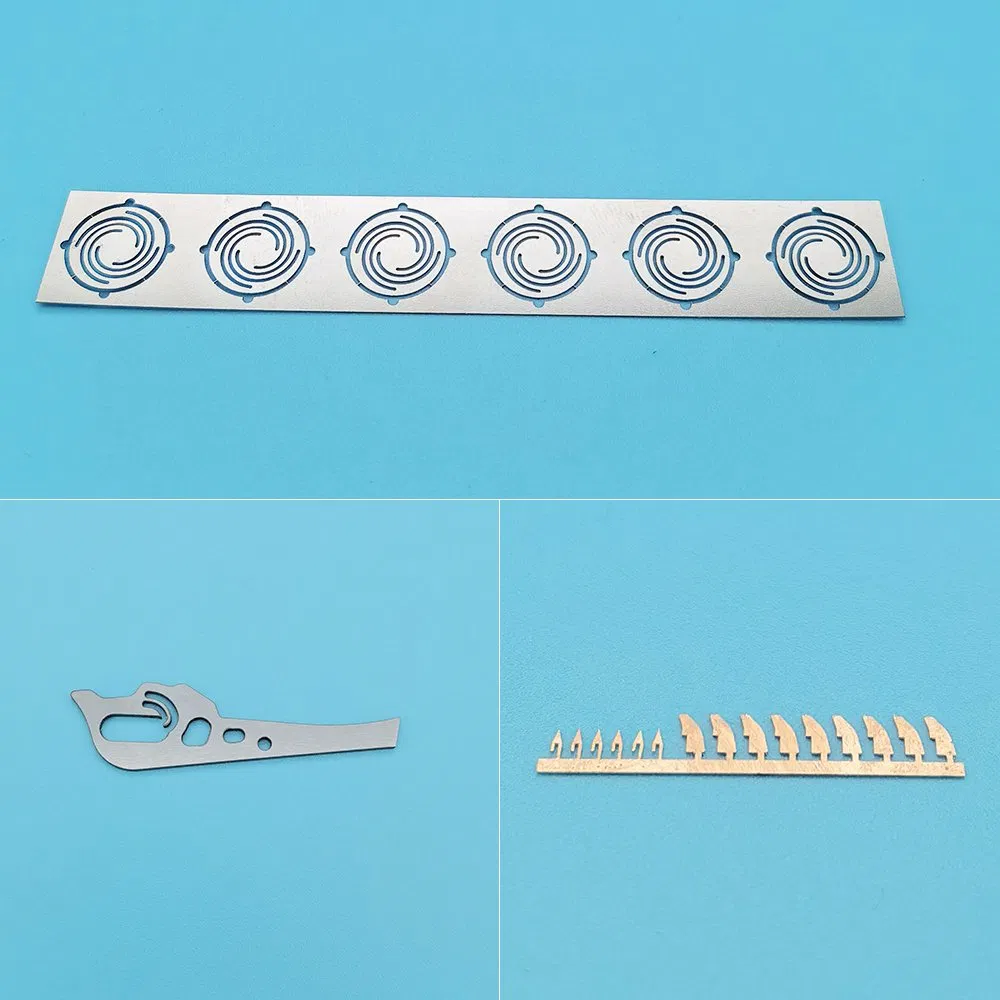

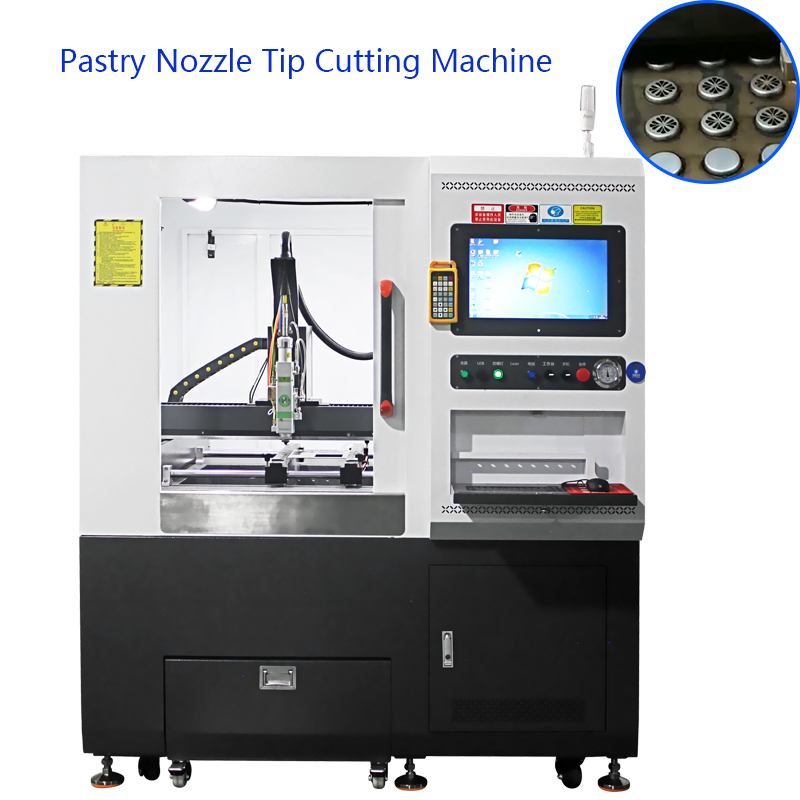

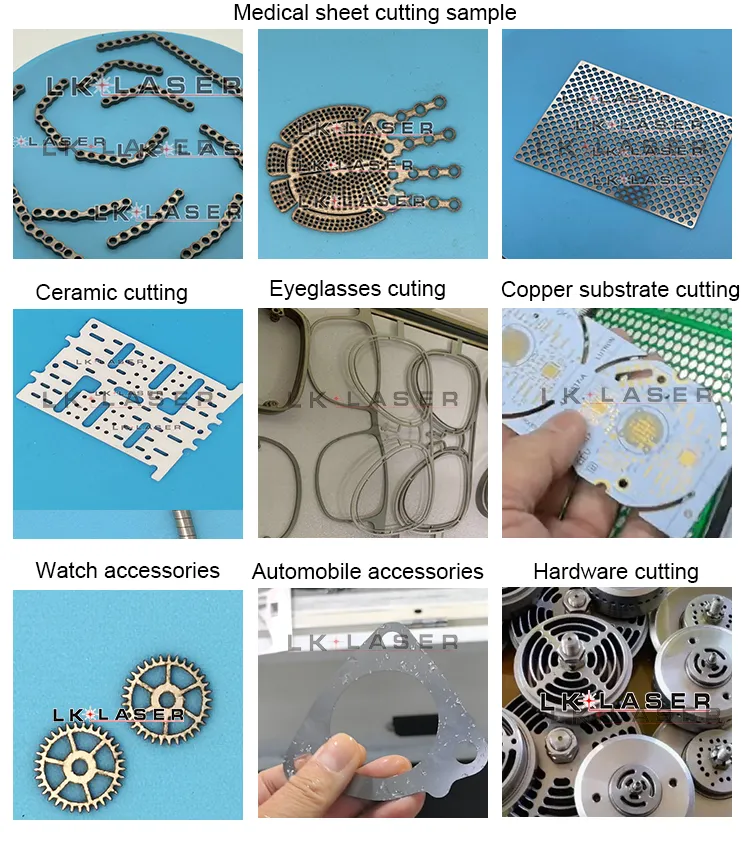

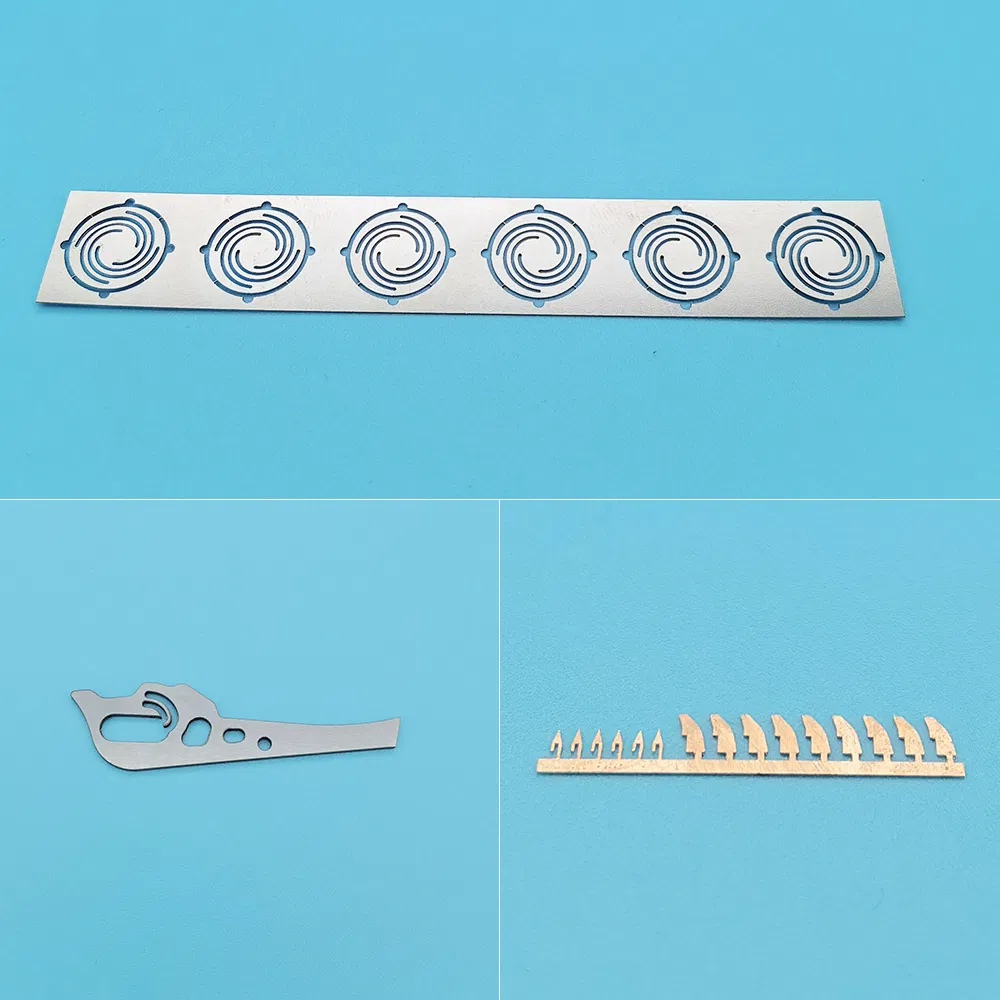

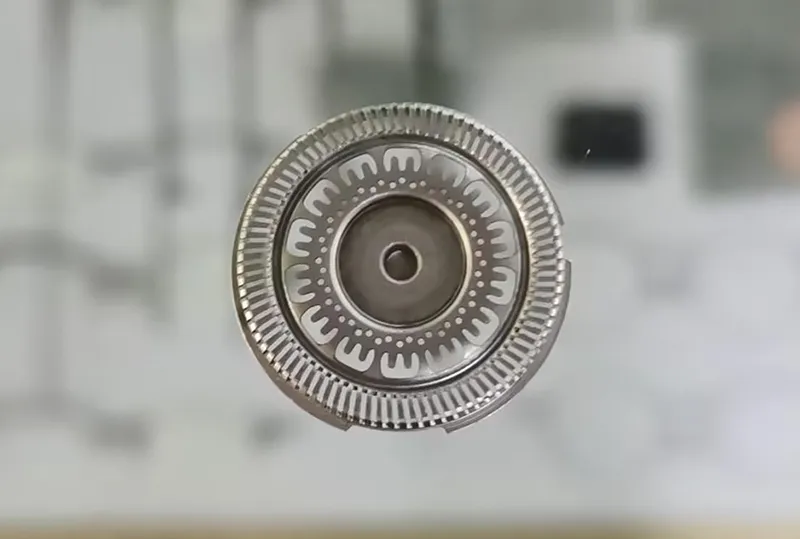

Orthopedic implant mesh, cranial titanium plate mesh, shaver blade mesh, razor blade mesh, ceramic sheet, zirconia sheeet, metallic switch panel, cake decorating nozzle, pastry tip micro cutting machining.

💡

Key Characteristics

1

Small deformation of narrow-slit workpieces: The laser beam is focused into a small spot, reaching high power density. The process ensures no burrs, no wrinkles, and high precision.

2

Non-contact processing: Material hardness does not affect performance; it can cut any hard material without physical contact.

3

Adaptability and flexibility: Controllable laser beam with high adaptability makes it convenient to combine with automation equipment.

📊

Product Parameters

Model	LK-CWF
Laser Power	1000W/1500W/2000W
Laser Wavelength	1064nm
Laser Type	Optional Fiber
Working Speed	300mm/s(X); 100mm/s(Z)
Width of Cutting Slit	20um
Frequency	0-50KHZ
Laser Beam	M2 < 1.1

❓

Frequently Asked Questions

I know nothing about laser cutting, what machine should I choose?

It is very easy to choose. Just tell us your cutting material, thickness, and accuracy requirements. Sending a sample picture is even better, and we will provide perfect solutions.

How do I use the machine once I receive it?

We provide an English manual and training videos. If doubts persist, we offer support via telephone or video calls. Engineers can also be dispatched for on-site installation if necessary.

What if problems occur during the warranty period?

We supply free parts during the warranty period for any machine issues and offer lifetime after-service. Solutions are typically provided within 30 minutes of inquiry.

What is the standard delivery time?

Standard machines usually take 10-15 days, while customized solutions take approximately 15-20 days.

How is the equipment packaged for shipping?

The machine is first wrapped in plastic for damp-proofing, then placed in a sturdy plywood case for safety during transit, and finally loaded into the container.

Is the software easy to operate?

Yes, the system uses professional software like Cypcut, which is user-friendly and highly efficient for high-precision metal hardware cutting tasks.
