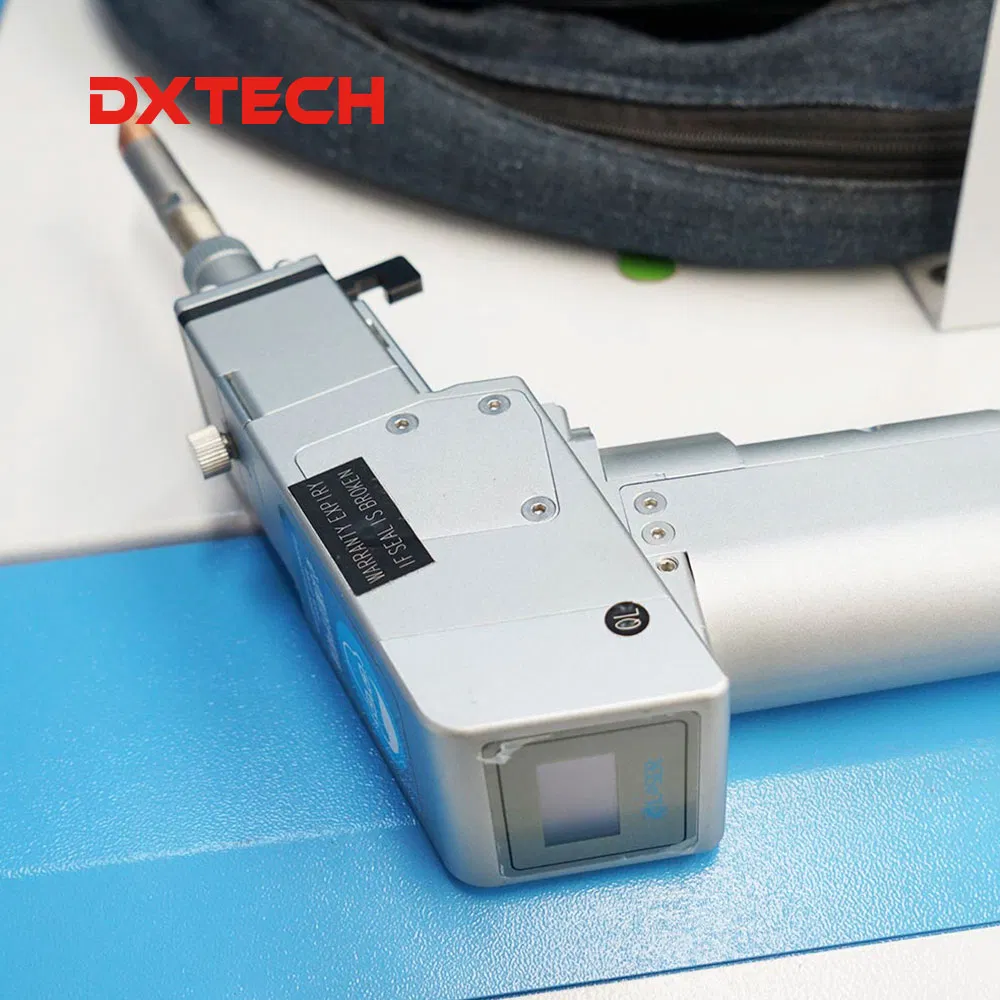

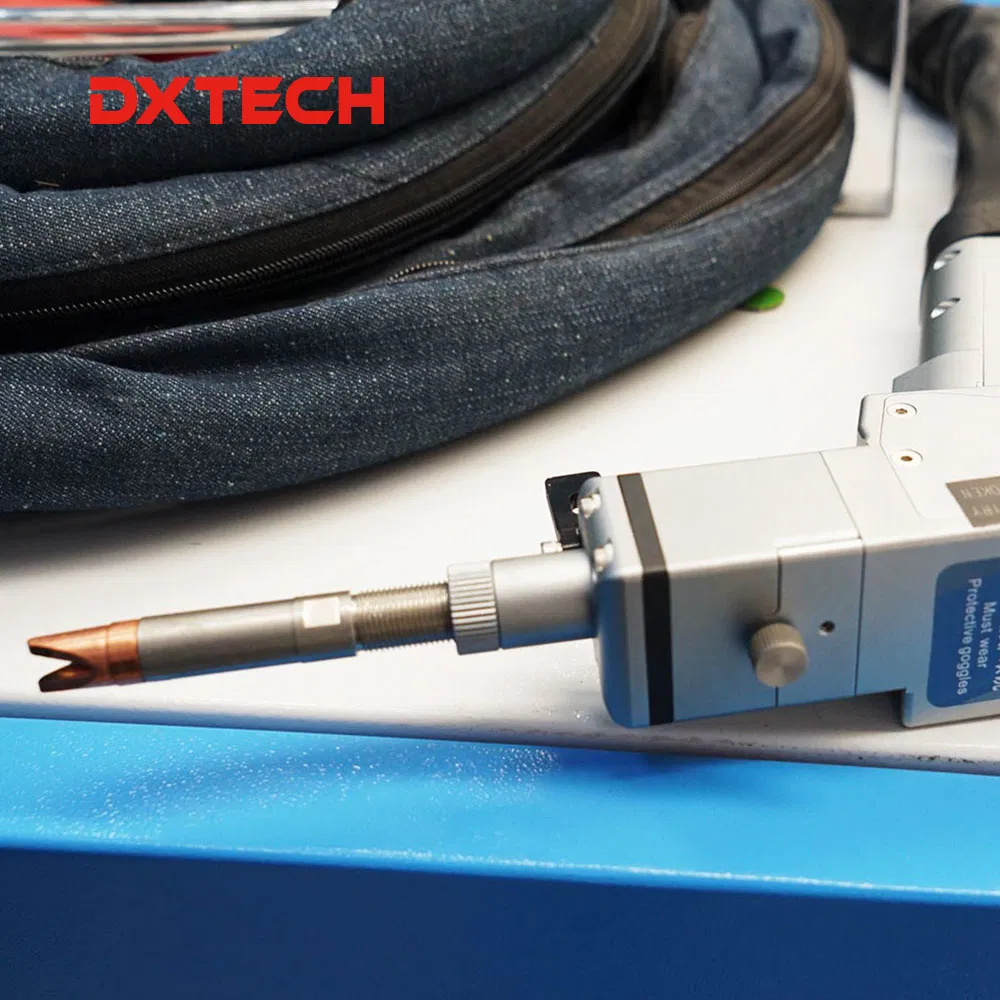

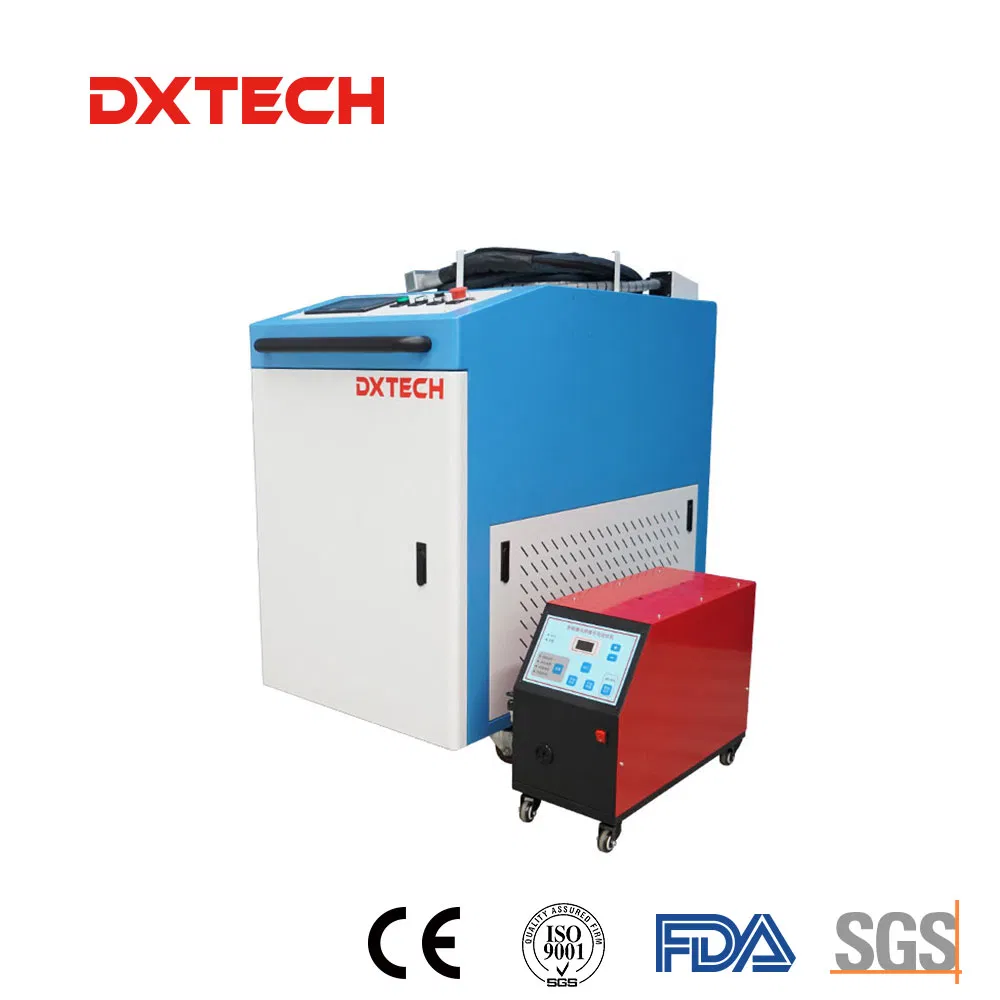

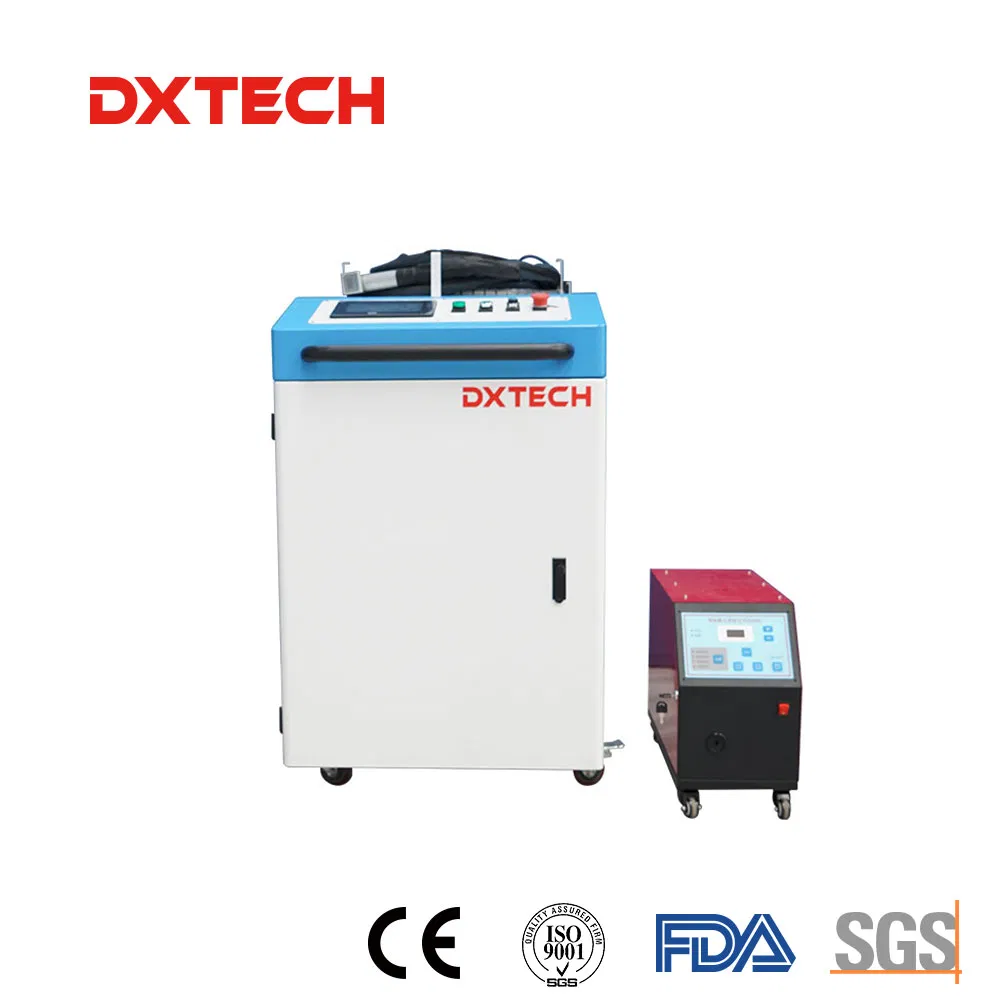

High Speed Welding Tool for Butt Spot Welding Brass Aluminum Metal Material with Long Lifetime with Auto Wire Feeder System

1 / 5

High Speed Welding Tool for Butt Spot Welding Brass Aluminum Metal Material with Long Lifetime with Auto Wire Feeder System

Customization:	Available
After-sales Service:	24-Hour Online Service
Warranty:	1-Year

Send Inquiry

Product Description

Basic Information

Product Name

High Precision Laser Cutting Machine

Application

Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry

Technical Class

Continuous Wave Laser

Control

Automatic

Laser Type

Optical Fiber Laser

Main Selling Point

Competitive Price

Driving System

Servo Motor (Japan Yaskawa)

Transmission

Hiwin Guide Rails

Bed Material

Gray Cast Iron

Cutting Area

1500*3000mm (Optional)

HS Code

8461500090

Product Description

A laser welding machine is good at conducting spot welding, butt welding, overlap welding, and sealing welding with fast speed and high precision. It can weld carbon steels, HSLA steels, stainless steel, aluminum, and titanium. Common laser welding equipment mainly includes laser mold welding, manual, automatic, and handheld laser welding, galvanometer welder, etc.

Technical Parameters

Parameter	Specifications
Model	XTW-1000
Working Area	1500*3000mm (optional)
Laser Output Power	1000W
X/Y-axis positioning accuracy	±0.03mm
X/Y-axis repositioning accuracy	±0.02mm
Max Cutting Speed	25m/min
Maximum acceleration	1.5G
Servo motor	Japan Yaskawa / Japan Fuji
Electrical components	Schneider
Reducer	Japan SHIMPO

Cutting Materials and Thickness Capability

Material	500W	750W	1000W	1500W	2000W	3000W
Carbon steel	0.4-6mm	0.4-10mm	0.4-12mm	0.4-14mm	0.4-16mm	0.4-20mm
Stainless steel	0.4-3mm	0.4-4mm	0.4-5mm	0.4-6mm	0.4-8mm	0.4-10mm
Aluminum	0.4-2mm	0.4-3mm	0.4-3mm	0.4-4mm	0.4-6mm	0.4-8mm
Brass	-	-	0.4-3mm	0.4-3mm	0.4-3mm	0.4-8mm

Core Components & Detailed Images

The Tube Welded Bed

High strength, not easily deformed: The following features ensure that the bed will not be deformed for 20 years like high strength, good stability and strong tensile strength. The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg.

Aviation Aluminum Gantry

High hardness: Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
High speed: Aviation aluminum features good toughness, light weight, and corrosion resistance, which greatly improve the processing speed.

Raytools Laser Head

Optimized optical configuration and smooth and efficient airflow design. Fully upgraded dust-proof design with double-layer protection ensures the risk of lens contamination is almost zero. Collimating and focusing mirrors include a cooling structure.

Industrial Applications

Suitable Materials: Stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, copper, and other metals.

Various Industries: Widely used in automotive, advertising, kitchenware, sheet metal, cabinet, and fitness industries. Professional in aerospace, electronics, subway parts, grain machinery, and precision part manufacturing.

Packing & Delivery

Innermost layer: EPE pearl cotton film package.
Middle layer: Environmental protection wrapping material.
Outermost layer: PE stretch film winding.

Manufacturing Excellence

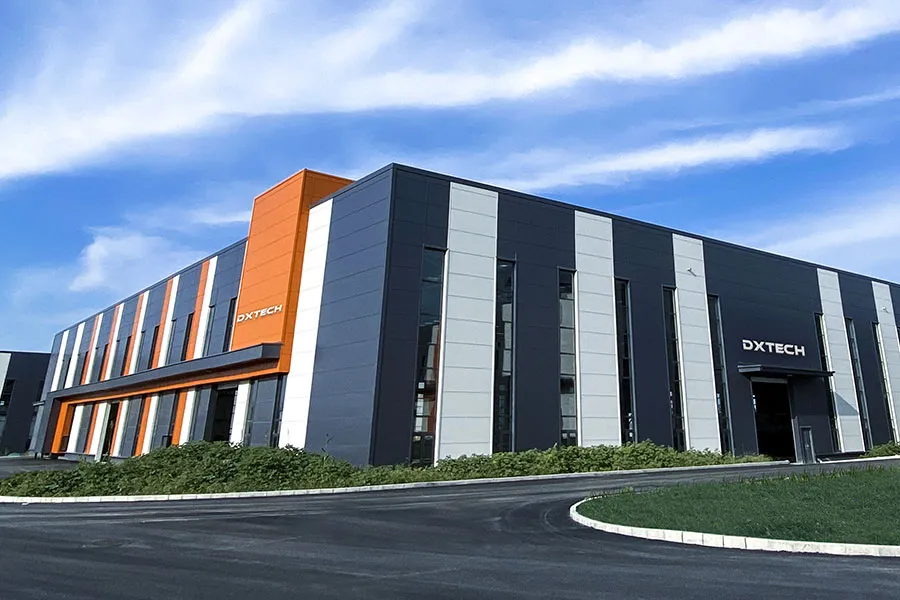

The company is professional in the design and manufacturing of fiber laser cutting, engraving, and marking machines. With dedicated R&D, Quality Control, and Service departments, the products are utilized globally across diverse manufacturing sectors.

Frequently Asked Questions (FAQ)

1. What materials can this fiber laser machine cut? It is suitable for a wide range of metals, including stainless steel, carbon steel, aluminum, brass, copper, titanium alloy, and galvanized steel.

2. How long can the machine bed last without deformation? The tube welded bed is designed with high-strength rectangular tubes and weighs approximately 4,500 kg, ensuring it remains undeformed for up to 20 years.

3. What are the advantages of an aviation aluminum gantry? The aviation aluminum gantry offers high hardness (T6 level) and light weight, which significantly increases processing speed while maintaining oxidation and corrosion resistance.

4. Does the laser head have protection against contamination? Yes, the Raytools laser head features a fully upgraded dust-proof design and double-layer protection to minimize the risk of lens contamination.

5. What is the positioning accuracy of the machine? The machine provides a positioning accuracy of ±0.03mm and a repositioning accuracy of ±0.02mm, ensuring high-precision results for complex tasks.

6. How is the machine packaged for international shipping? We use a three-layer packaging system: EPE pearl cotton film, environmental protection wrapping, and PE stretch film to ensure maximum protection during transport.
