Product Description

Basic Information

Model NO.

Application

Metal Machinery, Automotive, Aerospace, etc.

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Fiber Laser

No-Load Speed

60m/Min

Control System

Alpha a CNC System

Laser Power

1500-6000W

Product Description

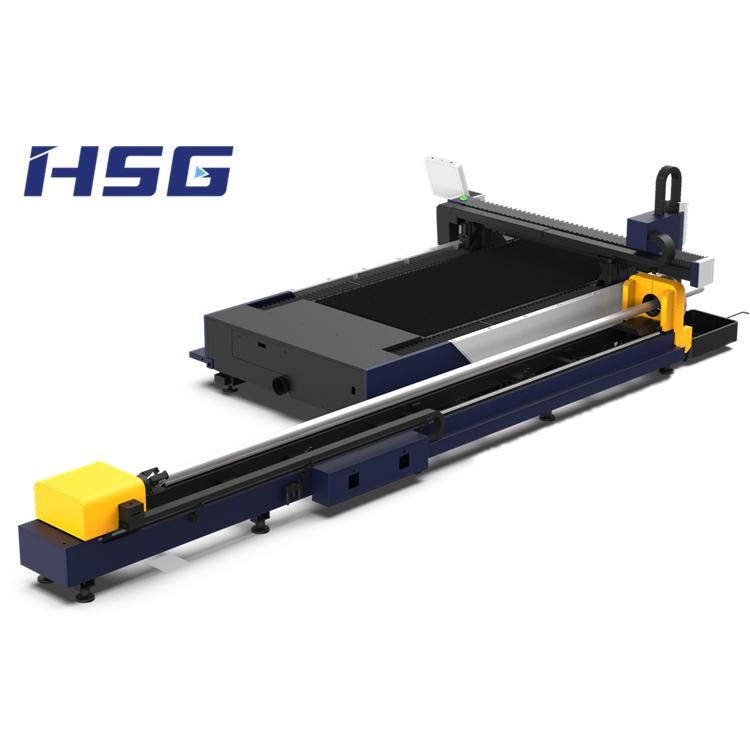

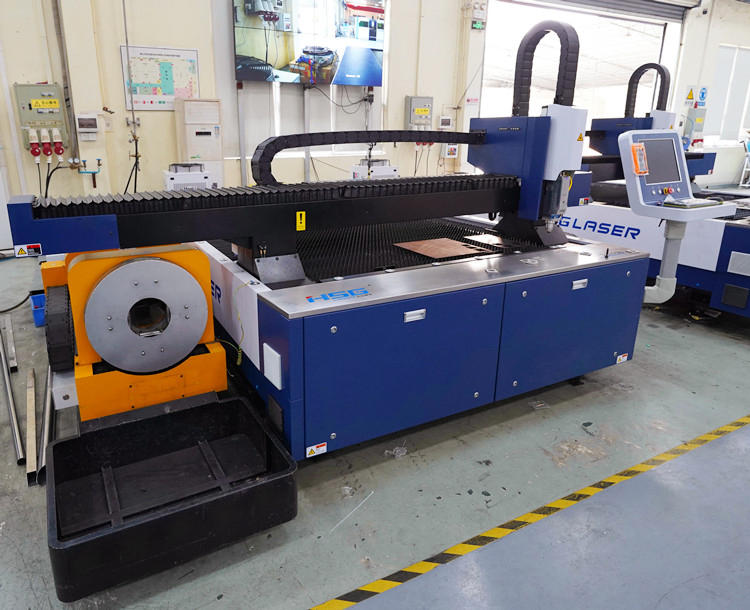

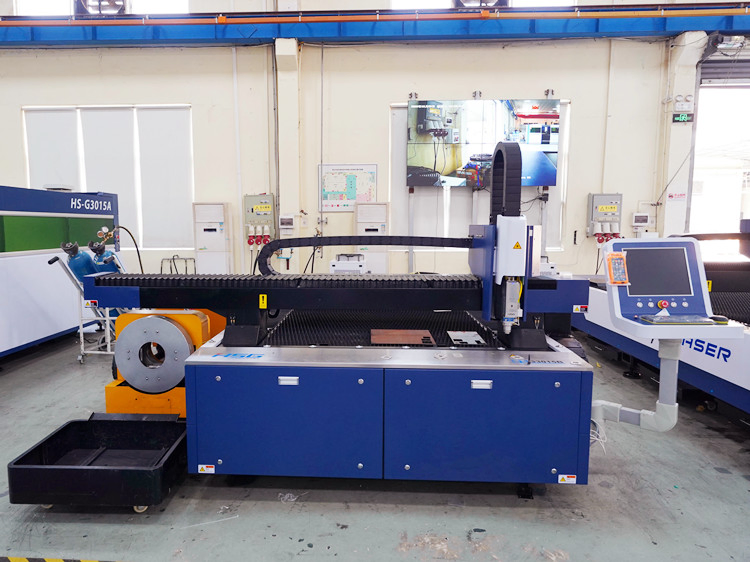

Single Platform Sheet and Tube Laser Cutting Machine

Our laser cutting solutions serve global users with machines suitable for most metal materials, including sheet metal laser cutting, sheet & tube integrated cutting, and professional welding solutions.

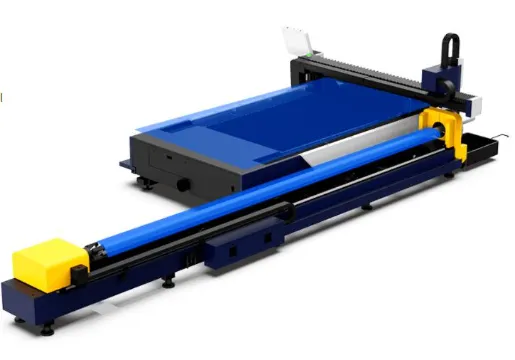

💠 Compact Size & Open Structure

The GB model features a single platform with a compact footprint (8400*3150mm for G3015B). The open-structured design ensures the work process is visible, with materials loadable from the front, left, or right side.

Smart Control & Nesting Software

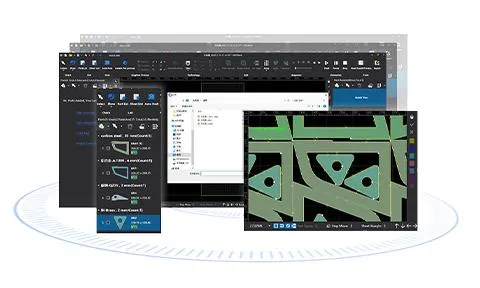

HSG-NEST Software

Standalone and network-free software that starts nesting instantly after inputting graphics. Machining reports are available for output.

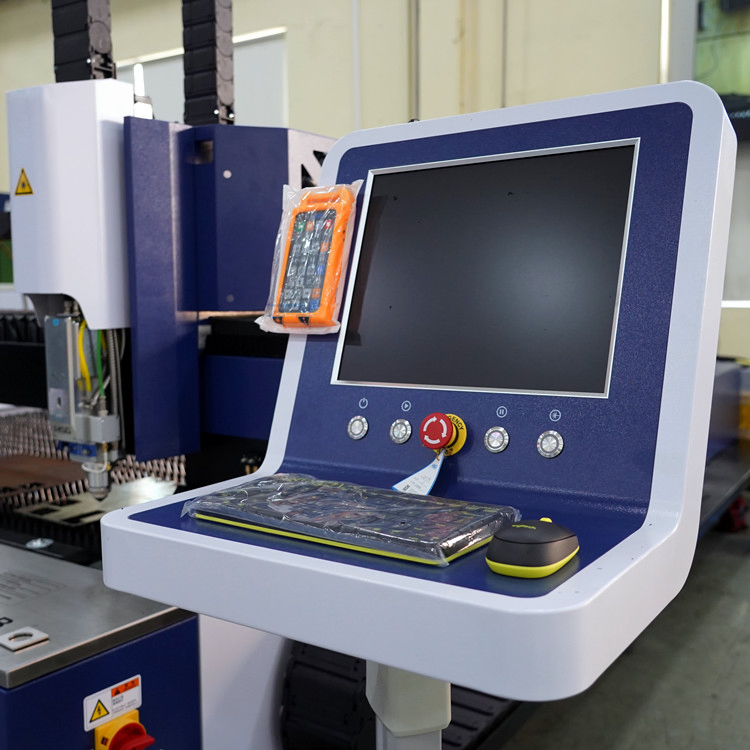

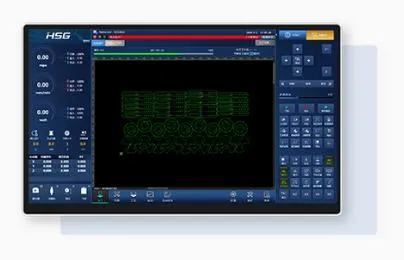

Alpha A CNC System

Micro-connection cutting
Active obstacle avoidance
Real-time component monitoring
Maintenance active reminders

Technical Specification

Model	G3015B-22EQ	G4020B-22EQ	G6020B-22EQ	G6025B-22EQ
Working Area (L*W)	3000mm*1500mm	4000mm*2000mm	6000mm*2000mm	6000mm*2500mm
X/Y Axis Accuracy	±0.03mm/m
Round Tube Capacity	Φ20 - Φ210mm
Square Tube Capacity	2020mm - 150150mm
Laser Power	1500W-6000W	2000W-6000W	3000W-6000W

* All testing results and experimental data shall be subject to real machine performance.

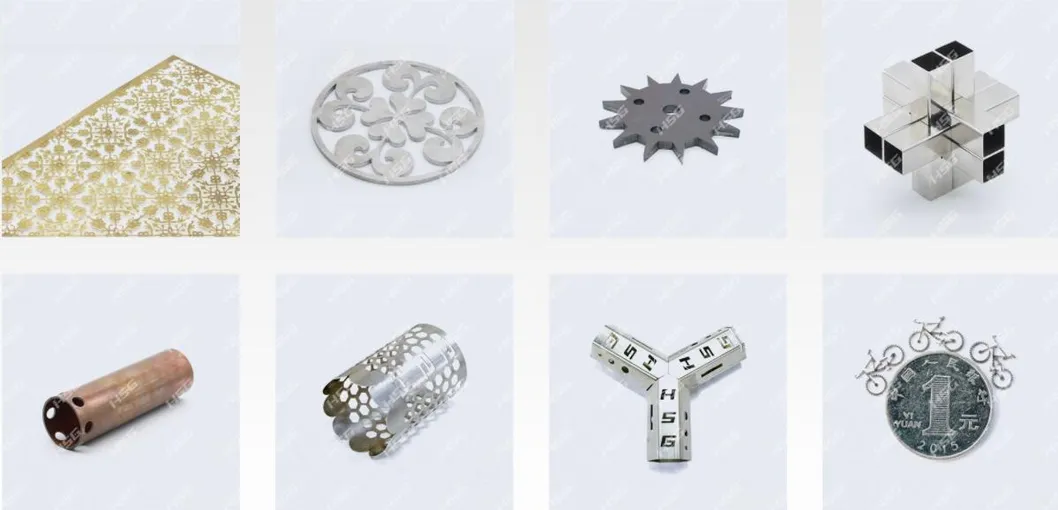

Sample Display & Quality

Certifications

Professional Testing & Packaging

Quality Control

We use tri-linear coordinates measuring instruments, collimators, and laser interferometers to ensure the straightness and precision of every machine body and guide rail.

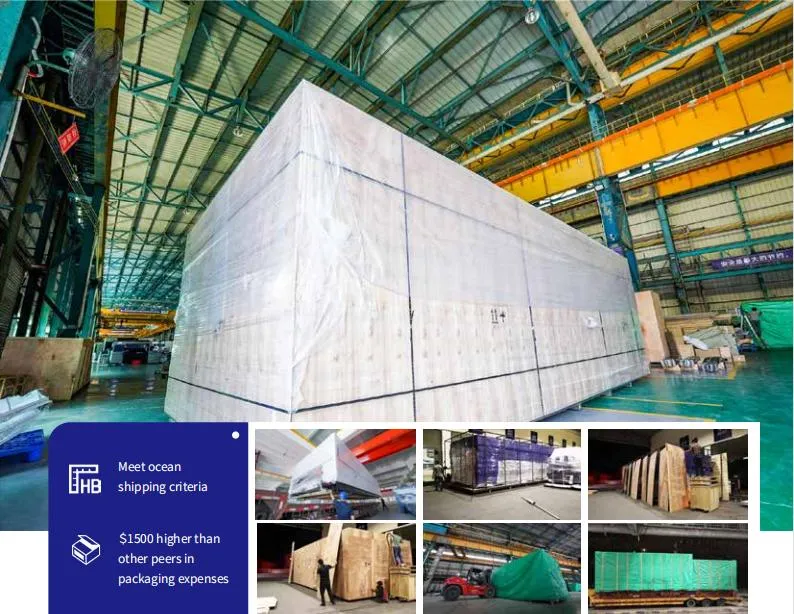

High-Standard Export Package

Includes aluminum foil, metal framework, fumigation wooden cases, and anti-rust treatment to keep the machine safe during long-distance sea transport.

After-Sales Service

One-year Warranty: All unit components are warranted for 1 year (excluding consumable items). Our engineers supply new or remanufactured components of equal or better quality.

Exclusions: Consumables such as Nozzles, Protective lenses, and Ceramic rings are not covered by the standard warranty period.

Frequently Asked Questions

1. What materials can this fiber laser machine cut?

The machine is designed for various metals, including stainless steel, carbon steel, iron, aluminum, copper, and brass.

2. What is the maximum thickness it can handle?

The cutting capacity depends on the laser power (1500W-6000W). Higher power allows for thicker metal plates and tubes.

3. Can it cut both sheets and tubes?

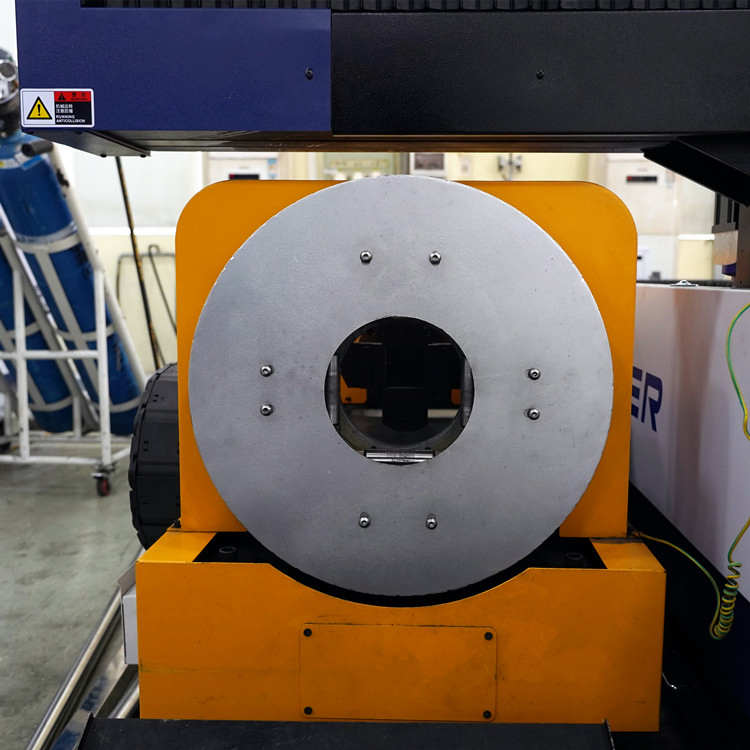

Yes, the GB series is a specialized single-platform machine capable of processing both metal sheets and various tube profiles (round, square, etc.).

4. How does the active obstacle avoidance work?

The Alpha A CNC system monitors the cutting head position in real-time to detect tilted parts and automatically adjust the path to prevent collisions.

5. Is technical support available after purchase?

Yes, we provide professional after-sales support, including a one-year warranty on core components and maintenance guidance.

6. How is the machine protected during shipping?

Machines are vacuum-packed with moisture-barrier bags, anti-rust oil, and secured in a metal framework within a fumigation-free wooden case for maximum sea-freight safety.
