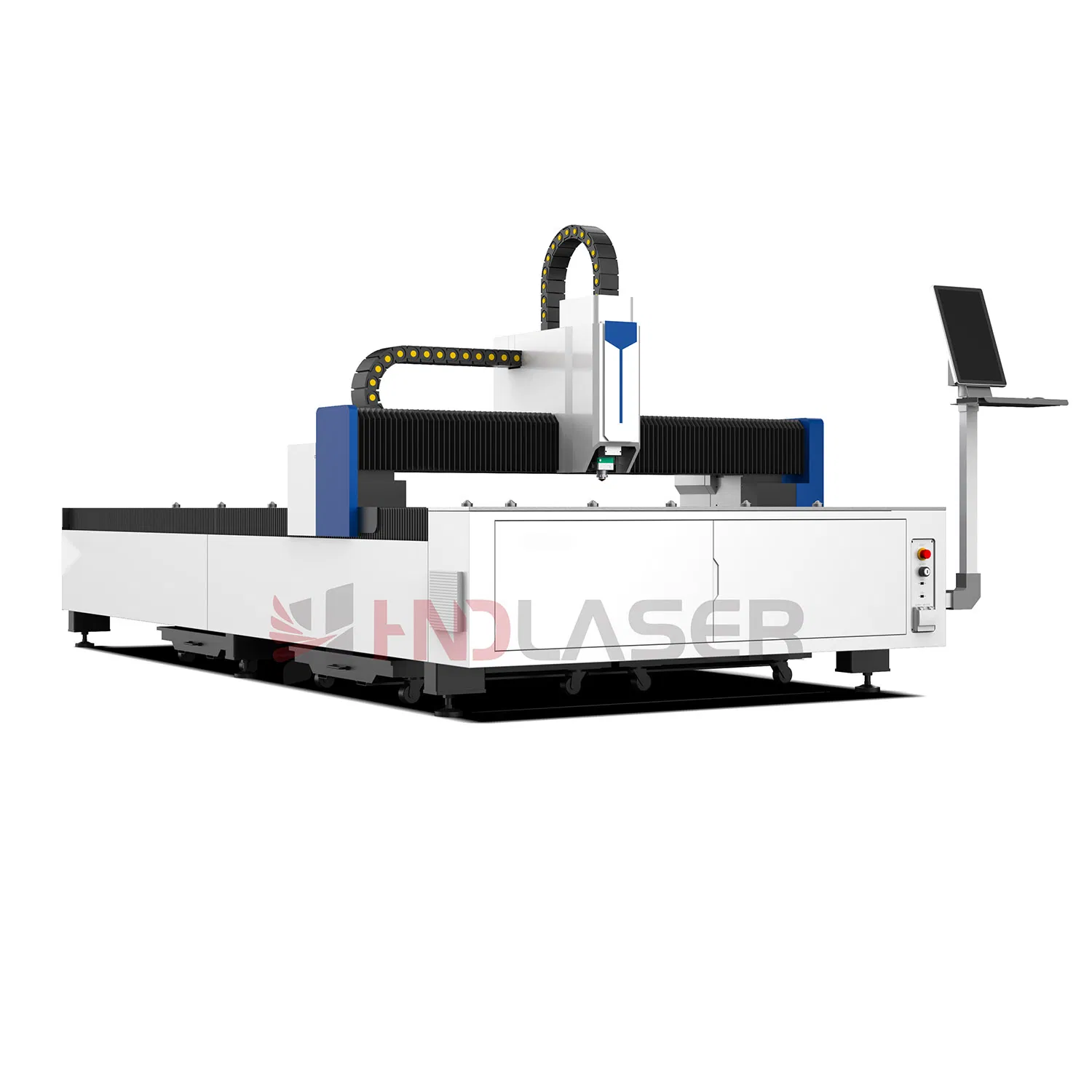

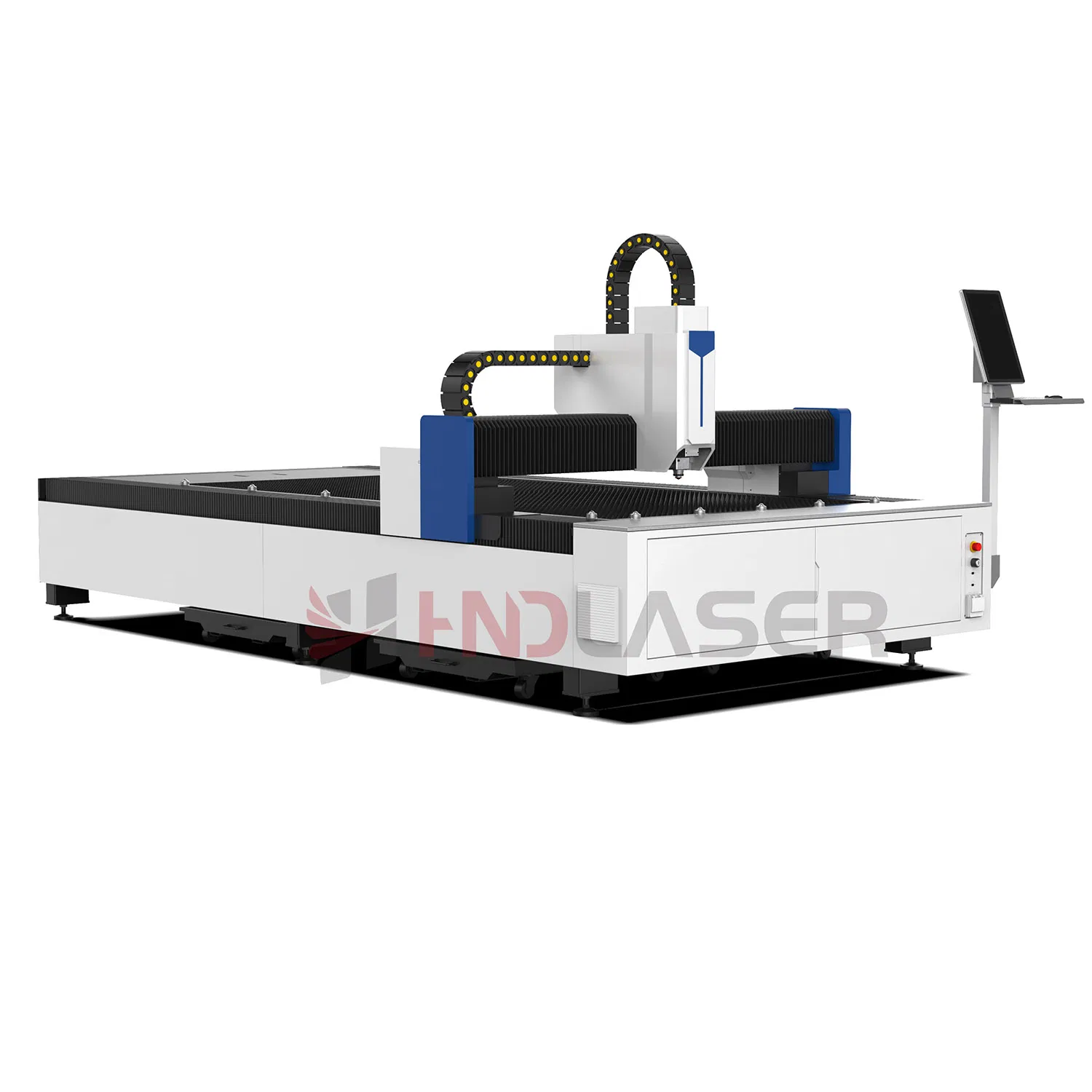

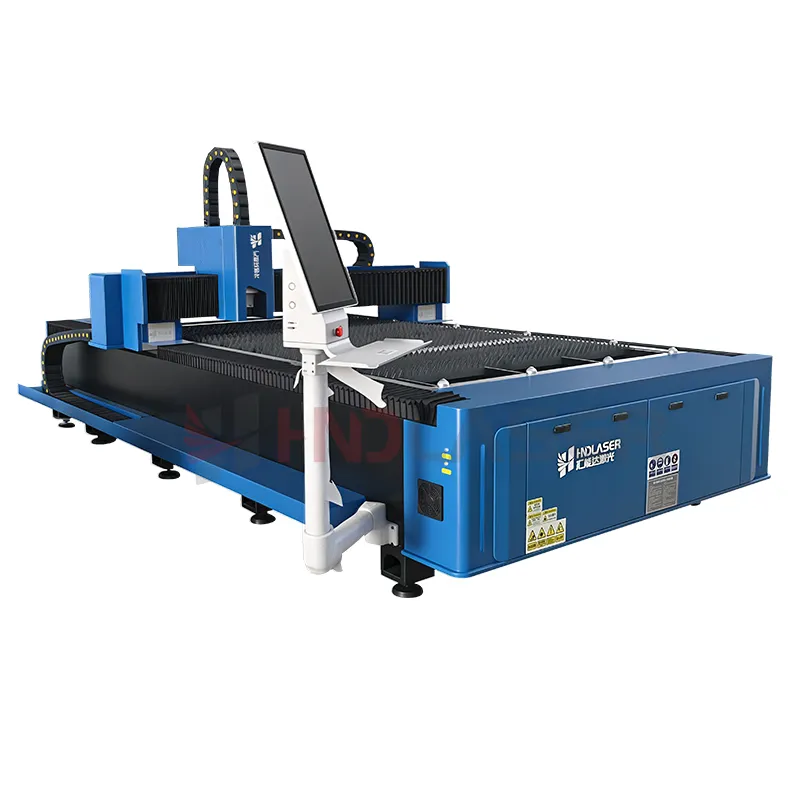

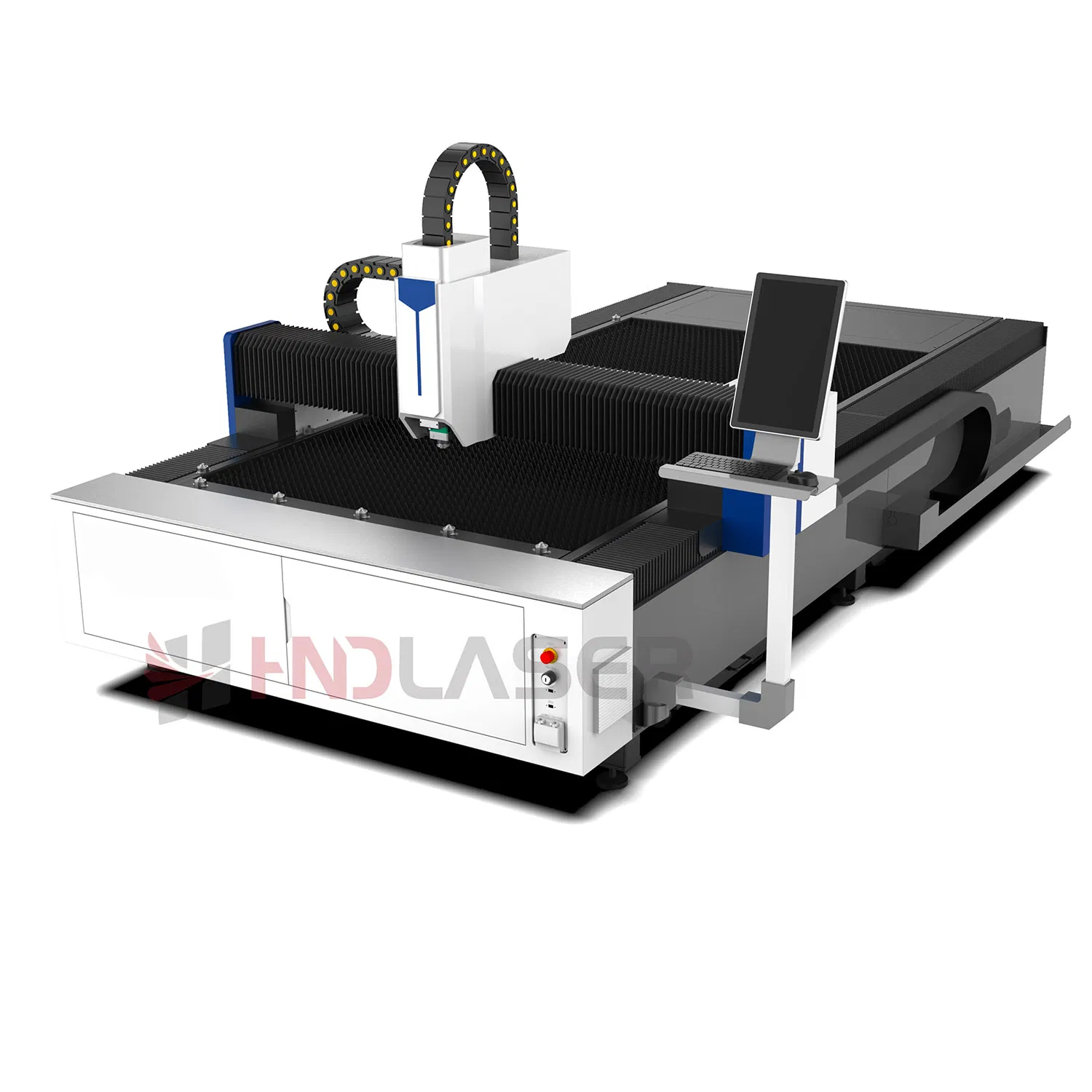

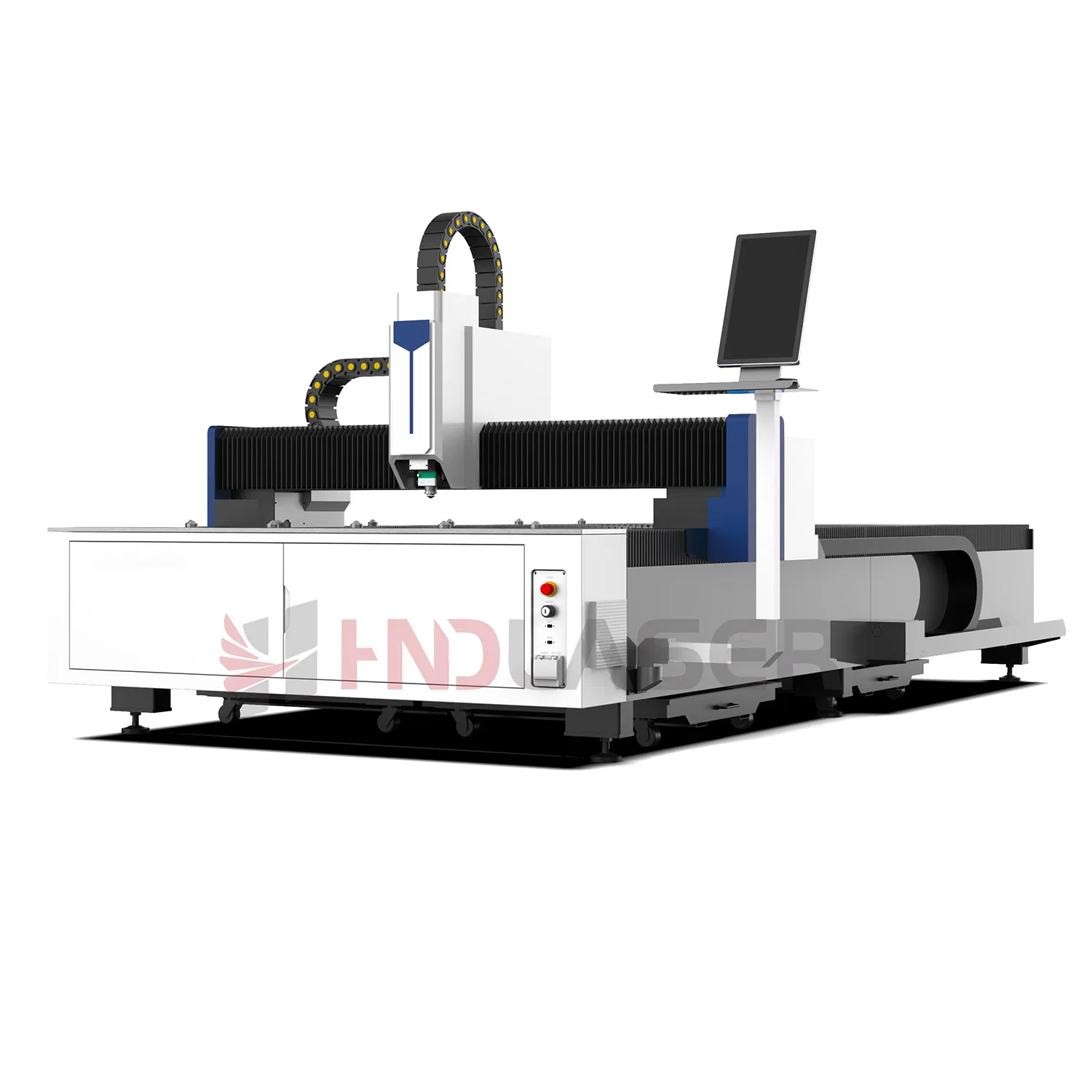

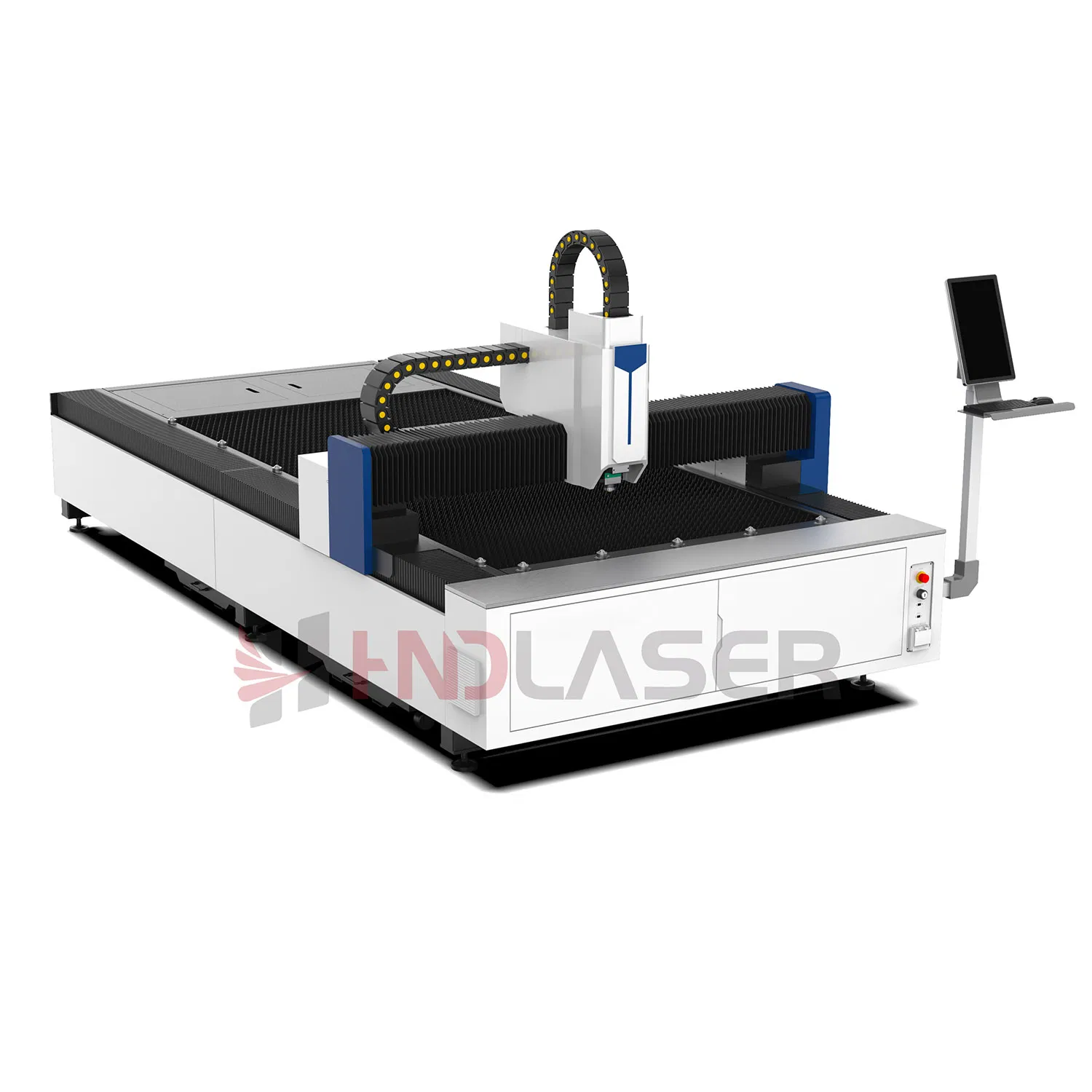

The sheet laser cutting machine is designed for efficient processing of various sheet metals, making it ideal for a wide range of industrial applications including sheet metal fabrication, advertising signage, kitchen and bathroom equipment manufacturing, engineering machinery, shipbuilding, aerospace, and automotive parts production. It features easy installation, quick commissioning, and high-performance output, supported by complete solution offerings. With stable and reliable operation, simple deployment, enhanced production safety, and rich functionality, this machine delivers exceptional performance to meet diverse manufacturing needs.
| Model | DF-F | Application | Environmental, Petroleum, Agriculture, Aerospace, Automotive, Manufacturing |
|---|---|---|---|
| Cooling System | Water Cooling | Technical Class | Continuous Wave Laser |
| Applicable Material | Metal | Structure Type | Gantry Type |
| Laser Technology | Fiber Laser | Laser Source | Raycus / Max / Reci |
| Wavelength | 1080mm | Cuttable Material | Stainless Steel, Carbon Steel, Aluminum, Copper, etc. |
| Cuttable Range | 3100*1600mm / 4100*2100mm / 6100*2600mm | Power Range | 1kw - 15kw |
| Max Cutting Speed | 60m/Min | Positioning Accuracy | 0.03mm |
| HS Code | 8456110090 | Origin | China |

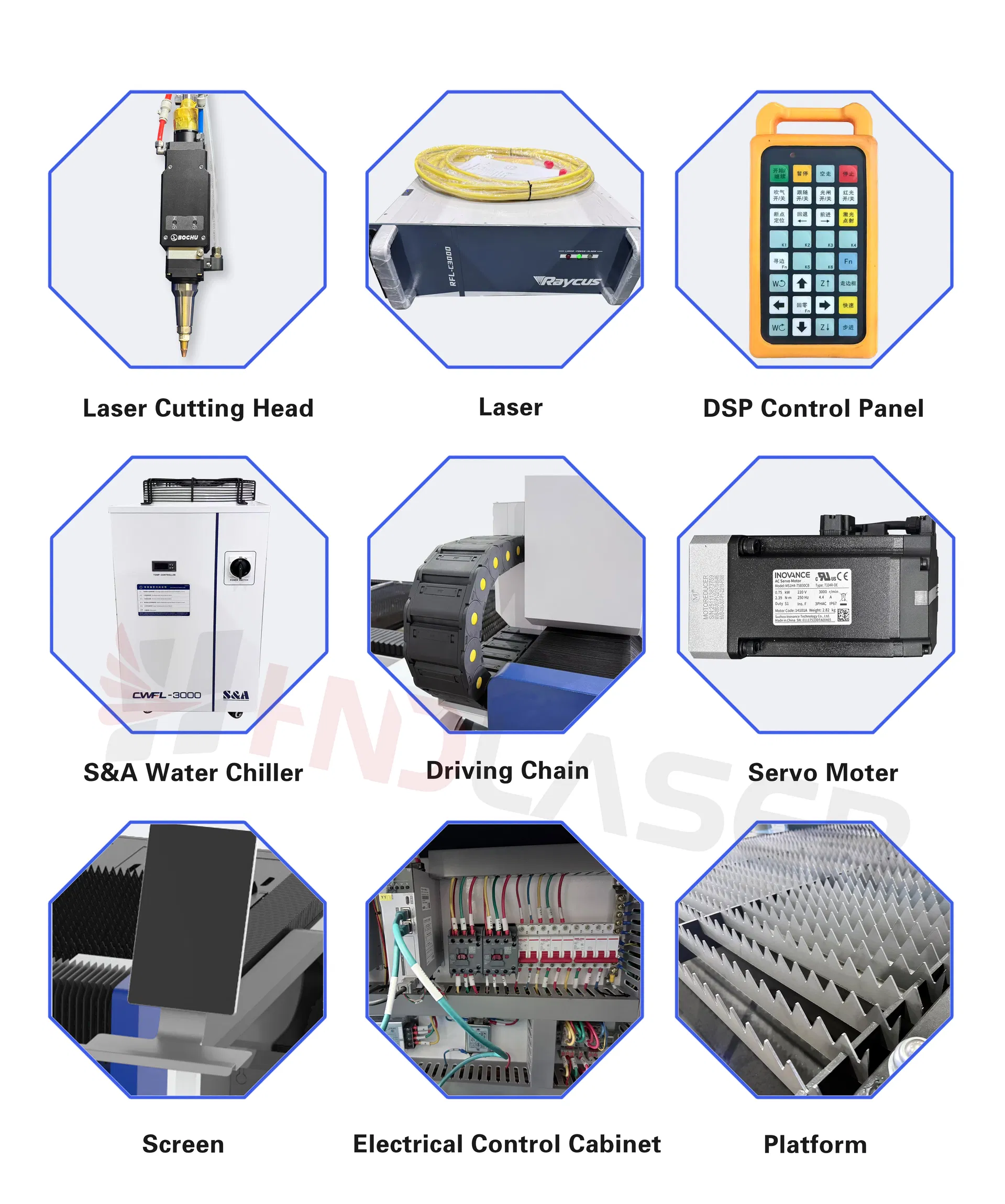

| No. | Name | Brand | Origin |
|---|---|---|---|
| 1 | Fiber Laser | MAX | China |
| 2 | Servo Motor | Leadshine | China |
| 3 | Laser Cutting Head | Professional Grade | China |
| 4 | Guide Rail | TaiWen | China |
| 5 | Gear Rack | TaiWen | China |
| 6 | Reducer | Kofon | China |
| 7 | Proportional Valve | Japan SMC | Japan |
| 8 | Machine Tool Bed | Welded Bed | Internal Standard |
| 9 | Crossbeam | Profile Crossbeam | Internal Standard |
| 10 | Water Chiller | Hanli | China |
| 11 | Electrical Components | Schneider/Omron | China |
| Model | DF3015S |
|---|---|
| Working Area | 3050*1530 mm |
| Positioning Accuracy | ±0.03mm/m |
| Repositioning Accuracy | ±0.02mm |
| Max. Running Speed | 115m/min |
| Max. Acceleration | 0.8G |
| Z-axis Travel | 100mm |
| Overall Dimensions | 4600*2800*2100mm |

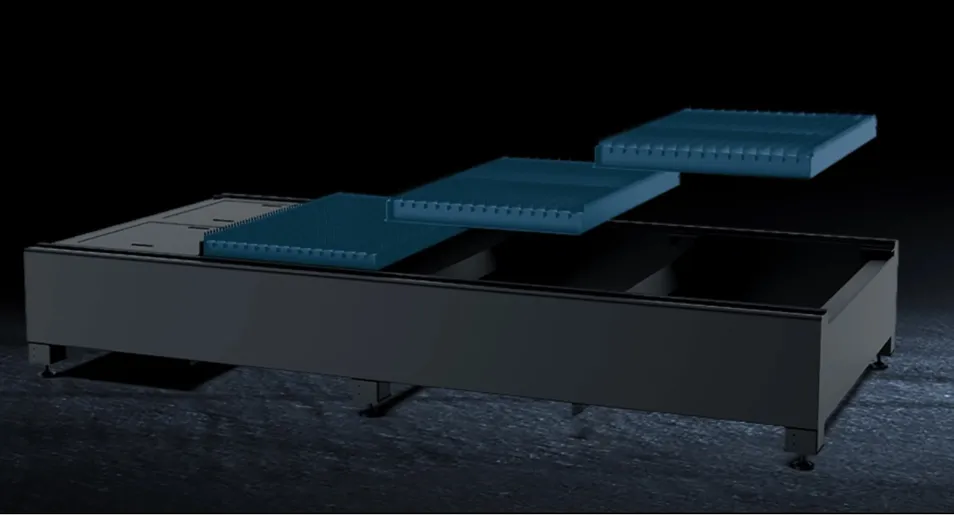

The workbench adopts an assembled modular structure, featuring high structural stability and exceptional load-bearing capacity for easy maintenance.

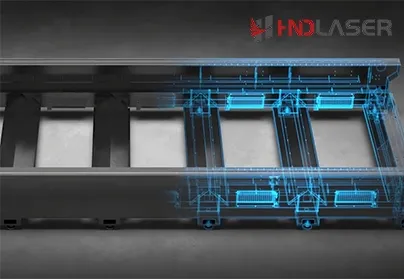

Self-developed plug-in double keel design prevents deformation during long-term high-intensity cutting.

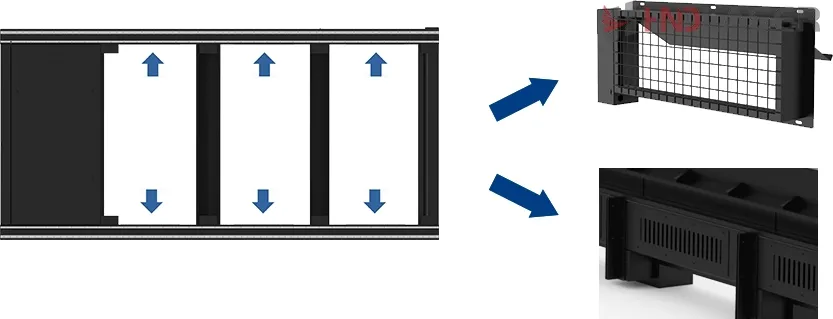

Large-diameter duct with multi-zone partitioning automatically identifies cutting areas to improve smoke evacuation.
Real-time detection system identifies sheet warping in advance and avoids obstacles to protect the laser head.
| Material | Maximum Thickness (mm) | Quality Cutting Thickness (mm) |
|---|---|---|
| Carbon Steel | 20 | 16 |
| Stainless Steel | 12 | 8 |
| Aluminum | 10 | 6 |
| Brass | 6 | 4 |
1. Warranty: One-year equipment quality assurance for the entire machine.
2. Technical Support: Service engineers provide telephone or on-site services at any time for quality issues during the warranty period.
3. Fast Response: Maintenance notices are addressed within 2 hours. If remote support fails, technicians can arrive on-site within 48 hours.
4. Lifetime Maintenance: Beyond the warranty period, we provide preferential technical support, regular maintenance, and spare parts supply.
5. Training: Regular technical visits and guidance on equipment improvement are provided to all users.
