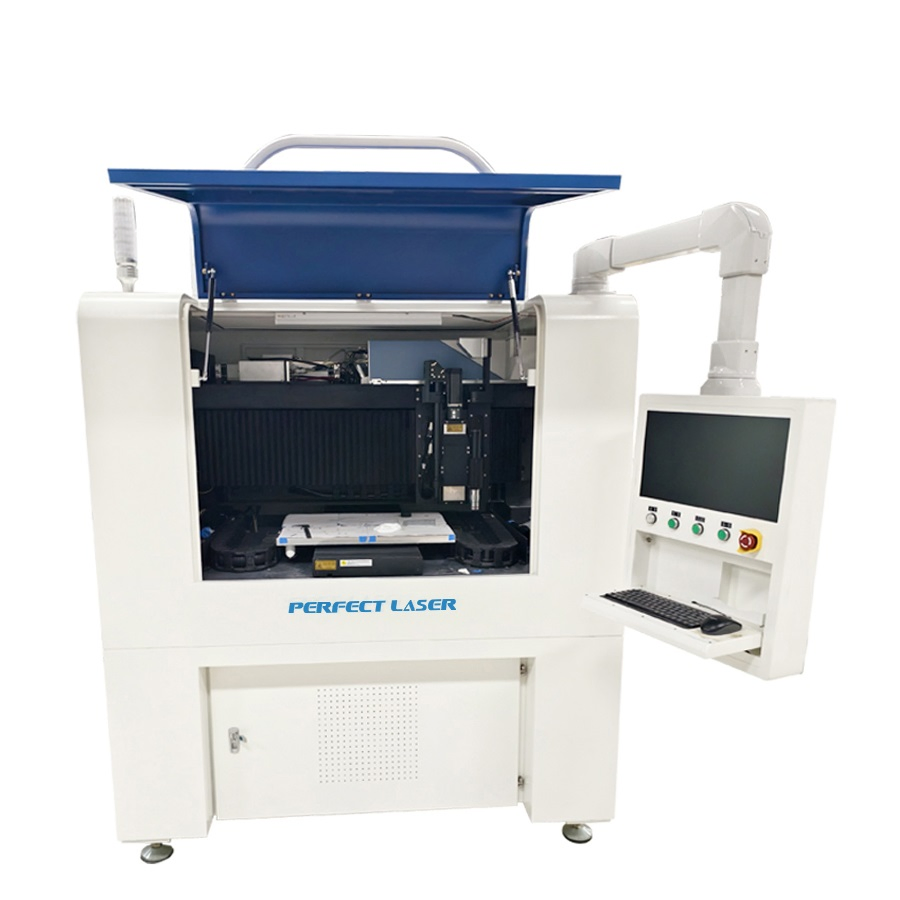

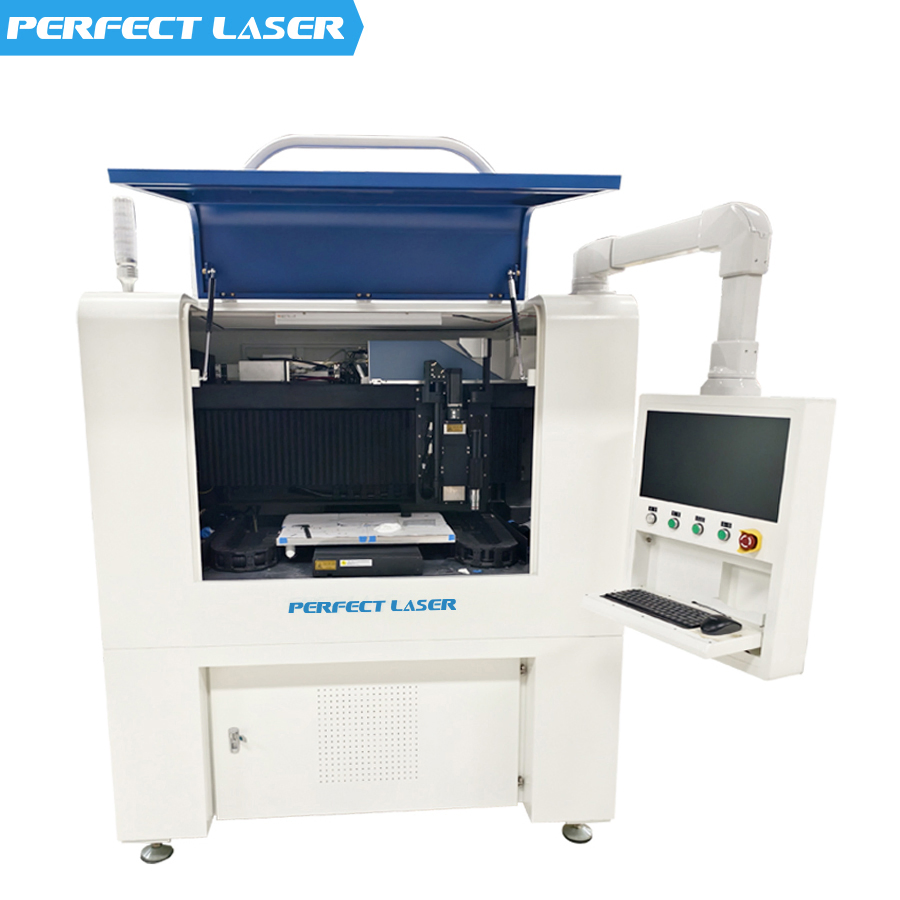

The laser glass cutting and splitting machine uses an ultra-fast infrared picosecond laser and a Bessel cutting head to achieve high-quality, high-efficiency, taper-free, um-level edge-breaking cutting of hard and brittle glass materials. It is equipped with a stable laser source, a safety protection cabinet, and a water cooling system. This machine supports customized services and is suitable for a variety of application scenarios.

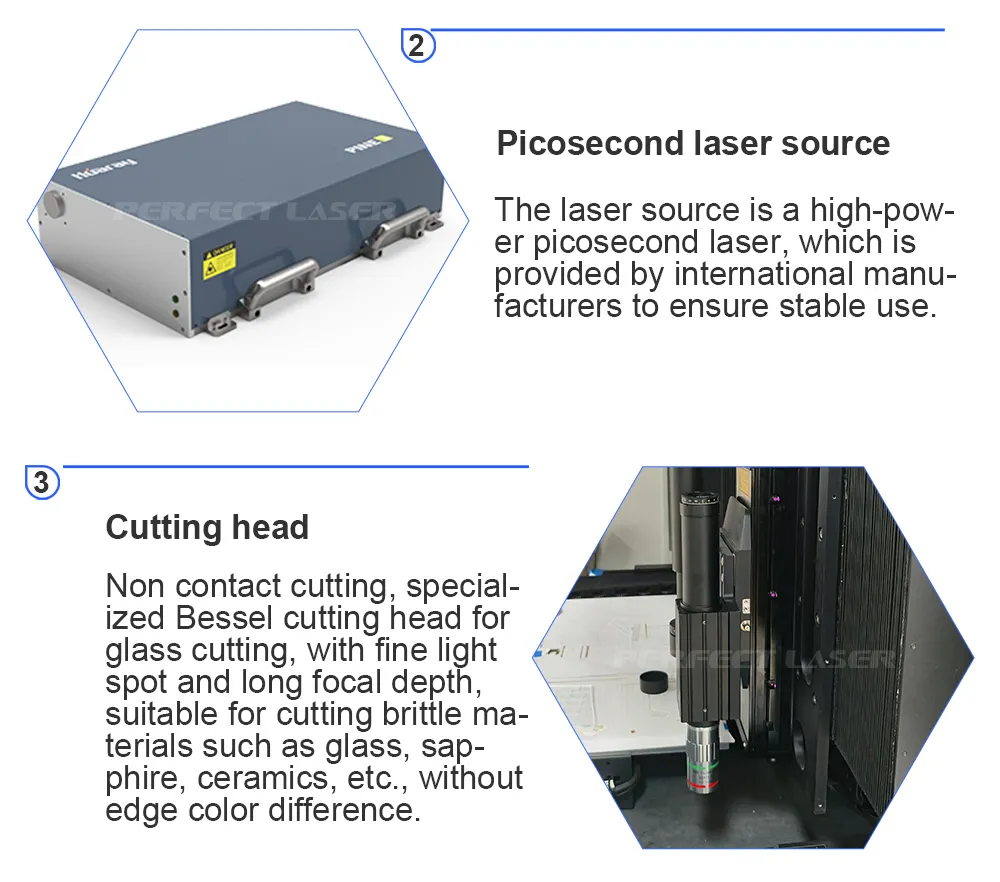

Uses an infrared picosecond laser and Bessel cutting head, ensuring smooth, burr-free edges and high-quality results.
Equipped with a 120W CO2 laser splitter providing stable energy to meet various cutting requirements efficiently.

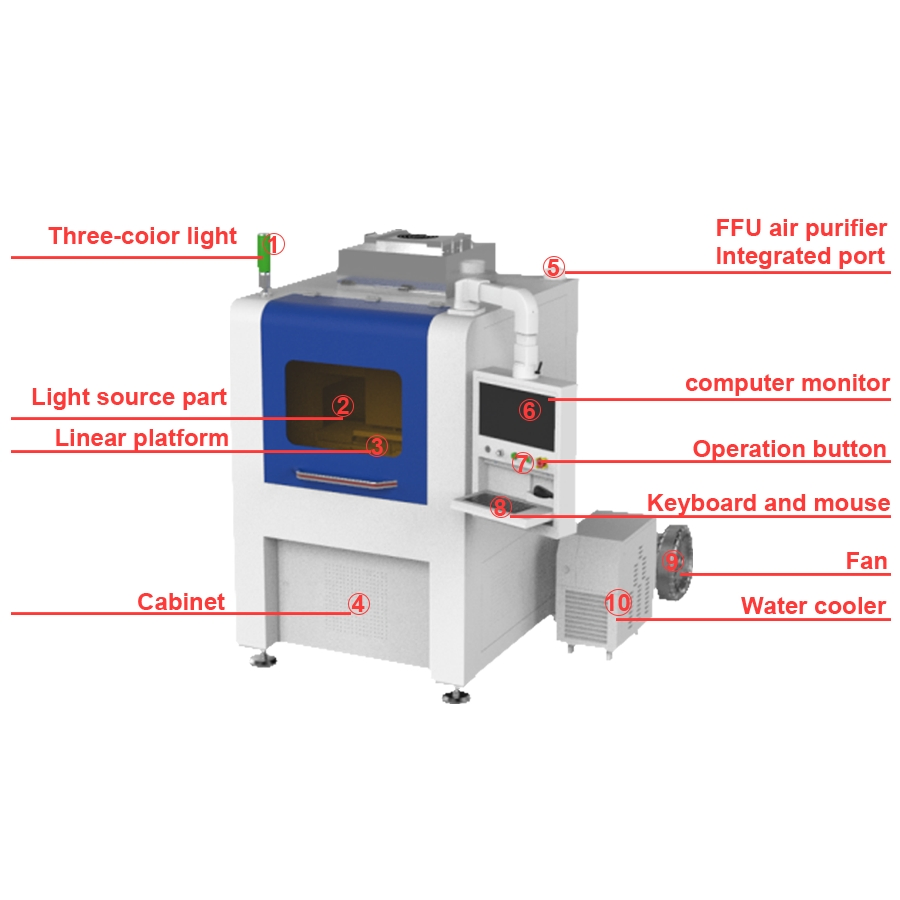

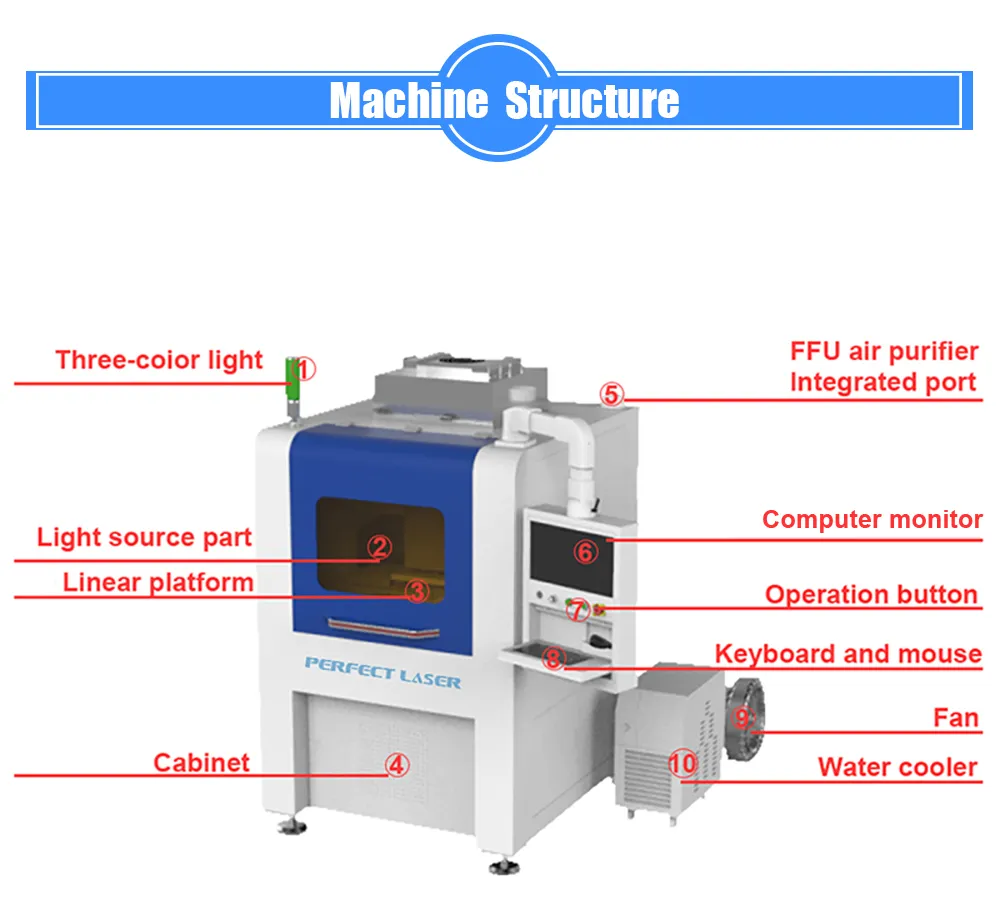

Fully protected integrated cabinet ensures user safety while facilitating easy operation of the equipment.
Includes a specialized laser water cooling box to protect the long-term and stable operation of the laser source.

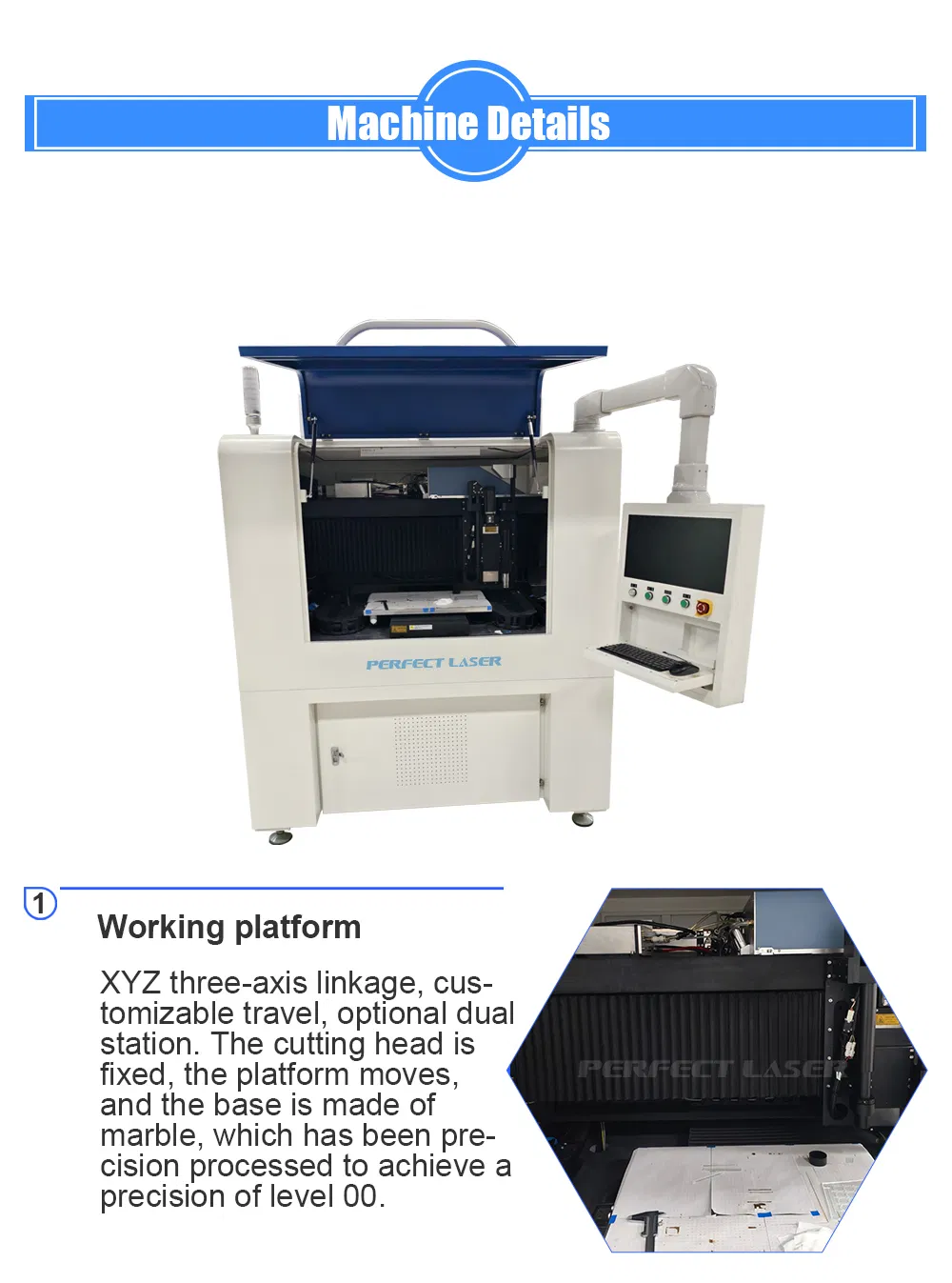

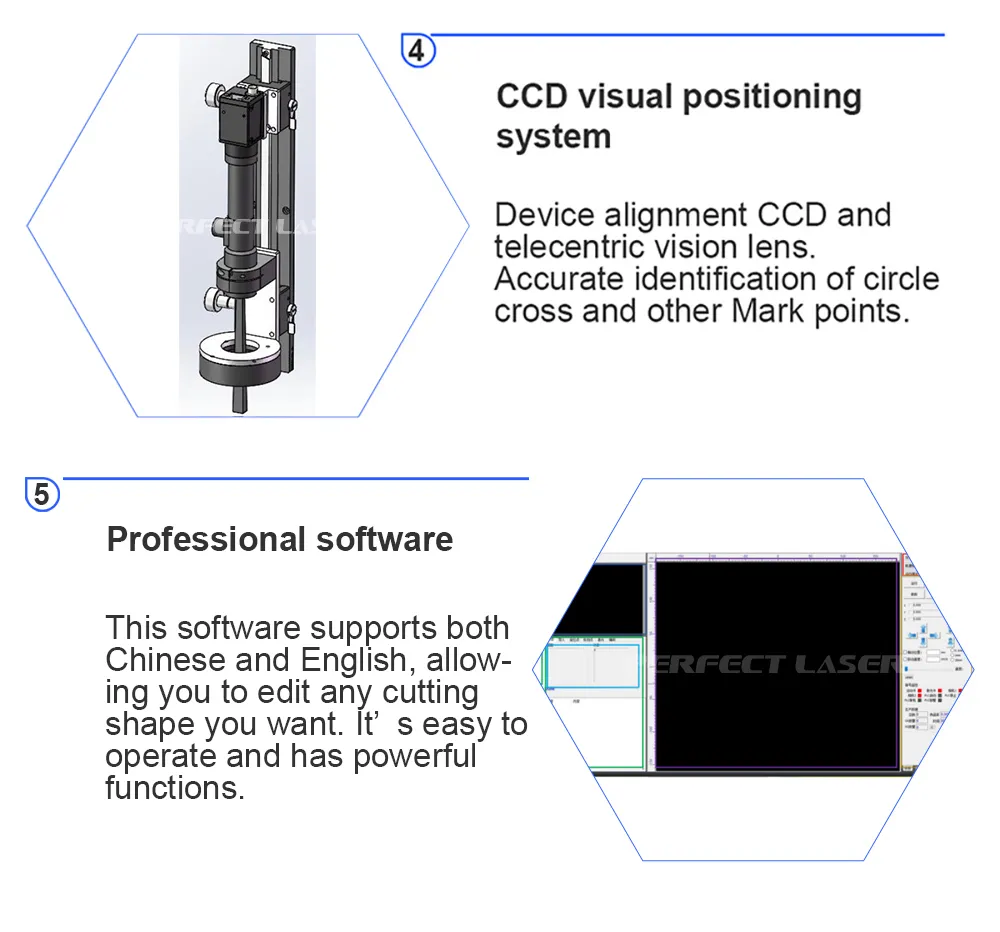

XYZ three-axis platform with visual positioning can be customized for specific application needs.

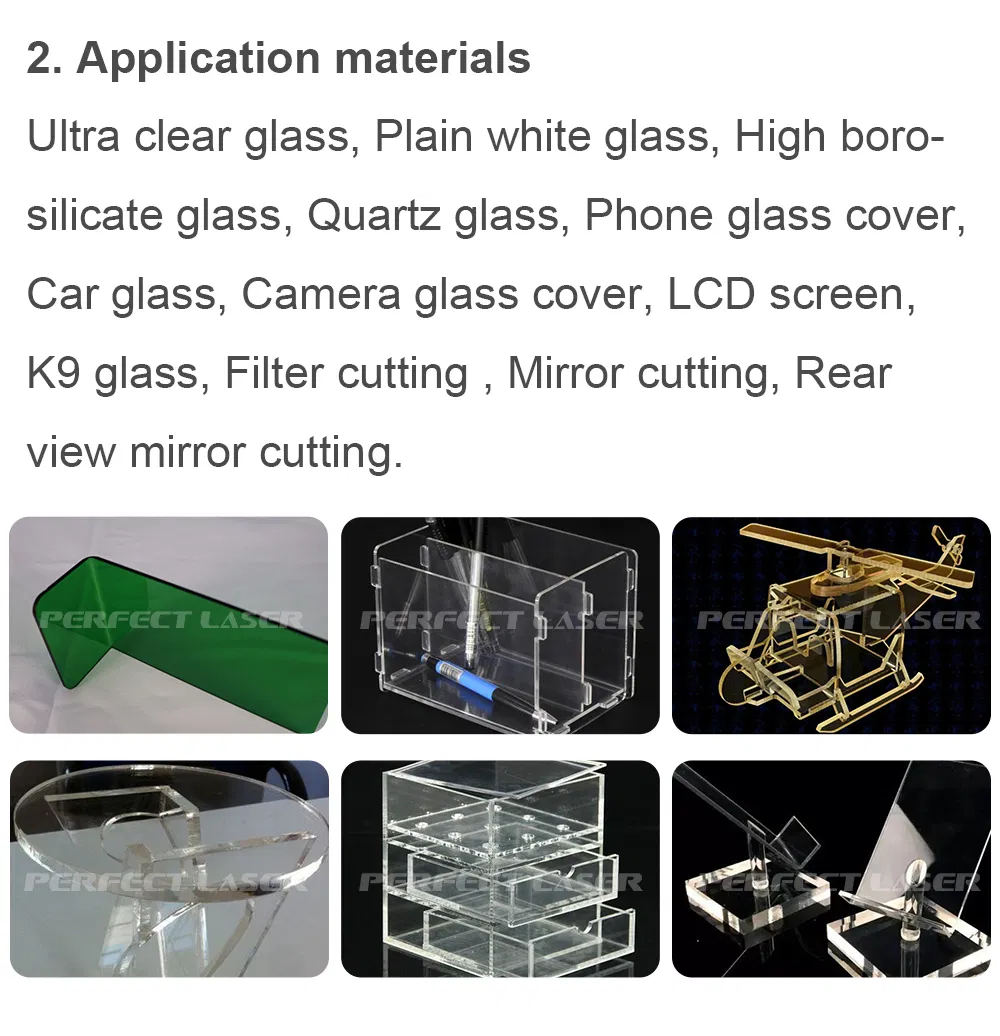

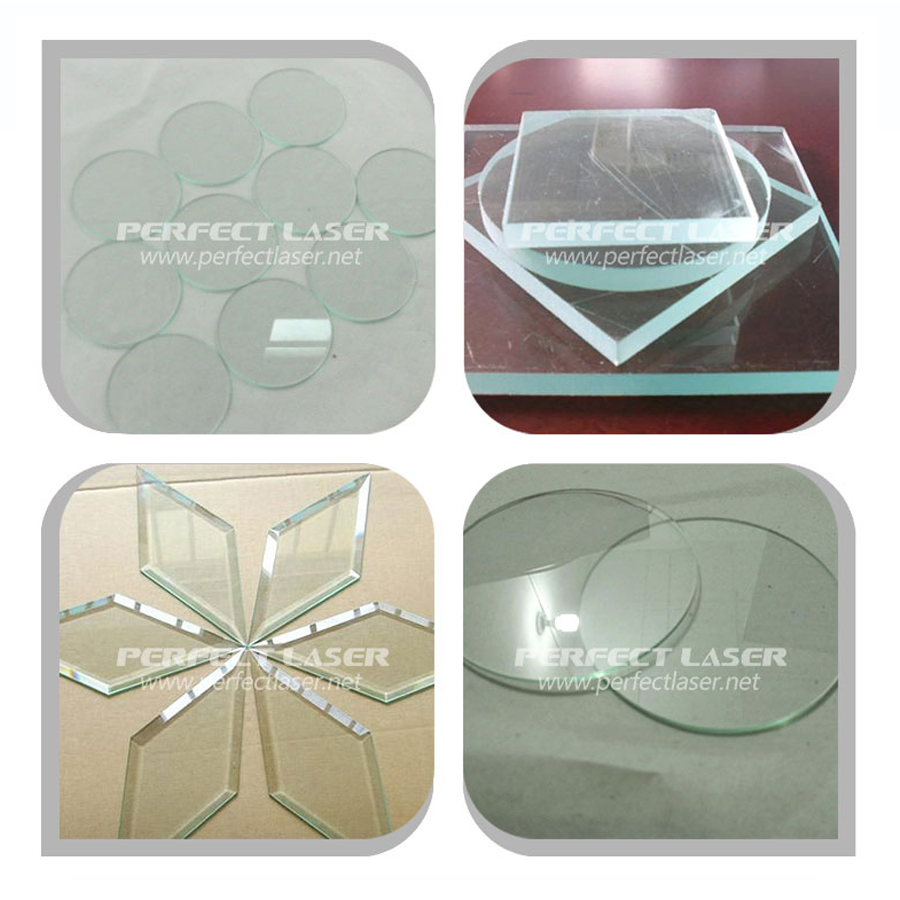

The picosecond laser glass cutter is ideal for the following applications:

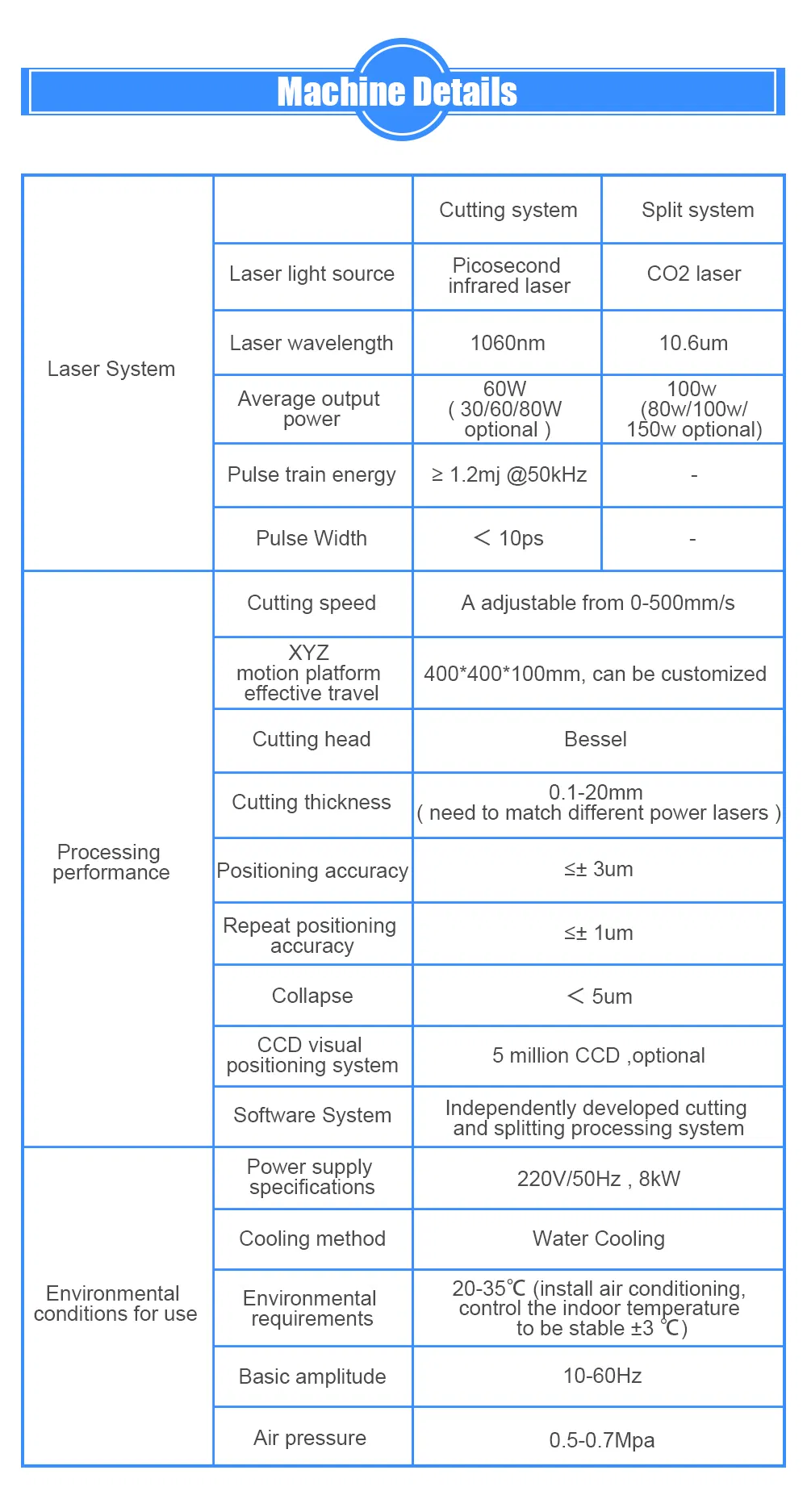

| Category | Parameter | Cutting System | Split System |
|---|---|---|---|
| Laser source | Light source | Picosecond infrared laser | CO2 laser |
| Laser wavelength | Wavelength | 1060nm | 10.6um |
| Power | Average output | 60W (30/60/80W optional) | 120W (80/100/120/150W optional) |
| Performance | Cutting speed | Adjustable from 0-500mm/s | |
| Platform | Processing Area | 300 * 300mm (Customizable) | |
| Precision | Positioning accuracy | ≤± 3um | |
| Thickness | Cutting Thickness | 0.1-20mm | |
