New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
1 / 5
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank
New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank

New Type Remove Abrasive Garnet Sand Remover From Water Jet Cutting Machine Tank

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Certification
ISO 9001:2000
Condition
New
Control
Automatic
Application
Metal, Rubber, Ceramic, Glass, Stone
Power Source
Pneumatic
Style
Waterjet Cutting
Type
Insulating Glass Production Line
Usage
Waterjet Cutting
Tank Size
460L
Size
3.172cbm
Weight
550kg

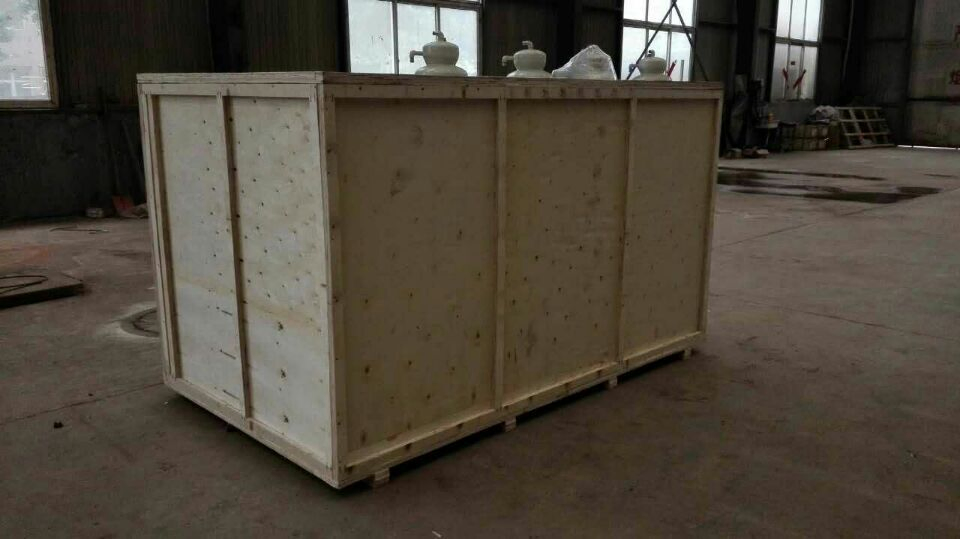

Transport Package
Wooden Case
HS Code
8474100000
Production Capacity
3000 sets/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Gross Weight
550.000kg
Lead Time
30 days (1 - 2 Pieces); To be negotiated (> 2 Pieces)

Product Description

This product is a new type of sand removal equipment independently developed for water jet cutting machinery. It offers simple operation, high sand removal efficiency, and almost no maintenance required. The auto desanding system solves the global challenge of clearing waste sand for water jet users effectively.
Operational Performance: Make tank full time: 40-45 minutes.

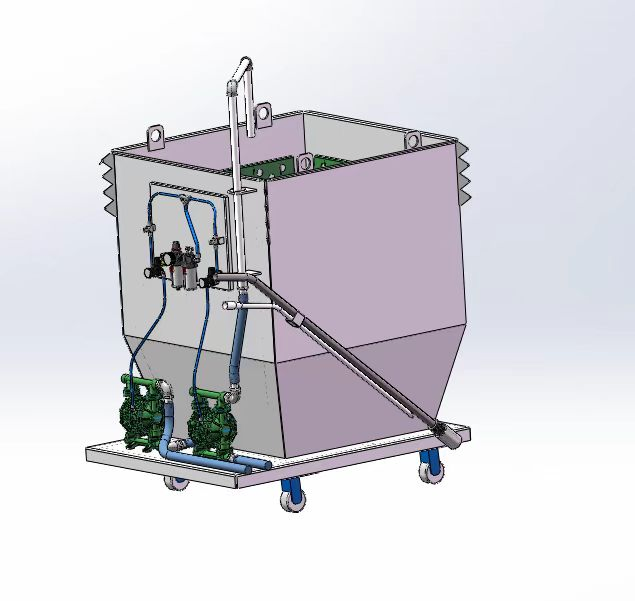

Sand Removal Equipment 1

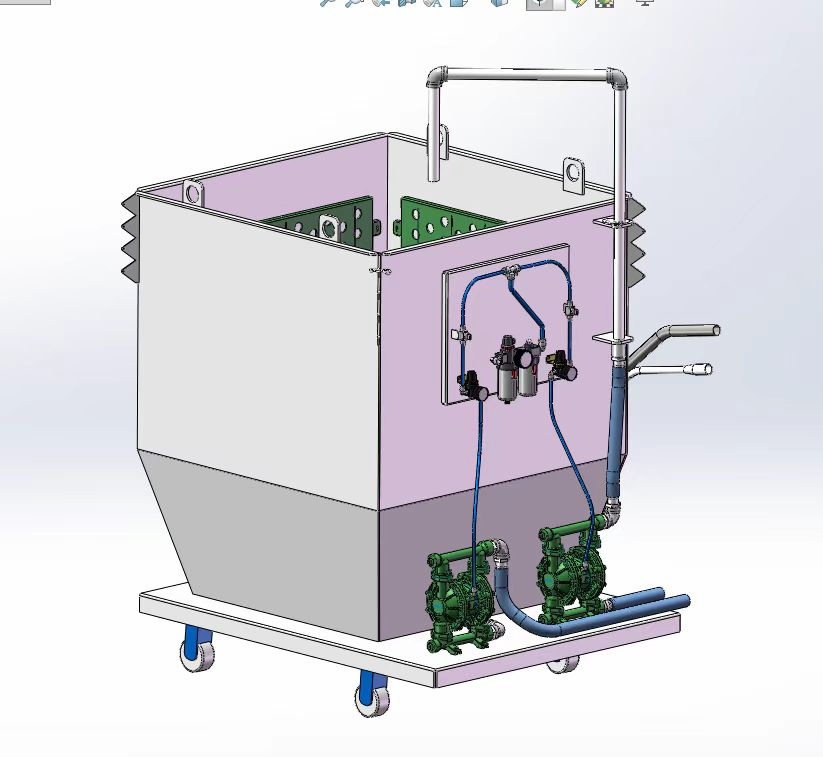

Sand Removal Equipment 2

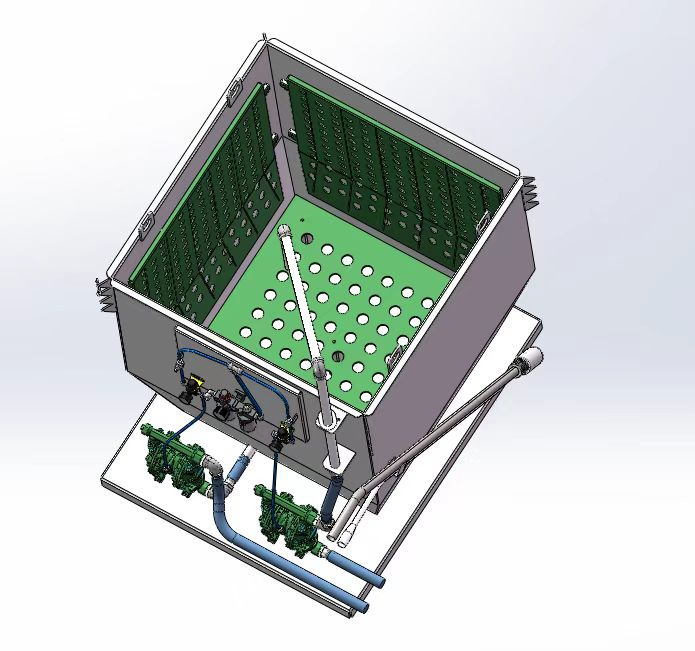

Sand Removal Equipment 3

Core Features

A: Uninterrupted Operation Does not affect the normal cutting of water jet machinery. The sand removing device can perform work while the water jet machine is operating, eliminating downtime for cleaning.
B: High Efficiency Simple 5-step operation with a sand removal rate of more than 90%.
C: Large Capacity Tank diameter of 630-720mm and height of 2.1M, providing a removal capacity up to 460-610L.
D: Heavy-Duty Construction Built with 8mm thick steel plates and a 20mm thick base. Features an advanced water-sand separation system and manual hydraulic safety bolts.
E: Stable Power Source Utilizes an advanced pneumatic diaphragm pump driven by high-pressure gas for constant, powerful sand removal.
F: Resource Saving The process prevents water loss in the main tank, conserving water resources during sand removal.
G: Flexible Mobility Equipped with forklift ear holders for easy movement, allowing one device to serve multiple water jet machines.

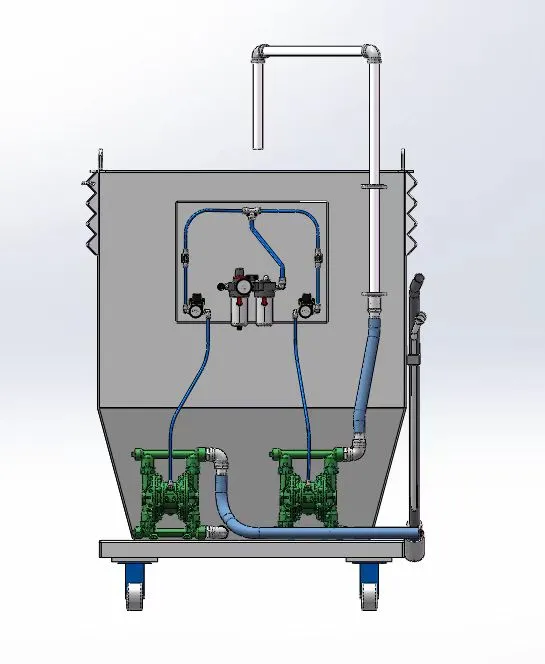

Sand Removal Equipment 4

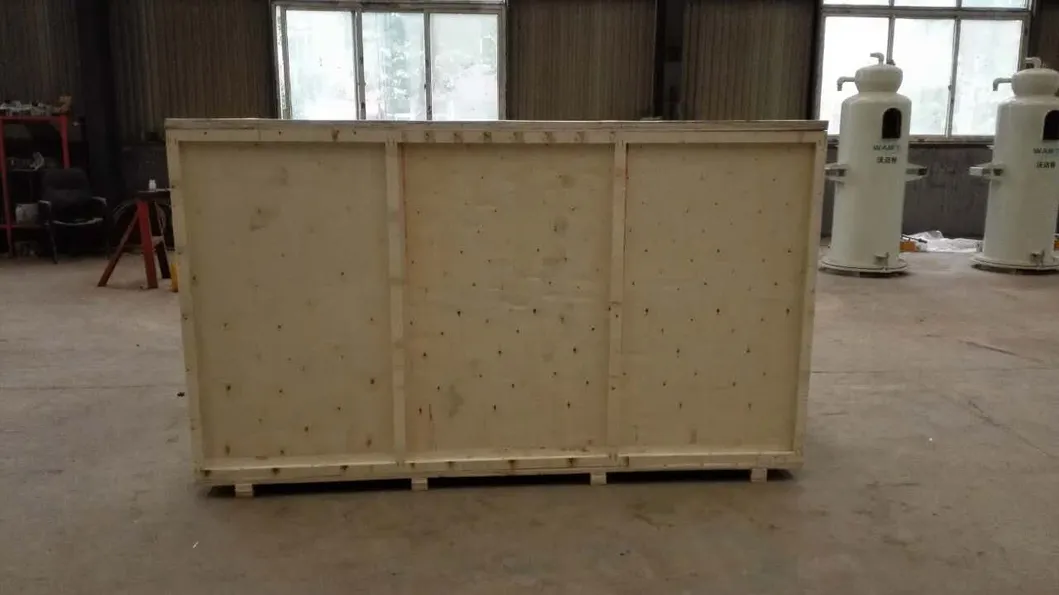

Sand Removal Equipment 5

Production Process

Heat Treatment: 620°C in furnace for 5 hours, cooling to 300°C for 3 hours, then natural cooling to eliminate internal stress and prevent deformation.

Shot Blasting & Powder Coating: Removes surface oxides and improves appearance while increasing fatigue resistance and material life.

Precision Testing: Linear guide rails are tested for straightness and parallelism using precision instruments to ensure high running accuracy.

Laser Calibration: Final equipment precision is calibrated with a laser interferometer for maximum cutting accuracy.

Frequently Asked Questions

Does sand removal interfere with water jet cutting?
No, the system is designed to perform sand removal while the water jet machine is actively working, ensuring zero downtime.
What is the capacity of the desanding system?
The equipment has a large capacity, removing up to 460L to 610L of waste sand depending on the specific model.
Is the equipment easy to move between machines?
Yes, it features forklift ear holders, making it highly mobile so one unit can serve multiple water jet installations.
How efficient is the sand removal process?
The system achieves a sand removal rate of over 90% and can fill its tank in approximately 40-45 minutes.
What kind of maintenance does it require?
The system is designed for high durability with thick steel plates and advanced pneumatic components, requiring almost no maintenance.
Does it waste water during operation?
No, the process is energy-efficient and does not cause water loss in the main cutting tank.
