| Technical Overview | |||
|---|---|---|---|
| Type | Pipe Cutting Machine | Coil Width | 1650mm |
| Sheet Thickness | 0.3~3.0mm | Slitting Accuracy | 0.3mm |
| Capacity | 1650*0.3~3.0mm | Manufacture Year | 2014 |

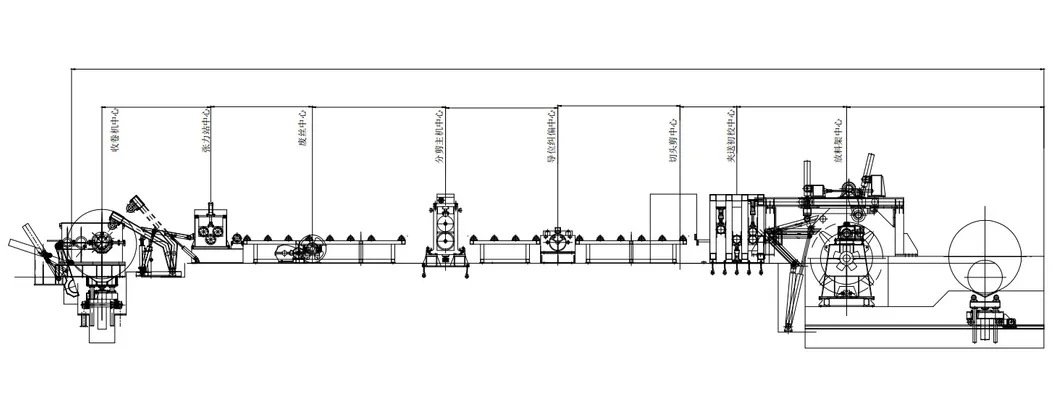

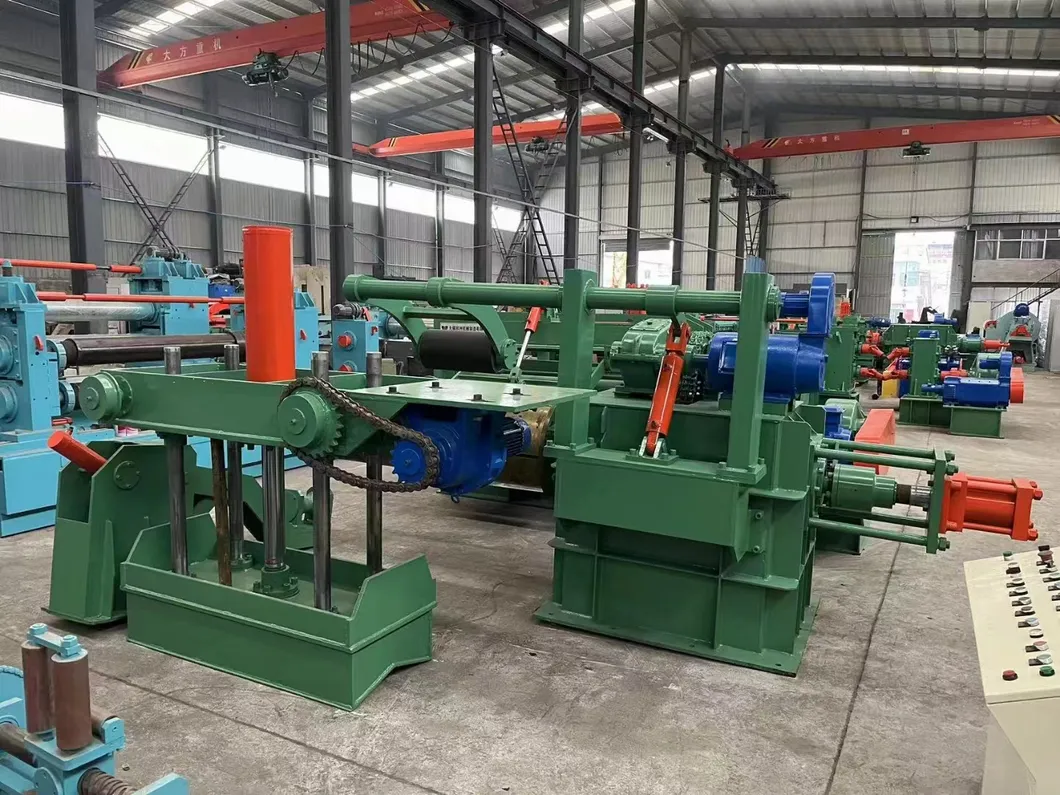

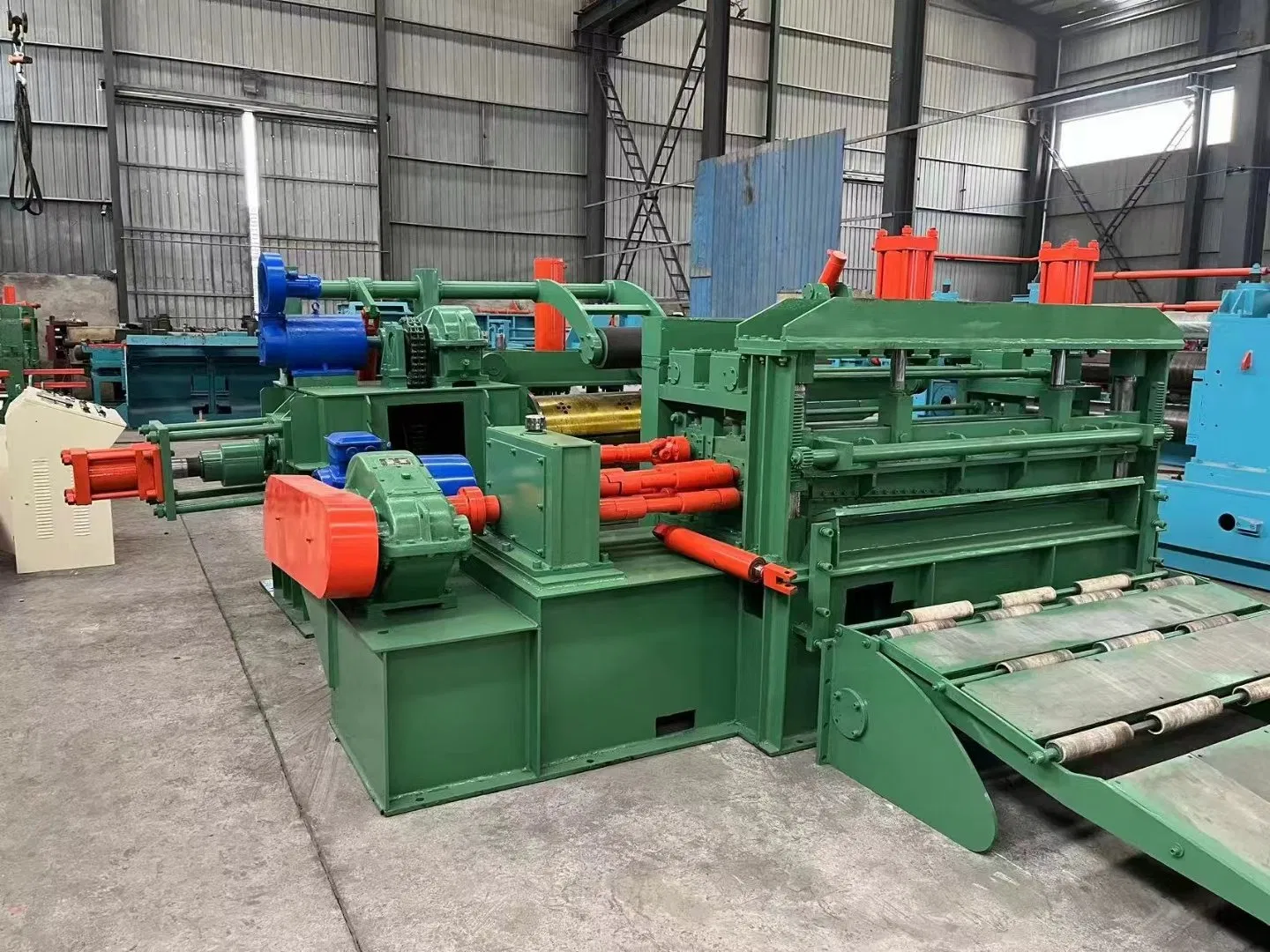

This production line is designed for producing flattened plates through a comprehensive procedure of uncoiling, flattening, and cutting to required widths and lengths. The system consists of a coil car, uncoiler, pre-leveller, hydraulic loop bridge, fine leveller, servo length gauge, and high-precision cutting shears.
| Num | Core Configuration Details |
|---|---|
| 1 | Entry car & Uncoiler |
| 2 | 21 Roller leveler (motor 55KW) |
| 3 | Looper (2 sets) |
| 4 | Precision Leveler and Measuring Device |
| 5 | Hydraulic Shear Machine & System |
| 6 | Run Out Table & Lifting palletizer |
| 7 | Electrical Systems & Control Cabinets |
With 30 years of focus on the high-frequency welded pipe industry and over 17 years of specialized manufacturing experience, the team provides high-quality second-hand production equipment and accessories. Services include installation, commissioning, maintenance, and custom integration of production lines to ensure rapid production of qualified steel products.
