| Model NO. | 0.3-2.5X1350 Slitting Line | Condition | Used |
| Customized | Customized | Theory | Inverter |
| Application | Industry, Decoration | Type | Pipe Cutting Machine |
| Origin | China | HS Code | 8455101000 |
| Package Size | 1.00cm * 1.00cm * 1.00cm | Gross Weight | 100.000kg |

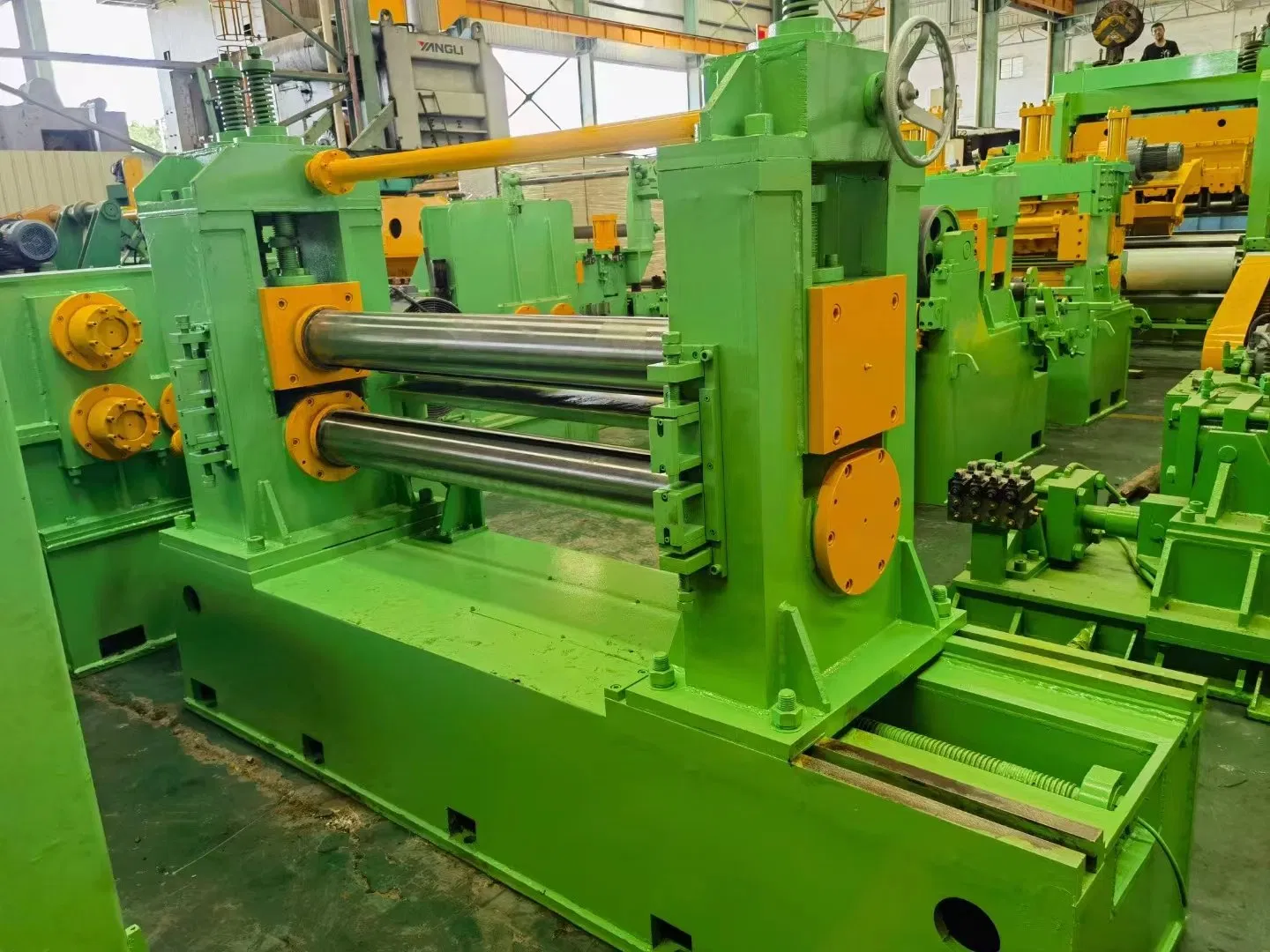

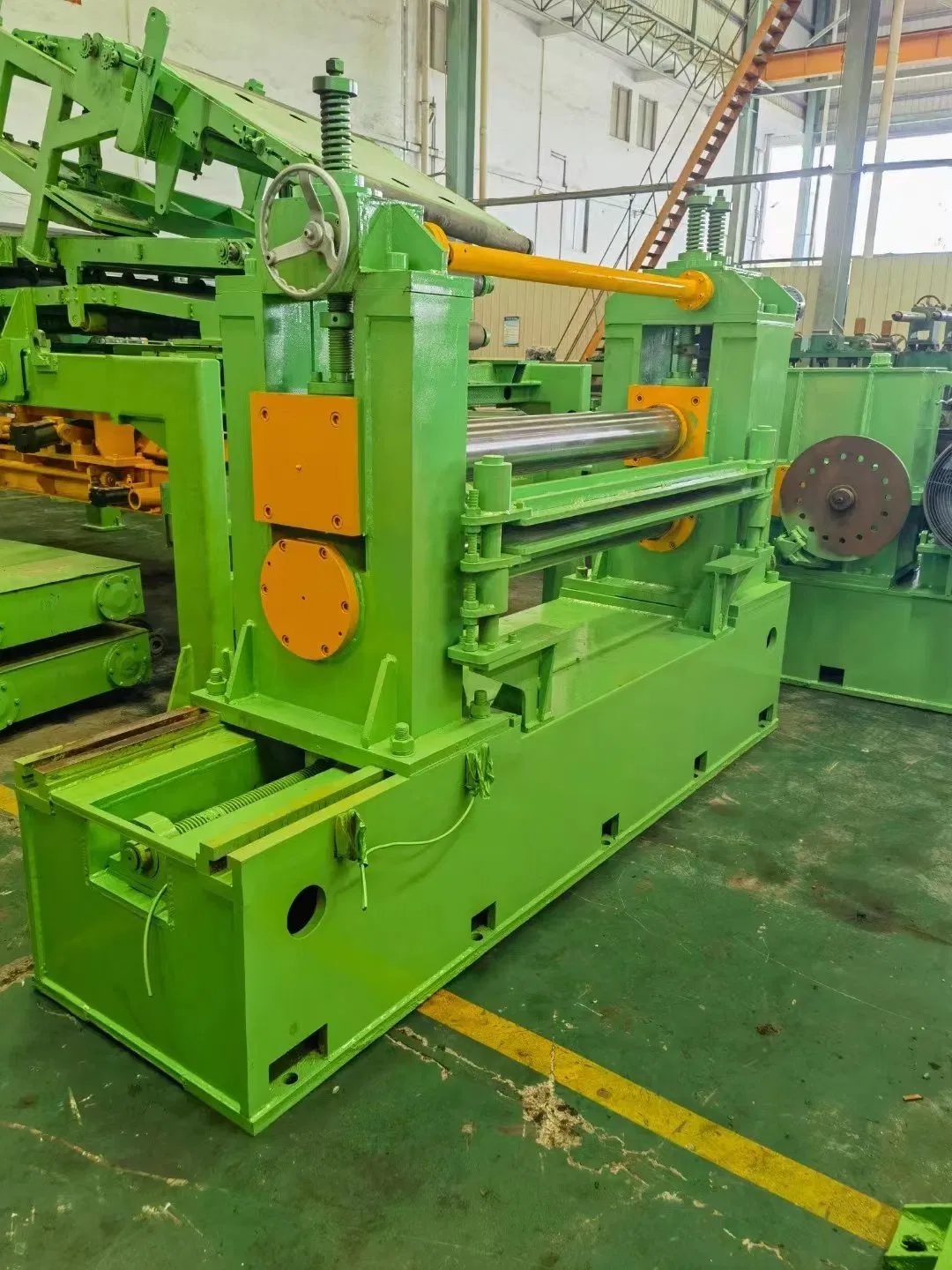

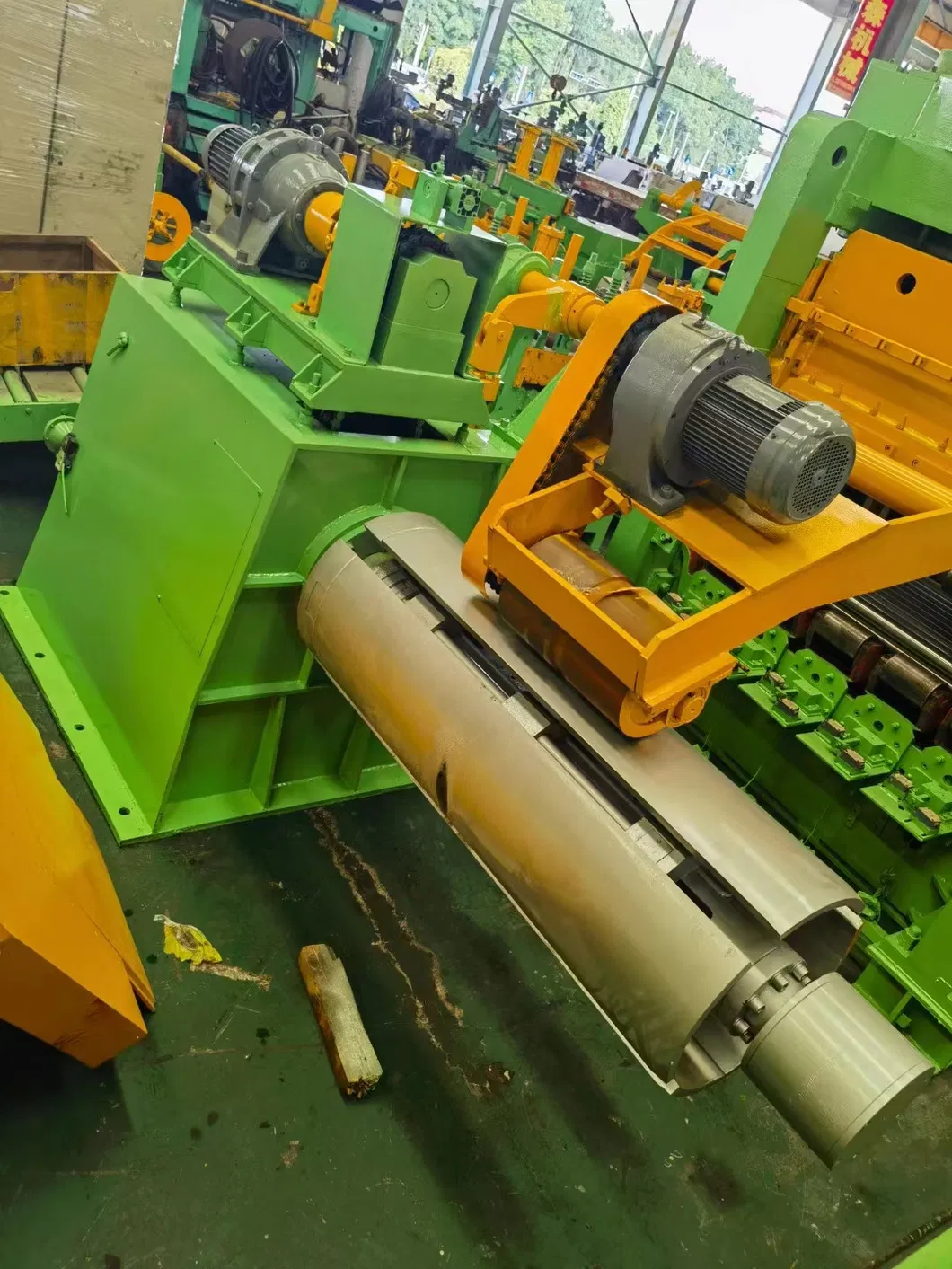

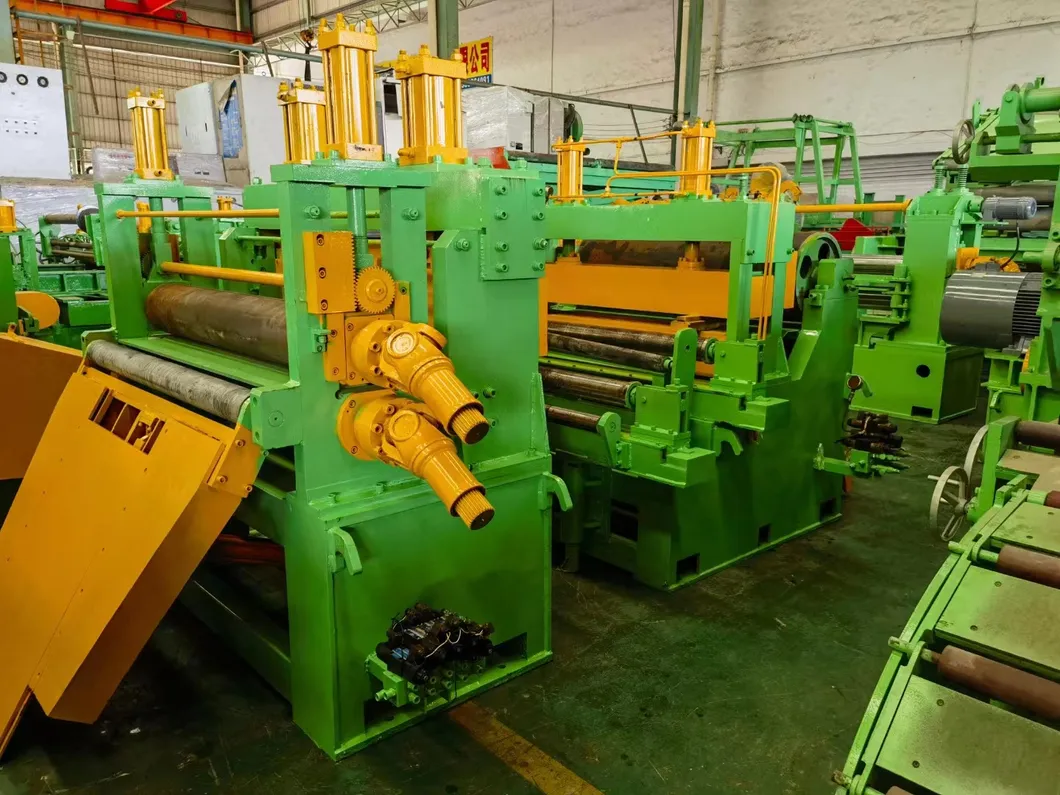

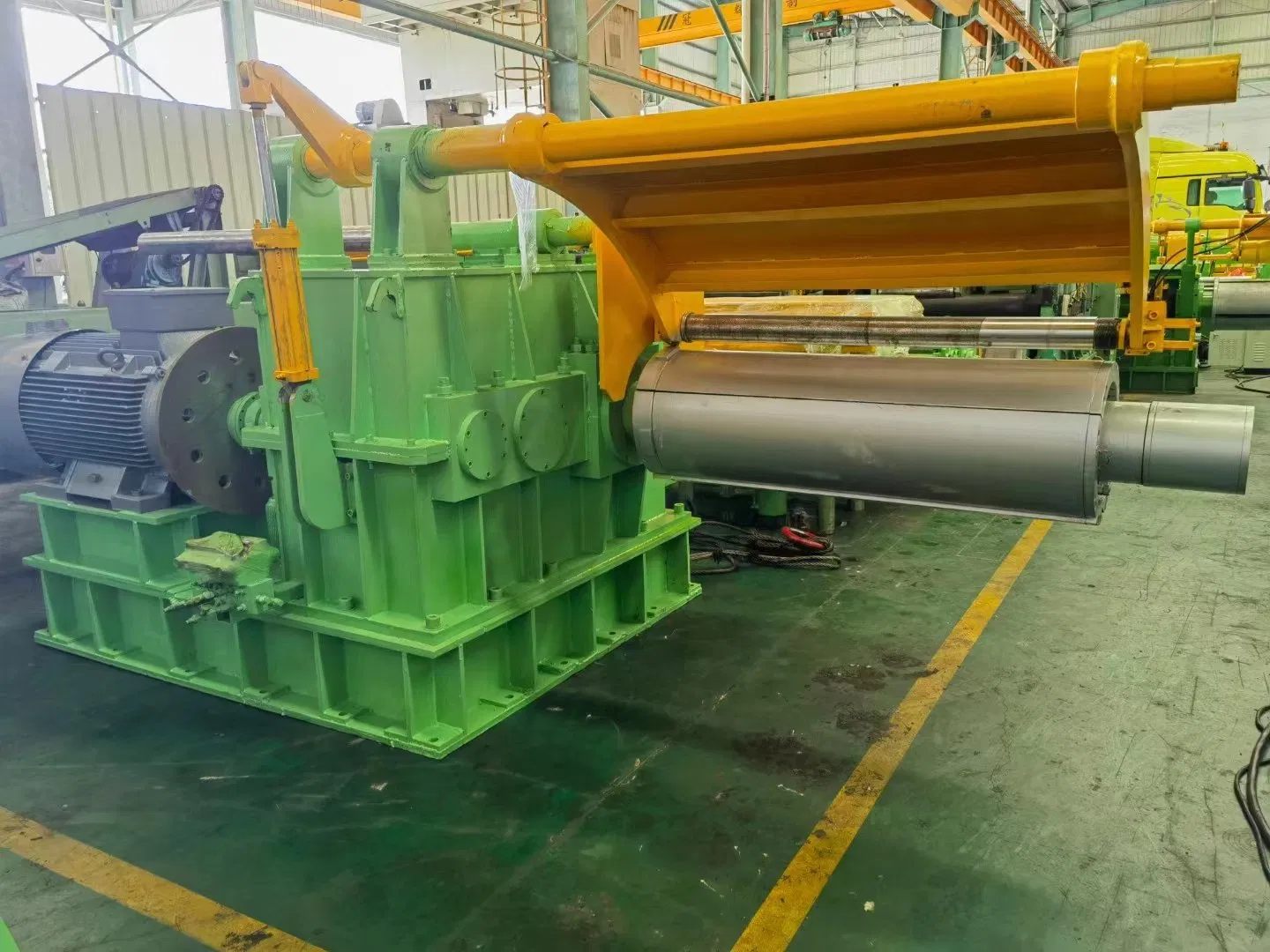

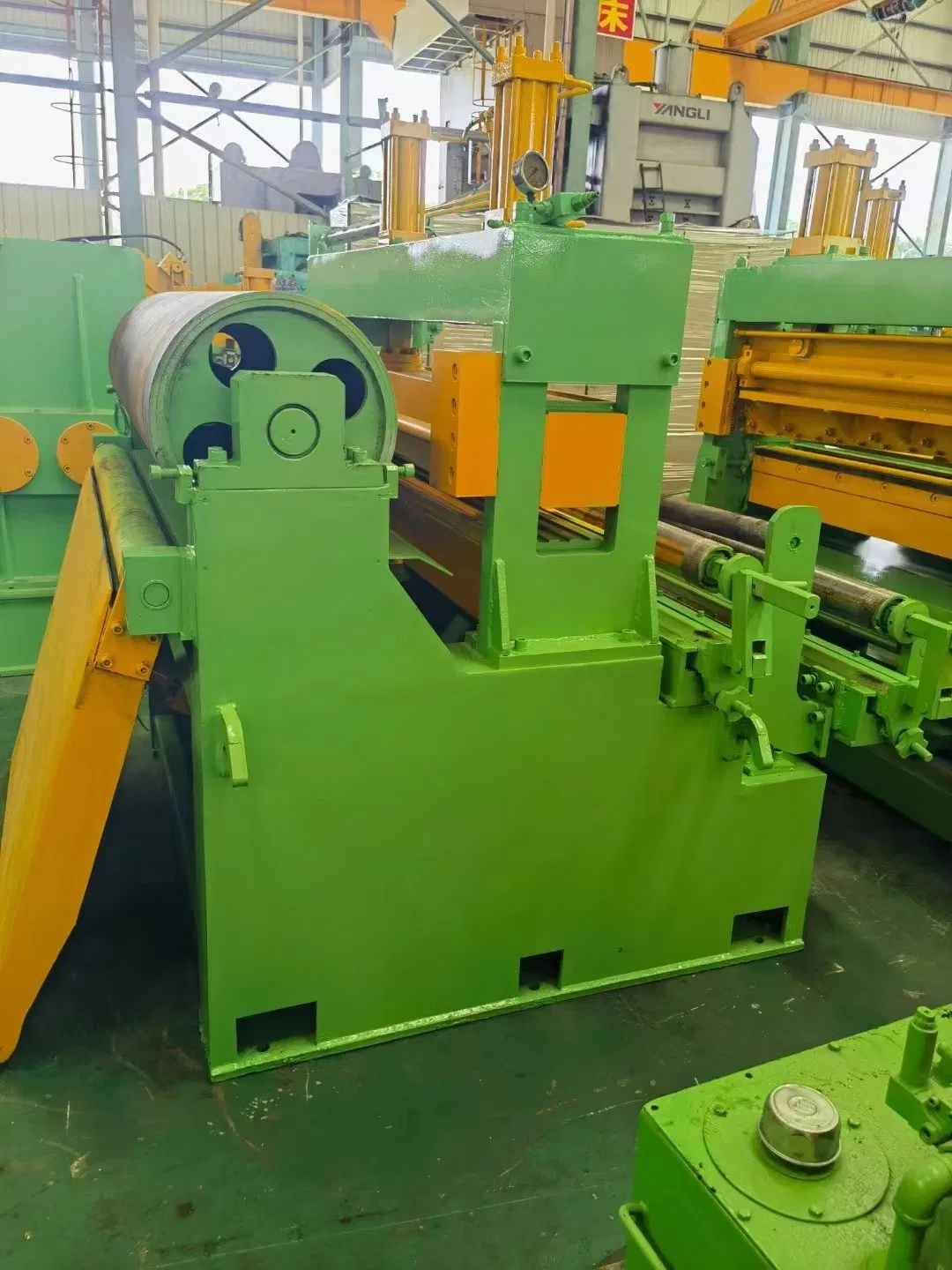

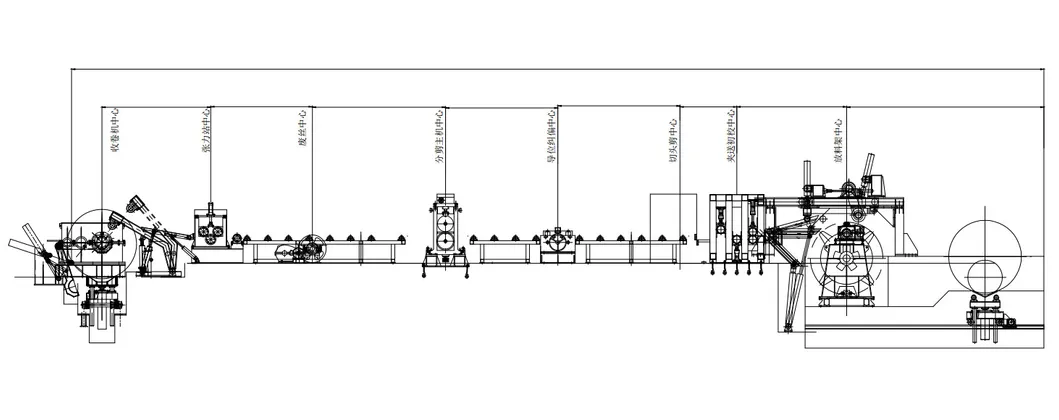

Introduction: A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific width. The full width coil was first uncoiled and flattened into flat strip. The strip is then slit into narrower strips of narrower required width. The strips are then be recoiled into smaller coils.
The equipment is controlled by PLC control system which ensures high precisely slitting and easy operation. The slitting line can be equipped with auto coil position correction.
| No | Item | Numerical Value |
|---|---|---|
| 1 | Coil Thickness | 0.3~2.5mm |
| 2 | Coil Width | 500~1350mm |
| 3 | Coil Inner Diameter | ≥Φ508mm |
| 4 | Coil Material | Plain carbon steel, Electro galvanized sheet, Color steel sheet, etc. |
| 5 | Steel Grade | Hot-rolling Q345, EN 10149 S355 MC, and ASTM A36 |
| Manufacturing Year | 2002 | Slitting Thickness | Max 3.0mm |
| Slitting Width | Max 1350mm | Slitting Speed | Max 140m/min |
| Total Power | 220KW | Spindle Diameter | Φ 200mm |
| Floor Area | 30m L x 10m W | Load-bearing | Min 25 tons |
| Yield Strength | 350 Mpa max | Tensile Strength | 600 Mpa max |
The company was established in 2001, the main business is the acquisition and transfer of second-hand welded pipe units, and one-stop to provide customers with installation, commissioning, maintenance, customization and other services. Focusing on the high frequency welded pipe industry for 30 years, 17 years of high frequency manufacturing and service experience. We have provided more than 2000 enterprises with high quality products and one-stop service support.
A large number of second-hand real source, rapid integration of the entire second-hand welded pipe production line. Installation and commissioning services can be provided at home and abroad to ensure the rapid production of qualified steel pipes.
