Slitting Line for Electrical Silicon Steel, Steel Coil Slitting Line Machine, Steel Coil Cutting Line

Basic Information

Model NO.

slitting mater line machine

Drive Mode

CNC

Warranty

2 Years

Production Capacity

50set/Year

Rolling Shaft

40crmo, Tempering

Slitting Blade

Cr12MOV, Quenched

Controller

PLC Auto Control

HS Code

8462321000

Product Description

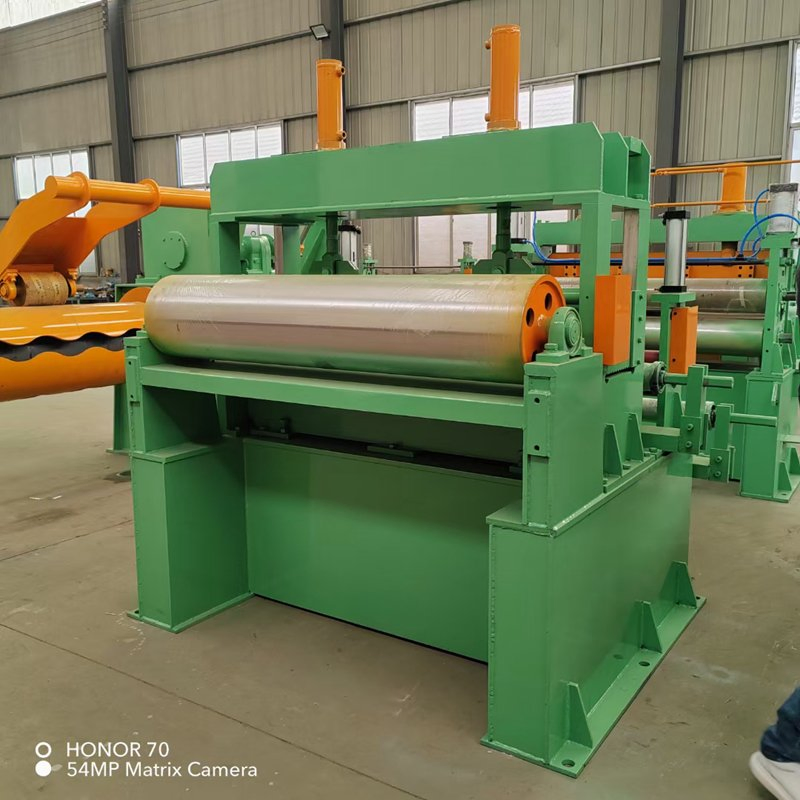

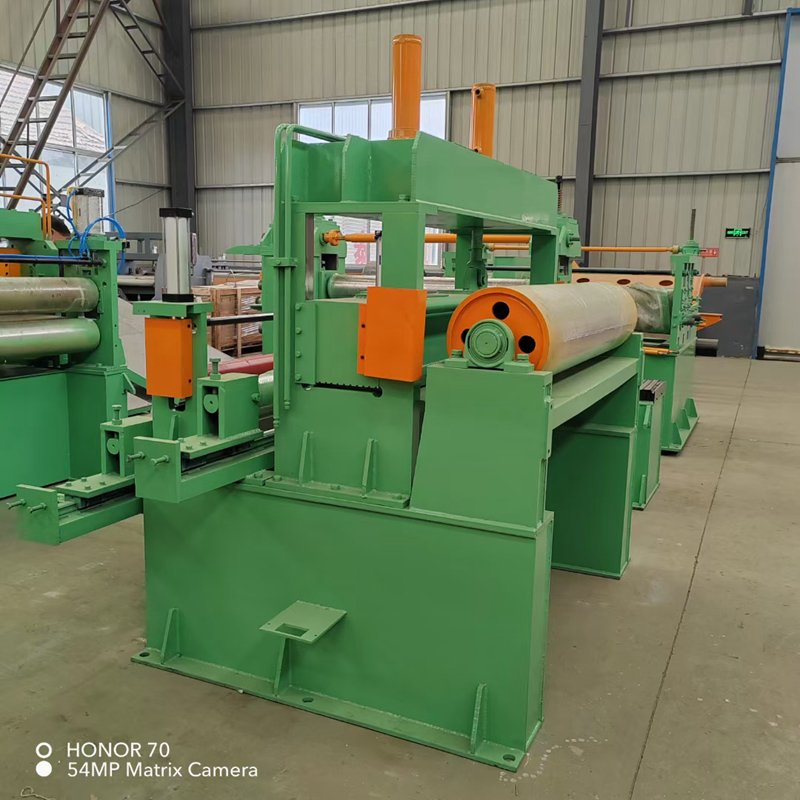

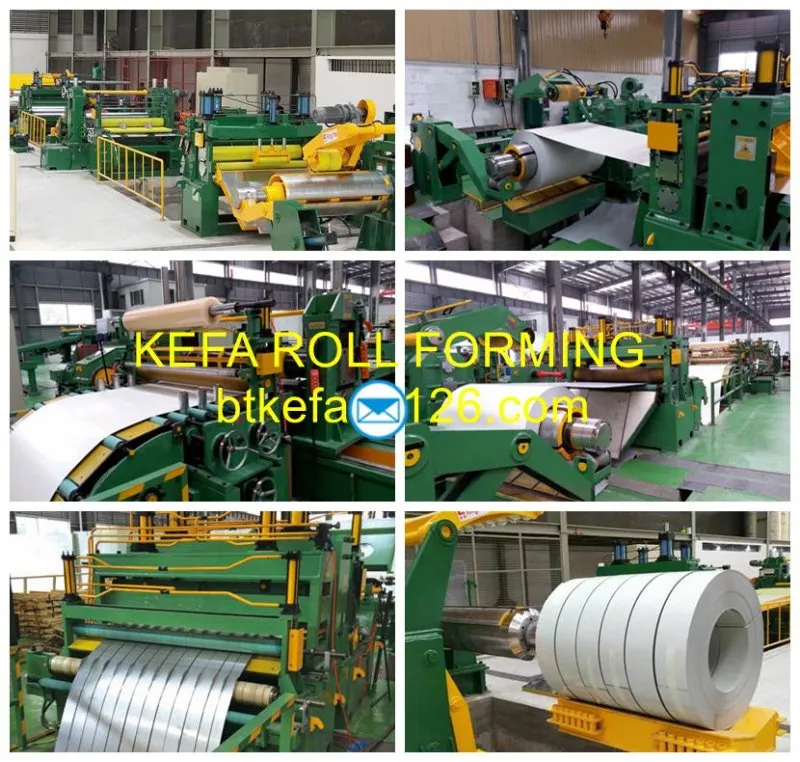

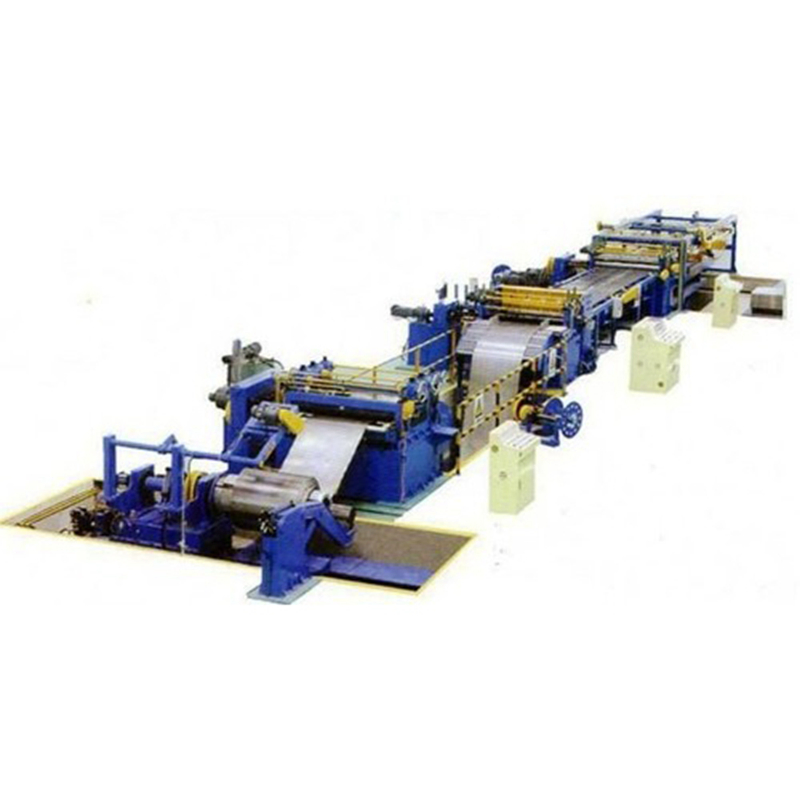

Slitting Line for Electrical Silicon Steel

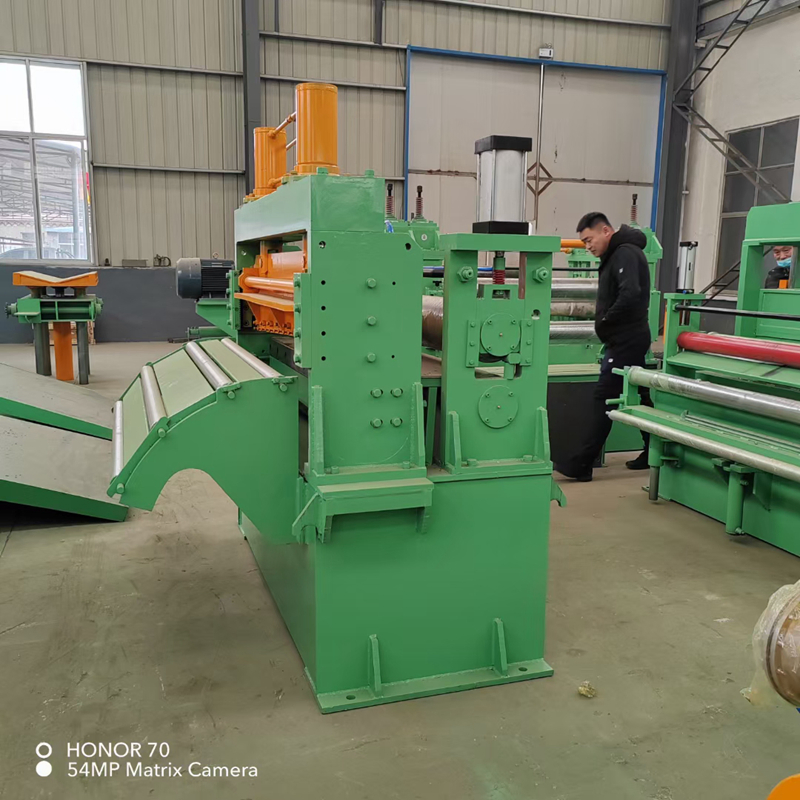

The slitting machine, also known as a vertical slitting line, is engineered to slit cold rolled steel coils, hot rolled steel coils, galvanized steel coils, silicone steel coils, stainless steel coils, and aluminum coils into various widths according to production demands. These metal strips are recoiled for subsequent processes in specialized industries such as transformer manufacturing, motor production, tube/pipe welding, cold roll forming, and ceiling drywall systems.

Project	Parameter
Material	HR, CR, GI
Thickness	0.6mm - 4.0 mm
Width	400-1600mm
OD / ID	φ800-2000mm / Φ508-610mm
Weight	25 T
Performance	Yield strength 350MPa / Tensile strength 300MPa
Accuracy	Width tolerance: 0.10mm, Longitudinal ≤0.8mm/m, Burr ≤0.1mm
Line Speed	80m/min
Total Power	290kw

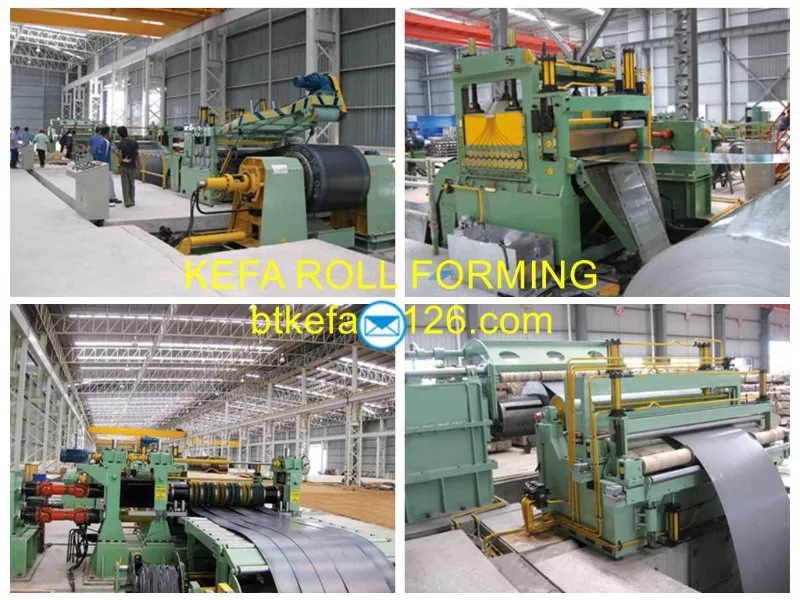

Production Flow

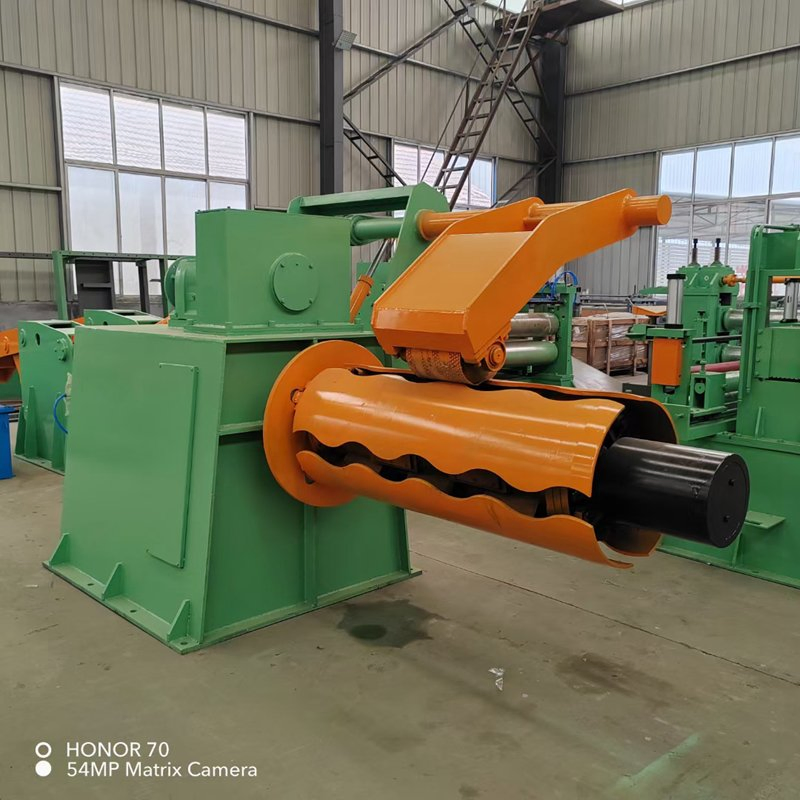

1 Coil loading car & Decoiler

2 Loop pit 1 & Center aligner

3 Slitting machine & Waste scrap winder

4 Loop pit 2 & Pre-separator

5 Tensioner & Pressing separator

6 Recoiler & Manual packing

7 Unloading coil car

Quality & Service

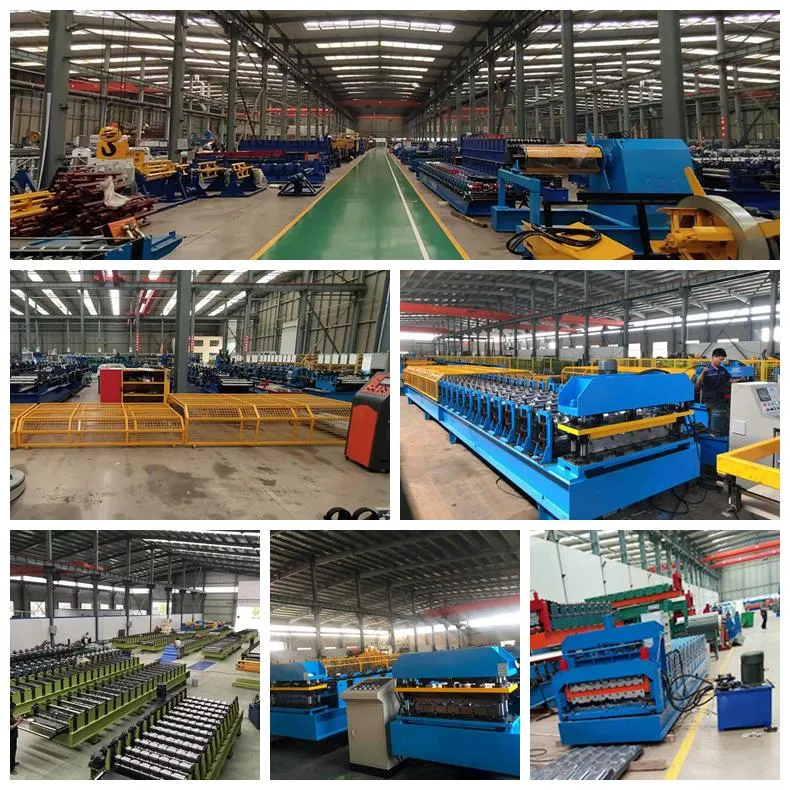

1. Quality Control

Every part of the machine is examined carefully without omission. Customers are welcome to inspect machines at our facility.

2. Installation & Training

We provide video guides for installation and operation. Technical experts are available for on-site installation at the customer's factory.

3. After-Sale Service

One-year warranty for parts with free shipment. We provide 24/7 technical support online throughout the equipment's lifespan.

Application Fields

Construction: Roof and wall panels, floor decks, purlines, door frames, and container house profiles.

Automotive: Carriage panels, wheel rims, and trailer fenders.

Agricultural: Steel silos, greenhouse pipes, and conveyor covers.

Industrial: Guardrails, leveling/slit & cut to length lines, and pipe milling.

Energy: Solar panel frames, cable trays, and electrical cabinets.

Frequently Asked Questions

1. How should the machine be maintained? Add mechanical lubrication to the chain, bearing, and cutting slide every month. Lubricate the gear case every six months.

2. Are the machines only available in standard sizes? No, most machines are custom-built according to customer specifications using top-tier brand components.

3. How many operators are required for the slitting line? The automated system requires only 1 to 2 workers to operate effectively.

4. What is the procedure if a machine part breaks? During the 12-month warranty, we replace broken parts for free. Beyond the warranty, we provide lifetime technical support and negotiate solutions for any issues.

5. How can I verify the machine has been tested before shipping? We record a full testing video for your reference before shipment, or you are welcome to visit the factory to test the machine in person.

6. What materials can this slitting line handle? It is designed for cold rolled steel, hot rolled steel, galvanized steel, silicone steel, stainless steel, and aluminum coils.
