| Model NO. | 1650*0.3-3.0 Slitting Line | Machine Type | Steel Cutting Machine |
|---|---|---|---|
| Cut Function | Cut to Length Line | Operation | Slitting Machine |
| Transport Package | Wooden Package | Specification | 80 * 6 meters, 100 tons |
| Origin | China | HS Code | 8455101000 |
| Production Capacity | 1000 | Manufacture Year | 2014 |
| No. | Item | Numerical Value |
|---|---|---|
| 1 | Coil Width | 1650mm |
| 2 | Sheet Thickness | 0.3~3.0mm |
| 3 | Slitting Accuracy | 0.3mm |
| 4 | Machine Color | Green |

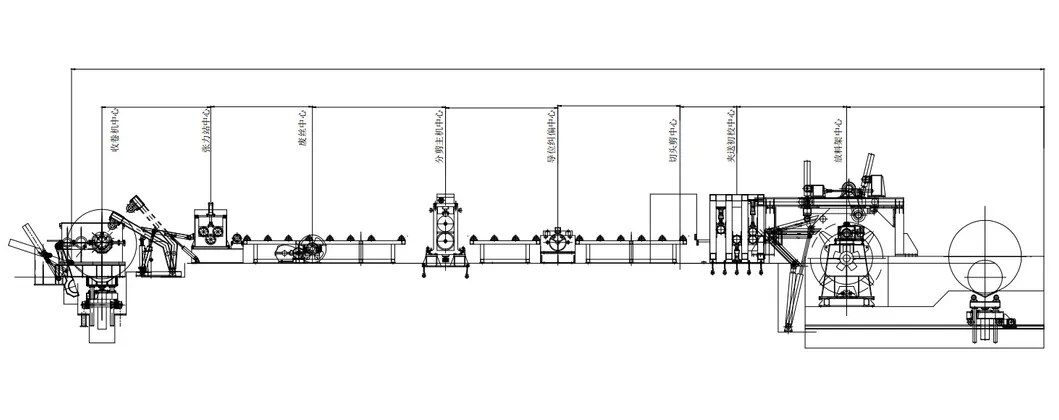

Technological Process:
Configuration Details:
| 1. Entry car | 2. Uncoiler |
| 3. 21 Roller leveler (55KW) | 4. Looper (2 set) |
| 5. Precision Leveler & Measuring Device | 6. Hydraulic Shear Machine |
| 7. Run Out Table | 8. Lifting palletizer |
| 9. Coil car (2 set) | 10. Hydraulic System |
| 11. Electrical Equipment | 12. Control Cabinet (2 set) |

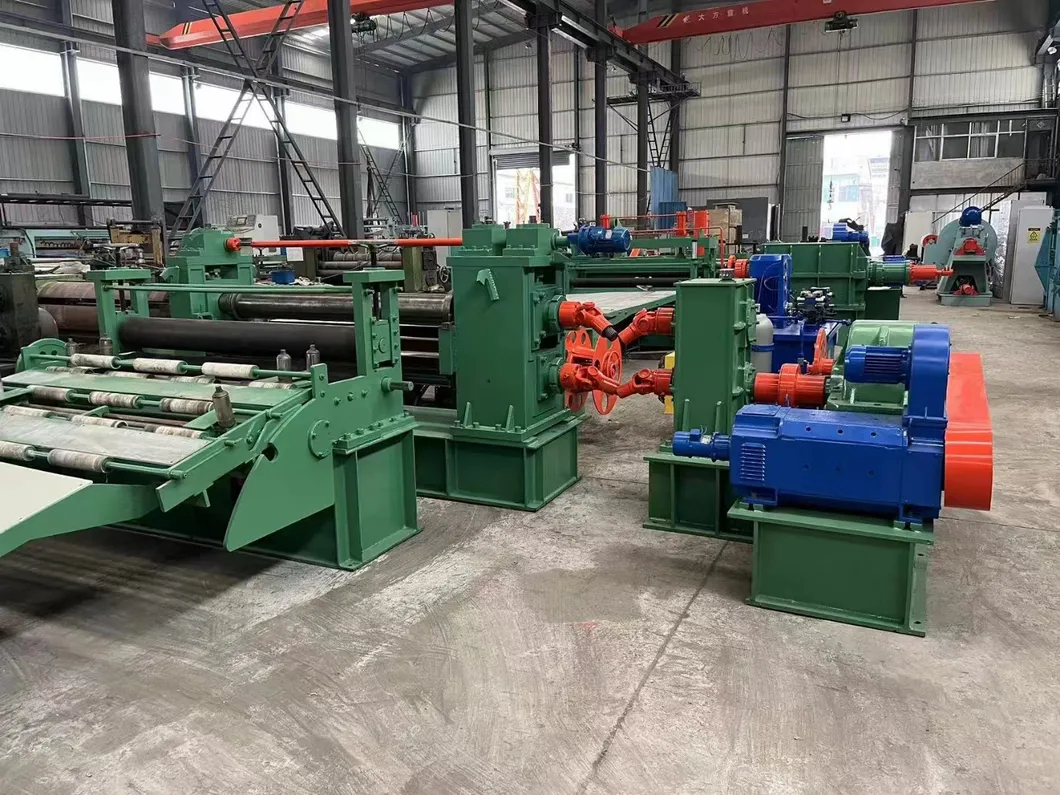

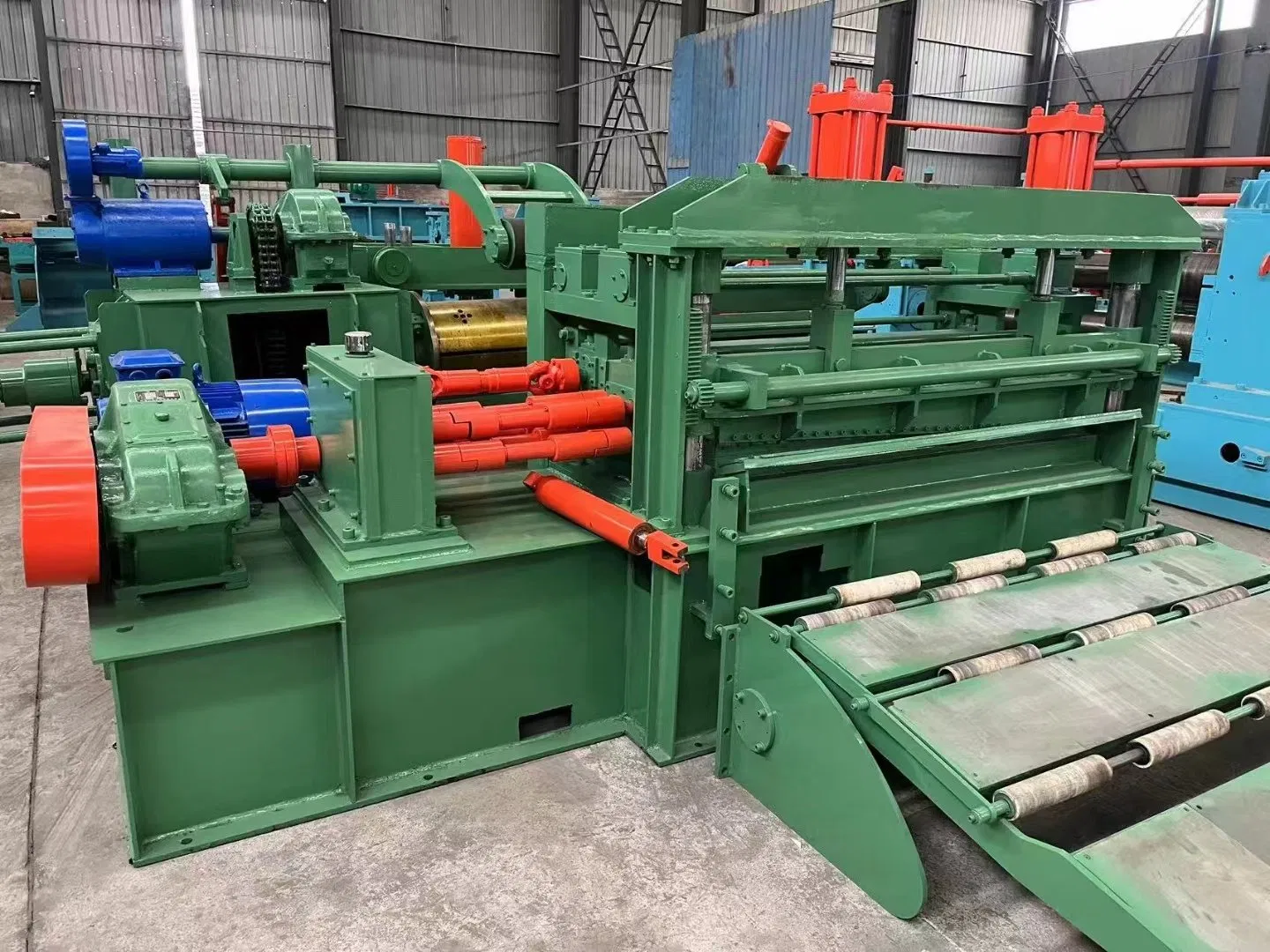

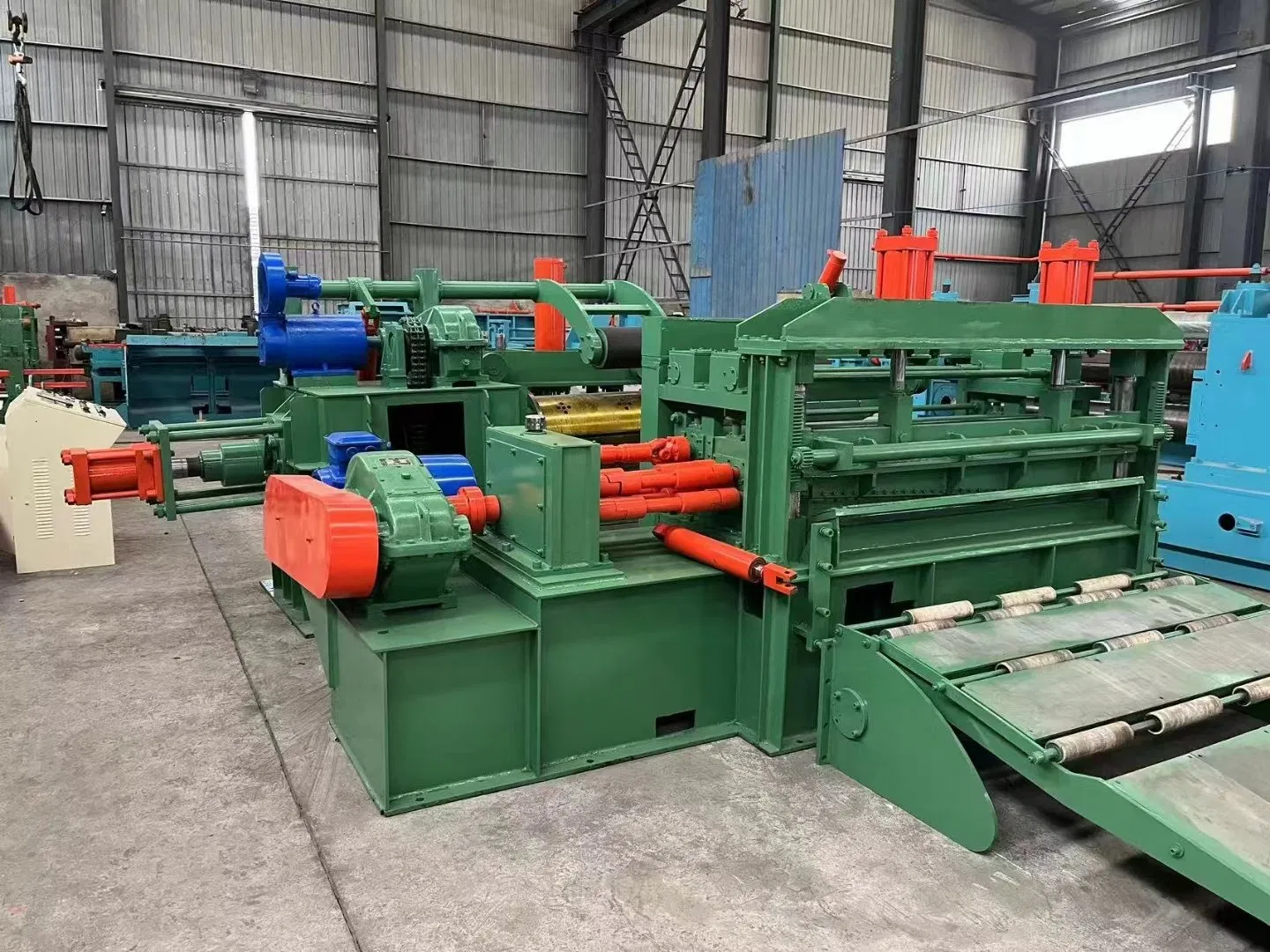

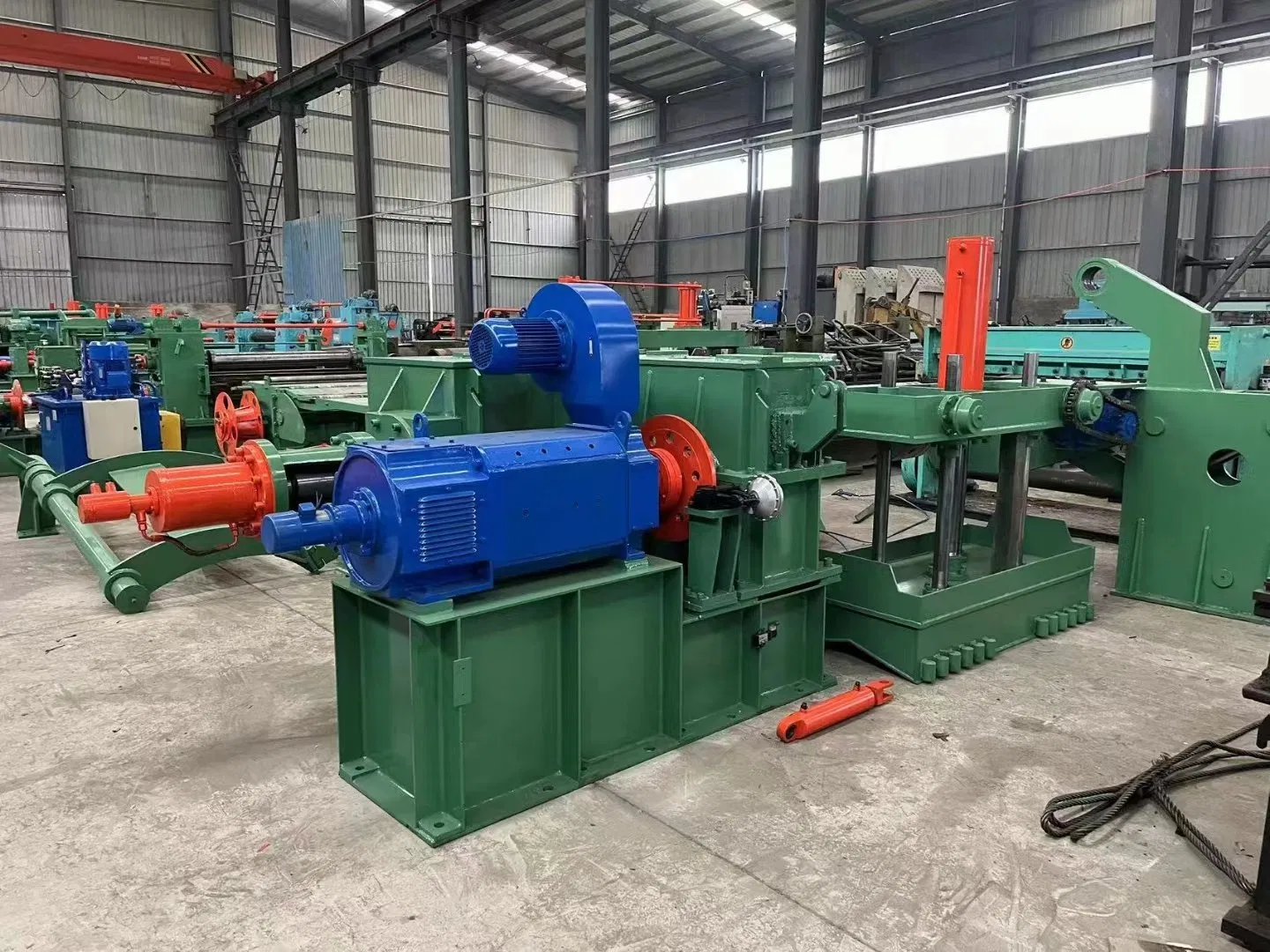

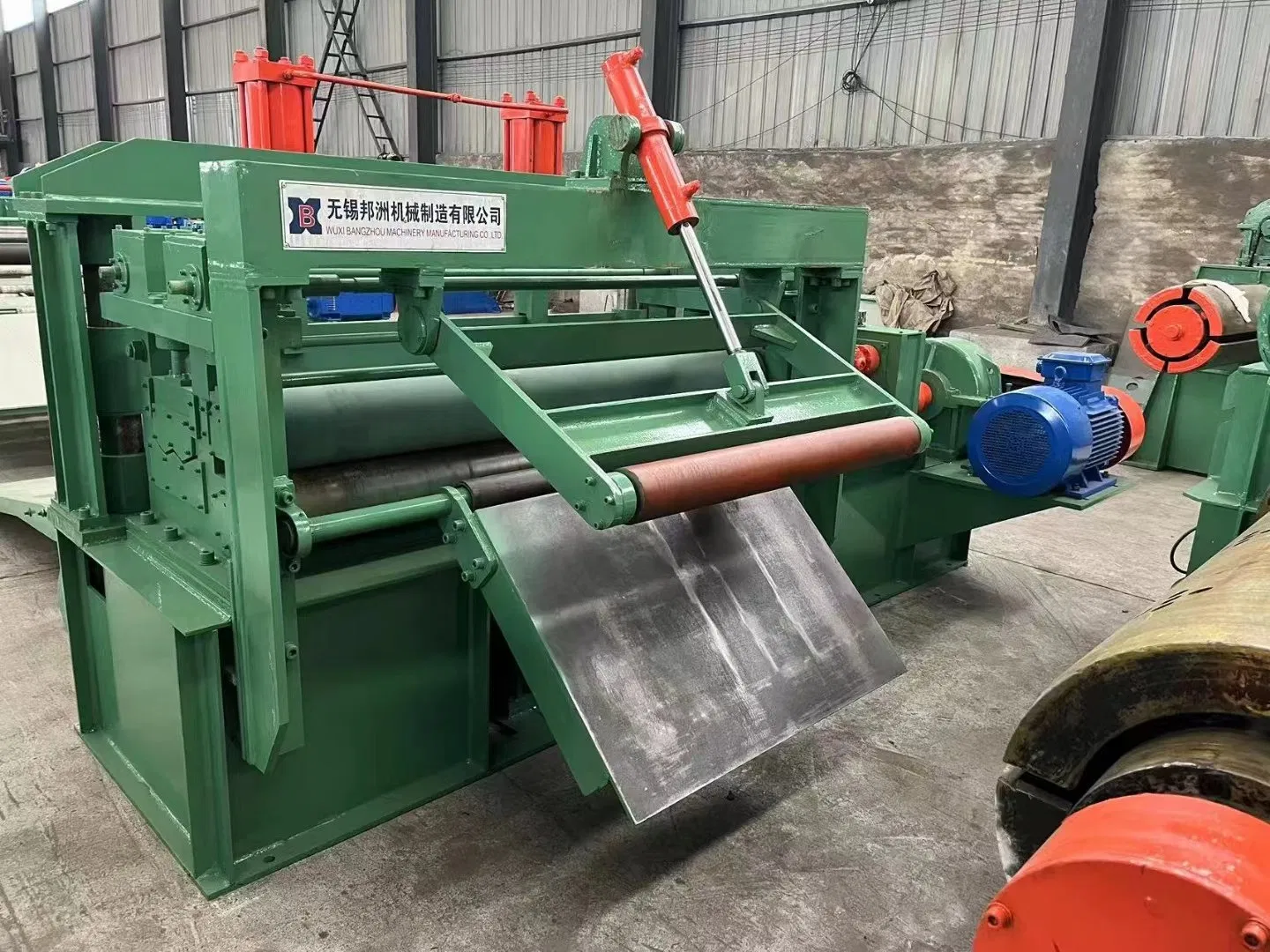

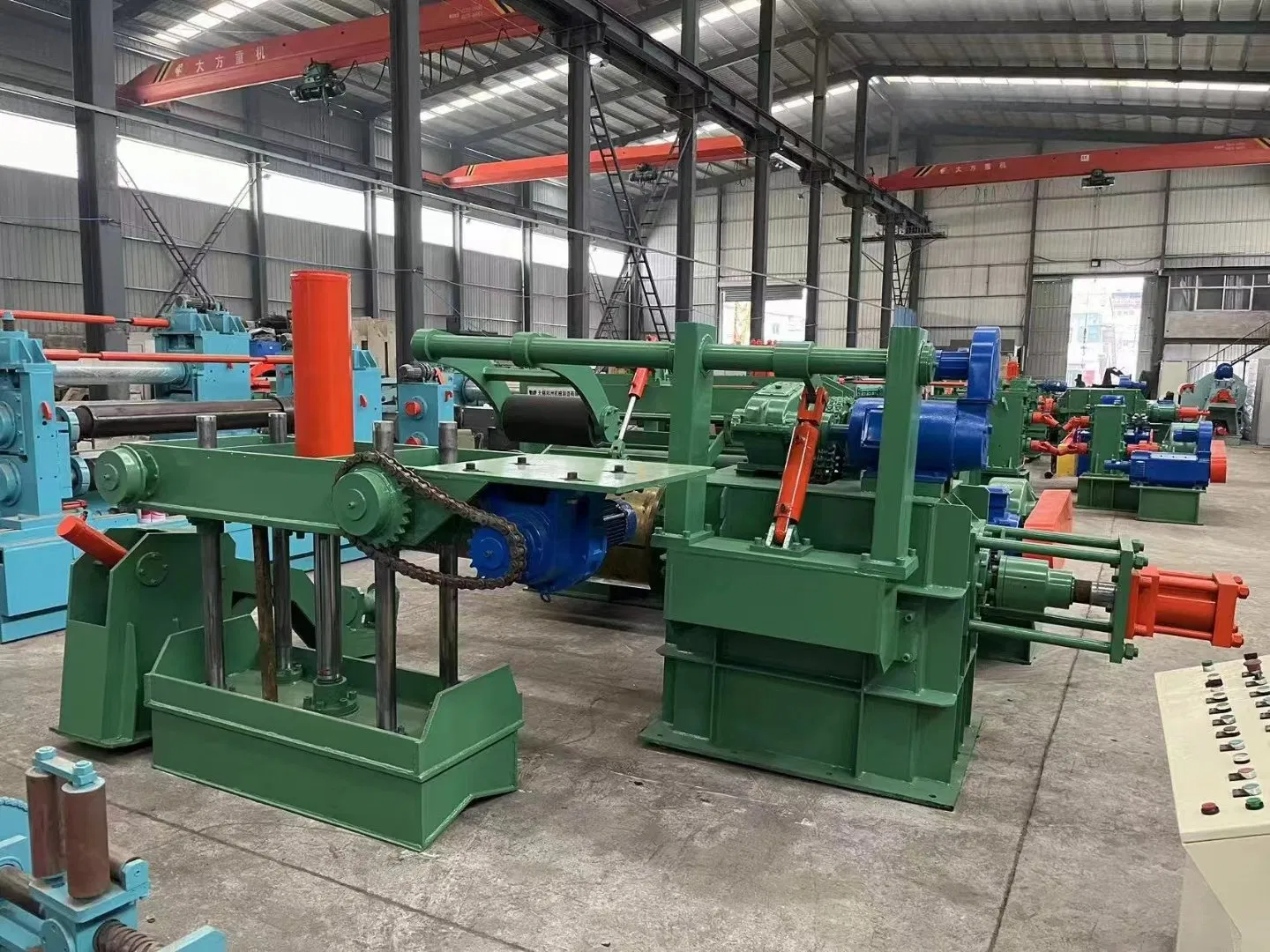

It's used for producing flattened plate through the procedure of uncoiling, flattening, and cutting to required width and length. It consists of a coil car, uncoiler, pre-leveller, hydraulic loop bridge, deviation corrector, fine leveller, servo length gauge, cutting shear, belt conveyor, reversal discharging frame, stacker, discharging cart, servo transmission system, and hydraulic system.
| Coil Specification | |
|---|---|
| Material Strength | δb≤470-630Mpa / δs≤345-385Mpa |
| Coil Thickness | 0.3 - 2.0mm |
| Coil Width | 600 ~ 1250mm |
| Coil I.D. / O.D. | Φ508~610mm / Φ1000~1600mm |
| Coil Weight | ≤ 20T |
| Line Specification | |
| Line Speed | 60 ~ 120m/min |
| Power of Slitter | 280KW |
| Power of Recoiler | 280KW |
1. Video demonstration of the running machine.
2. Factory visit support to see machines in operation.
Machine design according to specific requirements with professional industrial suggestions based on years of experience.
1. On-time delivery and documentation.
2. 12-month guarantee and lifelong technical support.
3. 24-hour engineer response time.
