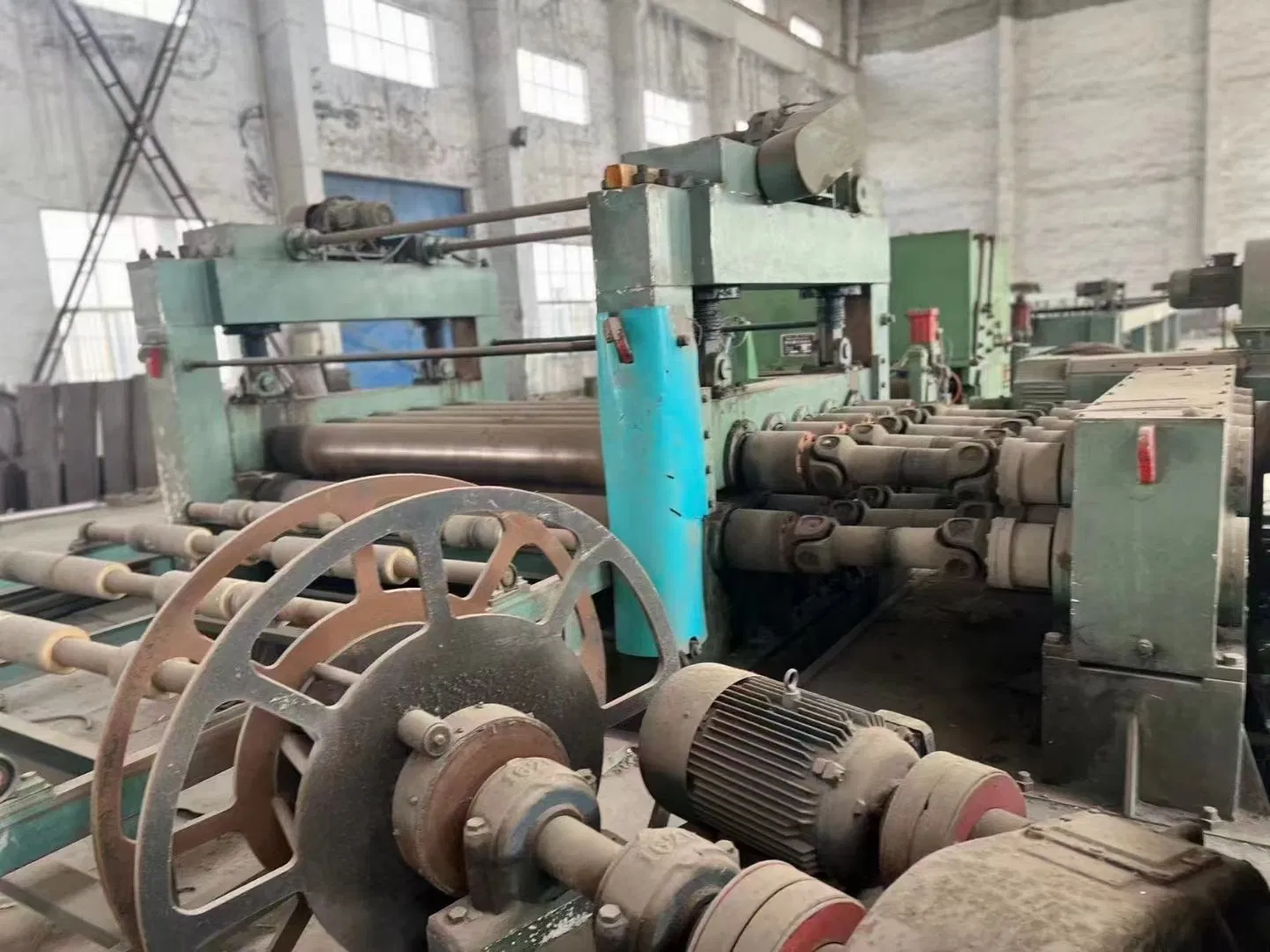

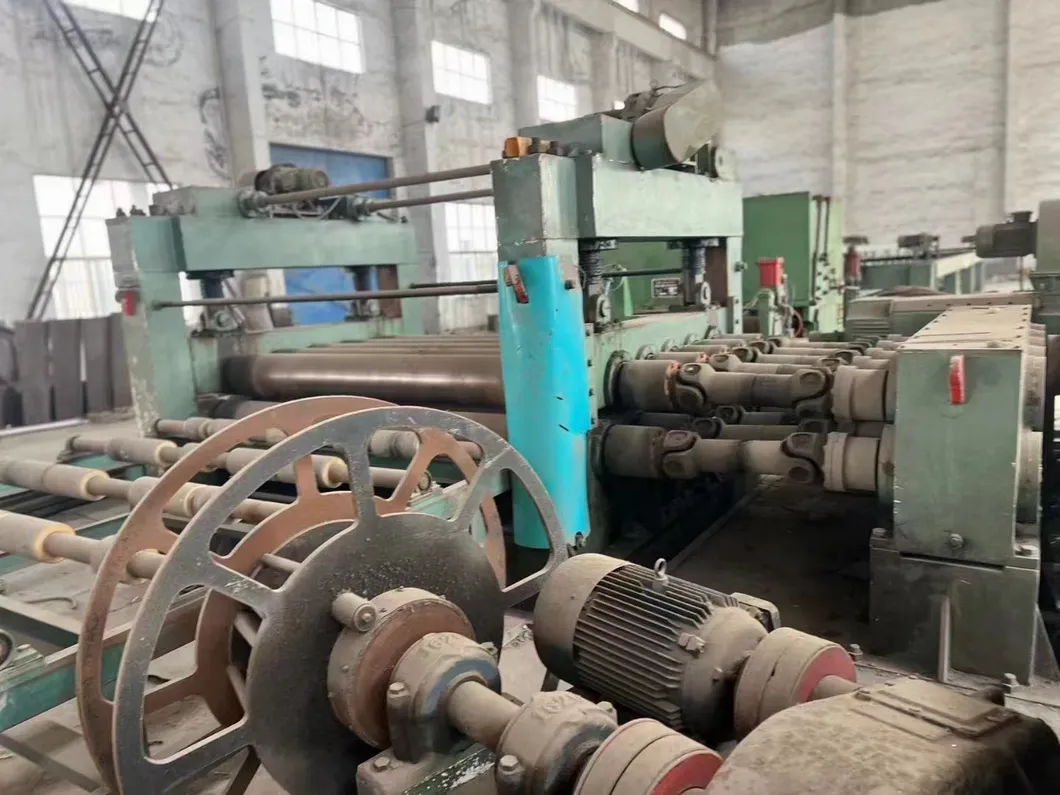

| Model NO. | 1650* 2.0-8.0 Cut to Length Line | Condition | Used / Second Hand |
| Application | Industry | Type | Cut to Length Line |
| Sheet Thickness | 0.2~2.5mm | Coil Width | 1650mm |
| Origin | China | HS Code | 85152191 |

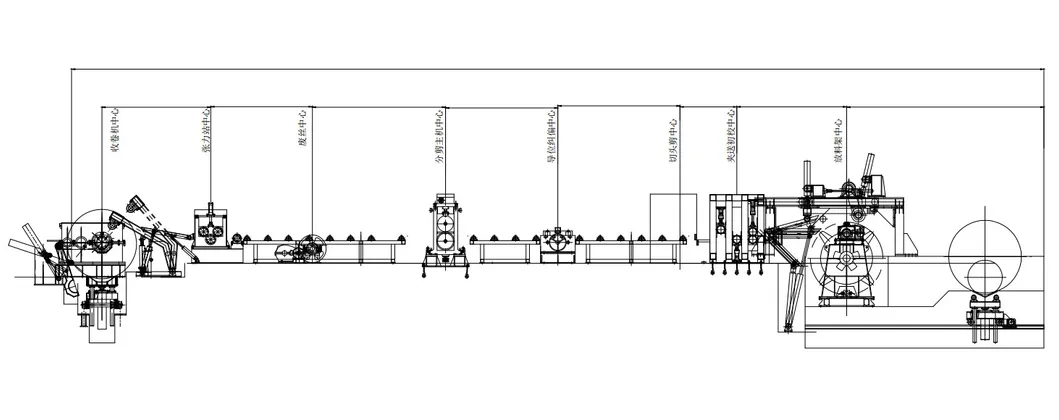

Technological Process:
Introduction:

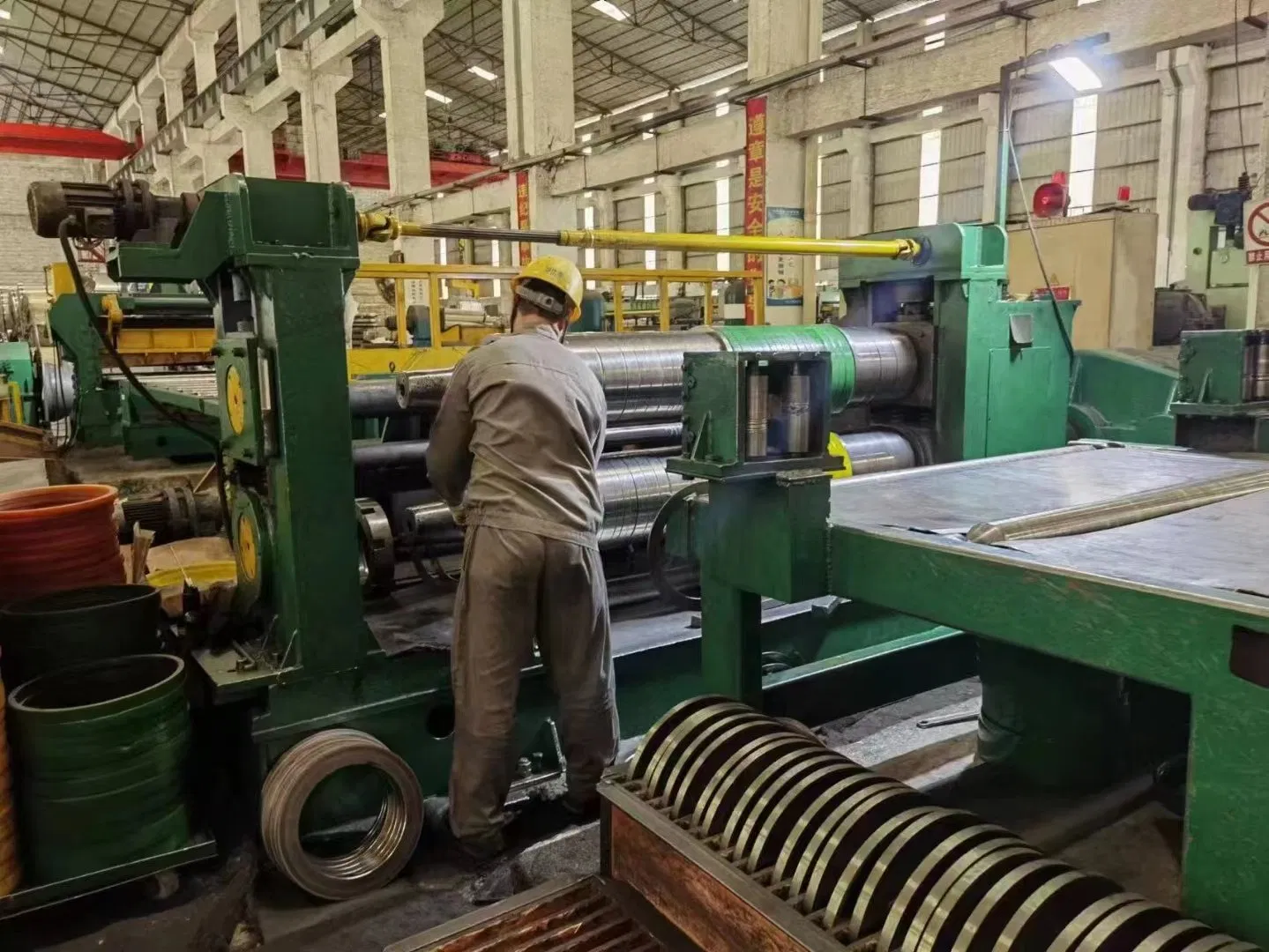

It's used for producing flattened plates through the procedure of uncoiling, flattening, and cutting to required width and length. It consists of a coil car, uncoiler, pre-leveller, hydraulic loop bridge, deviation corrector, fine leveller, servo length gauge, cutting shear, belt conveyor, reversal discharging frame, stacker, discharging cart, servo transmission system, and hydraulic system.
| Num | Details Include |
|---|---|
| 1 | Entry car |

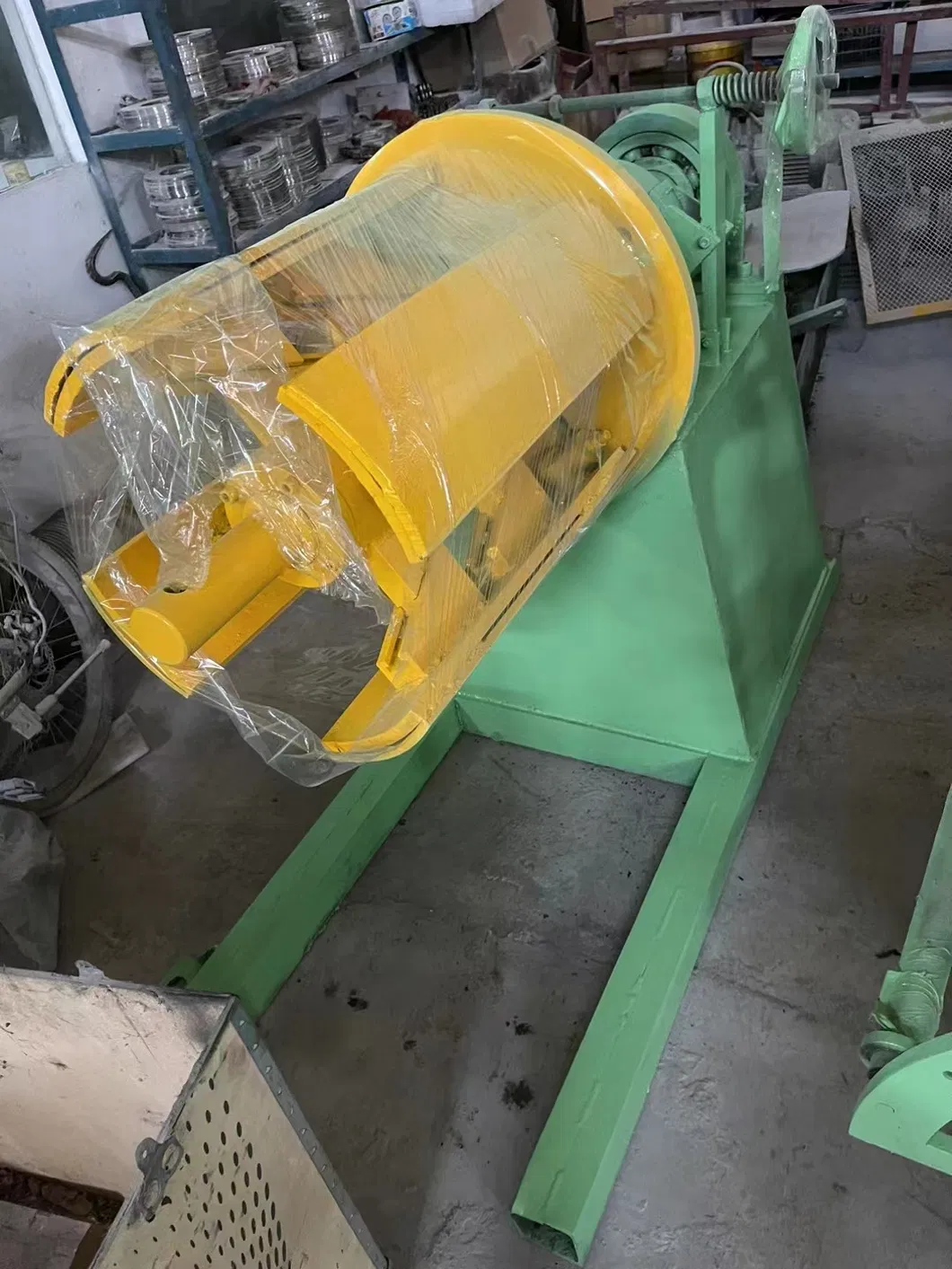

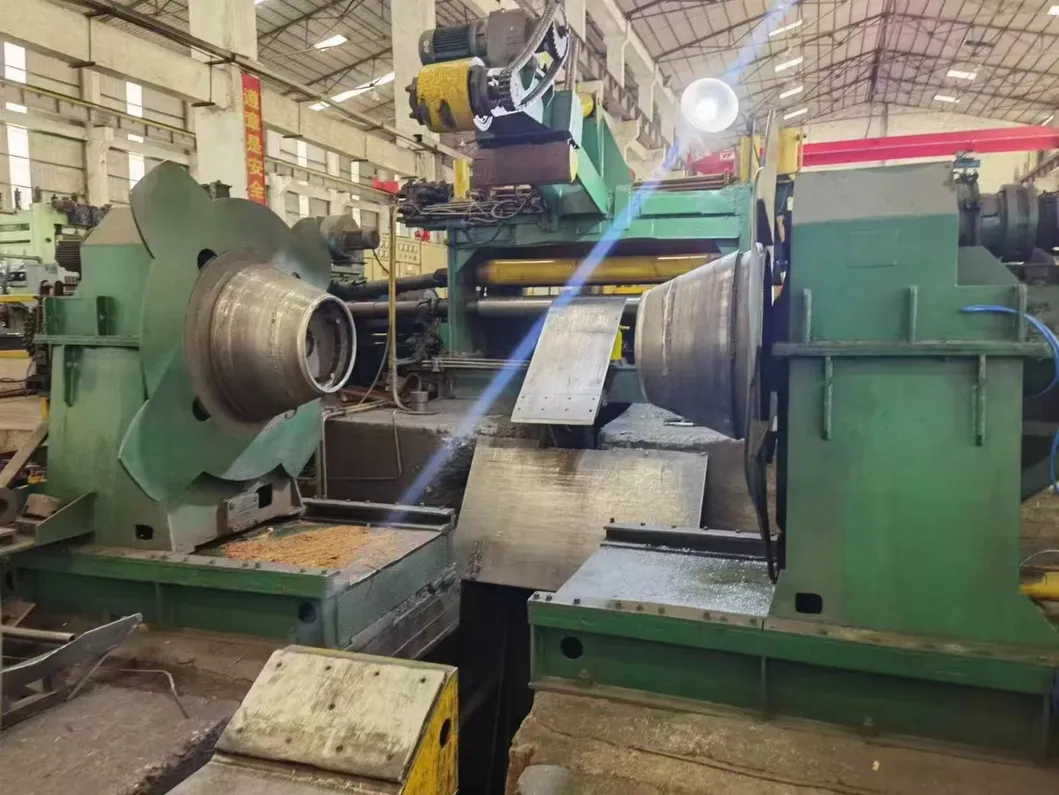

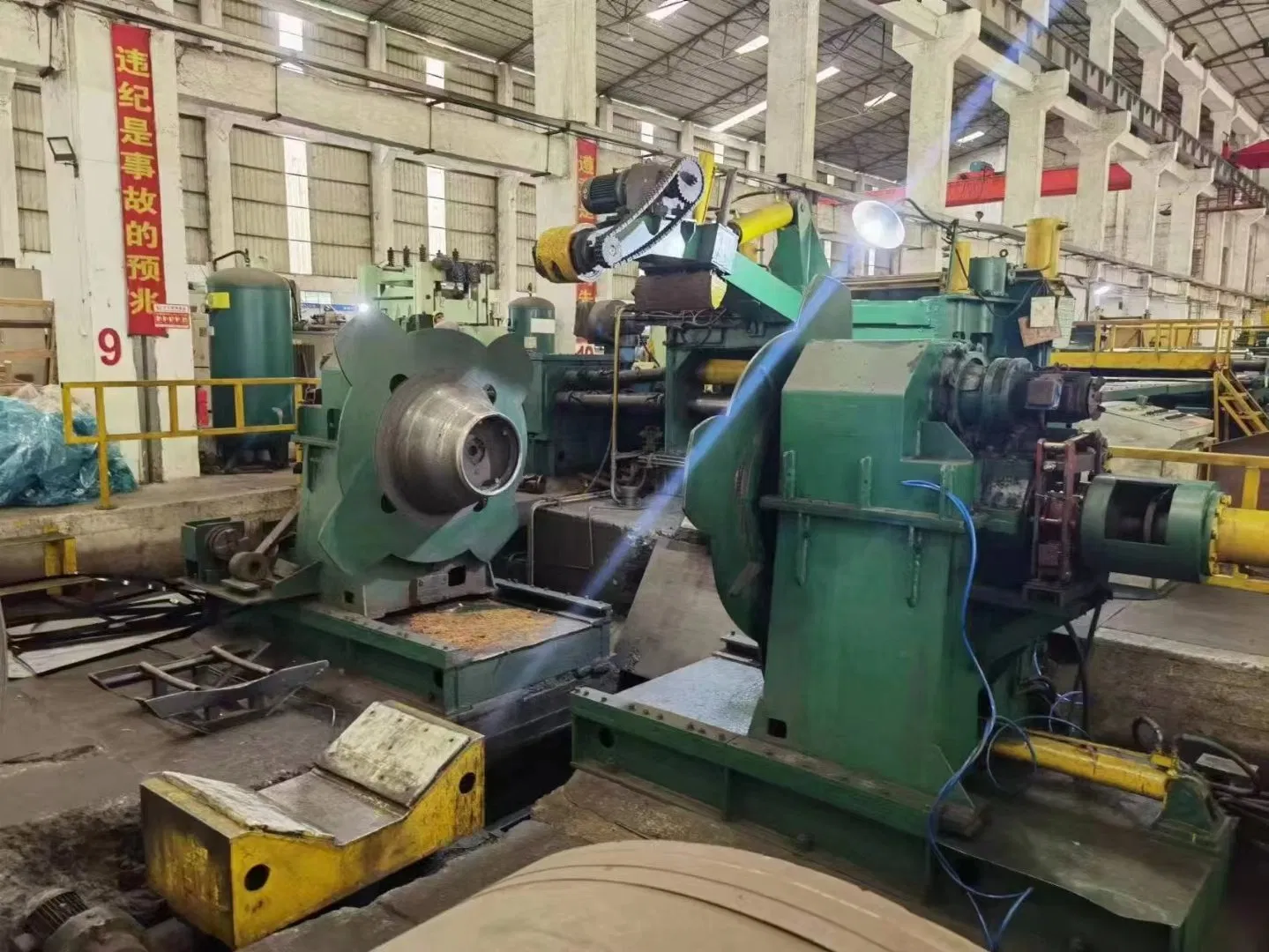

| 2 | Uncoiler |

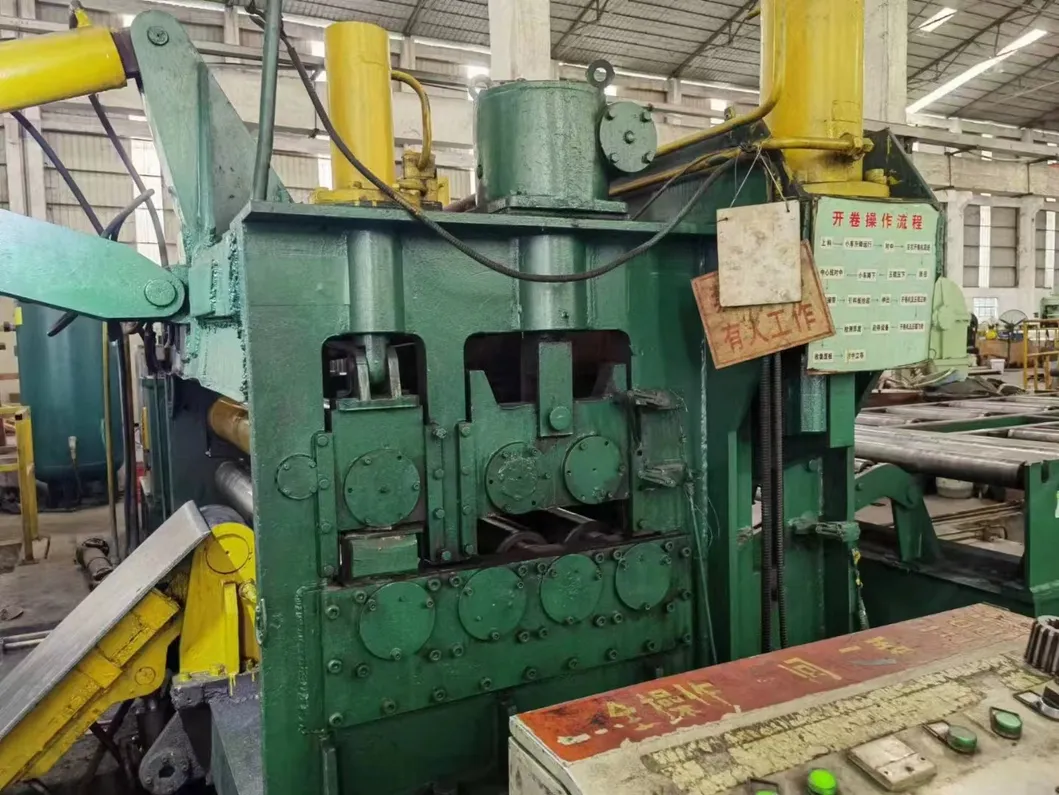

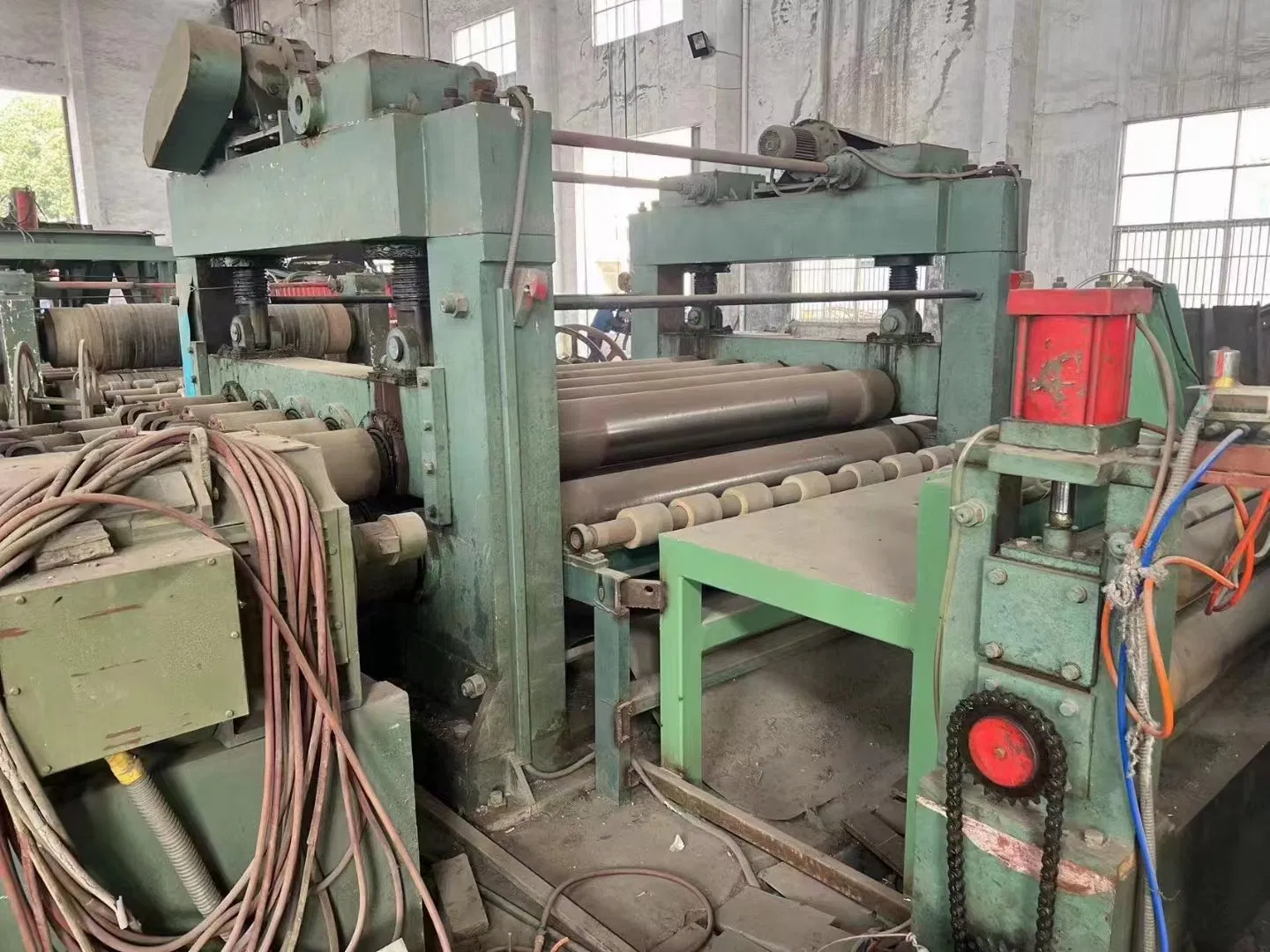

| 3 | Leveler |
| 4 | Looper |
| 5 | Precision Leveler and Measuring Device with Fixed Length device |
| 6 | Hydraulic System |

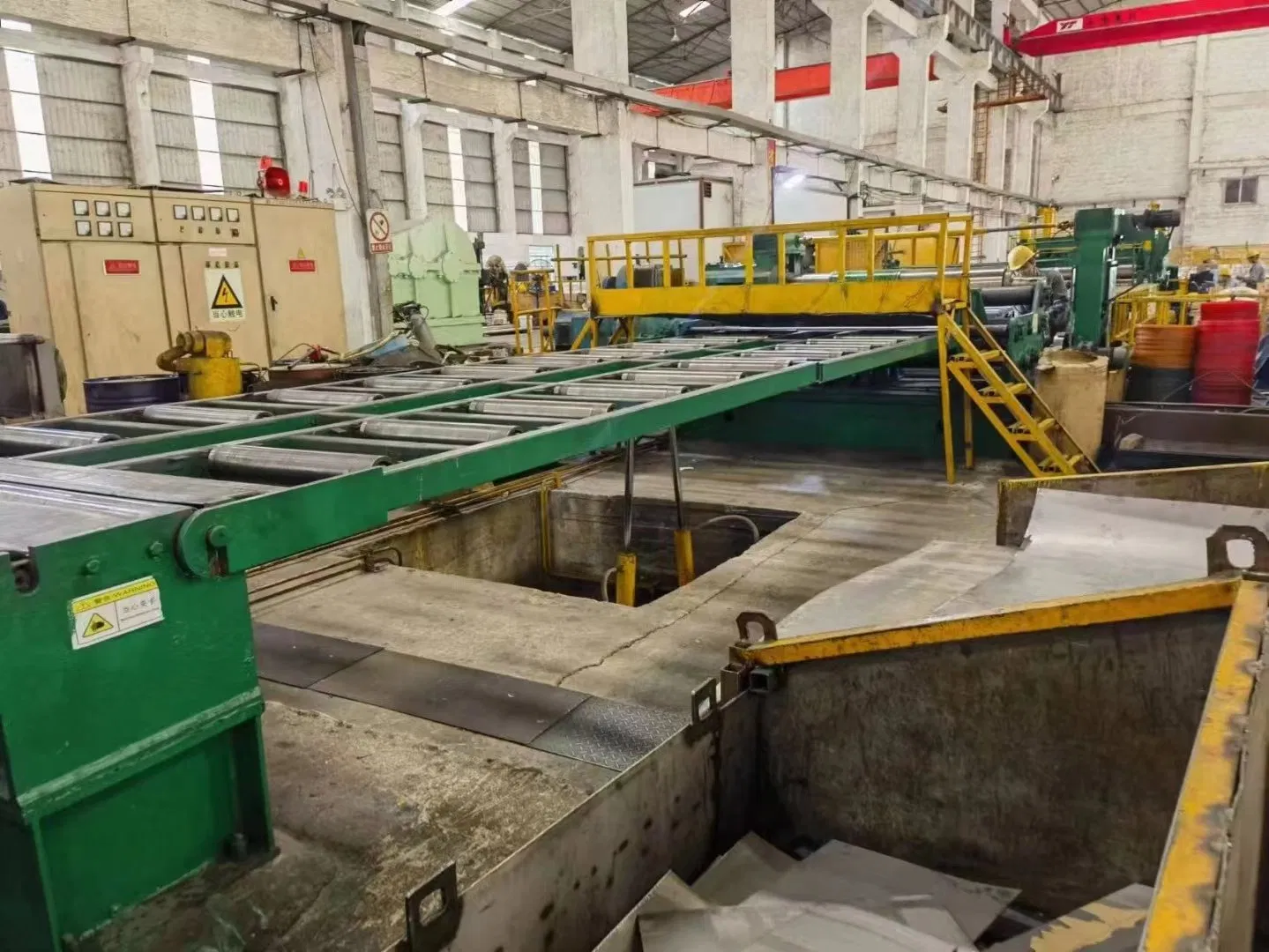

| 7 | Run Out Table |
| 8 | Lifting palletizer |
| 9 | Coil car |
| 10 | Electrical Systems And Equipment |
| 11 | Control Cabinet And Operating Table |

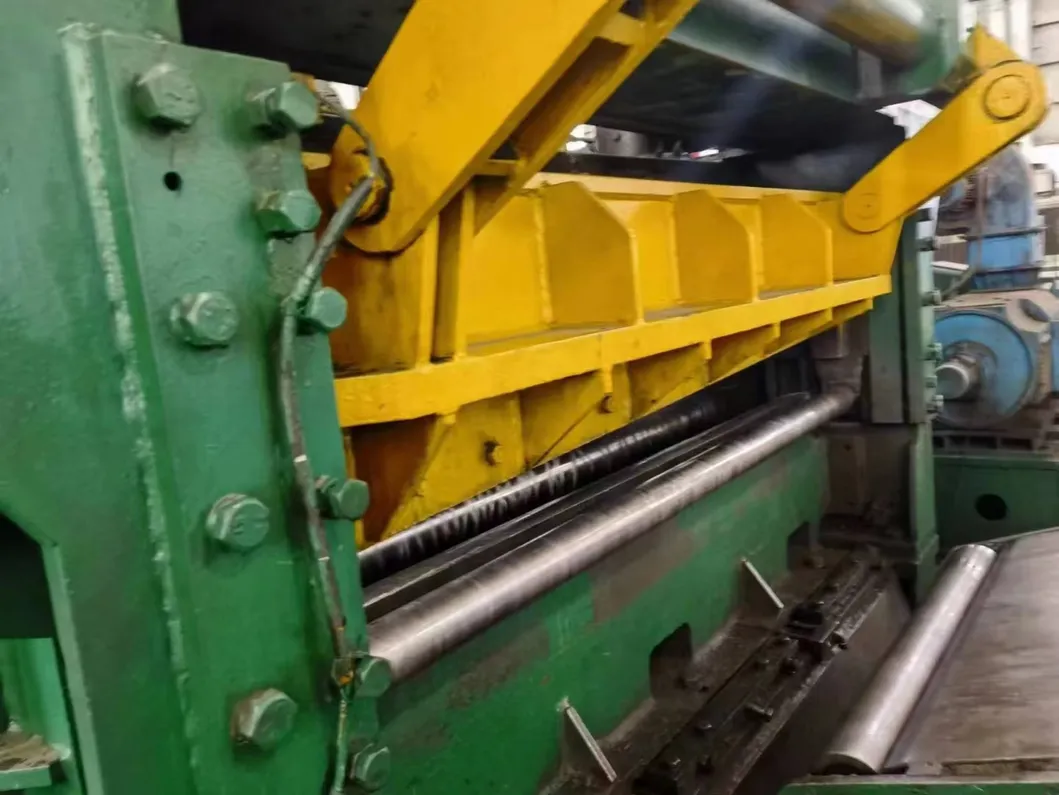

| 12 | Winder & Cutter blade |
| Coil Specification | |
|---|---|
| Material | δb≤470-630Mpa, δs≤345-385Mpa |
| Coil thickness | 0.2~2.5mm |
| Coil width | 1650mm |
Established in 2001, our main business is the acquisition and transfer of second-hand welded pipe units, providing customers with installation, commissioning, maintenance, and customization services. Focusing on the high-frequency welded pipe industry for 30 years, with 17 years of manufacturing and service experience.
We provide high-quality products and one-stop service support. We fast-track the integration of the entire second-hand welded pipe production line. Installation and commissioning services are available globally to ensure rapid production of qualified steel pipes.
