General Introduction:

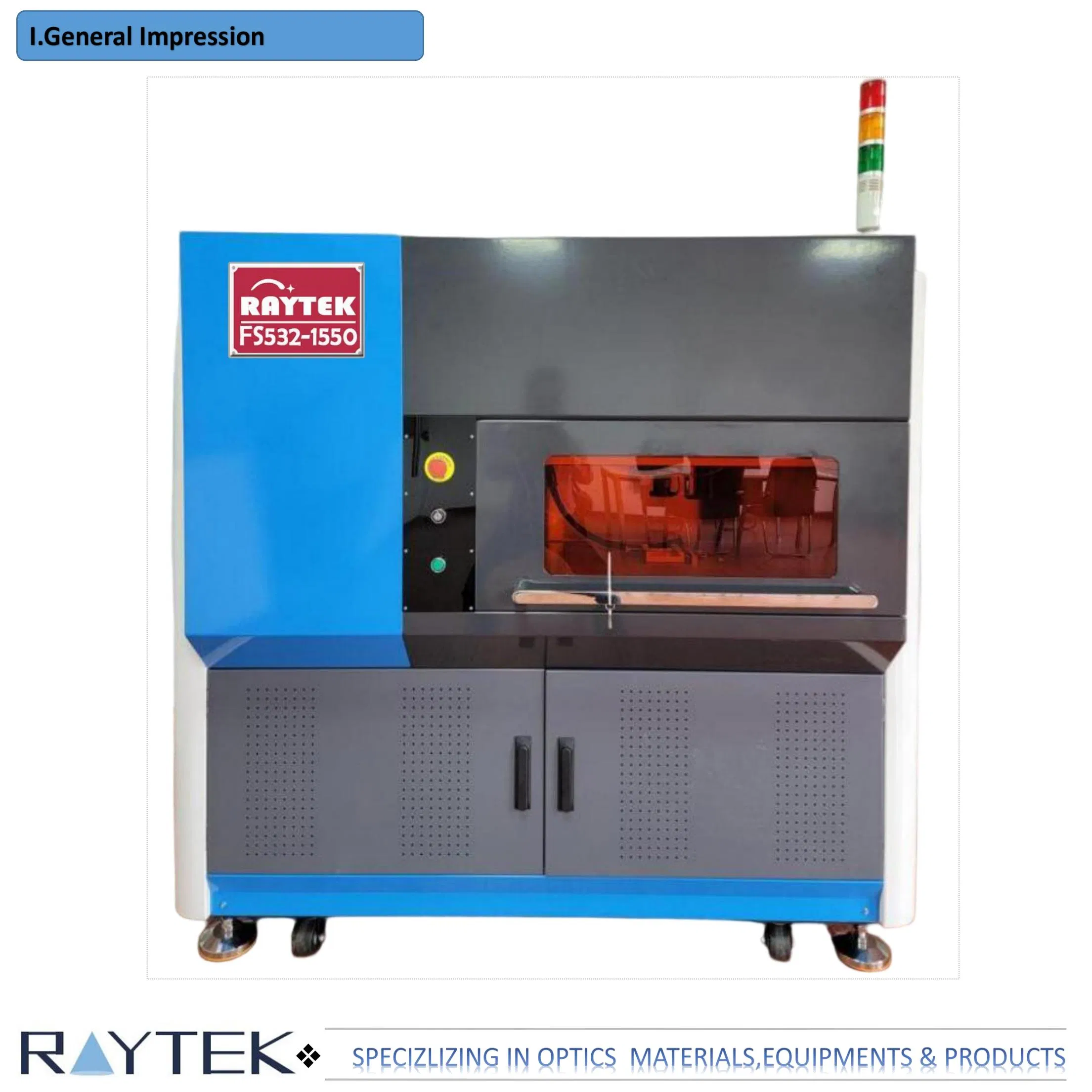

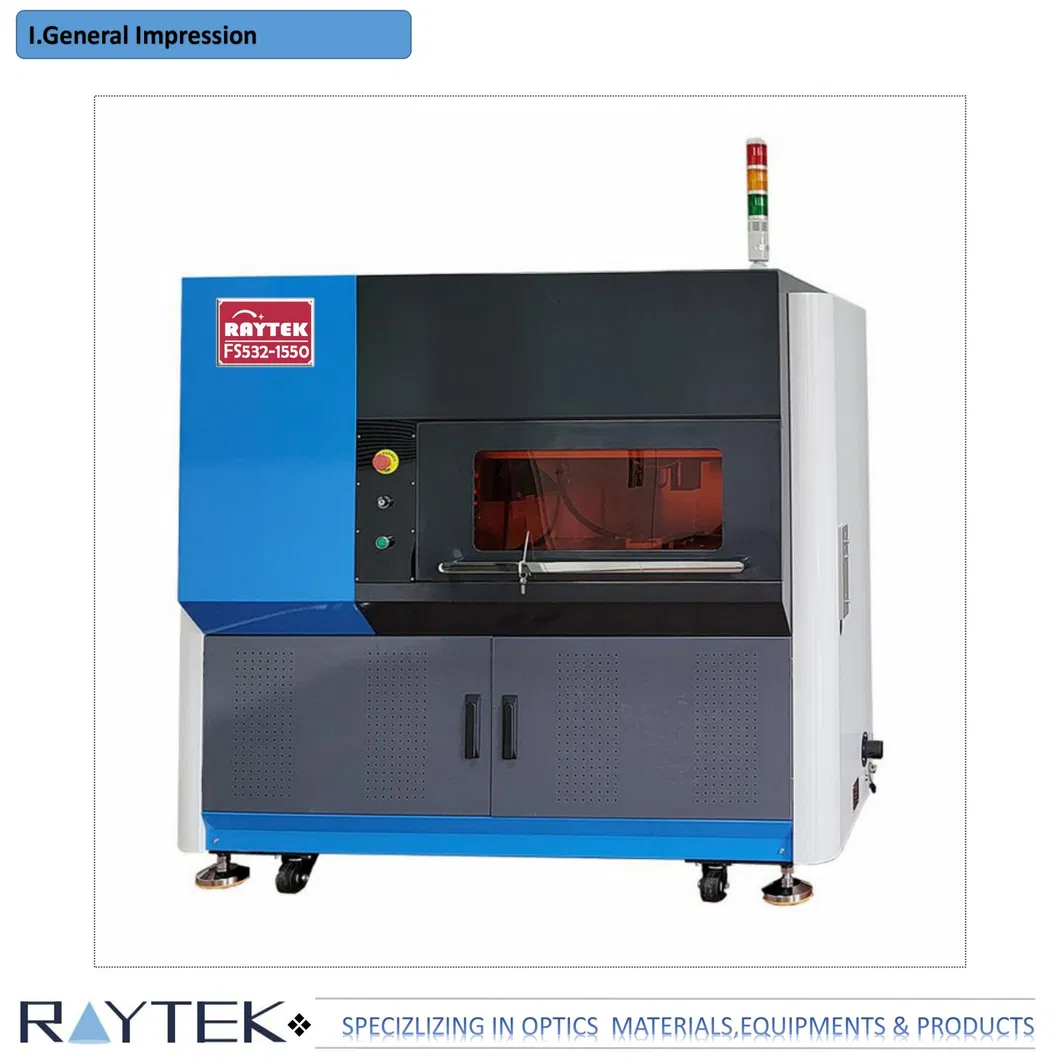

This is a high-precision, 5-axis diamond laser cutting machine. It utilizes marble as the optical base, providing extremely reliable stability for laser output and precision during equipment operation.

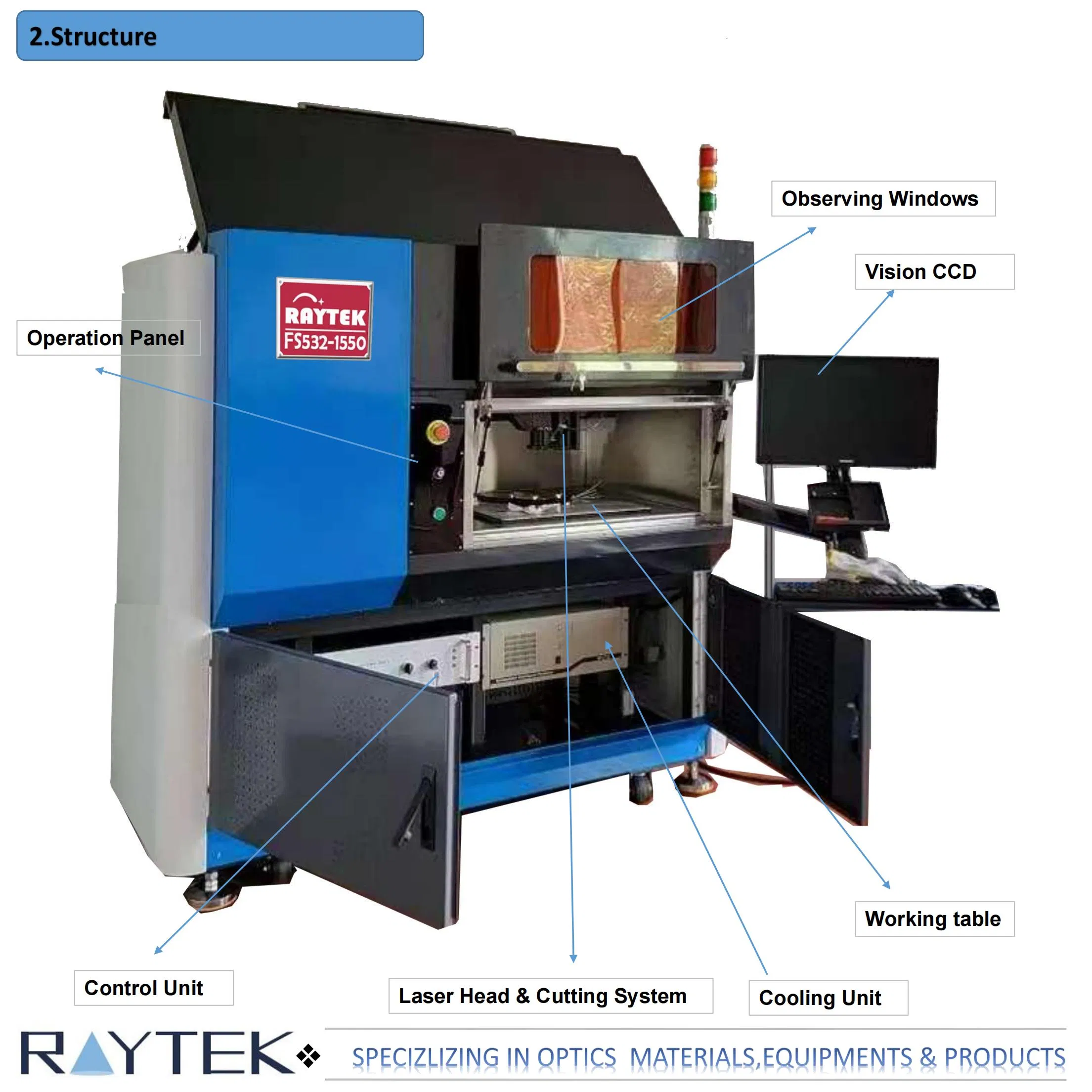

The system features a water circulation cooling system with an imported pump module to ensure long-term stability. Key components include the laser system, optical path, proprietary software, CNC control system, 5-axis motion system, dust removal, and a visual imaging system.

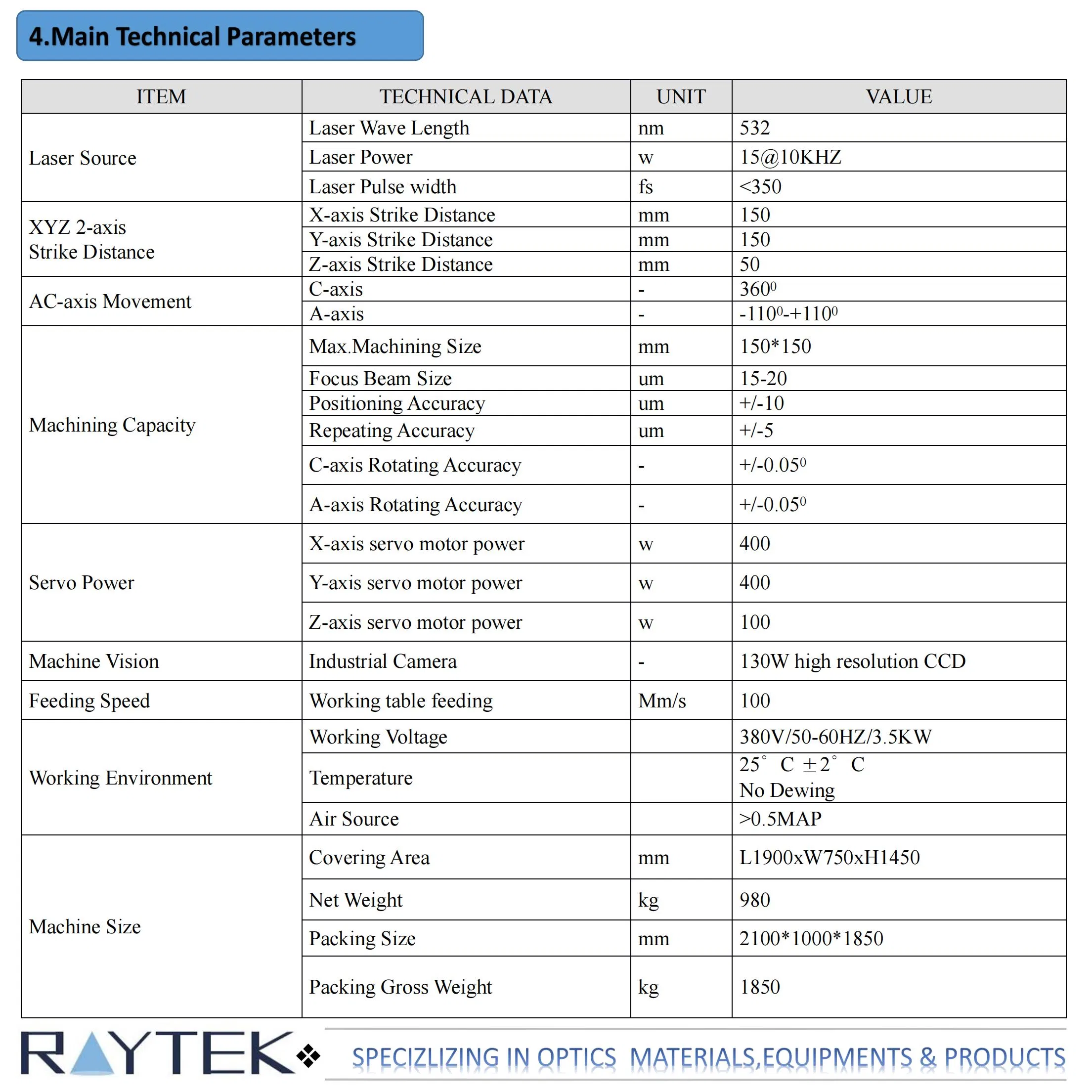

| Item | Technical Data | Unit | Value |
|---|---|---|---|

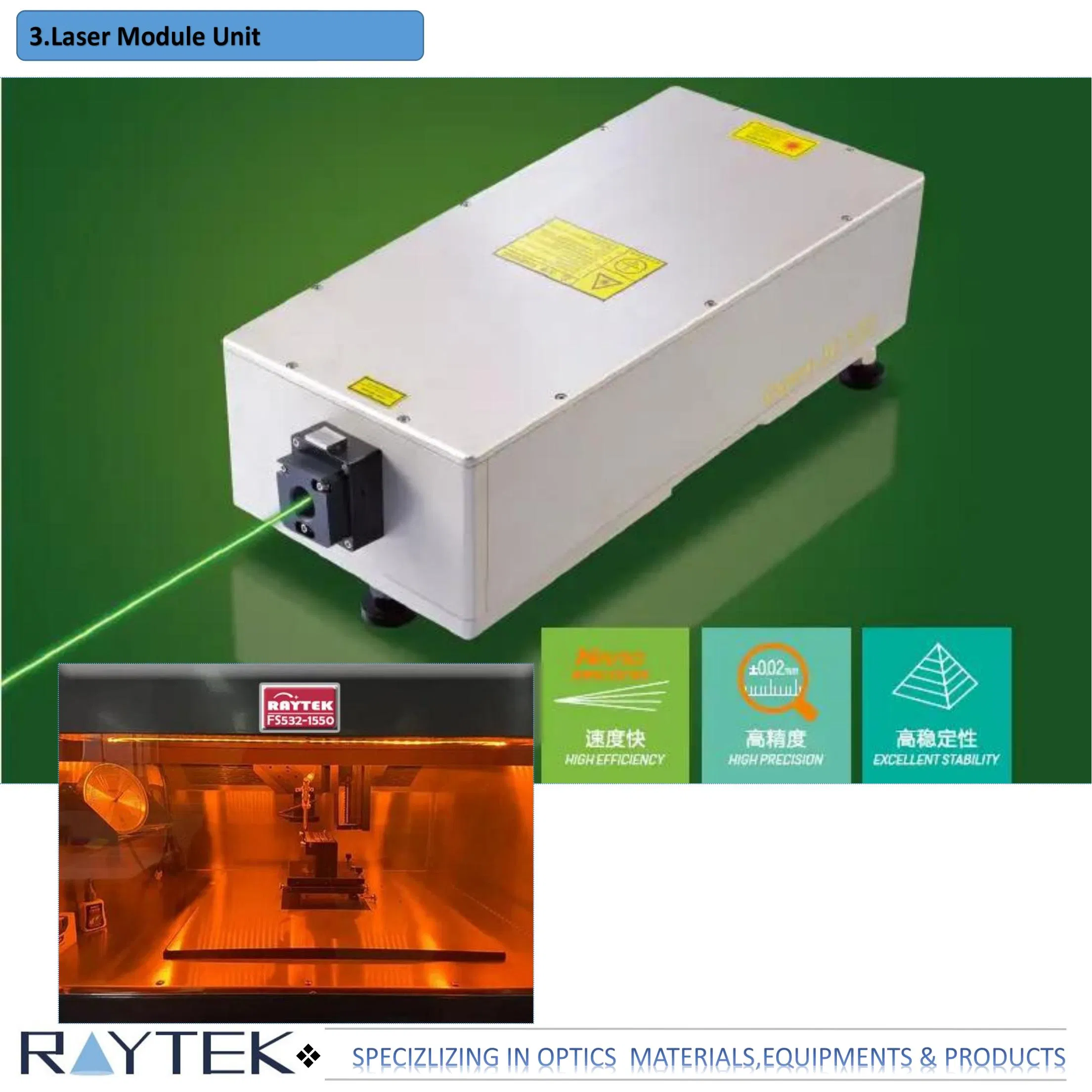

| Laser Source | Laser Wavelength | nm | 532 |
| Laser Power | w | 15@10KHZ | |
| Laser Pulse Width | fs | <350 | |
| XYZ 3-axis Distance | X-axis Strike Distance | mm | 150 |
| Y-axis Strike Distance | mm | 150 | |
| Z-axis Strike Distance | mm | 50 | |
| AC-axis Movement | C-axis | - | 3600 |
| A-axis | - | -1100 to +1100 | |
| Machining Capacity | Positioning Accuracy | um | +/-10 |
| Repeating Accuracy | um | +/-5 | |
| Max Machining Size | mm | 150*150 | |
| Machine Vision | Industrial Camera | - | 130W High Resolution CCD |
Main Export Regions: USA, UK, Japan, Germany, Spain, France, Switzerland, Korea, Russia, Mexico, Brazil, India, Canada, Australia, UAE, and more.
Payment & Delivery: T/T or Western Union; Standard delivery time is 8 weeks.

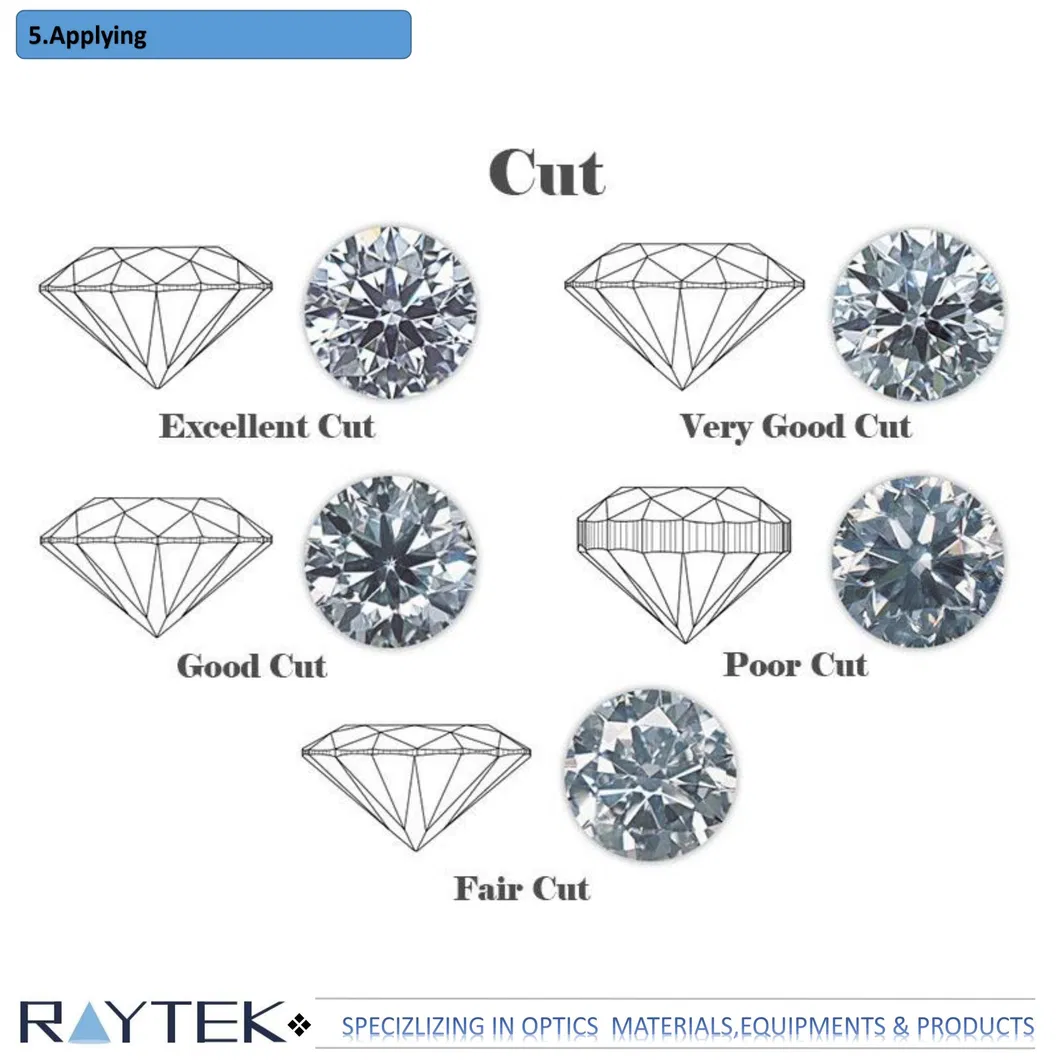

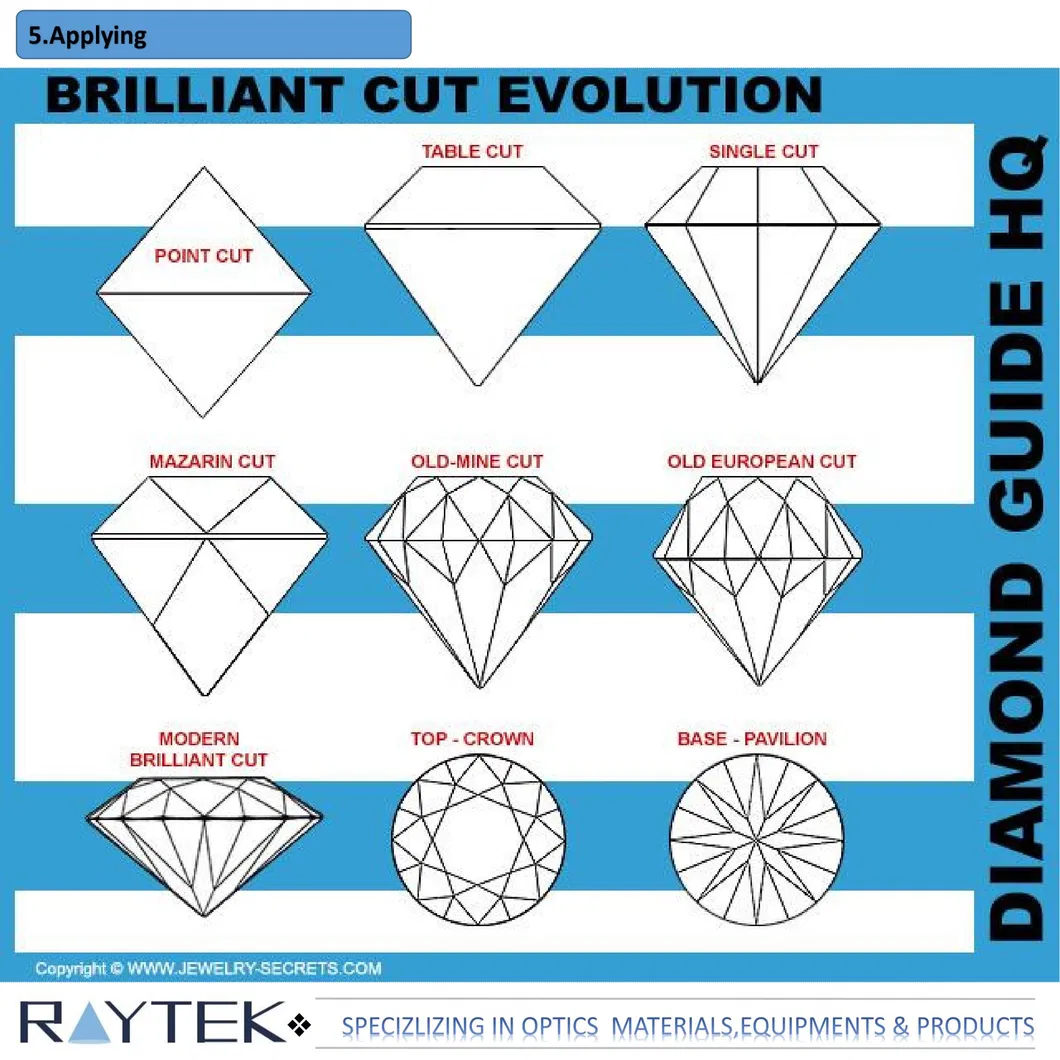

This machine is specifically designed for ultra-hard and brittle materials, including diamonds, high-hardness alloys, silicon carbide (SiC), glass, quartz, and various ceramics.
The 532nm green laser provides significantly higher cutting efficiency, a smoother surface finish, and prevents graphitization, which is critical for high-quality diamond and ceramic processing.
Precision is maintained through the use of a heavy marble optical base for stability, high-resolution CCD industrial cameras for vision, and a 5-axis CNC control system with +/- 5um repeating accuracy.

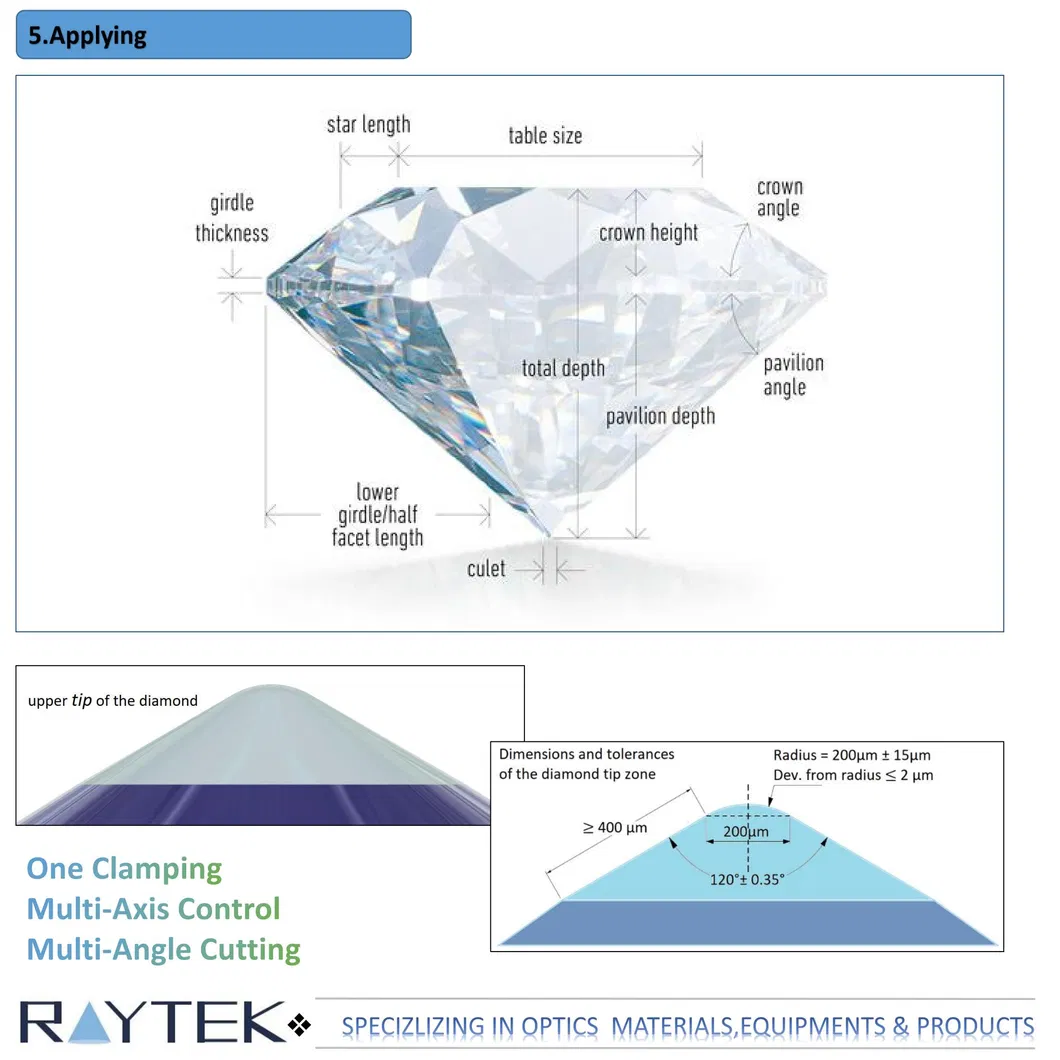

Yes, the machine is versatile enough to handle complex 5-axis cutting as well as precision drilling, including both countersunk and through-hole applications.
The standard delivery time is approximately 8 weeks. The manufacturer provides a comprehensive quality warranty with a "3R" policy (Return, Replacement, and Refund) for any quality-related issues.
The machine requires a 380V/50-60HZ power supply, an air source >0.5MAP, and a controlled temperature environment of 25°C ±2°C without dewing.
