| Model NO. | 1350 slitting line | Condition | Used |
| Customized | Customized | Theory | Inverter |
| Application | Industry, Decoration | Type | Pipe Cutting Machine |
| Specification | 80 * 6 meters, 100 tons | Origin | China |
| HS Code | 8455101000 | Production Capacity | 10 Sets/Year |
| No | Item | Numerical Value |
|---|---|---|
| 1 | Coil Thickness | 0.3~2.5mm |
| 2 | Coil Width | 500~1350mm |
| 3 | Coil Inner Diameter | ≥Φ508mm |
| 4 | Coil Material | Plain carbon steel, Electro galvanized sheet, Color steel sheet, etc. |
| 5 | Steel Grade | Hot-rolling Q345, EN 10149 S355 MC, and ASTM A36 |
| 6 | Slitting Accuracy | Max 3.0mm |
| 7 | Machine Color | Green |

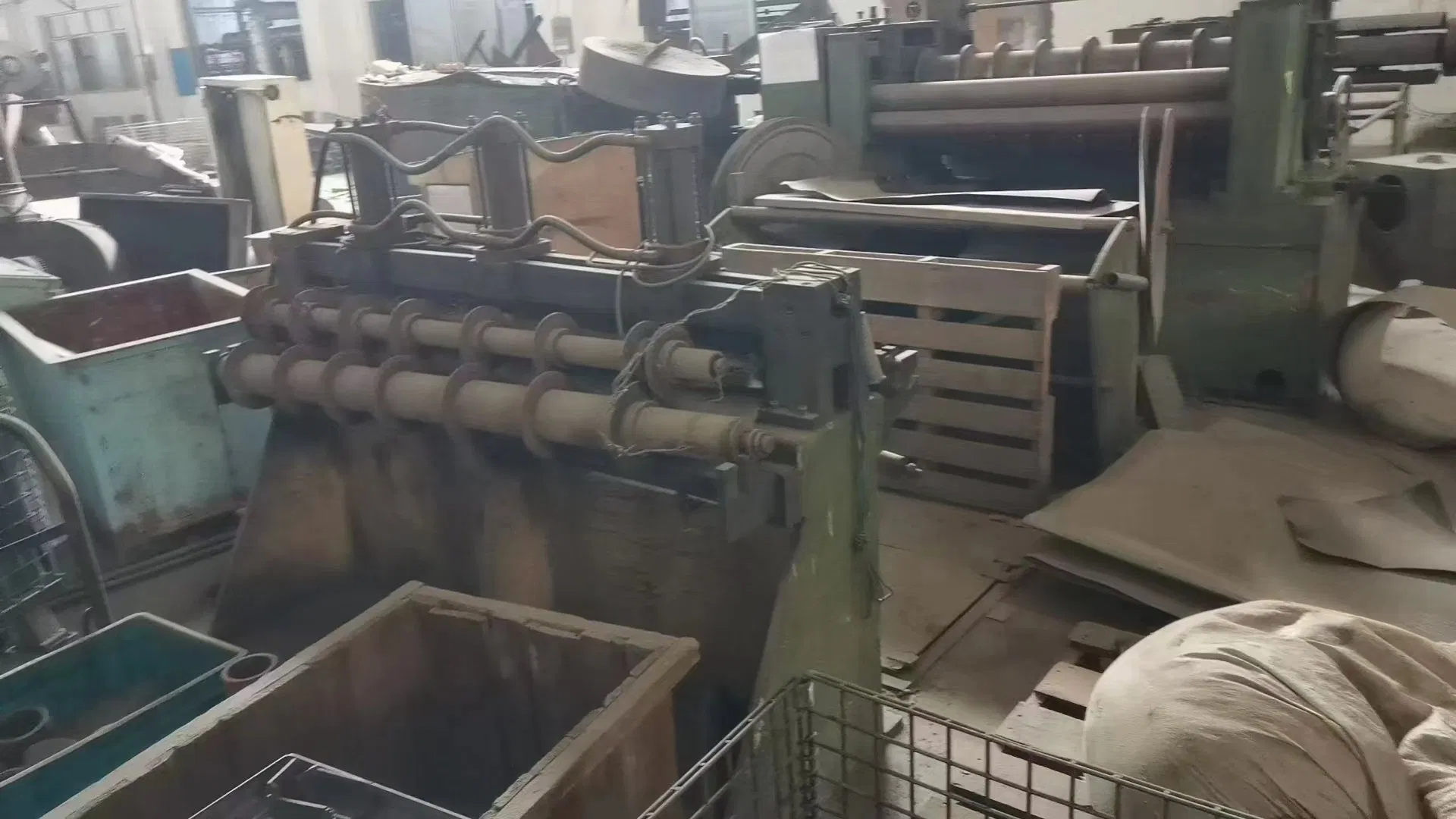

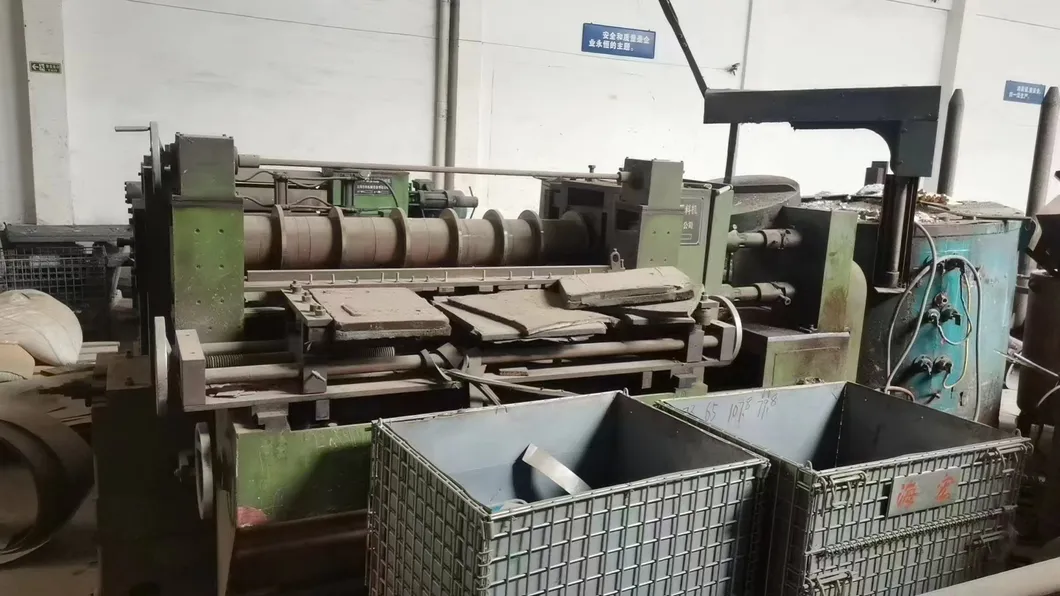

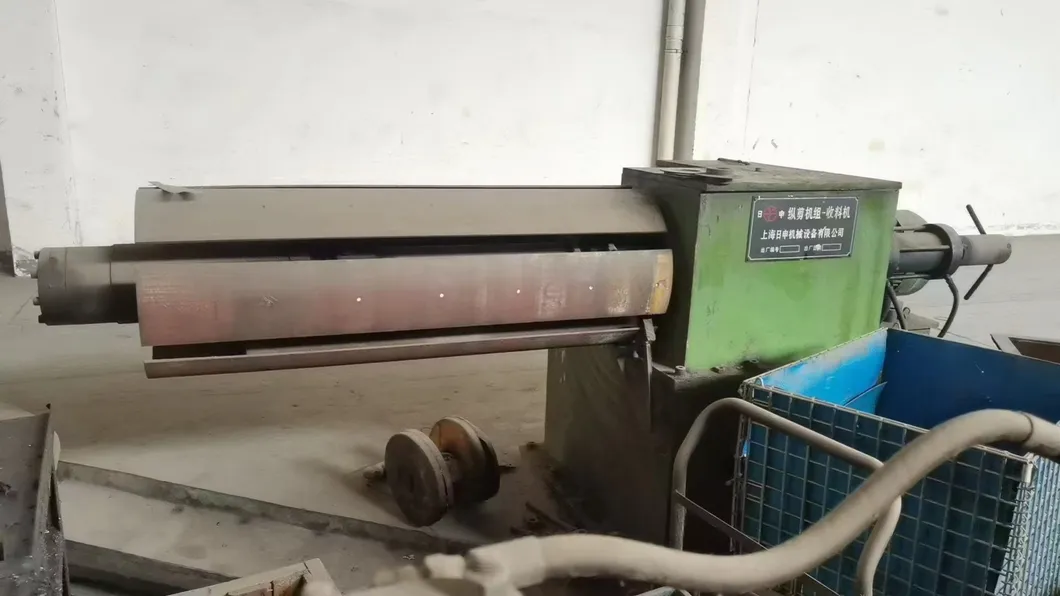

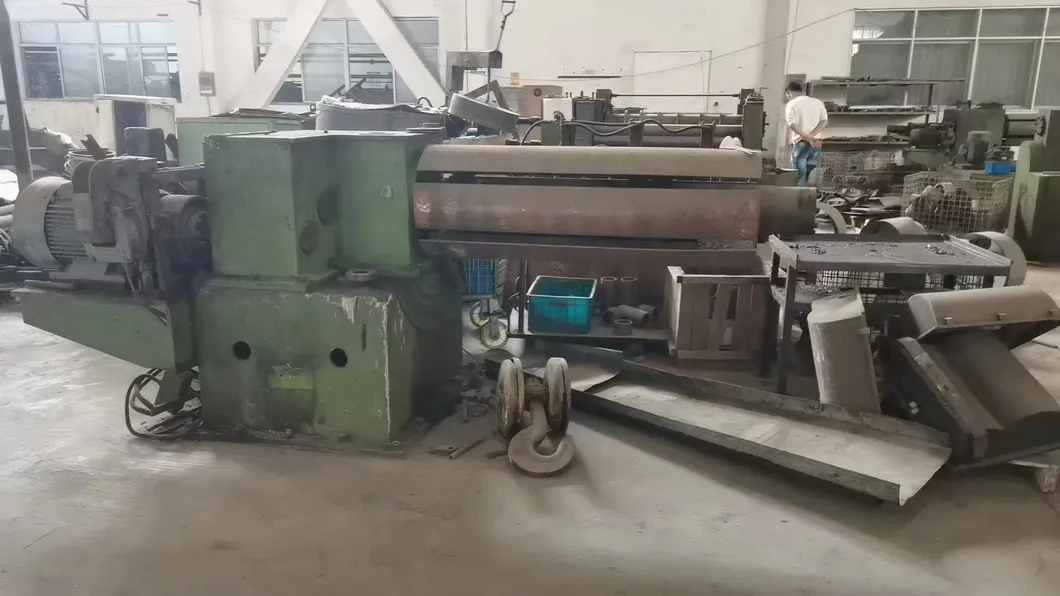

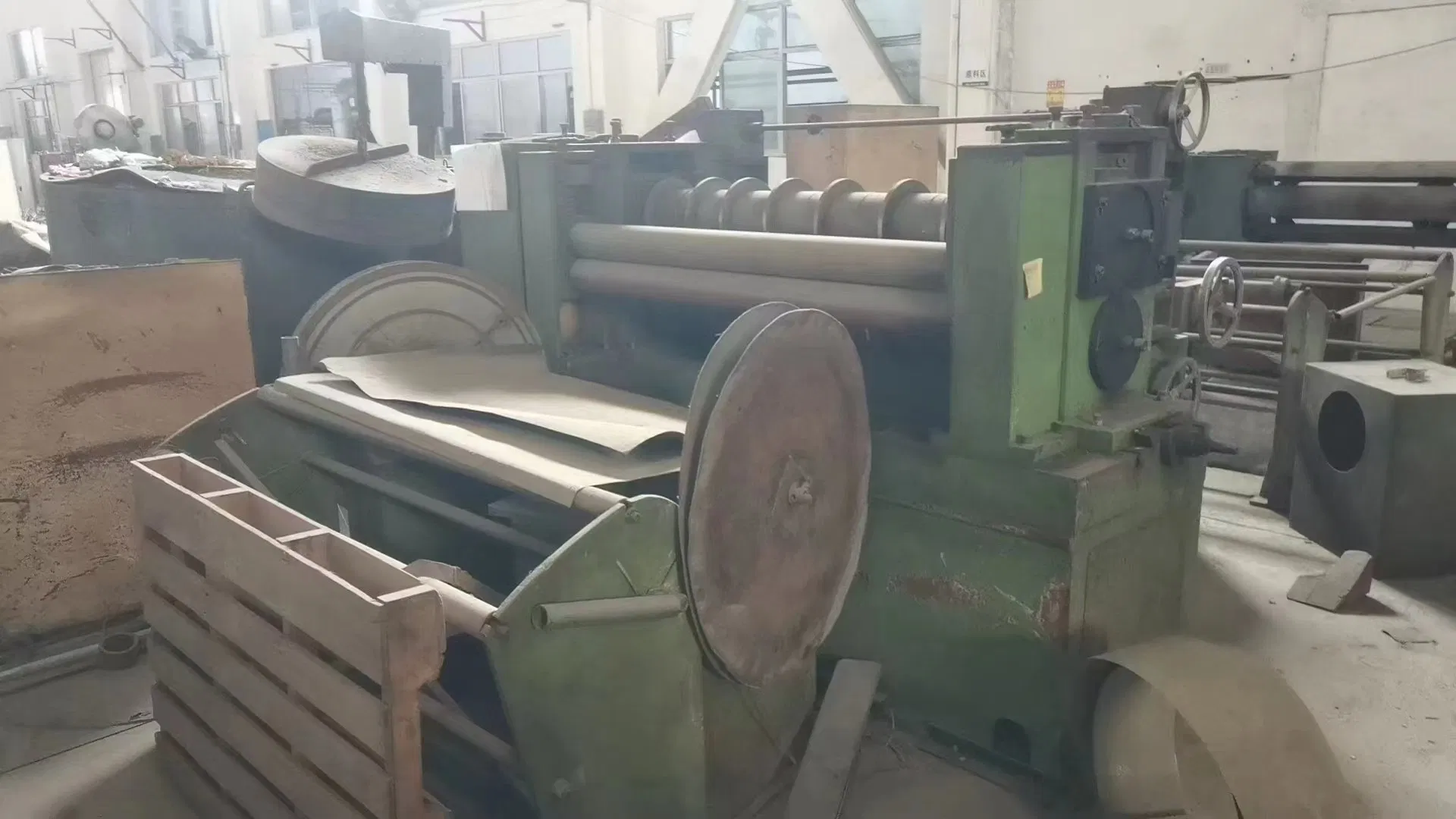

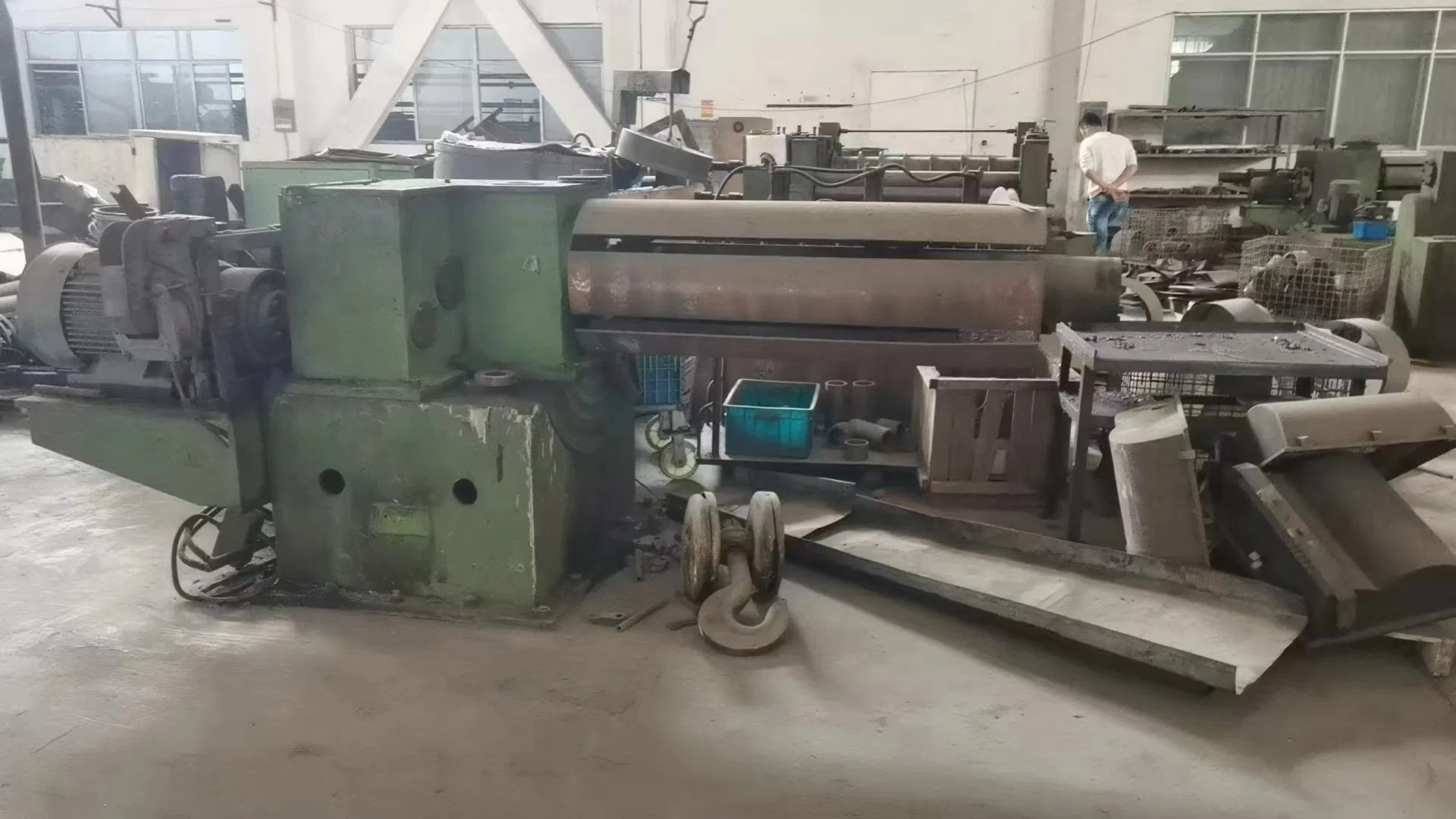

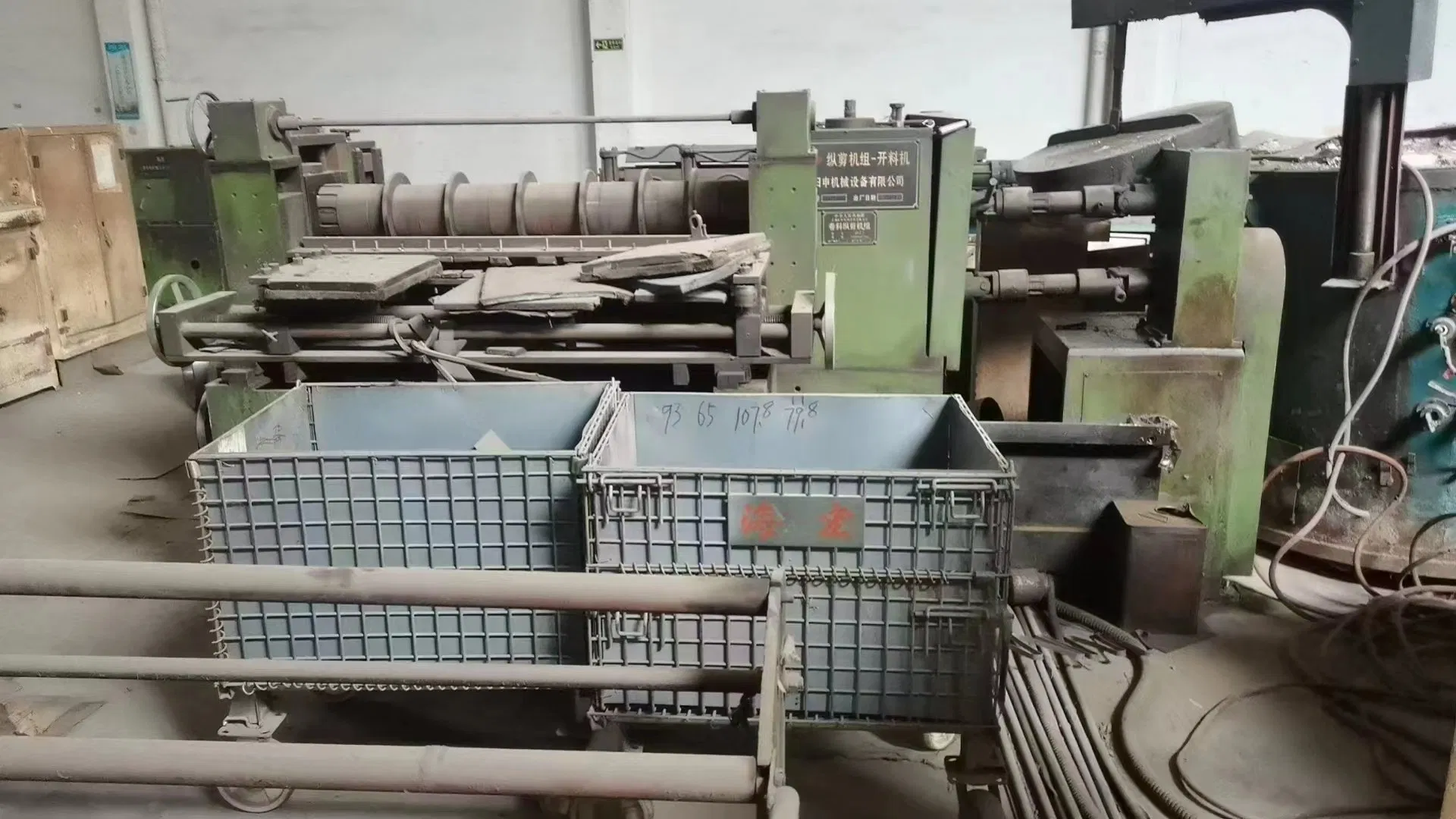

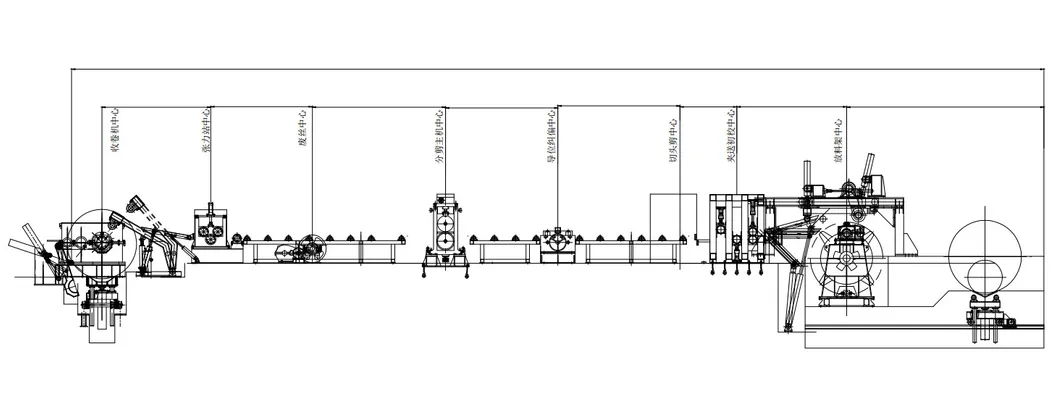

Introduction: A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific widths. The full-width coil is first uncoiled and flattened into a flat strip. The strip is then slit into narrower required widths and recoiled into smaller coils.

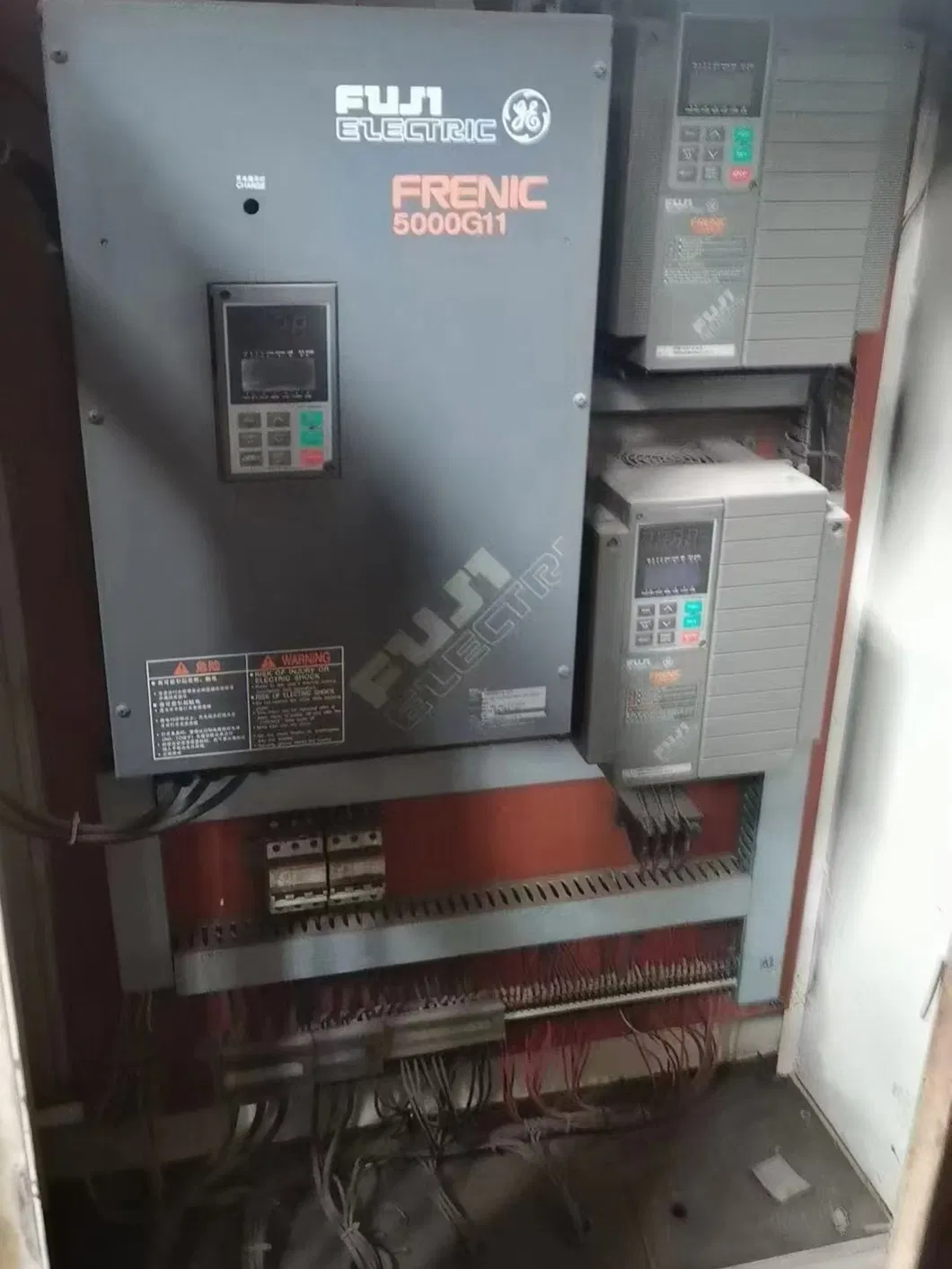

The equipment is controlled by a PLC control system which ensures high-precision slitting and easy operation. It can be equipped with auto coil position correction for automatic adjustment.
| No | Item | Numerical Value |
|---|---|---|

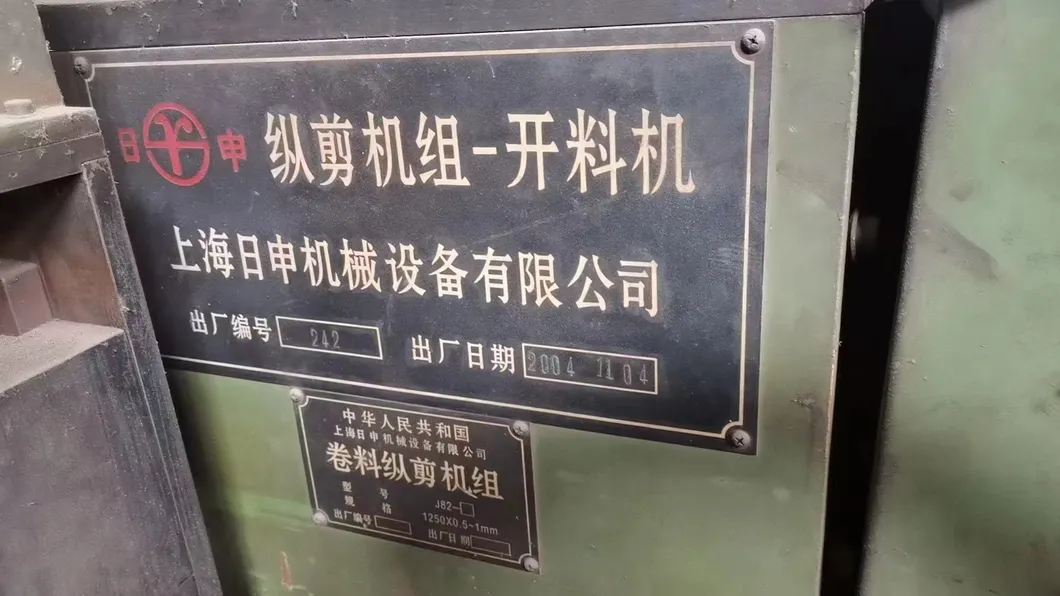

| 1 | Manufacturer | Taiwan, China |
| 2 | Manufacturer Year | 2002 |
| 3 | Slitting Thickness | Max 3.0mm |
| 4 | Slitting Width | Max 1350mm |
| 5 | Slitting Speed | Max 140m/min |
| 6 | Total Installation Power | 220KW |
| 7 | Spindle for Disc Cutters | Φ 200mm |
| 8 | Floor Area | 30m long and 10m wide |
| 9 | Power of Recoiler | 75KW |
| 10 | Power of Slitter | 75KW |

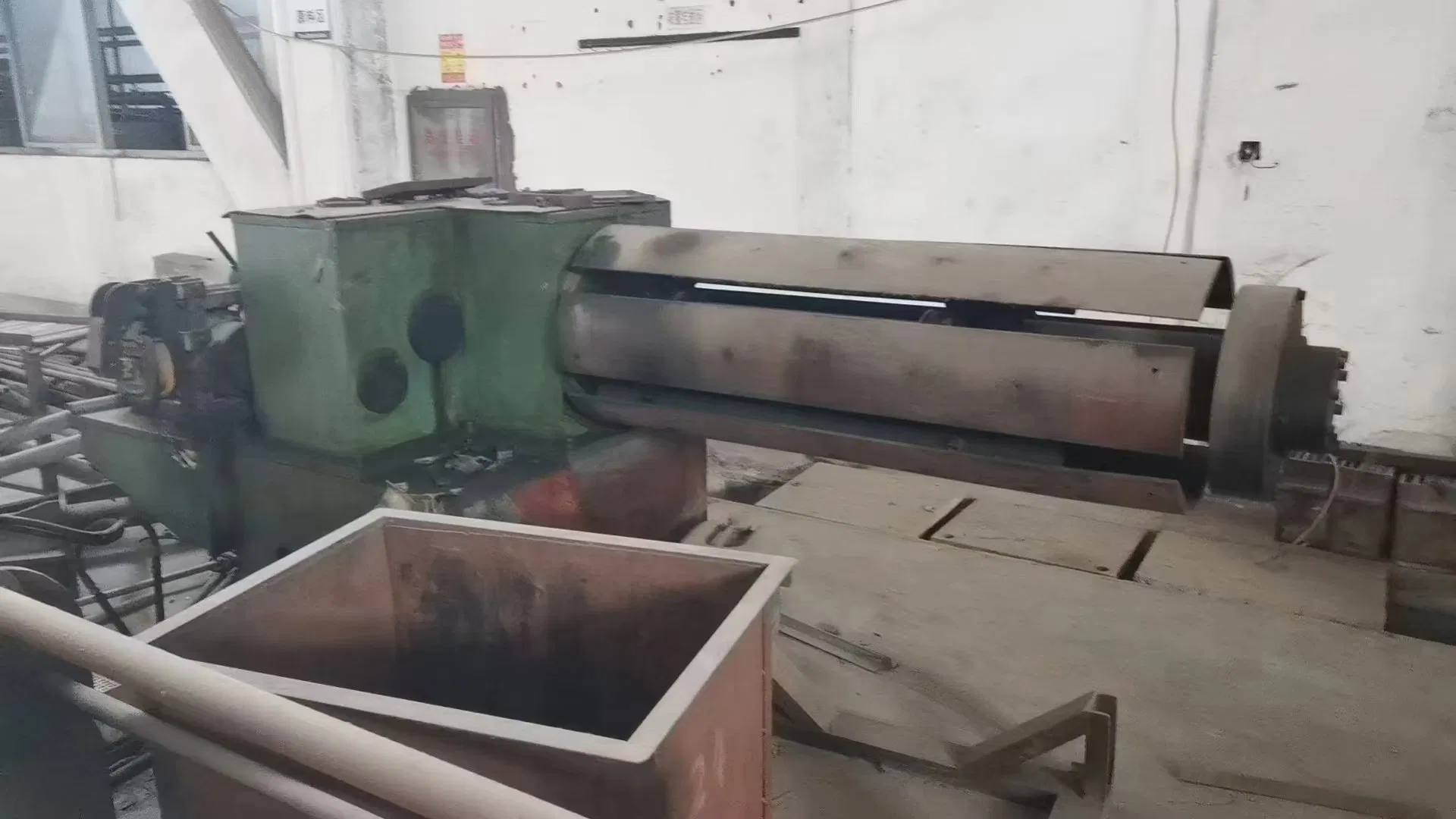

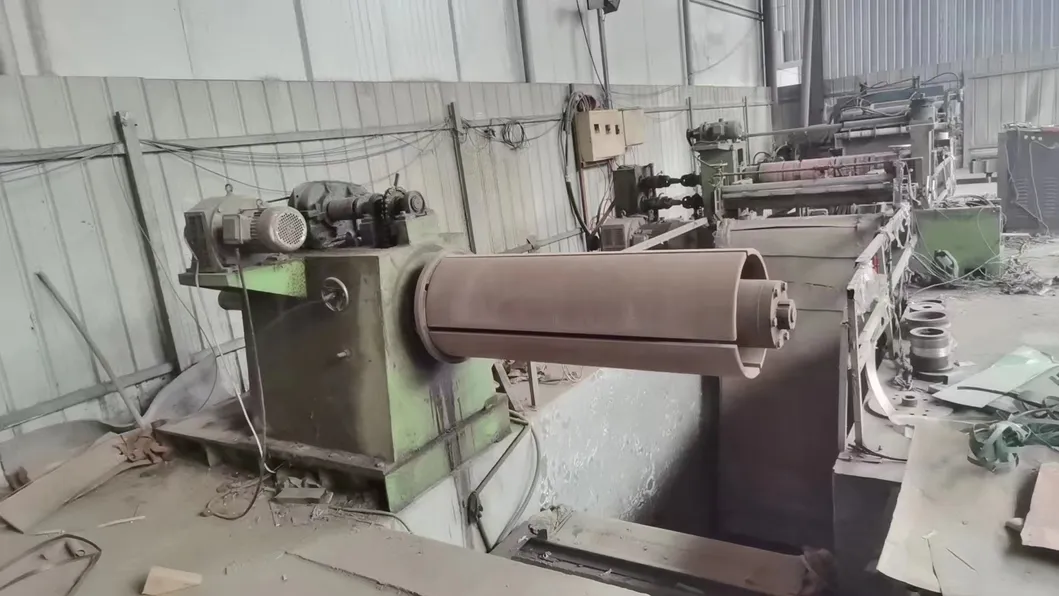

| 11 | Load-bearing (Uncoiler/Recoiler) | At least 25 tons of coil |
| 12 | Number of Knives | 84 |
| 13 | Yield Strength | 350 Mpa maximum |
| 14 | Tensile Strength | 600 Mpa maximum |
Established in 2001, we specialize in the acquisition and transfer of second-hand welded pipe units, providing one-stop services including installation, commissioning, maintenance, and customization. With 30 years of focus on the high-frequency welded pipe industry and 17 years of manufacturing and service experience, we have supported over 2000 enterprises with high-quality products.
We provide a rapid integration of the entire second-hand welded pipe production line with real sources. Installation and commissioning services are available domestically and internationally to ensure rapid production.
