| Model NO. | Second hand | Condition | Used |
| Customized | Customized | Theory | Inverter |
| Application | Industry, Decoration | Type | Pipe Cutting Machine |
| Specification | 80 * 6 meters, 100 tons | Origin | China |
| Package Size | 1.00cm * 1.00cm * 1.00cm |
| Package Gross Weight | 100.000kg |
| Transport Package | Wooden Package / Nude |
| Item | Value | Item | Value |
|---|---|---|---|
| Type | Pipe Cutting Machine | Coil Width | 50-350mm |
| Line Speed | Max 140m/min | Sheet Thickness | 0.2~2.0mm |
| Coil Weight | Max.40 tons | Coil Material | Carbon steel, Galvanized, Color steel |

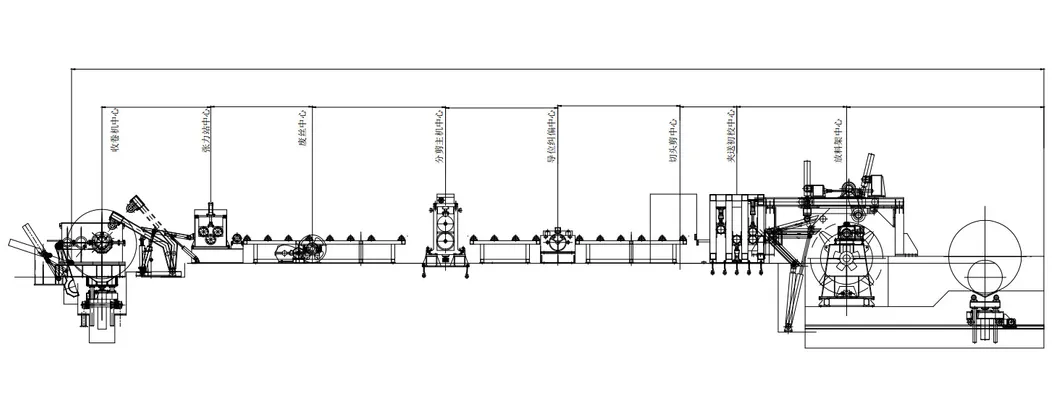

Technological Process
Introduction

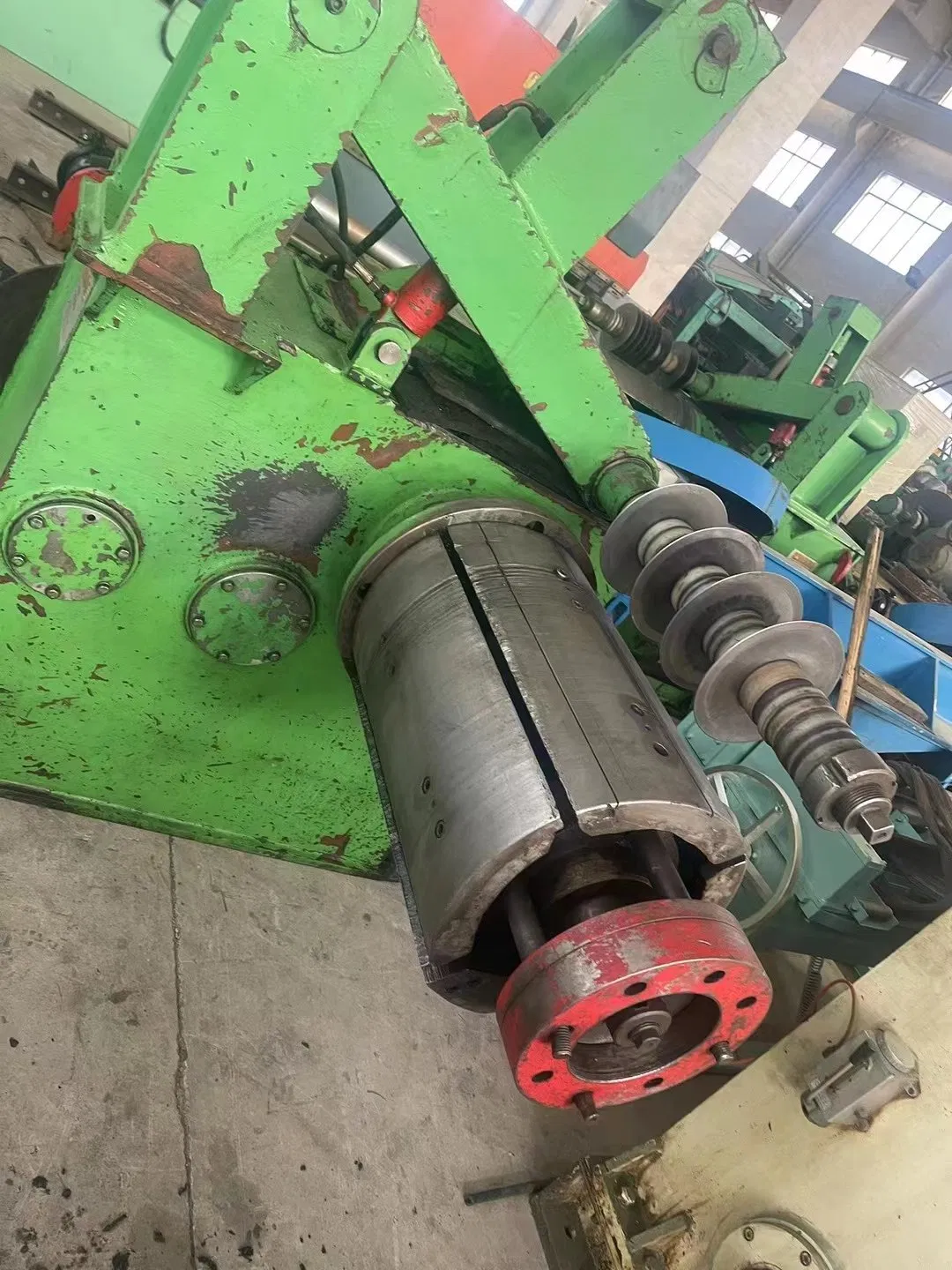

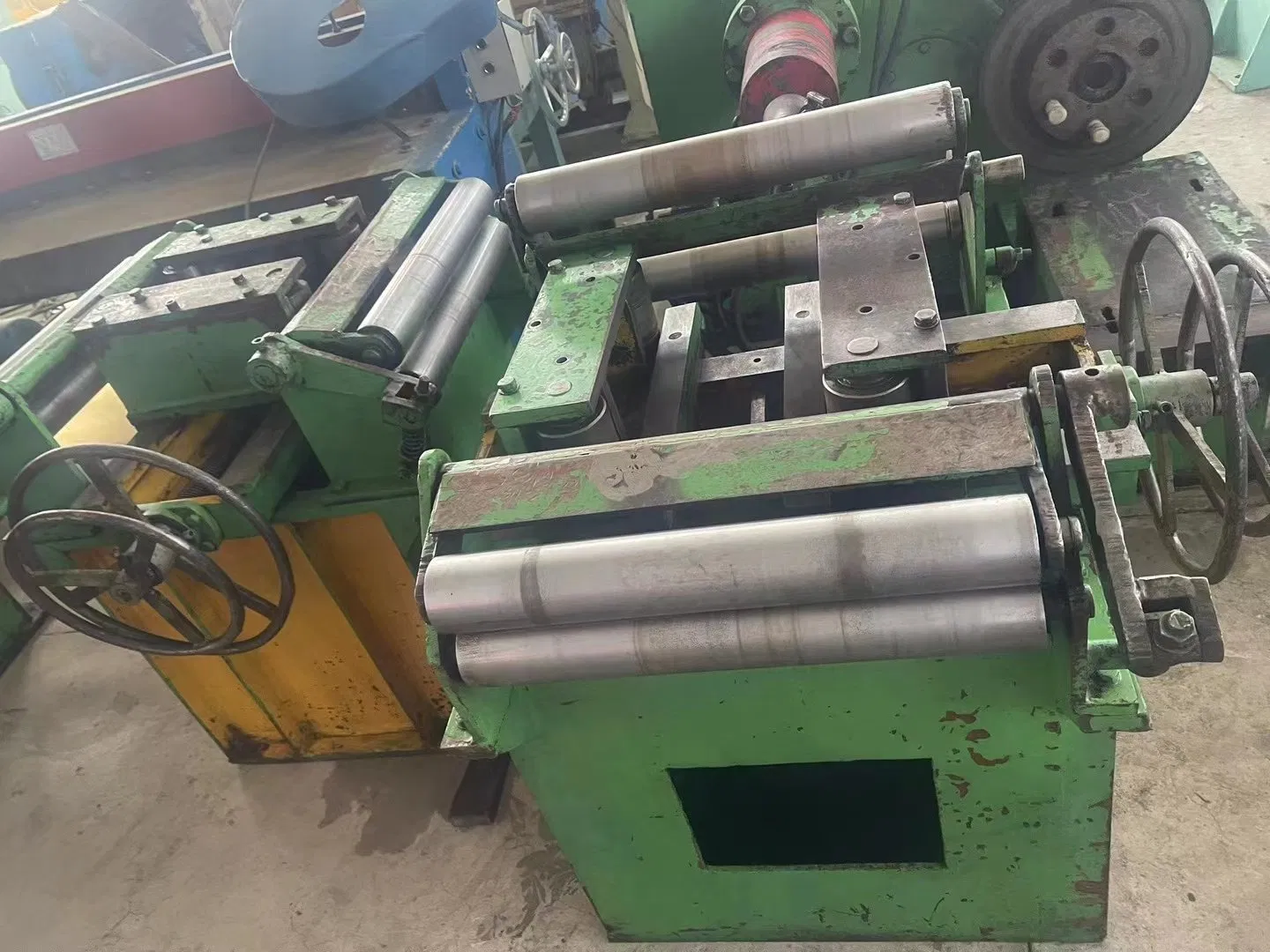

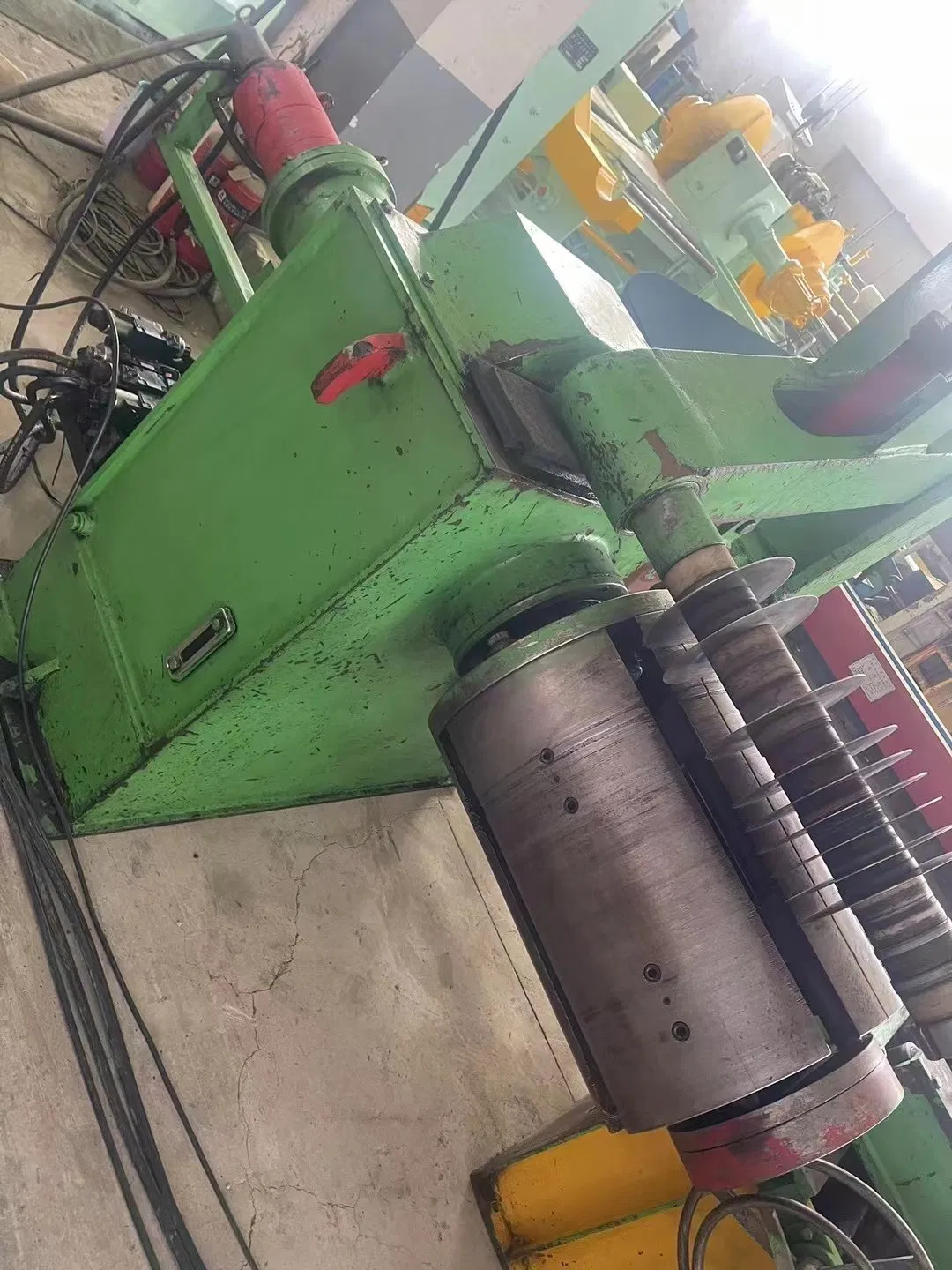

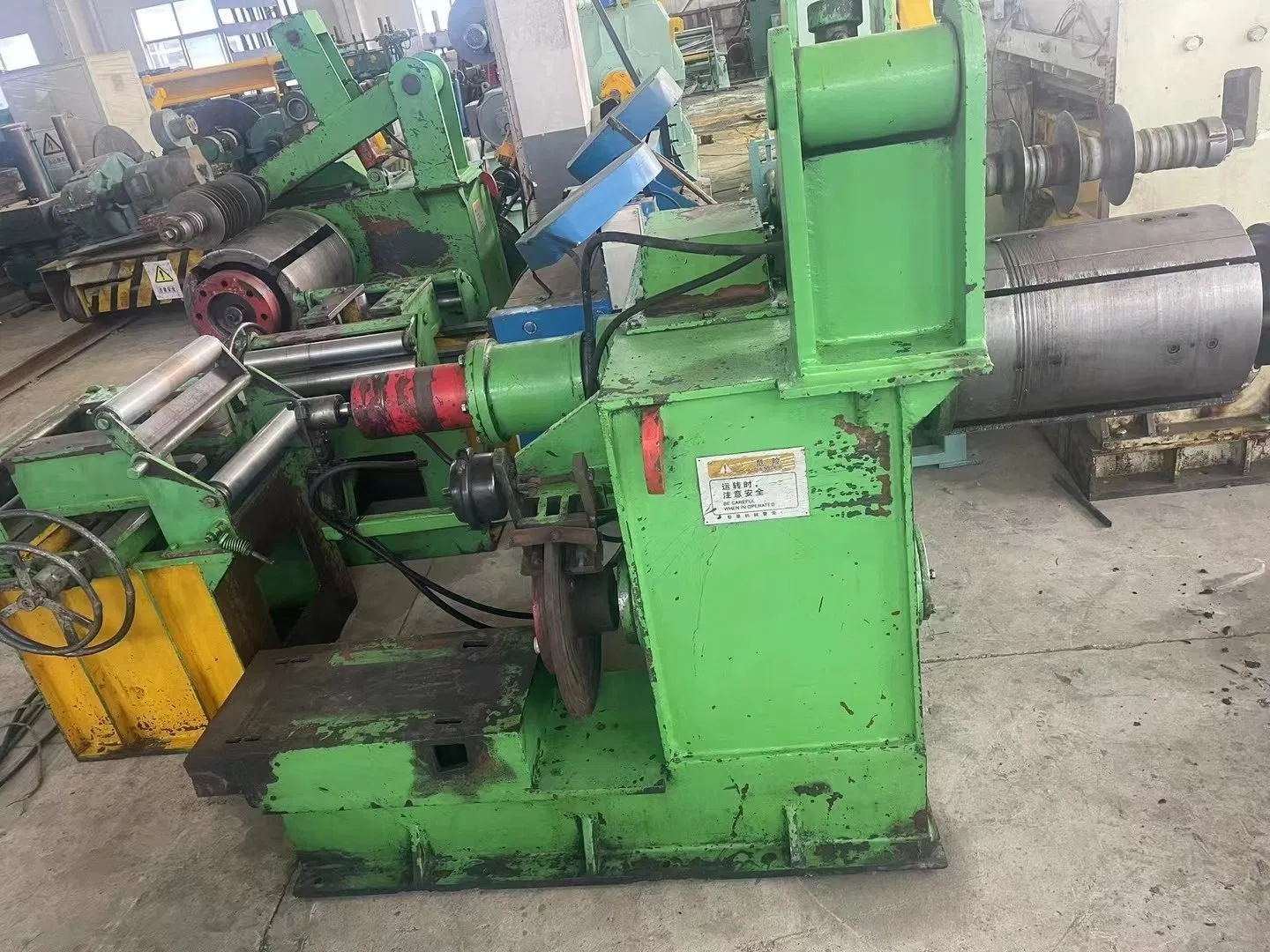

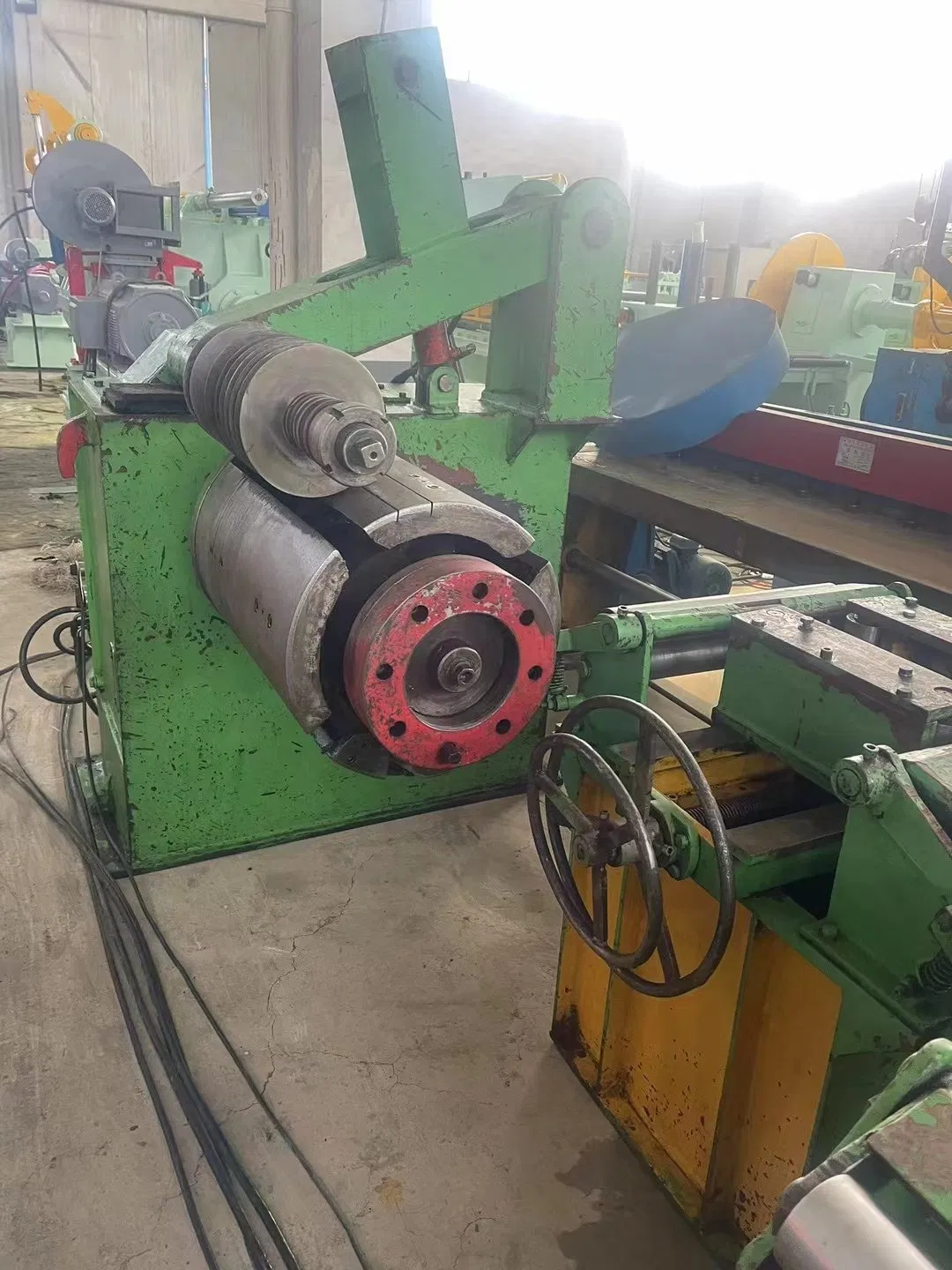

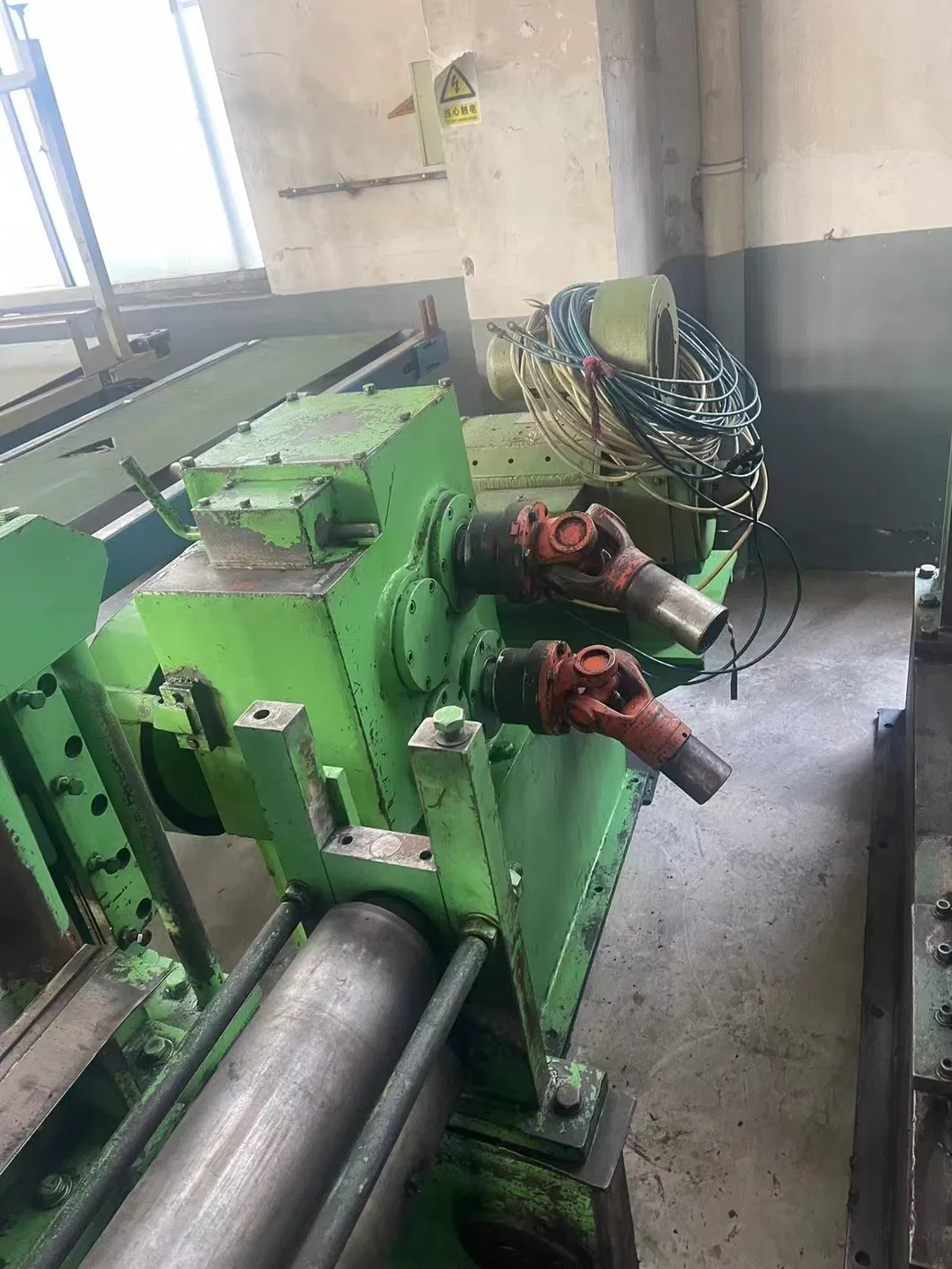

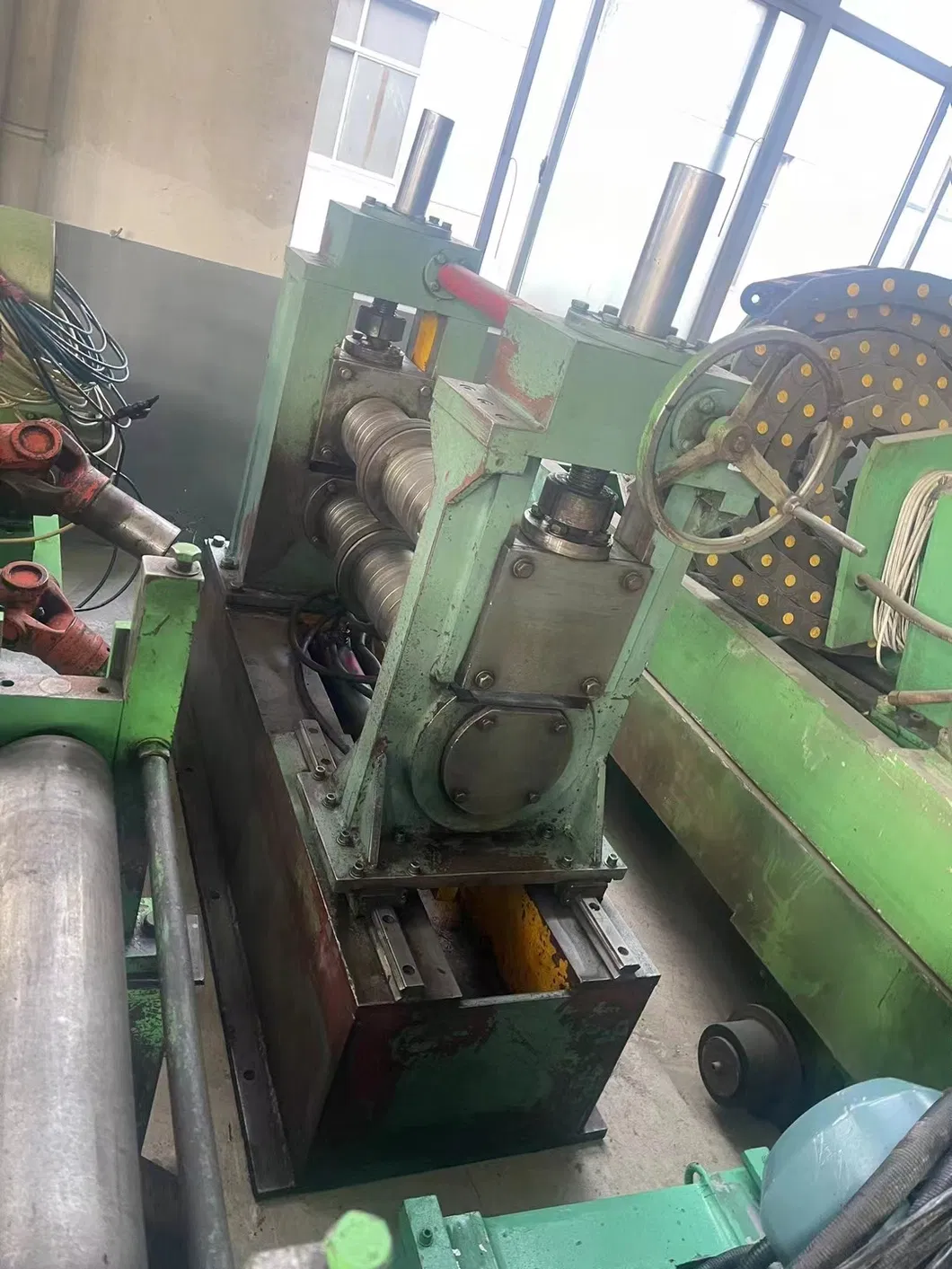

A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific width. The full width coil was first uncoiled and flattened into flat strip. The strip is then slit into narrower strips of narrower required width. The strips are then be recoiled into smaller coils.
The equipment is controlled by PLC control system which ensures high precisely slitting and easy operation. The slitting line can be equipped with auto coil position correction which allows the uncoiler to automatically adjust its position along the signal from the coil position sensor.
| No | Item | Numerical Value |
|---|---|---|

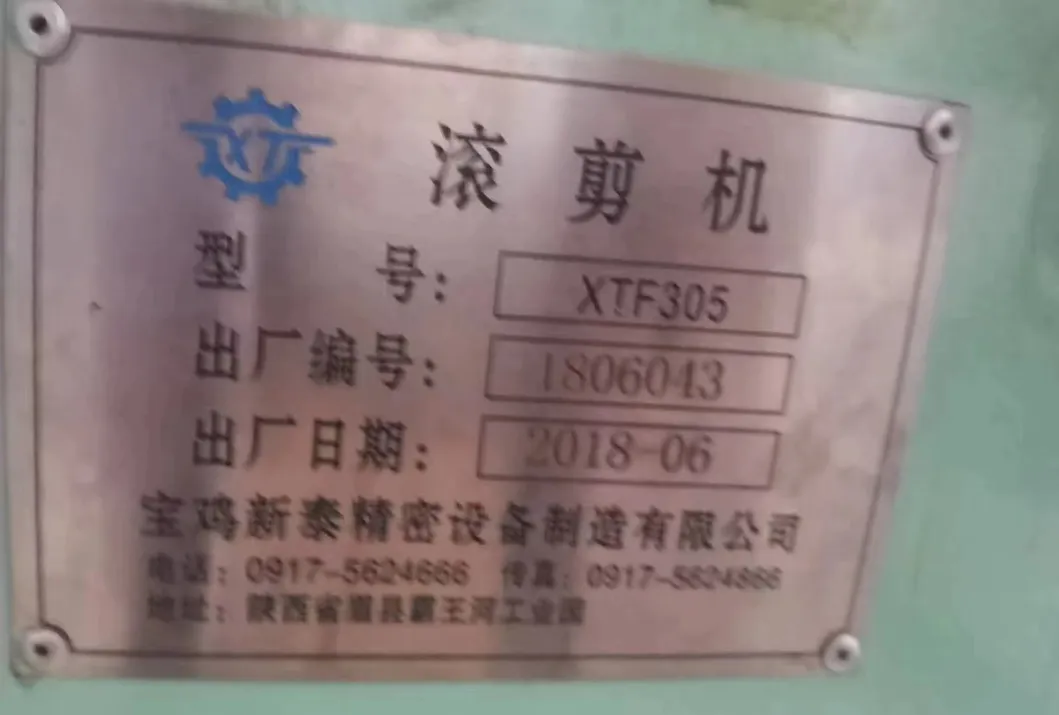

| 1 | Manufacturer Year | 2018 |
| 2 | Slitting thickness | Max 3.0mm |
| 3 | Slitting Width | Max 350mm |
| 4 | Slitting Speed | Max 140m/min |
| 5 | Total Installation Power | 220KW |
| 6 | The spindle to install disc cutters | Φ 200mm |
| 7 | Floor area | 30m long and 10m wide |
| 8 | Load-bearing | At least 25 tons of coil |
| 9 | Yield strength | 350 Mpa maximum |
| 10 | Tensile strength | 600 Mpa maximum |
Established in 2001, our focus has been the acquisition and transfer of second-hand welded pipe units for 30 years, with 17 years of specialized manufacturing and service experience. We have provided more than 2000 enterprises with high-quality products and one-stop service support.
We provide rapid integration of entire second-hand welded pipe production lines. Installation and commissioning services are available to ensure rapid production of qualified steel pipes. Adhering to the development concept of honesty and pragmatism, we are committed to providing valuable services for our customers.
