| Model NO. | Used 0.3-2.5*1350 Slitting line | Condition | Used |
| Application | Industry, Decoration | Type | Pipe Cutting Machine |
| Theory | Inverter | Customized | Customized |
| Transport Package | Wooden Package | Origin | China |
| HS Code | 8455101000 | Capacity | 10 Sets/Year |

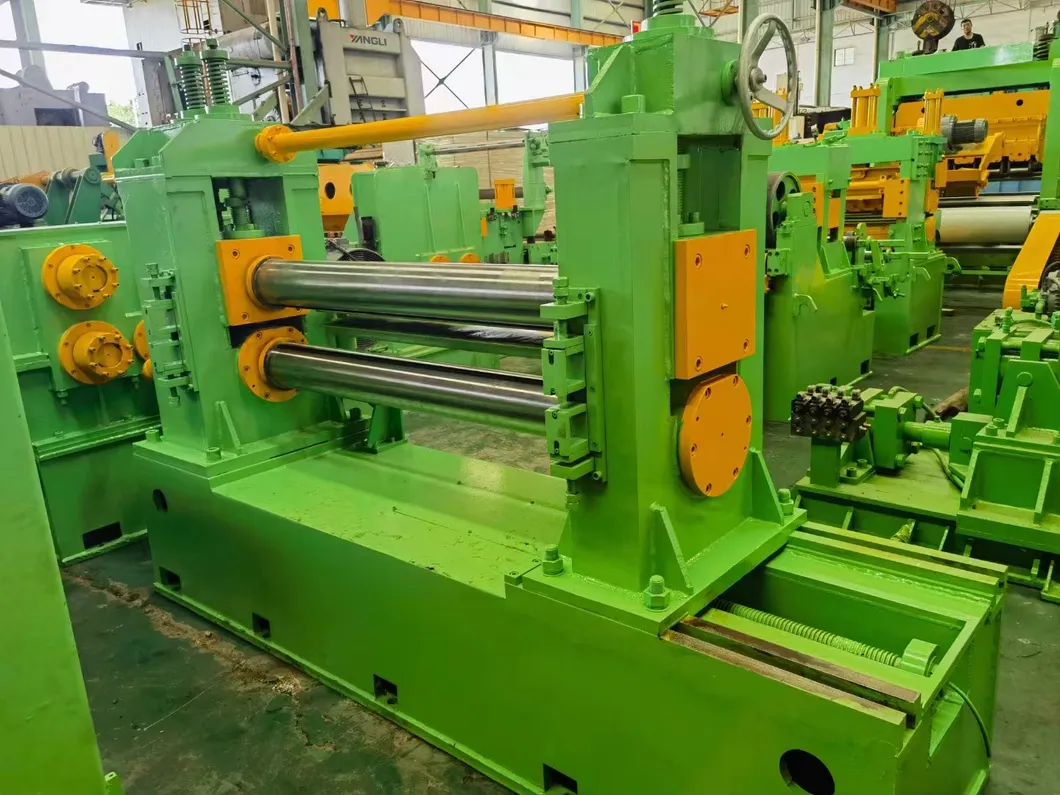

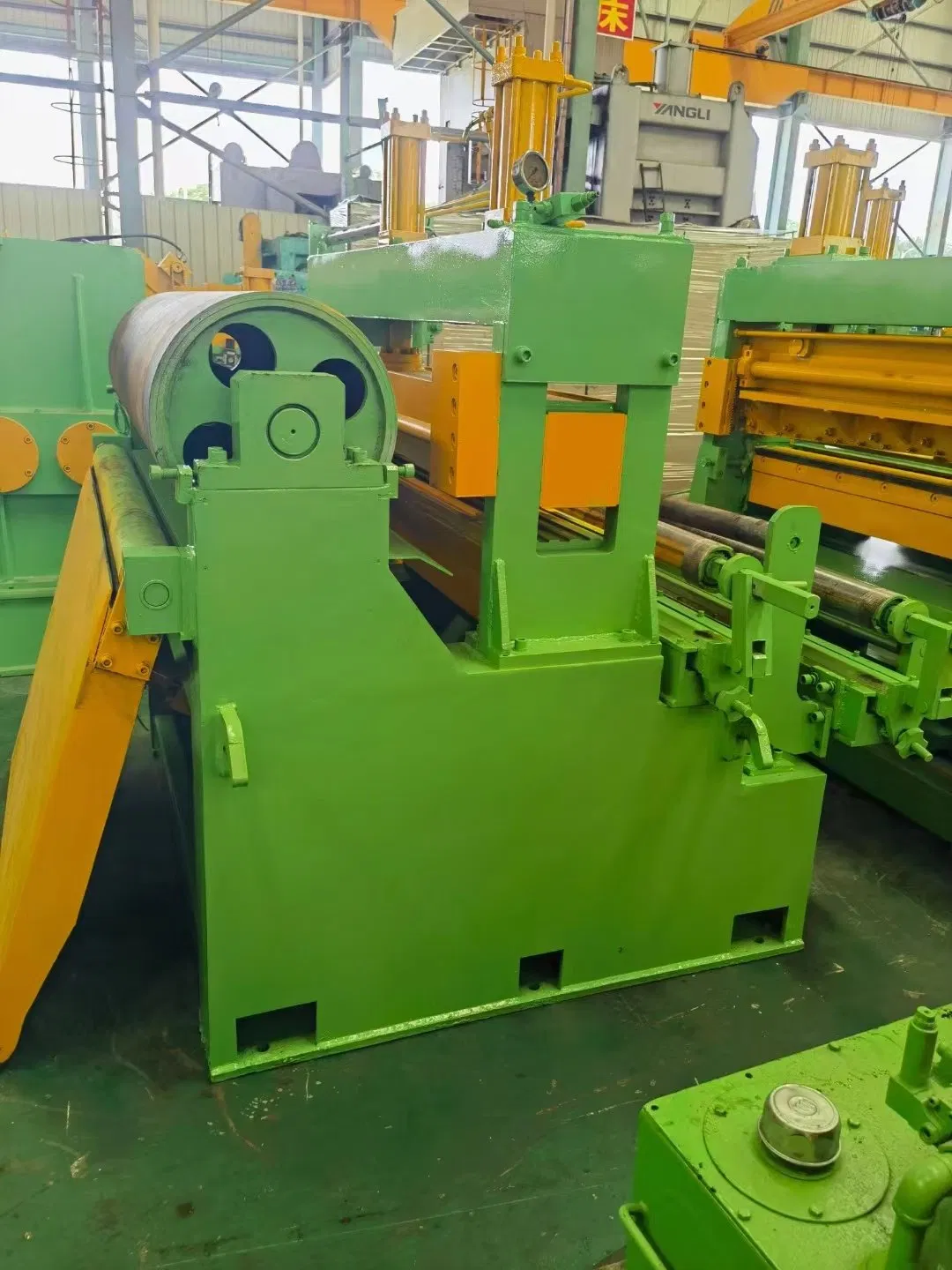

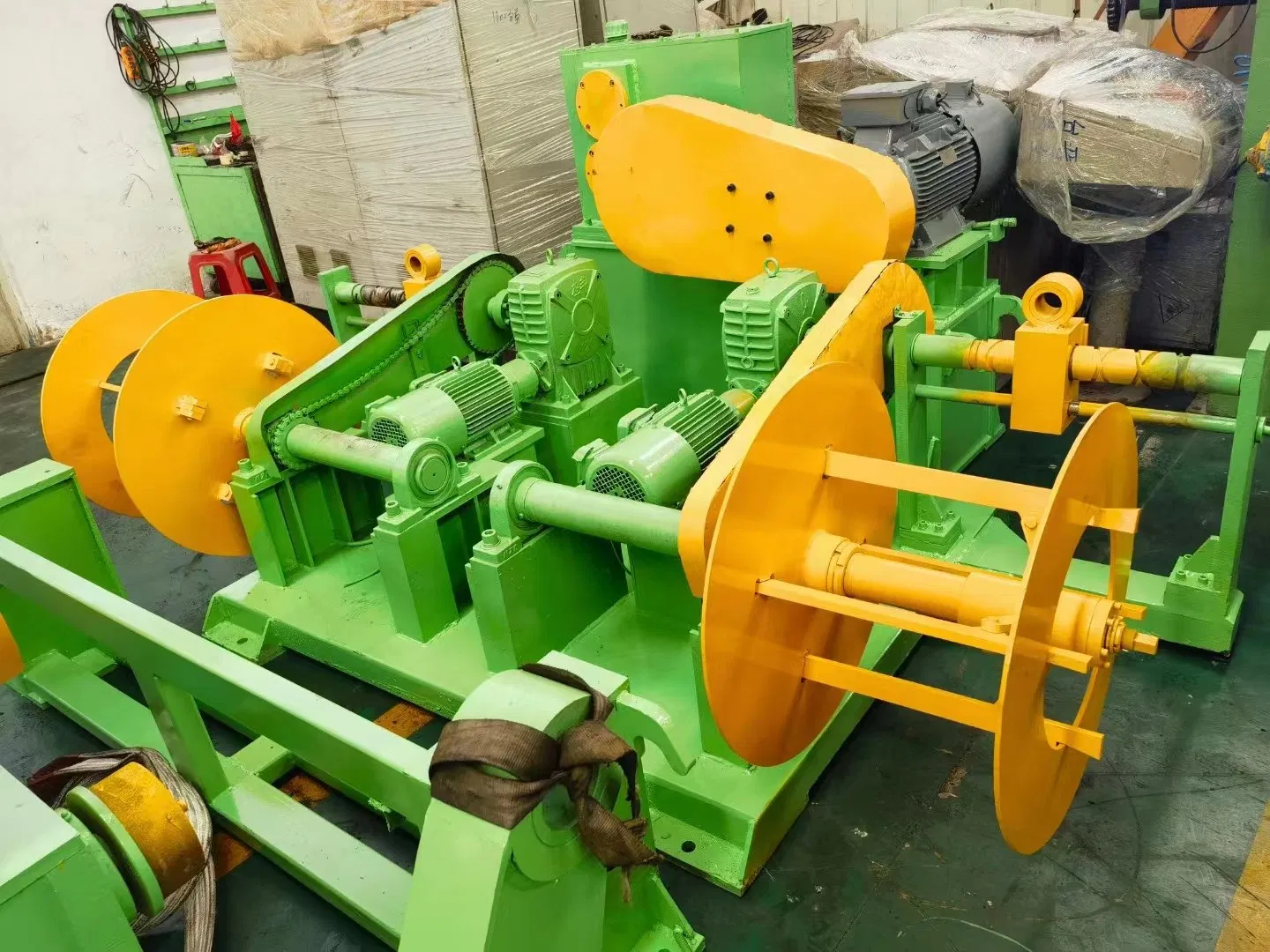

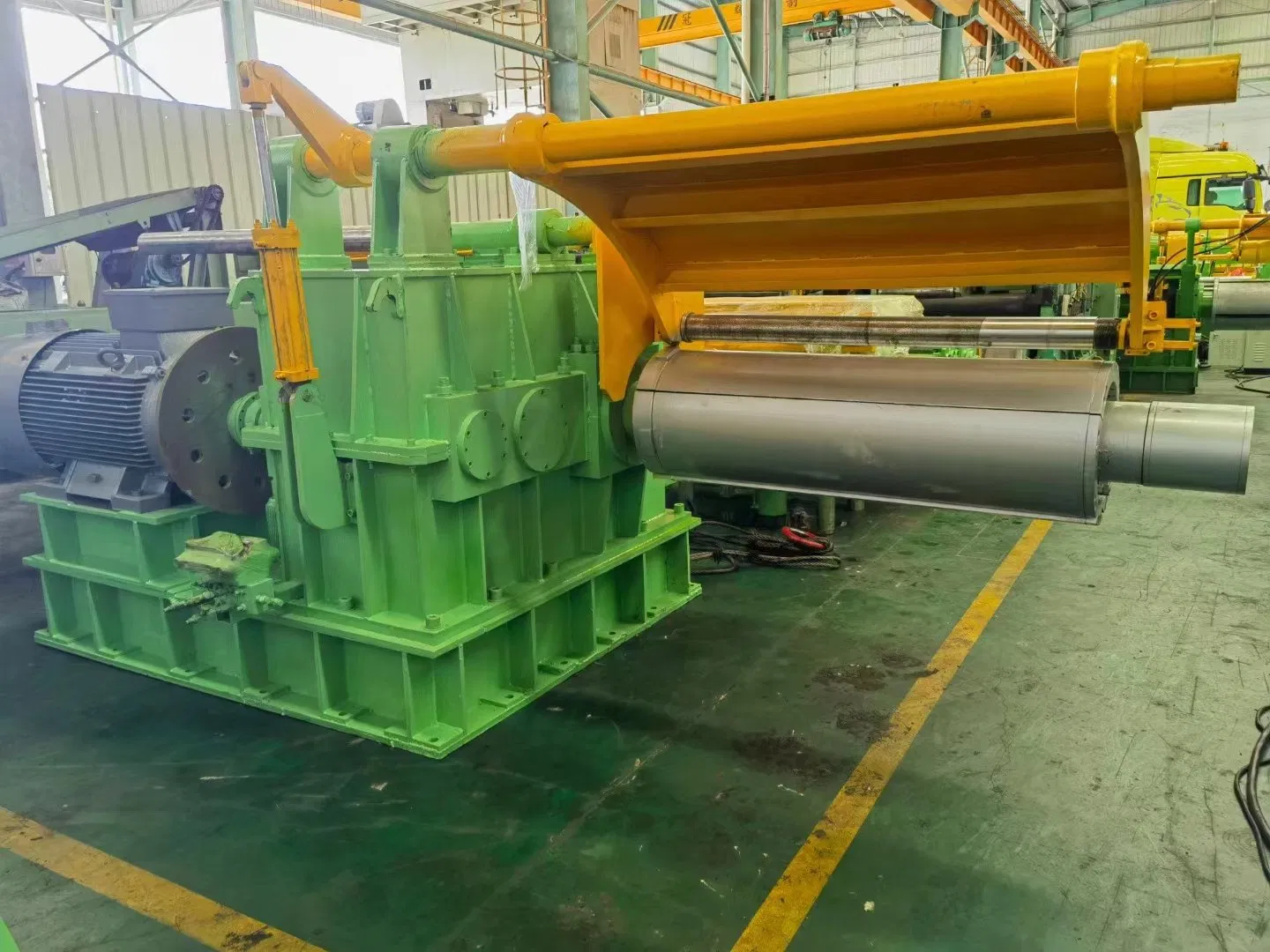

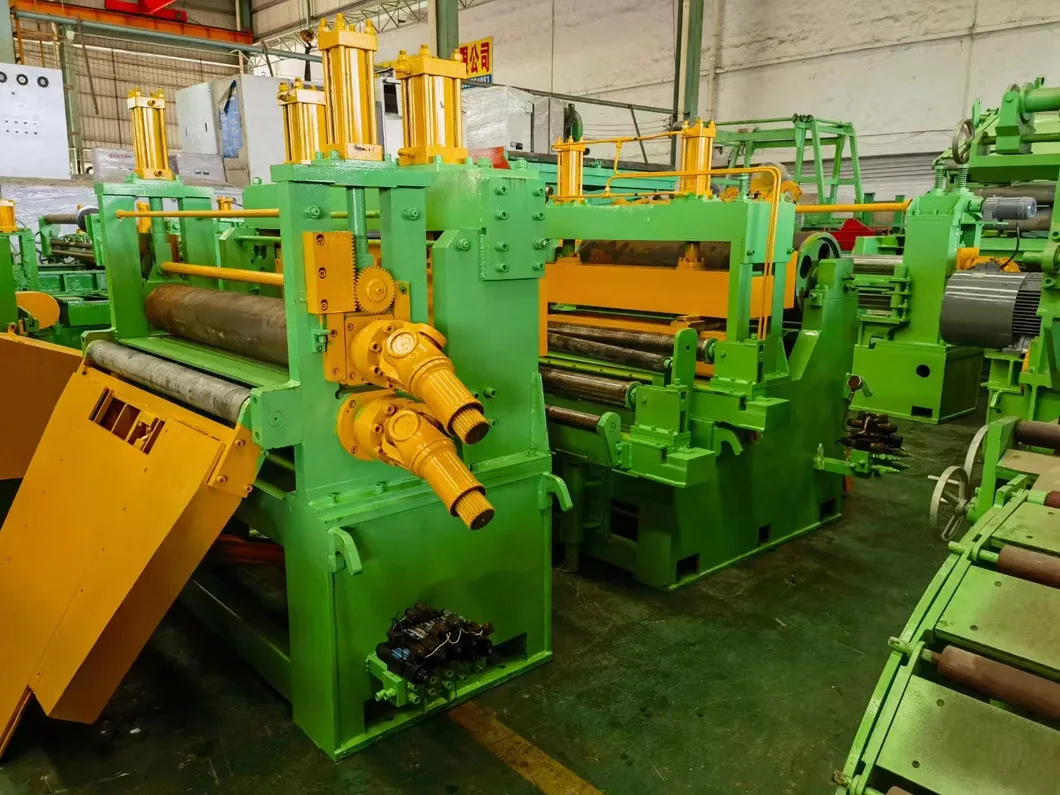

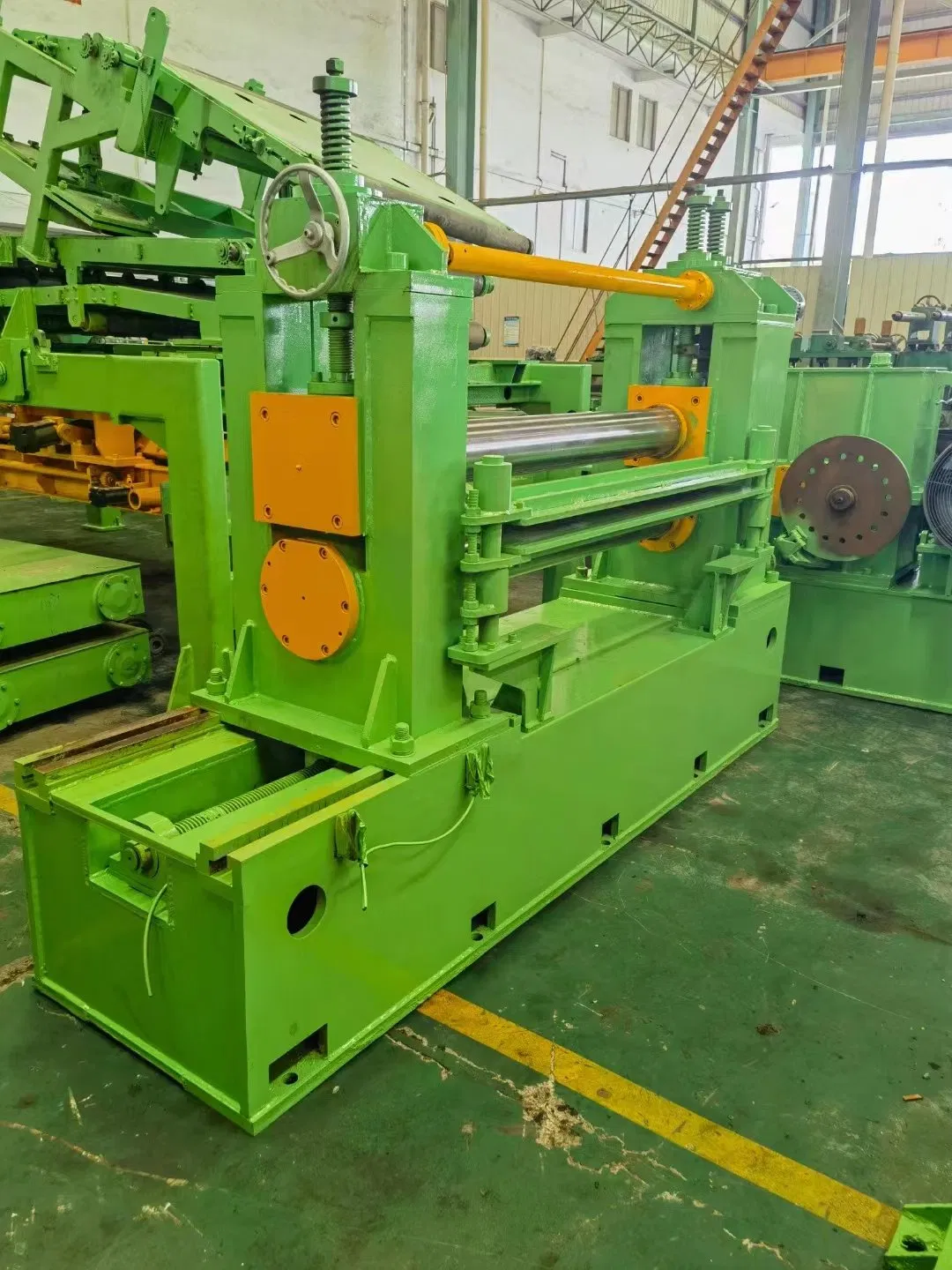

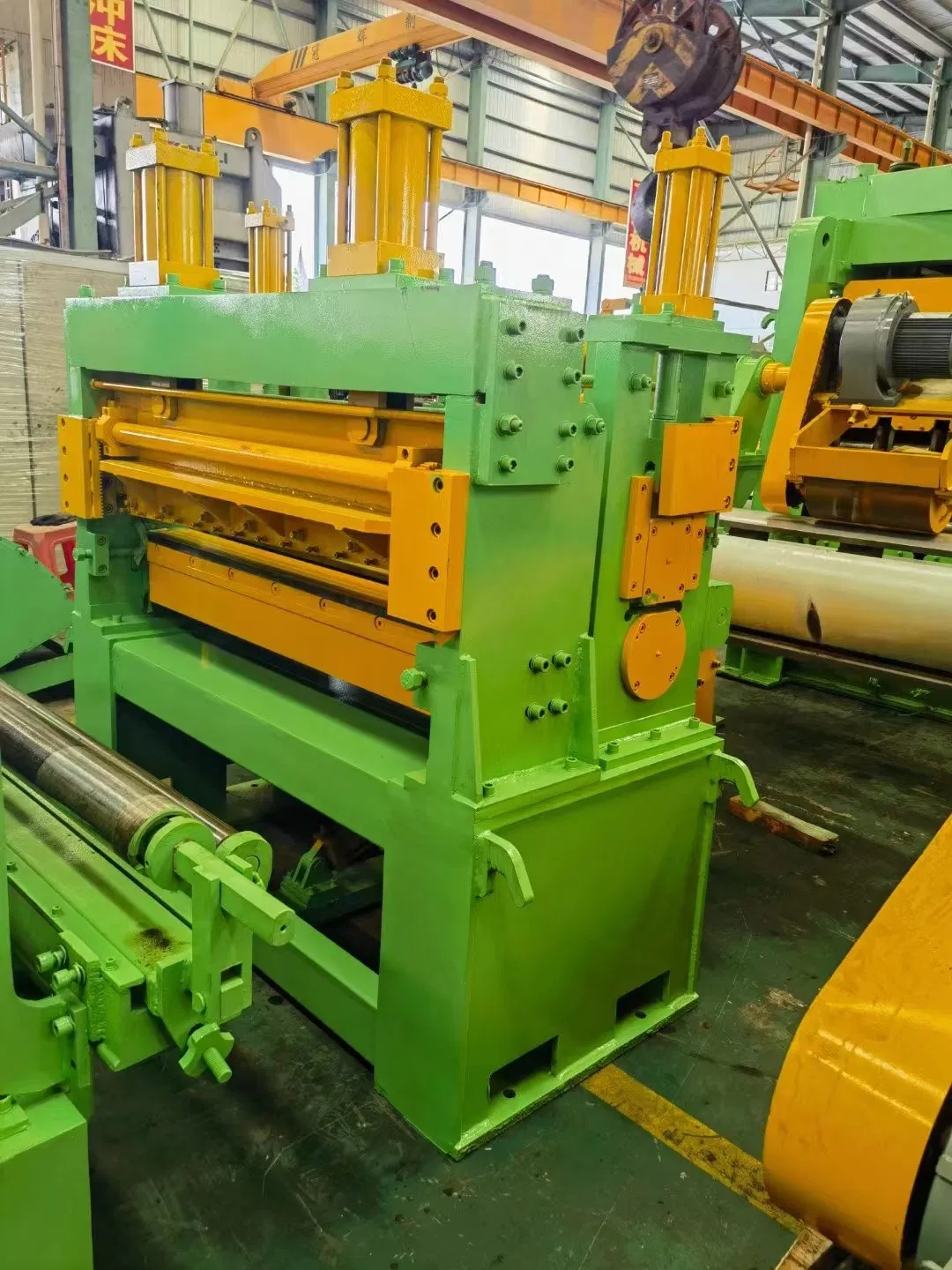

Introduction: A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific width. The full width coil was first uncoiled and flattened into flat strip. The strip is then slit into narrower strips of narrower required width. The strips are then be recoiled into smaller coils.
The equipment is controlled by PLC control system which ensures high precisely slitting and easy operation. The slitting line can be equipped with auto coil position correction which allows the uncoiler to automatically adjust its position along the signal from the coil position sensor.
| No | Item | Numerical value |
|---|---|---|
| 1 | Coil Thickness | 0.3~2.5mm |
| 2 | Coil Width | 500~1350mm |
| 3 | Coil Inner Diameter | ≥Φ508mm |
| 4 | Coil Material | Plain carbon steel, Electro galvanized sheet, Color steel sheet, etc |
| 5 | Steel grade | Hot-rolling Q345, EN 10149 S355 MC, and ASTM A36 |

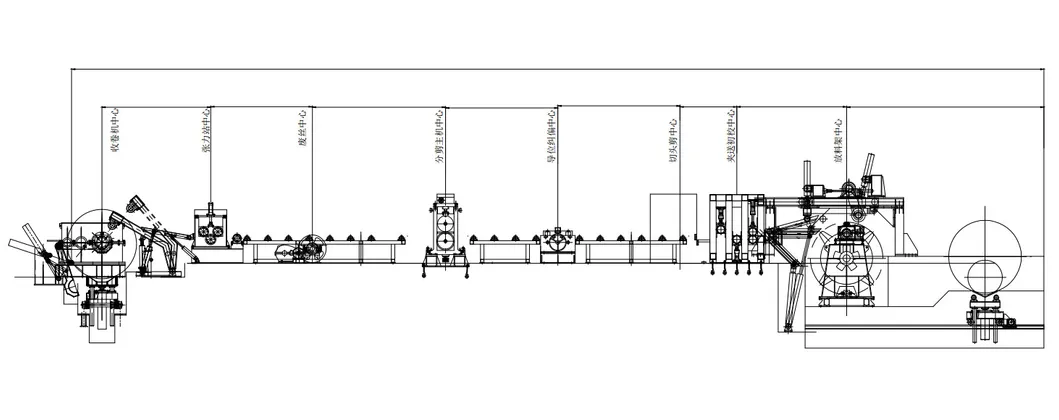

Technological Process
| Manufacturer Origin | Taiwan, China |
| Manufacturer Year | 2002 |
| Slitting Thickness | Max 3.0mm |
| Slitting Width | Max 1350mm |
| Slitting Speed | Max 140m/min |
| Total Installation Power | 220KW |
| Spindle Diameter | Φ 200mm |
| Floor Area | 30m long and 10m wide |
| Load-bearing | At least 25 tons of coil |
| Yield Strength | 350 Mpa maximum |
| Tensile Strength | 600 Mpa maximum |
The company was established in 2001, specializing in the acquisition and transfer of second-hand welded pipe units. We provide a one-stop service including installation, commissioning, maintenance, and customization. With 30 years of focus on the high-frequency welded pipe industry and 17 years of manufacturing expertise, we have supported over 2000 enterprises with quality equipment and technical solutions.
We maintain a large inventory of second-hand production lines, allowing for rapid integration and deployment. Our services are available both domestically and internationally, ensuring efficient production of qualified steel pipes.
