| Model NO. | 2000mm*10mm Used Slitting Line | Condition | Used |
|---|---|---|---|
| Theory | Inverter | Application | Industry |
| Type | Pipe Cutting Machine | Power Source | Electric |
| Package Size | 1.00cm * 1.00cm * 1.00cm | Gross Weight | 100.000kg |
| No | Item | Numerical Value |
|---|---|---|
| 1 | Coil Width | 2000mm (Max) |
| 2 | Sheet Thickness | 10mm (Max) |
| 3 | Line Speed | Adjustable |
| 4 | Capacity | 2000mm*10mm |
| 5 | Origin | China |

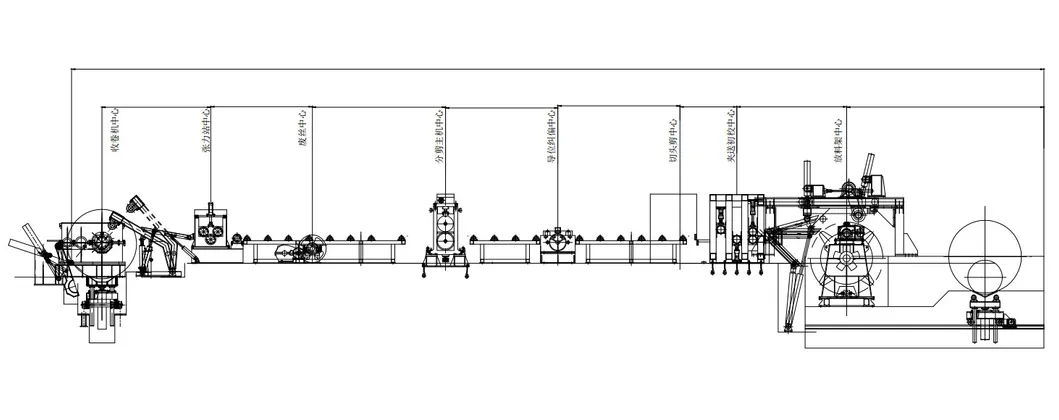

Technological Process:

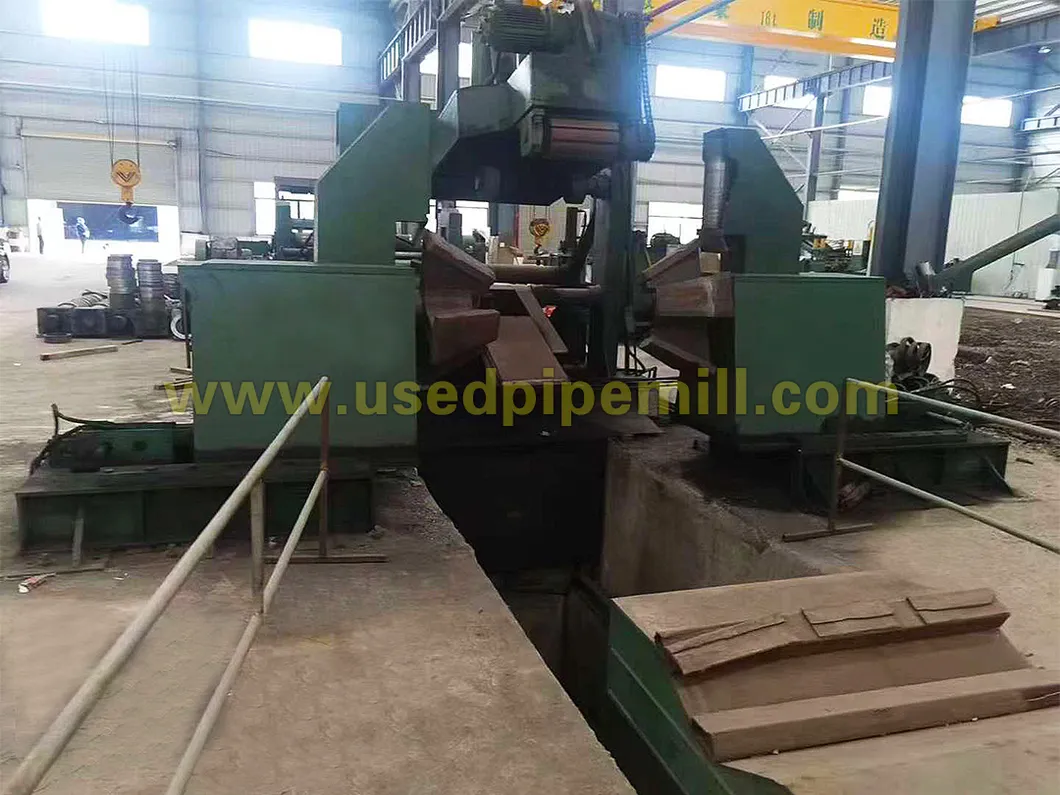

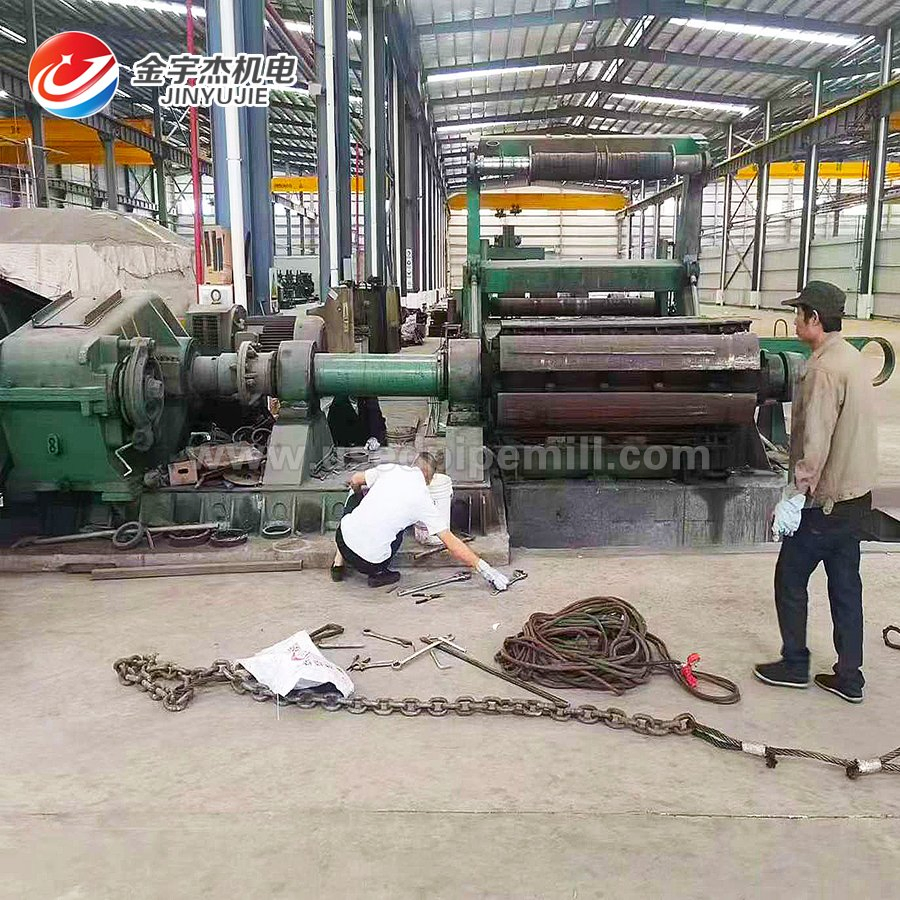

A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific widths. The equipment is controlled by a PLC system which ensures high precision and easy operation.
| Num | Details include |
|---|---|
| 1 | Entry car |
| 2 | Uncoiler |
| 3 | Leveler |
| 4 | Looper |
| 5 | Precision Leveler and Measuring Device |
| 6 | Hydraulic Shear Machine |
| 7 | Run Out Table |
| 8 | Lifting palletizer |
| 9 | Coil car (Discharge trolley) |

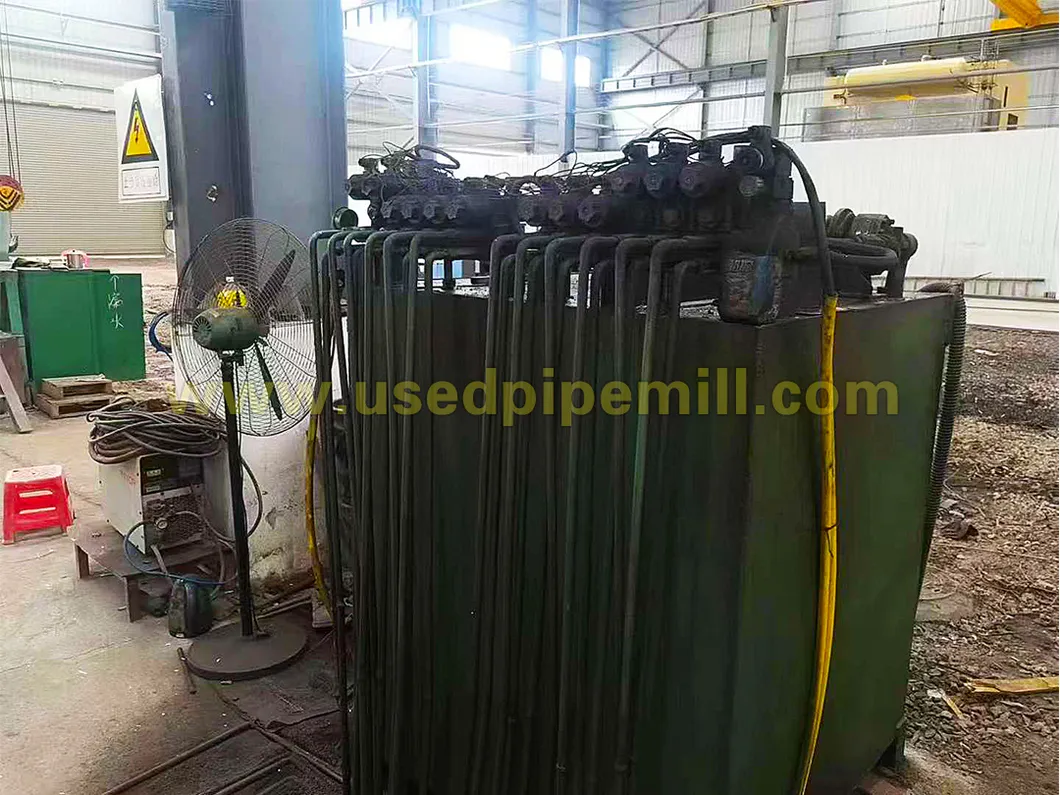

| 10 | Hydraulic & Electrical Systems |
| Coil Specification | |
|---|---|
| Material strength | δb≤470-630Mpa / δs≤345-385Mpa |
| Coil thickness | 10mm (Max) |
| Coil width | 2000mm (Max) |
| Diameter of cutter shaft | 260mm |
| Diameter of down coiler | 840mm~850mm |
| Power Specification | |
| Power of slitter | Above 55KW |
| Power of recoiler | Above 132KW |
Professional Support:
A: This specific slitting line is designed to handle a maximum sheet thickness of 10mm.
A: Yes, the system uses an inverter and PLC control to allow for precise adjustments to the slitting speed.
A: We provide installation, commissioning, and 24-hour engineer response support to ensure the machine runs smoothly.
A: It is suitable for industrial steel coils, including stainless steel and galvanized sheets with material strength up to δb≤630Mpa.
A: Yes, we can design and customize machines according to your specific production requirements and factory layout.
A: We offer a 12-month guarantee and life-long technical support for our equipment.
