Basic Information
| Model NO. | Customized | Length | Customized |
|---|
| Temperature Resistance | 1500℃ | Product Name | Ceramic Tubes |
|---|
| Forming Methods | Extrusion, ISO Pressed, Dry Pressed | Material | Alumina Ceramic |
|---|
| Optional Purity | 95%, 99%, 99.5%, 99.8% | Color | White, Ivory, Pink, Black |
|---|
| Density | Over 3.65g/cm3 | Available Shape | Round, Square, Oval, Half Tube |
|---|
| Surface Finish | Polished, Glazed, Metalized | Transport Package | Individual Packaging |
|---|
| Production Capacity | 5,000,000 PCS/Month | Origin | China |
|---|
Packaging & Delivery
| Package Size | 36.00cm * 20.00cm * 24.00cm |
|---|
| Package Gross Weight | 8.000kg |
|---|

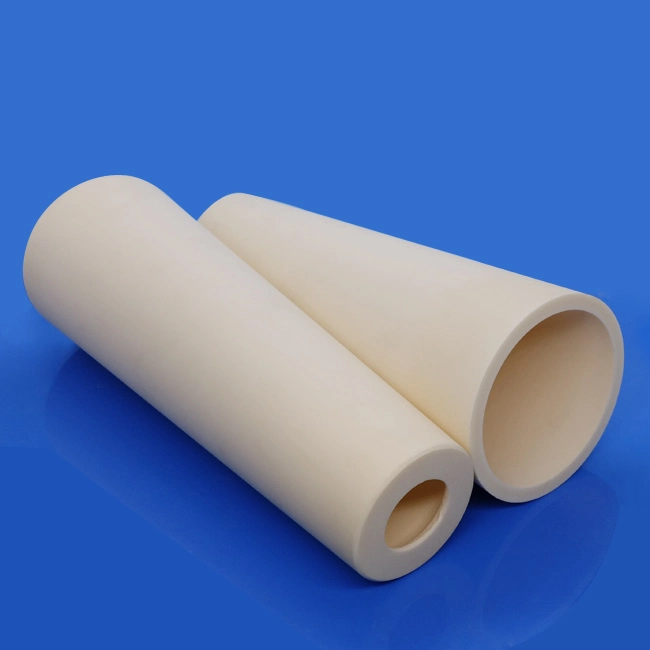

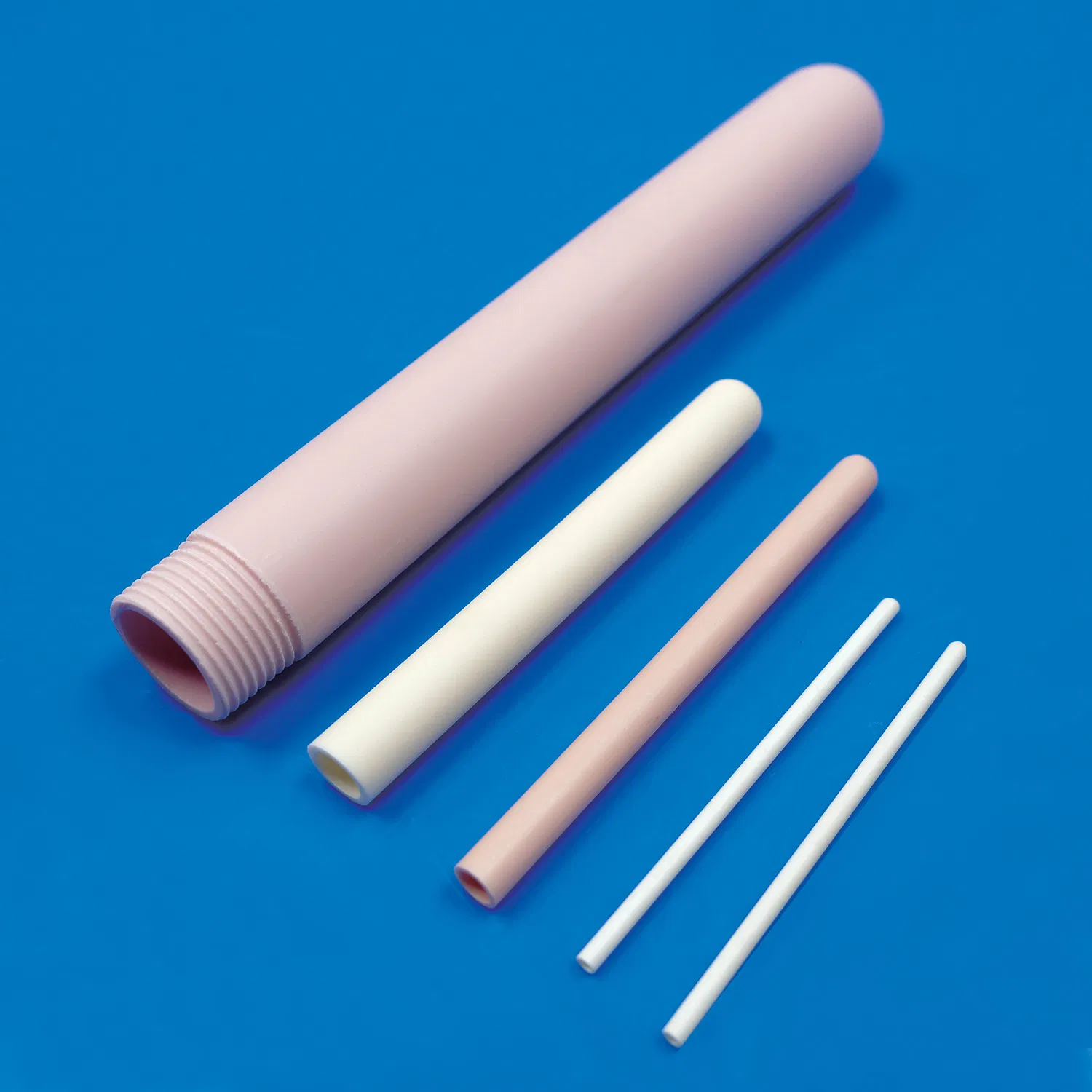

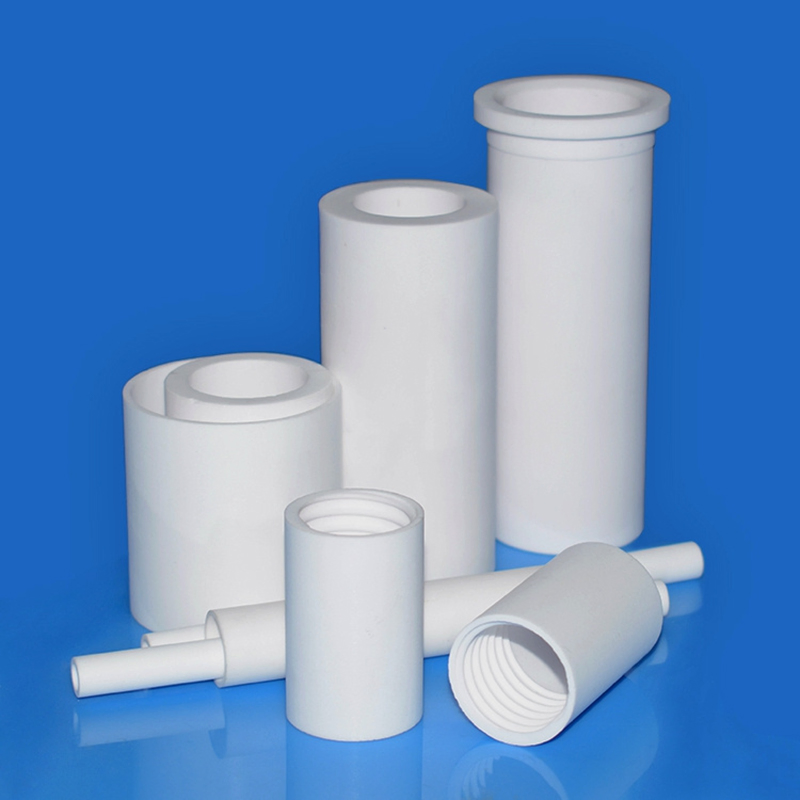

High Temperature Alumina Ceramic Tube
Alumina (Aluminum Oxide, Al2O3) is the most extensively used advanced ceramic material due to its outstanding property characteristics and cost-effective advantage. As the purity increases, both wear resistance and corrosion resistance also increase. Alumina ceramic tubes are standard protection parts used in a variety of general-purpose and specialty applications.
The Specification
- Grades: 96%, 99%, 99.5% and 99.8% alumina availability.
- Forming: Extrusion, Dry pressed, CIM, ISO pressed.
- Capability: ID min. 1mm, OD max. 800mm.
- Tolerance: OD up to 0.005mm, ID up to 0.01mm.

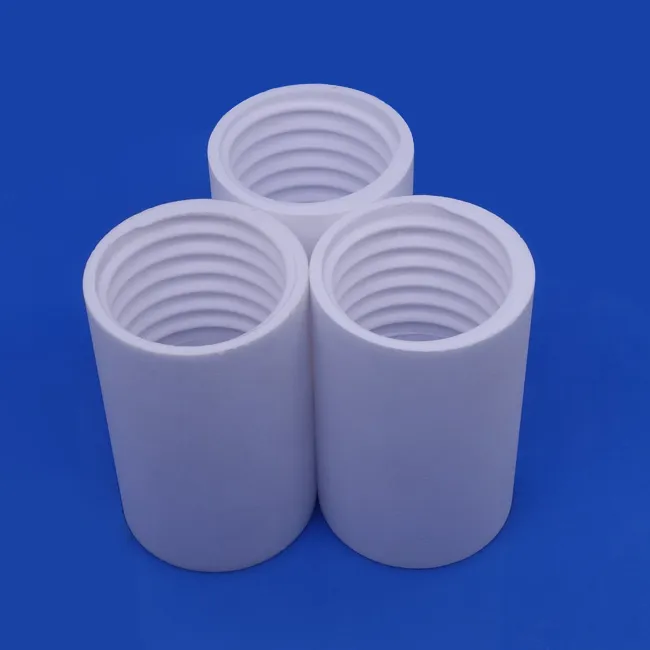

- Processing: CNC machining, lapping, threaded, drilling, grinding, laser cutting.

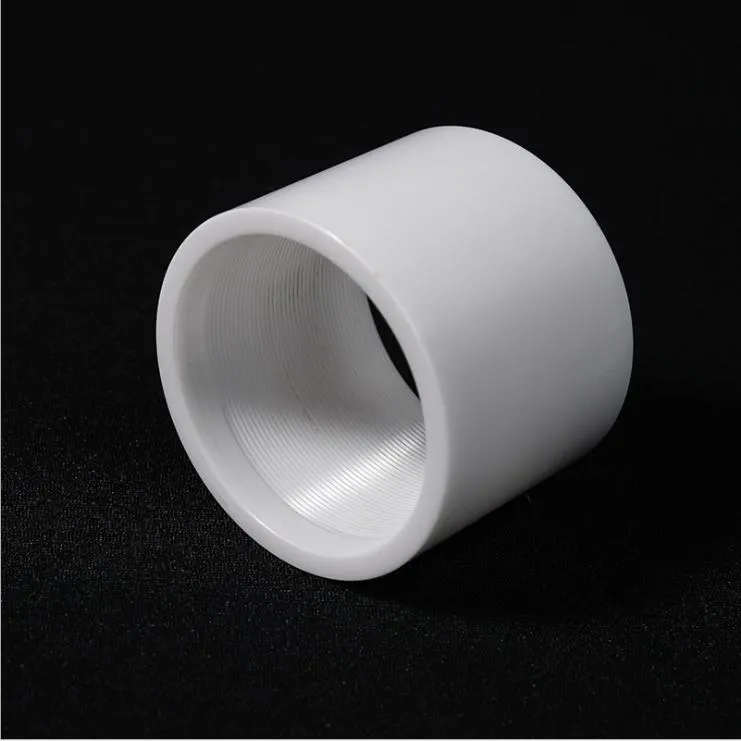

Main Characteristics
- High-temperature resistance up to 2000ºC in vacuum.
- Outstanding wear resistance (276 times better than stainless steel).
- Diamond-like hardness (HRA85).
- Exceptional corrosion resistance against strong acids (HCL, H2SO4).
- Extraordinary electrical insulation for high voltage applications.
Products Category

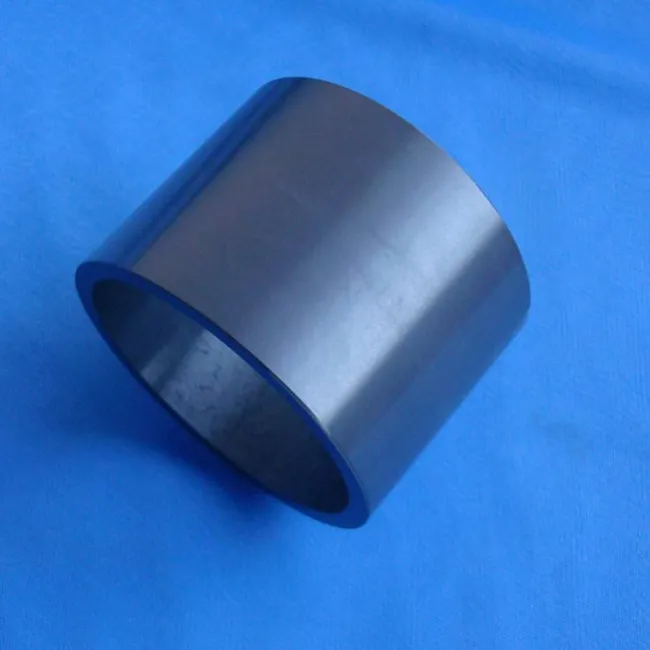

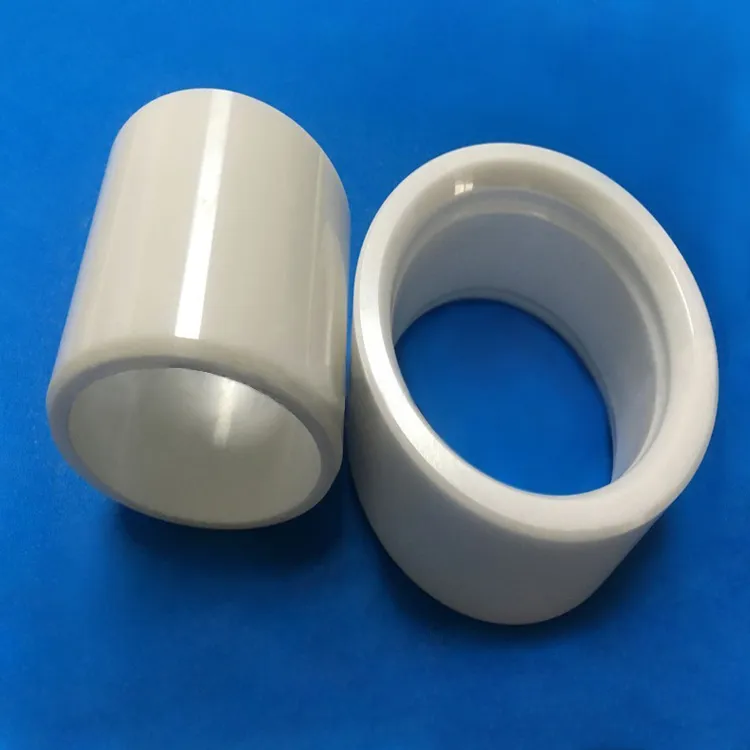

We deal with a variety of advanced ceramic tubes in raw materials including Alumina, Zirconia, Silicon Nitride, Aluminum Nitride, and Silicon Carbide.
Product Parameters
| Properties |
Unit |
99.5% Al2O3 |
99% Al2O3 |
96% Al2O3 |
ZrO2 |
SiC |
| Volume Density | g/cm³ | ≥3.90 | ≥3.85 | ≥3.65 | ≥6.0 | ≥3.13 |
| Hardness | HRA | 1700 | 1700 | 1500 | 1300 | 2500 |
| Compressive Strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | ≥2200 |
| Bending Strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥400 |
| Thermal Conductivity | W/m.K | 30 | 29 | 24 | 3 | 120~150 |
| Insulation Breakdown | KV/mm | 19 | 18 | 18 | 17 | - |
Why Choose Us?

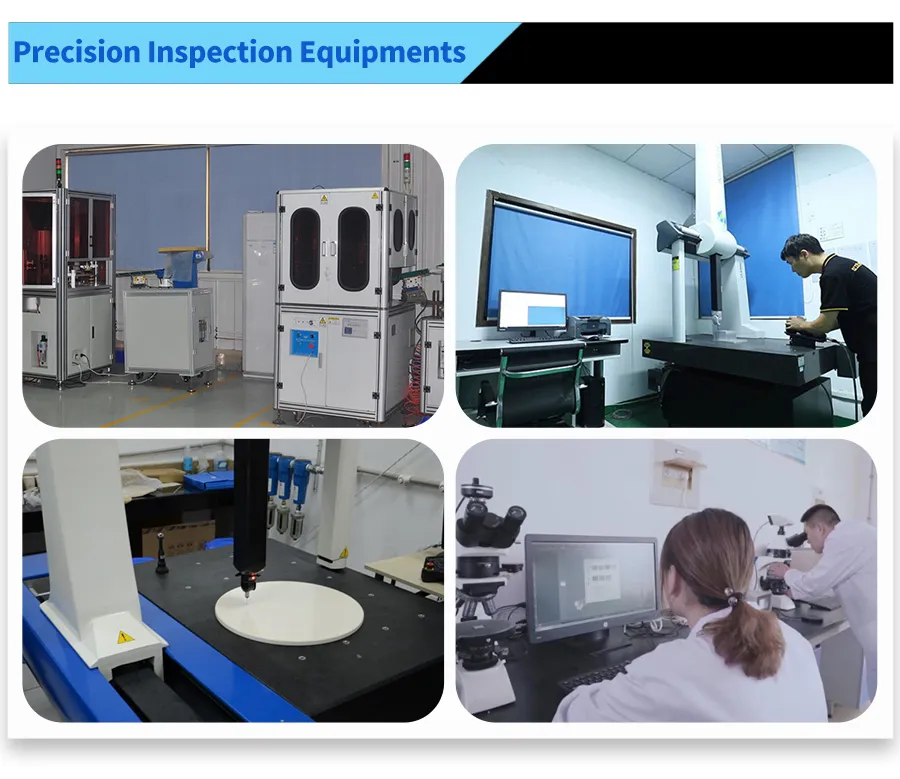

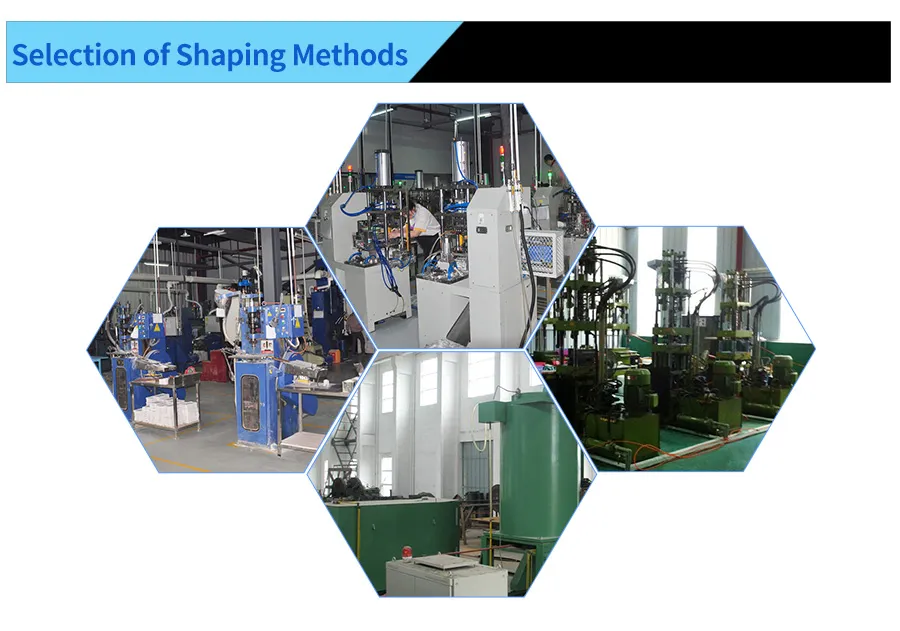

- Own in-house comprehensive types of manufacturing equipment.
- With over 15 years of manufacturing experience in OEM and ODM.
- Rigorous quality control system (IQC, IPQC, OQC, QA, CPK, AQL).
- Support for prototyping, R&D cases, and massive serial production.
Certifications & Partners
Frequently Asked Questions
What is the maximum operating temperature for these ceramic tubes?
Alumina ceramic tubes can withstand up to 1500°C in standard conditions and up to 2000°C in a vacuum atmosphere.
What purity levels of Alumina do you offer?
We provide various purity levels including 95%, 96%, 99%, 99.5%, and 99.8% Al2O3 to suit different application requirements.
Can the ceramic tubes be customized to specific dimensions?
Yes, we offer fully customized dimensions. Outer diameters (OD) can reach up to 800mm, and inner diameters (ID) can be as small as 1mm.
What shapes are available besides round tubes?

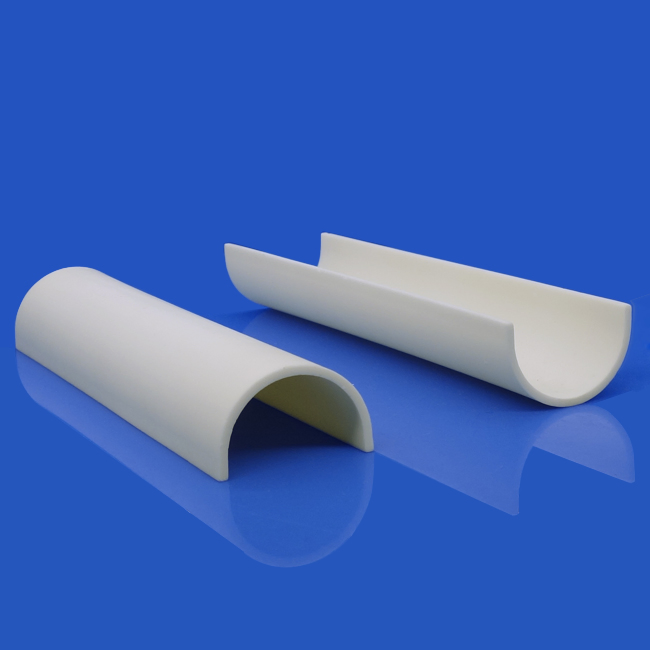

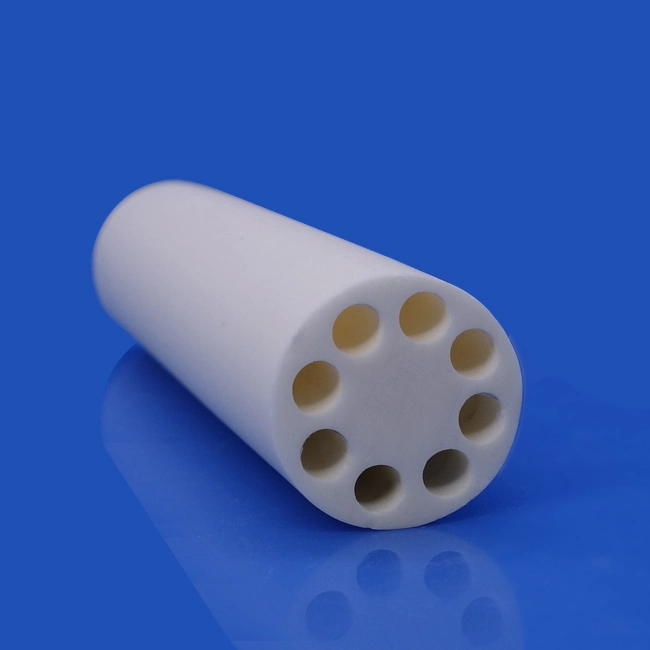

In addition to round tubes, we can manufacture square, oval, and half tubes, as well as tubes with multiple holes.
What surface finishes can be applied to the ceramic?
Tubes can be supplied with a variety of finishes, including polished, glazed, or metalized surfaces depending on your needs.
Are these tubes resistant to chemical corrosion?
Yes, Alumina ceramics offer exceptional corrosion resistance and can withstand strong acids and alkalis like HCL and H2SO4.
