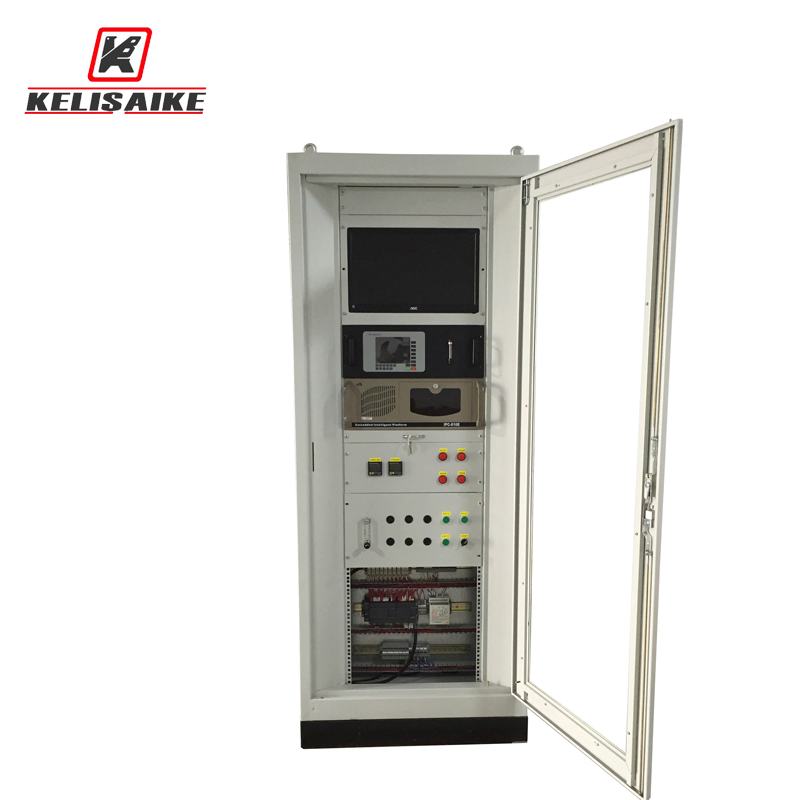

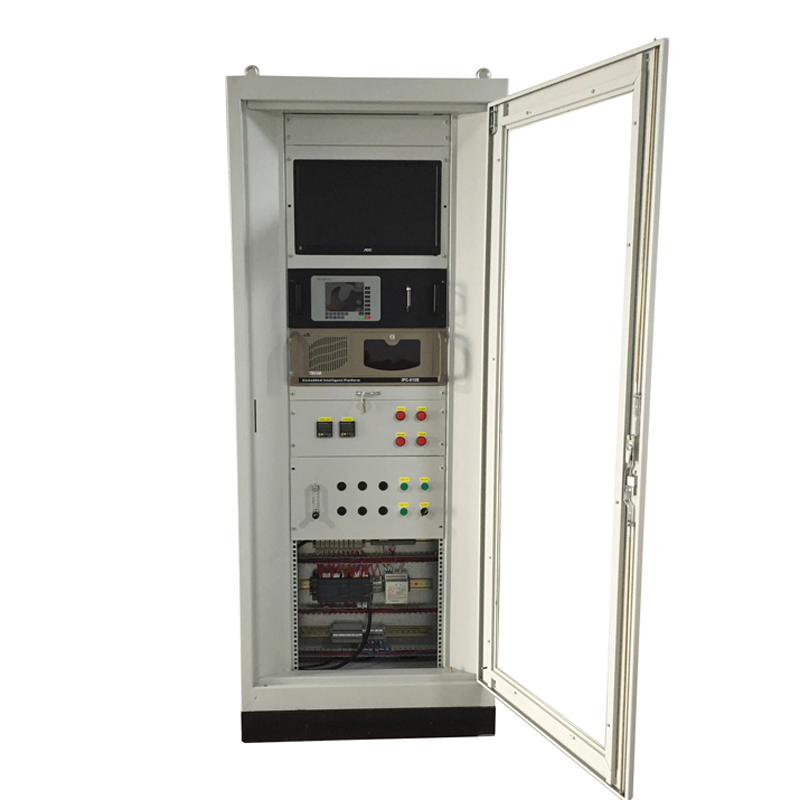

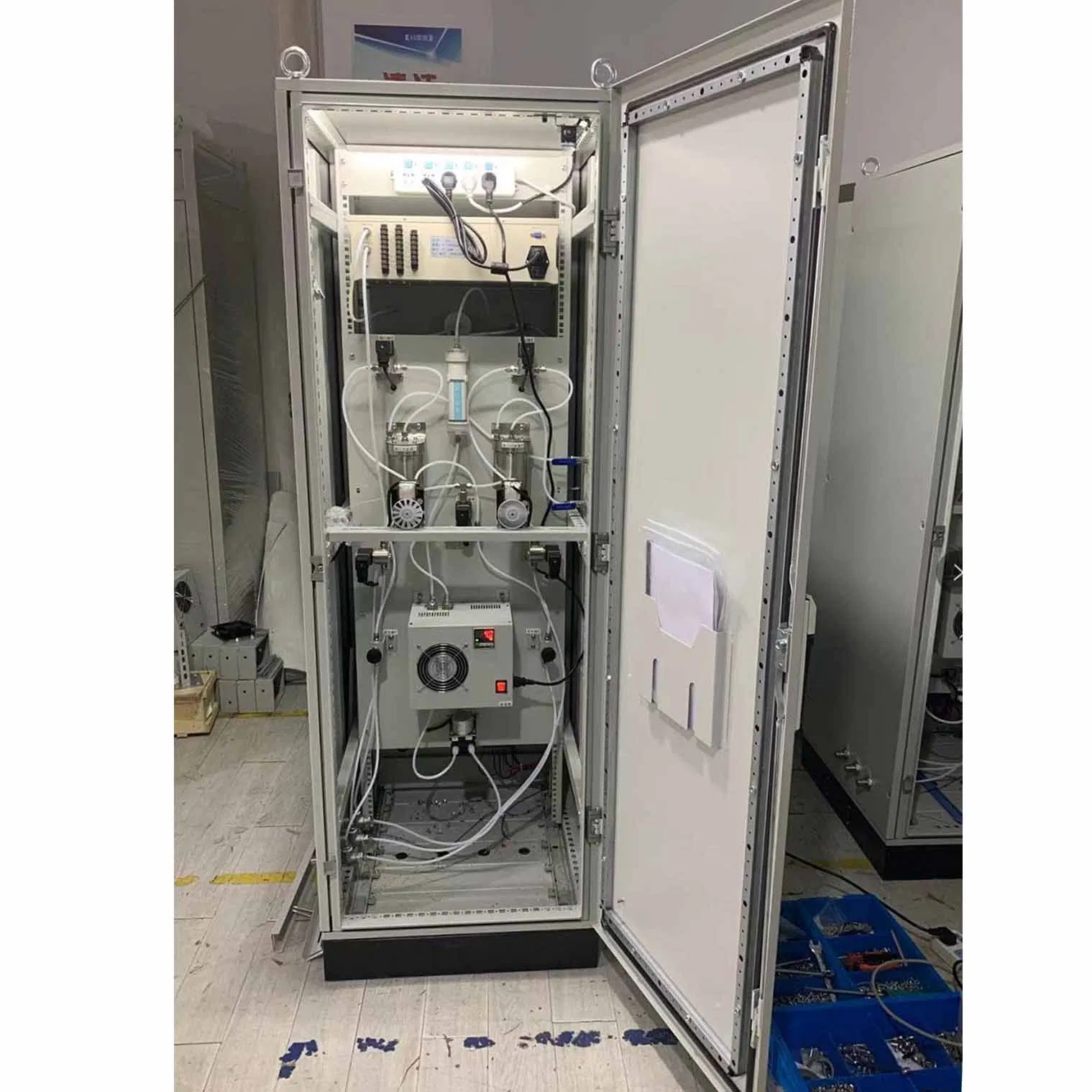

WT-QY800 Continuous Emissions Monitoring System (CEMS)

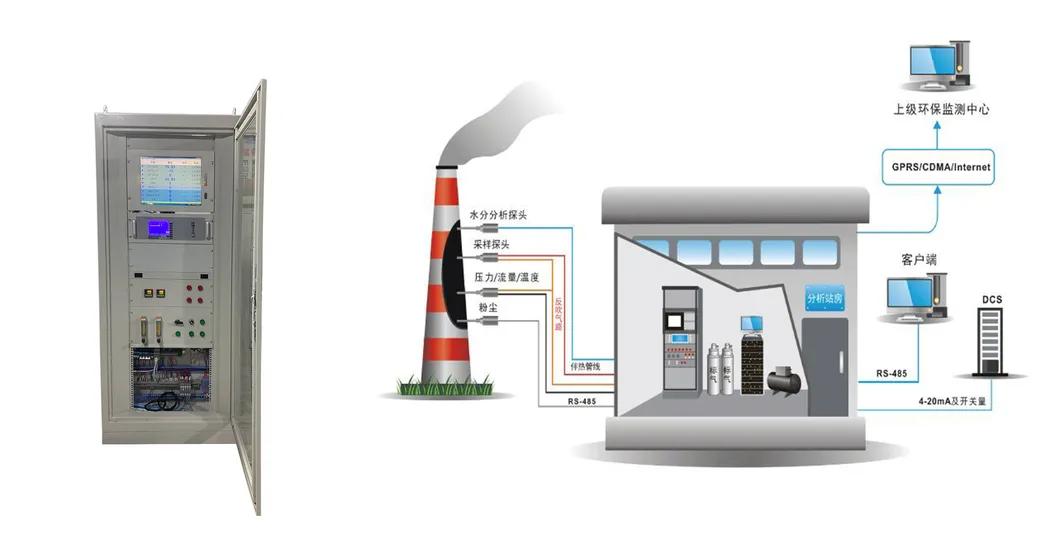

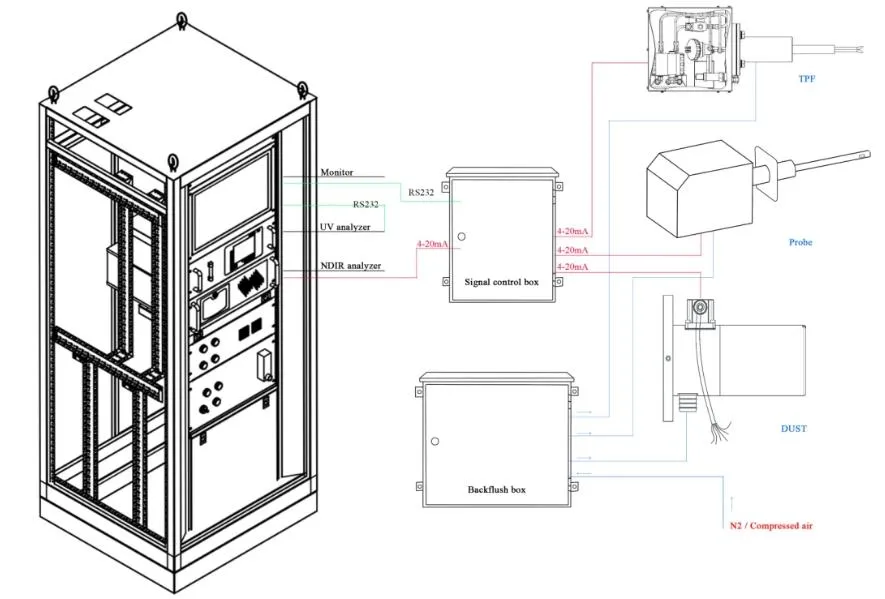

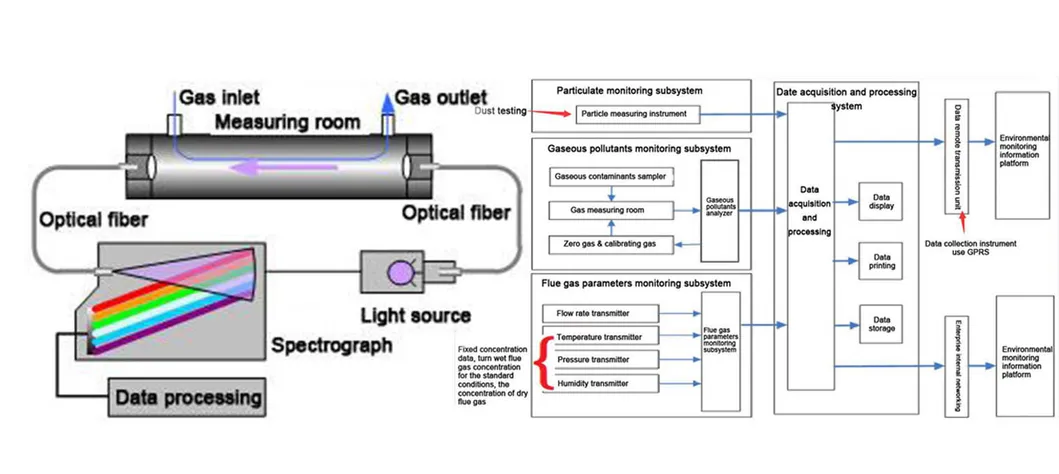

The system is a comprehensive flue gas emission monitoring solution composed of four key subsystems: smoke and dust monitoring, gaseous pollutant monitoring, flue gas parameter monitoring, and data acquisition/processing. It is designed to accurately measure SO2, NOx, O2, dust, temperature, pressure, flow rate, and humidity.

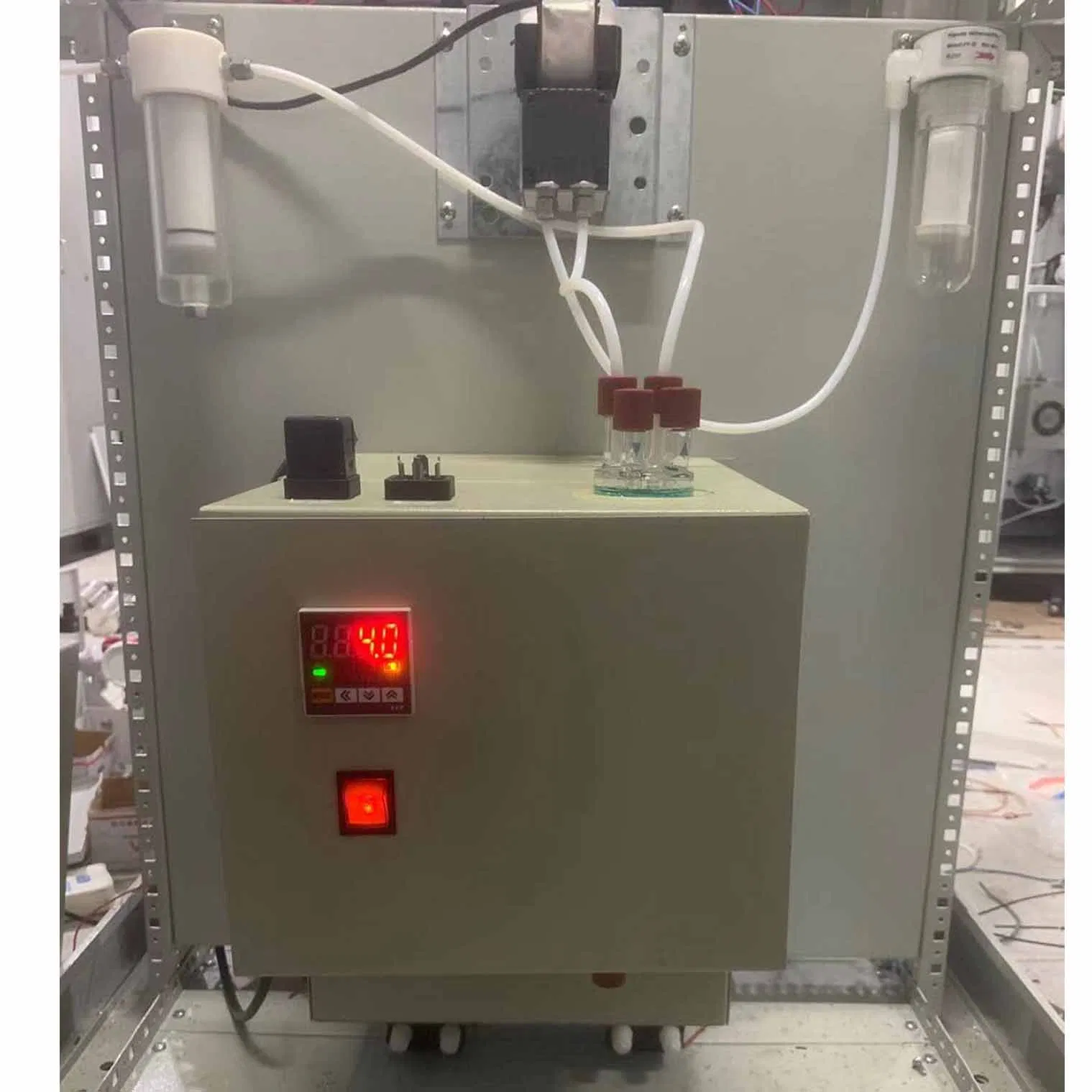

For specific industrial requirements, the system can expand to monitor HCl, HF, CO, CO2, and NO2. Utilizing micro heat tracing gas analysis modules (DOAS and TDLAS technology) and secondary condensation, the system effectively removes water and cools the gas sample. This dry measurement approach solves the instability often caused by humidity fluctuations in applications like waste incineration.
This system is ideal for exhaust emission monitoring and process control in the following industries:
| Project Parameter | Performance Indicators |
|---|---|
| SO2 Detection range | 0 - 20 ppm, 0 - 3000ppm |
| NOx Detection range | 0 - 20 ppm, 0 - 3000ppm |
| O2 Detection range | 0 - 25% (Electrochemical or zirconia) |
| CO Detection range | 0 - 1000ppm (Optional) |
| CO2 Detection range | 0 - 20%Vol (Optional) |
| Dust Detection range | 0 - 20mg/m3, 0 - 500mg/m3 |
| Temperature Range | 0 - 400ºC |
| Pressure Range | -10kPa ~ +10kPa |
| Flow Velocity | 0 - 40m/s |
| Humidity Range | 0 - 40%Vol |
| Ambient Temperature | 5ºC ~ 45ºC |
| Sample Gas Flow | 0.3 - 1.0 L/min |
| Signal Transmission | RS485, 4-20mA |
| Protection Grade | Cabinet IP42, others IP65 |
