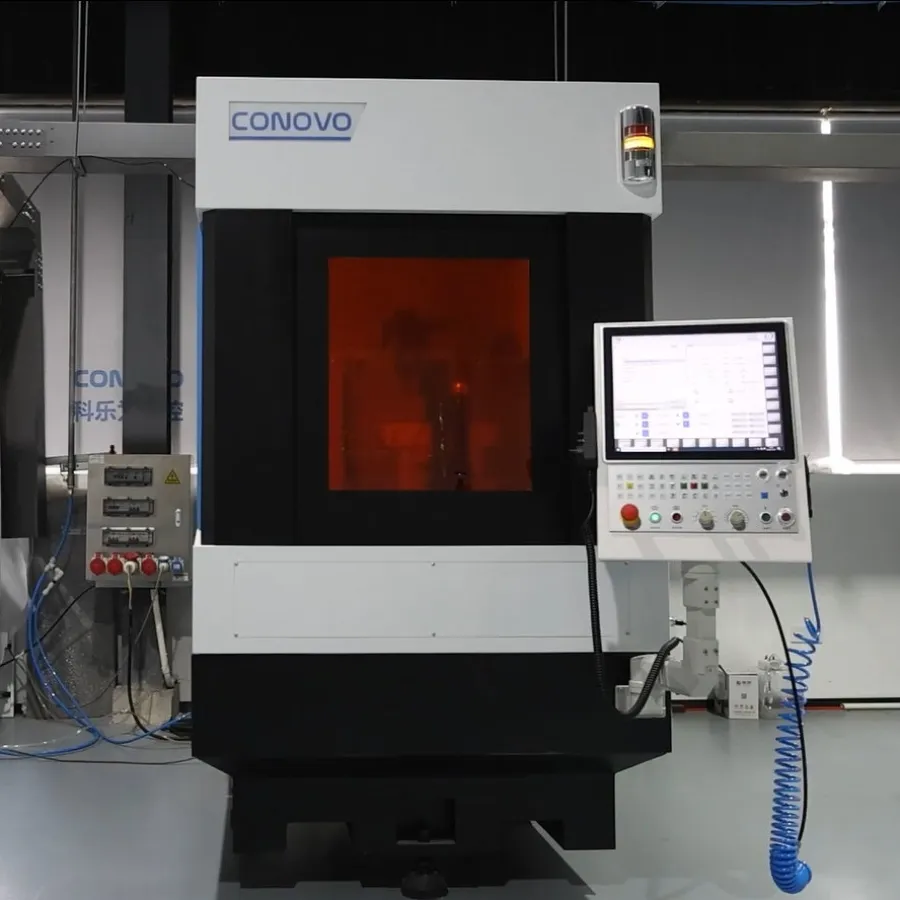

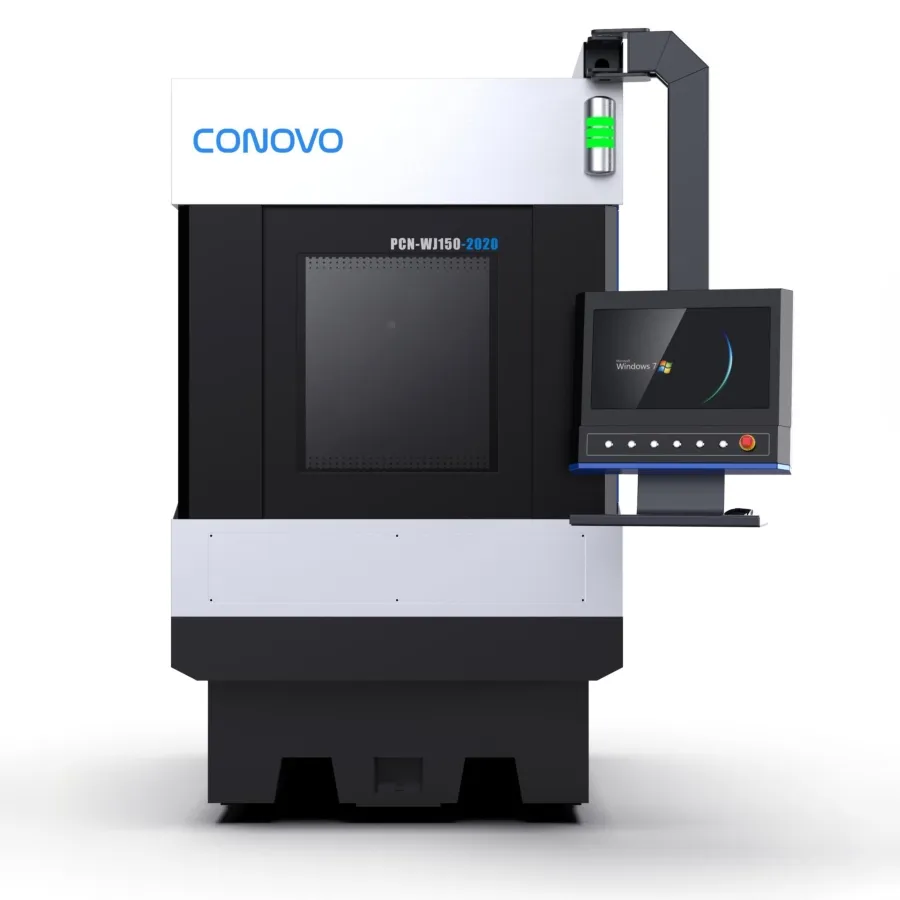

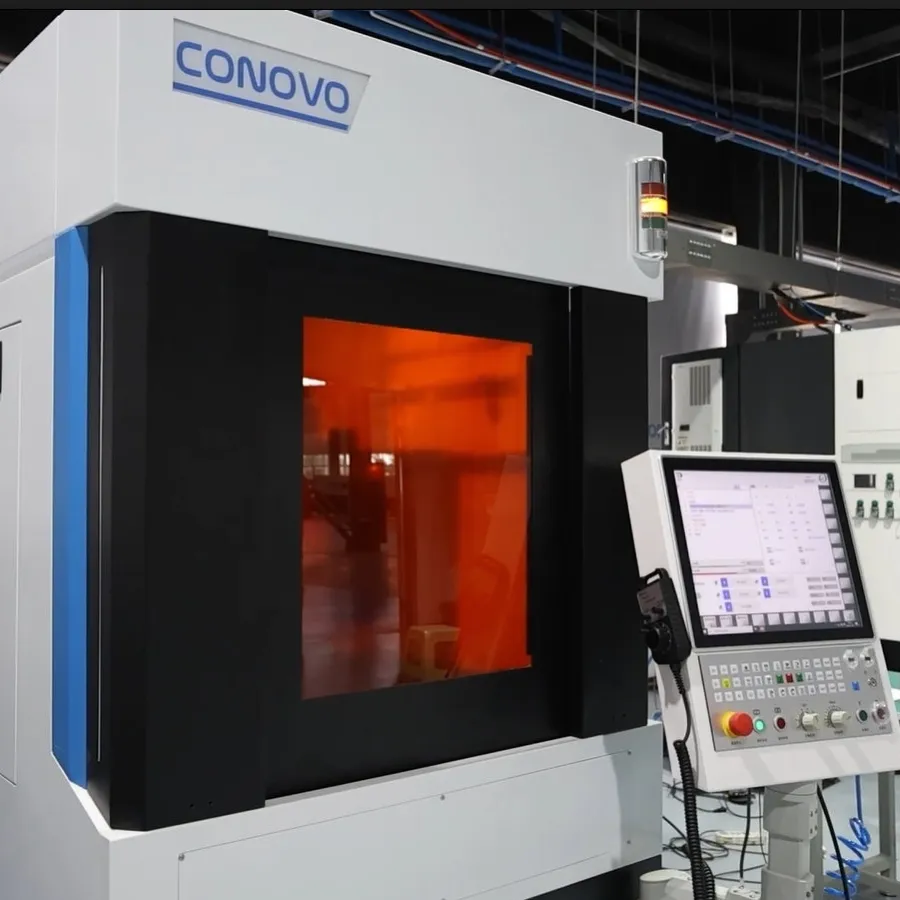

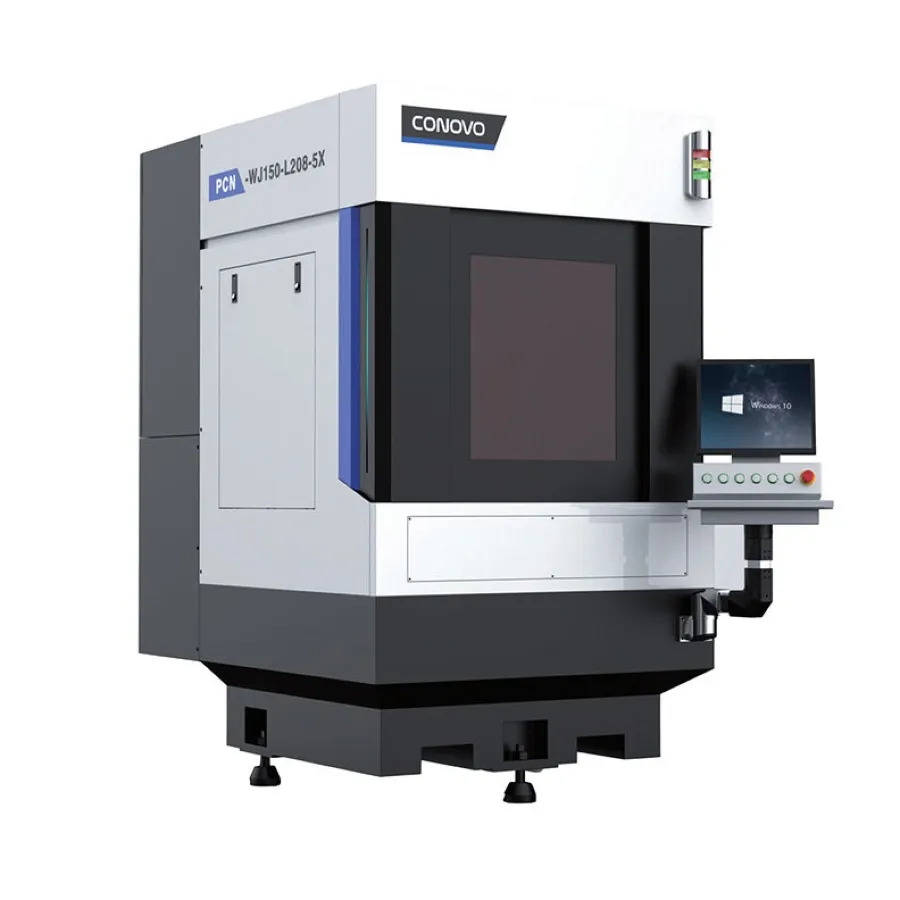

FIVE-AXIS PRECISION WATER-GUIDED LASER CUTTING MACHINE
Experience the cutting edge of micro-machining with our state-of-the-art 5-axis laser micro-jet system. This innovative technology combines high-power laser precision with water-jet guidance, delivering unparalleled edge quality and minimal heat-affected zones for complex 3D geometries.
Engineered for high-accuracy industries, this machine excels in processing challenging materials such as titanium alloys, ceramics, and composites. The integrated micro-jet technology cools the cutting zone instantly, removing debris in real-time to ensure burr-free, ultra-clean results.
| Parameter Item | Specifications | |
|---|---|---|
| Cutting Area | Translational A-Axis | 200mm X 80mm X 100mm |
| Rotary A-Axis | ±110° | |
| Rotary C-Axis | 360° | |
| Main Unit Shape | 1.7M X 1.22M X 2.14M | |
| Laser Source | Pulsed Solid-State Green Light 100~400W | |
| Power Supply | 3-Phase 5-Wire, 380V ±5%, 50Hz | |
| Drive Method | Linear Motor with Grating Full Closed-Loop Servo Control | |
| Equipment Control | Dedicated CNC and Process System | |
| Base Structure | Mineral Casting Base | |
Si, Ge, SiC, GaAs, InP, GaP, CdTe, SiGe, etc.
Al, Fe, Au, Ag, Cu, CuBe, Mg, W, WC, Ni, Ti, Co, Cr
Carbon Fiber, CMC, AlN, AlO, SiN, AlTiC, ZrO, CBN, PCD

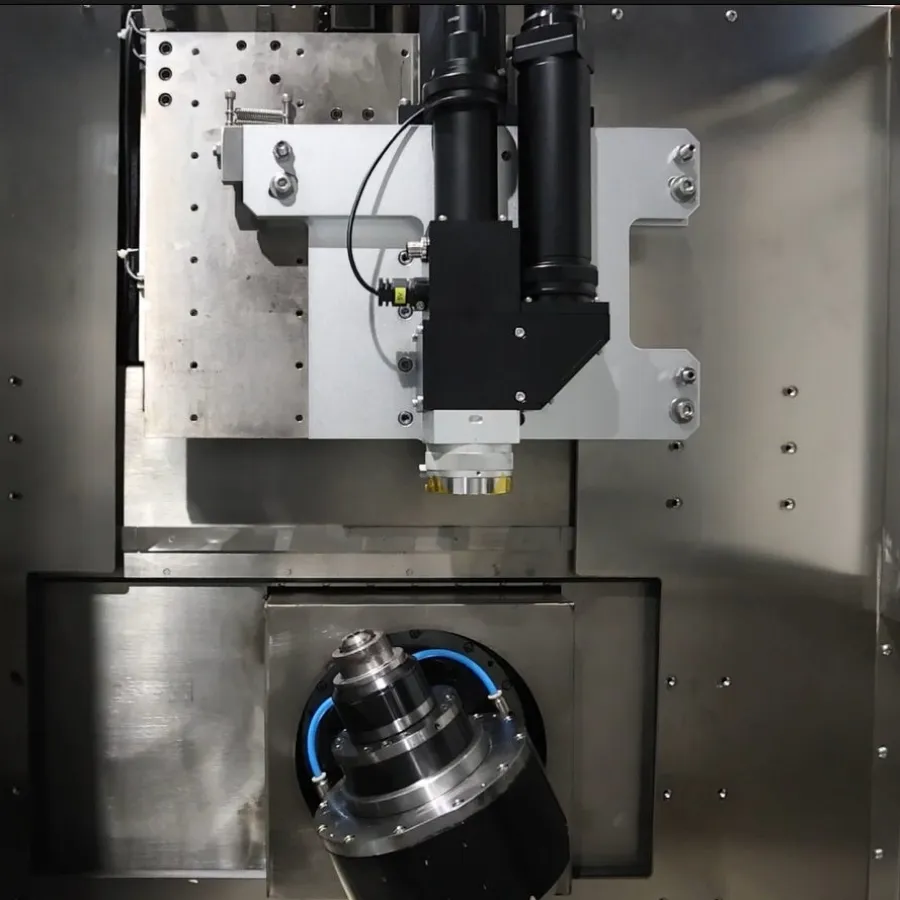

5-Axis Simultaneous Motion
Complex 3D cutting and angled drilling
Laser Micro-Jet Technology
Water-guided beam for debris flushing
Minimal Heat-Affected Zone
Prevents warping and micro-cracks
Burr-Free Edges
Smooth surfaces requiring no post-processing
