Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
1 / 5
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology
Precision Laboratory Core Cutter with Advanced Diamond Wire Technology

Precision Laboratory Core Cutter with Advanced Diamond Wire Technology

Customization: Available
After-sales Service: Yes
Warranty: 1year
Send Inquiry

Product Description

Basic Specifications

Model NO.
GD-660A
Application
Petroleum Machinery Manufacturing, Lab
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Structure Type
Gantry Type
Material Range
Glass, Jade, Crystal, Ceramics, Shale, Coal, Graphite
HS Code
8544
Capacity
100 Sets Per Month

Product Overview

Laboratory Core Trimmer Geology Core Logging Cutter Diamond Wire Cutting Machine

Diamond Wire Cutting Machine View 1

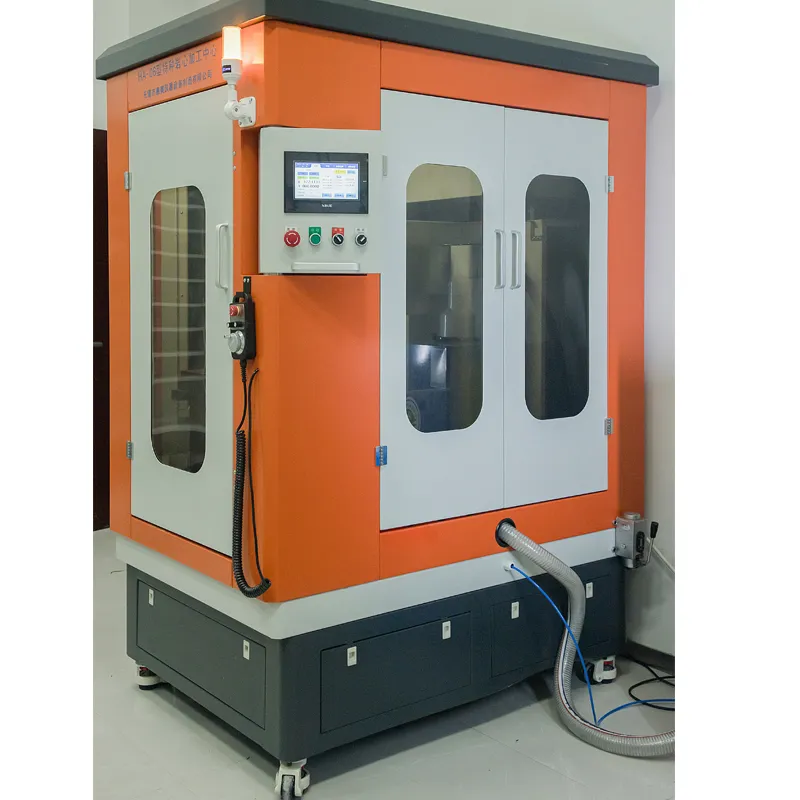

Diamond Wire Cutting Machine View 2
Diamond Wire Cutting Machine View 3
Unidirectional Circulation: Special diamond wire is used for unidirectional circulation, eliminating the need to stop and change direction during processing.
Superior Speed: The cutting speed is more than 50% faster than traditional reciprocating wire structure machines.
High Surface Quality: Unidirectional circulation ensures a significantly better surface finish compared to standard cutting methods.
Durable Structure: Machine parts are made of traditional castings, artificially aged and manually scraped to ensure long-term stability and zero deformation.
Precision Components: Equipped with semi-automatic oil pumps, high-precision guide rails, and precision rolling screws with imported bearings.
Advanced Control: CNC system with PLC touch screen operation for simplified and efficient management.

This circular diamond wire cutting machine is specifically designed for slicing brittle materials including shale, coal, graphite, semiconductor material silicon, non-ferrous metal glass, and rare earth materials. It effectively processes materials with a Mohs hardness below 7.2.

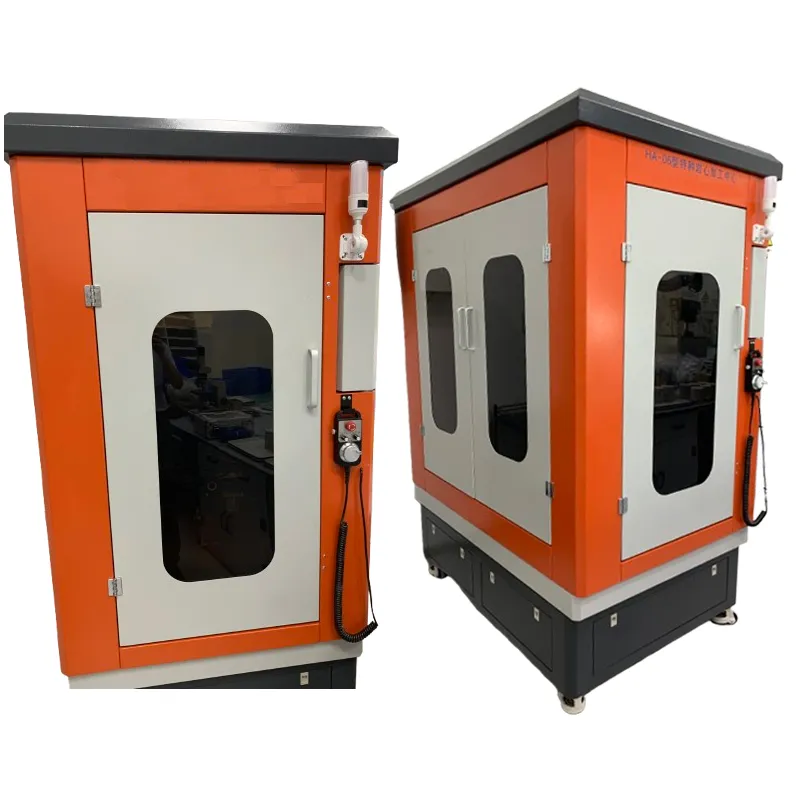

Core Cutter Details

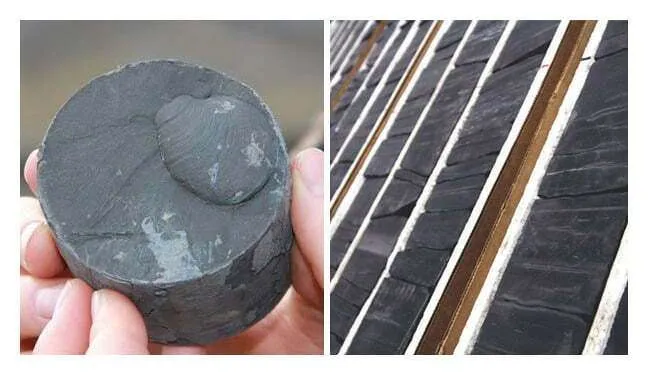

Cutting Sample

Technical Parameters

■ Voltage: 220V■ Power: 1000W
■ Travel: X-axis / Y-axis■ Max Processing Size: 500mm * 500mm
■ Diamond Wire Diameter: Φ0.34 ~ 1 mm■ Cutting Speed: 0-6 mm/min
■ Cutting Method: Cross-cutting■ Machine Weight: 800KG
■ Overall Dimensions: 1400*1000*1900mm■ Principle: Automatic cutting & stop

Frequently Asked Questions

1. What materials is this machine suitable for? It is designed for brittle materials with a Mohs hardness below 7.2, including shale, coal, graphite, semiconductor silicon, glass, and magnetic materials.
2. How does the unidirectional circulation system improve efficiency? By using a continuous loop, the machine doesn't need to pause to reverse direction, making it 50% faster than reciprocating wire machines.
3. What is the maximum material size that can be processed? The machine supports a maximum processing size of 500mm x 500mm.
4. Is the machine easy to operate for laboratory staff? Yes, it features a CNC system with a PLC touch screen, offering automated cutting and an automatic stop function upon completion.
5. How does the machine ensure long-term precision? The main structure uses traditional castings that have been artificially aged and manually scraped to prevent any deformation over time.
6. Does the machine include safety features? Yes, the diamond wire running line is fully enclosed within a protective shell shield for operator safety.
