Basic Information
Power Supply
AC 220V 50Hz or 60Hz
Scanning Speed
0-3950r/Min.Adjustable
Testing Method
Wet Testing
Repeatability Error
Better Than 0.5%
Measurement Principle
Full Range Laser Diffraction
Measurement Time
Typical Value<10s, Entire Process<2min
Production Capacity
500 Sets/Year
Product Overview
◈ Laser Intelligent Management System
◈ Sharp Fiber Optic Output Semiconductor Laser
◈ Dual Lens Technology
◈ Overspeed Acquisition Motherboard
◈ Sample Window Coating Process
◈ Dispersant Automatic Filling System

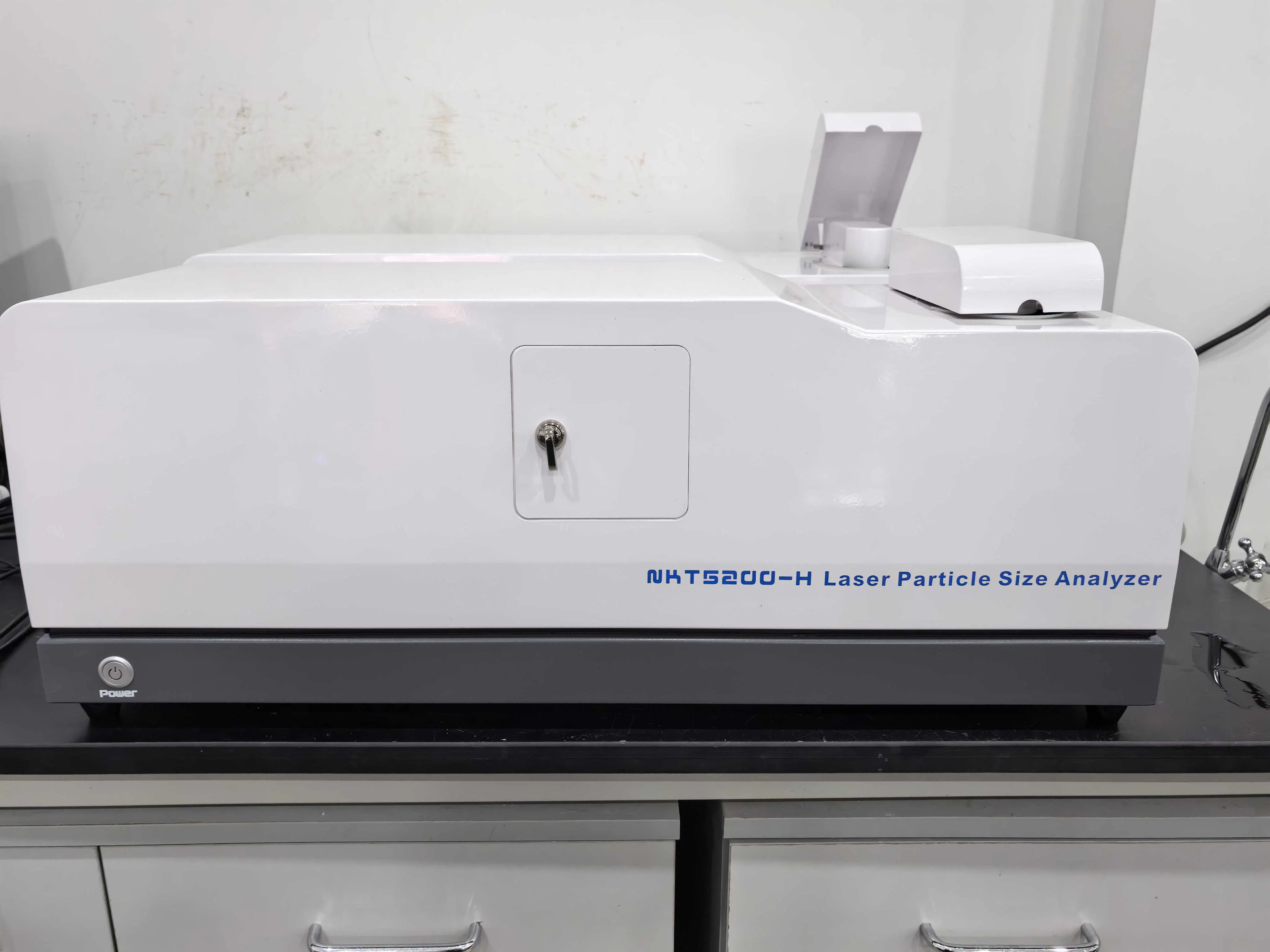

NKT5200-H adopts the most advanced Mie scattering principle and converging light Fourier transform optical path internationally. The use of Fourier transform lens and filtering lens ensures the measurement accuracy of the instrument. The high-density array probe and full range seamless connection testing method ensure the accuracy and repeatability of the test results. The unique wet circulation dispersion system adopts a pipeline residue free design, ensuring no particle deposition during particle testing and no waste liquid accumulation after testing drainage. This not only proves the accuracy of testing different samples, but also ensures the accuracy of the second test, making the test results more authentic and reliable.
Application Fields
NKT5200-H laser particle size analyzer is widely used in various metal and non-metallic powders, such as heavy calcium, light calcium, talc, kaolin, graphite, wollastonite, brucite, barite, mica powder, bentonite, diatomaceous earth, clay, silicon dioxide, garnet, zirconium silicate, zirconia, magnesium oxide, zinc oxide, river sediment, lithium battery materials, catalysts, phosphor, cement, abrasive, medicine, pesticide, food, paint, dye, ceramic raw materials, chemical materials, nanomaterials, paper filler coatings, various lotion, etc.
Technical Parameters
Measurement Principle
Full range laser diffraction (GB/T19077-2016/ISO13320:2009)
Measurement Range
0.1 - 1000 μm
Accuracy/Repeatability
≤ ± 0.5% (using specified NIST traceable standard particles)
Laser Source
Imported ultra-high stability semiconductor fiber laser (635nm, up to 20mW)
Detection System
86 channel uniform cross and area compensation multi-directional array
Filtering Method
Dual lens filtering technology (Fourier transform lens + filtering lens)
Optical Alignment
Mechanical center + optical center dual positioning fully automatic centering system
Circulation Volume
120ml - 800mL adjustable
Online Ultrasound
Power ≥ 60W, software adjustable
Operation System
English interface, compatible with Windows 7/10/11/XP
Dimensions
800mm x 280mm x 335mm
Frequently Asked Questions
Q1: What is the measurement range of the NKT5200-H?
The NKT5200-H offers a wide measurement range from 0.1 to 1000 μm, suitable for various particle analysis needs.
Q2: What testing method does this instrument use?
It utilizes wet testing based on the Mie scattering principle and full-range laser diffraction technology.
Q3: How fast can it complete a measurement?
The typical measurement time is less than 10 seconds, and the entire testing process is usually completed within 2 minutes.
Q4: Is the laser system durable?
Yes, it features a Laser Intelligent Management System that extends the laser's life to up to 40,000 hours, theoretically eliminating the need for replacement.
Q5: What is the accuracy of the results?
The instrument provides high precision with repeatability and accuracy errors both better than or equal to ±0.5% using NIST traceable standards.
Q6: Does it support automated operation?
Yes, it includes a fully automatic SOP (Standard Operating Procedure) that can be edited for automatic water intake, dispersion, drainage, and cleaning.
