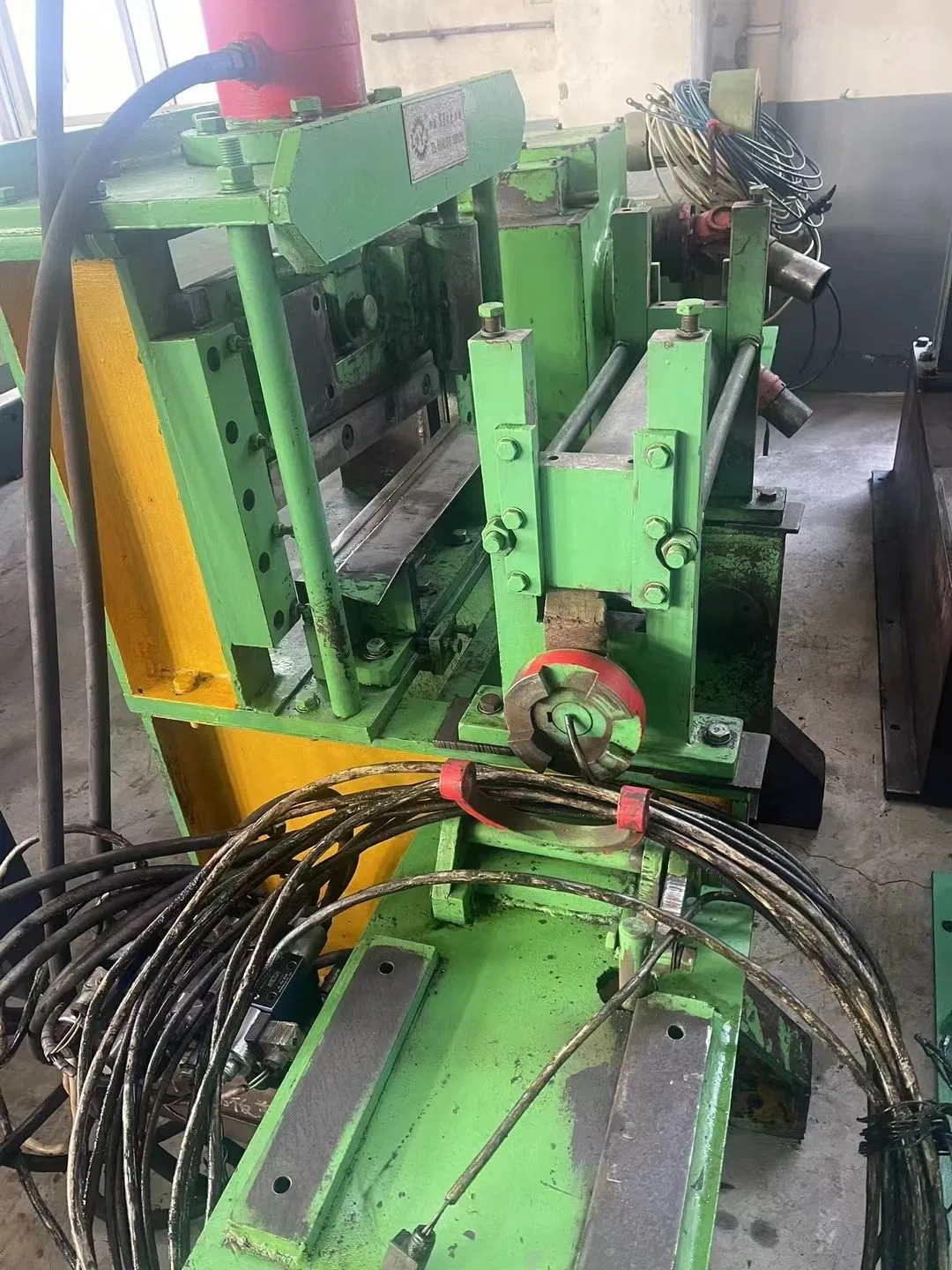

| Model NO. | Second hand 3*350 hydraulic slitting line | Condition | Used |
| Customized | Available | Theory | Inverter |
| Application | Industry, Decoration | Type | Pipe Cutting Machine |
| Specification | 80 * 6 meters, 100 tons | Origin | China |
| HS Code | 8455101000 | Production Capacity | 1000 units |
| Sheet Thickness | 0.2~2.0mm | Coil Width | 50-350mm |
| Line Speed | Max 140m/min | Max Coil Weight | 40 tons |
| Coil Material | Plain carbon steel, Electro galvanized sheet, Color steel sheet, etc. | ||
| Steel Grade | Hot-rolling Q345, EN 10149 S355 MC, and ASTM A36 | ||

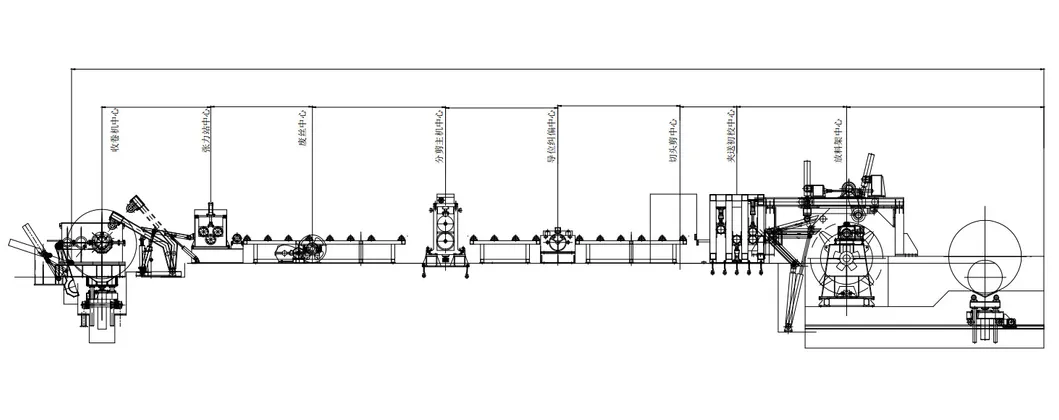

Technological Process
Introduction: A slitting line is a series of machines used to slit broad steel coils into narrower coils with specific width. The full width coil was first uncoiled and flattened into flat strip. The strip is then slit into narrower strips of narrower required width. The strips are then be recoiled into smaller coils.
The equipment is controlled by PLC control system which ensures high precisely slitting and easy operation. It can be equipped with auto coil position correction which allows the uncoiler to automatically adjust its position along the signal from the coil position sensor.
| No. | Technical Item | Value / Detail |
|---|---|---|
| 1 | Manufacturer Location | Taiwan, China |
| 2 | Manufacturing Year | 2018 |
| 3 | Slitting Thickness | Max 3.0mm |
| 4 | Slitting Width | Max 350mm |
| 5 | Slitting Speed | Max 140m/min |
| 6 | Total Installation Power | 220KW |
| 7 | Spindle Diameter for Cutters | Φ 200mm |
| 8 | Floor Area Requirement | 30m long x 10m wide |
| 9 | Power (Recoiler / Slitter) | 75KW / 75KW |
| 10 | Load-bearing (Uncoiler / Recoiler) | At least 25 tons of coil |
| 11 | Number of Knives | 84 |
| 12 | Electrical Components | High-Quality Brand Components |
| 13 | Yield / Tensile Strength | 350 Mpa / 600 Mpa Max |
The company was established in 2001, focusing on the acquisition and transfer of second-hand welded pipe units. We provide a one-stop solution for customers including installation, commissioning, maintenance, and customization services. With over 30 years in the high-frequency welded pipe industry and 17 years of specialized manufacturing experience, we have supported more than 2,000 enterprises with high-quality equipment and service.
We maintain a large inventory of real second-hand sources, allowing for rapid integration of entire production lines. Our team provides global installation and commissioning services to ensure rapid production of qualified steel pipes.
The machine can process a maximum coil width of 350mm.
It is compatible with plain carbon steel, electro galvanized sheet, color steel sheet, and similar materials.
This unit was manufactured in 2018 and originated from Taiwan, China.
The line speed reaches a maximum of 140 meters per minute.
We offer a 12-month guarantee, 24-hour engineer response, and lifelong technical support.
The floor area requirement is approximately 30 meters long and 10 meters wide.
