Stylo Laser
1 / 5
| Model NO. | 1350 slitting line |
| Condition | Used |
| Customized | Customized |

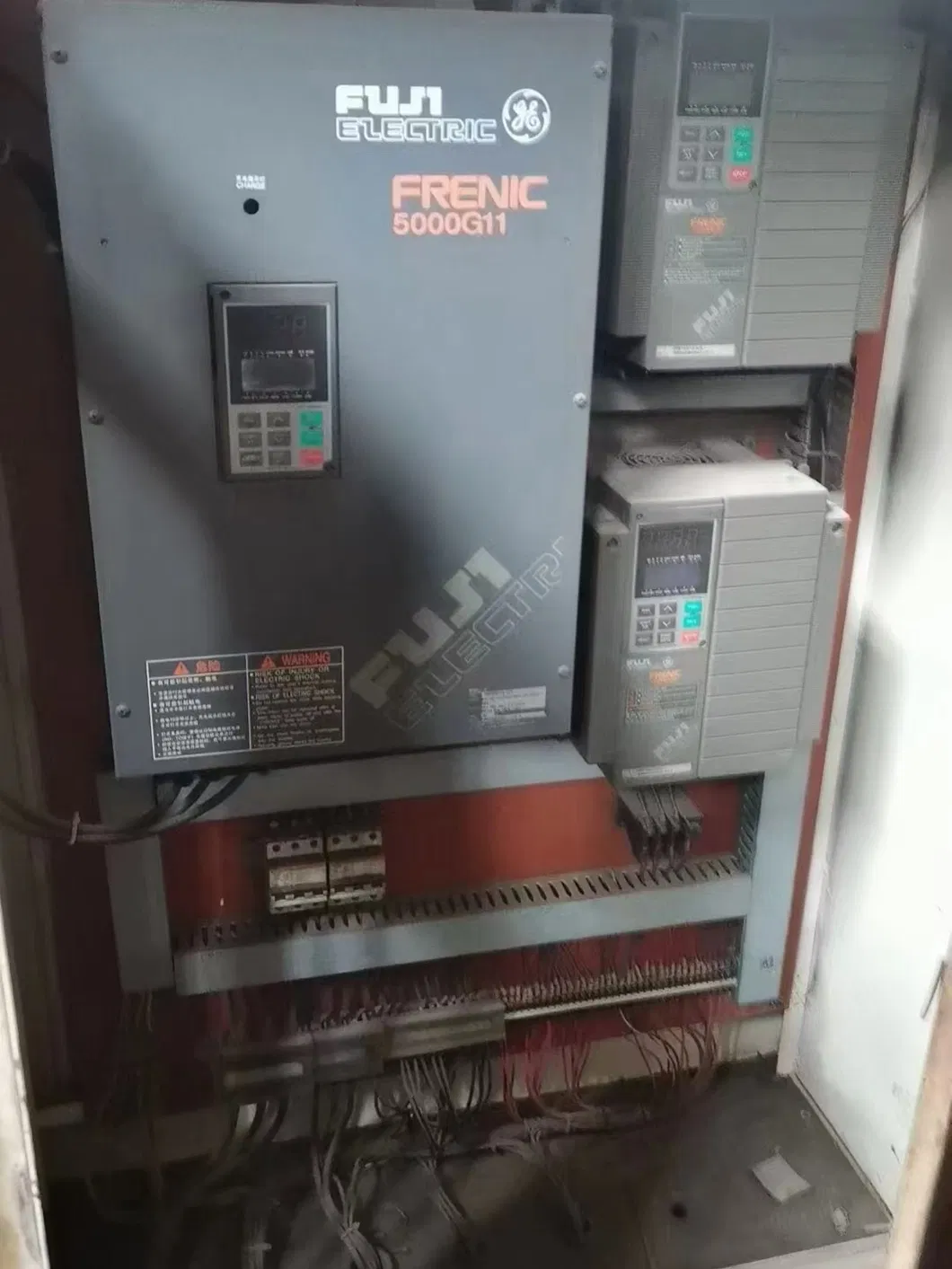

| Theory | Inverter |
| Application | Industry, Decoration |
| Type | Pipe Cutting Machine |
| Transport Package | Wooden Package / Nude |
| Specification | 80 * 6 meters, 100 tons |
| Origin | China |
| HS Code | 8455101000 |
| Production Capacity | 10 sets/Year |
| Coil Width | 500-1350mm |
| Line Speed | Max 140m/min |
| Sheet Thickness | 0.3~2.5mm |
| Coil Weight | Max. 40 tons |
| Coil Material | Plain carbon steel, Electro galvanized sheet, Color steel sheet, etc. |
| Slitting Accuracy | Max 3.0mm |
| Steel Grade | Hot-rolling Q345, EN 10149 S355 MC, and ASTM A36 |
| Manufacturer Year | 2002 |
| Slitting Thickness | Max 3.0mm |
| Slitting Width | Max 1350mm |
| Slitting Speed | Max 140m/min |
| Total Installation Power | 220KW |
| Spindle for Disc Cutters | Φ 200mm |
| Floor Area | 30m long and 10m wide |
| Power of Recoiler / Slitter | 75KW / 75KW |
| Load-bearing (Uncoiler/Recoiler) | At least 25 tons of coil |
| Number of Knives | 84 |
| Yield Strength | 350 Mpa maximum |
| Tensile Strength | 600 Mpa maximum |
Specializing in second-hand welded pipe units, providing one-stop solutions including installation, commissioning, maintenance, and customization. With decades of industry experience, we have supported over 2000 enterprises with high-quality equipment and technical war.
A: The 1350 slitting line can handle coil widths ranging from 500mm up to a maximum of 1350mm.
A: It is designed to process sheet thicknesses between 0.3mm and 2.5mm.
A: The machine achieves a high line speed of up to 140 meters per minute.
A: It is compatible with plain carbon steel, electro galvanized sheets, color steel sheets, and hot-rolling steel like Q345 and S355.
A: We provide a 12-month guarantee along with life-long technical support and a 24-hour engineer response system.
A: Yes, we offer customized services and professional suggestions to adjust machine design according to your specific industrial needs.
