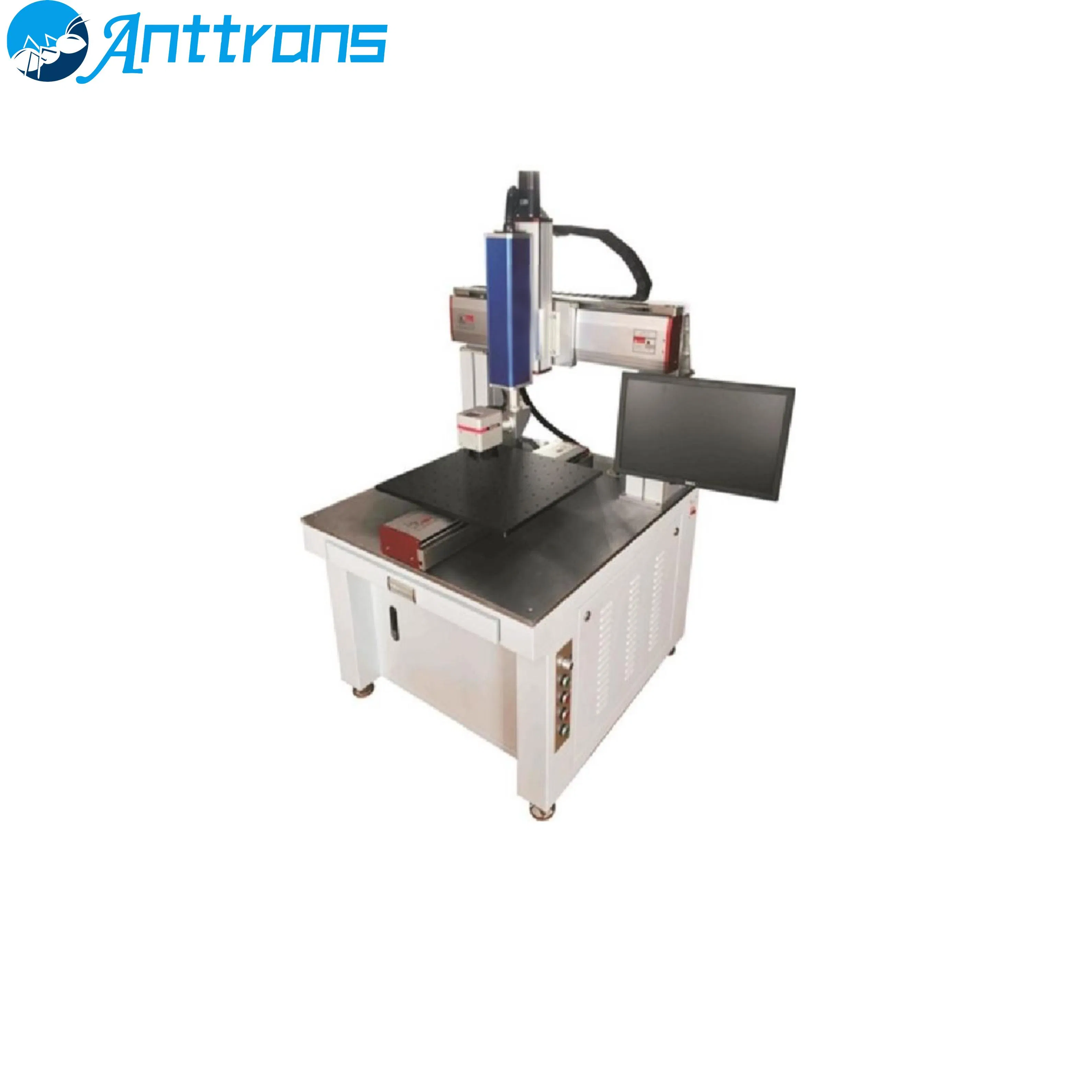

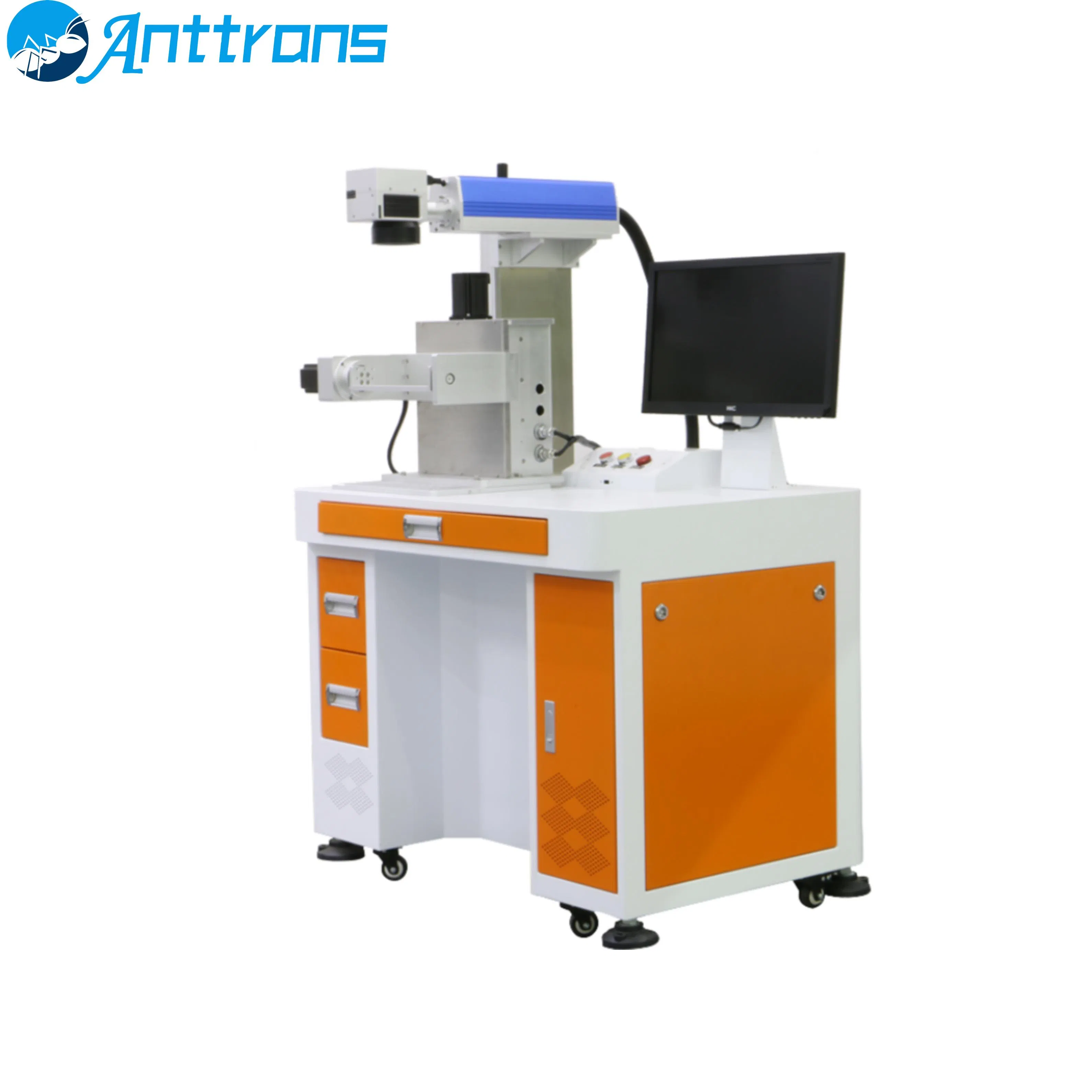

Versatile Three-Axis Laser Processing System for Industrial Applications

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

📊

Basic Information

Model NO.

AT-61167

Origin

China

Package Size

150.00cm * 90.00cm * 150.00cm

Gross Weight

2000.000kg

📝

Product Description

The three-axis laser processing system is a high-performance device specifically designed for industrial precision manufacturing. It integrates high-power fiber laser technology, precision motion control, and intelligent software systems to achieve high-precision etching, drilling, slotting, and cutting of materials such as metals and ceramics. It is widely applied in fields such as consumer electronics and microelectronic device manufacturing.

🚀

Product Features

Dual-mode Processing High-speed Galvanometer Scanning for small areas & Precision Platform Movement for large-area processing.

High Precision Minimum 20μm Spot Size with micron-level positioning and optional off-axis visual positioning.

Material Adaptability Suitable for metals (Stainless steel, titanium), ceramics (Alumina, zirconia), and semiconductors.

Multi-functional Supports precision etching, drilling (min 20μm), slotting, and high-quality edge cutting.

Industrial Reliability Designed for 24/7 continuous operation with modular components and comprehensive cooling.

🛠️

Product Applications

Consumer Electronics Machining components for phones, tablets, camera modules, and circuit boards.

Instrumentation Micro-machining of internal structural components and medical device parts.

Microelectronics Semiconductor packaging components and MEMS device fabrication.

Mold Forming Microstructure texture processing and surface treatment for precision molds.

📋

Product Parameters

Category	Parameter	FM-SD50
Laser	Wavelength	1064nm
Laser	Power	50W
Laser	Modulation Frequency	40~1000kHz
Laser	Beam Quality M2	<1.3
Galvanometer	Scanning Range	<50*50mm
Galvanometer	Repeatability	<1μm
Galvanometer	Positioning Accuracy	≤±20μm
XY Worktable	Stroke	300*300mm (customizable)
XY Worktable	Repeatability	≤±5μm
Z-axis	Stroke	200mm
Processing	Minimum Hole Diameter	20μm
Processing	Processing Thickness	≤1mm
Cooling	Cooling Method	Air Cooling
Power	Power Supply	220V 50~60Hz 12A
Dimensions	Dimensions	1000 * 1000 * 1700mm

🏢

Service Scope

Specializing in technical services, development, and exchange. Our expertise includes computer software and hardware, functional glass, new optical materials, and specialized equipment for semiconductor devices. We provide solutions for CNC machine tools, electronic components, electromechanical equipment, and fiber optic technologies, ensuring high-quality processing and material supply for industrial needs.

📷

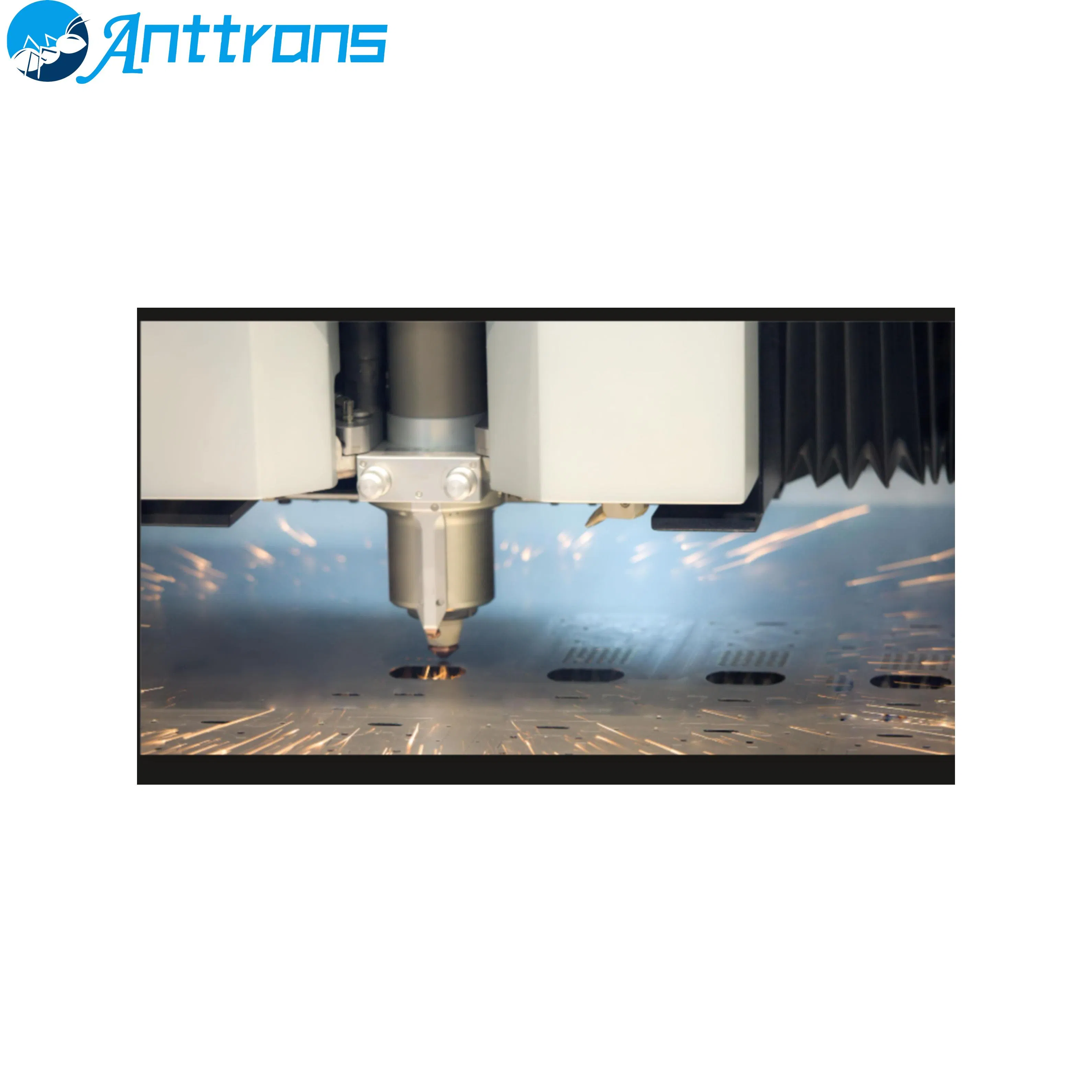

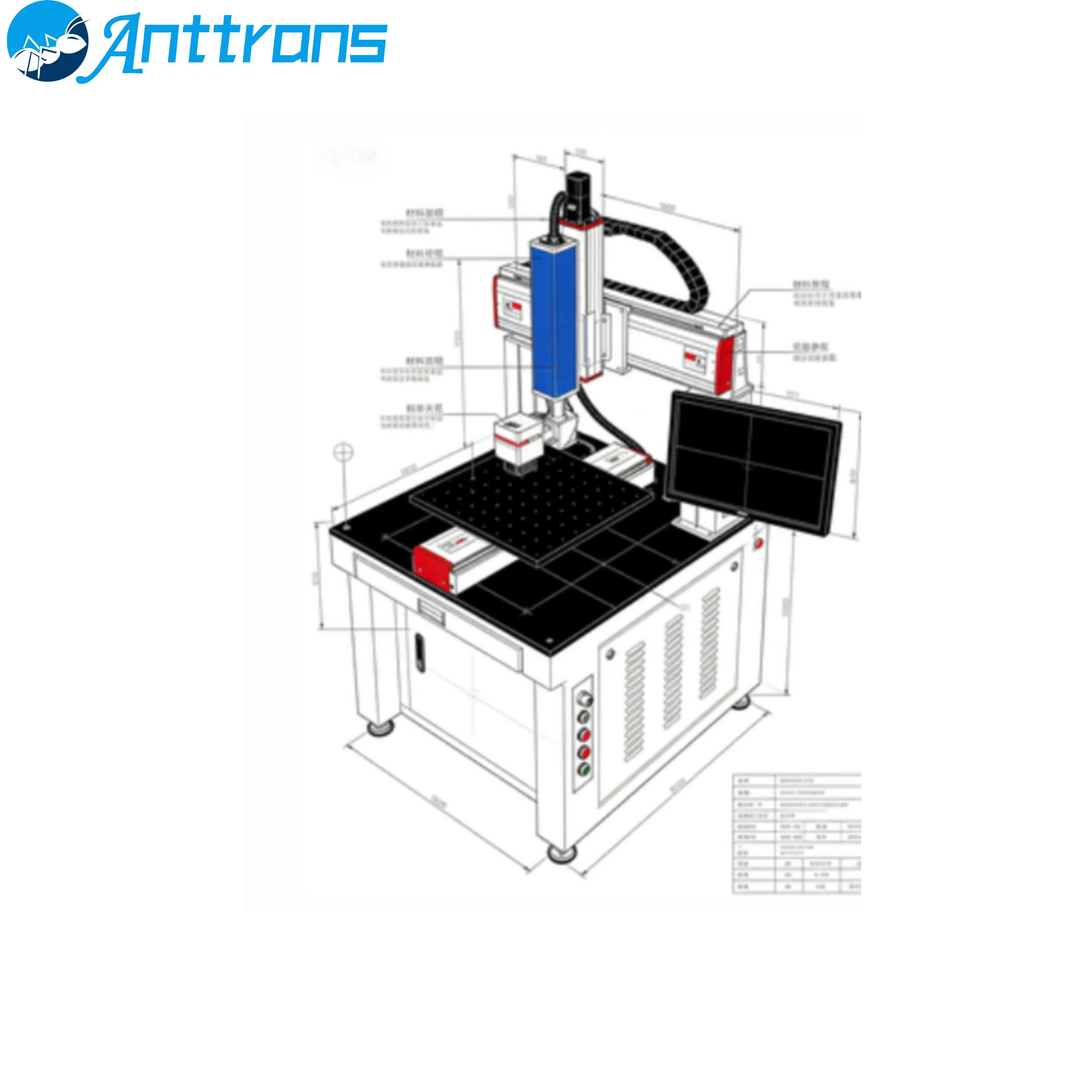

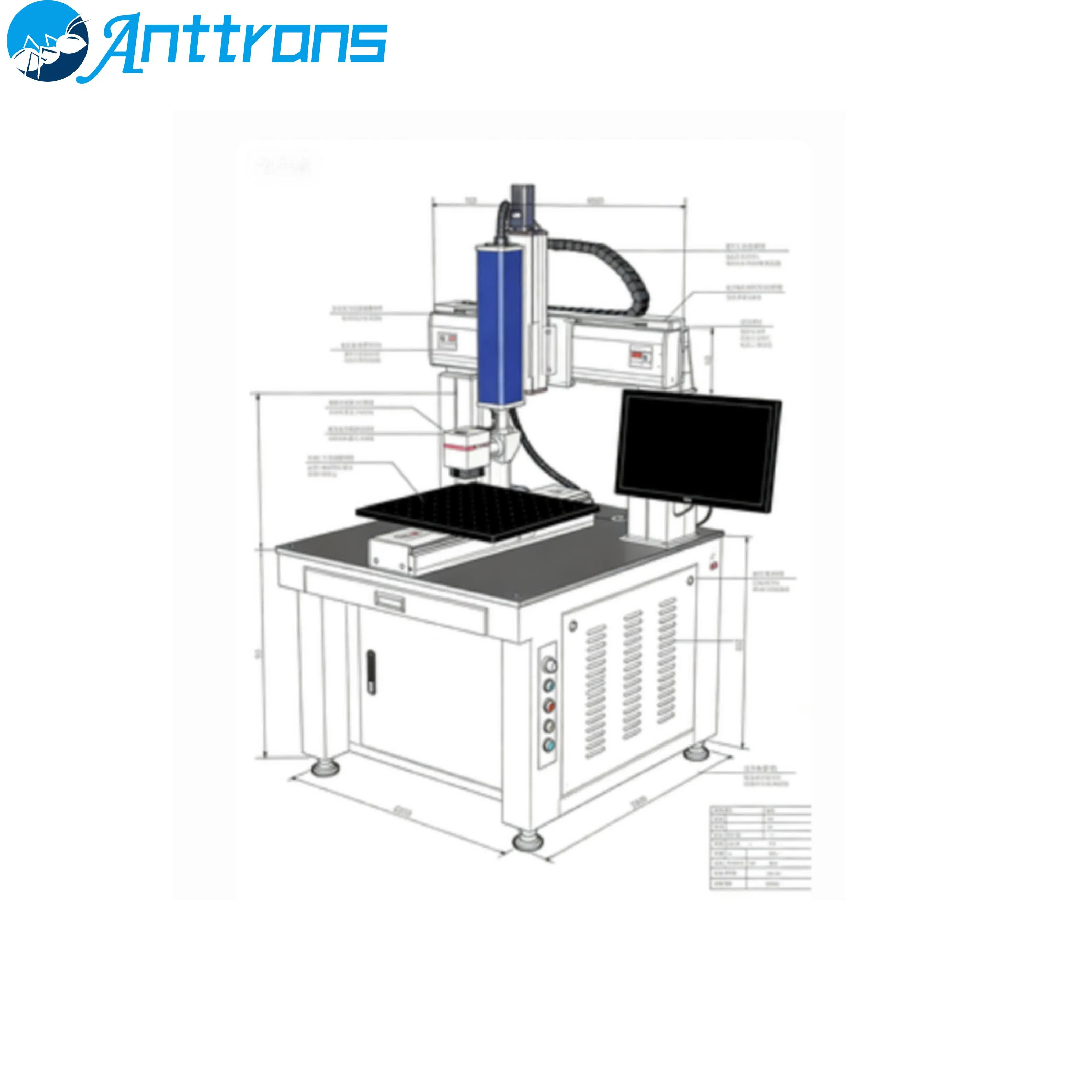

Detailed Photos

❓

Frequently Asked Questions

What materials can this laser system process?

The system is highly versatile and can process metals (stainless steel, aluminum, titanium alloys), ceramics (alumina, zirconia), and various semiconductor or composite materials.

What is the minimum processing feature size?

The system achieves a minimum spot size of 20μm, allowing for ultra-fine drilling and etching with a minimum hole diameter of 20μm.

Is the equipment suitable for long-term industrial use?

Yes, it is designed for industrial-grade reliability, capable of 24/7 continuous operation with a robust cooling system and stable motion control components.

Does the system support large-area processing?

Yes, while the galvanometer scanning handles precision etching in small areas, the precision XY platform allows for larger area processing (standard 300*300mm, customizable).

What are the power requirements for this machine?

The system operates on a 220V 50~60Hz power supply with a maximum power consumption of ≤1200W.
