Basic Specifications
Advantage
Long Service Life
Applicable Industries
Hotels, Garment Shops, Building Material Shops
Transport Package
Plastic Bag, Wooden Box
Production Capacity
500,000
✓
Product Description

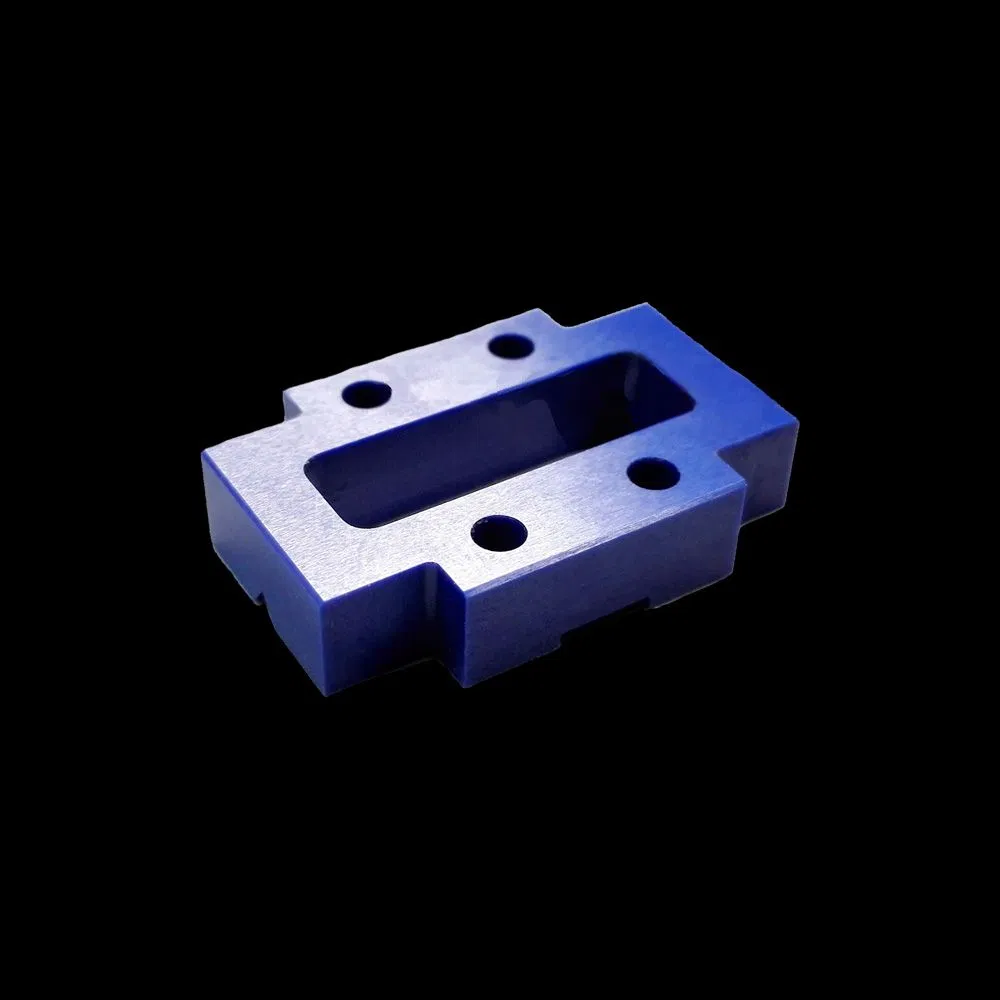

Zirconia derivative products such as high purity zirconia, Yttria stabilized zirconia (YSZ or Y-TZP), Magnesia stabilized Zirconia (MgO-PSZ), and Ceria stabilized Zirconia (CeO-PSZ), structural zirconia ceramics, etc. Zirconia products possess many excellent properties such as high hardness, high strength, and toughness, super low chemical and mechanical corrosive, insulated in common temperature, and magnetic proofing, making them extensively applied in optic, electronic, mechanical and chemical industries.
Compared with traditional metal and plastic parts, Zirconia ceramics offer advantages of wear resistance, skin affinity, better air tightness, and smaller electromagnetic shielding, making them ideal for Consumer Electronics like Mobile and wearable equipment.
📊
Technical Parameters
| ITEM |
Y-TZP (1) |
MgO-PSZ (2) |
| Chemical Composition (%) |
ZrO2: 94.6 | Y2O3: 5.2 |
ZrO2: 96.5 | MgO: 3.5 |
| Color |
White |
Yellow |
| Density (g/cm³) |
6.05 |
5.70 |
| Hardness Mohs |
9 |
9 |
| Hardness Vickers (Kg/mm²) |
1300 |
1100 |
| Bending Strength (MPa) |
1250 |
450 |
| Fracture Toughness (Mpa*M1/3) |
10.0 |
6.5 |
| Compressive Strength (MPa) |
3000 |
2500 |
| Thermal Conductivity (W/mK) |
3 |
3 |
| Volume Resistivity (Ω·Cm) |
>10^12 |
>10^14 |
⚙
Manufacturing & Capabilities

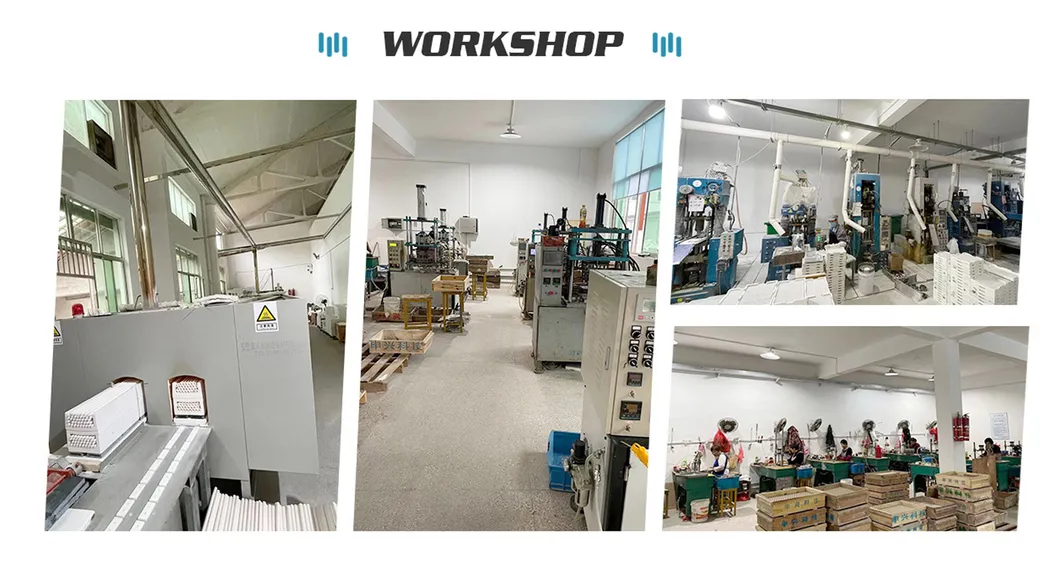

We supply ceramic products through various forming processes including dry pressing, CIP (cold isostatic pressing), HIP (hot isostatic pressing), CIM (ceramics injection molding), gel-casting process, and ceramic tape casting process.

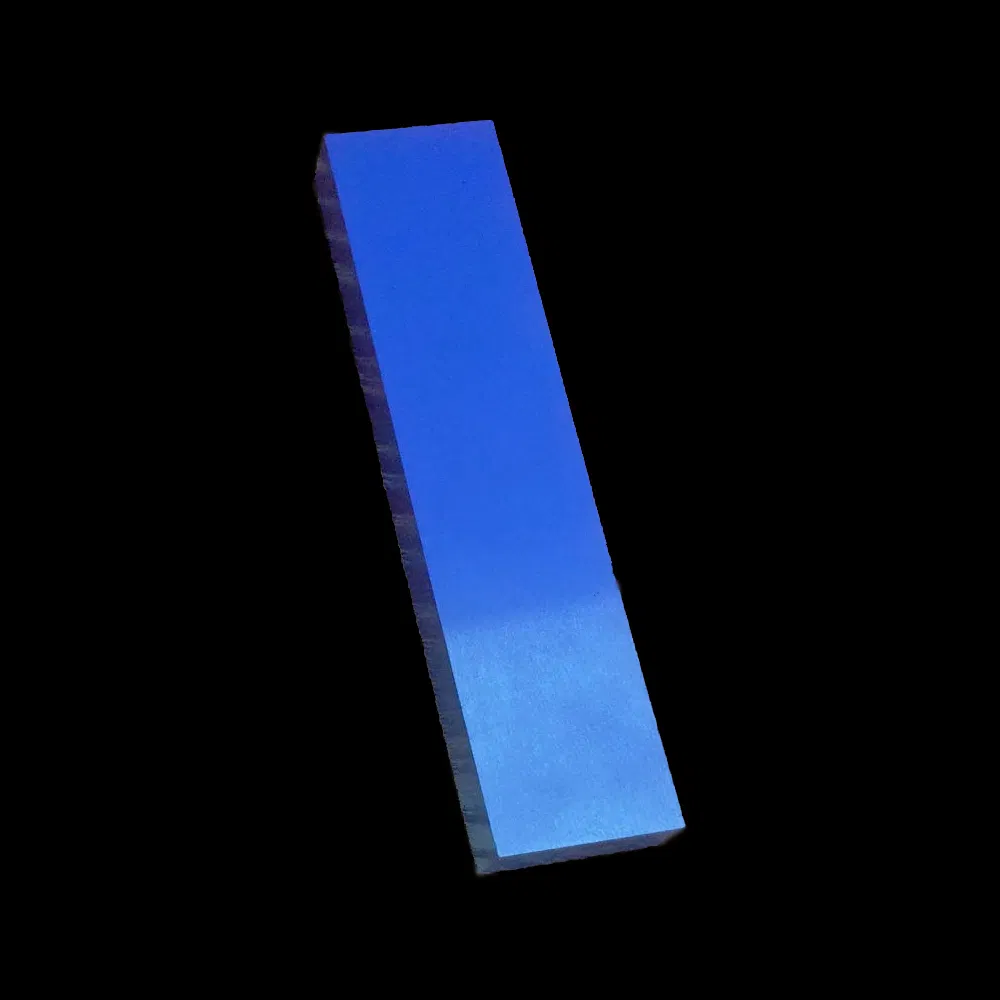

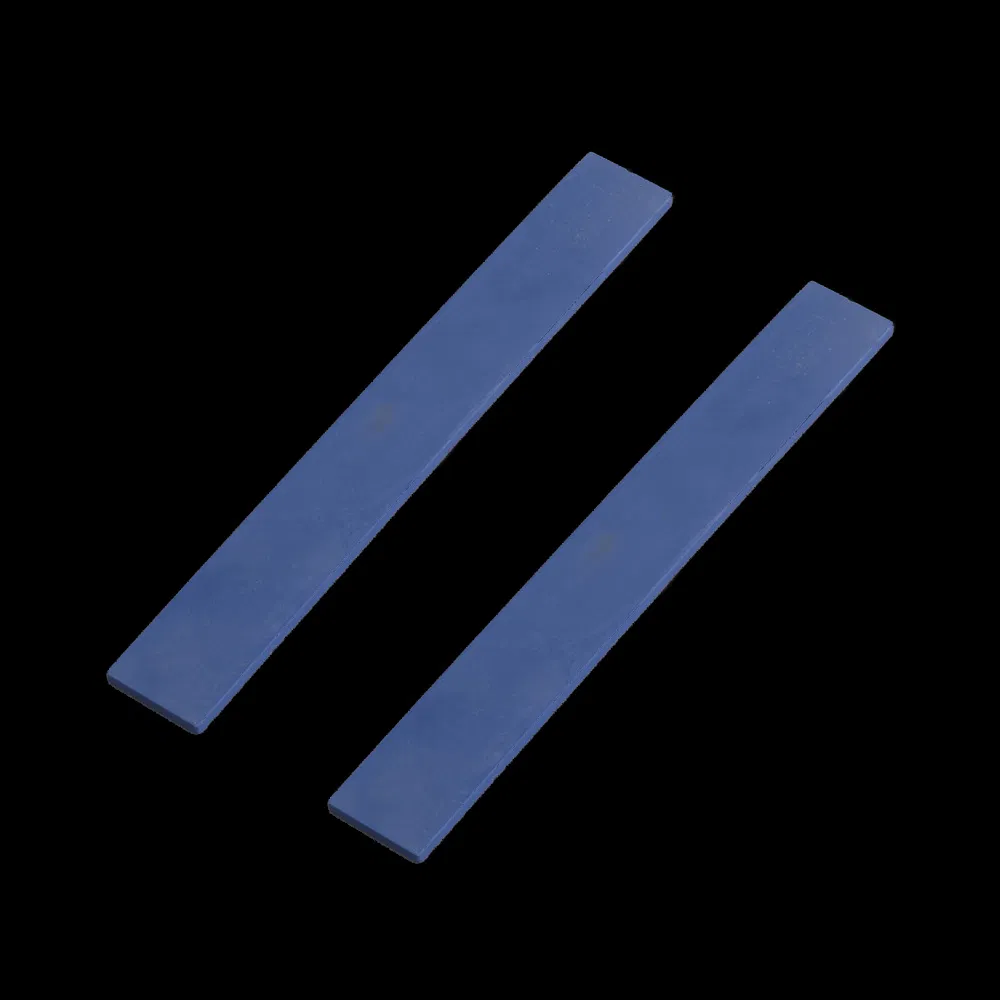

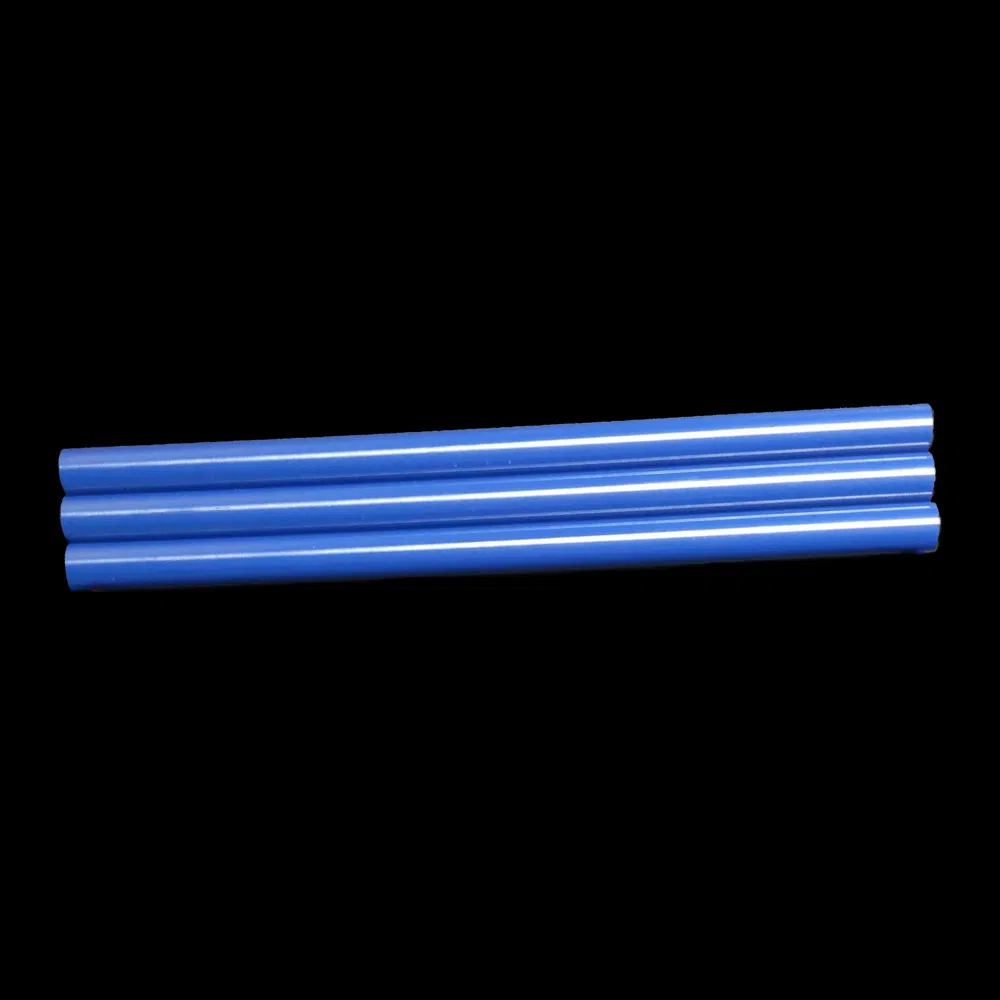

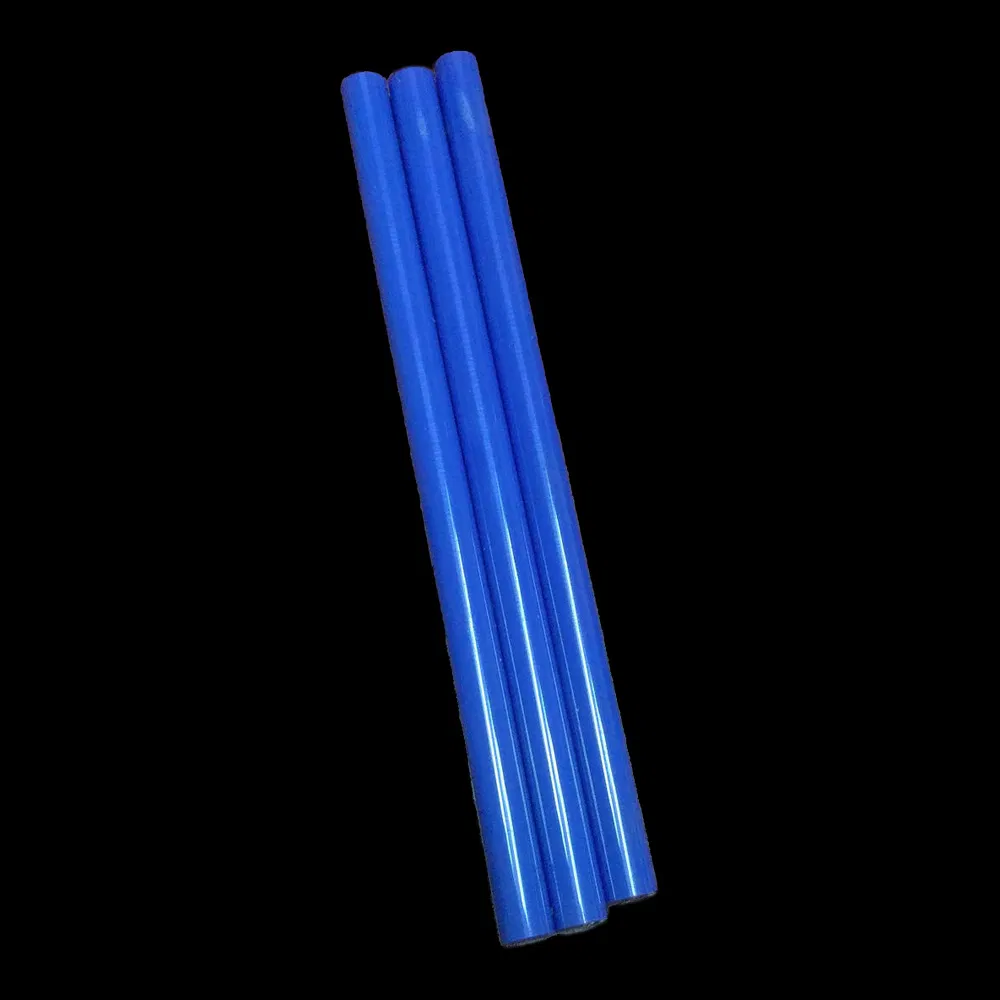

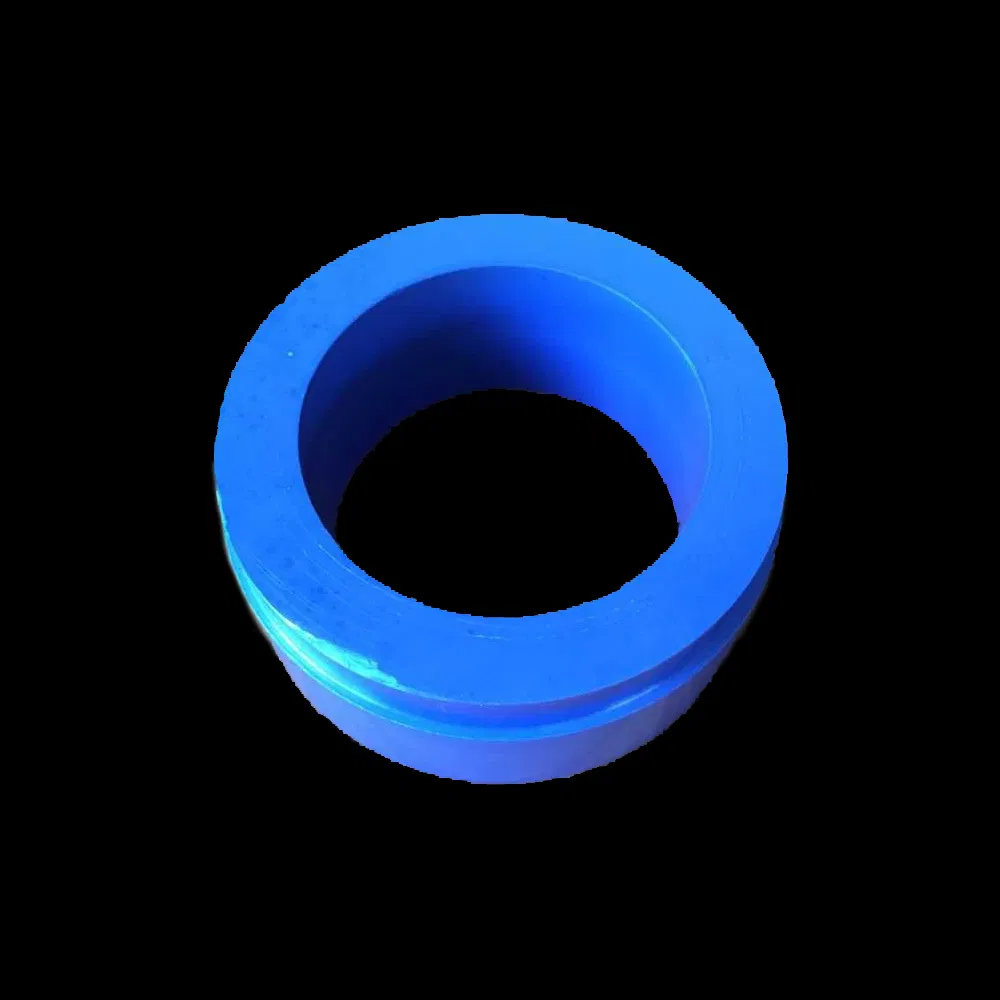

Available shapes include tubes, rods, rings, plates, blocks, and balls, alongside complex, high-precision custom designs. With precision machining, we achieve tolerances as low as 0.001mm. Sizes range from less than 1mm to several hundred mm.
Our product series encompasses a wide array of new materials, including Alumina, Aluminum Nitride, Zirconia, Silicon Nitride, and Boron Nitride ceramics. These materials are widely applied in machinery, electronic, petroleum, chemical, aviation, textile, and organic engineering.
?
Frequently Asked Questions
1. What are the key advantages of Zirconia ceramics over metals?
Zirconia ceramics offer superior wear resistance, chemical stability, and lower electromagnetic shielding. They are also non-magnetic and provide excellent insulation at room temperature.
2. Can you provide custom sizes and shapes?
Yes, we provide highly customized solutions ranging from micro-components (less than 1mm) to large industrial parts (several hundred mm), with tolerances as tight as 0.001mm.
3. What industries commonly use these ceramic products?
Our products are widely used in consumer electronics, machinery, aviation, chemical processing, medical equipment, and textile industries.
4. What forming processes do you use for production?
We utilize various advanced processes including dry pressing, cold isostatic pressing (CIP), hot isostatic pressing (HIP), and ceramic injection molding (CIM).
5. What is the difference between Y-TZP and MgO-PSZ?
Y-TZP (Yttria stabilized) generally has higher bending strength and density, whereas MgO-PSZ (Magnesia stabilized) offers different chemical resistance and thermal properties suitable for specific industrial environments.
6. Are these ceramics suitable for wearable technology?
Yes, due to their skin affinity, aesthetic appeal (various colors), and durability, they are perfect for smartwatches and other wearable equipment.
