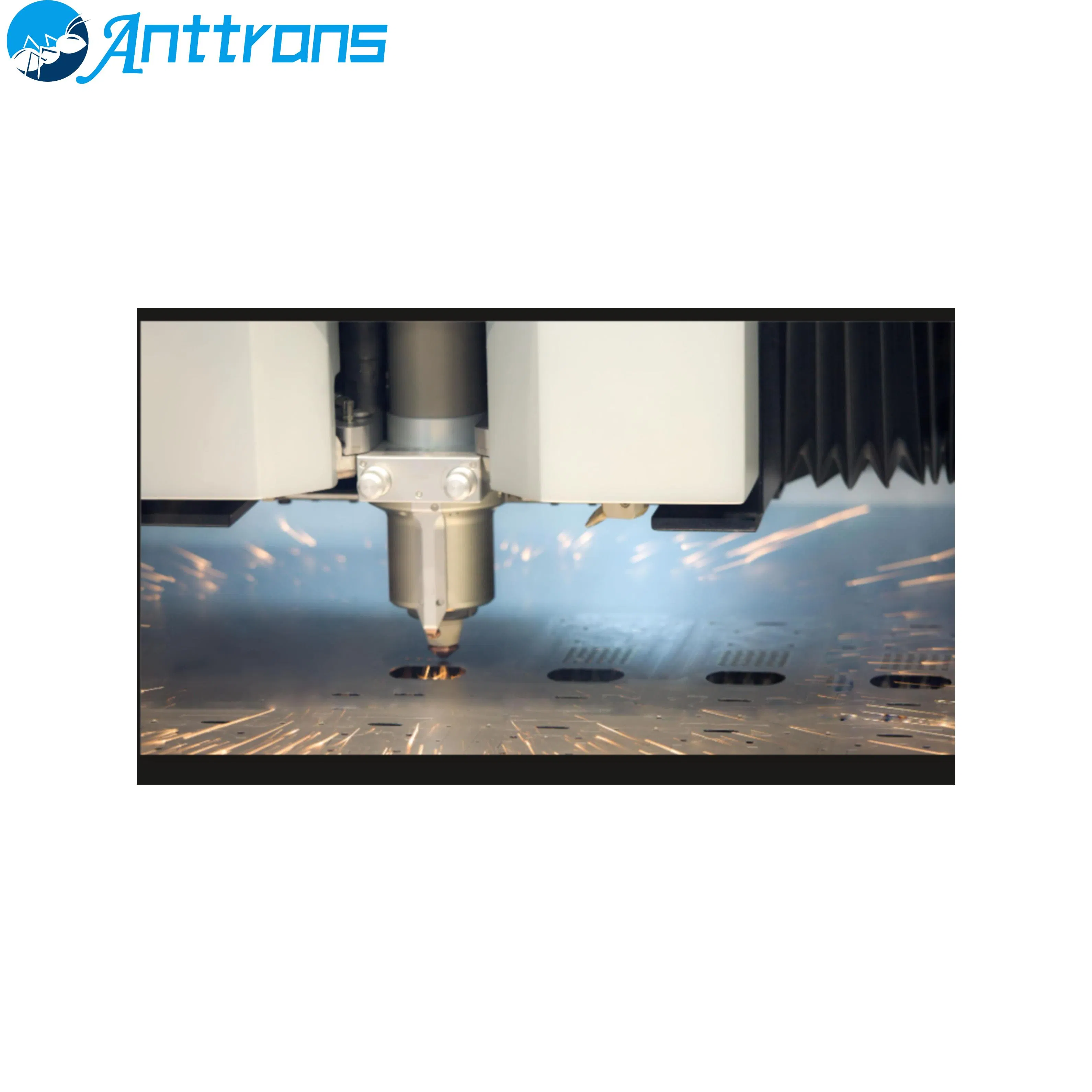

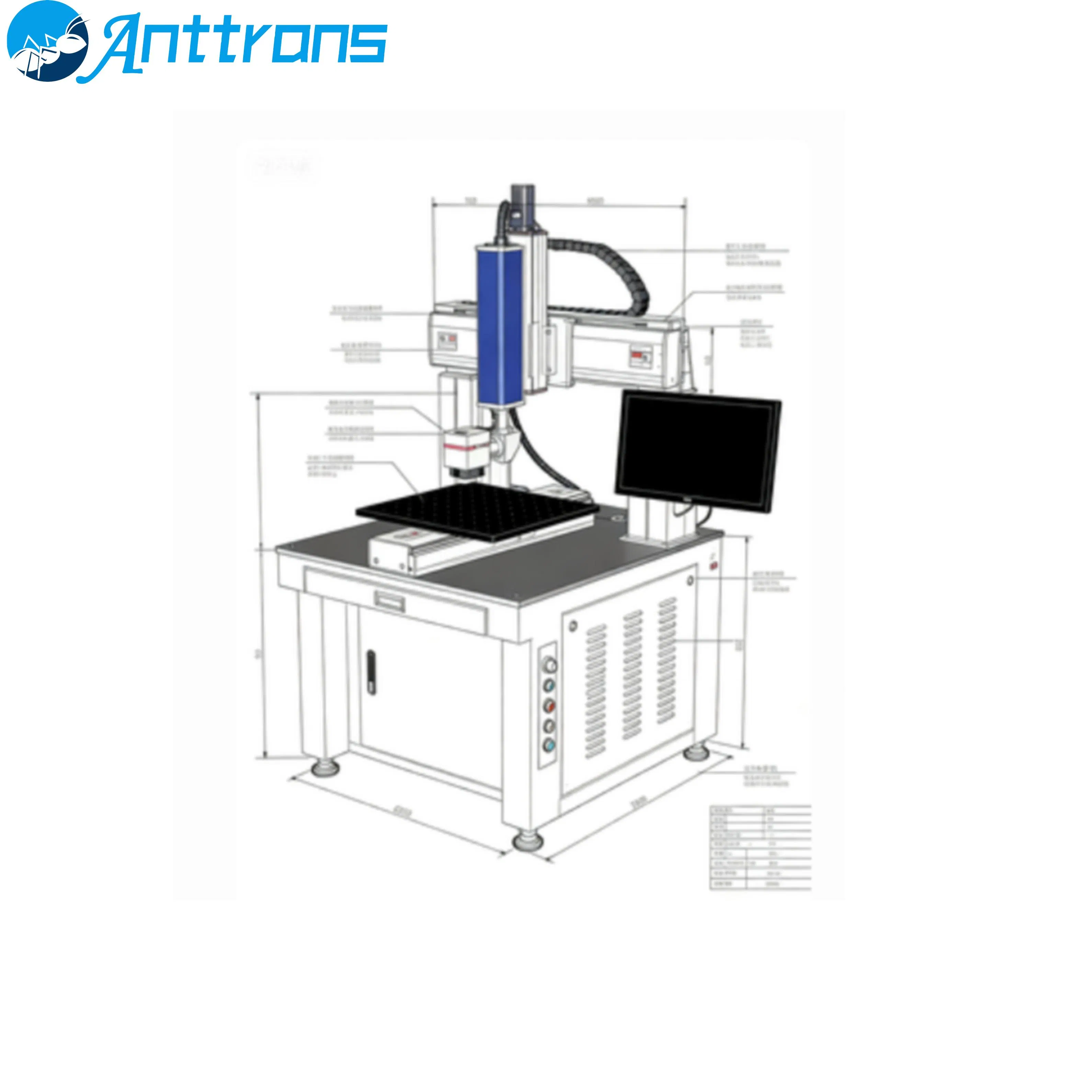

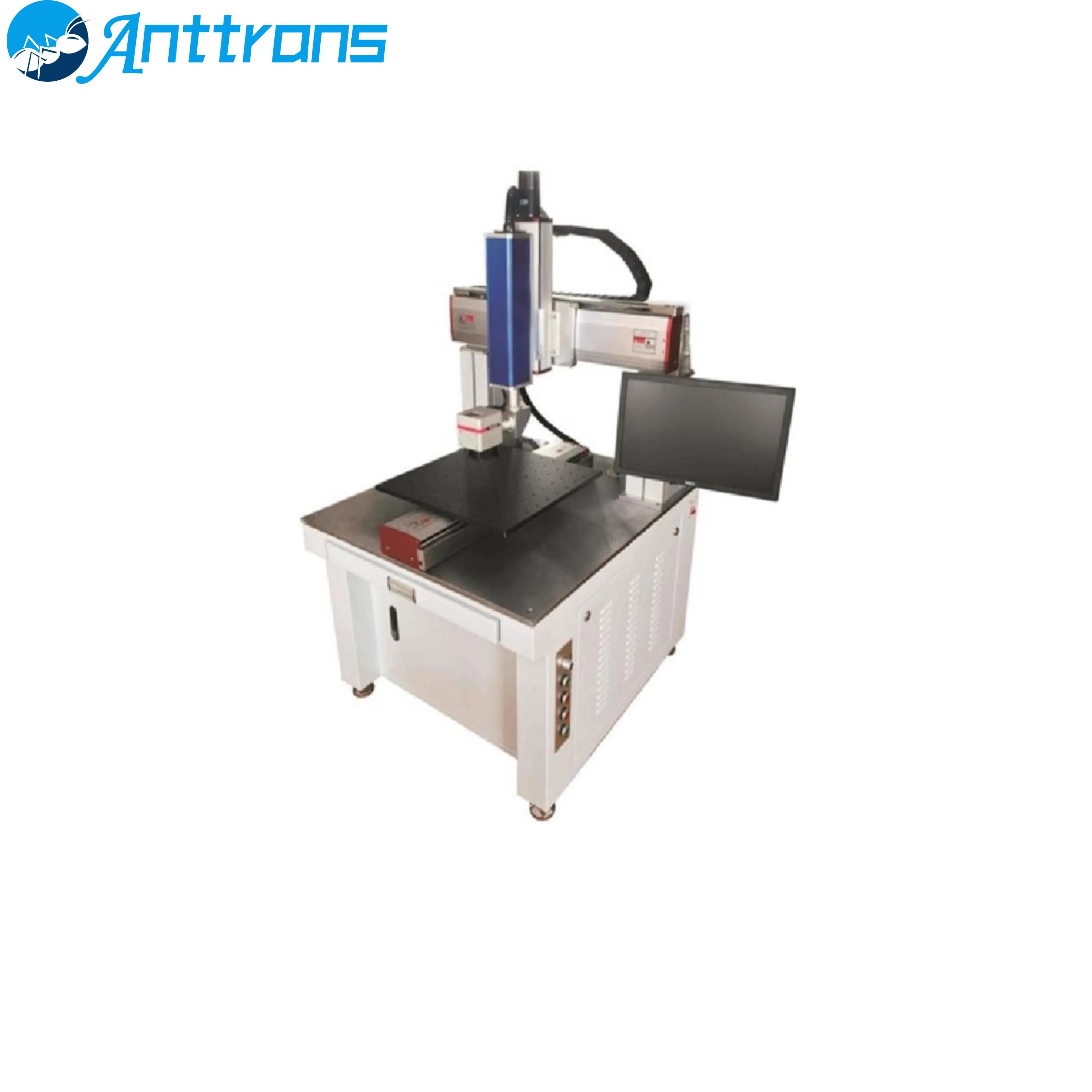

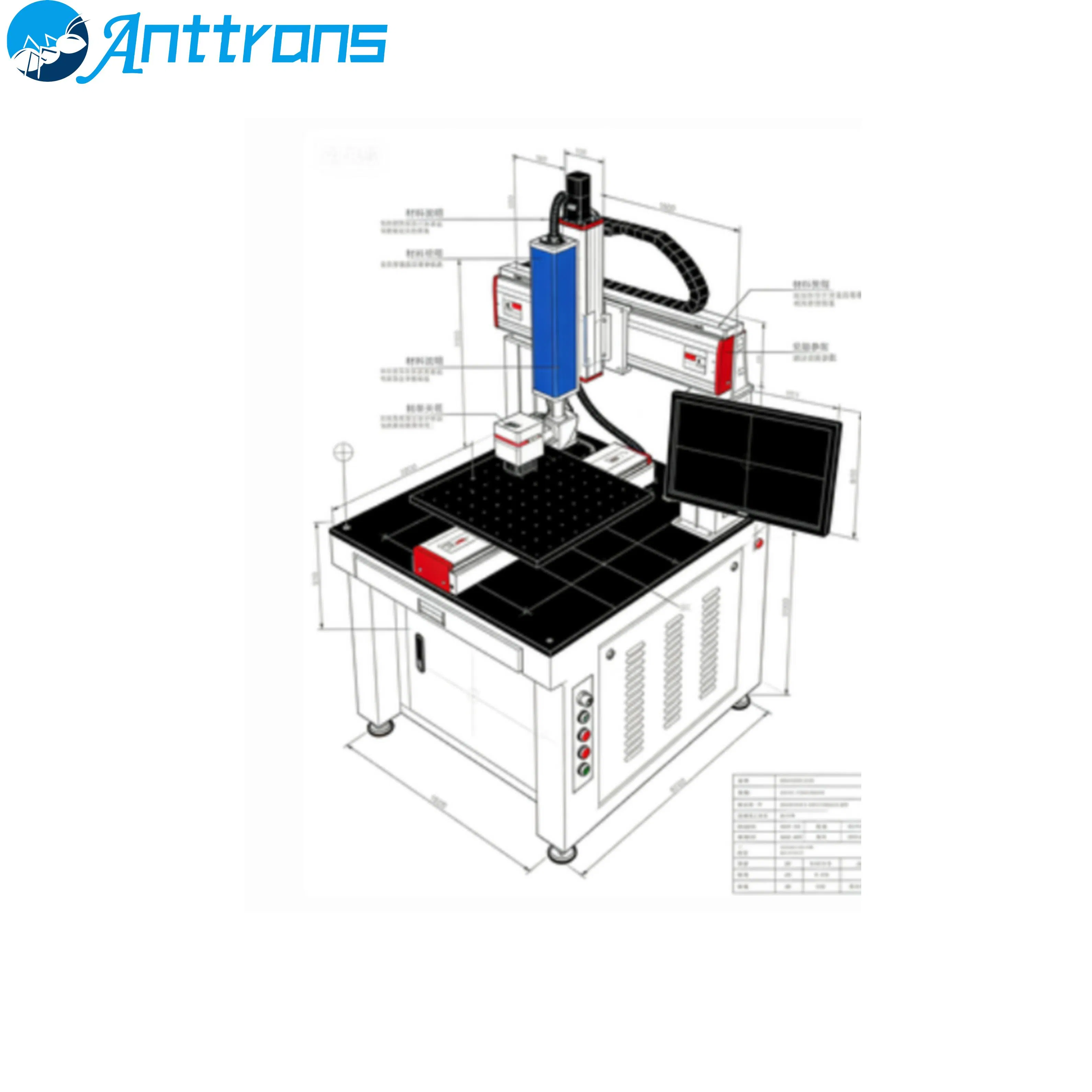

The three-axis laser processing system is a high-performance device specifically designed for industrial precision manufacturing. It integrates high-power fiber laser technology, precision motion control, and intelligent software systems to achieve high-precision etching, drilling, slotting, and cutting of materials such as metals and ceramics. It is widely applied in fields such as consumer electronics and microelectronic device manufacturing.
Mobile phone/tablet structural components, camera modules, sensor fabrication, and PCB marking.
Precision instrument internal components, sensor elements, and medical device parts.
Semiconductor packaging, MEMS devices, mold textures, and injection mold optimization.
| Category | Parameter | Specification (FM-SD50) |
|---|---|---|
| Laser | Wavelength / Power | 1064nm / 50W |
| Laser | Modulation Frequency | 40~1000kHz |
| Galvanometer | Scanning Range | <50*50mm |
| Galvanometer | Repeatability | <1μm |
| XY Worktable | Stroke / Repeatability | 300*300mm / ≤±5μm |
| Z-axis | Stroke / Accuracy | 200mm / ≤±10μm |
| CCD Monitoring | Camera Resolution | 5 Megapixels (10X Optical) |
| Capabilities | Min Hole / Max Thickness | 20μm / ≤1mm |
| Environment | Cooling / Purification | Air Cooling / Triple Dust Purification |
| Power | Supply / Consumption | 220V 12A / ≤1200W |
A: It is highly versatile and can process stainless steel, aluminum alloys, titanium alloys, ceramics (like alumina and zirconia), silicon wafers, and various composite materials.
A: The system can process both blind and through-holes with a minimum diameter of 20μm, making it ideal for microelectronic applications.
A: Yes, while the standard stroke is 300*300mm, the XY worktable stroke can be customized to meet specific industrial requirements.
A: The machine features a modular design for easy maintenance, a comprehensive cooling system, and industrial-grade components selected for 24/7 continuous operation.
A: Yes, an optional CCD monitoring system with 5-megapixel resolution and 10X optical magnification is available for high-precision positioning and stitching.
A: It supports multiple functions including precision etching, micro-drilling, slotting of micro-structures, and precision cutting with high-quality edge finishes.
