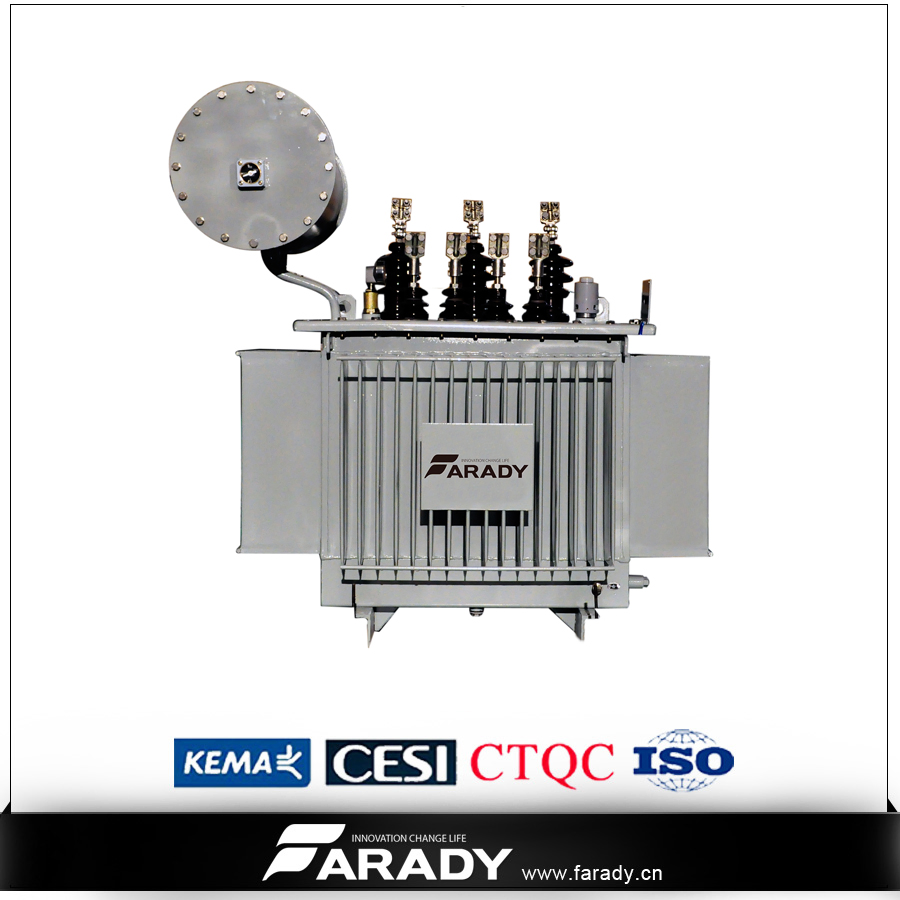

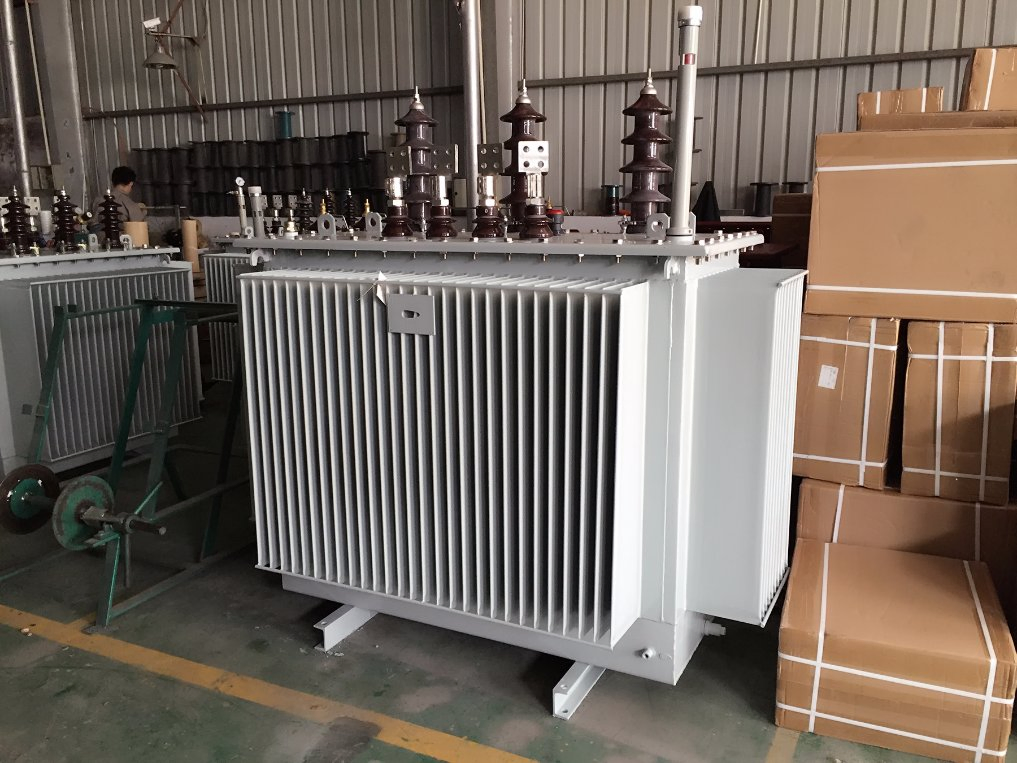

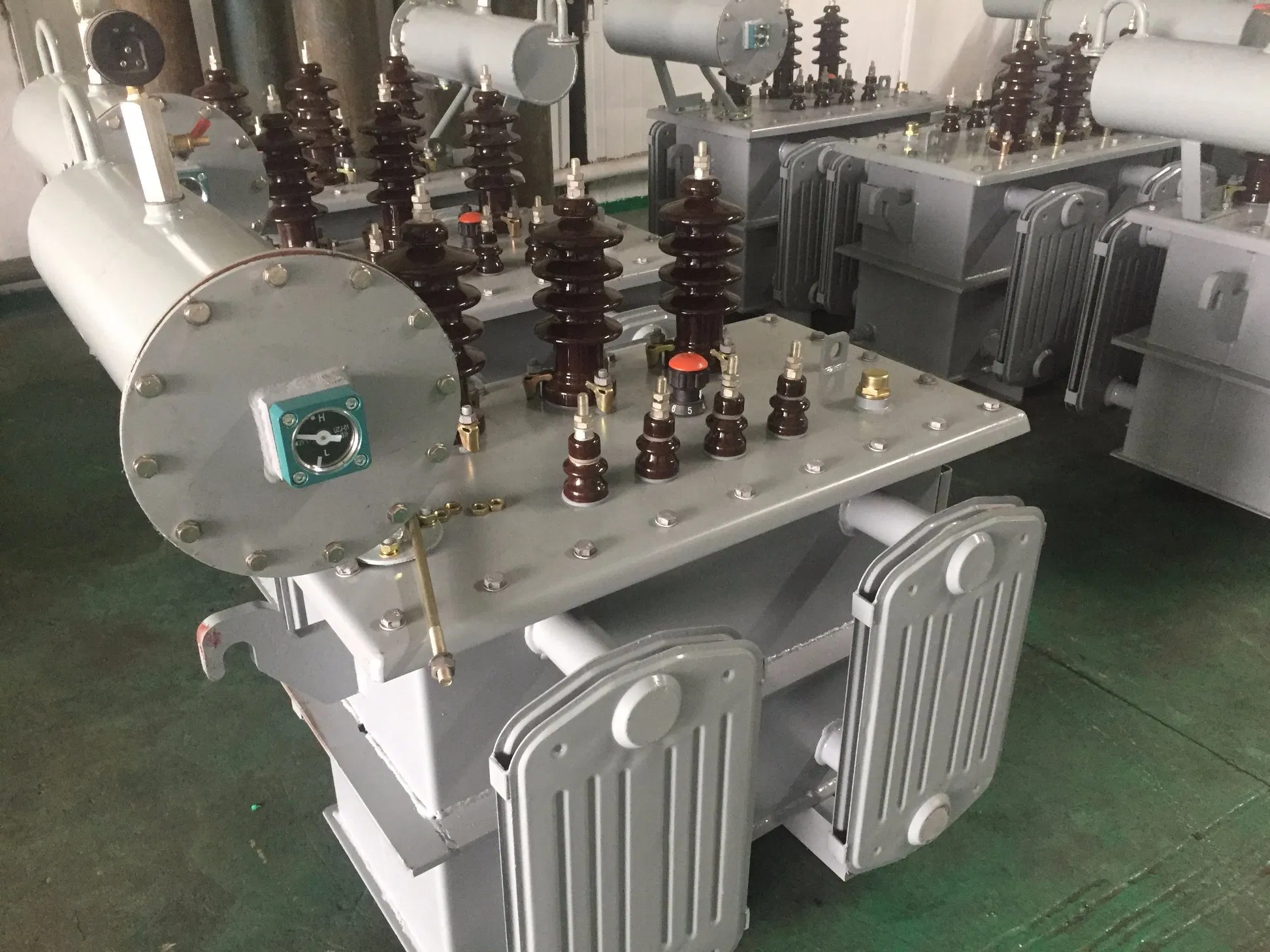

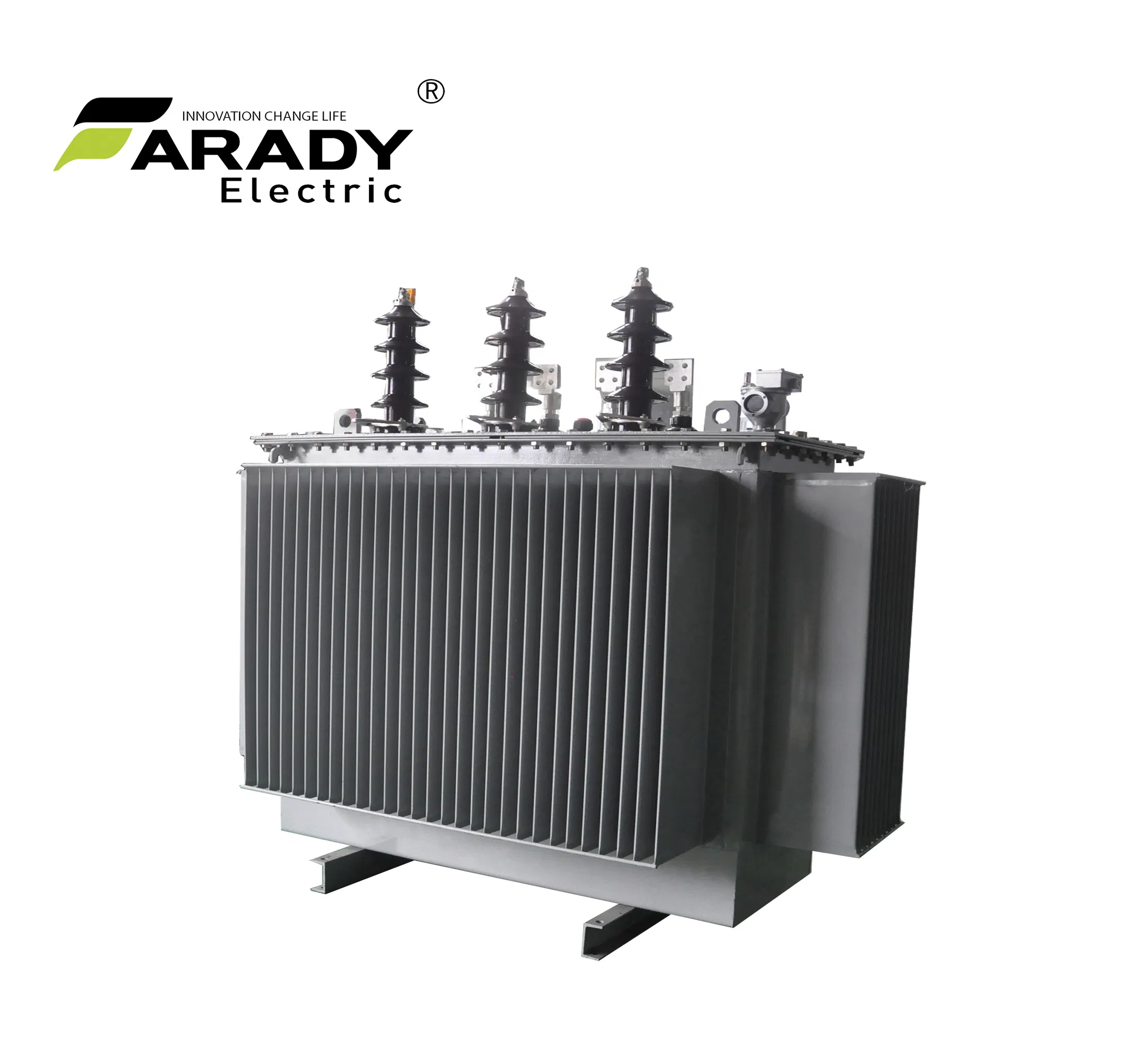

Our liquid-filled distribution transformers are designed to provide the reliability, durability, and efficiency required for utility, industrial, and commercial applications. These transformers are manufactured in strict accordance with demanding industry and international standards, including IEC and VDE, utilizing only high-quality materials and professional engineering practices.
| Rated Power | Load Losses (W) | No-load Losses (W) | No load current % | Impedance % |
|---|---|---|---|---|
| S11-30 | 630 | 100 | 2.1 | 4 |
| S11-100 | 1580 | 200 | 1.6 | 4 |
| S11-315 | 3830 | 480 | 1.1 | 4 |
| S11-630 | 6200 | 810 | 0.9 | 4.5 |
| S11-1000 | 10300 | 1150 | 0.7 | 4.5 |
| S11-1600 | 14500 | 1640 | 0.6 | 4.5 |

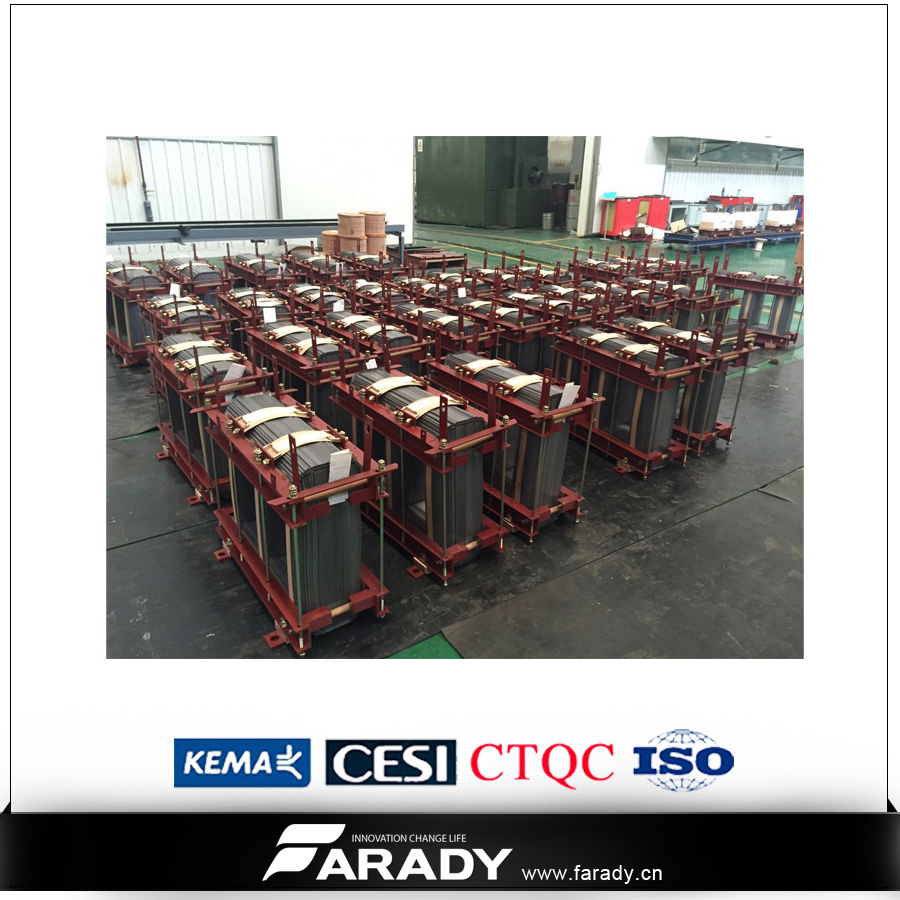

Our transformer cores represent the latest state of technology. We use grain-oriented, cold-rolled silicon alloyed electric sheet steel, insulated on both sides to guarantee low losses and noise. Laser treatment and numerically controlled step-lap cutting processes minimize mechanical tension and ensure optimal performance.
