Automatic Toroidal Core Winder for Toroidal Current Transformer Core

1 / 5

Automatic Toroidal Core Winder for Toroidal Current Transformer Core

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GWA680-120

Name

Transformer Core Winding Machine

Shape

Toroidal Core, Rectangular Core, Step Core

Mandrel Diameter

50-400mm

Core ID / OD

50mm / 500mm

Material Width

10-150mm

Material Thickness

0.18-0.5mm

Production Capacity

100PCS

Product Description

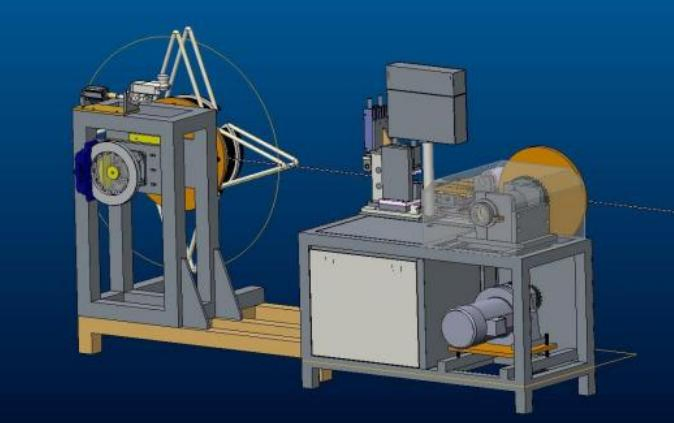

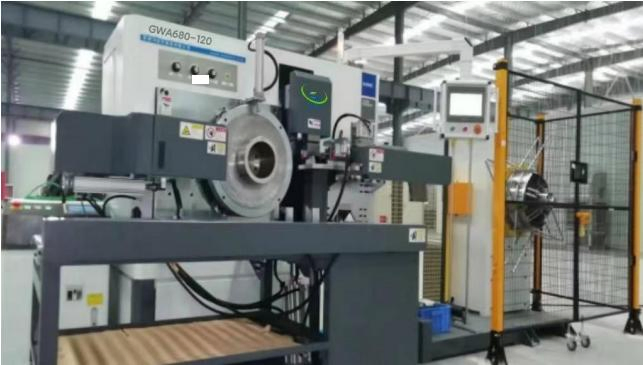

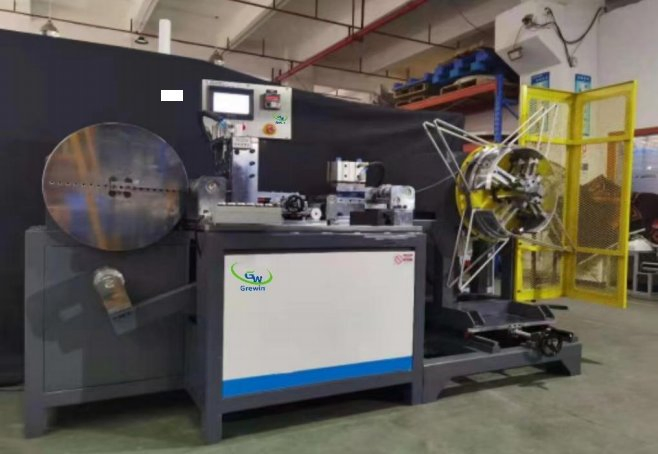

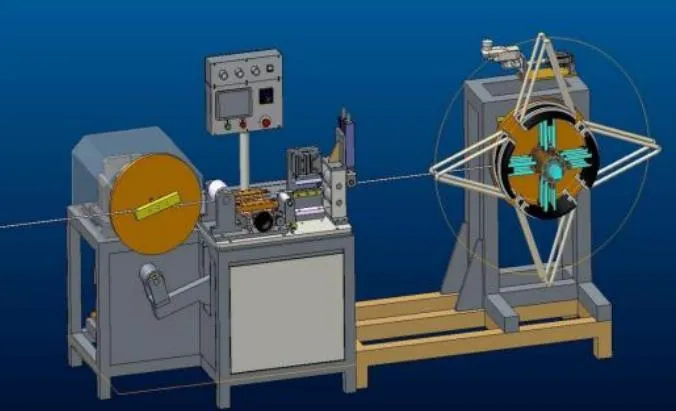

Automatic Toroidal Core Winder

The automatic toroidal core winder is designed for producing toroidal cores made from grain-oriented or non-oriented steel. It is ideal for small transformers, transmitters, instrument and voltage transformers, chokes, and variable voltage transformers.

Main Features

🚀

High Efficiency: Automatic feeding, punching, winding, cutting, welding, and collecting at high speeds.

💻

Advanced Control: Panasonic PLC system and HMI touchscreen for precise control of servo motors and pneumatic parts.

🛡️

Monitoring: Continuous feeding with adjustable tension, accurate counting, and automatic alarms.

⚡

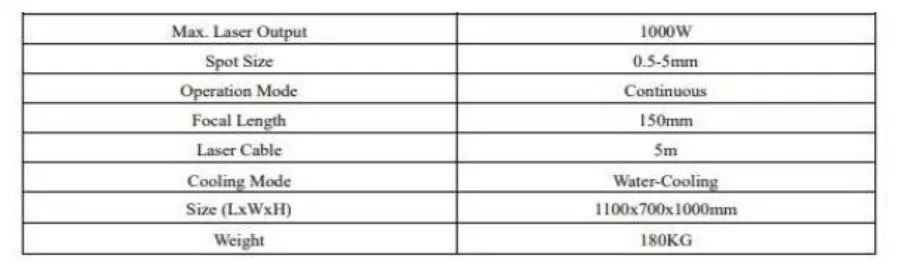

Laser Welding: 1000W LED continuous laser welder ensures perfect welding spots on the end layer.

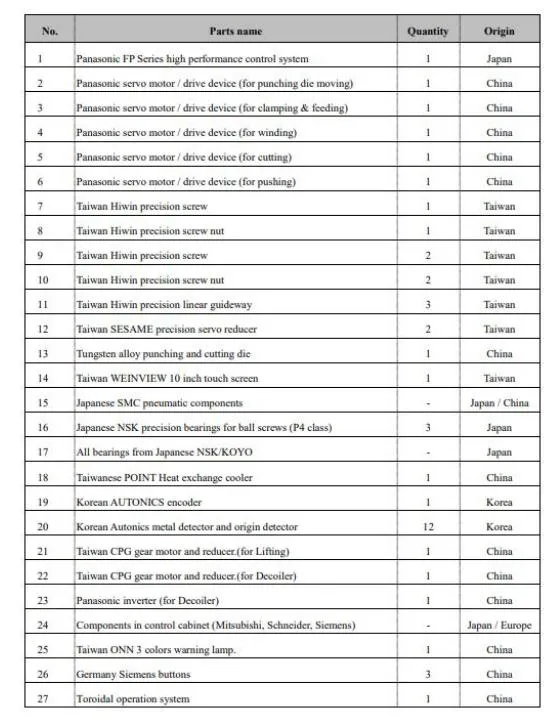

Technical Specifications

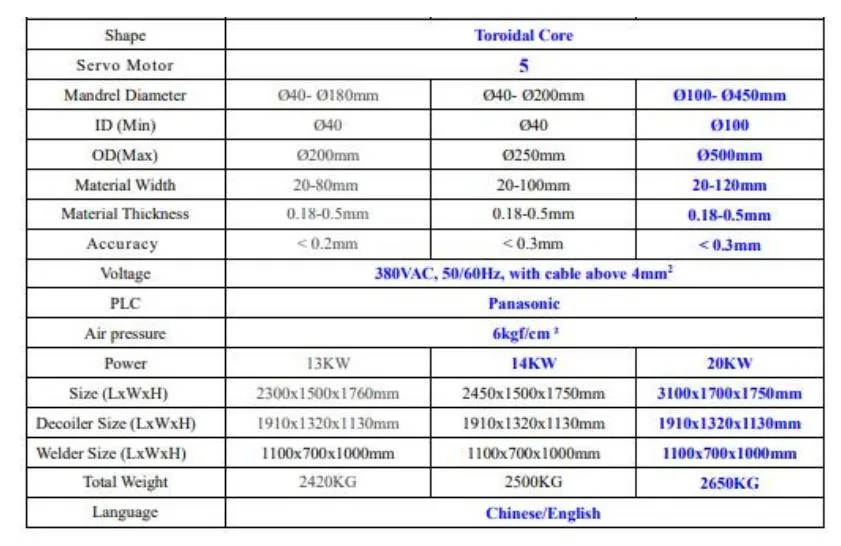

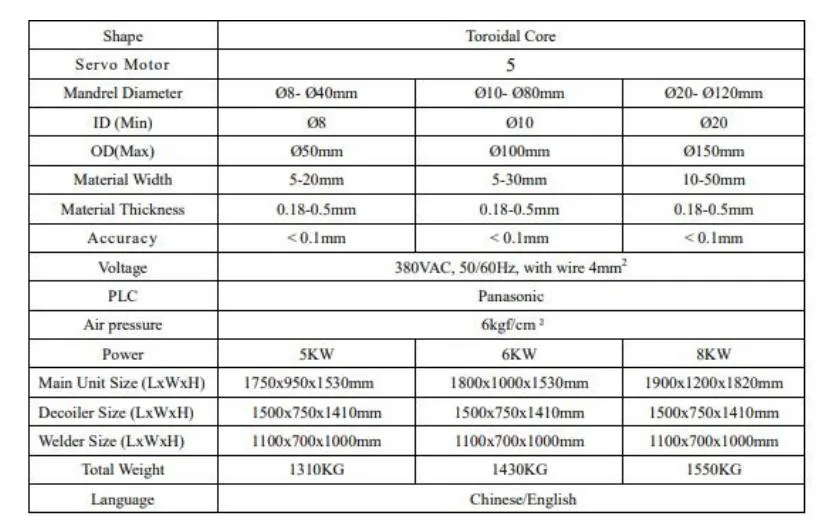

Winder Model Range

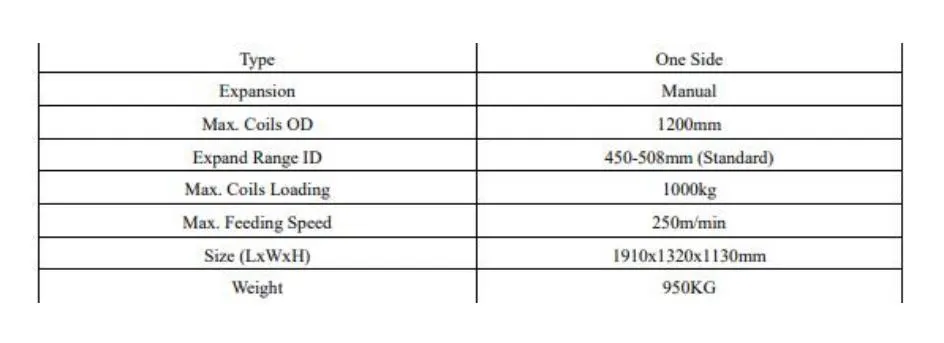

Auxiliary Equipment

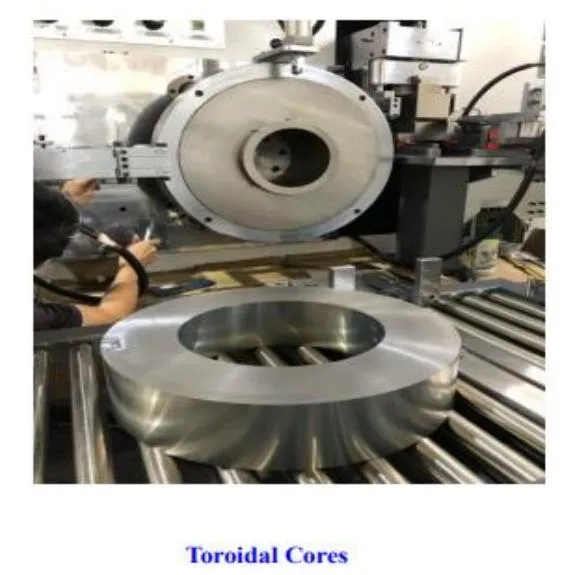

Detailed Photos & Applications

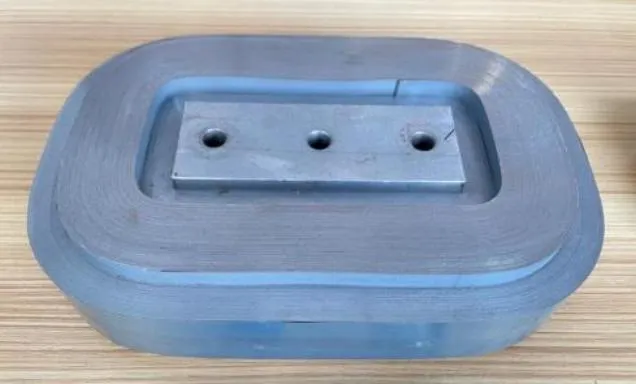

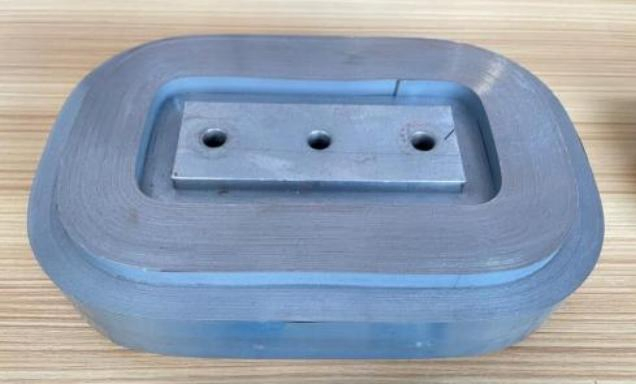

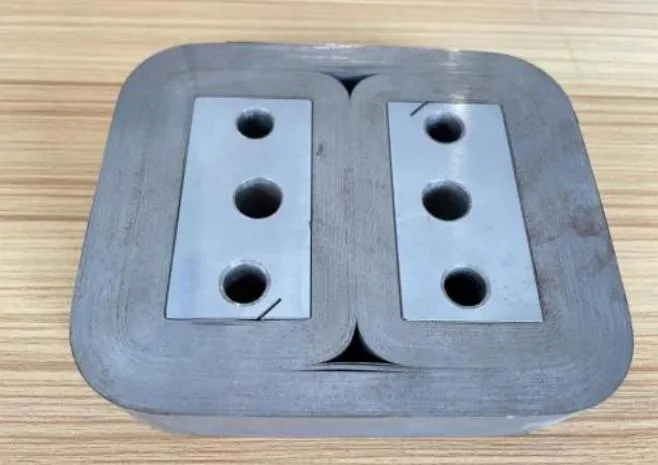

Application Range

Manufacturing Excellence

Founded in 1993, the company provides cost-effective, high-quality manufacturing solutions. Our winding machines are trusted worldwide for high-frequency and low-frequency transformer production.

Using 32-bit ARM control chips, we ensure faster computing speeds and reduced winding errors, while integrated power-off memory prevents material waste.

After-Sales & Logistics

📞

Pre-Sale: Expert engineers provide innovative solutions and quotes within 24 hours.

📦

Delivery: Quick turnaround with machines often ready for delivery within 10 days.

🛠️

After-Sale: 24-hour remote support via video/phone and a 1-year mainframe warranty.

Frequently Asked Questions

Q1: What materials can this machine handle? A: The machine is designed for grain-oriented and non-oriented steel with thicknesses between 0.18mm and 0.5mm.

Q2: What is the maximum core size it can produce? A: The machine can produce cores with an Outer Diameter (OD) of up to 500mm.

Q3: How is the welding quality maintained? A: It features a 1000W LED continuous laser welder controlled via PLC to ensure precise, high-strength welding spots.

Q4: Does the machine support customized core shapes? A: Yes, it supports Toroidal, Rectangular, and Step cores depending on the mandrel used.

Q5: What control system does the machine use? A: The equipment uses a Panasonic PLC system combined with a user-friendly HMI touchscreen.

Q6: What is the warranty period? A: We provide a 1-year warranty for the mainframe along with 24-hour remote technical support.
