Ggd Series Reliable Low Voltage Power Distribution Solutions

1 / 5

Ggd Series Reliable Low Voltage Power Distribution Solutions

Customization:	Available
Standard:	GB, EN
Tolerance:	+/-0.02mm

Send Inquiry

Product Description

Basic Information

Model NO.

YDDLG-0705

Machining Method

Laser Cutting, Bending, Painting

Material

SPCC

Processing

Forming Processing

HS Code

73089000

Production Capacity

20,000/Year

Packaging & Delivery

Package Size

200.00cm * 100.00cm * 100.00cm

Gross Weight

1.000kg

Transport Package

Boxes

Product Description

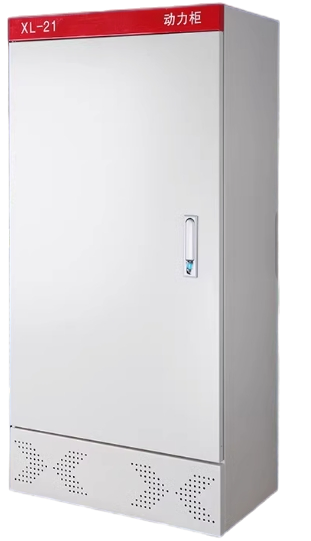

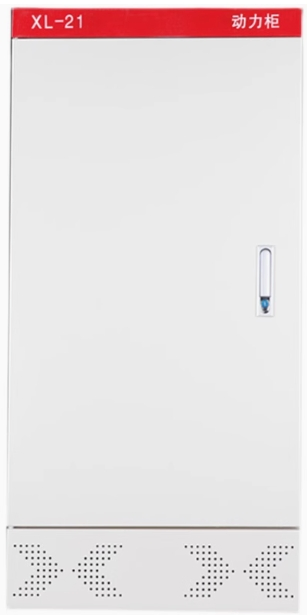

XL-21 & GGD Series: The Foundation of Safe and Efficient Power Distribution

The XL-21 and GGD Series Low Voltage Power Distribution, Lighting, and Motor Control Cabinets are engineered to be the core workhorses of electrical distribution networks. Designed for versatility, durability, and uncompromising safety, these cabinets cater to a wide spectrum of applications, from factory floors and power plants to commercial buildings and outdoor infrastructure projects.

Core Functionality

Power Distribution: Receiving incoming electrical power (typically 400V AC 3-phase) and distributing it to multiple outgoing feeder circuits.
Lighting Control: Optimized for distributing and controlling lighting circuits, incorporating timer controls or contactors.
Motor Control: Equipped to house motor starters (DOL, Star-Delta, Soft Starters, VFDs) for controlling pumps, fans, and conveyors.
Circuit Protection: Integrates MCCBs, MCBs, Fuses, and RCDs to safeguard equipment against overloads and short circuits.
Isolation & Switching: Provides safe isolation points for maintenance and emergency shutdowns.

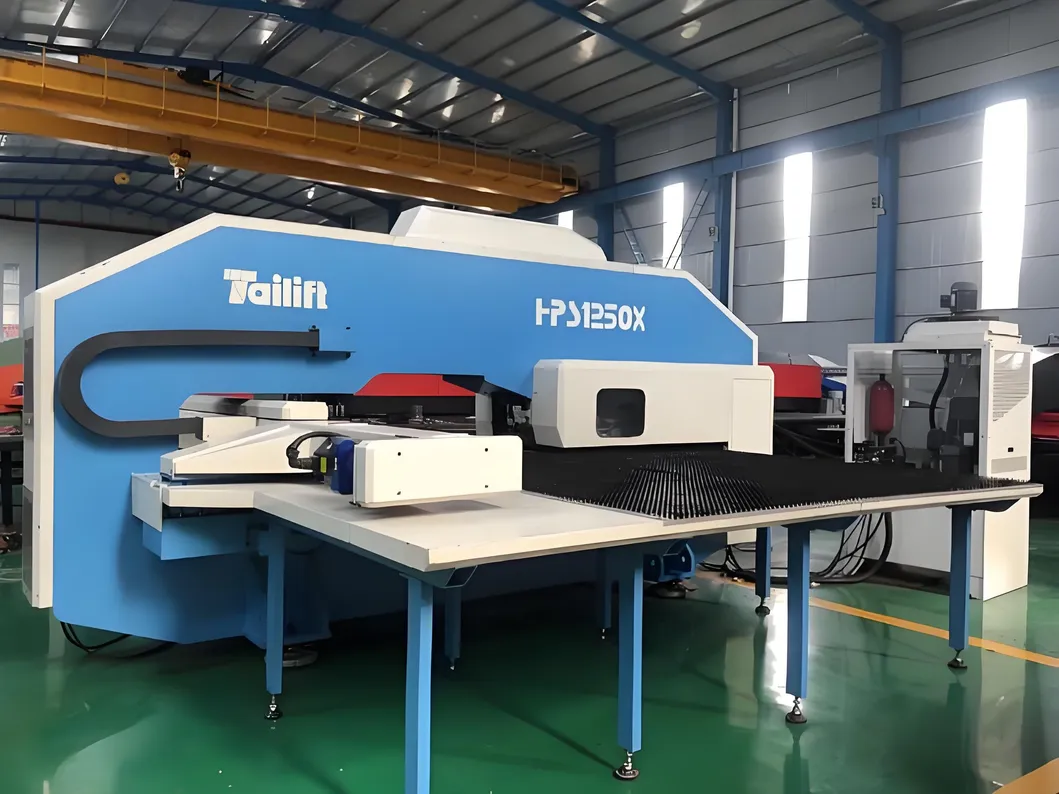

Factory Introduction

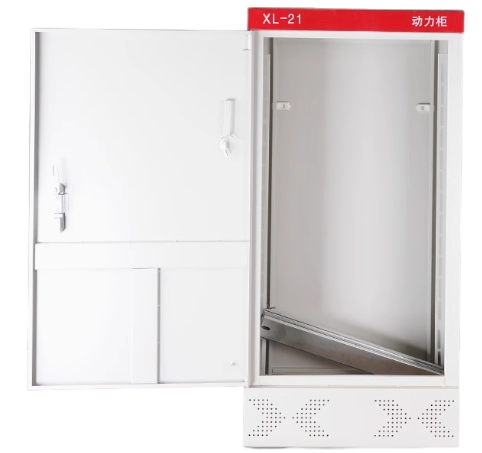

Key Design & Construction Features

1. Robust Enclosure

Constructed from high-quality, cold-rolled steel sheet with a rigid welded or bolted frame structure. Surface treatment includes electrostatic epoxy powder coating for excellent corrosion resistance.

2. Indoor/Outdoor Versatility

Specialized versions available for outdoor installation featuring enhanced sealing (IP54/IP55), roof overhangs, and UV-resistant coatings.

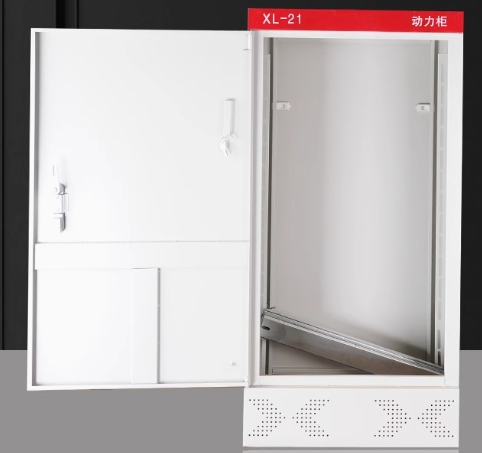

3. Modular Design

Utilizes standardized vertical sections and horizontal busbar chambers, allowing for easy configuration, expansion, and component replacement.

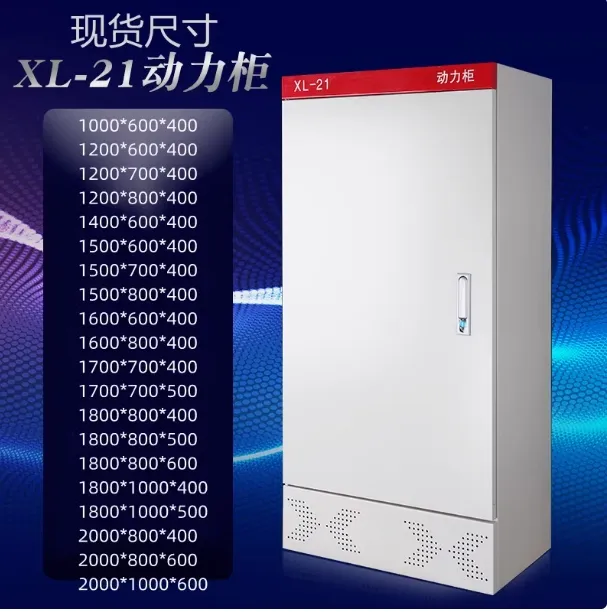

Technical Specifications

Feature	Specification / Description	Notes
Standard	IEC 61439-1, IEC 61439-2	Primary certification standard.
Rated Insulation Voltage	690V / 750V AC	-
Rated Operational Voltage	400V AC (3~ + N + PE), 230V AC (1~)	Standard low voltage system.
Rated Current (In)	Main Bus: 630A to 3150A	High capacity ratings available.
Short-Circuit Rating	Icw: 30kA - 80kA (1s)	Must match network fault level.
Degree of Protection	Indoor: IP30/IP41 \| Outdoor: IP54/IP55	Essential for environmental resilience.
Ambient Temperature	Operation: -5°C to +40°C	Standard industrial range.

Applications

Industrial Plants (Manufacturing, Processing)
Commercial Buildings (Office Blocks, Shopping Malls, Hospitals)
Infrastructure Projects (Water Treatment, Pumping Stations)
Power Generation & Substations
Mining and Oil & Gas Facilities
Outdoor Lighting Control (Streets, Stadiums)

Conclusion

The XL-21 and GGD Series Power Distribution and Control Cabinets offer a robust, safe, and versatile solution for managing low-voltage electrical power. Adhering to international IEC 61439 standards, their rugged construction and modular design make them a trusted choice for modern electrical infrastructure worldwide.

Frequently Asked Questions

What standards do the GGD series cabinets comply with?

The GGD series is designed and type-tested according to IEC 61439-1 and IEC 61439-2, ensuring high performance and safety under normal and short-circuit conditions.

Can these cabinets be installed outdoors?

Yes, while standard models are for indoor use, specialized versions with IP54 or IP55 ratings are available for outdoor installation, featuring enhanced sealing and weather protection.

What is the maximum current rating for the main busbar?

The main busbars are available in various ratings, typically ranging from 630A up to 3150A, depending on your project requirements.

What kind of maintenance is required?

Regular maintenance involves visual inspections for corrosion, checking the tightness of electrical connections, verifying protective device operation, and cleaning ventilation filters.

Are the cabinets customizable for specific components?

Yes, the modular design allows for the integration of components from major global manufacturers, including MCCBs, VFDs, and various metering modules.

What materials are used for the enclosure and busbars?

Enclosures are made from high-quality cold-rolled steel with epoxy coating. Busbars are made from high-conductivity electrolytic copper, which is tin-plated for corrosion resistance.
