Advanced Maxsine Smart Electrical Control System for Networks

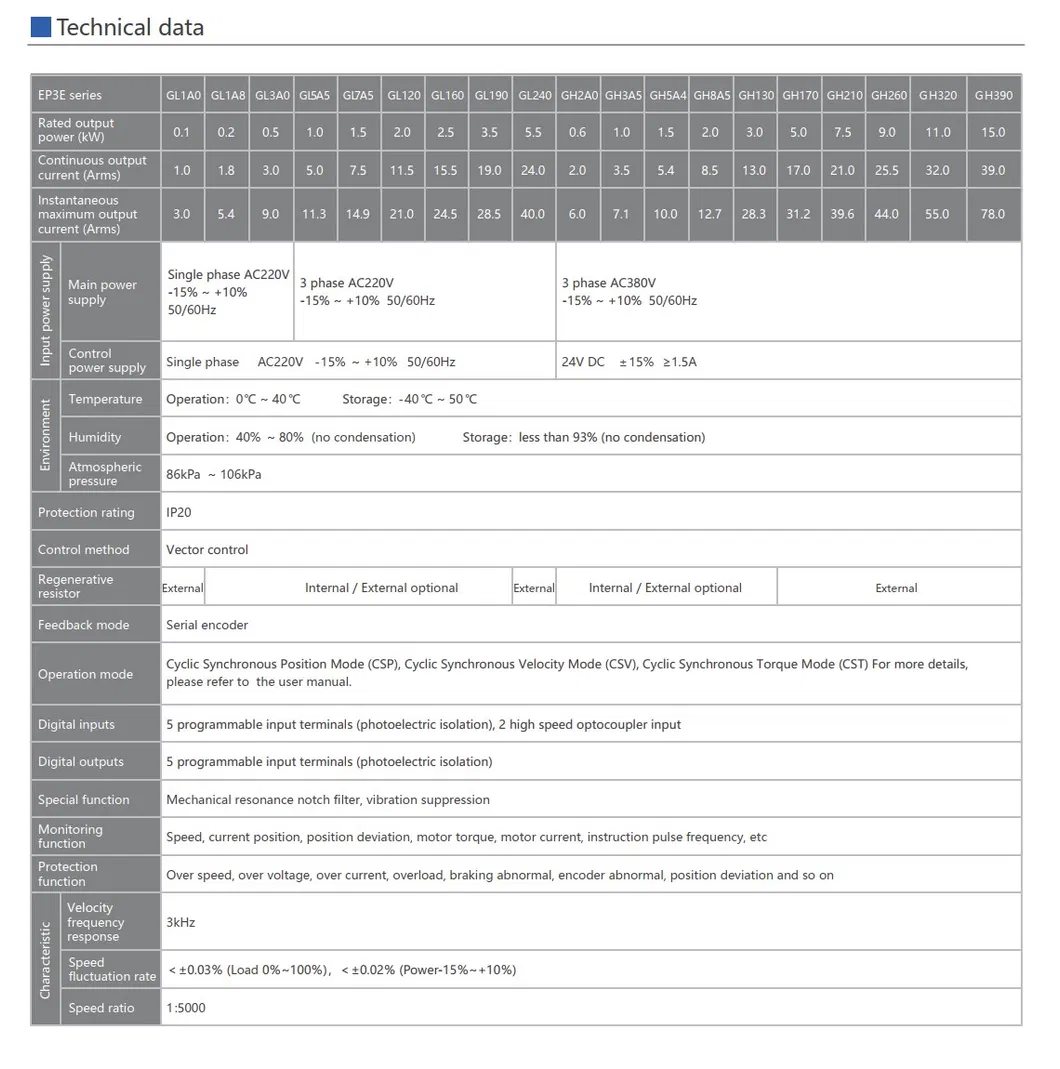

Technical Specifications

Model NO. EP3E

Mathematical Model Non-Linear

Signal Continuous

Function Automatic Control, Monitoring, Measurement

Certification CE

Condition New

Material Metal

Protection Rating IP20

Weight 1.5kg

Warranty 18 months

Package Size 29.00cm * 26.00cm * 25.00cm

Origin China

Product Overview

The EP3E AC Servo Drive is a state-of-the-art solution designed to elevate industrial automation performance. This versatile drive combines high precision with robust communication capabilities, making it ideal for modern manufacturing environments.

⚡

Power Range

0.1kW ~ 15kW
AC 220V/380V

🌐

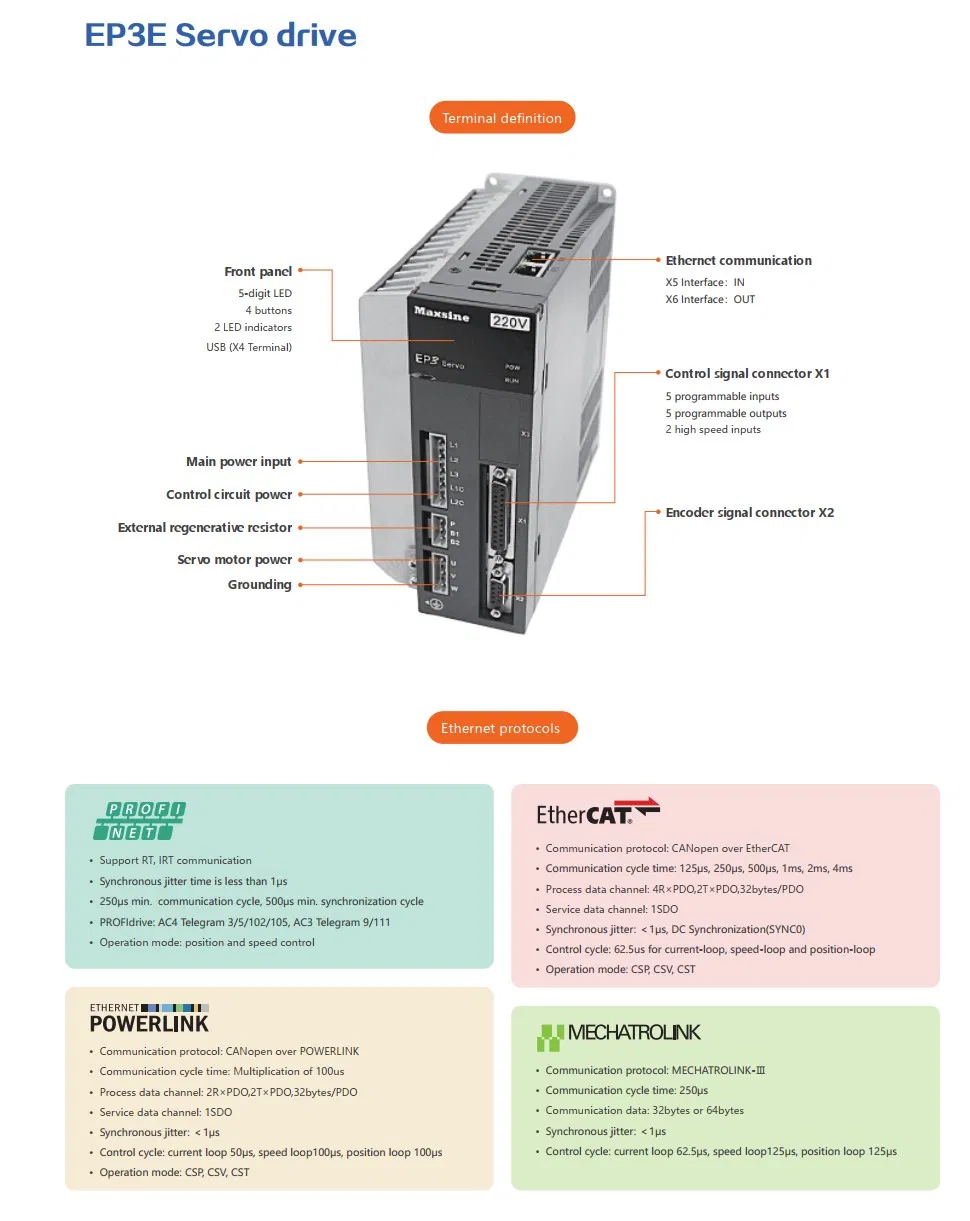

Connectivity

Profinet, EtherCAT, Powerlink, Mechatrolink-III

🎯

High Precision

23bit Encoder Support
Incremental & Absolute

Key Features

Broad Voltage Support: Compatible with both AC 220V and 380V power sources.
Advanced Encoders: Supports 23bit incremental subdivision and 23bit multiturn absolute value encoders for extreme accuracy.
Versatile Motor Compatibility: Works seamlessly with MA/MS rotating motors, MD/MR direct drive motors, MN/MY rotating motors, and third-party motors.
Multiple Operating Modes: Offers CSP (Cyclic Synchronous Position), CSV (Cyclic Synchronous Velocity), and CST (Cyclic Synchronous Torque) for flexible motion control.
Industrial Applications: Perfect for CNC machine tools, robotics, laser processing, and packaging machinery.

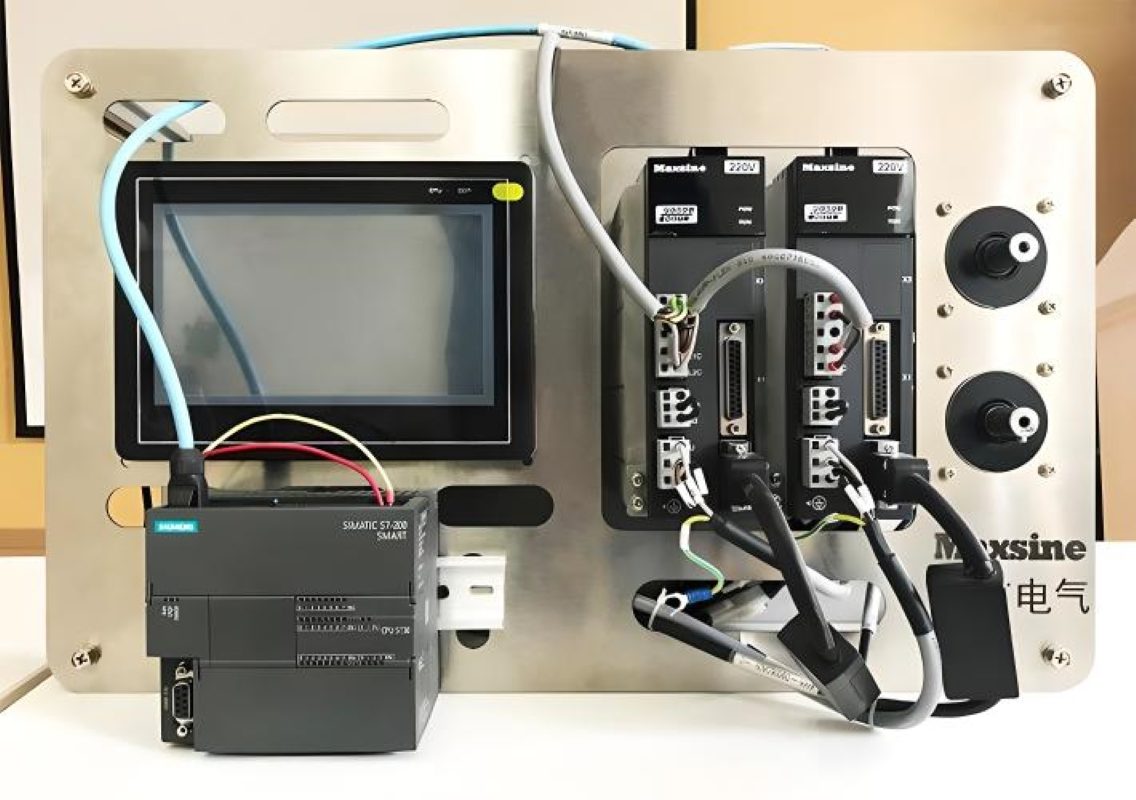

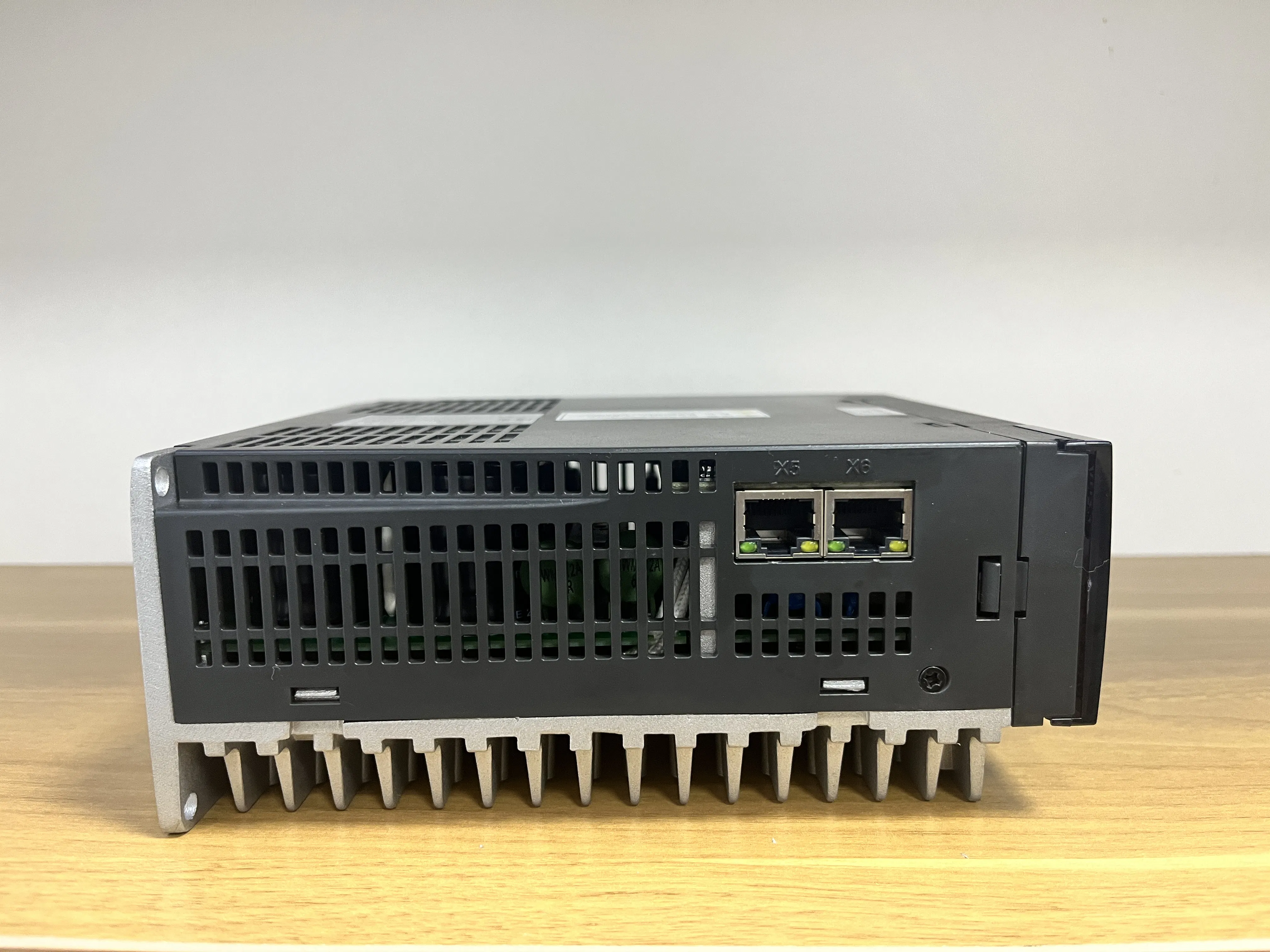

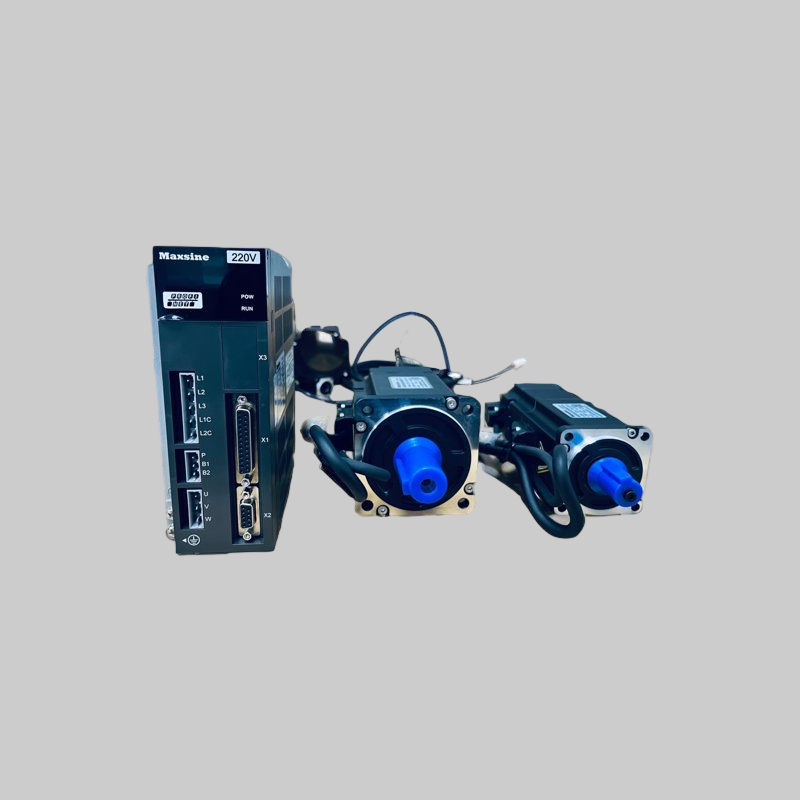

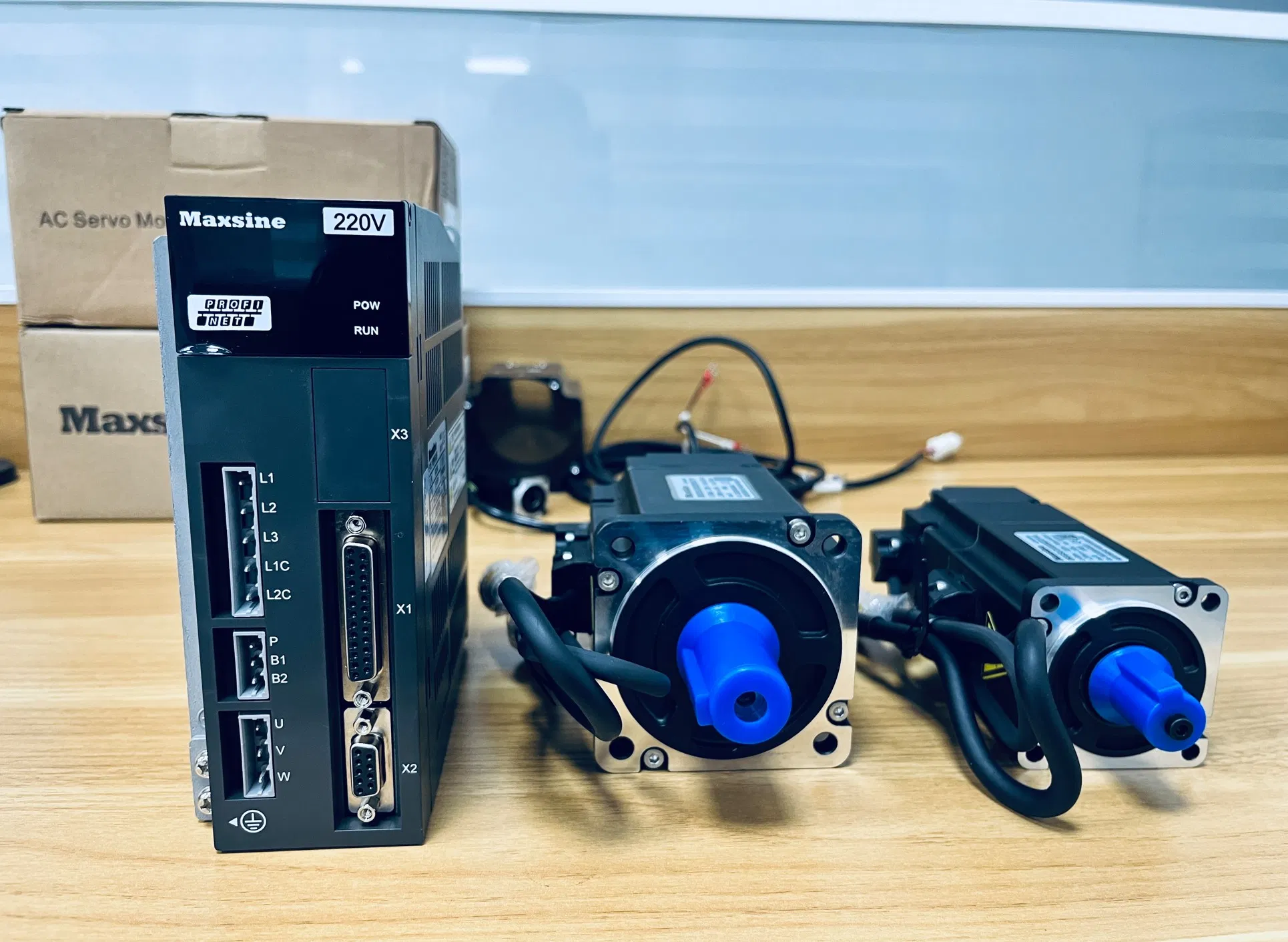

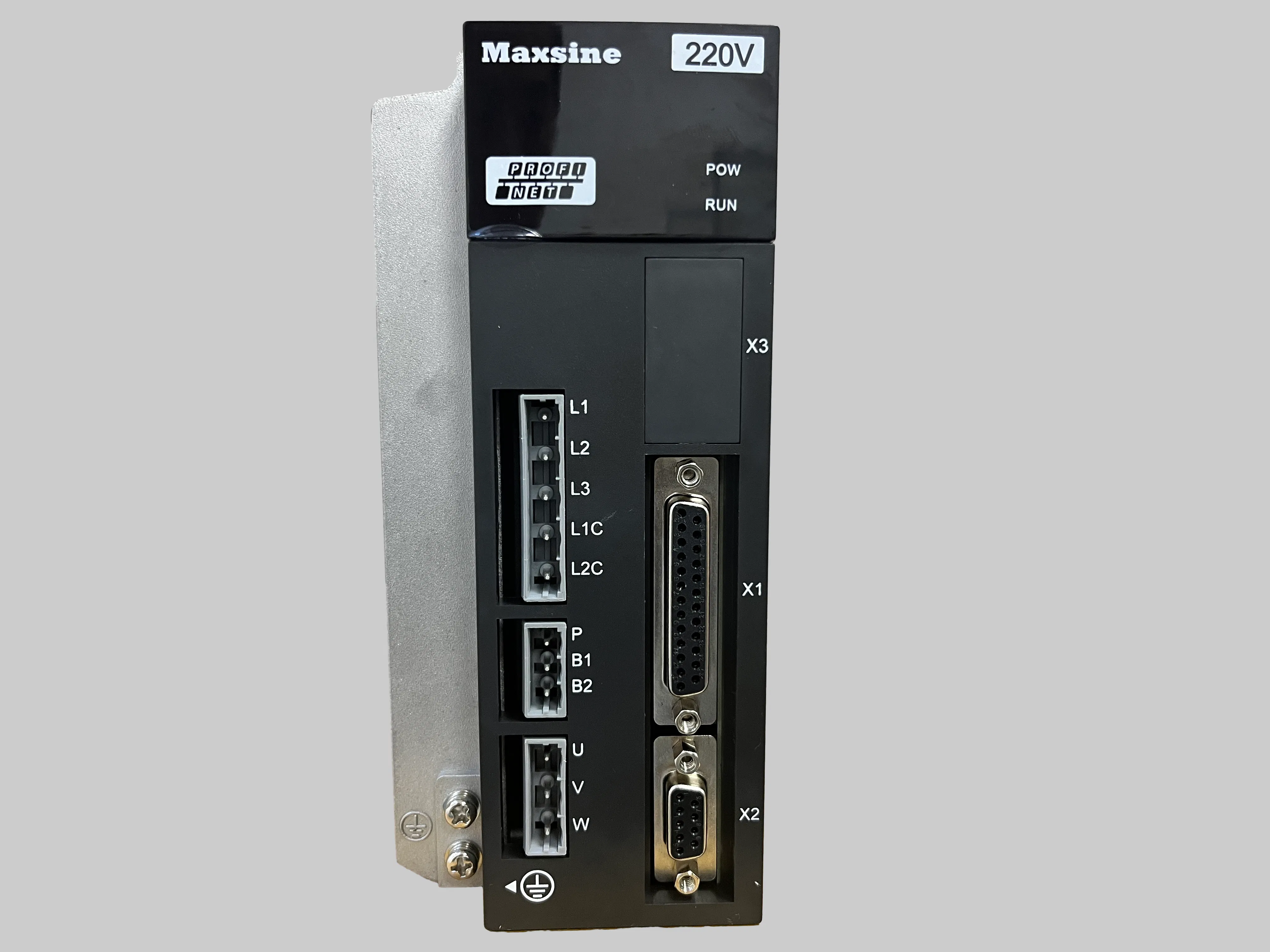

Product Display

Frequently Asked Questions

Q1: What is the power range supported by the EP3E series? The EP3E AC Servo Drive supports a wide power range from 0.1kW up to 15kW, making it suitable for various industrial scales.

Q2: Which communication protocols are compatible with this drive? It supports major industrial protocols including PROFINET, EtherCAT, POWERLINK, and MECHATROLINK-III for seamless system integration.

Q3: Does the EP3E support third-party motors? Yes, in addition to our MA, MS, MD, MR, MN, and MY series motors, the EP3E is designed to support third-party motors for maximum flexibility.

Q4: What kind of encoder resolution does it provide? The drive supports high-resolution 23bit incremental subdivision and 23bit multiturn absolute value encoders for precise motion control.

Q5: What are the primary operating modes? The drive features three primary modes: CSP (Position), CSV (Velocity), and CST (Torque) to handle different motion requirements.

Q6: What is the protection rating and warranty period? The EP3E has an IP20 protection rating and comes with an 18-month warranty ensuring long-term reliability.
