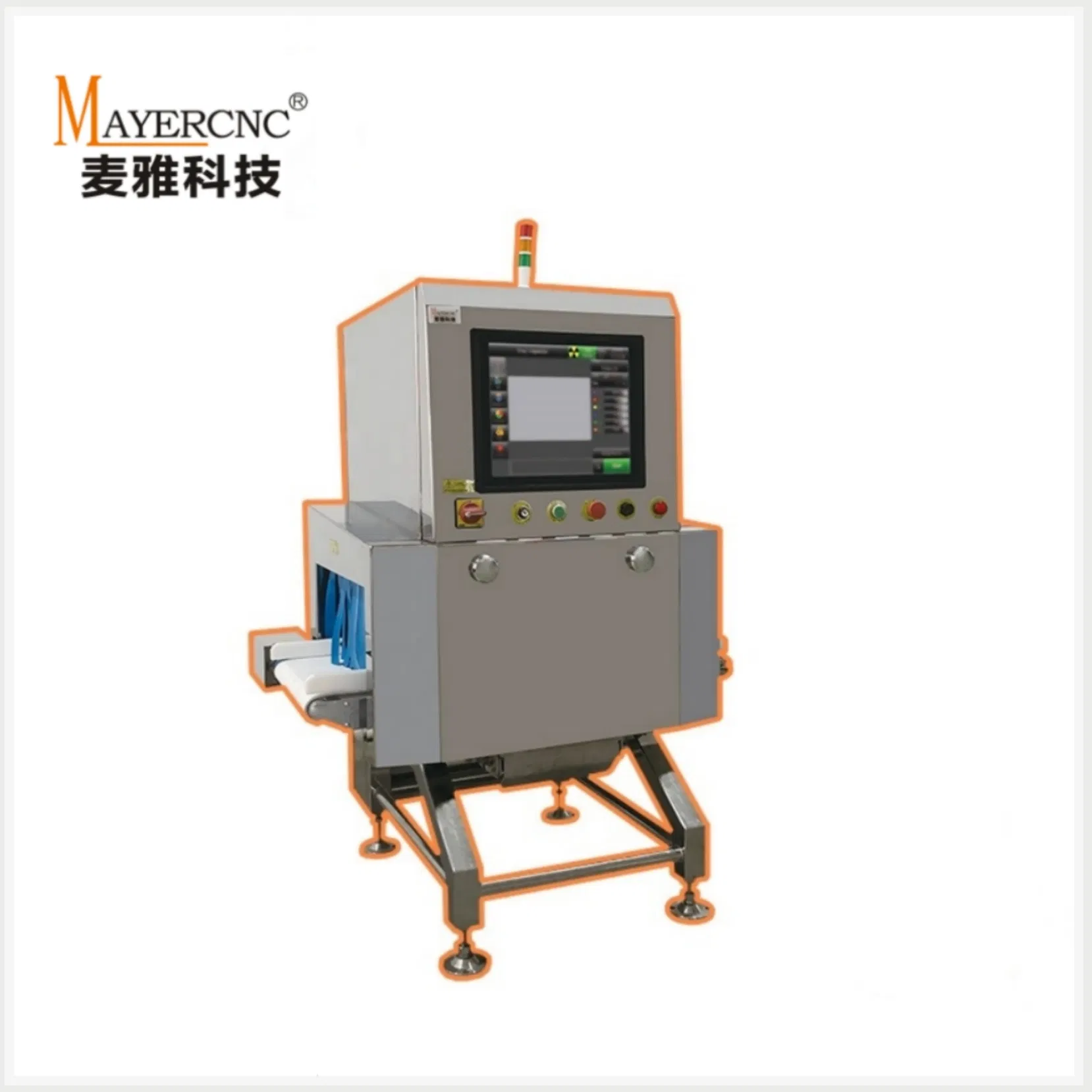

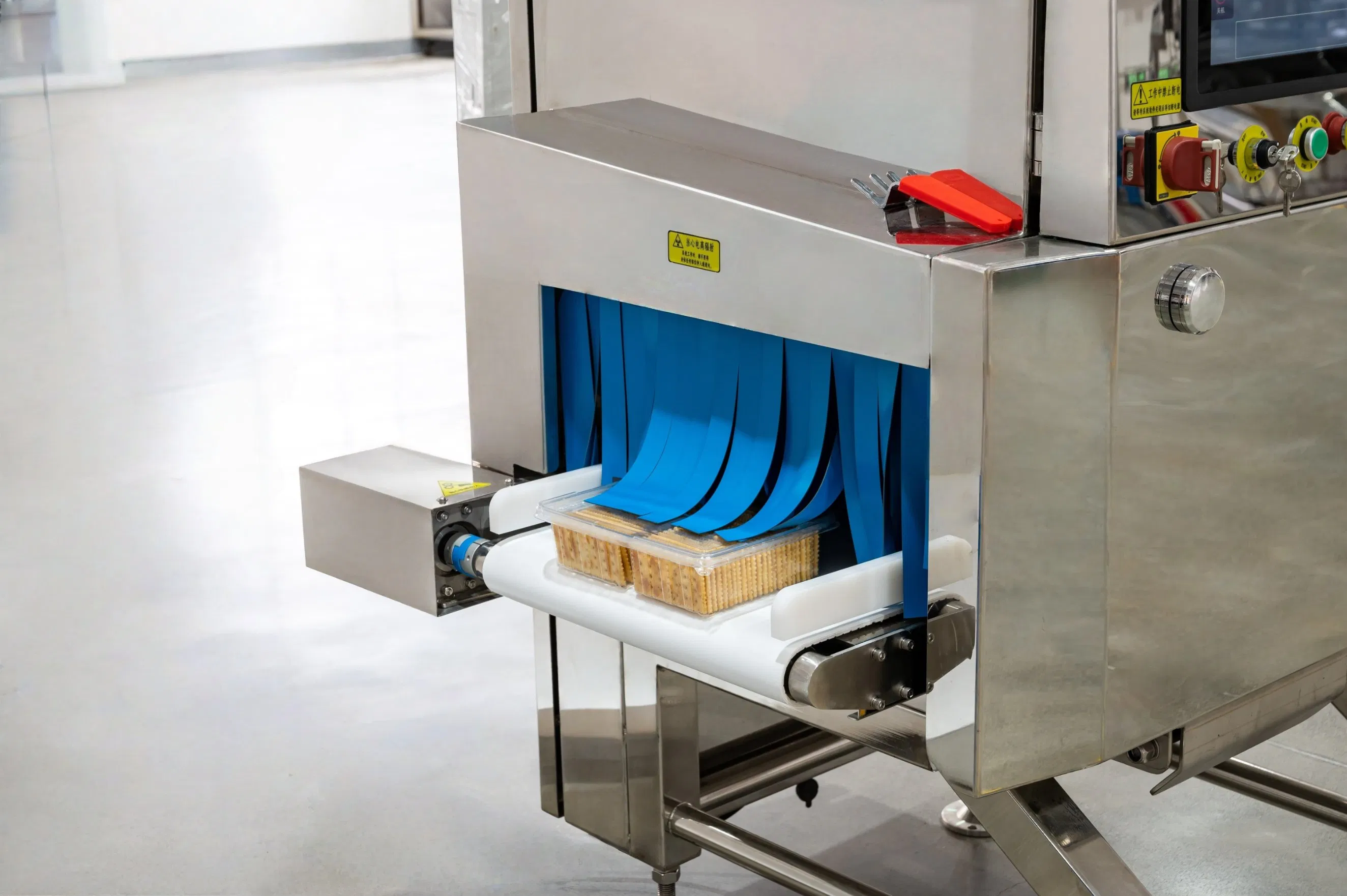

Advanced X-ray Inspection System for Small Package Quality Assurance

Customization:	Available
After-sales Service:	Online
Warranty:	12 Months

i

Basic Information

Model NO.

MY-XD-2412

Portable

Non Portable

Form

Flatbed

Application

Industrial

Type

Conveying X-ray Detector

Certification

CE, ISO

Alarm Form

Sound and Light Alarm

Display

17-Inch Touch Screen

Conveyor Speed

5~60m/Min

Max Product Weight

5kg

Protection Rating

Conveyor IP66, Others IP40

HS Code

9022199090

P

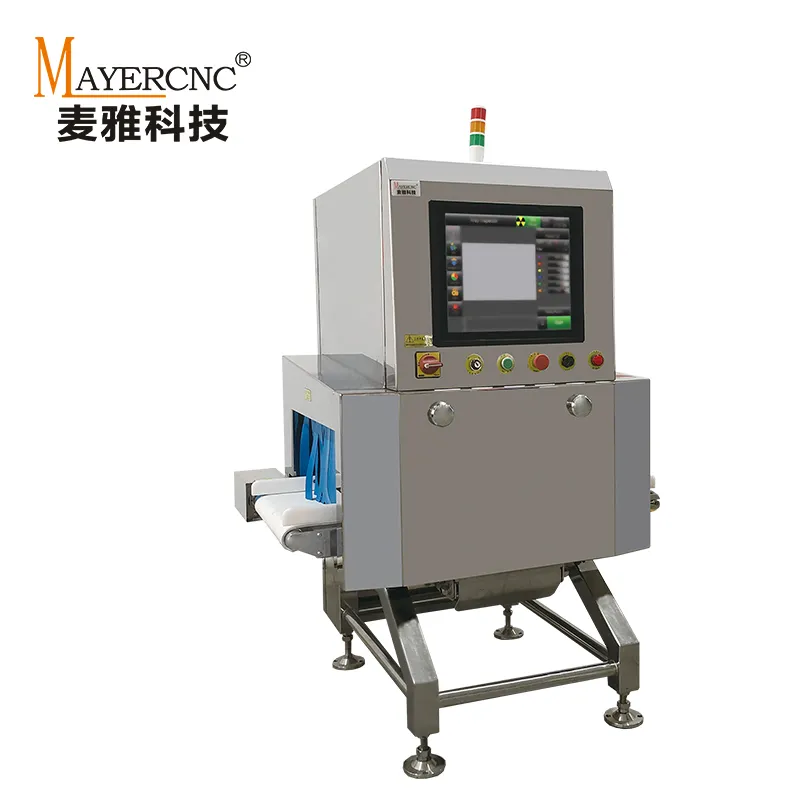

Product Description

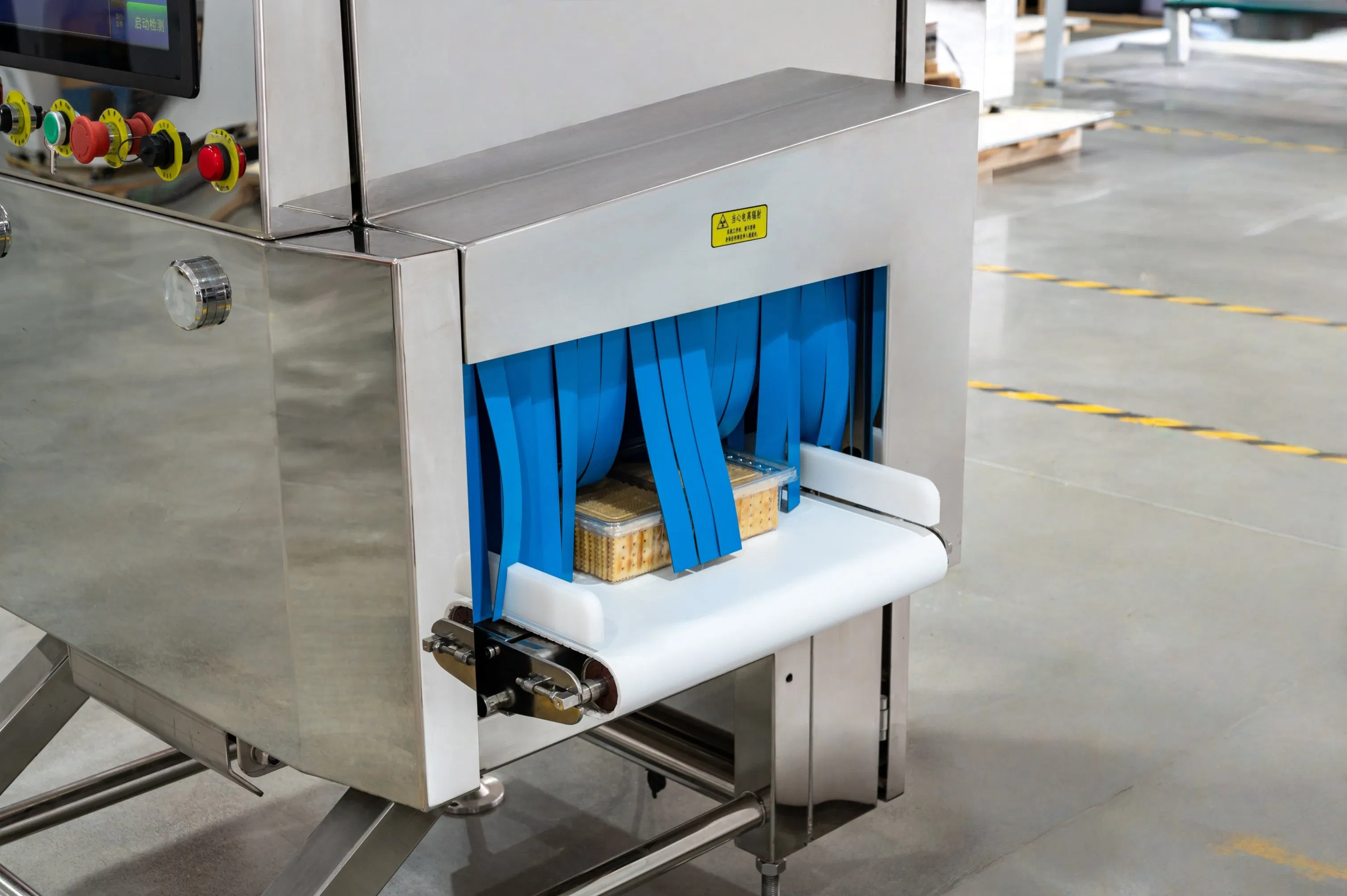

X-ray metal detectors are critical safety equipment in modern food production lines. Its core function is to use the penetrating power of X-rays to efficiently detect various physical foreign matter mixed in food. It not only includes all metals such as iron, stainless steel, copper, and aluminum, but can also effectively identify non-metallic impurities such as glass, ceramics, gravel, hard plastic, and high-density bones.

Specially designed for small and medium-sized packaged dairy products, snack foods, meat products, baked goods, quick-frozen products, and fruit and vegetable products.

High-Precision Inspection: Detects metallic and non-metallic objects like glass, ceramics, stone, and hard plastics.

Efficient Integration: Suitable for high-speed lines with automatic rejection for missing parts or damaged packaging.

Wide Adaptability: Perfect for cans, glass bottles, and aluminum foil packaging in food and pharma industries.

AI Algorithm: Guided automated learning for new products with customized precision algorithms.

Smart Connectivity: 4G wireless connectivity for rapid remote technical support and fault alerts.

S

Technical Specifications

Model Number	MY-XD-2412	MY-XD-4016
Ray source	150W	210W
Detection accuracy	Stainless steel ball: 0.3mm, stainless steel wire: 0.2*2mm, ceramic glass ball: 1.0mm
Operating system	Linux
HMI	17-inch touch LCD screen
Conveyor speed	5~60m/min
Max Product Weight	5Kg	10Kg
Max Product Dimensions	W 240mm, H 120mm	W 400mm, H 160mm
Power supply	AC220V, 50Hz-60Hz
Equipment material	304 stainless steel (Mirror/Brushed/Sandblasting)

C

Core Capabilities

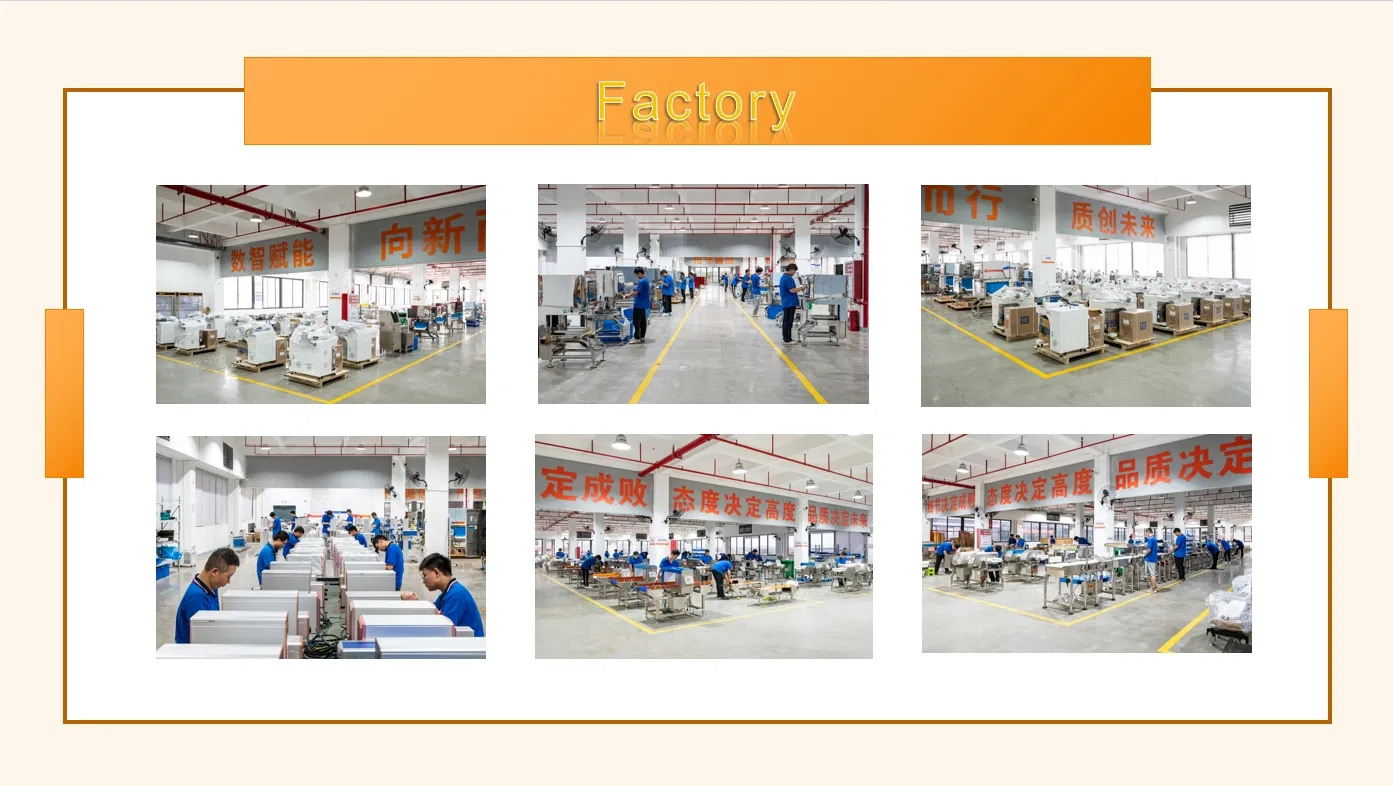

Specializing in the research, development, and production of metal foreign body detection equipment, weight detection equipment, visual inspection equipment, and X-ray inspection equipment. With numerous patents and a status as a high-tech enterprise, our products are widely utilized in food, hygiene, textiles, toys, and pharmaceutical industries.

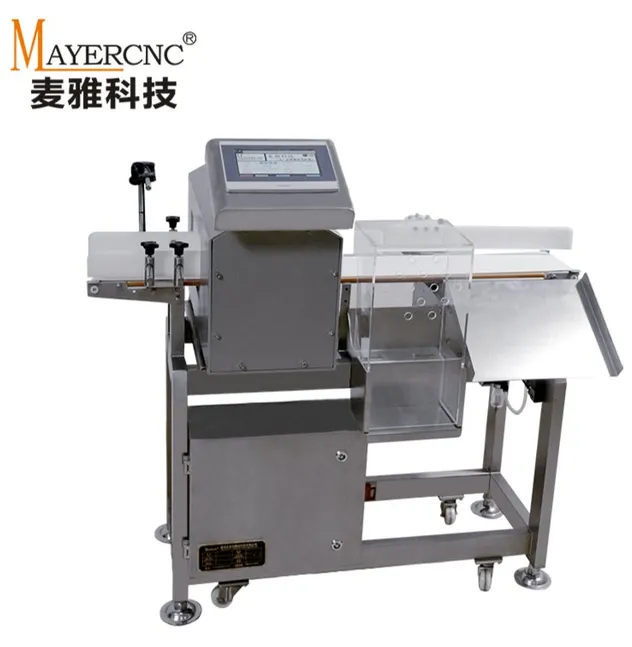

Conveyor Metal Detector

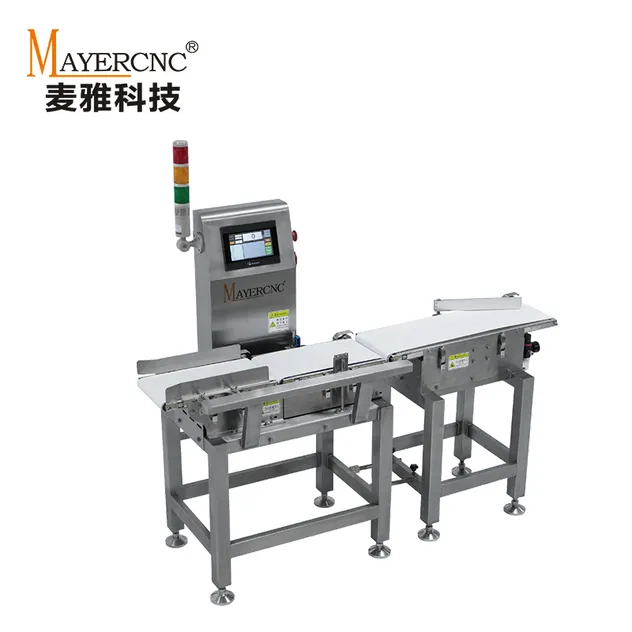

Checkweigher

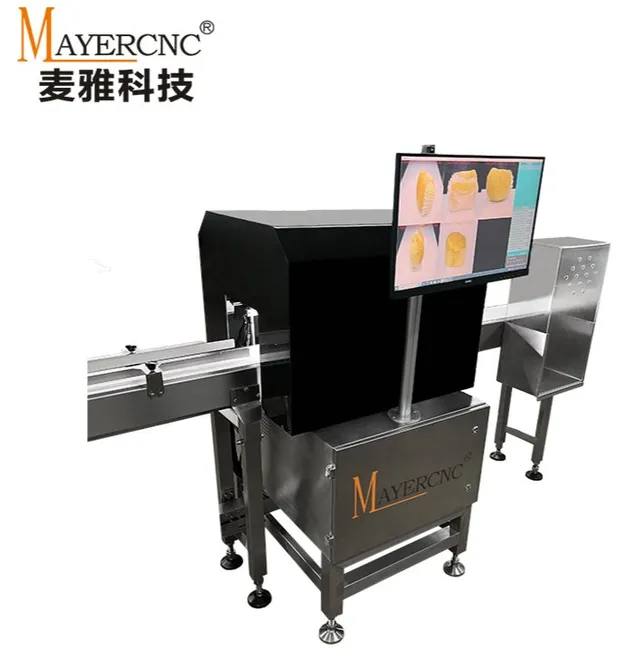

Visual Inspection System

?

Frequently Asked Questions

Are you a manufacturer?

Yes, we were established in 2008 and have over 18 years of production experience dedicated to professional design and production of testing equipment.

What are your main products?

Our main products include metal detectors, checkweighers, X-ray foreign body detection systems, vision inspection systems, and laser marking machines.

How do I know if this machine is right for me?

You can provide us with your product type and specifications. Our technical team will recommend a suitable model based on these characteristics. All products can be customized.

How do I operate the machine?

The equipment features an LCD touch display with multi-language menus (Chinese and English) for easy operation as per the instruction manual.

What is the warranty period and delivery time?

The warranty period is one year. Delivery typically takes about 20 business days after receiving the deposit.

Do you provide technical assistance after receipt?

Yes, our after-sales team provides remote technical support for installation and training through instant communication channels.
