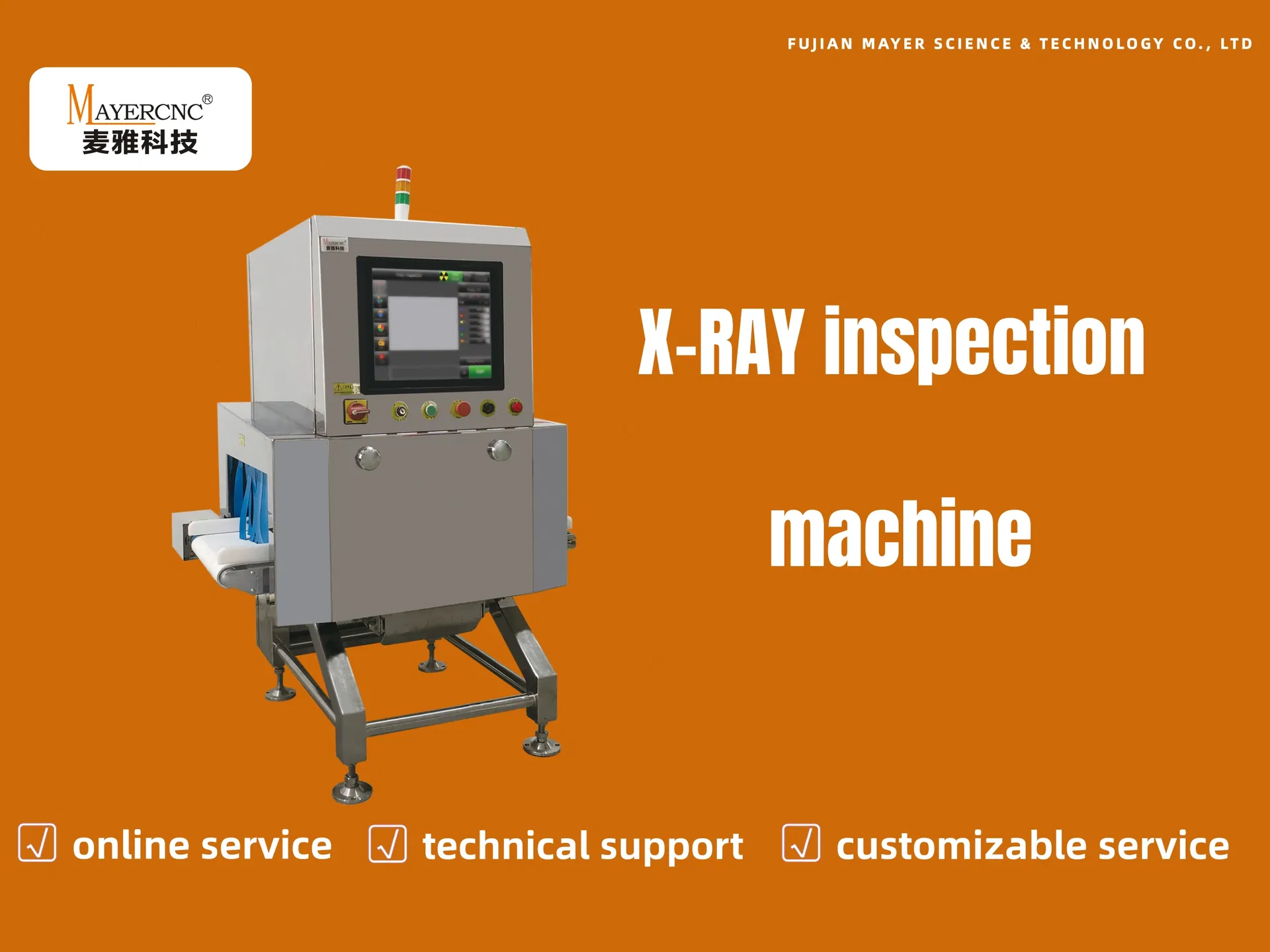

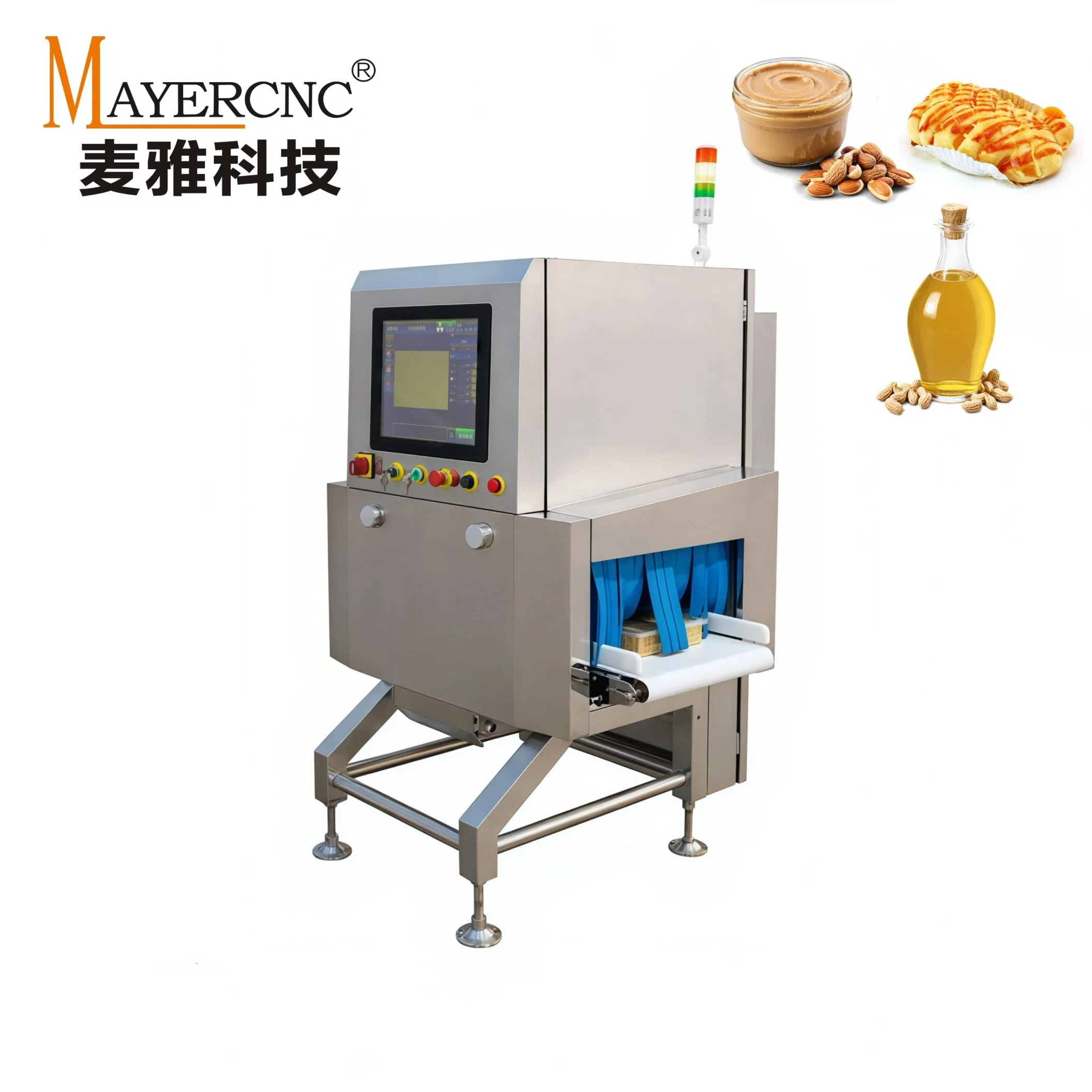

Advanced Dynamic Inspection System for Optimal Performance and Flexibility

1 / 5

Advanced Dynamic Inspection System for Optimal Performance and Flexibility

Customization:	Available
After-sales Service:	Online
Warranty:	12 Months

Send Inquiry

Product Description

📊

Product Overview

Model NO.

MY-XD-4016

Form

Flatbed

Application

Industrial

Type

Conveying X-ray Detector

Certification

CE, ISO

Alarm Form

Sound and Light Alarm

Display

17-Inch Touch Screen

Conveyor Speed

5~60m/Min

Protection

Conveyor IP66, Other IP40

Origin

China

🔍

Detailed Description

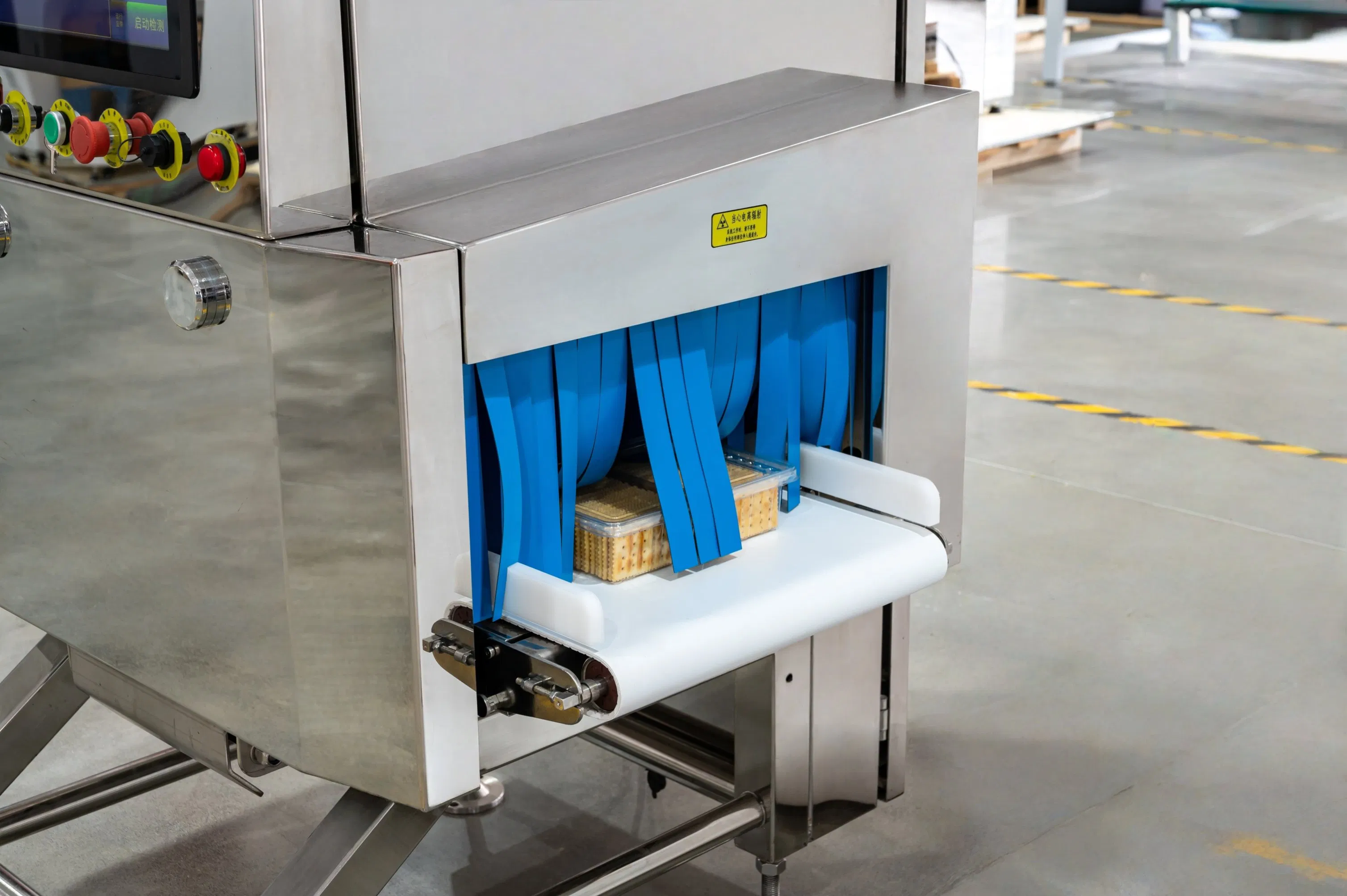

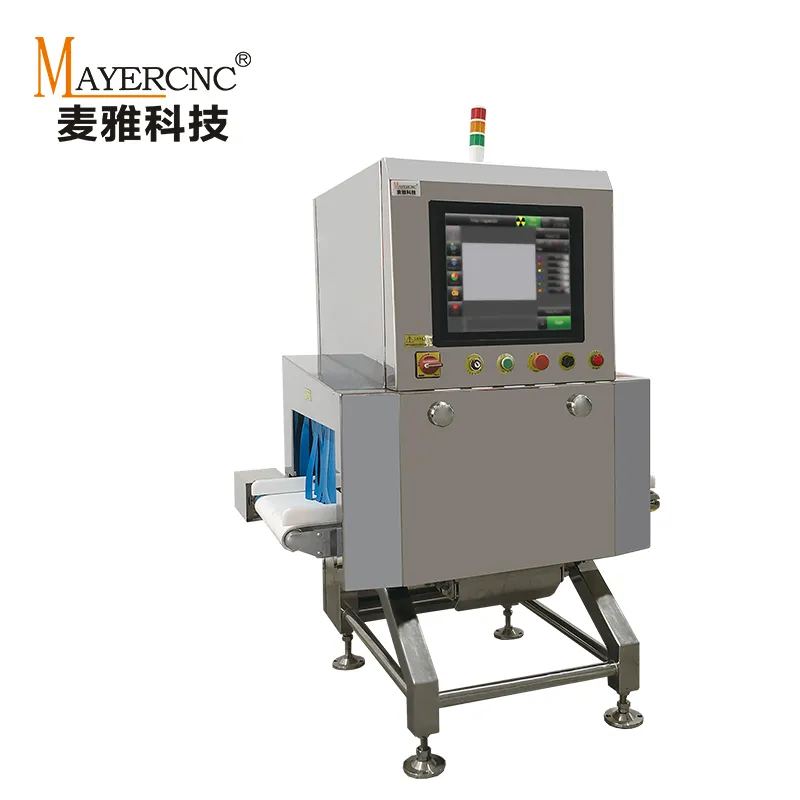

X-ray metal detectors are critical safety equipment in modern food production lines. Its core function is to use the penetrating power of X-rays to efficiently detect various physical foreign matter mixed in food. It not only includes all metals such as iron, stainless steel, copper, and aluminum, but can also effectively identify non-metallic impurities such as glass, ceramics, gravel, hard plastic, and high-density bones, greatly improving the detection accuracy and range.

1. High-Precision Inspection: Detects metallic and non-metallic objects like glass, ceramics, and high-density bone.
2. Efficient Automation: Non-destructive testing integrated with automatic rejection systems.
3. Wide Adaptability: Suitable for cans, glass bottles, and aluminum foil packaging.
4. AI Algorithm: Intelligent guided automated learning for quick product setup.
5. Remote Support: 4G wireless connectivity for rapid technical alerts and support.

📋

Technical Specifications

Model Number	MY-XD-2412	MY-XD-4016
Ray source	150W	210W
Detection accuracy	Stainless steel ball: 0.3mm, Wire: 0.2*2mm, Glass: 1.0mm
Operating system	Linux

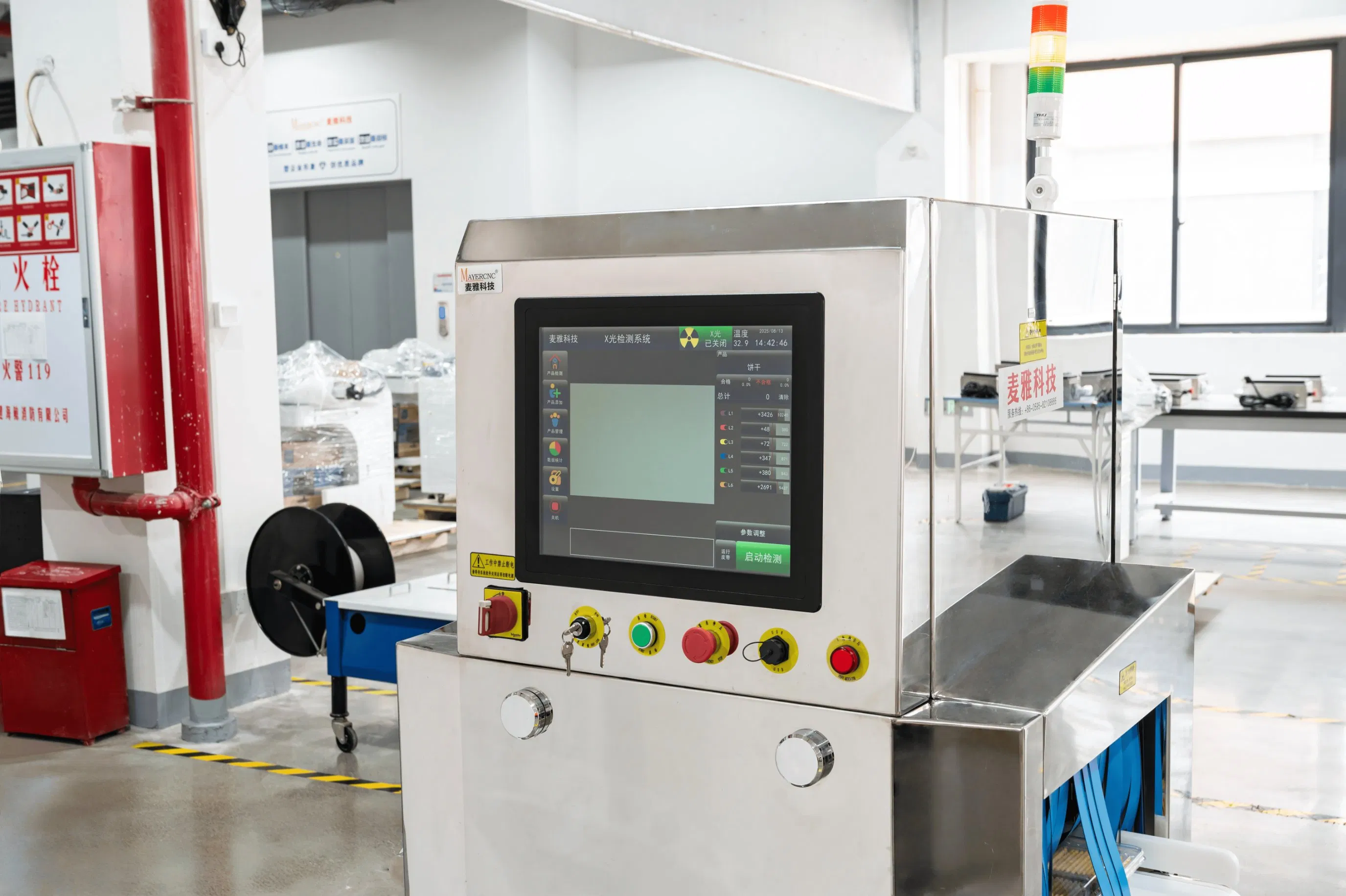

Display	17-inch touch LCD screen
Conveyor speed	5~60m/min
Max Product Weight	5Kg	10Kg
Max Product Dimensions	240mm (W) x 120mm (H)	400mm (W) x 160mm (H)
Equipment Material	304 Stainless Steel

🖼️

Product Gallery

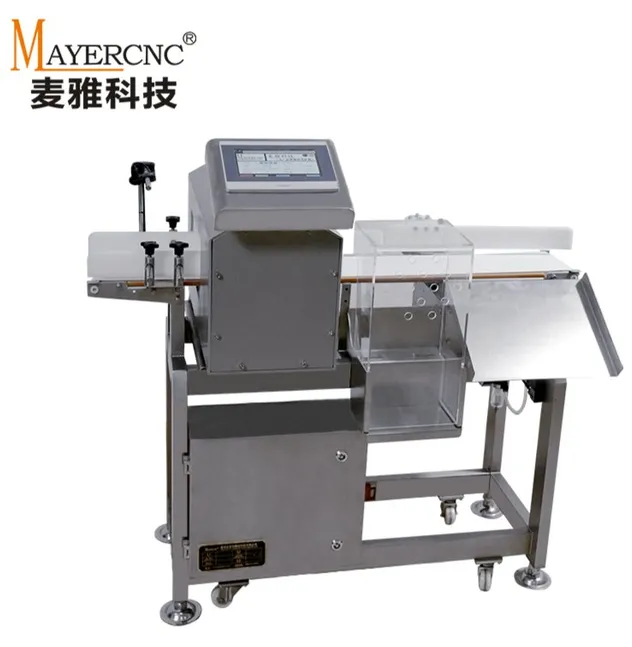

Online Metal Detector

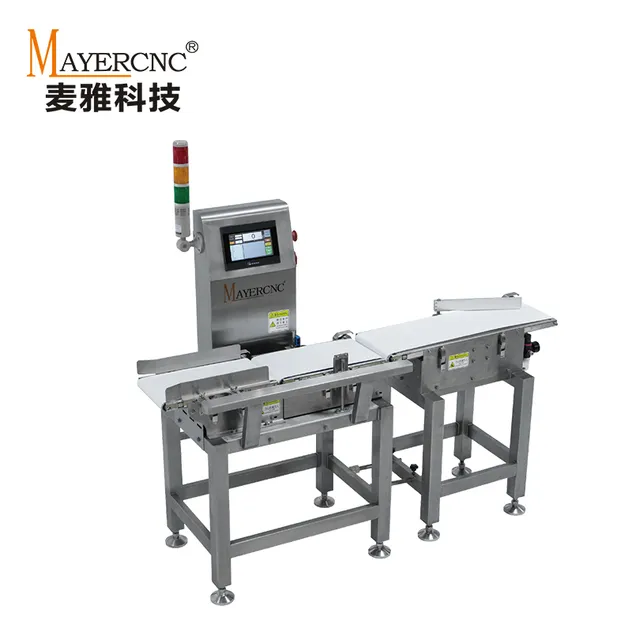

Checkweigher

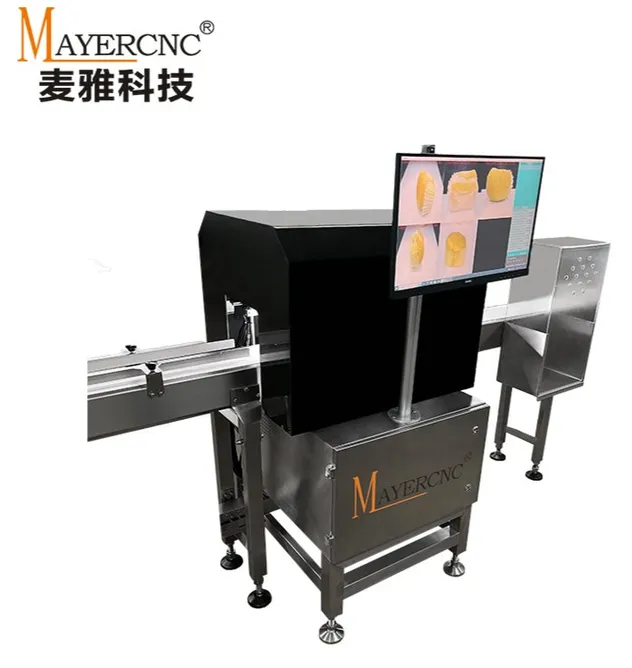

Visual Inspection System

❓

Frequently Asked Questions

Q1: Are you a manufacturer?

Yes, we were established in 2008 and have 18 years of production experience, dedicated to professional design and production of testing equipment.

Q2: What are your main products?

Our main products include metal detectors, checkweighers, X-ray foreign body detection systems, vision inspection systems, and laser marking machines.

Q3: Do you accept customization for specific products?

Yes. All of our products can be customized according to customer requirements and product characteristics. Our technical team will recommend a suitable model based on your specifications.

Q4: How easy is it to operate the machine?

The equipment features an LCD display with multi-language menu screens (Chinese and English) for easy operation according to the instruction manual.

Q5: What is the warranty period for the equipment?

We provide a standard warranty period of one year for all our inspection machines.

Q6: Do you provide technical assistance after delivery?

Yes, we have a dedicated after-sales team. Our technicians can provide remote assistance for installation and training after you receive the machine.
