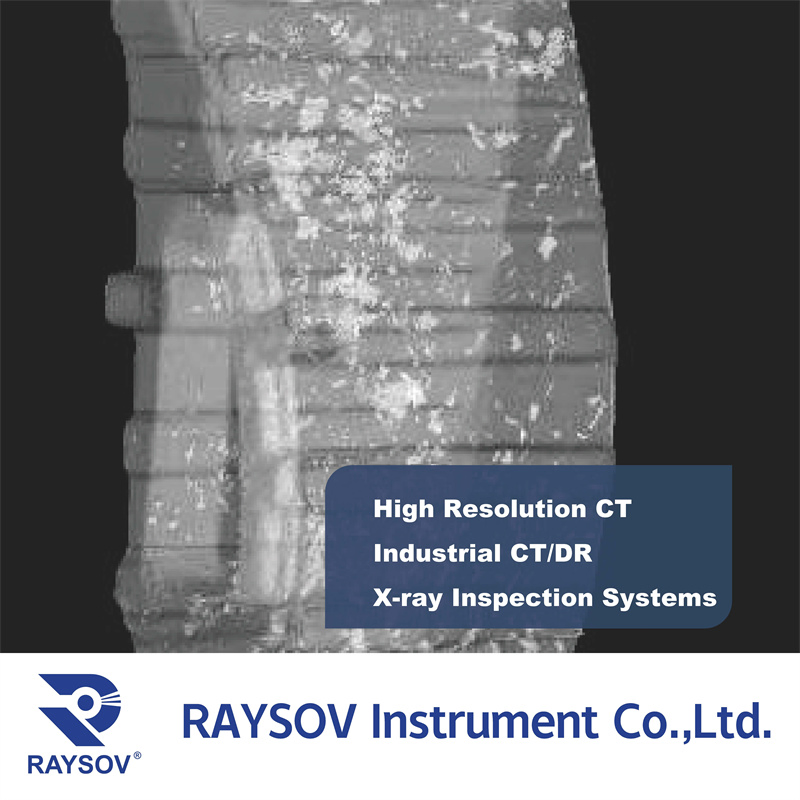

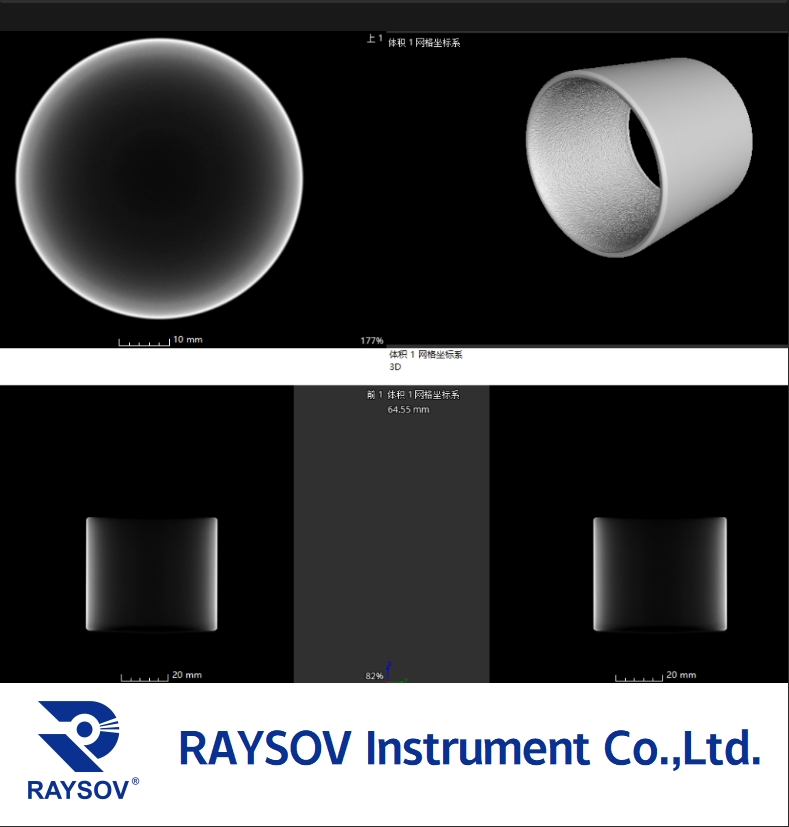

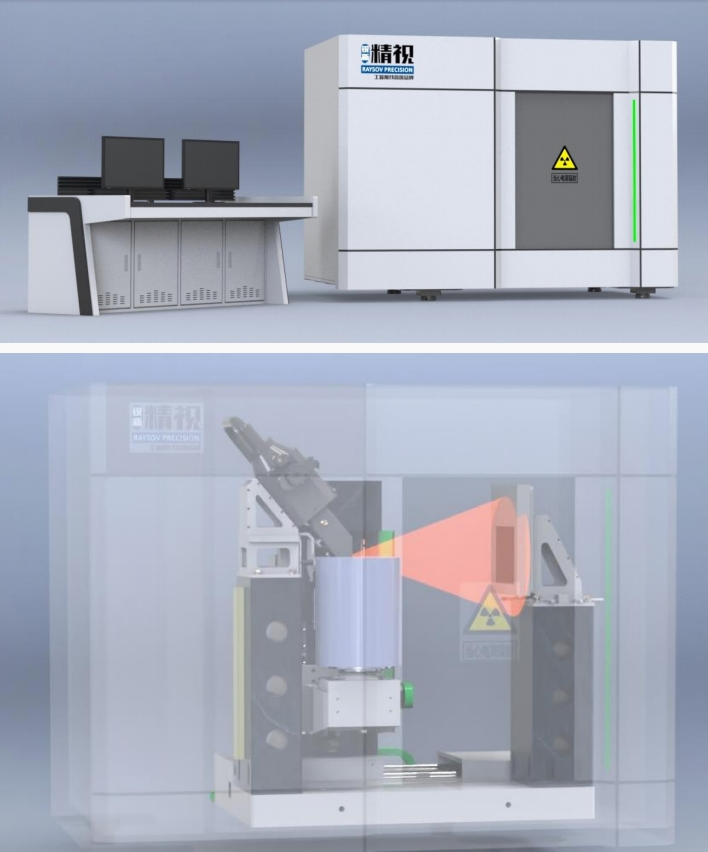

3D X-ray computed tomography (CT) is a non-destructive testing (NDT) technology, which rebuilt the internal structure of objects in 3D images. Base on advanced 3D CT inspection system, this solution is used for applications including carbon fibre composites where internal structures and defects can be identified and measured.
The composite materials industry is essential in modern production. These products serve as both industrial manufacturing components and large super-light parts. As industrial automation improves, the demand for high-precision CT scanning for geometric structure identification and assembly defect analysis grows exponentially.
Advanced Inspection Range:
| Specifications | ZXVoxel U | ZXVoxel A | ZXVoxel C | ZXVoxel D-IN |
|---|---|---|---|---|
| Standard Scan Range (mm) | D=100 H=100 | D=250 H=200 | D=250 H=250 | D=330 H=330 |
| Max. Object Size (mm) | D=200 H=200 | D=400 H=500 | D=500 H=500 | D=550 H=700 |
| X-ray Source | 100kV 5μm | 160/225kV 0.4μm | 160/225/300kV 3μm | 160/225/320/450kV 0.4mm |
| Dimensions (mm) | 100*600*650 | 1700*1200*1700 | 2600*1800*2500 | 3300*1800*2500 |
| Max. Weight (kg) | 10 | 50 | 50 | 50 |
| Description | Benchtop CT | Rotation stage lift | Horizontally movement | Integrated IN system |

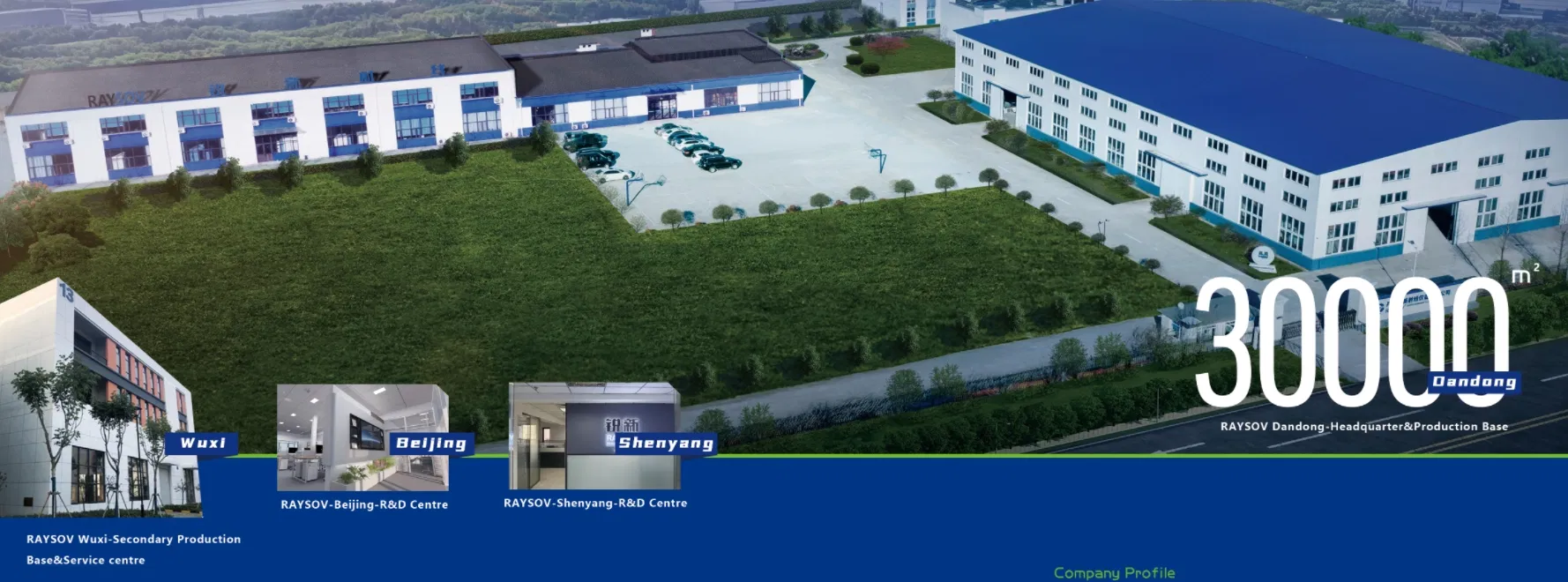

Established in 2009, our company is a prominent manufacturer of advanced X-ray non-destructive testing and evaluation instruments. We have earned a global reputation as a high-end supplier of automated industrial DR and industrial CT inspection solutions.
We strictly adhere to international standards, holding certifications including ISO9001, ISO14001, ISO45001, and IS027001. Our strengths lie in independent intellectual property rights and numerous national invention patents, enabling us to offer custom-built solutions for technology projects worldwide.
