Advanced X-ray Inspection System for Superior Quality Control

Customization: Available
After-sales Service: Online
Warranty: 12 Months

Product Description

Overview

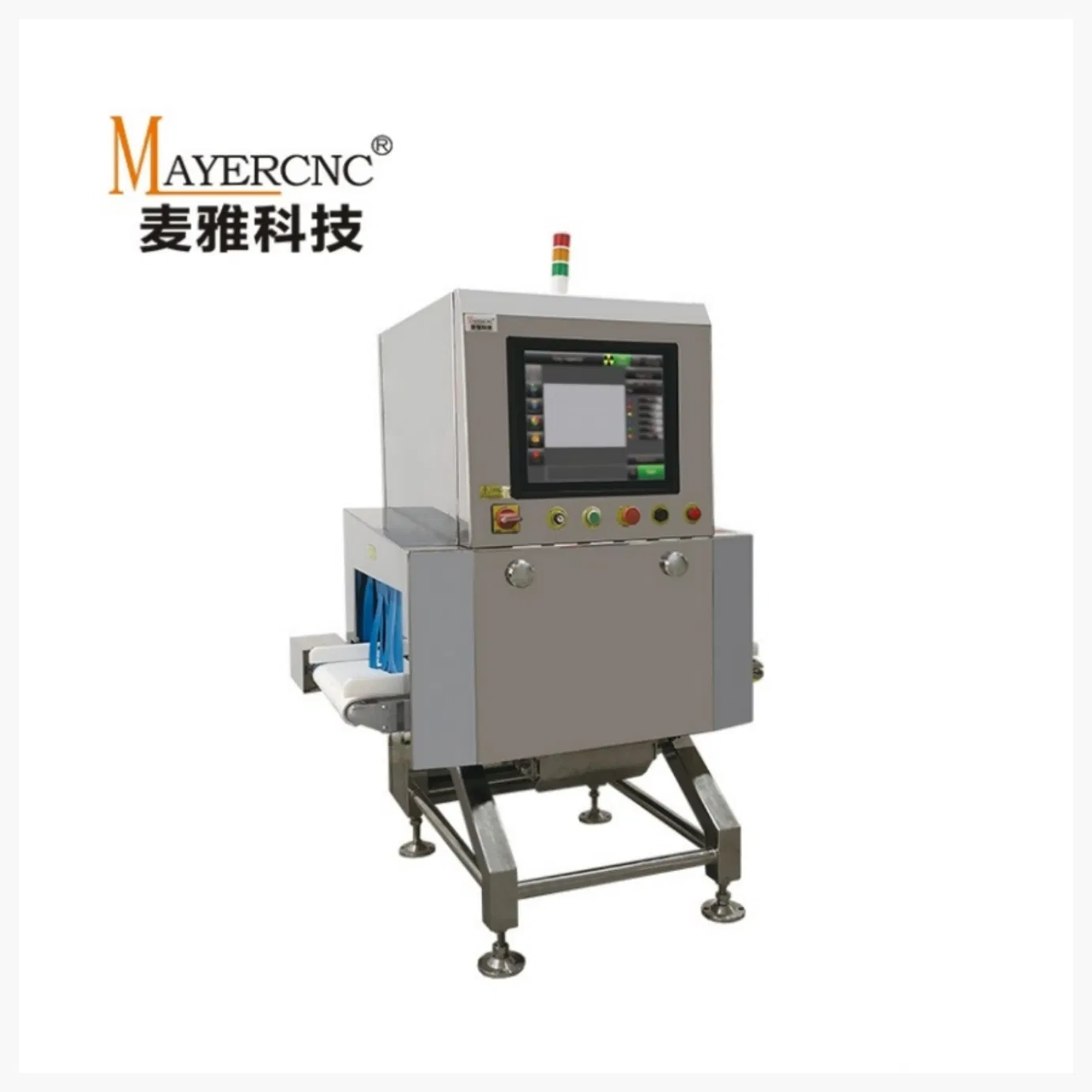

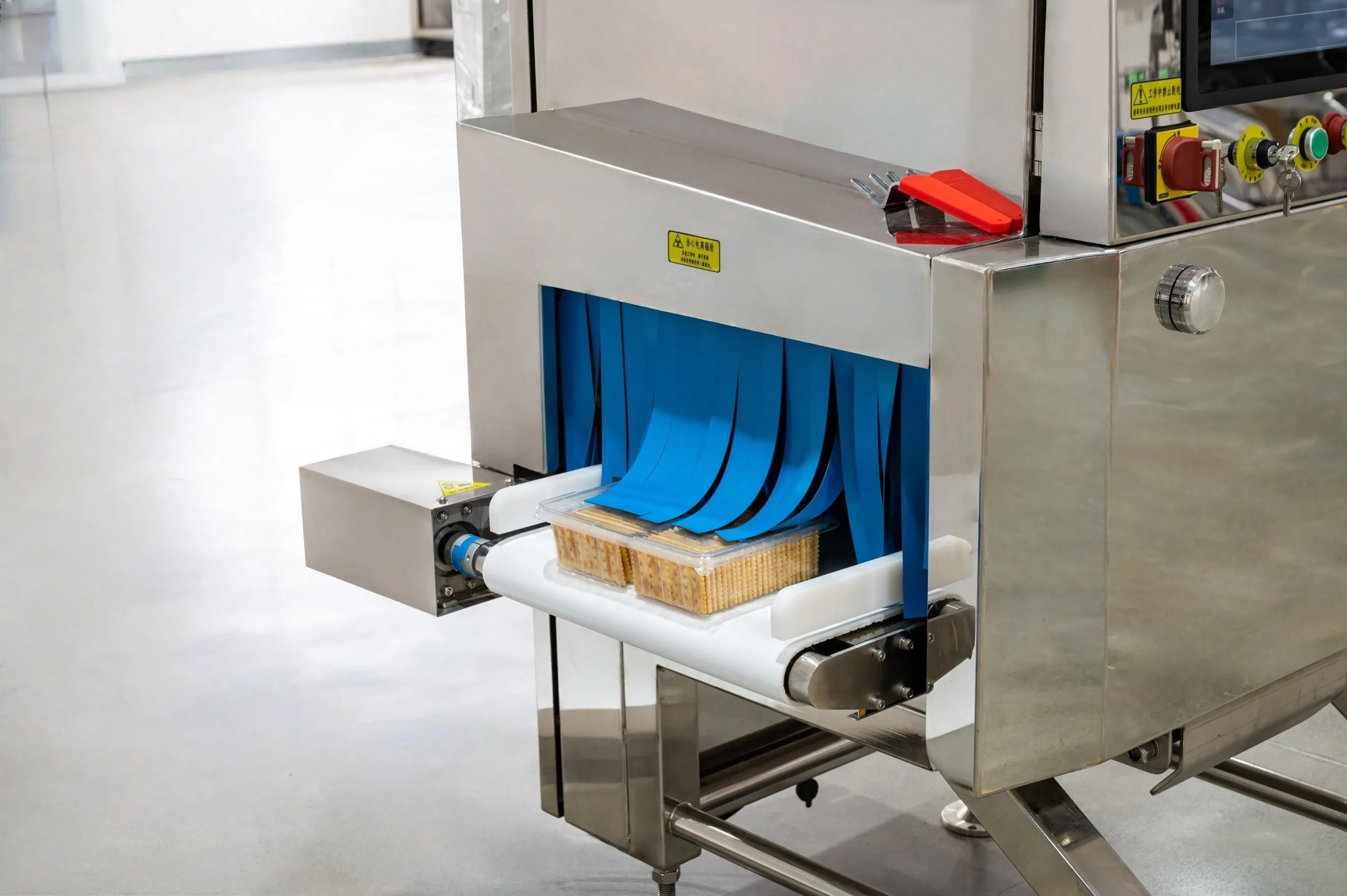

Advanced X-ray Inspection System
Basic Info
Model NO.MY-XD-2412
PortableNon Portable
FormFlatbed
ApplicationIndustrial
TypeConveying X-ray Detector
CertificationCE, ISO
Alarm FormSound and Light Alarm
Display17-Inch Touch Screen
Conveyor Speed5~60m/Min
Inspection WeightMaximum 5kg
Protection LevelConveyor IP66, Other Parts IP40
OriginChina

X-ray metal detectors are critical safety equipment in modern food production lines. Its core function is to use the penetrating power of X-rays to efficiently detect various physical foreign matter mixed in food. It not only includes all metals such as iron, stainless steel, copper, and aluminum, but can also effectively identify non-metallic impurities such as glass, ceramics, gravel, hard plastic, and high-density bones.

Specially designed for small and medium-sized packaged dairy products, snack foods, meat products, baked goods, quick-frozen products, and fruit and vegetable products.
Product Features

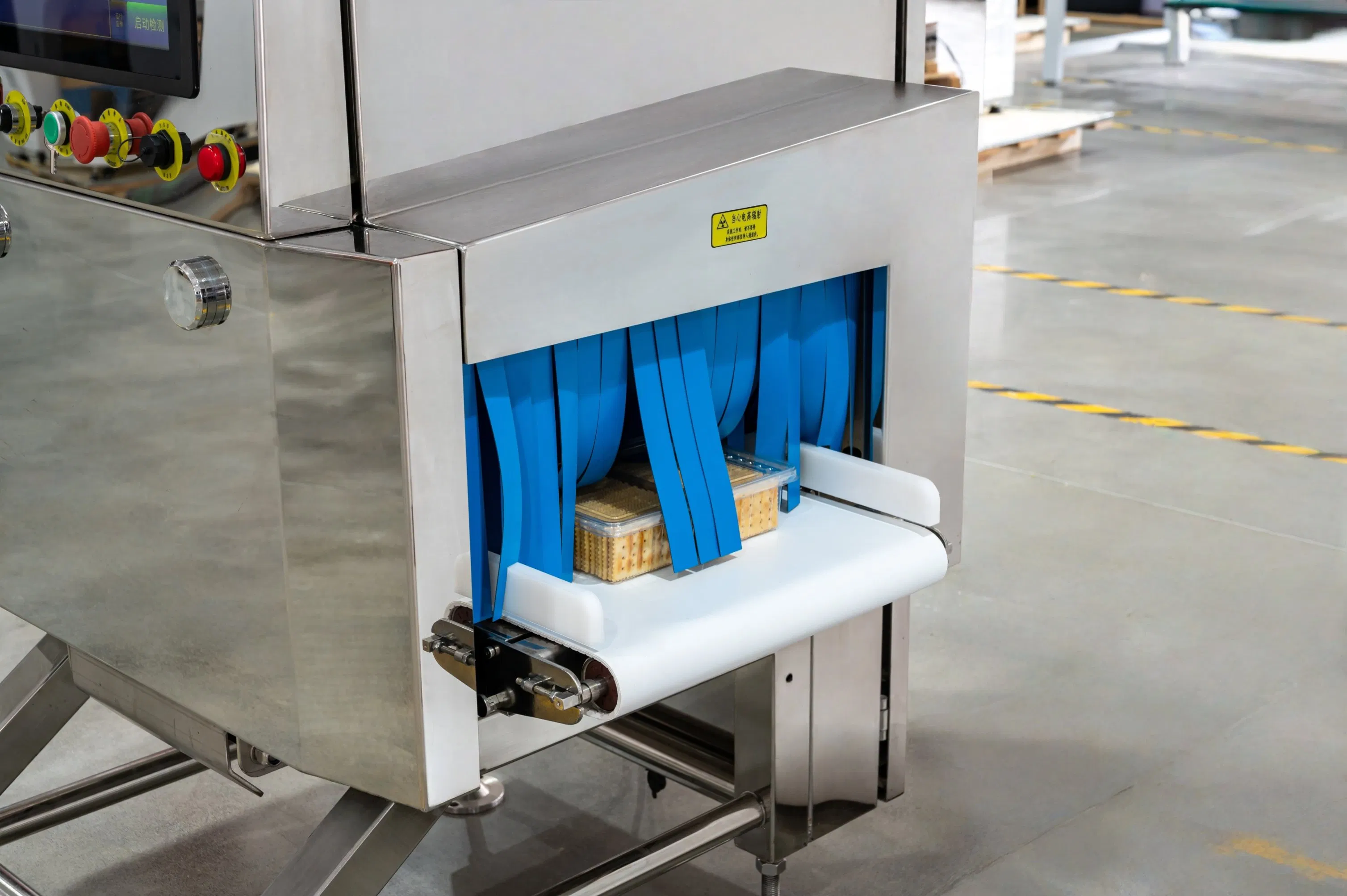

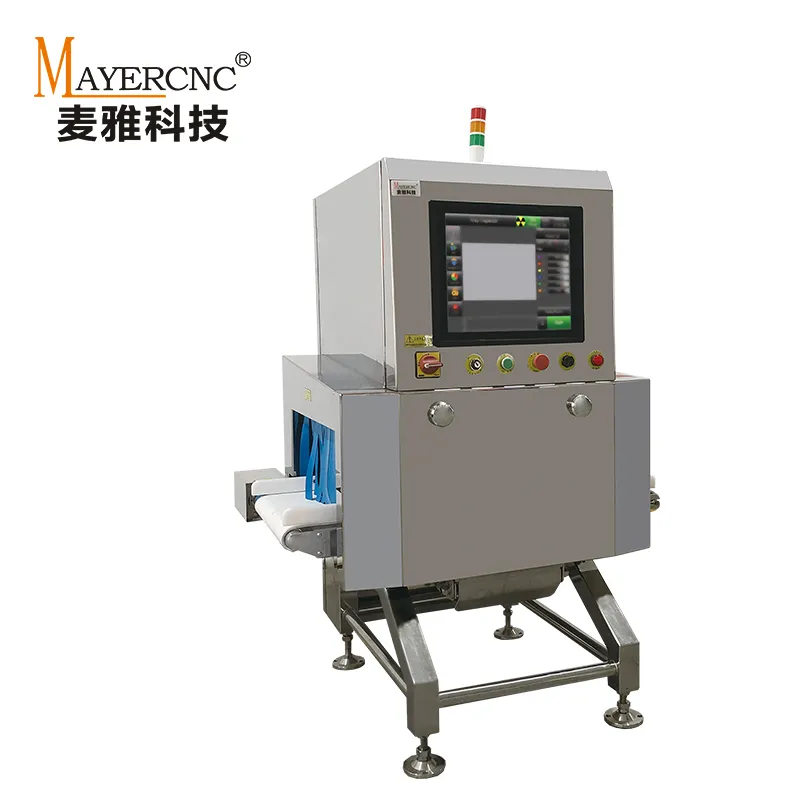

X-ray Product Details
1. High-Precision Inspection Leveraging X-ray penetration differences, it detects metallic and non-metallic objects like glass, ceramics, stone, and high-density bone.
2. Efficient Automation Suitable for high-speed lines, integrating with automatic rejection systems to detect missing parts or damaged packaging.
3. Wide Adaptability Inspects various packaging types including cans, glass bottles, and aluminum foil in food and pharmaceutical sectors.
4. AI Algorithm Intelligent guided learning for new products. Customized AI algorithms precisely match specific products for better accuracy.
5. Remote Support 4G wireless connectivity enables rapid remote technical support and automatic fault alerts.
Technical Specifications
Model Number MY-XD-2412 MY-XD-4016
Ray source150W210W
Detection accuracyStainless steel ball: 0.3mm, Ceramic glass ball: 1.0mm
Operating systemLinux
HMI17-inch touch LCD screen
Conveyor speed5~60m/min
Max Product Weight5Kg10Kg
Max Product Dimensions240mm (W) x 120mm (H)400mm (W) x 160mm (H)
Power supplyAC220V, 50Hz-60Hz
Environment0~45℃, 30~85% RH (no frost)

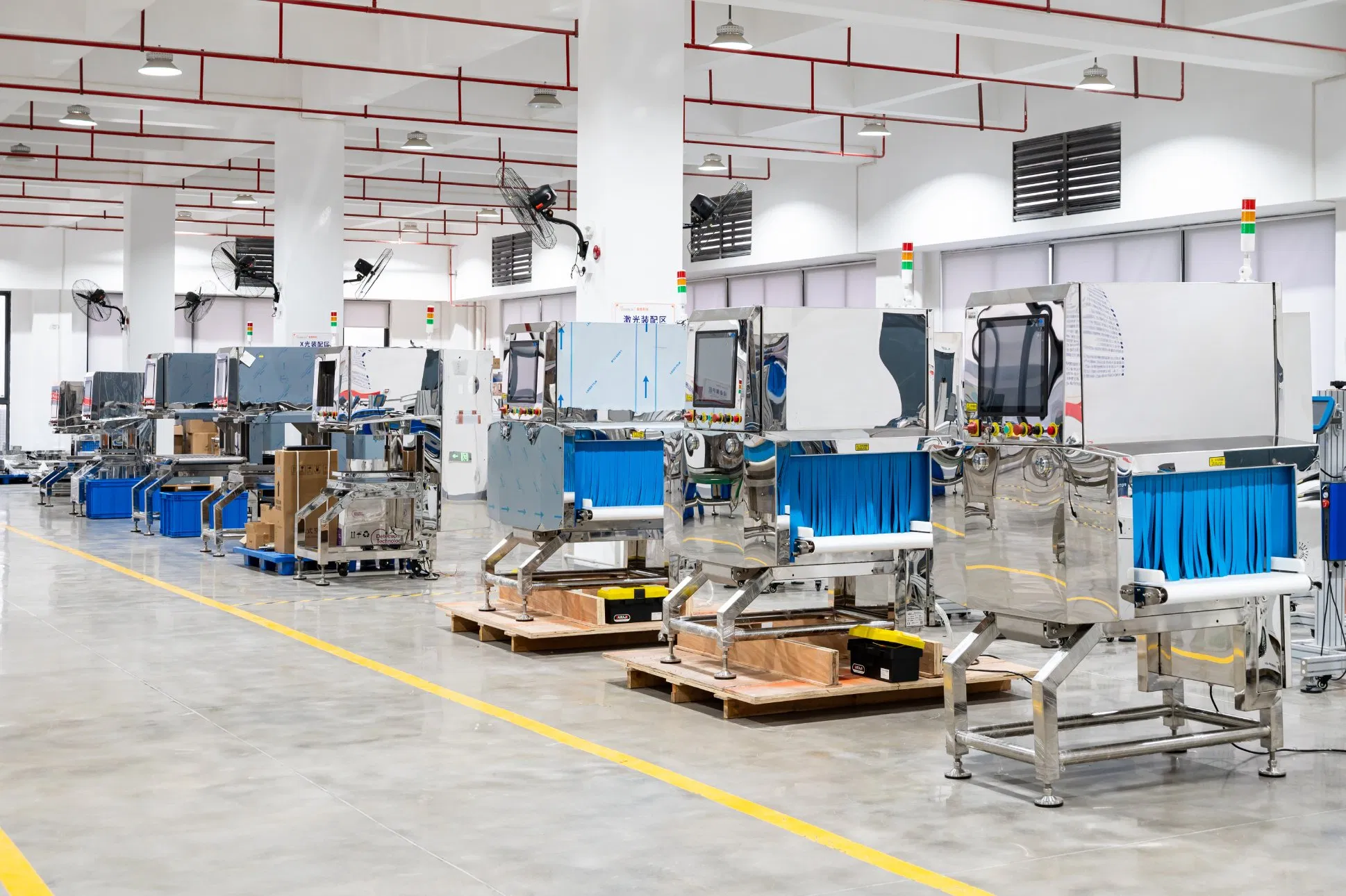

Showcase

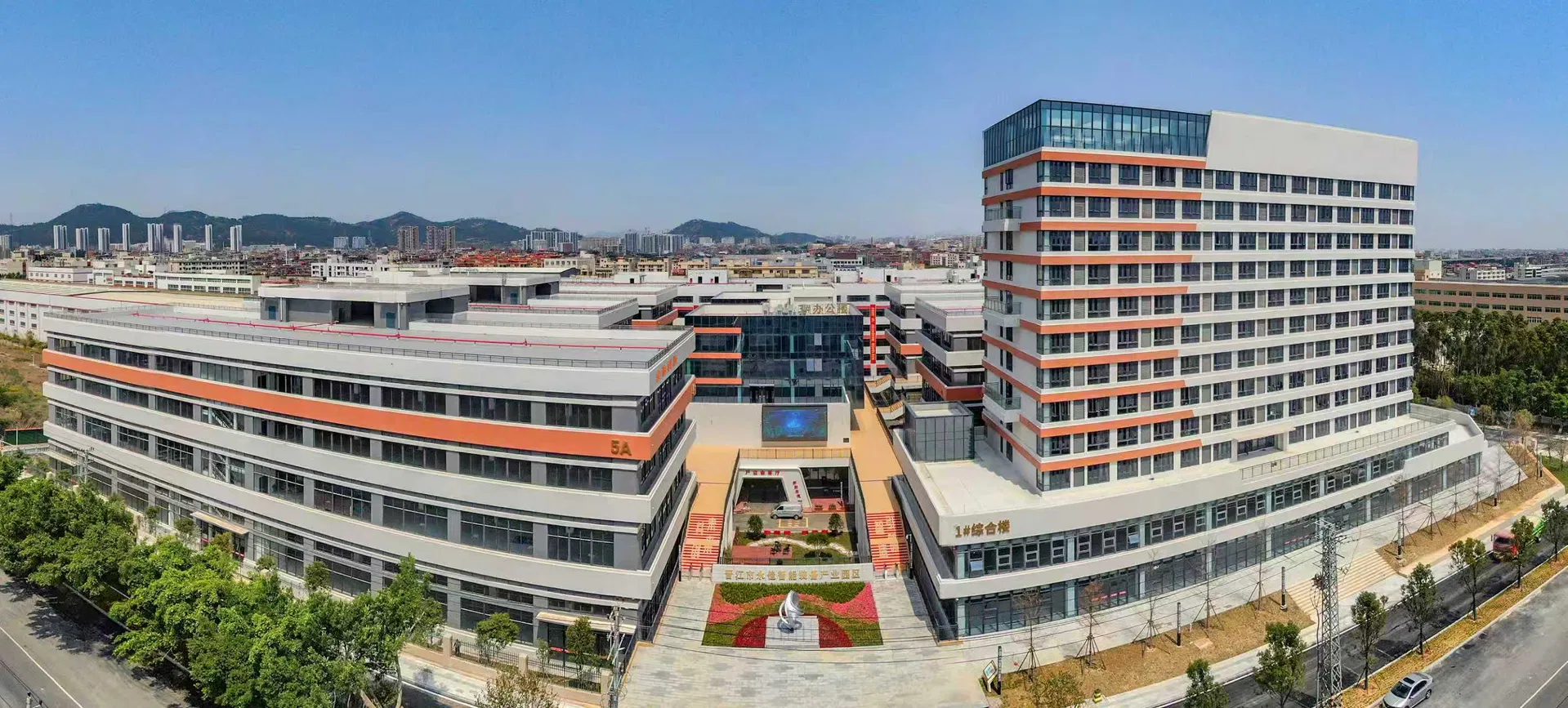

R&D Department

Specializing in the research, development, and production of metal foreign body detection equipment, weight detection equipment, visual inspection equipment, and X-ray systems. Our solutions are widely used in food, hygiene products, textiles, and pharmaceutical industries.

Main Product Categories

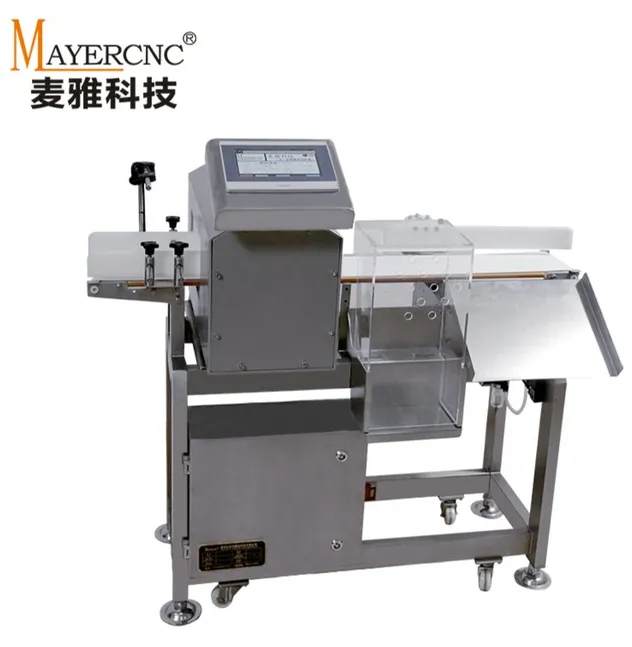

Metal Detector

Online Conveyor Metal Detector

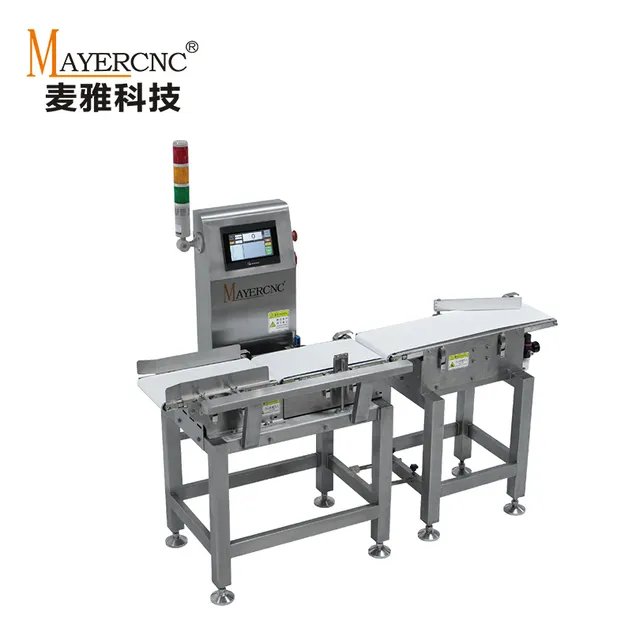

Checkweigher

Precision Checkweigher

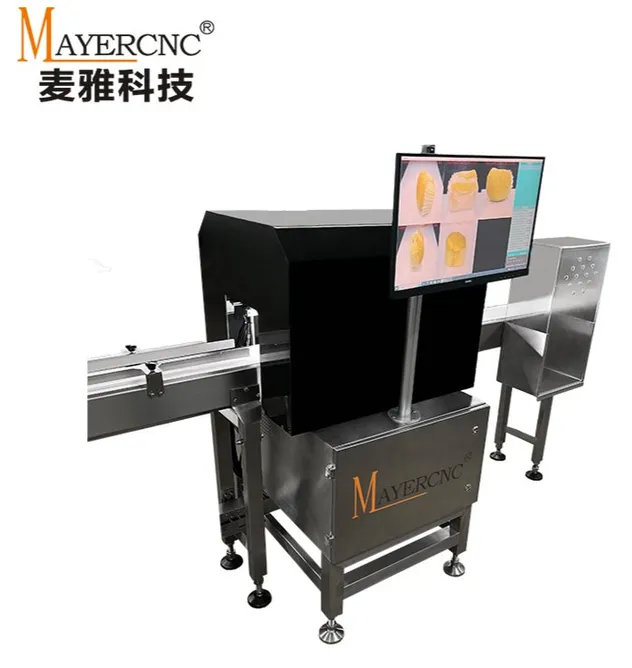

Visual Inspection

Visual Inspection System

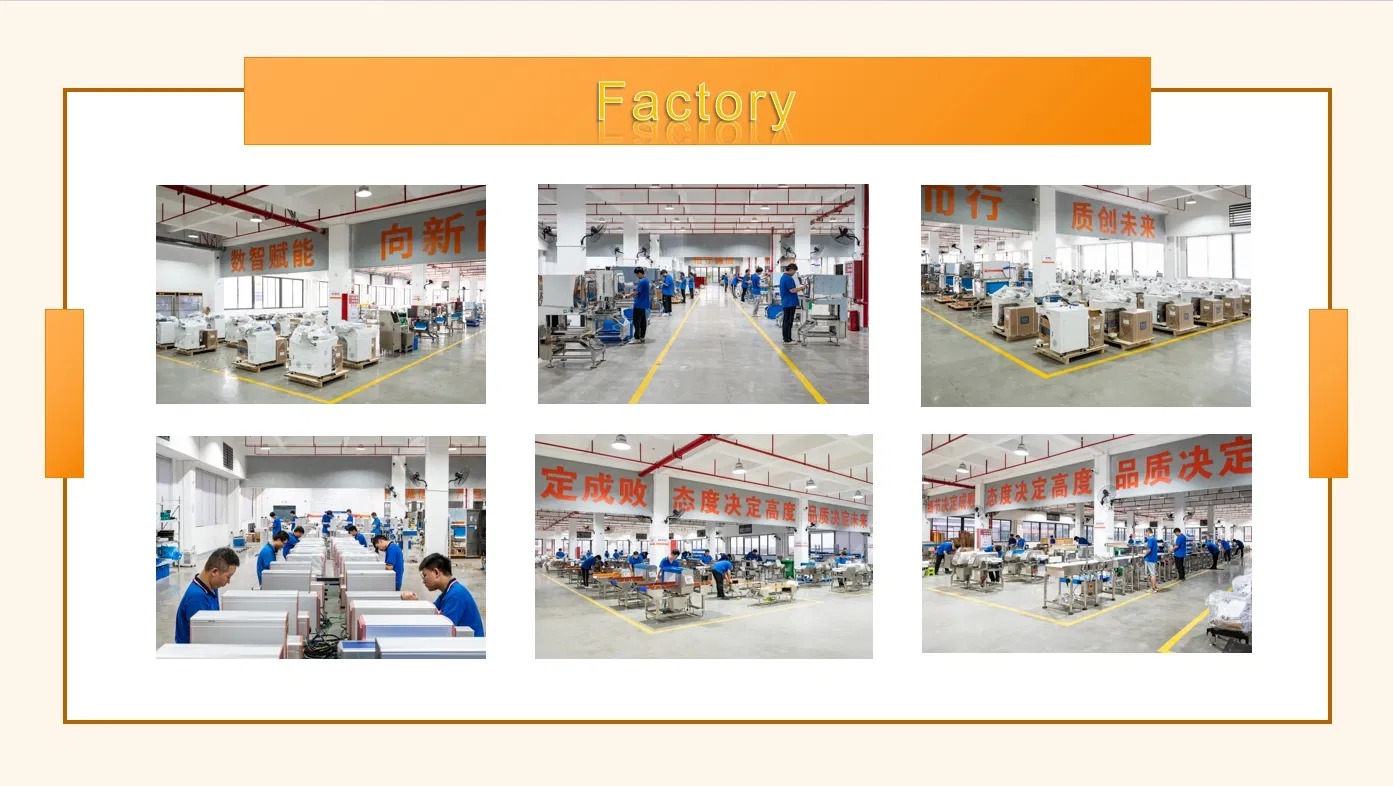

Facility 1
Facility 2
Frequently Asked Questions
What are your main products?
Our main products include metal detectors, checkweighers, X-ray foreign body detection systems, vision inspection systems, and laser marking machines.
How do I know if this machine is right for me?
Our technical team will recommend a suitable model based on your product characteristics and manufacturing specifications. All products can be customized according to requirements.
How do I operate the machine?
The equipment features an LCD display with Chinese and English menu screens, allowing for easy operation according to the instruction manual.
What is the warranty period?
The standard warranty period is one year.
How long does it take to deliver?
Delivery usually takes about 20 business days after receiving the deposit.
Do you provide technical assistance after receipt?
Yes, our after-sales team provides remote technical support for installation and training through online communication channels.
