Product Overview

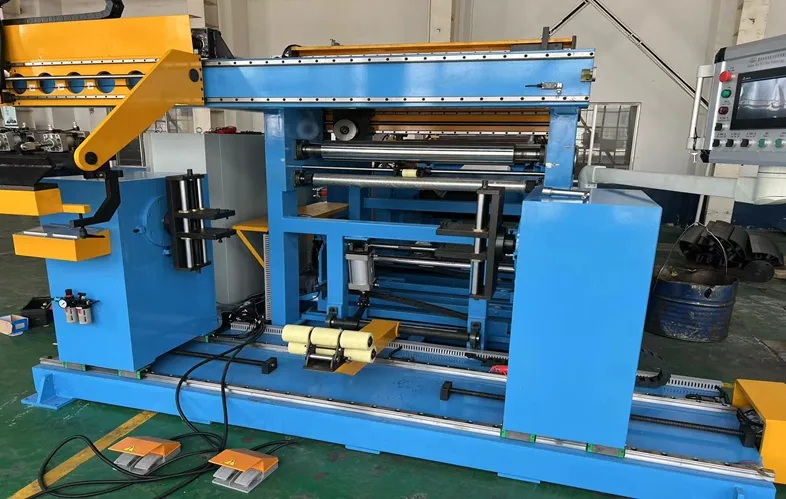

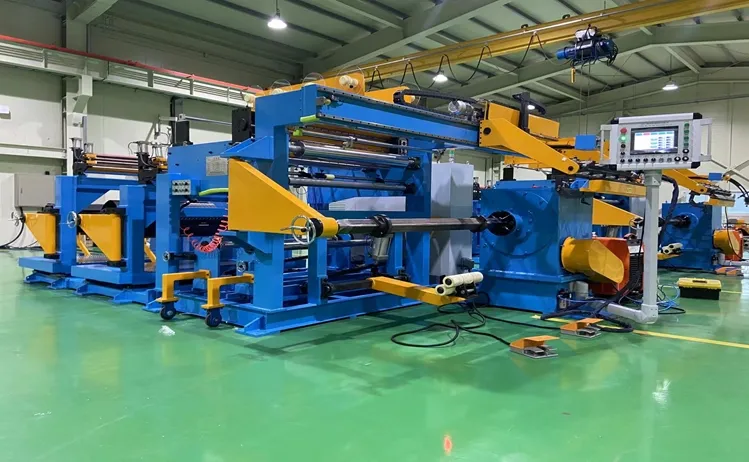

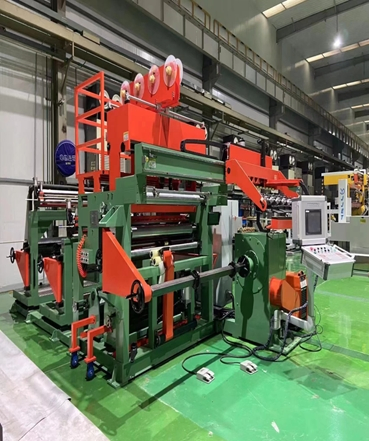

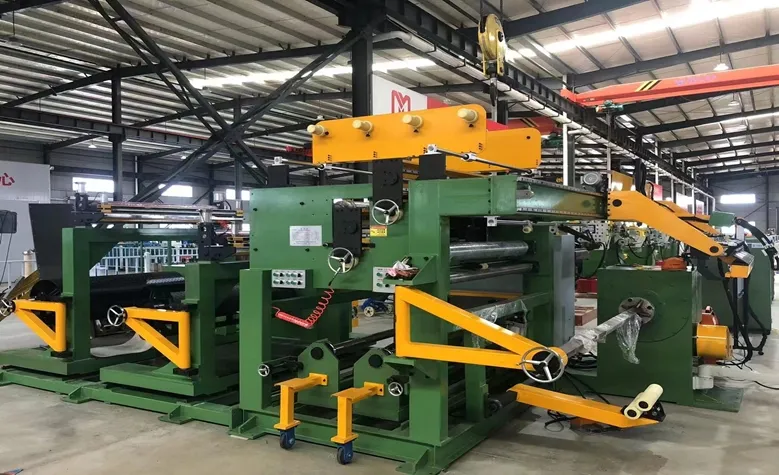

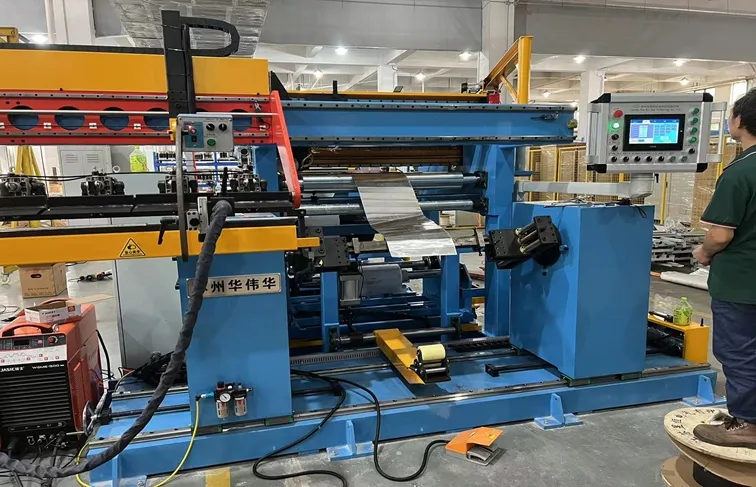

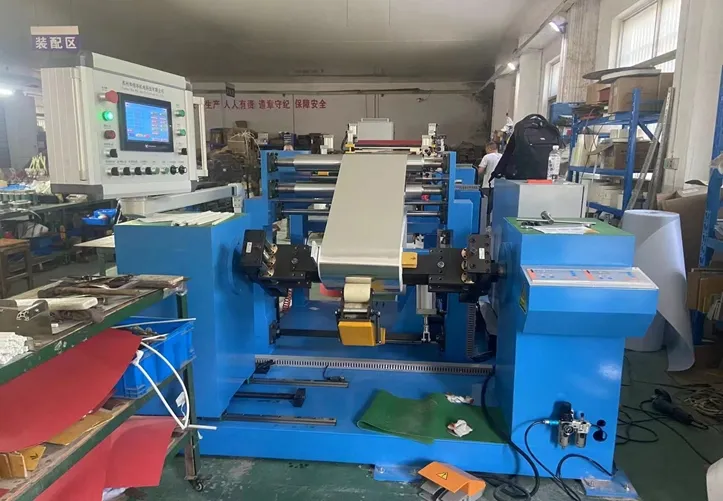

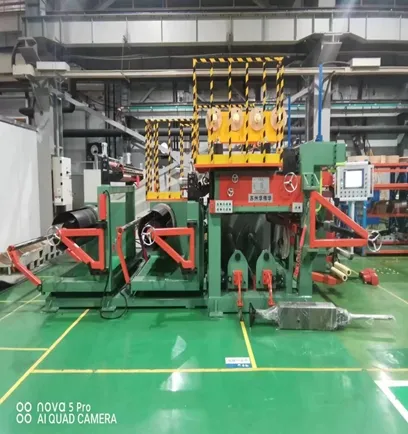

Revolutionary Transformer Foil Winding Machine for Precision Manufacturing
Our cutting-edge Transformer Foil Winding Machine sets new industry standards for coil winding precision and efficiency. Designed for high-voltage transformer and reactor production, this advanced system combines German-engineered mechanics with Japanese servo technology to deliver unmatched performance in electrical manufacturing.
"Advanced transformer foil winding machine delivers ±0.01mm precision, IoT monitoring & energy efficiency. Ideal for power transformers & reactors."
Key Features & Technological Advantages
1
Sub-Micron Precision Winding
- Achieves ±0.01mm alignment accuracy
- Laser-guided real-time correction system
- 0.005mm repeat positioning precision
2
Smart Manufacturing Integration
- Industry 4.0 compatible IoT platform
- Real-time production monitoring via cloud
- Predictive maintenance alerts
3
Multi-Material Versatility
- Handles copper/aluminum foil (0.03-6mm)
- Supports paper/Kapton insulation layers
- Automatic material changeover system
4
Energy Efficient Design
- 35% lower power consumption
- Regenerative braking system
- LED process lighting
5
Enhanced Safety Systems
- CE-certified safety interlocks
- Emergency stop with redundancy
- Automatic fault diagnostics
Frequently Asked Questions
What is the winding precision of this machine?
The machine achieves sub-micron precision with ±0.01mm alignment accuracy and 0.005mm repeat positioning precision using a laser-guided correction system.
What materials are compatible with the Jc-800?
It is designed to handle both copper and aluminum foils with thicknesses ranging from 0.03mm to 6mm, supporting insulation layers like paper or Kapton.
What is the warranty and after-sales support period?
This product comes with a comprehensive 3-year after-sales service guarantee for long-term operational reliability.
Does the machine support smart manufacturing?
Yes, it is Industry 4.0 compatible, featuring an IoT platform for real-time cloud monitoring and predictive maintenance alerts.
What coil shapes can be produced?
The machine is versatile and can wind coils in several forms, including Circular, Oblong, Elliptical, and Rectangular.
How energy efficient is the operation?
The design incorporates a regenerative braking system and efficient components, resulting in 35% lower power consumption compared to traditional models.
