Customization: Available
Application: PC, LCD, PCB, PDP, Biotechnology, Semiconductor, etc
Carrying Capacity: 30kg
Send Inquiry

Product Description

Basic Specifications
Model NO.
TMH6S
Certification
CE, RoHS, ISO 9001:2008
Material
Aluminium
Product Type
Ball Screw Linear Actuator
Max Payload
Horizontal 30kg; Vertical 15kg
Accuracy
+-0.01mm
Stroke
100-800mm
Speed
100-1000mm/S
Ball Screw
C7 diameter 12
Screw Lead
2/5/10/20mm
Linear Guide
W42 X H9.5
Warranty
12 Months
Product Description

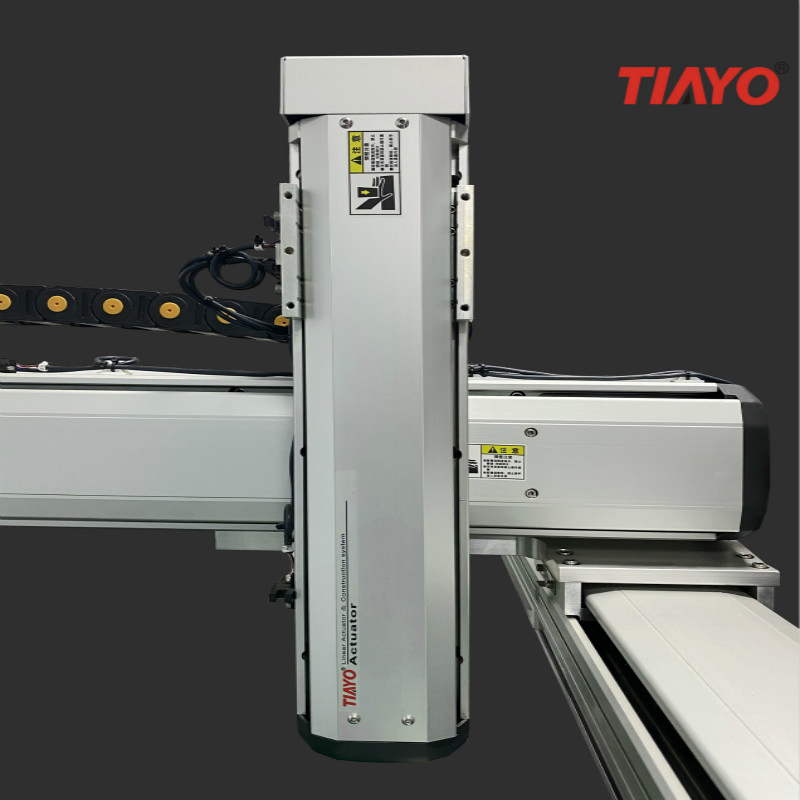

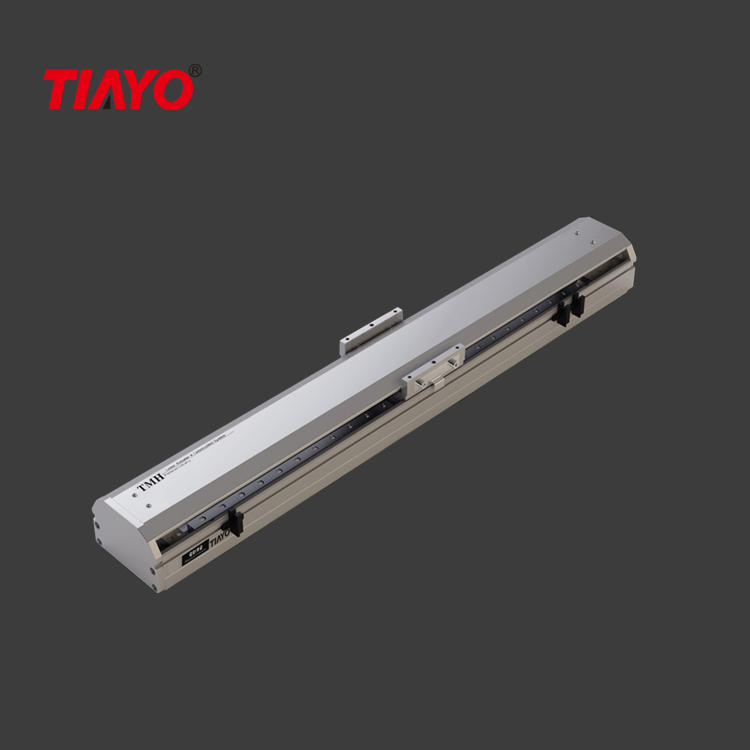

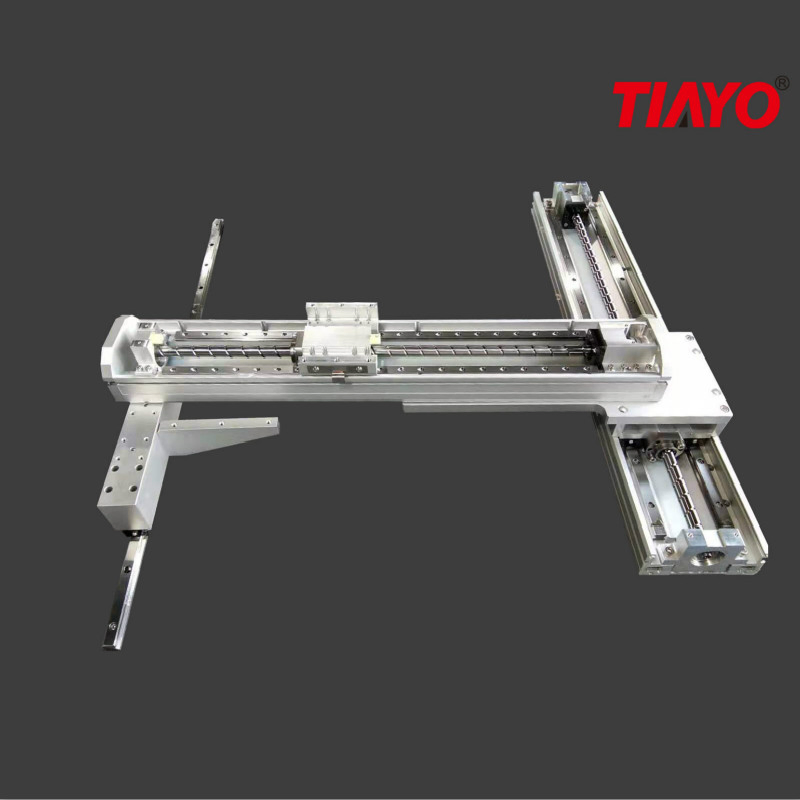

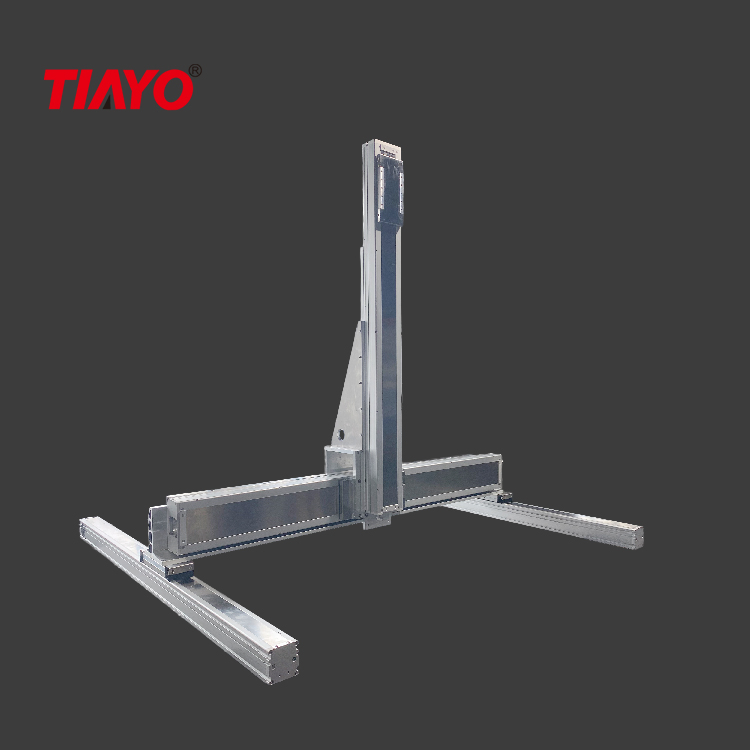

Ball screw module XYZ linear stage multiaxis systems for automation industrial

⚙️
Multi-tasking Design: Integrated drive with ball screw and guide rail U-references. Provides precision linear motion with versatile accessory applications for high precision demands.
📏
Small and Light: U-type rail structure reduces installation volume. Designed using finite element methods for an optimal stiffness-to-weight ratio, reducing energy consumption through low torque and inertia.
🎯
High-Precision & Rigidity: Engineered based on deformation analysis of ball contact positions under multi-directional loads, ensuring superior accuracy and structural integrity.
🔧
Easy Assembly & Maintenance: Can be assembled without professional skills. Features excellent lubrication and dust-proof design for easy long-term maintenance.
Technical Parameters
Parameter Detail Parameter Detail
Product Model TMH6S Repeatability ±0.01mm
Drive Type Semi-sealed ball screw Speed Range 16 - 166mm/s
Screw Lead 2/5/10/20mm Rated Thrust 85N - 1225N
Max Payload H: 30kg / V: 15kg Static Torque 0.39N.m
Motor Position Exposed/Lower/Side Sensor Inside/Outside/None
Product Visuals

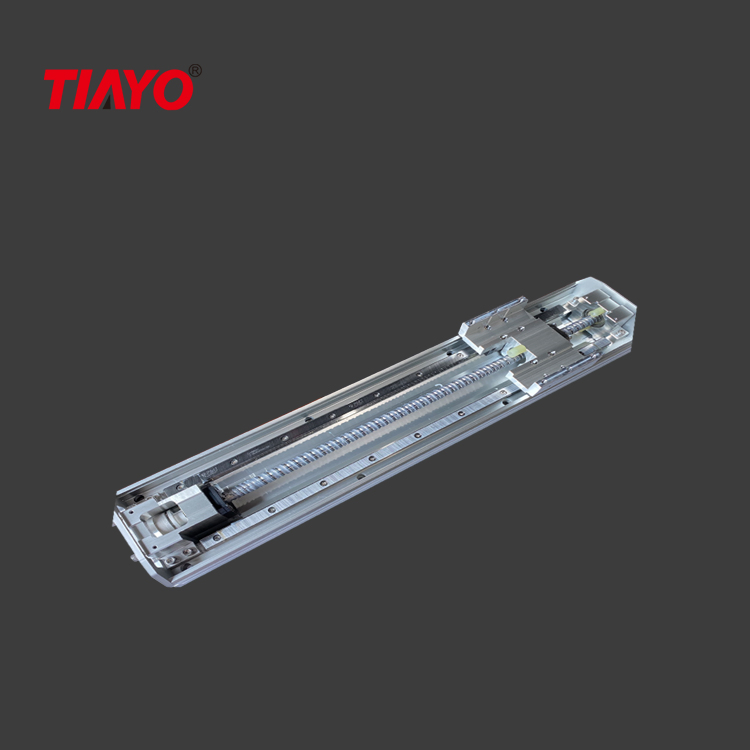

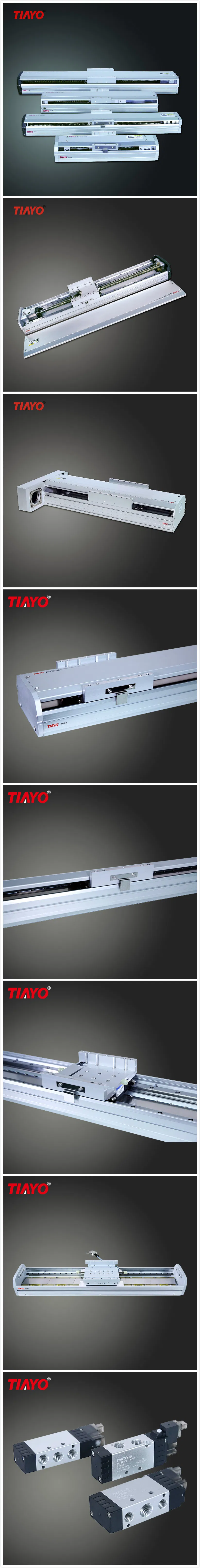

Linear Module Overview

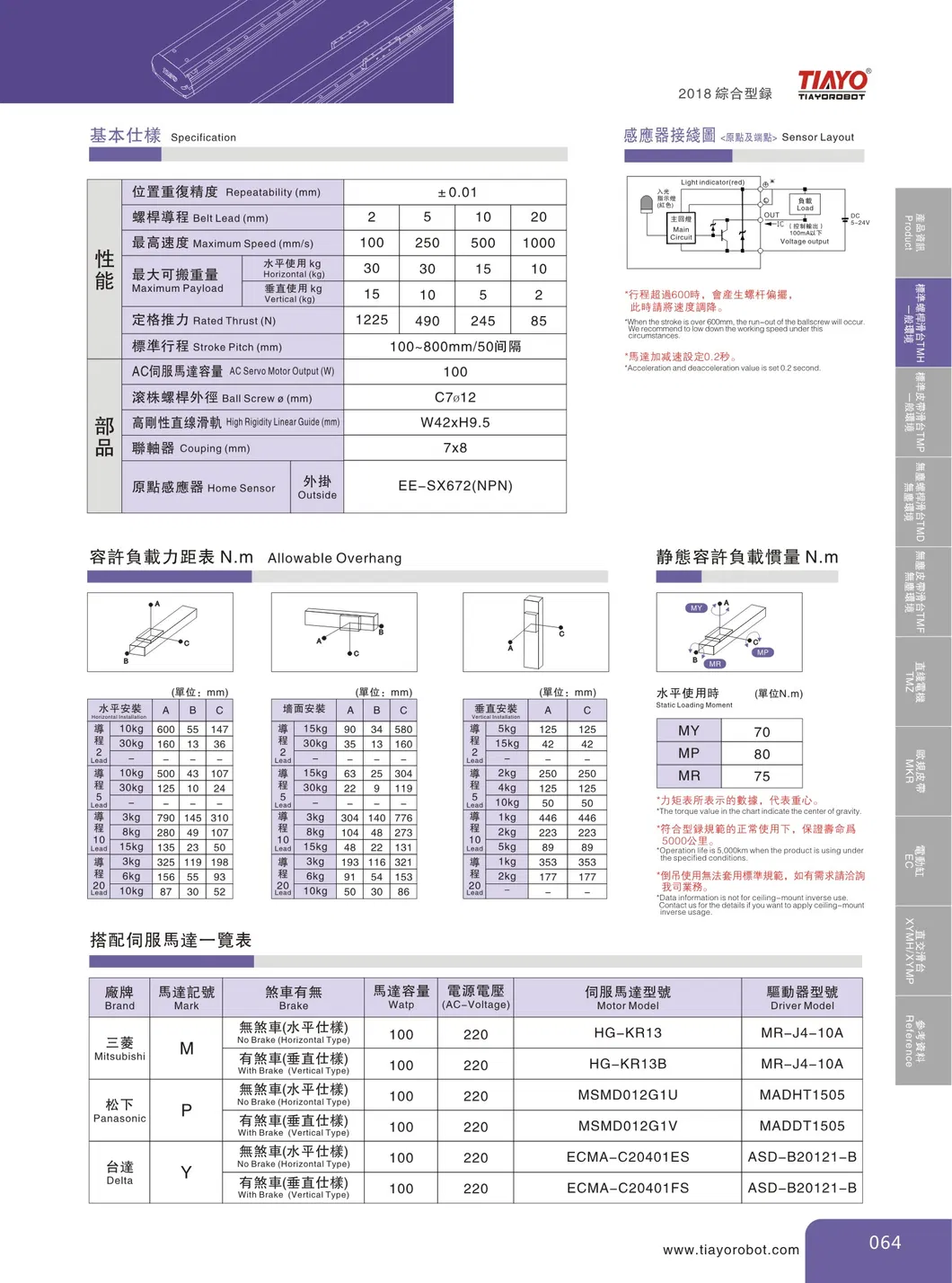

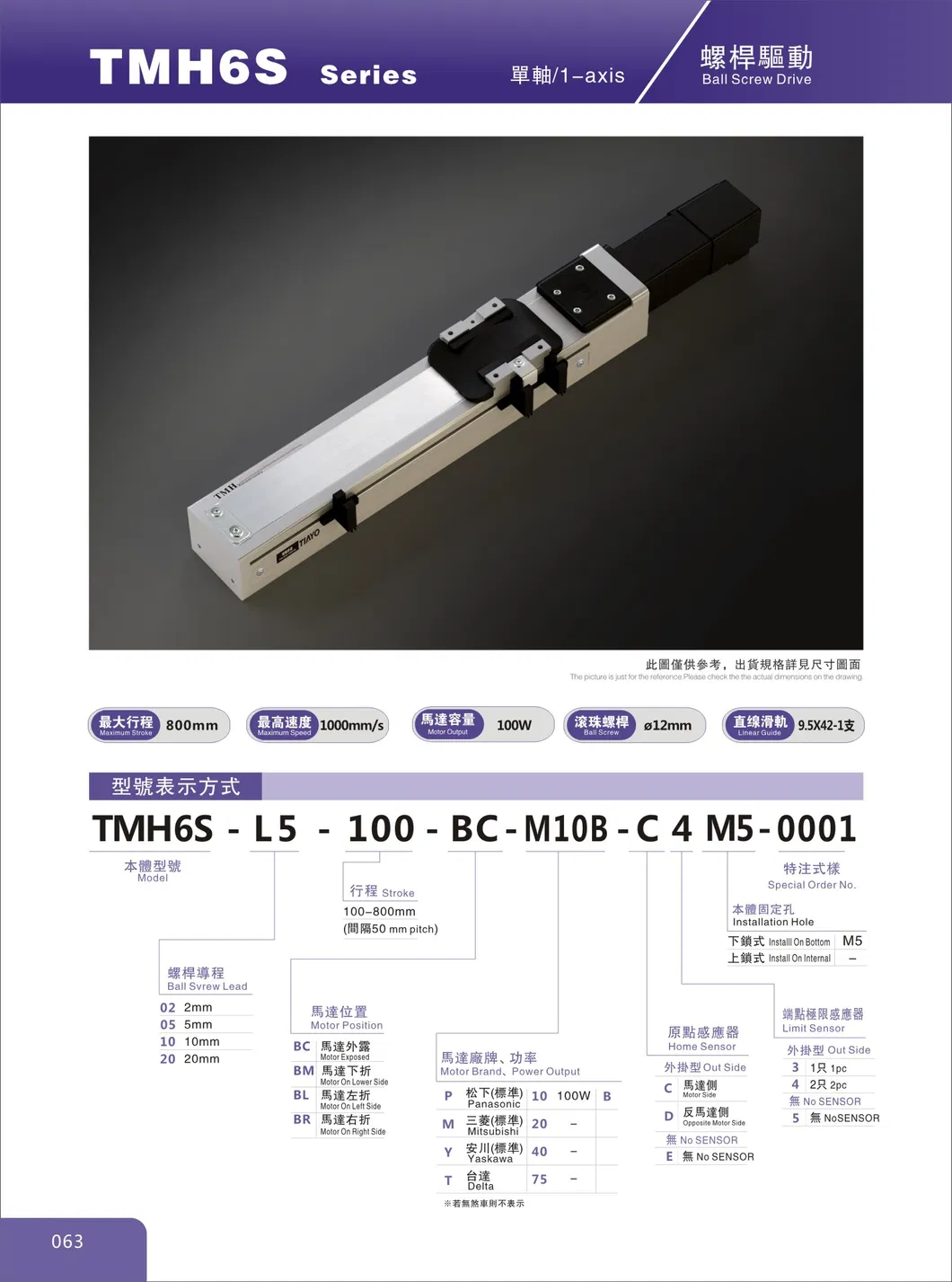

Product Detail 1
Product Detail 2
Range of Application

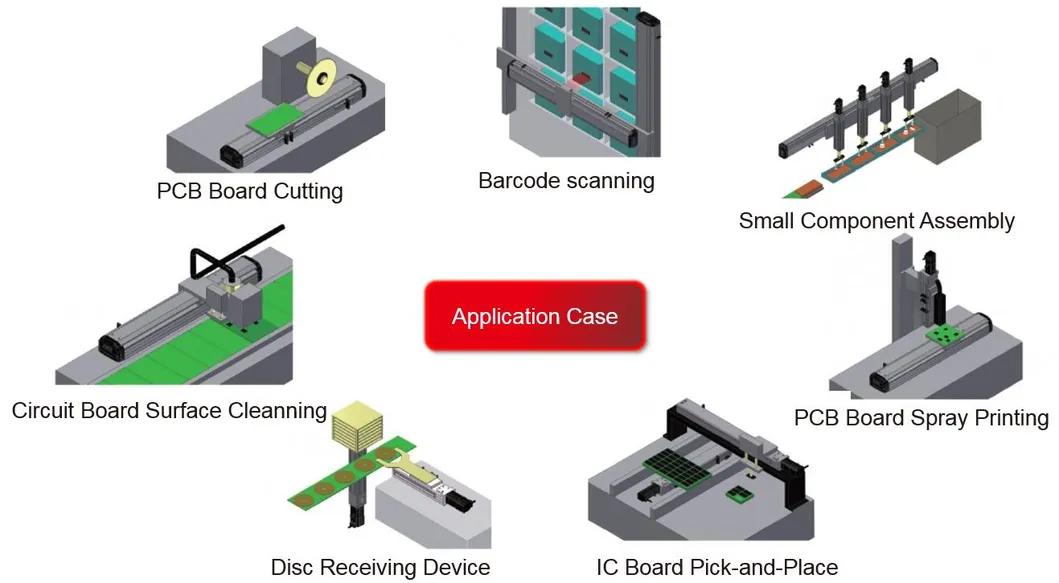

Application Range

Mainly used in dust-free workshops, electronics, medical equipment, IC printing, CCD inspection, soldering automation, laser cutting, 3D printing, and semiconductor production.

Production & Quality Control

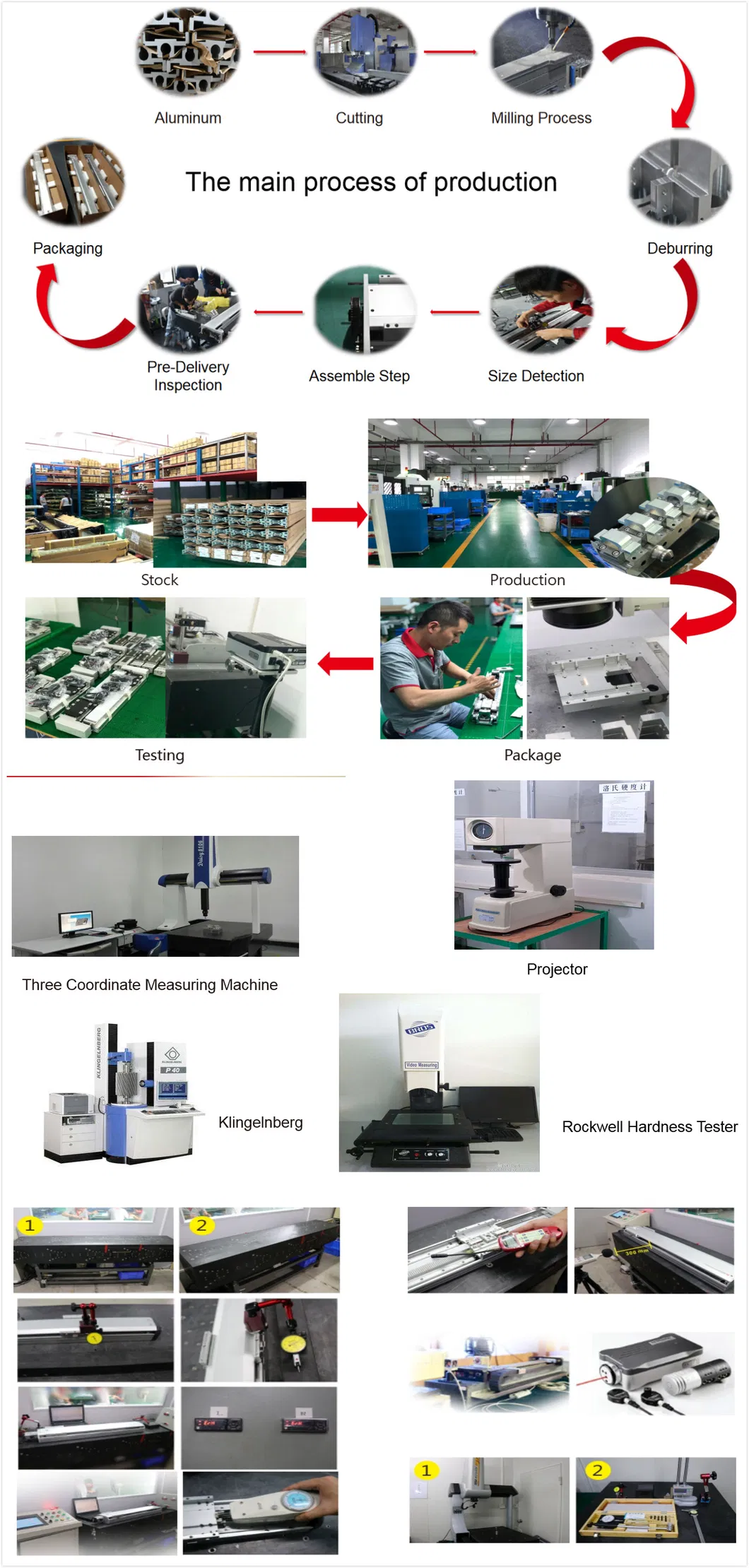

Testing Process
Packing & Logistics
Packaging
Factory Environment

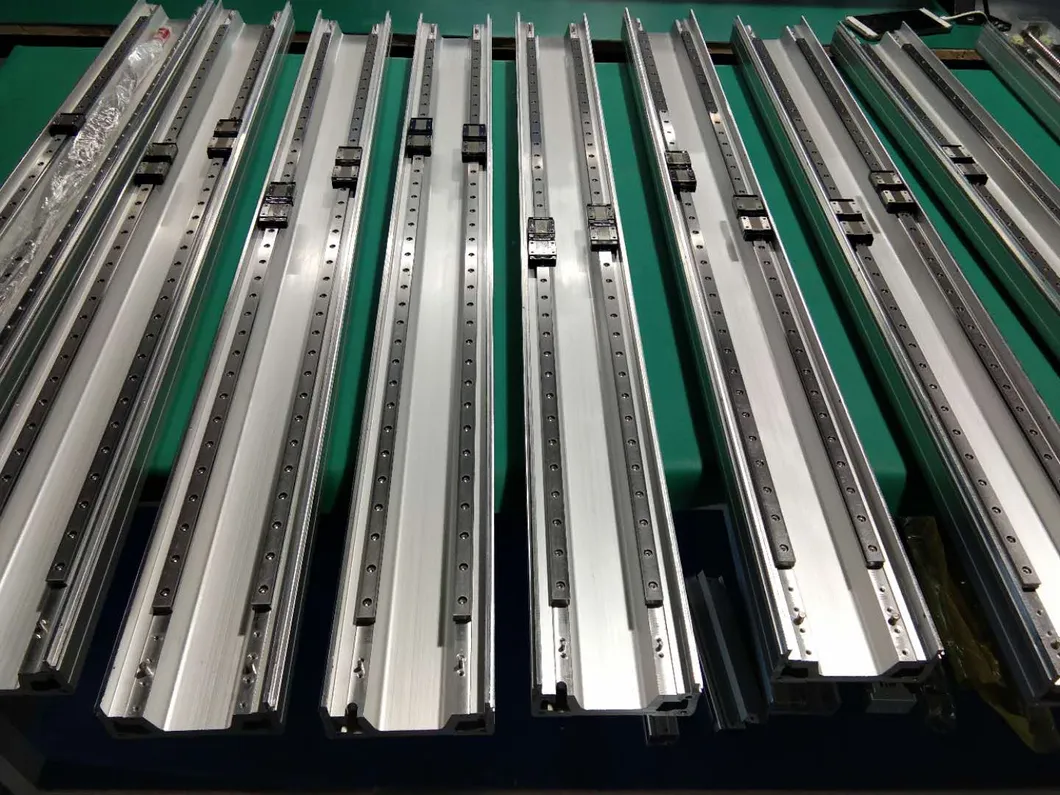

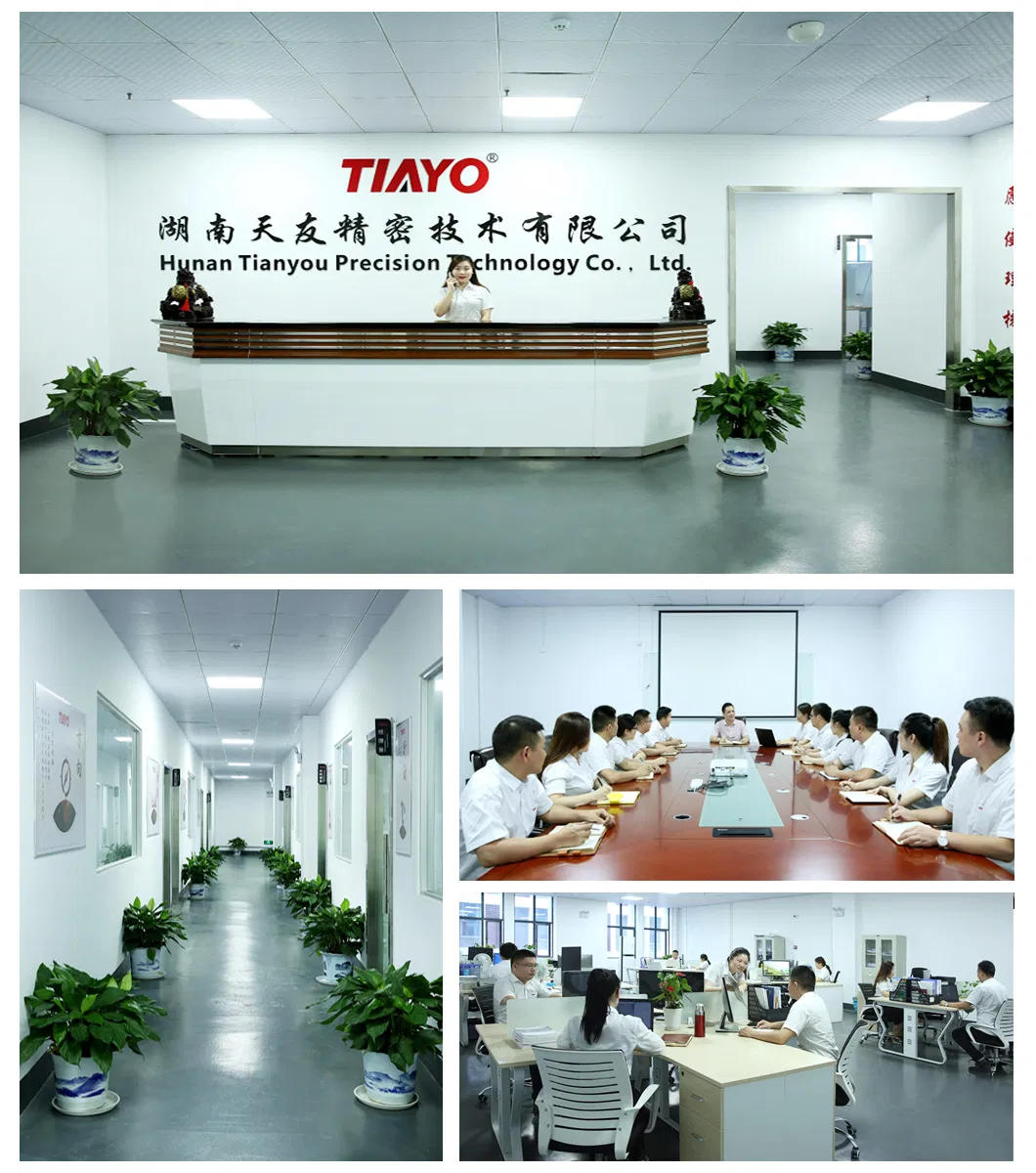

Factory 1

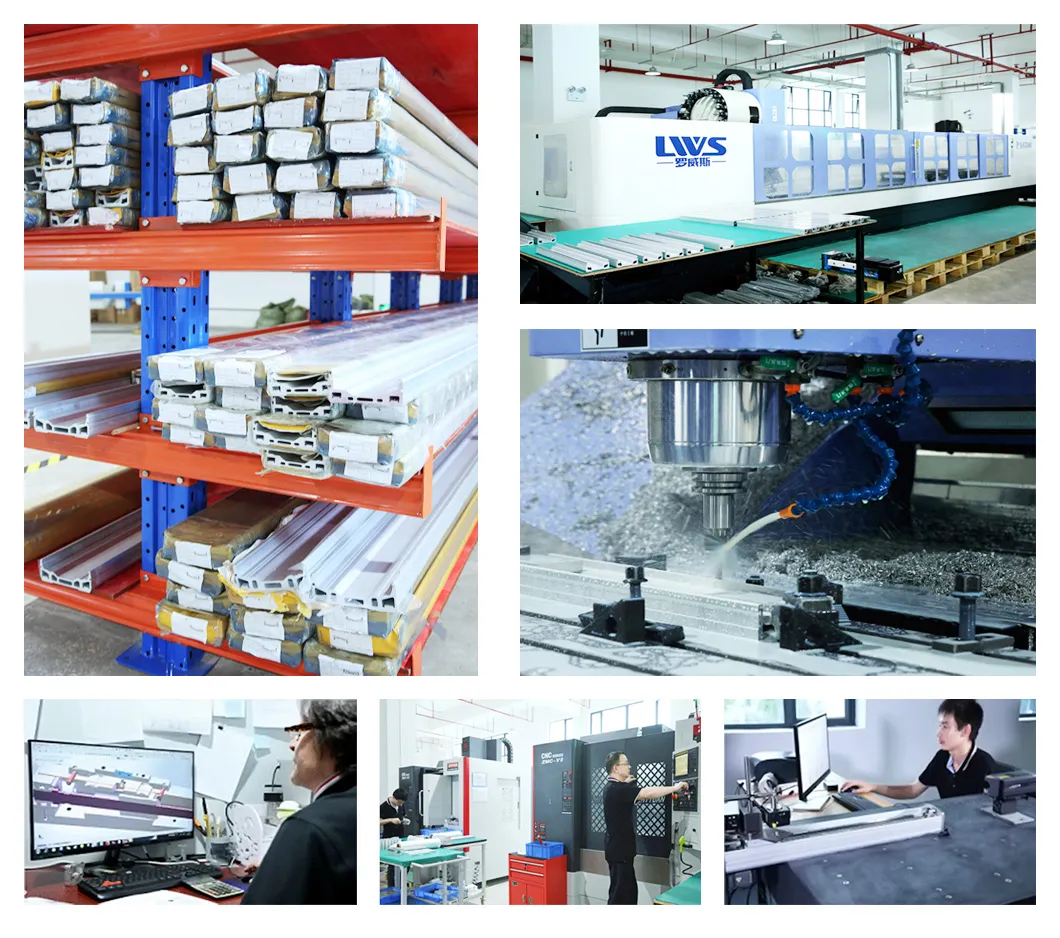

Factory 2
Factory 3

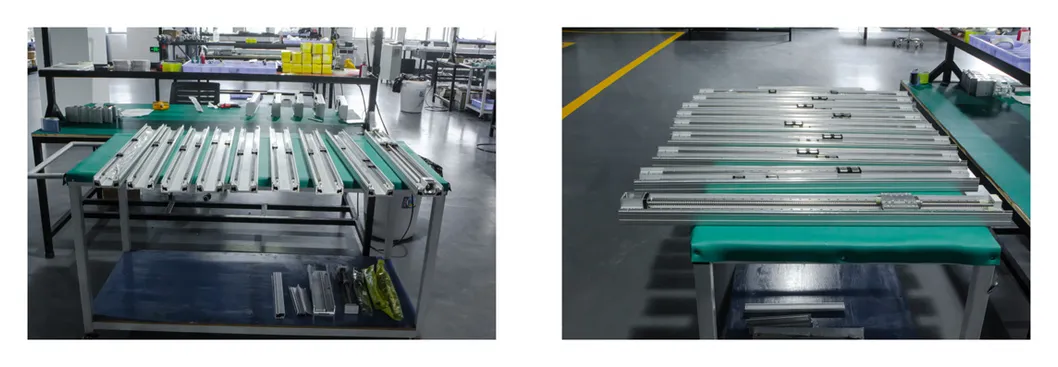

Factory 4
Exhibition
Exhibition Display
Frequently Asked Questions
1. What is the repeatability accuracy of the TMH6S linear module?
The TMH6S model offers high-precision performance with a repeatability accuracy of ±0.01mm.
2. Can I get a customized stroke or solution for my specific application?
Yes, OEM services and customized solutions based on your drawings are available to meet specific industrial requirements.
3. What are the load capacities for this actuator?
The maximum horizontal payload is 30kg, and the maximum vertical payload is 15kg.
4. What is the typical lead time for an order?
Standard samples take approximately 7 working days, while bulk orders typically require 12-15 working days depending on the quantity.
5. How long is the warranty period for these linear actuators?
We provide a 12-month warranty for all linear modules, actuators, and motors starting from the date of the sales contract.
6. Which industries are these modules typically used in?
They are widely used in semiconductor production, 3D printing, laser cutting, medical equipment, and automotive assembly lines.
